2010 SKODA OCTAVIA TOUR display

Instruments and warning lights
32
Handbrake applied
The warning light
 also comes on if the handbrake is applied. An audible warning is
also given if you drive the vehicle for at least 3 seconds at a speed of more than 5 km/h.
The following text will be displayed in the information display*:
HANDBRAKE ON
WARNING

Pay attention to the following instruct ions before checking the brake fluid
level and opening the bonnet page 148, “Working in the engine compart-
ment”.

If the brake system warning light
 does not go out a few seconds after
switching on the ignition or comes on when driving, stop immediately and
check the brake fluid in the reservoir page 154, “Brake fluid”. If the fluid level
has dropped below the MIN marking, do no t drive any further - risk of accident!
Obtain professional assistance.
Seat belt warning light*

The warning light
 comes on after the ignition is switched on as a reminder to fasten
the seat belt.
In the event that the driver is not restrained, a warning signal sounds for 6 seconds.
The following text will be displayed in the information display*:
FA S T E N S E AT B E LT
Further information on the seat belts page 102, “Seat belts”.
s2rc.book Page 32 Thursd ay, April 22, 2010 10:58 AM

Heating and air conditioning system83
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
The AC compressor is switched off at a hi
gh coolant temperature in order to provide
cooling at a high load of the engine.
After switching on the cooling Condensation from the evaporator of the air condi-
tioning may drip down and form a puddle be low the vehicle. This is quite normal and
not an indication of a leak!
If you make a change before switching off the ignition, which differs from the auto-
matic mode, the changed functi ons remain stored. Only the function “circulating air”
is erased 20 minutes after switching off the ignition.
Recommended setting for all periods of the year:

Set the temperature to 22 °C (72 °F).

Press the button page 83, fig. 97.

Move the air outlet vents 3 and 4, so that the air flow is directed slightly upwards
 page 77, fig. 94 .
Switching over between degrees Celsius and degrees Fahrenheit
Press and hold the buttons 17 and 9 page 83, fig. 97 . The information
in the desired temperature measuring unit appears in the display.
WARNING

For your own safety and that of other road users, ensure that all the
windows are free of ice, snow and mistin g. Please familiarize yourself about
how to correctly operate th e heating and ventilation systems, how to demist
and defrost the windows, as well as with the cooling mode.

You should not leave recirculated air mode on over a longer period of time,
as “stale” air may result in fatigue in the driver and occupants, divert your
attention and also cause the windows to mist up. The risk of having an accident
increases. Switch recirculated air mode off as soon as the windows begin
misting up.Note

If the cooling system has not been switched on for a lengthy period, odours may
be produced at the evaporator because of deposits. Switch the cooling system on at
least once a month for approximately 5 minut es at the highest blower stage - also during the cold season of the year - in order to avoid such odours. Also open a window
for a short time.

We recommend that you do not smoke in
the vehicle when the recirculating air
mode is operating since the smoke which is drawn at the evaporator from the interior
of the vehicle forms deposits in the evapor ator of the air conditioning system. This
produces a permanent odour when the air conditioning system is operating which can
only be eliminated through considerable effort and expense (replacement of
compressor).

The used air streams out through the air removal openings in the luggage compart-
ment.

Using the cooling economically  page 82.
Overview of the control elements
The controls enable a separate setting of the temperature for the left
and right side.Fig. 97 Climatronic: Control elementsThe buttons
Defrosting the windscreen
Display Display of blower stages
When switching off the automatic air cond itioning with the button 11, the outside
temperature now indicates OFF, ot her information is not indicated.
AUTO
ECON
AUTO
A1

A2A3
s2rc.book Page 83 Thursday, April 22, 2010 10:58 AM

Heating and air conditioning system
84Defrosting the windscreen
Recirculated air mode

Direction of air flow
Display of selected inside temperature, here: +22 °C
AUTO (automatic mode), ECON (AC compressor switched off) or OFF
(Climatronic switched off)
The buttons Automatic mode
Recirculated air mode
Lower blower speed and button for switching off the air conditioning system
“OFF”
Higher blower speed and button for switching on the air conditioning system
Air flow to head
Air flow in the footwell
Decreasing the temperature
Increasing the temperature (AC compressor switched off, i.e the cooling system)
Interior temperature sensor (on le ft-hand steering models) and (on
right-hand stee ring models).Note
Do not glue or cover over th e sensor, otherwise it could have an unfavourable effect
on the Climatronic.Automatic mode
The automatic mode is used in order to maintain a constant tempera-
ture and to demist the windows in the interior of the car.Switching automatic mode on– Set a temperature between +18°C (64 °F) and +29°C (84 °F).
– Move the air outlet vents 3 and 4  page 77, fig. 94 , so that the air flow is directed
slightly upwards. – Press the button - the warning
light lights up in the button.
The automatic mode is switched off by pressing the button for the air distribution or
increasing or decreasing the blower speed. The temperature is nevertheless
regulated.
ECON mode
The cooling system is switched off in the ECON mode - heating and
ventilation are regulated automatically.Switching ECON mode on– Press the button - the warning light lights up in the button.
– Set a temperature between +18°C (64°F) and +29°C (84°F).Recirculated air mode in ECON mode– First of all press the button - the warning light lights up in the button.
– Then press the button - the warning light lights up in the button.
ECON mode operates only within the control temperature range from +18°C (64 °F)
up to +29°C (84 °F).
The ECON mode is switched off when pressing button or .
Please note that, in the ECON mode, the inte rior temperature cannot be lower than the
outside temperature. The interior is no t cooled and the air is not dehumidified.
If you select the temperature below +18°C (64°F), LO appears in the display. If you
select a temperature higher than + 29°C (84 °F), HI appears in the display. In the LO
position, the supplied air is neit her warmed up nor cooled. In the HI position, the
system operates continuously with maximum heating capacity.
Please refer to the information regarding recirculated air mode page 85.Defrosting windscreenDefrosting windscreen - switching on– Press the button page 83, fig. 97 .
A4A5A6A7A8A9
AUTO
A10

A11A12A13A14A15A16A17
ECON
A18
A18a
A18b
AUTOECON

ECON



s2rc.book Page 84 Thursd ay, April 22, 2010 10:58 AM

Heating and air conditioning system85
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Defrosting windscreen - switching off– Once again press the button or the button .
The temperature control is controlled automatically. More air flows out of the air outlet
vents 1 and 2.Recirculated air mode
In recirculated air mode air is sucked out of the interior of the vehicle
and then fed back into the interior.Recirculated air mode prevents polluted air outside the vehicle from getting into the
vehicle, for example when driving through a tunnel or when standi ng in a traffic jam.Switching recirculated air mode on– Press the button - the warning light lights up in the button.Switching recirculated air mode off– Press again the button or the button - the warning light in the button
goes out.
WARNING
You should not leave recirculated air mode on over a longer period of time, as
“stale” air may result in fatigue in the driver and occupants, divert your atten-
tion and also cause the windows to mist up. The risk of having an accident
increases. Switch recirculated air mode off as soon as the windows begin
misting up.
Note
If the windscreen mists up, press the button page 83, fig. 97 . After the wind-
screen has been demisted, press the button .Setting temperatureYou can set the interior temperature randomly with the buttons and . You can set the interior temperature betw
een +18°C (64°F) and +29°C (84 °F). The
interior temperature is regulated automatica lly within this range. If you select the
temperature below +18°C (64°F), “LO” appears in the display. If you select the temper-
ature higher than +29°C (84 °F ), “HI” appears in the display. In both limit positions the
Climatronic operates at ma ximum cooling or heating capacity, respectively. The
temperature is not controlled in this case.
Lengthy and uneven distribution of the air flow out of the vents (in particular at the leg
area) and large differences in temperature, for example when getting out of the
vehicle, can result in chills in sensitive persons.
Controlling blower
There are a total of six blower stages available.The Climatronic system controls the blower st ages automatically in line with the inte-
rior temperature. You can also, however, adap t the blower stages manually to suit your
particular needs.
– Press the button or page 83, fig. 97 in order to decrease or increase the
speed.
Switch off the blowers, the Climatronic is switched off and in the display shows OFF.
The set blower speed is indicated by the ligh ting up of the respective number of bars
at the point .
WARNING

“Stale air” may result in fatigue in the driver and occupants, reduce atten-
tion levels and also cause the windows to mist up. The risk of having an accident
increases.

Do not switch the Climatronic system off for longer than necessary.

Switch the Climatronic system on as soon as the windows mist up.

AUTO


AUTO
A1
AUTO
A15
A16
A11
A12
A2
s2rc.book Page 85 Thursd ay, April 22, 2010 10:58 AM

Heating and air conditioning system
86

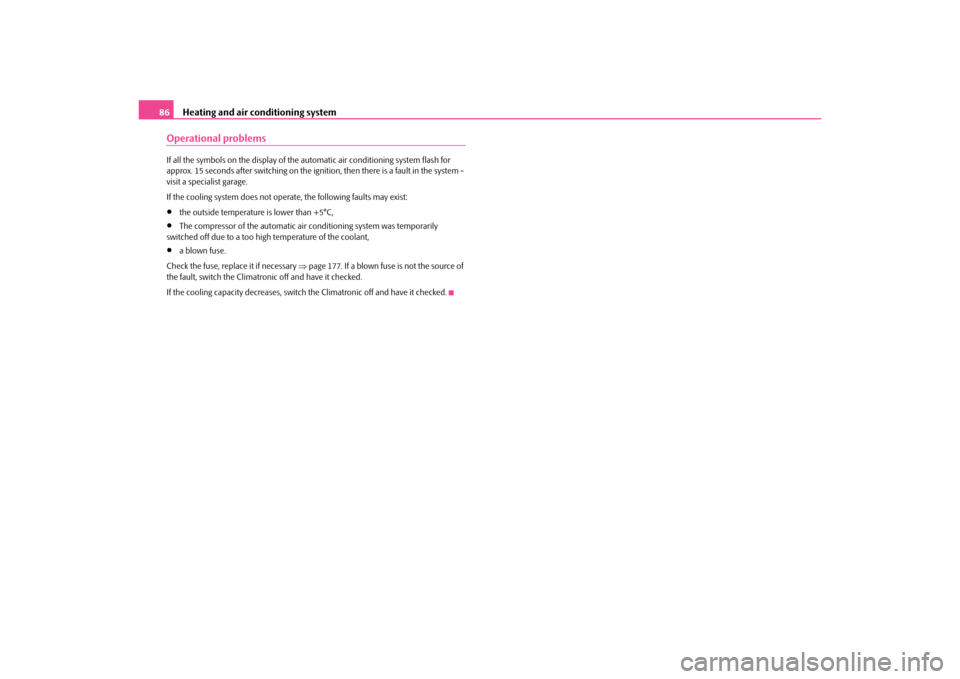

Operational problemsIf all the symbols on the display of the au tomatic air conditioning system flash for
approx. 15 seconds after switching on the igniti on, then there is a fault in the system -
visit a specialist garage.
If the cooling system does not oper ate, the following faults may exist:
the outside temperature is lower than +5°C,

The compressor of the automatic air conditioning system was temporarily
switched off due to a too high temperature of the coolant,

a blown fuse.
Check the fuse, replace it if necessary page 177. If a blown fuse is not the source of
the fault, switch the Climatronic off and have it checked.
If the cooling capacity decreases, switch the Climatronic off and have it checked.
s2rc.book Page 86 Thursday, April 22, 2010 10:58 AM

Starting-off and Driving91
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Releasing the handbrake– Pull the handbrake lever up slightly and at the same time press in the locking
button page 90, fig. 102 .
– Hold the button pressed and push the handbrake lever down fully .
The handbrake warning light
 lights up when the handbrak e is applied, provided the
ignition is on.
A warning signal sounds and the following text appears in the display* if you have
inadvertently driven off wi th the handbrake applied:
HANDBRAKE ON
The handbrake warning is acti vated if you drive at a speed of more than 6 km/h for
more than 3 seconds.
WARNING

Please note that the handbrake must be fully released. A handbrake which
is only partially released can result in the rear brakes overheating which will
have a negative effect on the operation of the brake system - risk of accident! In
addition this can result in premature wear of the rear brake pads.

Never leave children unattended in the vehicle. The children might, for
example, release the handbrake or take the vehicle out of gear. The vehicle
might then move off - risk of accident!Caution
Each time the vehicle is parked, first of all apply the handbrake and then additionally
engage the 1st gear.
Rear parking aid*The parking aid provides a warning of obstacles behind the vehicle.The audible parking aid determines the di stance between the rear bumper and an
obstacle located behind the vehicle with the aid of ultrasound sensors. The sensors are
integrated in the rear bumper.
Range of sensors
The clearance warning begins at a distance of about 160 cm from the obstacle (area
 fig. 103 ). The interval between the warning signals becomes shorter as the clear-
ance is reduced.
A continuous tone sounds from a distance of approx. 30 cm (area ) - danger area.
You should not reverse any further after this signal sounds!
Activating
The parking aid is activated automatically when reverse gear is engaged and the igni-
tion is turned on. This is confirmed by a brief acknowledgement signal.
Deactivating
The parking aid is deactivated by removing the reverse gear.
Fig. 103 Parking aid: Detection
range of rear sensors
AA
AB
s2rc.book Page 91 Thursd ay, April 22, 2010 10:58 AM

Airbag system
112
Function of the side airbags
Risk of injury to the upper part of the body is reduced by fully inflated
side airbags.In the case of a violent side crash , the side airbag in the front seat is deployed on the
side of the vehicle on which the collision occurs fig. 122 .
In certain accident situations , the front and side airbags may be deployed together.
If an airbag is deployed, the airbag is filled with gas. The airbags inflate in fractions of a
second and at a high speed in order to be able to offer that additional protection in the
event of an accident.
A grey white, non harmful gas is released when airbag is inflated. This is perfectly
normal and is not an indicati on of a fire in the vehicle.
The load of the occupants is cushioned when plunging into the fully inflated airbag and
the risk of injury to the entire upper body (chest, stomach and pelvis) is reduced on the
side facing the door.Important safety information on the side airbag
Correct use of the airbag system cons iderably reduces the risk of injury!
WARNING

It is essential to always switch off the front passenger airbag and/or side
airbag when attaching a child safety seat on the front passenger seat where the child is seated with its back facing in direction of travel (in some countries also
when the child is facing the direction of travel)
page 113, “Deactivating an
airbag”. If this is not done, there is a risk of the child suffering severe or even
fatal injuries if the front passenger ai rbag is deployed. In certain countries
national legal provisions also require th at the side passenger airbags be deac-
tivated. When transporting a child on the front passenger seat, please comply
with the appropriate national regulations regarding the use of child safety
seats.

Your head should never be positioned in the deployment area of the side
airbag. You might suffer severe injuries in the event of an accident. This applies
in particular to children who are transported without using a suitable child
safety seat page 117, “Child safety and side airbag*”.

If children adopt an incorrect seated position when travelling, they may be
exposed to an increased risk of injury in the event of an accident. This can result
in serious injuries page 115, “What you should know about transporting
children!”.

There must not be any further persons, animals as well as objects posi-
tioned between the occupants and the deployment area of the airbag. No
accessories, such as a can holder, should be attached to the doors.

Only hang light items of clothing on the clothes hooks to the vehicle. Never
leave any heavy or sharp-ed ged objects in the pockets of the items of clothing.

Ensure that there are no excessive forc es, such as violent knocks, kicks etc.,
impact on the backrests of the seats otherwise the system may be damaged.
The side airbags would not be deployed in such a case!

Any seat or protective covers which you fit to the driver or front passenger
seats must only be of the type expressly authorised by Škoda Auto. In view of
the fact that the airbag inflates out of the backrest of the seat, use of non-
approved seat or protective covers would considerably impair the protective
function of the side airbag.

Any damage to the original seat covers in the area of the side airbag module
must be repaired without delay by your specialist garage.

The airbag modules in the front seats must not display any damage, cracks
or deep scratches. It is not permissible to use force in order to open the
modules.
Fig. 122 Inflated side airbag
WARNING (continued)
s2rc.book Page 112 Thursday, April 22, 2010 10:58 AM

Breakdown assistance169
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data

The spare wheel lies in a well under the floor covering of the luggage compartment
and is fixed in place using special screws
page 168, fig. 159 .
Before removing the spare wheel, you must take out the box with the vehicle tool kit
box page 167, fig. 157.
One should check the inflation pressure in the spare wheel (at best when generally
checking the tyre air pressures - see sign on the fuel filler flap page 160) to ensure
that the spare wheel is always ready to use.
Temporary spare wheel
A warning label displayed on the rim of the temporary spare wheel indicates that your
vehicle is equippe d with a temporary spare wheel.
Please observe the following notes when driving with a temporary spare wheel:

The warning label must not be covered after installing the wheel.

Do not drive faster than 80 km/h with this spare wheel and pay particular attention
while driving. Avoid accelerating at full throttle, sharp braking and fast cornering.

The inflation pressure for this spare wheel is identical to the inflation pressure of
the standard tyres.

Use this spare wheel only to reach the nearest specialist garage as it is not intended
for continuous use.
Changing a wheelPreliminary workThe following steps should be carried ou t before actually changing the wheel.
– If it is necessary to change a wheel, park the vehicle as far away as possible from
the traffic flow. The place you choose should be level.
–Have all the occupants get out. While changing a wheel, the occupants of the
vehicle should not stand on the road (e.g. behind a crash barrier).
– Apply the handbrake firmly.
– Shift up into the 1st gear . – If a trailer is coupled, uncouple it.
–Take the
vehicle tool kit  page 167 and the spare wheel*  page 168 out of the
luggage compartment.
WARNING

If you find yourself in flowing traffic switch on the hazard warning lights
system and place the warning triangle on the side of the road at the prescribed
distance from your vehicle while observin g all national legal provisions. In this
way you are protecting not only yourself but also other road users.

Never start the engine with the vehicle si tting on the raised jack - danger of
suffering injury.Caution
If you have to change a wheel on a slope fi rst block the opposite wheel with a stone or
similar object in order to secure the vehicle from unexpectedly rolling away.
Note
Comply with the national legal regulations.Changing a wheelAlways change a wheel on a level surface as far as possible.
– Take off the full wheel trim* page 170 or the caps page 171.
– In the case of light alloy wheels remove the wheel trim cap page 171.
– Slacken the wheel bolts page 171.
– Jack up the vehicle until the wheel to be changed is clear of the ground
 page 172.
– Unscrew the wheel bolts and place them on a clean surface (cloth, paper etc.).
– Take off the wheel.
– Fit on the new spare wheel* and tighten the wheel bolts slightly.
– Lower the car.
s2rc.book Page 169 Thursday, April 22, 2010 10:58 AM
