2010 SKODA OCTAVIA Blues Car Radio Manual

SIMPLY CLEVER
www.skoda-auto.com
Autorádio Blues
Octavia, Yeti anglicky 05.09
S00.5610.63.20
1Z0 012 149 CD
ŠkodaAuto
CAR RADIO BLUES

Blues.indd 1Blues.indd 122.4.2009 14:01:2722.4.2009 14:01:27

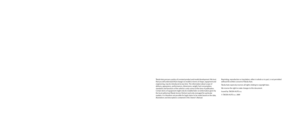

Škoda Auto pursues a policy of constant product and model development. We trust
that you will understand that changes to models in terms of shape, equipment and
engineering, may be introduced at any time. The information about scope of
delivery, appearance, performances, dimensions, weight, fuel consumption,
standards and functions of the vehicle is only correct at the time of publication.
Certain items of equipment might only be installed later on (information given by
the local authorised Škoda Service Partner) and only envisaged for particular
markets. It is therefore not possible for legal claims to be made based on the data,
illustrations and descriptions contained in this Owner's Manual.Reprinting, reproduction or translation, either in whole or in part, is not permitted
without the written consent of Škoda Auto.
Škoda Auto expressly reserves all rights relating to copyright laws.
We reserve the right to make changes to this document.
Issued by: ŠKODA AUTO a.s.
© ŠKODA AUTO a.s. 2009
Blues.indd 2Blues.indd 222.4.2009 14:01:3022.4.2009 14:01:30

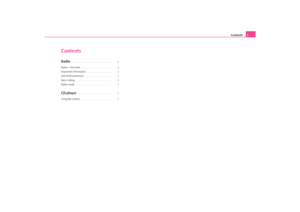

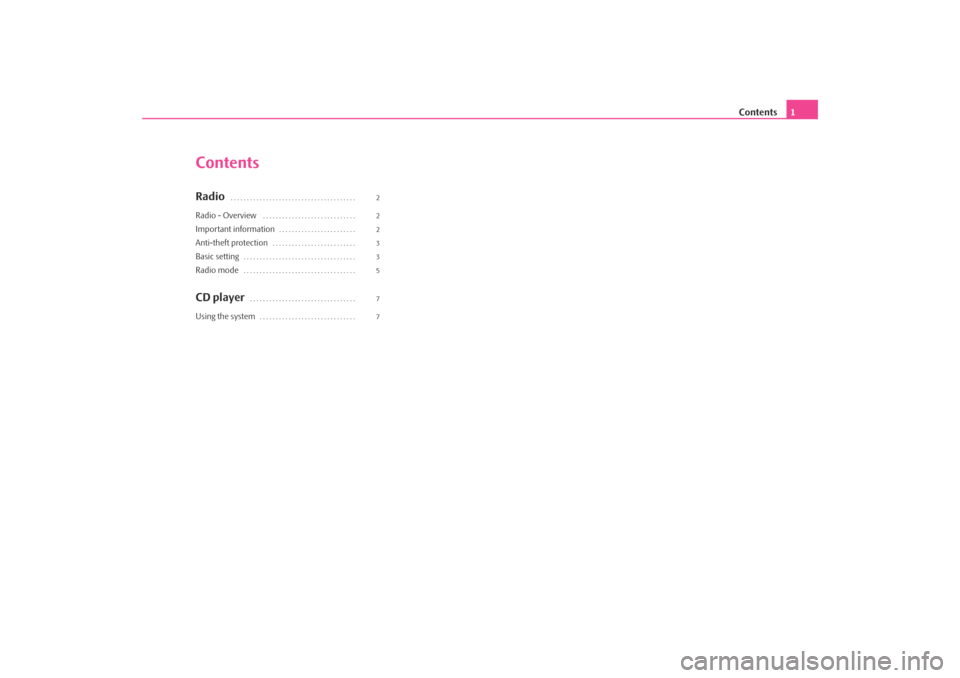

Contents
1
ContentsRadio
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Radio - Overview
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Important information
. . . . . . . . . . . . . . . . . . . . . . . .
Anti-theft protection
. . . . . . . . . . . . . . . . . . . . . . . . . .
Basic setting
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Radio mode
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CD player
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Using the system
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2 2 2335 7 7
s220.book Page 1 Tuesday, August 5, 2008 6:46 AM

Radio

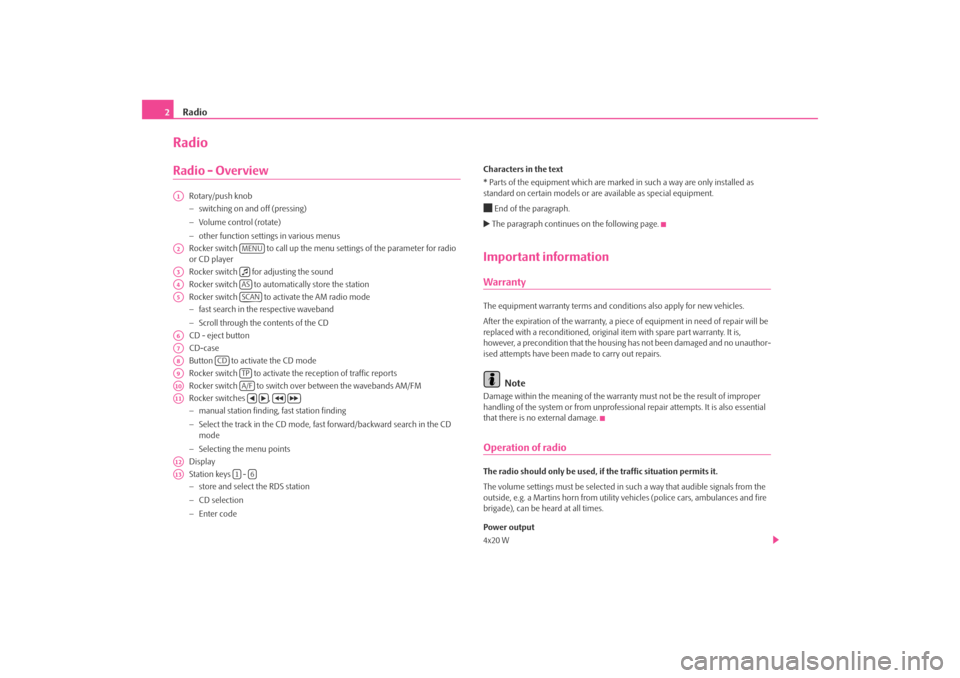

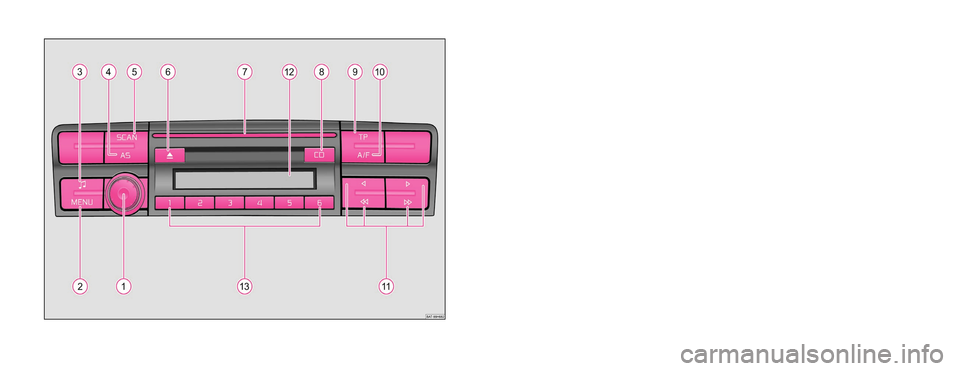

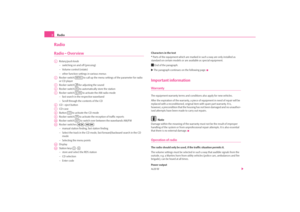

2RadioRadio - Overview
Rotary/push knob − switching on and off (pressing) − Volume control (rotate) − other function settin
gs in various menus
Rocker switch to call up the menu
settings of the parameter for radio
or CD player Rocker switch for adjusting the soundRocker switch to automatically store the station Rocker switch to activate the AM radio mode − fast search in the respective waveband − Scroll through the contents of the CD CD - eject button CD-caseButton to activate the CD mode Rocker switch to activate the reception of traffic reports Rocker switch to switch ov
er between the wavebands AM/FM
Rocker switches , − manual station finding, fast station finding − Select the track in the CD mode, fast forward/backward search in the CD mode − Selecting the menu points Display Station keys - − store and select the RDS station − CD selection − Enter code
Characters in the text * Parts of the equipment which are marked in such a way are only installed as standard on certain models or are available as special equipment. End of the paragraph. The paragraph continues on the following page.Important informationWarrantyThe equipment warranty terms and conditions also apply for new vehicles. After the expiration of the warranty, a piec
e of equipment in need of repair will be
replaced with a reconditioned, original item with spare part warranty. It is, however, a precondition that the housin
g has not been damaged and no unauthor-
ised attempts have been made to carry out repairs.
Note
Damage within the meaning of the warranty must not be the result of improper handling of the system or from unprofession
al repair attempts. It is also essential
that there is no external damage.Operation of radioThe radio should only be used, if the traffic situation permits it. The volume settings must be selected in
such a way that audible signals from the
outside, e.g. a Martins horn from utility
vehicles (police cars,
ambulances and fire
brigade), can be heard at all times. Power output 4x20 W
A1A2
MENU
A3

A4
AS
A5
SCAN
A6A7A8
CD
A9
TP
A10
A/F
A11




A12A13
1
6
s220.book Page 2 Tuesday, August 5, 2008 6:46 AM

Radio
3
WARNING
Please concentrate fully at
all times on your driving! As the driver you are
fully responsible for road safety. Only use the functions of the radio in such a way that you are always in full co
ntrol of your vehicle in all traffic
situations!Using the displayCarefully handle the display because dent
s and scratches can occur through pres-
sure of the finger or contact with sharp objects. The display can be cleaned with a soft cl
oth and finger marks can be wiped away
with pure alcohol.
Note
Do not use solvent such as turpentine or
petrol as they will corrode the display
surface.Anti-theft protectionAnti-theft codingYour radio is equipped with a convenience co
ding. If the radio is being operated for
the first time, the safety code is not only
stored in the radio but also in the vehicle.
After disconnecting and reconnecting the batte
ry, first of all switch on the ignition
and then the radio. If you wish to install the radio in another vehicle, the safety code must be entered. In this case, please do not hesitate to
contact a Škoda Service Partner or a Škoda
importer. As the unit only functions after entering the
safety code, this practically excludes its
use after a theft - a contribution to increased anti-theft safety.
Note
The code is stored in the instrument cluste
r. This ensures that it is automatically
decoded (convenience coding). Manual
input of the code is normally not
necessary.Enter code– Switch on the radio if the ignition is on.
SAFE
is displayed and then
1000
.
– Enter the safety code using the station keys - .– Confirm the safety code by pressing the station key .If you have confirmed a wrongly entered co
de, you can repeat once again the entire
process. If the code number is entered incorrectl
y for the second time, the unit will be
blocked for approx. one hour. It is possible
to enter again the safety code after one
hour has expired, when the unit and th
e ignition have been switched on.
The cycle - two attempts, blocked for
an hour - will continue to apply.
Basic settingSwitching the unit on and off– The system is switched on or off by turning / pressing the rotary / push
knob .
If the key is pulled out of the ignition lo
ck with the unit swit
ched on, the unit wil
switch off automatically. You can switch
on again the unit by pressing the
rotary/push knob . When the ignition is
switched off, the unit switches off auto-
matically after approx. one hour (dischar
ge protection of the vehicle battery).
1
4
6
A1
A1
s220.book Page 3 Tuesday, August 5, 2008 6:46 AM

Radio

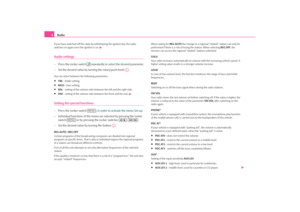

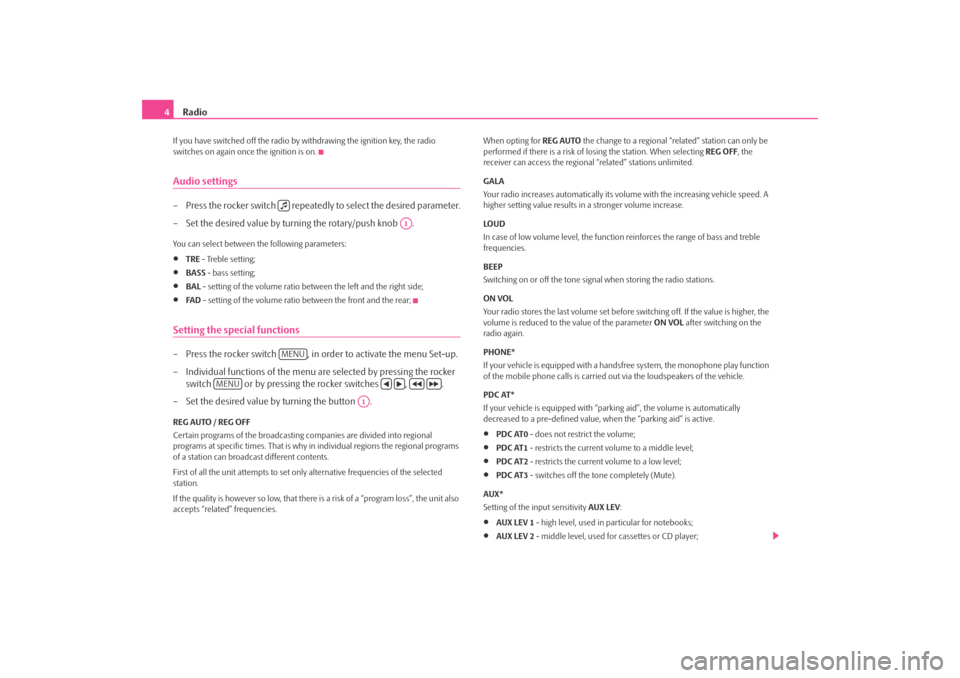

4If you have switched off the radio by withdrawing the ignition key, the radio switches on again once the ignition is on.Audio settings– Press the rocker switch repeatedly to select the desired parameter. – Set the desired value by turning the rotary/push knob .You can select between the following parameters:•
TRE
- Treble setting;
•
BASS
- bass setting;
•
BAL
- setting of the volume ratio between the left and the right side;
•
FA D
- setting of the volume ratio between the front and the rear;
Setting the special functions– Press the rocker switch , in order to activate the menu Set-up. – Individual functions of the menu are
selected by pressing the rocker
switch or by pressing the rocker switches , .
– Set the desired value by turning the button .REG AUTO / REG OFF Certain programs of the broadcasting
companies are divided into regional
programs at specific times. That is why in individual regions the regional programs of a station can broadcast different contents. First of all the unit attempts to set only alternative frequencies of the selected station. If the quality is however so low, that there is a risk of a “program loss”, the unit also accepts “related” frequencies.
When opting for
REG AUTO
the change to a regional “related” station can only be
performed if there is a risk of losing the station. When selecting
REG OFF
, the
receiver can access the regional
“related” stations unlimited.
GALA Your radio increases automatically its volume with the increasing vehicle speed. A higher setting value results in a stronger volume increase. LO U D In case of low volume level, the function reinforces the range of bass and treble frequencies. BEEP Switching on or off the tone signal when storing the radio stations. ON VOL Your radio stores the last volume set before switching off. If the value is higher, the volume is reduced to the value of the parameter
ON VOL
after switching on the
radio again. PHONE* If your vehicle is equipped
with a handsfree system, th
e monophone play function
of the mobile phone calls is carried ou
t via the loudspeakers of the vehicle.
PDC AT* If your vehicle is equippe
d with “parking aid”, the volume is automatically
decreased to a pre-defined value, when the “parking aid” is active.•
PDC AT0
- does not restrict the volume;
•
PDC AT1
- restricts the current volume to a middle level;
•
PDC AT2
- restricts the current volume to a low level;
•
PDC AT3
- switches off the tone completely (Mute).
AUX* Setting of the input sensitivity
AUX LEV
:
•
AUX LEV 1
- high level, used in particular for notebooks;
•
AUX LEV 2
- middle level, used for cassettes or CD player;

A1
MENU
MENU




A1
s220.book Page 4 Tuesday, August 5, 2008 6:46 AM

Radio
5
•

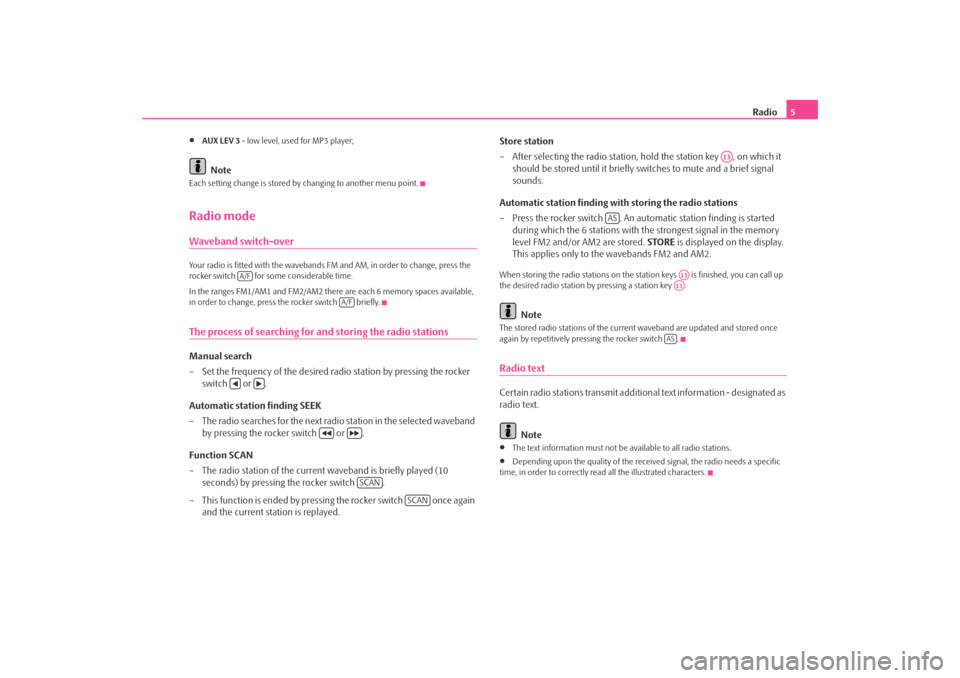

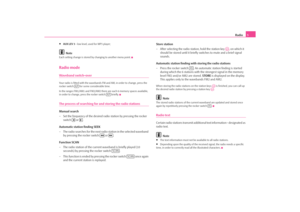

AUX LEV 3
- low level, used for MP3 player;
Note
Each setting change is stored by changing to another menu point.Radio modeWaveband switch-overYour radio is fitted with the wavebands
FM and AM, in order to change, press the
rocker switch for some considerable time. In the ranges FM1/AM1 and FM2/AM2 there are each 6 memory spaces available, in order to change, press the rocker switch briefly.The process of searching for and storing the radio stationsManual search – Set the frequency of the desired radio station by pressing the rocker
switch or .
Automatic station finding SEEK – The radio searches for the next radio station in the selected waveband
by pressing the rocker switch or .
Function SCAN – The radio station of the current waveband is briefly played (10
seconds) by pressing the rocker switch .
– This function is ended by pressing
the rocker switch once again
and the current station is replayed.
Store station – After selecting the radio station, hold the station key , on which it
should be stored until it briefly switches to mute and a brief signal sounds.
Automatic station finding with storing the radio stations – Press the rocker switch . An au
tomatic station finding is started
during which the 6 stations with the strongest signal in the memory level FM2 and/or AM2 are stored.
STORE
is displayed on the display.
This applies only to the wavebands FM2 and AM2.
When storing the radio stations on the station keys is finished, you can call up the desired radio station by pressing a station key .
Note
The stored radio stations of the curren
t waveband are updated and stored once
again by repetitively pres
sing the rocker switch .
Radio textCertain radio stations tran
smit additional text information - designated as
radio text.
Note
•
The text information must not be available to all radio stations.
•
Depending upon the quality of the received signal, the radio needs a specific
time, in order to correctly read all the illustrated characters.
A/F
A/F



SCAN
SCAN
A13
AS
A13A13AS
s220.book Page 5 Tuesday, August 5, 2008 6:46 AM

Radio

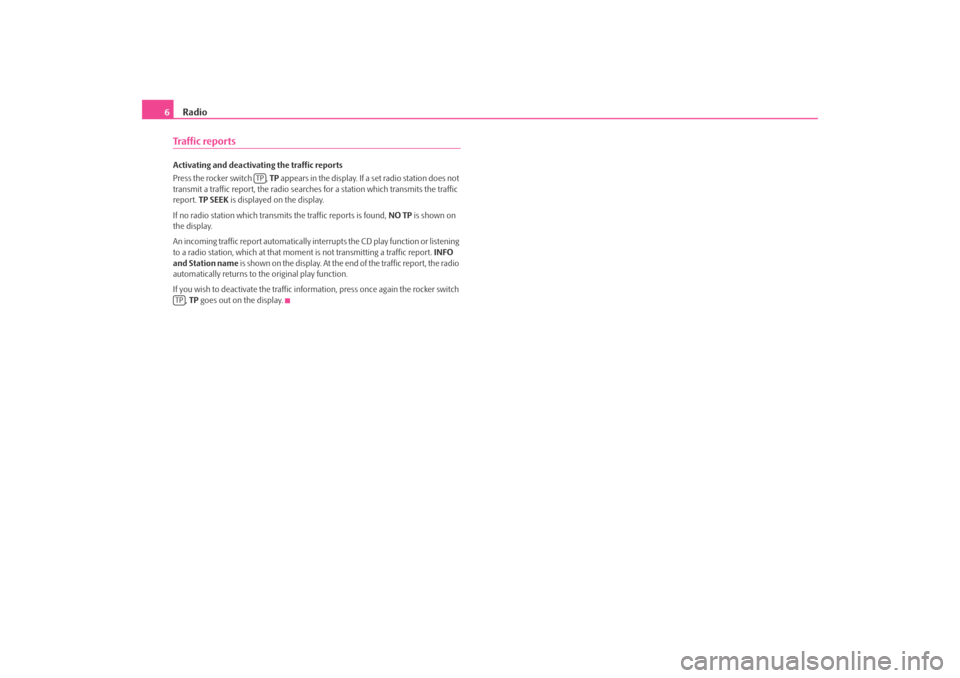

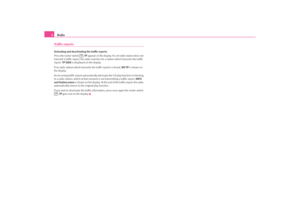

6Tra f f i c re p o r t sActivating and deactivating the traffic reports Press the rocker switch ,
TP appears in the display. If a set radio station does not
transmit a traffic report, the radio searches for a station which transmits the traffic report.
TP SEEK
is displayed on the display.
If no radio station which transmits the traffic reports is found,
NO TP
is shown on
the display. An incoming traffic report au
tomatically interrupts the CD play function or listening
to a radio station, which at that moment is not transmitting a traffic report.
INFO
and Station name
is shown on the display. At the end of the traffic report, the radio
automatically returns to the original play function. If you wish to deactivate the traffic inform
ation, press once again the rocker switch
, TP goes out on the display.
TP
TPs220.book Page 6 Tuesday, August 5, 2008 6:46 AM
