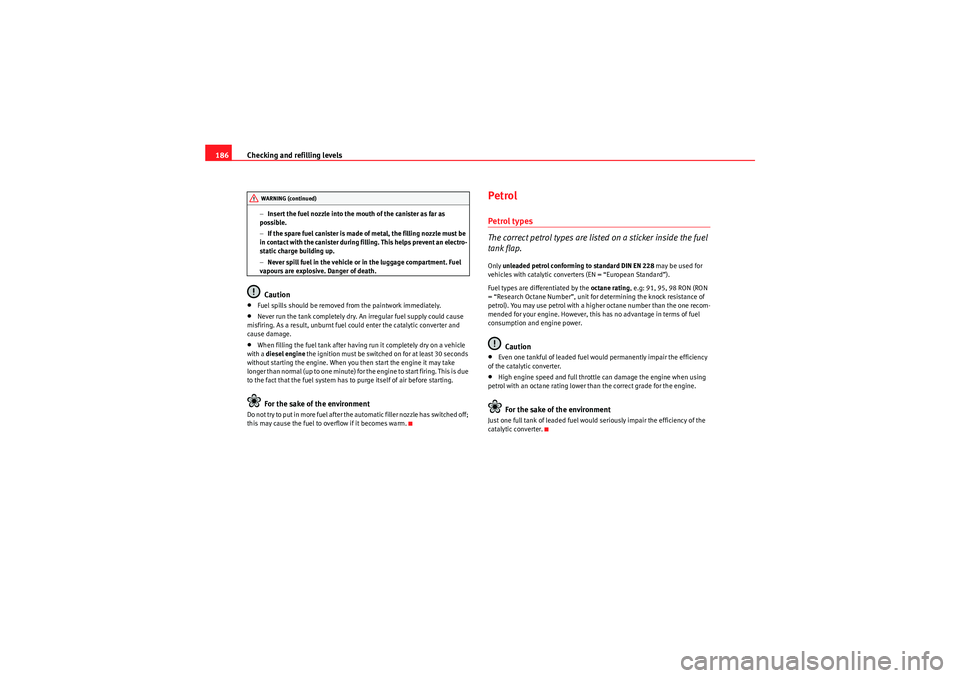

2010 Seat Ibiza ST octane

Checking and refilling levels
186
− Insert the fuel nozzle into the mouth of the canister as far as
possible.
− If the spare fuel canister is made of metal, the filling nozzle must be
in contact with the canister during filling. This helps prevent an electro-
static charge building up.
− Never spill fuel in the vehicle or in the luggage compartment. Fuel
vapours are explosive. Danger of death.Caution
•Fuel spills should be removed from the paintwork immediately.•Never run the tank completely dry. An irregular fuel supply could cause
misfiring. As a result, unburnt fuel could enter the catalytic converter and
cause damage.•When filling the fuel tank after having run it completely dry on a vehicle
with a diesel engine the ignition must be switched on for at least 30 seconds
without starting the engine. When you then start the engine it may take
longer than normal (up to one minute) for the engine to start firing. This is due
to the fact that the fuel system has to purge itself of air before starting.For the sake of the environment
Do not try to put in more fuel after the automatic filler nozzle has switched off;
this may cause the fuel to overflow if it becomes warm.
PetrolPetrol types
The correct petrol types are listed on a sticker inside the fuel
tank flap.Only unleaded petrol conforming to standard DIN EN 228 may be used for
vehicles with catalytic converters (EN = “European Standard”).
Fuel types are differentiated by the octane rating, e.g: 91, 95, 98 RON (RON
= “Research Octane Number”, unit for determining the knock resistance of
petrol). You may use petrol with a higher octane number than the one recom-
mended for your engine. However, this has no advantage in terms of fuel
consumption and engine power.
Caution
•Even one tankful of leaded fuel would permanently impair the efficiency
of the catalytic converter.•High engine speed and full throttle can damage the engine when using
petrol with an octane rating lower than the correct grade for the engine.For the sake of the environment
Just one full tank of leaded fuel would seriously impair the efficiency of the
catalytic converter.
WARNING (continued)
IbizaST_EN.book Seite 186 Dienstag, 14. September 2010 1:31 13

Description of specifications237
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Technical SpecificationsDescription of specificationsImportant informationImportant
The information in the vehicle documentation always has
precedence.All technical specifications provided in this manual are valid for the standard
model in Spain. The vehicle data card included in the Maintenance
Programme or the vehicle registration documents shows which engine is
installed in your vehicle.
The figures may be different depending on if additional equipment is fitted,
for different models, for special vehicles and for other countries. Abbreviations used in the Technical Specifications section
Abbreviation
Meaning
kW
Kilowatt, engine power measurement.
PS
Pferdestärke (horsepower), formerly used to denote engine
power.
rpm
Revolutions per minute - engine speed.
Nm
Newton metres, unit of engine torque.
l/100 km
Fuel consumption in litres per 100 km.
g/km
Carbon dioxide emissions in grams per km travelled.
CO2
Carbon dioxide
CN
Cetane number, indication of the diesel combustion power.
RON
Research octane number, indication of the knock resist-
ance of petrol.
IbizaST_EN.book Seite 237 Dienstag, 14. September 2010 1:31 13

Technical Specifications
242Petrol engine 1.2 51 kW (70 PS)Engine specifications
Performance
Weights
Trailer weight Power output in kW (PS)
rpm 51 (70)/ 5400
Maximum torque in Nm at rpm 112/ 3000
No. of cylinders/ capacity in cm
3
3/ 1198
Fuel Super 95 RON
a)/Normal 91 RON
b)
a)Research- Octane- Number = Anti-detonation rating of the petrol.b)Slight power loss.Maximum speed in km/h 163
Acceleration from 0-80 km/h in sec. 9.4
Acceleration from 0-100 km/h in sec. 14.6
Gross vehicle weight in kg 1550
Weight in running order (with driver) in kg 1110
Gross front axle weight in kg 830
Gross rear axle weight in kg 820
Permitted roof load in kg 75
Trailer without brakes 550
Trailer with brakes, gradients up to 8% 1000
Trailer with brakes, gradients up to 12% 800
IbizaST_EN.book Seite 242 Dienstag, 14. September 2010 1:31 13

Technical Specifications243
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Engine oil capacity
Petrol engine 1.4 63 kW (85 PS)Engine specifications
Performance
Weights
Approximate engine oil capacity with oil filter change
2.75 litres
Power output in kW (PS) rpm 63 (85)/ 5000
Maximum torque in Nm at rpm 132/ 3800
No. of cylinders/ capacity in cm
3
4/ 1390
Fuel Super 95 RON
a)/Normal 91 RON
b)
a)Research- Octane- Number = Anti-detonation rating of the petrol.b)Slight power loss.Maximum speed in km/h 177
Acceleration from 0-80 km/h in sec. 8
Acceleration from 0-100 km/h in sec. 12.3
Gross vehicle weight in kg 1570
Weight in running order (with driver) in kg 1130
Gross front axle weight in kg 860
Gross rear axle weight in kg 820
Permitted roof load in kg 75
IbizaST_EN.book Seite 243 Dienstag, 14. September 2010 1:31 13

Technical Specifications
244Trailer weight
Engine oil capacityPetrol engine 1.2 TSI 77 kW (105 PS)Engine specifications
Performance Trailer without brakes
560
Trailer with brakes, gradients up to 8% 1200
Trailer with brakes, gradients up to 12% 1000
Approximate engine oil capacity with oil filter change 2.8 litres
Power output in kW (PS) rpm 77 (105)/5000
Maximum torque in Nm at rpm 175/1550-4100
No. of cylinders/ capacity in cm
3
4/ 1197
Fuel Super 95 RON
a)/Normal 91 RON
b)
a)Research- Octane- Number = Anti-detonation rating of the petrol.b)With a slight power loss
Manual Automatic
Maximum speed in km/h 190190
Acceleration from 0-80 km/h in sec. 6.86.7
Acceleration from 0-100 km/h in sec. 10.210
IbizaST_EN.book Seite 244 Dienstag, 14. September 2010 1:31 13

Technical Specifications245
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Weights
Trailer weight
Engine oil capacity
Petrol engine 1.2 TSI 77 kW (105 PS) Start&StopEngine specifications
Manual
Automatic
Gross vehicle weight in kg 15851605
Weight in running order (with driver) in kg 11451165
Gross front axle weight in kg 860890
Gross rear axle weight in kg 820820
Permitted roof load in kg 7575
Manual Automatic
Trailer without brakes 570580
Trailer with brakes, gradients up to 8% 12001200
Trailer with brakes, gradients up to 12% 10001000
Approximate engine oil capacity with oil filter change 3.3 litres
Power output in kW (PS) rpm 77 (105)/ 5000
Maximum torque in Nm at rpm 175/1550-4100
No. of cylinders/ capacity in cm
3
4/ 1197
Fuel Super 95 RON
a)/Normal 91 RON
b)
a)Research- Octane- Number = Anti-detonation rating of the petrol.b)Slight power loss.
IbizaST_EN.book Seite 245 Dienstag, 14. September 2010 1:31 13

Index257
LLeather cleaning . . . . . . . . . . . . . . . . . . . . . . . . 179
Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Load compartment in the luggage compartment
See Loading the luggage compartment . . . . 15
Loading the luggage compartment . . . . . . . . . . 15
Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176
Luggage compartment . . . . . . . . . . . . . . . . . . . 120 Fastening rings . . . . . . . . . . . . . . . . . . . . . . 121
Loading . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
Luggage net . . . . . . . . . . . . . . . . . . . . . . . . . 121
See also Loading the luggage compartment 15
Luggage compartment light* . . . . . . . . . . . . . . . 99MMain beam . . . . . . . . . . . . . . . . . . . . . . . . . . . 91, 97
Main beam headlights Indicator lamp . . . . . . . . . . . . . . . . . . . . . . . . 67
Maintenance Airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Maintenance and cleaning . . . . . . . . . . . . . . . . 172
Manual gearbox . . . . . . . . . . . . . . . . . . . . . . . . . 142
Manual heating . . . . . . . . . . . . . . . . . . . . . . . . . 126 controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Manual heating system Defrosting the windscreen . . . . . . . . . . . . . 126
Demisting the windscreen and side windows . .126
MFI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
54 Mirrors
Exterior mirrors . . . . . . . . . . . . . . . . . . . . . . 104
Interior mirror . . . . . . . . . . . . . . . . . . . . . . . . 103
vanity mirror . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Mobile phone . . . . . . . . . . . . . . . . . . . . . . . . . . . 182
Multifunction display . . . . . . . . . . . . . . . . . . . . . 54
NNavigator bracket . . . . . . . . . . . . . . . . . . . . . . . 113
Number of seats . . . . . . . . . . . . . . . . . . . . . . . . . 17OObservations . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
Octane number . . . . . . . . . . . . . . . . . . . . . . . . . 186
Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191
Oil change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 194
Oil properties . . . . . . . . . . . . . . . . . . . . . . . . . . . 192
One-touch opening and closing Electric windows . . . . . . . . . . . . . . . . . . . . . . 87
Opening and locking . . . . . . . . . . . . . . . . . . . . . . 84
Operation when a fault occurs Panorama/ tilting sunroof . . . . . . . . . . . . . . . 90
Outside temperature display . . . . . . . . . . . . 53, 55
Overview Control lamps . . . . . . . . . . . . . . . . . . . . . . . . . 58
Dash panel . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Instruments . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Warning lamps . . . . . . . . . . . . . . . . . . . . . . . . 58
PPaintworkPolishing . . . . . . . . . . . . . . . . . . . . . . . . . . . 175
Panorama sunroof . . . . . . . . . . . . . . . . . . . . . . . . 89
Parking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151
Parking lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Passenger See Correct sitting position . . . . . . . . . . . 10, 11
Pedals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186 Driving abroad . . . . . . . . . . . . . . . . . . . . . . . 169
Petrol additives . . . . . . . . . . . . . . . . . . . . . . . . . 187
Physical principles of a frontal collision . . . . . . 19
Plastic parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175
Plastic parts cleaning . . . . . . . . . . . . . . . . . . . . 179
Pollen filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
Pollution filter . . . . . . . . . . . . . . . . . . . . . . . . . . 134
Power socket in centre console . . . . . . . . . . . . . . . . . . . . . 117
in the luggage compartment . . . . . . . . . . . 117
Products for vehicle maintenance . . . . . . . . . . 172RRadio frequency remote control . . . . . . . . . . . . . 80 Changing the battery . . . . . . . . . . . . . . . . . . . 81
Rain sensor* . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Rear drink holder . . . . . . . . . . . . . . . . . . . . . . . . 115
