2010 Seat Ibiza ST height adjustment

Safe driving

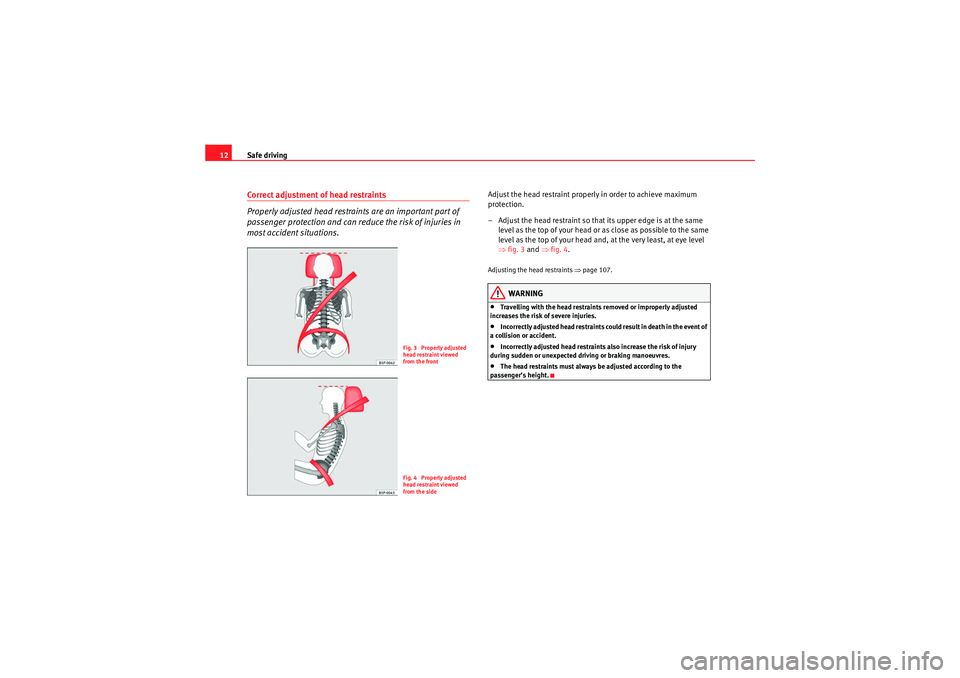

12Correct adjustment of head restraints
Properly adjusted head restraints are an important part of
passenger protection and can reduce the risk of injuries in
most accident situations.
Adjust the head restraint properly in order to achieve maximum
protection.
– Adjust the head restraint so that its upper edge is at the same
level as the top of your head or as close as possible to the same
level as the top of your head and, at the very least, at eye level
⇒fig. 3 and ⇒ fig. 4.Adjusting the head restraints ⇒page 107.
WARNING
•Travelling with the head restraints removed or improperly adjusted
increases the risk of severe injuries.•Incorrectly adjusted head restraints could result in death in the event of
a collision or accident.•Incorrectly adjusted head restraints also increase the risk of injury
during sudden or unexpected driving or braking manoeuvres.•The head restraints must always be adjusted according to the
passenger’s height.
Fig. 3 Properly adjusted
head restraint viewed
from the frontFig. 4 Properly adjusted
head restraint viewed
from the side
IbizaST_EN.book Seite 12 Dienstag, 14. September 2010 1:31 13

Child safety
40airbags*”. If the passenger seat has a height adjustment option, move it to
the highest position.•For those vehicles that do not include a key lock switch to disconnect
the airbag, the vehicle must be taken to a Technical Service.•All passengers, especially children, must assume the proper sitting
position and be properly be lted in while travelling.•Never hold children or babies on your lap, this can result in potentially
fatal injuries to the child!•Never allow a child to be transported in a vehicle without being properly
secured, or to stand up or kneel on a seat while travelling. In an accident,
the child could be flung through the vehicle, causing possibly fatal injuries
to themselves and to the other passengers.•If children assume an improper sitting position when the vehicle is
moving, they expose themselves to greater risk of injury in the event of a
sudden braking manoeuvre or in an accident. This is particularly important
if the child is travelling on the front passenger seat and the airbag system
is triggered in an accident; as this could cause serious injury or even death.•A suitable child seat can protect your child!•Never leave an unsupervised child alone on a child seat or in the
vehicle.•Depending on weather conditions, it may become extremely hot or cold
inside the vehicle. This can be fatal.•Children who are less than 1.5 metres tall must not wear a normal seat
belt without a child seat, as this could cause injuries to the abdominal and
neck areas during a sudden braking manoeuvre or in an accident.•Do not allow the seat belt to become twisted or jammed, or to rub on
any sharp edges.•Incorrectly worn seat belts can cause injuries even in a minor collision
or in sudden braking manoeuvres.
•The seat belt provides maximum protection only when the seat belt is
properly positioned ⇒page 22, “Seat belts”.•Only one child may occupy a child seat ⇒page 41, “Child seats”.
WARNING (continued)
WARNING (continued)
IbizaST_EN.book Seite 40 Dienstag, 14. September 2010 1:31 13

Seats and storage compartments107
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Head restraintsCorrect adjustment of head restraints
Properly adjusted head restraints are an important part of
passenger protection and can reduce the risk of injuries in
most accident situations.
– Adjust the head restraint so that the top is at the same level as
the top of your head or as close as possible to the same level as
the top of your head, at least at eye level ⇒fig. 67 and ⇒ fig. 68.Adjusting the head restraints ⇒page 108
WARNING
•Travelling with the head restraints removed or improperly adjusted
increases the risk of severe injuries.•Improperly adjusted head restraints could lead to death in the event of
a collision or accident.•Incorrectly adjusted head restraints also increase the risk of injury
during sudden or unexpected driving or braking manoeuvres.•The head restraints must always be adjusted according to the
passenger’s height.
Fig. 67 Front view: head
restraints and seat belts
correctly adjusted
Fig. 68 Side view: head
restraints and seat belts
correctly adjusted
IbizaST_EN.book Seite 107 Dienstag, 14. September 2010 1:31 13

Seats and storage compartments109
Safety First
Operating Instructions
Practical Tips
Technical Specifications
•When fitting the head restraints again, insert the tubes as far as possible
into the guides without pressing the button. Front seatsAdjustment of the front seats Adjusting the seat forwards and backwards
– Pull up the grip and move the seat forwards or backwards.
– Then release the grip and move the seat further until the catch engages.
Adjusting seat height
– Pull the lever up or push down (several times if necessary) from its home position. This adjust s the seat height in stages. Adjusting the backrest angle
– Take your weight off the backrest and turn the hand wheel.
WARNING
•Never adjust the driver or front passenger seat while the vehicle is in
motion. While adjusting your seat, you will assume an incorrect sitting
position. Risk of fatal accidents. Adjust the driver or front passenger seat
only when the vehicle is stationary.•To reduce the risk of injury to the driver and front passenger in case of
a sudden braking or an accident, ne ver drive with the backrest tilted
towards the rear. The maximum protection of the seat belt can be achieved
only when the backrests are in an upright position and the driver and front
passenger have properly adjusted their seat belts. The further the back-
rests are tilted to the rear, the greater the risk of injury due to improper
positioning of the belt web!•Exercise caution when securing the seat height into forwards/back-
wards position. Injuries can be caused if the seat height is adjusted
without due care and attention.•To move the seat lengthways, pull upwards and not sideways on the
lever, as the force exerted on it in this position could damage it.
Fig. 70 Front left seat
controls
A1
A1
A2
A3
IbizaST_EN.book Seite 109 Dienstag, 14. September 2010 1:31 13

Driving135
Safety First
Operating Instructions
Practical Tips
Technical Specifications
DrivingSteeringAdjusting the steering wheel position
The height and reach of the steering wheel can be freely
adjusted to suit the driver.– Adjust the driver seat to the correct position.
– Push the lever under the steering column ⇒fig. 102 down
⇒ .
– Adjust the steering wheel until the correct position is set ⇒fig. 102 .
– Then push the lever up again firmly ⇒.
WARNING
•Incorrect use of the steering column adjustment function and an incor-
rect seating position can result in serious injury.•To avoid accidents, the steering column should be adjusted only when
the vehicle is stationary.•Adjust the driver seat or steering whee l so that there is a distance of at
least 25 cm between the steering wheel and your chest ⇒fig. 102. If you
fail to observe the minimum distance, the airbag will not protect you. Risk
of fatal injury.•If your physical constitution does not allow you to maintain the
minimum distance of 25 cm, contact an Authorised Service Centre. The
Authorised Service Centre will help you to decide if special specific modifi-
cations are necessary.•If you adjust the steering wheel so that it points towards your face, the
driver airbag will not protect you properly in the event of an accident. Make
sure that the steering wheel points towards your chest.•When driving, always hold the steering wheel with both hands on the
outside of the ring at the 9 o’clock and 3 o’clock positions. Never hold the
steering wheel at the 12 o’clock position, or in any other manner (e.g. in
the centre of the steering wheel, or on the inside of the rim). In such cases,
if the airbag is triggered, you may sustain injuries to the arms, hands and
head.
Fig. 102 Steering column
height adjustment
IbizaST_EN.book Seite 135 Dienstag, 14. September 2010 1:31 13

Index259
Spare wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210
Speed selector lever lock
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 66
Speedometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Starting Petrol engines . . . . . . . . . . . . . . . . . . . 138
Starting petrol engines . . . . . . . . . . . . . . . . . . . 138
Starting the engine . . . . . . . . . . . . . . . . . . . . . . 138 After the fuel tank has been run dry . . . . . . 139
Start-Stop Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
Switching on and off . . . . . . . . . . . . . . . . . . 141
Steam jets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
Steering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135 Steering lock . . . . . . . . . . . . . . . . . . . . . . . . 136
Steering column controls Audio Control . . . . . . . . . . . . . . . . . . . . . . . . . 70
Steering wheel height adjustment . . . . . . . . . . 135
Storage compartment . . . . . . . . . . . . . . . . . . . . 123 Front passenger side . . . . . . . . . . . . . . . . . . 112
front seat . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
Sun visor Sliding/tilting sunroof . . . . . . . . . . . . . . . . . . 89
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Switch Hazard warning lights . . . . . . . . . . . . . . . . . . 96
Heated rear window . . . . . . . . . . . . . . . . . . . . 95
Light switch . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Switches Electric windows . . . . . . . . . . . . . . . . . . . . . . 86
Sliding/tilting sunroof . . . . . . . . . . . . . . . . . . 89
Switching off the engine . . . . . . . . . . . . . . . . . . 139
TTailgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84 Emergency opening . . . . . . . . . . . . . . . . . . . . 85
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 67
Tank Fuel level . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Reserve indicator . . . . . . . . . . . . . . . . . . . . . . 52
Tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . 52
TCS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160
TCS (Traction control system) Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 64
Technical modifications . . . . . . . . . . . . . . . . . . 181
The danger of not using the seat belt . . . . . . . . 20
Tightening torque of wheel bolts . . . . . . . . . . . 240
Tilting sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210
Top Tether system . . . . . . . . . . . . . . . . . . . . . . . . 45
Tow starting Comments . . . . . . . . . . . . . . . . . . . . . . . . . . 234
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 234
Towing a trailer . . . . . . . . . . . . . . . . . . . . 169, 239
Towing bracket . . . . . . . . . . . . . . . . . . . . . . . . . 170
Towing bracket, fitting . . . . . . . . . . . . . . . . . . . 183
Towing eye . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 234
Towing eyes . . . . . . . . . . . . . . . . . . . . . . . . . . . . 235
Tow-starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 234
Traction control system Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 64 Trailer turn signals
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 97
Trailer weights . . . . . . . . . . . . . . . . . . . . . . . . . . 239
Turn signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97 Indicator lamp . . . . . . . . . . . . . . . . . . . . . . . . 68
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 97
Two-way radio . . . . . . . . . . . . . . . . . . . . . . . . . . 182
Tyre Mobility-System (Tyre repair kit) . . . . . . . . 211
Tyre pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . 204 Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 65
Tyre pressures . . . . . . . . . . . . . . . . . . . . . . . . . . 240
Tyre repair kit . . . . . . . . . . . . . . . . . . . . . . 211, 216
Tyre-Mobility-System (Tyre repair kit) . . . . . . . . 216
Tyres and wheels Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . 206
Tyres service life . . . . . . . . . . . . . . . . . . . . . . . . 205
Tyres tread depth . . . . . . . . . . . . . . . . . . . . . . . . 205
Tyres with directional tread pattern . . . . . . . . . 204
UUnderbody protection . . . . . . . . . . . . . . . . . . . . 178VVehicle battery . . . . . . . . . . . . . . . . . . . . . . . . . . 201
Vehicle data . . . . . . . . . . . . . . . . . . . . . . . . . . . . 238
Vehicle identification data . . . . . . . . . . . . . . . . 238
Vehicle identification number . . . . . . . . . . . . . 238
Vehicle interior heating or cooling system . . . 129
Vehicle modifications . . . . . . . . . . . . . . . . . . . . 181
