2010 Seat Ibiza ST rear view mirror

Contents3
ContentsManual structure
. . . . . . . . . . . . . . . . . . . .
Content
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety First
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Safe driving
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Brief introduction . . . . . . . . . . . . . . . . . . . . . . . .
Proper sitting position for occupants . . . . . . . . .
Pedal area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Storing objects . . . . . . . . . . . . . . . . . . . . . . . . . .
Seat belts
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Brief introduction . . . . . . . . . . . . . . . . . . . . . . . .
Why wear seat belts? . . . . . . . . . . . . . . . . . . . . . .
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Belt tensioners* . . . . . . . . . . . . . . . . . . . . . . . . . .
Airbag system
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Brief introduction . . . . . . . . . . . . . . . . . . . . . . . .
Front airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Side airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Deactivating airbags* . . . . . . . . . . . . . . . . . . . . .
Child safety
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Brief introduction . . . . . . . . . . . . . . . . . . . . . . . .
Child seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Securing child seats . . . . . . . . . . . . . . . . . . . . . .
Operating Instructions
. . . . . . . . . . . .
Cockpit
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Instruments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Digital instrument panel display . . . . . . . . . . . .
Warning lamps . . . . . . . . . . . . . . . . . . . . . . . . . . .
Steering column controls*
. . . . . . . . . . . . . . . .
General information . . . . . . . . . . . . . . . . . . . . . .
Audio Control . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Audio + Telephone Control . . . . . . . . . . . . . . . . .
Unlocking and locking
. . . . . . . . . . . . . . . . . . . .
Central locking . . . . . . . . . . . . . . . . . . . . . . . . . . .
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Radio frequency remote control* . . . . . . . . . . . .
Anti-theft alarm system* . . . . . . . . . . . . . . . . . . .
Tailgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Panorama tilting sunroof* . . . . . . . . . . . . . . . . .
Lights and visibility
. . . . . . . . . . . . . . . . . . . . . . .
Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Interior lights . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Visibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Windscreen wipers . . . . . . . . . . . . . . . . . . . . . . .
Rear view mirrors . . . . . . . . . . . . . . . . . . . . . . . . .
Seats and storage compartments
. . . . . . . . . .
The importance of correct seat adjustment . . . .
Head restraints . . . . . . . . . . . . . . . . . . . . . . . . . .
Front seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Storage compartment . . . . . . . . . . . . . . . . . . . . .
Ashtrays, cigarette lighter and power socket . .
First-aid kit, warning triangle, fire extinguisher
Luggage compartment . . . . . . . . . . . . . . . . . . . .
Roof rack* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Air conditioning
. . . . . . . . . . . . . . . . . . . . . . . . . .
Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Air conditioning* . . . . . . . . . . . . . . . . . . . . . . . . .
Climatronic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
General notes . . . . . . . . . . . . . . . . . . . . . . . . . . .
Driving
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Steering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ignition lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Starting and stopping the engine . . . . . . . . . . .
Start-Stop function* . . . . . . . . . . . . . . . . . . . . . .
Manual gearbox . . . . . . . . . . . . . . . . . . . . . . . . . .
Automatic gearbox* . . . . . . . . . . . . . . . . . . . . . .
Handbrake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Acoustic parking aid system* . . . . . . . . . . . . . . .
Cruise control* . . . . . . . . . . . . . . . . . . . . . . . . . . .
Practical Tips
. . . . . . . . . . . . . . . . . . . . . . . .
Intelligent technology
. . . . . . . . . . . . . . . . . . . . .
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Anti-lock brake system and traction control ABS
Electronic Stability Programme (ESP)* . . . . . . . .
Driving and the environment
. . . . . . . . . . . . . .
Running-in . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Exhaust gas purification system . . . . . . . . . . . . .
Economical and environmentally friendly driving
Driving abroad . . . . . . . . . . . . . . . . . . . . . . . . . . .
Trailer towing . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5
6
7
7
7
9
14
15
17
17
19
22
26
27
27
30
33
37
39
39
41
44
49
49
49
51 52
58
70
70
71
72
74
74
79
80
82
84
86
89
91
91
98
99
100
103
106
106
107
109
111
112
116
119
120
123 125
125
128
131
134
135
135
136
136
138
140
142
143
150
152
154
159
159
159
160
161
164
164
165
167
169
169
IbizaST_EN.book Seite 3 Dienstag, 14. September 2010 1:31 13

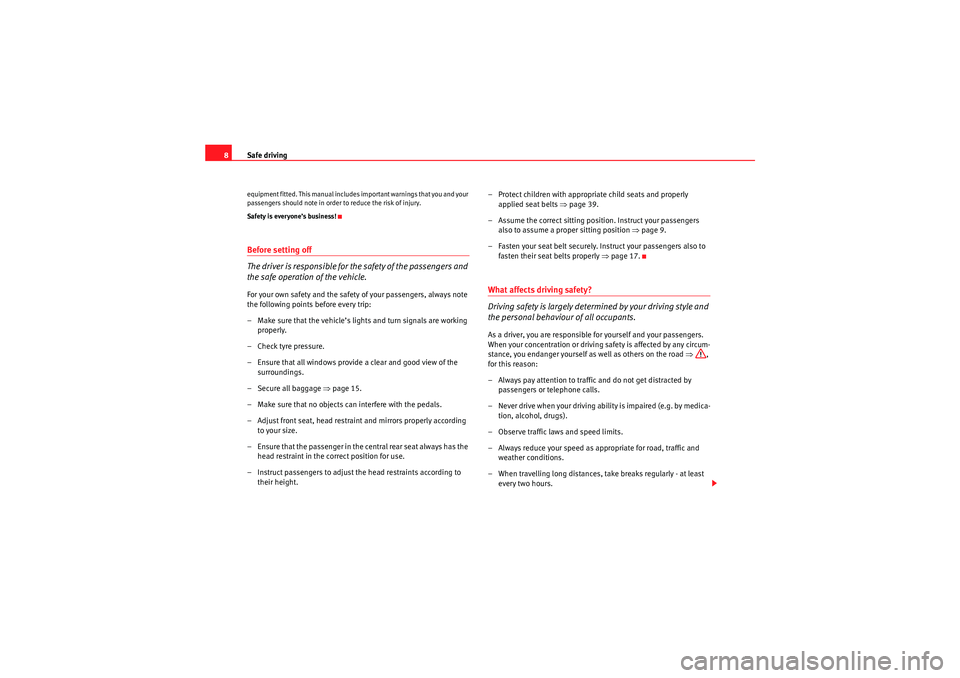

Safe driving
8equipment fitted. This manual includes important warnings that you and your
passengers should note in order to reduce the risk of injury.
Safety is everyone’s business!Before setting off
The driver is responsible for the safety of the passengers and
the safe operation of the vehicle.For your own safety and the safety of your passengers, always note
the following points before every trip:
– Make sure that the vehicle’s lights and turn signals are working
properly.
– Check tyre pressure.
– Ensure that all windows provide a clear and good view of the surroundings.
– Secure all baggage ⇒page 15.
– Make sure that no objects can interfere with the pedals.
– Adjust front seat, head restraint and mirrors properly according to your size.
– Ensure that the passenger in the central rear seat always has the head restraint in the co rrect position for use.
– Instruct passengers to adjust the head restraints according to their height. – Protect children with appropriate child seats and properly
applied seat belts ⇒page 39.
– Assume the correct sitting position. Instruct your passengers also to assume a proper sitting position ⇒page 9.
– Fasten your seat belt securely. Instruct your passengers also to fasten their seat belts properly ⇒ page 17.
What affects driving safety?
Driving safety is largely determined by your driving style and
the personal behaviour of all occupants.As a driver, you are responsible for yourself and your passengers.
When your concentration or driving safety is affected by any circum-
stance, you endanger yourself as well as others on the road ⇒,
for this reason:
– Always pay attention to traffic and do not get distracted by passengers or telephone calls.
– Never drive when your driving abil ity is impaired (e.g. by medica-
tion, alcohol, drugs).
– Observe traffic laws and speed limits.
– Always reduce your speed as appropriate for road, traffic and weather conditions.
– When travelling long distances, take breaks regularly - at least every two hours.
IbizaST_EN.book Seite 8 Dienstag, 14. September 2010 1:31 13

Unlocking and locking83
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Interior monitoring and anti-towing alarm*
Monitoring or control function incorporated in the anti-theft
alarm* which detects unauthorized vehicle entry by means of
ultrasound.Activation
– It is connected automatically when the anti-theft alarm is acti-
vated.
Deactivation
– Open the vehicle with the key, either mechanically
9) or by
pressing the button on the remote control.
– Press the button on the remote control twice. The volumetric sensor and tilt sensors will be deactivated. The alarm system
remains activated.
The interior monitoring and the anti-towing alarm are automatically switched
on again next time the vehicle is locked.
The interior monitoring and anti-towing alarm (tilt sensor) are automatically
switched on when the anti-theft alarm is switched on. In order to activate it,
all the doors and the tailgate must be closed.
If you wish to disconnect the interior monitoring and the anti-towing system,
it must be done each time that the vehicle is locked; if not, they will connect
automatically.
The interior monitoring and the anti-towing system should be disconnected
if animals are left inside the locked vehicle (otherwise, their movements will trigger the alarm) or when, for example, the vehicle is transported or has to
be towed with only one axle on the ground.
False alarms
The interior monitoring only operates correctly if the vehicle is completely
closed. Please observe legal requirements when doing so.
The following cases may cause a false alarm:
•opened windows (partially or fully)•panorama/tilting sunroof open (partially or completely).•movement of objects inside the vehicle, such as loose papers, items
hanging from the rear view mirror (air fresheners), etc.Note
•If the vehicle is relocked and the alarm is activated without the volumetric
sensor function, relocking will activate the alarm with all its functions, except
the volumetric sensor. This function is reactivated when the alarm is switched
on again, unless it is deliberately switched off.•If the alarm has been triggered by the volumetric sensor, this will be indi-
cated by a flashing of the indicator on the driver door. The flash is different to
the flash indicating the alarm is activated.•The vibration of a mobile phone left inside the vehicle may cause the inte-
rior monitoring alarm to trigger, as both sensors react to movements and
shakes inside the vehicle.•If on activating the alarm, any door or the tailgate is open, only the alarm
will be activated. The interior monitoring and the anti-towing system will only
be activated once all the doors are closed (including the tailgate).
9)The time period from when the door is opened until the key is inserted in the contact should not exceed 15 sec., otherwise the alarm will be triggered.


IbizaST_EN.book Seite 83 Dienstag, 14. September 2010 1:31 13

Lights and visibility103
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Headlight washer*
The headlight washers clean the headlight lenses.The headlight washers are activated automatically when the windscreen
washer is used and the windscreen wiper lever is pulled towards the steering
wheel for at least 1.5 seconds – provided the dipped beam headlights or
main beams are switched on. Clean off stubborn dirt (insects, etc.) from the
headlights at regular intervals, for instance when filling the fuel tank.
Note
•To ensure that the headlight washers work properly in winter, keep the
nozzle holders in the bumper free of snow and remove any ice with a de-icer
spray.•To remove water, the windscreen wipers will be activated from time to
time, the headlight wipers will be activated every three cycles.Rear view mirrorsAdjusting the rear view mirrorsBefore beginning any journey, adjust the rear view mirrors for correct
visibility.
Interior mirror
It is dangerous to drive if you cannot see clearly through the
rear window.Manual anti-dazzle function for interior mirror
In the basic mirror position, the lever at the bottom edge of the mirror should
be at the front. Pull the lever to the back to select the anti-dazzle function.Automatic anti-dazzle interior mirror*
The automatic anti-dazzle function can be switched on and off
as desired.Switching off the anti-dazzle function
– Press button ⇒fig. 65 . Indicator lamp goes off.
Fig. 65 Automatic anti-
dazzle interior mirror.
AA
AB
IbizaST_EN.book Seite 103 Dienstag, 14. September 2010 1:31 13

Lights and visibility
104
Switching on the anti-dazzle function
–Press button ⇒page 103, fig. 65 . The indicator lamp turns
on.Anti-dazzle function
The anti-dazzle function is activated every time the ignition is switched on.
The green indicator lamp lights up in the mirror housing.
When the anti-dazzle function is enabled, the interior mirror will darken auto-
matically according to the amount of light it receives. The anti-dazzle func-
tion is cancelled if reverse gear is engaged.
Note
•The automatic anti-dazzle function will only work properly if the sun
blind* for the rear window is retracted and there are no other objects
preventing light from reaching the rear view mirror.•If you have to stick any type of sticker on the windscreen, do not do so in
front of the sensors. Doing so could prevent the anti-dazzle function from
working well or even from working at all.Folding in the exterior mirrorsThe exterior mirrors of the vehicle may be folded in. For this, press the mirror
housing towards the vehicle.
Note
Before washing the vehicle with an automatic car wash, fold in the mirrors to
avoid damage.
Electric exterior mirrors*
The exterior mirrors can be adjusted using the rotary knob in
the driver door.Basic setting of exterior mirrors
1. Turn knob ⇒fig. 66 to position L ( left exterior mirror ).
2. Turn the rotary knob to positi on the mirror so that you have a
good view to the rear of the vehicle.
3. Turn knob to position R (right exterior mirror ).
4. Swivel the rotary knob to position the mirror so that you have a good view to the rear of the vehicle ⇒.
Heated exterior mirrors*
–Press the demisting button
= ⇒ page 95, fig. 56
AA
Fig. 66 Controls of exte-
rior mirrors
IbizaST_EN.book Seite 104 Dienstag, 14. September 2010 1:31 13

Lights and visibility105
Safety First
Operating Instructions
Practical Tips
Technical Specifications
– The mirrors demist for some minutes to prevent draining the
battery.
– If necessary, press the button again to repeat the function.
– The exterior mirror heating is not activated with temperatures above 20 °C.
Folding in exterior mirrors*
–Turn the control ⇒page 104, fig. 66 to position
 to fold in the
exterior mirrors. You should always fold in the exterior mirrors if
you are driving through an automa tic car wash. This will help
prevent damage.
Folding exterior mirrors back out to the extended position*
– Turn the knob to position L or R to fold the exterior mirrors back out ⇒ .
WARNING
•Convex or aspheric mirrors increase the field of vision however the
objects appear smaller and further away in the mirrors. If you use these
mirrors to estimate the distance to vehicles behind you when changing
lane, you could make a mistake. Risk of accident.•If possible, use the rear view mirror to estimate distances to vehicles
behind you.•Make sure that you do not get your finger trapped between the mirror
and the mirror base when folding back the mirrors. Risk of injury!For the sake of the environment
The exterior mirror heating should be switched off when it is no longer
needed. Otherwise, it is an unnecessary fuel waste.
Note
•If the electrical adjustment ever fails to operate, the mirrors can be
adjusted by hand by lightly pressing the edge of the mirror glass.•In vehicles with electric exterior mirrors, the following points should be
observed: if, due to an external force (e.g. a knock while manoeuvring), the
adjustment of the mirror housing is altered, the mirror will have to be
completely folded electrically. D o n o t r e a d j us t t h e m i r r o r h o us i n g b y ha n d , a s
this will interfere with the mirror adjuster function.•The rear view mirrors can be adjusted separately or simultaneously, as
described before.•The fold-in function on the exterior mirrors is not active at speeds over 40
km/h.
IbizaST_EN.book Seite 105 Dienstag, 14. September 2010 1:31 13

Index
256Floor mats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Fog lights with cornering function . . . . . . . . . . . 94
Front airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Description . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Front drink holder . . . . . . . . . . . . . . . . . . . . . . . 115
Front interior light . . . . . . . . . . . . . . . . . . . . . . . . 98
Front passenger airbag deactivation . . . . . . . . . 37
Front reading light . . . . . . . . . . . . . . . . . . . . . . . . 99
Front seat adjustment Lumbar support . . . . . . . . . . . . . . . . . . . . . . 109
Fuel Diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
Fuel level Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Fuel reserve Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 66
Fuel Tank Opening the fuel tank flap . . . . . . . . . . . . . 185
Fuel tank See Fuel reserve . . . . . . . . . . . . . . . . . . . . . . 66
Fuel: save . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 218GG 12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
Gear shift pattern . . . . . . . . . . . . . . . . . . . . . . . 142 General overview of the engine compartment 241
Glove compartment . . . . . . . . . . . . . . . . . . . . . . 112
Glow plug system . . . . . . . . . . . . . . . . . . . . . . . 139
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 62
GRA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
HHandbrake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150 Warning lamp . . . . . . . . . . . . . . . . . . . . 65, 151
Hazard warning lights . . . . . . . . . . . . . . . . . . . . . 96
HBA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
Head restraints Adjusting . . . . . . . . . . . . . . . . . . . . . . . 107, 108
Adjustment of the head restraint angle . . . 108
Removing . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Headlight flashers . . . . . . . . . . . . . . . . . . . . . . . . 97
Headlight range control . . . . . . . . . . . . . . . . . . . 93
Headlights Driving abroad . . . . . . . . . . . . . . . . . . . . . . . 169
Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Headlight washer . . . . . . . . . . . . . . . . . . . . 103
Heated exterior mirrors* . . . . . . . . . . . . . . . . . . 104
Heated front seats . . . . . . . . . . . . . . . . . . . . . . . 110
Heated rear window Heating element wires . . . . . . . . . . . . . . . . 176
Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Heating system . . . . . . . . . . . . . . . . . . . . . . . . . 126
High pressure cleaners . . . . . . . . . . . . . . . . . . . 174
Hill-start assist . . . . . . . . . . . . . . . . . . . . . . . . . 152
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49 How to jump start description . . . . . . . . . . . . . 232
Hydraulic Brake Assist
Automatic hazard warning lights activation . . .159
IIdentification number . . . . . . . . . . . . . . . . . . . . 238
Identification plate . . . . . . . . . . . . . . . . . . . . . . 238
Ignition key . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
Ignition lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
Information in the multifunction display
Memory displays . . . . . . . . . . . . . . . . . . . . . . 54
Instrument and switch lighting . . . . . . . . . . . . . 93
Instrument lighting . . . . . . . . . . . . . . . . . . . . . . . 49
Instrument panel Service interval display . . . . . . . . . . . . . . . . 56
Instruments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Interior mirror . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Interior monitoring and anti-towing alarm* Activation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
ISOFIX system . . . . . . . . . . . . . . . . . . . . . . . . . . . 44JJump leads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 231
Jump-starting . . . . . . . . . . . . . . . . . . . . . . . . . . . 231KKeys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
IbizaST_EN.book Seite 256 Dienstag, 14. September 2010 1:31 13

Index257
LLeather cleaning . . . . . . . . . . . . . . . . . . . . . . . . 179
Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Load compartment in the luggage compartment
See Loading the luggage compartment . . . . 15
Loading the luggage compartment . . . . . . . . . . 15
Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176
Luggage compartment . . . . . . . . . . . . . . . . . . . 120 Fastening rings . . . . . . . . . . . . . . . . . . . . . . 121
Loading . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
Luggage net . . . . . . . . . . . . . . . . . . . . . . . . . 121
See also Loading the luggage compartment 15
Luggage compartment light* . . . . . . . . . . . . . . . 99MMain beam . . . . . . . . . . . . . . . . . . . . . . . . . . . 91, 97
Main beam headlights Indicator lamp . . . . . . . . . . . . . . . . . . . . . . . . 67
Maintenance Airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Maintenance and cleaning . . . . . . . . . . . . . . . . 172
Manual gearbox . . . . . . . . . . . . . . . . . . . . . . . . . 142
Manual heating . . . . . . . . . . . . . . . . . . . . . . . . . 126 controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Manual heating system Defrosting the windscreen . . . . . . . . . . . . . 126
Demisting the windscreen and side windows . .126
MFI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
54 Mirrors
Exterior mirrors . . . . . . . . . . . . . . . . . . . . . . 104
Interior mirror . . . . . . . . . . . . . . . . . . . . . . . . 103
vanity mirror . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Mobile phone . . . . . . . . . . . . . . . . . . . . . . . . . . . 182
Multifunction display . . . . . . . . . . . . . . . . . . . . . 54
NNavigator bracket . . . . . . . . . . . . . . . . . . . . . . . 113
Number of seats . . . . . . . . . . . . . . . . . . . . . . . . . 17OObservations . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
Octane number . . . . . . . . . . . . . . . . . . . . . . . . . 186
Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191
Oil change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 194
Oil properties . . . . . . . . . . . . . . . . . . . . . . . . . . . 192
One-touch opening and closing Electric windows . . . . . . . . . . . . . . . . . . . . . . 87
Opening and locking . . . . . . . . . . . . . . . . . . . . . . 84
Operation when a fault occurs Panorama/ tilting sunroof . . . . . . . . . . . . . . . 90
Outside temperature display . . . . . . . . . . . . 53, 55
Overview Control lamps . . . . . . . . . . . . . . . . . . . . . . . . . 58
Dash panel . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Instruments . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Warning lamps . . . . . . . . . . . . . . . . . . . . . . . . 58
PPaintworkPolishing . . . . . . . . . . . . . . . . . . . . . . . . . . . 175
Panorama sunroof . . . . . . . . . . . . . . . . . . . . . . . . 89
Parking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151
Parking lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Passenger See Correct sitting position . . . . . . . . . . . 10, 11
Pedals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186 Driving abroad . . . . . . . . . . . . . . . . . . . . . . . 169
Petrol additives . . . . . . . . . . . . . . . . . . . . . . . . . 187
Physical principles of a frontal collision . . . . . . 19
Plastic parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175
Plastic parts cleaning . . . . . . . . . . . . . . . . . . . . 179
Pollen filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
Pollution filter . . . . . . . . . . . . . . . . . . . . . . . . . . 134
Power socket in centre console . . . . . . . . . . . . . . . . . . . . . 117
in the luggage compartment . . . . . . . . . . . 117
Products for vehicle maintenance . . . . . . . . . . 172RRadio frequency remote control . . . . . . . . . . . . . 80 Changing the battery . . . . . . . . . . . . . . . . . . . 81
Rain sensor* . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Rear drink holder . . . . . . . . . . . . . . . . . . . . . . . . 115
IbizaST_EN.book Seite 257 Dienstag, 14. September 2010 1:31 13
