2010 Seat Ibiza 5D technical specifications

Technical Specifications247
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Trailer weight
Engine oil capacity
Diesel engine 1.4 TDI 59 kW (80 PS) EcomotiveEngine specifications
Performance
Trailer without brakes
570
Trailer with brakes, gradients up to 8% 1200
Trailer with brakes, gradients up to 12% 1000
Approximate engine oil capacity with oil filter change 4.1 litres
Power output in kW (PS) rpm 59 (80)/ 4000
Maximum torque in Nm at rpm 195/ 1800-2200
No. of cylinders/ capacity in cm
3
3/ 1422
Fuel Min. 51 CN
a)
a)Cetane- Number (cetane index) = Measure of the diesel combustion power.Maximum speed in km/h 177
Acceleration from 0-80 km/h in sec. 8.4
Acceleration from 0-100 km/h in sec. 12.9
Ibiza_EN.book Seite 247 Mittwoch, 1. September 2010 5:24 17

Technical Specifications
248Weights
Trailer weight
Engine oil capacityDiesel engine 1.6 TDI CR 66 kW (90 PS) DPFEngine specifications Gross vehicle weight
in kg 1591
Weight in running order (with driver) in kg 1140
Gross front axle weight in kg 920
Gross rear axle weight in kg 780
Permitted roof load in kg 75
Trailer without brakes 570
Trailer with brakes, gradients up to 8% 1200
Trailer with brakes, gradients up to 12% 1000
Approximate engine oil capacity with oil filter change 4.2 litres
Power output in kW (PS) rpm 66 (90)/ 4200
Maximum torque in Nm at rpm 230/ 1500-2500
No. of cylinders/ capacity in cm
3
4/ 1598
Fuel Min. 51 CN
a)
a)Cetane- Number (cetane index) = Measure of the diesel combustion power.
Ibiza_EN.book Seite 248 Mittwoch, 1. September 2010 5:24 17

Technical Specifications249
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Performance
Weights
Trailer weight
Engine oil capacity
Maximum speed
in km/h 178
Acceleration from 0-80 km/h in sec. 7.8
Acceleration from 0-100 km/h in sec. 11.8
Gross vehicle weight in kg 1621
Weight in running order (with driver) in kg 1170
Gross front axle weight in kg 930
Gross rear axle weight in kg 780
Permitted roof load in kg 75
Trailer without brakes 580
Trailer with brakes, gradients up to 8% 1200
Trailer with brakes, gradients up to 12% 1000
Approximate engine oil capacity with oil filter change 4.5 litres
Ibiza_EN.book Seite 249 Mittwoch, 1. September 2010 5:24 17

Technical Specifications

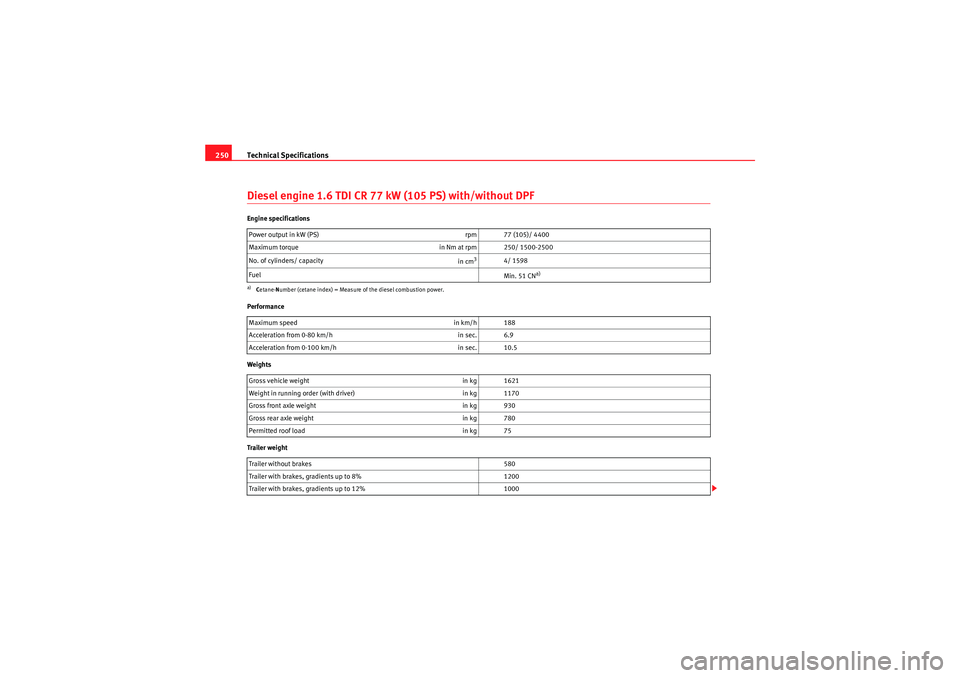

250Diesel engine 1.6 TDI CR 77 kW (105 PS) with/without DPFEngine specifications
Performance
Weights
Trailer weight Power output in kW (PS)
rpm 77 (105)/ 4400
Maximum torque in Nm at rpm 250/ 1500-2500
No. of cylinders/ capacity in cm
3
4/ 1598
Fuel Min. 51 CN
a)
a)Cetane- Number (cetane index) = Measure of the diesel combustion power.Maximum speed in km/h 188
Acceleration from 0-80 km/h in sec. 6.9
Acceleration from 0-100 km/h in sec. 10.5
Gross vehicle weight in kg 1621
Weight in running order (with driver) in kg 1170
Gross front axle weight in kg 930
Gross rear axle weight in kg 780
Permitted roof load in kg 75
Trailer without brakes 580
Trailer with brakes, gradients up to 8% 1200
Trailer with brakes, gradients up to 12% 1000
Ibiza_EN.book Seite 250 Mittwoch, 1. September 2010 5:24 17

Technical Specifications251
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Engine oil capacity
Diesel engine 2.0 TDI CR 105 kW (143 PS) DPFEngine specifications
Performance
Weights
Approximate engine oil capacity with oil filter change
4.5 litres
Power output in kW (PS) rpm 105 (143)/ 4200
Maximum torque in Nm at rpm 320/ 1750-2500
No. of cylinders/ capacity in cm
3
4/ 1968
Fuel Min. 51 CN
a)
a)Cetane- Number (cetane index) = Measure of the diesel combustion power.Maximum speed in km/h 210
Acceleration from 0-80 km/h in sec. 5.7
Acceleration from 0-100 km/h in sec. 8.2
Gross vehicle weight in kg 1696
Weight in running order (with driver) in kg 1245
Gross front axle weight in kg 950
Gross rear axle weight in kg 820
Permitted roof load in kg 75
Ibiza_EN.book Seite 251 Mittwoch, 1. September 2010 5:24 17

Technical Specifications
252Trailer weight
Engine oil capacity Trailer without brakes, gradients up to 12%
620
Trailer with brakes, gradients up to 8% 1300
Trailer with brakes, gradients up to 12% 1200
Approximate engine oil capacity with oil filter change 4.5 litres
Ibiza_EN.book Seite 252 Mittwoch, 1. September 2010 5:24 17

Technical Specifications253
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Dimensions and capacities
Dimensions
Length, width 4052 mm/ 1693 mm
Height at kerb weight 1439 mm
Front and rear projection 847 mm/ 735 mm
Wheelbase 2469 mm
Turning circle 10.7 m
Track width
a)
a)This data will change depending on the type of wheel rim.
Front Rear
1463 mm 1457 mm
Capacities
Fuel tank 45 l. Reserve 7 l.
Windscreen washer fluid container with headlight washer 2 l/ 4.5 l
Tyre pressure
Summer-grade tyres:
The correct tyre pressure can be seen on the sticker on the inside of the tank flap.
Winter tyres:
The pressure of these tyres is the same as the summer tyre pressure plus 0.2 bar.
