2010 Seat Altea Owner's Manual

Unlocking and locking95
Safety First
Operating instructions
Practical tips
Technical Data
Unlocking and lockingCe n t ra l l o cki n gBasic functions
The central locking system enables you to lock and unlock all
doors with just pushing on the key button.Description
Central locking can be activated by using any of the following options:•the key, by inserting it into the driver's door cylinder and rotating it manu-
ally,•the central locking button in the passenger compartment as an electronic
control ⇒page 98,•the radio frequency remote control , using the buttons on the key
⇒ page 102.
Various functions are available to improve the vehicle safety:
– Locking system “Safe”
– Selective unlocking system*
– Automatic speed-dependent locking and unlocking system*
– Self-locking system to prevent involuntary unlocking
– Emergency unlocking system
Unlocking the vehicle*
– Press button ⇒page 102, fig. 64 on remote control to unlock all the
doors and tailgate. Locking the vehicle*
–Press button ⇒
page 102, fig. 64 on the remote control to lock all
doors and the tailgate or turn the key in the door to lock all doors and the
tailgate.
WARNING
•Never leave children or disabled persons in the vehicle. In case of emer-
gency, they may not be able to leave the vehicle and not manage on their
own.•Never allow children to play in or around the vehicle. A locked vehicle
can be subjected to extremely high and low temperatures, depending on
the time of year, thus causing serious injuries/illness. It could even have
fatal consequences. Close and lock both the tailgate and all the other doors
when you are not using the vehicle.•Always take you car keys with you when you leave the vehicle. Misuse
of the keys, for example, by children, may result in serious damage and
accident.
−The engine may accidentally be started and be out of control.
− If the ignition is switched on, the electric equipment could be acti-
vated with risk of injury, for example, in the electric windows.
− The doors can be locked using the remote control key. This could
make assistance difficult in an emergency situation.
− Always take the key with you when you leave the vehicle.•Never remove the key from the ignition if the vehicle is in motion. The
steering lock could suddenly engage, and you would not be able to steer
the vehicle.


altea_EN Seite 95 Mittwoch, 26. August 2009 6:00 18

Unlocking and locking
96
Note•While the driver's door is open, the vehicle can not be locked with the
remote control. This avoids the user from forgetting his key inside the vehicle.•If the driver's door is unlocked with the key shaft, only the driver's door is
unlocked, the rest of the doors remain locked. When the ignition is switched
on, the door "safe" deadlock is deactivated (although the doors remain
locked) and the central locking button is activated. See ⇒page 104.•If the central locking or anti-theft alarm are faulty, the driver's door
warning lamp remains lit for approx. 30 seconds after locking the vehicle.•For anti-theft security, only the driver's door is fitted with a lock cylinder.Safety system “Safe*”
The "safe" deadlock makes it more difficult to break into the
vehicle because the door release lever and the central locking
button are not active (depending upon country).Activating deadlock
– Press once the locking button on the remote control. or
–Turn the key once in the driver's door lock to lock. A warning lamp
in the driver door flashes to indicate the "safe" deadlock is
working. The warning lamp flashes for approx. two seconds at
short intervals and then more slowly. Deactivating deadlock when the vehicle is locked
–Press
twice the locking button on the remote control within
two seconds. The vehicle is locked without activating the dead-
lock. The driver's door warning lamp flashes for approx. two
seconds and then goes out. After approx. 30 seconds it starts
flashing again.
The doors can be unlocked and opened from the inside if the "safe" deadlock
has not been activated. You will have to pull the door release lever once.
When the "safe" deadlock is off, the antitheft alarm* ⇒page 104 remains
active. The vehicle interior monitoring system* and the anti-tow system are
deactivated*.
WARNING
Nobody should remain in the vehicle if the anti-tow system deadlock mech-
anism has been activated. It is not possible to open the doors from the
inside. Locked doors could make it more difficult to assist vehicle occu-
pants in the event of an accident. People could become trapped inside in an
emergency.Selective unlocking system*
T hi s sy ste m all o w s t o u nl o c k ei t h e r j u st t h e d r iv e r ' s d o o r o r a ll
the vehicle.Using the remote control, press the unlock button on the remote once. The
“Safe” system for all the vehicle is deactivated, only the driver's door is
unlocked and both the alarm and the light indicator are also turned off.



altea_EN Seite 96 Mittwoch, 26. August 2009 6:00 18

Unlocking and locking97
Safety First
Operating instructions
Practical tips
Technical Data
Unlocking all doors and the boot
The unlock button on the remote must be pressed twice so that all doors
and the boot can be opened.
Press twice within 2 seconds to deactivate the “Safe” system for all vehicle,
to unlock all doors and to use the boot. The indicator and the alarm (only vehi-
cles fitted with one) are turned off.
Automatic speed dependent locking and unlocking system*
This is a safety system which prevent the access to the vehicle
from the outside when it is running (for example, when
stopped at a traffic light).Locking
The doors and the boot are automatically locked when vehicle speed exceeds
15 km/h.
If the vehicle is stopped and one of the doors is opened, when the vehicle
moves off again and exceeds a speed of 15 km/h, the unlocked door(s) will
be locked once more.
Unlocking
The driver's door automatically unlocks when the key is removed from the
ignition.
Each door can be unlocked and opened independently from the inside (for
example, when a passenger gets out of it). To do it, simply operate the lever
inside the door.
WARNING
The door handles must not be operated when the vehicle is running: the
door would open.
Automatic locking system for involuntary unlocking*
It is an anti-theft system and prevents the unintentional
unlocking of the vehicle.If the vehicle is unlocked and any of the doors (including the tailgate) are
opened within 30 seconds, it gets re-locked automatically. This function
prevents the vehicle from remaining unlocked if the unlock button is pressed
by mistake.Emergency unlocking systemIf the airbags are triggered during an accident, the vehicle gets unlocked,
except for the boot. It is possible to lock the vehicle from inside with the
central locking, after turning the ignition off and back on again.
If the doors must be locked from the outside, see “Emergency locking of the
doors”.

altea_EN Seite 97 Mittwoch, 26. August 2009 6:00 18

Unlocking and locking

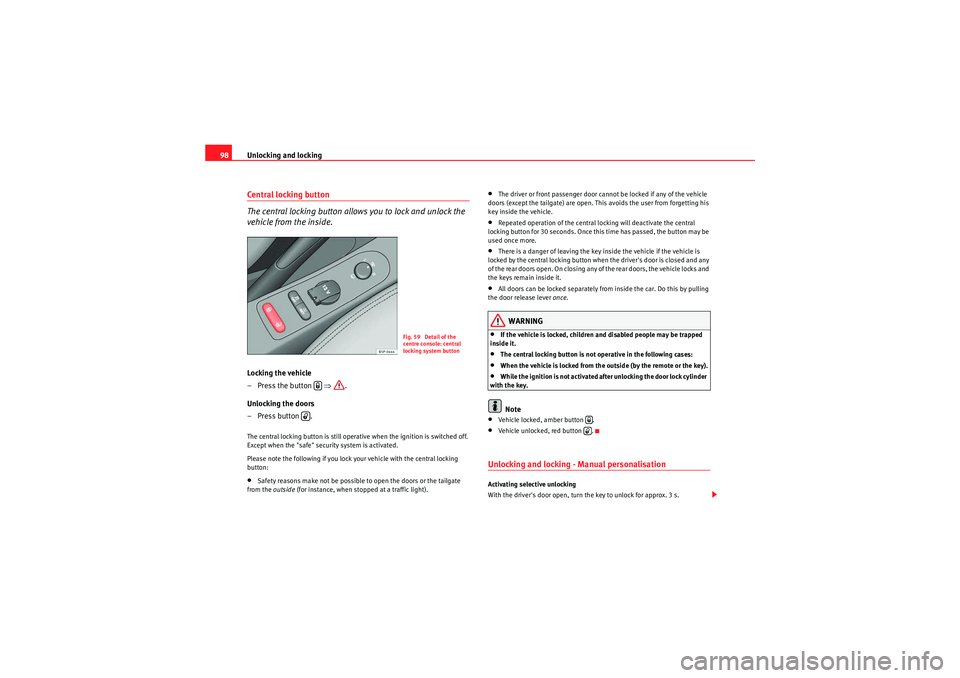

98Central locking button
The central locking button allows you to lock and unlock the
vehicle from the inside.Locking the vehicle
– Press the button ⇒.
Unlocking the doors
– Press button .The central locking button is still operative when the ignition is switched off.
Except when the "safe" security system is activated.
Please note the following if you lock your vehicle with the central locking
button:•Safety reasons make not be possible to open the doors or the tailgate
from the outside (for instance, when stopped at a traffic light).
•The driver or front passenger door cannot be locked if any of the vehicle
doors (except the tailgate) are open. This avoids the user from forgetting his
key inside the vehicle.•Repeated operation of the central locking will deactivate the central
locking button for 30 seconds. Once this time has passed, the button may be
used once more.•There is a danger of leaving the key inside the vehicle if the vehicle is
locked by the central locking button when the driver's door is closed and any
of the rear doors open. On closing any of the rear doors, the vehicle locks and
the keys remain inside it.•All doors can be locked separately from inside the car. Do this by pulling
the door release lever once .WARNING
•If the vehicle is locked, children and disabled people may be trapped
inside it.•The central locking button is not operative in the following cases:•When the vehicle is locked from the outside (by the remote or the key).•While the ignition is not activated after unlocking the door lock cylinder
with the key.Note
•Vehicle locked, amber button .•Vehicle unlocked, red button .Unlocking and locking - Manual personalisation Activating selective unlocking
With the driver's door open, turn the key to unlock for approx. 3 s.
Fig. 59 Detail of the
centre console: central
locking system button



altea_EN Seite 98 Mittwoch, 26. August 2009 6:00 18

Unlocking and locking99
Safety First
Operating instructions
Practical tips
Technical Data
Deactivating selective unlocking
With the driver's door open, turn the key to lock for approx. 3 s.
The indicator lamps flash to confirm activation or deactivation.
Activation of automatic locking
Press the lock button on the central locking button for 3 seconds.
Deactivation of automatic locking
Press the unlock button on the central locking button for 3 seconds.
The lock button lamp flashes to confirm activation or deactivation.
Emergency manual locking
This permits mechanical locking of the doors in case of
central locking system failure.
Locking the driver's door manually
Insert the key in the door lock cylinder and rotate in a clockwise direction for
the left hand side door and anti-clockwise for the right hand side door.
Once the door has been closed it can no longer be opened from the outside.
Manual (emergency) locking of the remaining doors
Open the door and remove the cap
⇒fig. 60 printed with a lock image.
This will expose a circular element with a groove in the centre. Insert the key
into the groove and rotate the element clockwise for the right hand side doors
and anticlockwise for the left hand side doors.
Replace the cap and close the door. Once the door has been closed it can no
longer be opened from the outside.
Unlocking the manually (emergency) locked driver's door
Insert the key in the door lock cylinder and rotate anti-clockwise for the left
hand side doors and clockwise for the right hand side doors.
The door lock is released and the door may be opened using the exterior door
handle.
Unlocking the remaining manually (emergency) locked doors
First the driver's door must be unlocked to gain entry to the vehicle. Operate
the internal door handle for the required door. If the child safety lock is acti-
vated on the rear doors, when the interior door release lever is operated the
door is unlocked but does not open. The exterior door handle may now be
used to open the door.
Note
Once the vehicle is open, if you wish to lock it manually (emergency locking),
repeat the previous instructions.

Fig. 60 Locking the doors
manually
AA
altea_EN Seite 99 Mittwoch, 26. August 2009 6:00 18

Unlocking and locking
100Childproof lock
The childproof lock prevents the rear doors from being
opened from the inside. This system prevents minors from
opening a door accidentally while the vehicle is running.
This function is independent of the vehicle electronic opening and
locking systems. It only affects rear doors. It can only be activated
and deactivated manually, as described below:
Activating the childproof lock
– Unlock the car and open the door in which you wish to activate
the childproof lock.
– With the door open, rotate the groove in the door using the igni- tion key, clockwise for the left hand side doors, and anti-clock-
wise for the right hand side doors ⇒fig. 61 ⇒ fig. 62 .
Deactivating the childproof lock
– Unlock the car and open the door whose childproof lock you want to deactivate.
– With the door open, rotate the groove in the door using the igni- tion key, clockwise for the right hand side doors, and anti-clock-
wise for the left hand side doors ⇒fig. 61 ⇒ fig. 62 .Once the childproof lock is activated, the door can only be opened from the
outside. The childproof lock can be activated and deactivated by inserting the
key in the groove when the door is open, as described above.
Fig. 61 Child safety lock
on the left hand side doorFig. 62 Child safety lock
on the right hand side
door
altea_EN Seite 100 Mittwoch, 26. August 2009 6:00 18

Unlocking and locking101
Safety First
Operating instructions
Practical tips
Technical Data
KeysSet of keys
The set of keys includes a remote control, a key without a
remote control and a plastic key tab*.The set of keys belonging to your vehicle consists of the following items:•one remote control key ⇒fig. 63 with folding key bit,•one key without remote control ,•a plastic key tab* .
Duplicate keys
If you need a replacement key, take your key tab to an Authorised Service
Centre.
WARNING
•An incorrect use of the keys can cause serious injuries.•Never leave children or disabled persons in the vehicle. In case of emer-
gency, they may not be able to leave the vehicle and not manage on their
own.•An uncontrolled use of the key could start the engine or activate any
electric equipment(e.g. electric windows), causing risk of accident. The
doors can be locked using the remote control key. This could make assist-
ance difficult in an emergency.•Never forget the keys inside the vehicle. An unauthorised use of your
vehicle could result in injury, damage or theft. Always take the key with you
when you leave the vehicle.•Never remove the key from the ignition if the vehicle is in motion.
Otherwise, the steering could suddenly block and it would be impossible
to steer the vehicle.Caution
There are electronic components in the remote control key. Avoid wetting and
hitting the keys
Fig. 63 Set of keys
AAAB
AC
altea_EN Seite 101 Mittwoch, 26. August 2009 6:00 18

Unlocking and locking
102Radio frequency remote controlLocking and unlocking the vehicle
The remote control key is used to lock and unlock the vehicle
from a distance.
Using the button ⇒fig. 64 (arrow) on the control, the key shaft is released.
Unlocking the vehicle ⇒fig. 64 .
Locking the vehicle ⇒fig. 64
Unlocking the tailgate. Press the button ⇒fig. 64 until all indicators
on the vehicle briefly flash. When the unlocking button is pressed,
you have 2 minutes to open the door. Once this time has passed, it will lock
once more.
Also, the battery indicator on the key ⇒ fig. 64, will flash.
The remote control transmitter and the batteries are integrated in the key. The
receiver is inside the vehicle. The maximum scope of the remote control
depends on various conditions. This scope is reduced when the batteries
start to lose power.
Selective unlocking*
When the button ⇒fig. 64 , is pressed once, the driver's door is
unlocked, all others remain locked.
Press the button ⇒fig. 64 twice to unlock all doors.
Fig. 64 Assignment of
buttons on the remote
control key
Fig. 65 Range of the
remote control:

A1

A2

A3A3

A1

A1
altea_EN Seite 102 Mittwoch, 26. August 2009 6:00 18
