General notes on the technical data

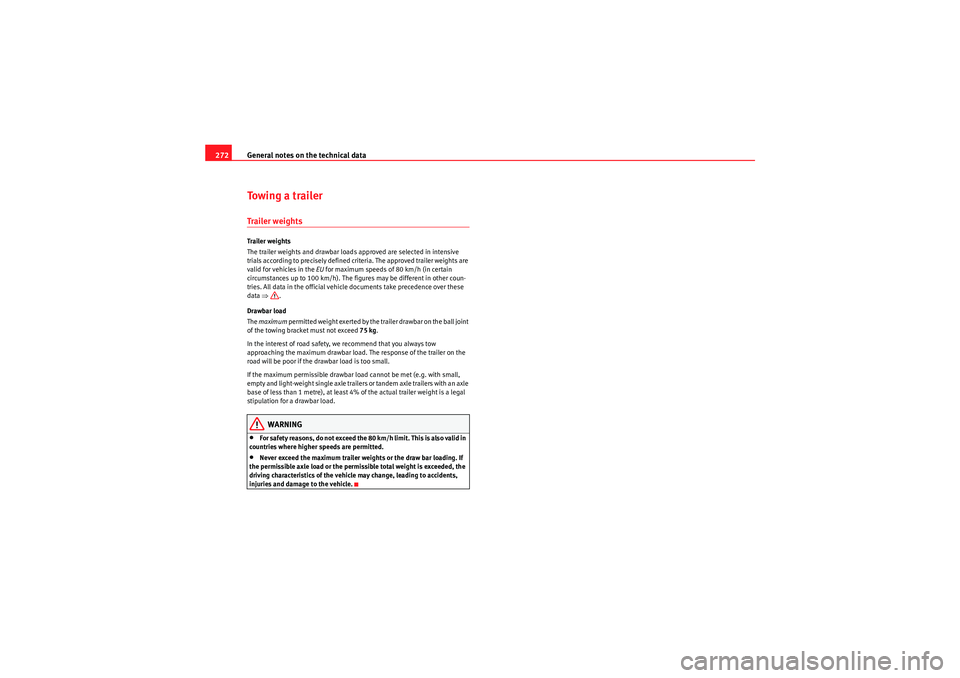

272Towing a trailerTrailer weightsTrailer weights
The trailer weights and drawbar loads approved are selected in intensive
trials according to precisely defined criteria. The approved trailer weights are
valid for vehicles in the EU for maximum speeds of 80 km/h (in certain
circumstances up to 100 km/h). The figures may be different in other coun-
tries. All data in the official vehicle documents take precedence over these
data ⇒ .
Drawbar load
The maximum permitted weight exerted by the trailer drawbar on the ball joint
of the towing bracket must not exceed 75 kg.
In the interest of road safety, we recommend that you always tow
approaching the maximum drawbar load. The response of the trailer on the
road will be poor if the drawbar load is too small.
If the maximum permissible drawbar load cannot be met (e.g. with small,
empty and light-weight single axle trailers o r ta n d e m a x l e t r a i l e r s wi t h a n a x le
base of less than 1 metre), at least 4% of the actual trailer weight is a legal
stipulation for a drawbar load.
WARNING
•For safet y reas ons , d o not excee d the 8 0 k m/h limit . Th is is als o valid in
countries where higher speeds are permitted.•Never exceed the maximum trailer weights or the draw bar loading. If
the permissible axle load or the permissible total weight is exceeded, the
driving characteristics of the vehicle may change, leading to accidents,
injuries and damage to the vehicle.
Freetrack_EN.book Seite 272 Donnerstag, 10. September 2009 10:33 10

Technical Data273
Safety First
Controls and equipment
Practical tips
Technical Data
Te c h n i c a l D a t aChecking fluid levelsFrom time to time, the levels of the different fluids in the
vehicle must be checked. Never fill with incorrect fluids,
otherwise serious damage to the engine may be caused.
Coolant expansion tank
Windscreen washer fluid reservoir
Engine oil filler cap
Engine oil dipstick
Brake fluid reservoir
Vehicle battery (underneath the cover)
The checking and refilling of service fluids are carried out on the components
mentioned above. These operations are described in the ⇒page 213. Overview
Further explanations, instructions and restrictions on the technical data are
contained as of
⇒page 269.
Fig. 202 Diagram for the
location of the various
elements
A1A2A3A4A5A6
Freetrack_EN.book Seite 273 Donnerstag, 10. September 2009 10:33 10

Technical Data
274Petrol engine 2.0 l 155 kW (211 bhp)Engine specifications
Performance figures
Weights
Trailer weights Power output in kW (bhp)
rpm 155 (211)/ 5300-6200
Maximum torque in Nm at rpm 280/ 1700 - 5200
No. of cylinders, capacity in cm
3
4/ 1984
Fuel Super 98 RON or Super 95 RON
a)
a)With slight power lossMaximum speedin km/h 220
Acceleration from 0-80 km/h in seconds 5,5
Acceleration from 0-100 km/h in seconds 7,7
Gross vehicle weight in kg 2151
Weight in working order (with driver) in kg 1606
Gross front axle weight in kg 1115
Gross rear axle weight in kg 1055
Permitted roof load in kg 75
Trailer without brakes 750
Trailer with brakes, gradients up to 8% 1650
Trailer with brakes, gradients up to 12% 1400
Freetrack_EN.book Seite 274 Donnerstag, 10. September 2009 10:33 10

Technical Data275
Safety First
Controls and equipment
Practical tips
Technical Data
Engine oil capacity
Petrol engine 2.0 litre 155 kW (211 bhp). Four-wheel driveEngine specifications
Performance figures
Weights
Approximate engine oil capacity with oil filter change
4,8
Power output in kW (bhp) rpm 155 (211)/5300-6200
Maximum torque in Nm at rpm 280/ 1700 - 5200
No. of cylinders, capacity in cm
3
4/ 1984
Fuel Super 98 RON or Super 95 RON
a)
a)With slight power lossMaximum speedin km/h 218
Acceleration from 0-80 km/h in seconds 5,3
Acceleration from 0-100 km/h in seconds 7,6
Gross vehicle weight in kg 2206
Weight in working order (with driver) in kg 1661
Gross front axle weight in kg 1140
Gross rear axle weight in kg 1085
Permitted roof load in kg 75
Freetrack_EN.book Seite 275 Donnerstag, 10. September 2009 10:33 10

Technical Data
276Trailer weights
Engine oil capacityDiesel engine 2.0l 103 kW (140 bhp). Front-wheel driveEngine specifications
Performance figures Trailer without brakes
710
Trailer with brakes, gradients up to 8% 1650
Trailer with brakes, gradients up to 12% 1650
Approximate engine oil capacity with oil filter change 4,8
Power output in kW (bhp) rpm 103 (140)/ 4000
Maximum torque in Nm at rpm 320/ 1750 - 2500
No. of cylinders, capacity in cm
3
4/ 1968
Fuel Min. 51 CZ
Maximum speed in km/h 196
Acceleration from 0-80 km/h in seconds 7,1
Acceleration from 0-100 km/h in seconds 10,2
Freetrack_EN.book Seite 276 Donnerstag, 10. September 2009 10:33 10

Technical Data277
Safety First
Controls and equipment
Practical tips
Technical Data
Weights
Trailer weights
Engine oil capacity
Diesel engine 2.0 l 103 kW (140 bhp). Four-wheel driveEngine specifications
Gross vehicle weight
in kg 2124
Weight in working order (with driver) in kg 1579
Front gross axle weight in kg 1096
Rear gross axle weight in kg 1041
Permitted roof load in kg 75
Trailer without brakes 750
Trailer with brakes, gradients up to 8% 1650
Trailer with brakes, gradients up to 12% 1400
Approximate engine oil capacity with oil filter change 4.5 litres
Power output in kW (bhp) rpm 103 (140)/ 4000
Maximum torque in Nm at rpm 320/ 1750 - 2500
No. of cylinders, capacity in cm
3
4/ 1968
Fuel Min. 51 CZ
Freetrack_EN.book Seite 277 Donnerstag, 10. September 2009 10:33 10

Technical Data
278Performance figures
Weights
Trailer weights
Engine oil capacity Maximum speed
in km/h 193
Acceleration from 0-80 km/h in seconds 6,6
Acceleration from 0-100 km/h in seconds 10,1
Gross vehicle weight in kg 2188
Weight in working order (with driver) in kg 1643
Gross front axle weight in kg 1115
Gross rear axle weight in kg 1086
Permitted roof load in kg 75
Trailer without brakes 750
Trailer with brakes, gradients up to 8% 1650
Trailer with brakes, gradients up to 12% 1650
Approximate engine oil capacity with oil filter change 4,3
Freetrack_EN.book Seite 278 Donnerstag, 10. September 2009 10:33 10

Technical Data279
Safety First
Controls and equipment
Practical tips
Technical Data
Diesel engine 2.0l 125 kW (170 bhp). four-wheel driveEngine specifications
Performance figures
Weights
Trailer weightsPower output in kW (bhp)
rpm 125 (170)/ 4200
Maximum torque in Nm at rpm 350/1750-2500
No. of cylinders, capacity in cm
3
4/ 1968
Fuel Min. 51 CZ
Maximum speed in km/h 204
Acceleration from 0-80 km/h in seconds 5,9
Acceleration from 0-100 km/h in seconds 8,7
Gross vehicle weight in kg 2160
Weight in working order (with driver) in kg 1615
Front gross axle weight in kg 1115
Rear gross axle weight in kg 1086
Permitted roof load in kg 75
Trailer without brakes 750
Trailer with brakes, gradients up to 8% 1650
Trailer with brakes, gradients up to 12% 1650
