2010 SATURN AURA HYBRID ECO mode

{WARNING:
A crash severe enough to inflate the airbags may
have also damaged important functions in the
vehicle, such as the fuel system, brake and
steering systems, etc. Even if the vehicle appears
to be drivable after a moderate crash, there may
be concealed damage that could make it difficult
to safely operate the vehicle.
Use caution if you should attempt to restart the
engine after a crash has occurred.In many crashes severe enough to inflate the airbag,
windshields are broken by vehicle deformation.
Additional windshield breakage may also occur from the
right front passenger airbag.•Airbags are designed to inflate only once. After an
airbag inflates, you will need some new parts for
the airbag system. If you do not get them, the airbag
system will not be there to help protect you in
another crash. A new system will include airbag
modules and possibly other parts. The service
manual for your vehicle covers the need to replace
other parts.
•The vehicle has a crash sensing and diagnostic
module which records information after a crash.
SeeVehicle Data Recording and Privacy on
page 8-16andEvent Data Recorders on page 8-17.
•Let only qualified technicians work on the airbag
systems. Improper service can mean that an
airbag system will not work properly. See your
dealer/retailer for service.
2-65
ProCarManuals.com

Express Window Anti-Pinch Feature
If any object is in the path of the window when
the express-up is active, the window stops at the
obstruction and auto-reverse to a preset factory position.
Weather conditions such as severe icing may also
cause the window to auto-reverse. The window returns
to normal operation once the obstruction or condition
is removed.
Express Window Anti-Pinch Override
{WARNING:
If express override is activated, the window will not
reverse automatically. You or others could be
injured and the window could be damaged. Before
you use express override, make sure that all people
and obstructions are clear of the window path.In an emergency, the anti-pinch feature can be
overridden in a supervised mode. Hold the window
switch all the way up to the second position. The window
rises for as long as the switch is held. Once the
switch is released, the express mode is re-activated.
In this mode, the window can still close on an object in
its path. Use care when using the override mode.
Window Lockout
The driver power window controls also include a lockout
button.
o(Window Lockout):Press the lockout button to
stop the rear passengers from using their window
switches. The driver and front passenger can still
operate all the windows with the lock on. When the red
part of the switch is visible, you have returned to
normal window operation.
3-16
ProCarManuals.com

The Engine Will Remain Running When:
•
The engine, transmission, or hybrid battery is
not warmed up yet.
•The outside temperature is less than 5°F (−15°C).
•While the A/C is in Normal Mode.
•A/C is in Hybrid Mode and the climate control
system is working to cool the vehicle. SeeAutomatic
Climate Control System on page 4-16for more
information.
•Defrost is selected.
•The shift lever is in P (Park), N (Neutral),
R (Reverse), I (Intermediate) or L (Low).
•The hybrid battery pack charge is low.
•The 12V vehicle battery charge is low, or loads
are high.
•The hood is not fully closed.
The Engine Will Restart When:
•
The brake pedal is released.
•The accelerator pedal is applied.
•When shifting out of D (Drive) to any other gear.
•If the Hybrid A/C button is selected, the duration of
the AUTO STOP will depend on the outside
temperature. This economy mode improves fuel
economy by limiting the effects of the air
conditioning. The warmer it is outside, the shorter
the time before the engine is restarted to provide
cabin cooling.
•The climate control system is turned from Off to
Normal A/C or defrost SeeAutomatic Climate
Control System on page 4-16for more information.
•The engine is required to run for either heater
or climate control performance. See “Air
Conditioning Engine Start/Stop” underAutomatic
Climate Control System on page 4-16for more
information.
•The hybrid battery pack charge is low and requires
recharging.
•Auto Stop time is greater than two minutes.
3-25
ProCarManuals.com

Engine Coolant Heater
The engine coolant heater can provide easier starting
and better fuel economy during engine warm-up in cold
weather conditions at or below 0°F (−18°C). Vehicles
with an engine coolant heater should be plugged
in at least four hours before starting. Some models may
have an internal thermostat in the cord which will
prevent engine coolant heater operation at temperatures
above 0°F (−18°C).
To Use the Engine Coolant Heater
1. Turn off the engine.
2. Open the hood and unwrap the electrical cord. The
engine coolant heater cord is located near the air
cleaner box on the passenger side of the engine
compartment. SeeEngine Compartment Overview
on page 6-14for more information on location.
3. Plug the cord into a normal, grounded 110-volt AC
outlet.
{WARNING:
Plugging the cord into an ungrounded outlet could
cause an electrical shock. Also, the wrong kind of
extension cord could overheat and cause a fire.
You could be seriously injured. Plug the cord into
a properly grounded three-prong 110-volt AC
outlet. If the cord will not reach, use a heavy-duty
three-prong extension cord rated for at least
15 amps.
4. Before starting the engine, be sure to unplug and
store the cord as it was before to keep it away
from moving engine parts. If you do not, it could be
damaged.
The length of time the heater should remain plugged in
depends on several factors. Ask a dealer/retailer in
the area where you will be parking the vehicle for the
best advice on this.
3-26
ProCarManuals.com

Fuel Gage...................................................4-35
Auto Stop Mode...........................................4-36
Charge/Assist Gage......................................4-36
Fuel Economy Light......................................4-37
Driver Information Center (DIC).......................4-37
DIC Operation and Displays...........................4-38
DIC Warnings and Messages.........................4-41
DIC Vehicle Personalization............................4-45
Audio System(s).............................................4-51
Setting the Clock..........................................4-52
Radio(s)......................................................4-53Using an MP3..............................................4-62
XM Radio Messages.....................................4-68
Bluetooth
®...................................................4-69
Theft-Deterrent Feature..................................4-80
Audio Steering Wheel Controls.......................4-80
Radio Reception...........................................4-82
Backglass Antenna.......................................4-83
XM™ Satellite Radio Antenna System.............4-83
Chime Level Adjustment................................4-83
Section 4 Instrument Panel
4-2
ProCarManuals.com

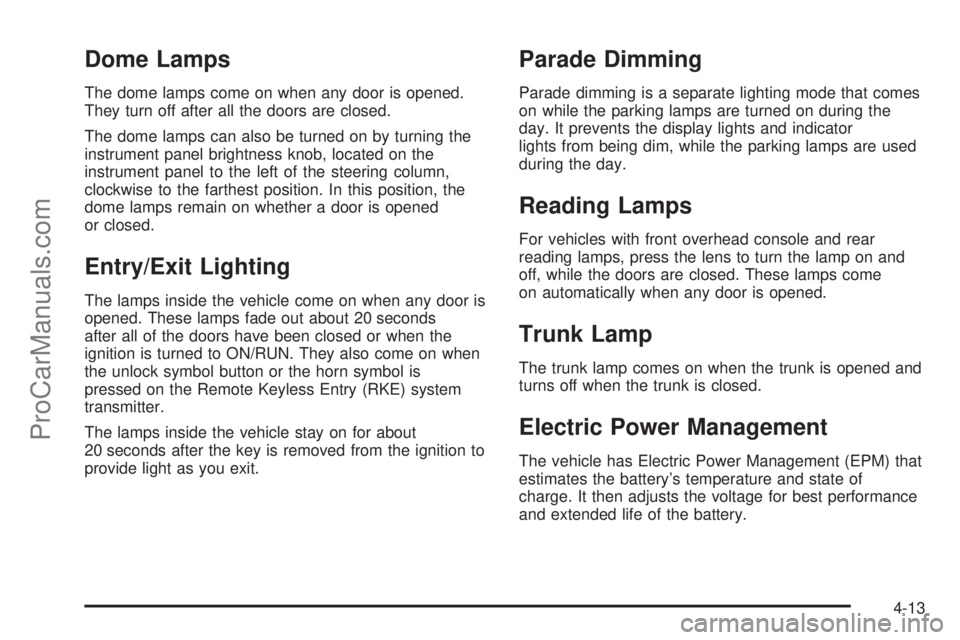

Dome Lamps
The dome lamps come on when any door is opened.
They turn off after all the doors are closed.
The dome lamps can also be turned on by turning the
instrument panel brightness knob, located on the
instrument panel to the left of the steering column,
clockwise to the farthest position. In this position, the
dome lamps remain on whether a door is opened
or closed.
Entry/Exit Lighting
The lamps inside the vehicle come on when any door is
opened. These lamps fade out about 20 seconds
after all of the doors have been closed or when the
ignition is turned to ON/RUN. They also come on when
the unlock symbol button or the horn symbol is
pressed on the Remote Keyless Entry (RKE) system
transmitter.
The lamps inside the vehicle stay on for about
20 seconds after the key is removed from the ignition to
provide light as you exit.
Parade Dimming
Parade dimming is a separate lighting mode that comes
on while the parking lamps are turned on during the
day. It prevents the display lights and indicator
lights from being dim, while the parking lamps are used
during the day.
Reading Lamps
For vehicles with front overhead console and rear
reading lamps, press the lens to turn the lamp on and
off, while the doors are closed. These lamps come
on automatically when any door is opened.
Trunk Lamp
The trunk lamp comes on when the trunk is opened and
turns off when the trunk is closed.
Electric Power Management
The vehicle has Electric Power Management (EPM) that
estimates the battery’s temperature and state of
charge. It then adjusts the voltage for best performance
and extended life of the battery.
4-13
ProCarManuals.com

Climate Controls
Automatic Climate Control System
The heating, cooling, and ventilation in the vehicle
can be automatically controlled with this system.
setnc;2A. Fan Control
B. Air Conditioning
C. Recirculation
D. Hybrid Air
ConditioningE. Rear Window
Defogger
F. Air Delivery Mode
Control
G. Display
H. Temperature
Control
Climate Control Inuence on Hybrid
Operation and Fuel Economy
The climate control system is dependent upon other
vehicle systems for heat and power input. Certain
climate control settings can lead to higher fuel usage
and/or fewer Auto Stops.
The following are climate control settings that use
more fuel:
•Normal air conditioning mode.
•The defrost mode.
•Extreme temperature settings, such as
60°F (15°C) / 90°F (32°C).
•High fan speed settings.
To help reduce fuel usage:
•Use the full automatic control as described under
Automatic Operation.
•Use hybrid air conditioning, instead of the normal
air conditioning.
•Select a temperature setting that is higher in hot
weather and lower in cold weather.
•Turn off the air conditioning when it is not needed.
•Only use defrost to clear the windows.
These suggestions will help to reduce fuel consumption,
but may reduce overall comfort.
4-16
ProCarManuals.com

Automatic Operation
AUTO (Automatic):Select AUTO on both the fan
speed knob and the air delivery mode knob to activate
the automatic system. When automatic operation is
active the system controls the inside temperature and
air delivery.
Use the steps below to place the entire system in full
automatic control:
1. Turn the fan knob and the mode knob to the AUTO
position.
The current set temperature displays. When AUTO
is selected, the air conditioning operation and air
inlet is automatically controlled. The air conditioning
compressor runs while the outside temperature is
over about 40°F (4°C). The air inlet is normally
set to outside air. If it is hot outside, the air inlet can
automatically switch to recirculate inside air to
help quickly cool down the vehicle.2. Set the temperature.
An initial setting of 73°F (23°C) is recommended.
Allow about 20 minutes for the system to regulate.
Press the
worxarrow temperature buttons
to adjust the temperature setting as necessary. If
the temperature is set at 60°F (15°C) the system
remains at the maximum cooling setting. If the
temperature is set at 90°F (32°C) the system
remains at the maximum heat setting. Choosing
either maximum setting does not cause the vehicle
to heat or cool any faster.
Do not cover the sensor located on the top of the
instrument panel near the windshield. This
sensor regulates air temperature based on the
intensity of the sun.
Also do not cover the sensor grille on the lower
right side of the climate control faceplate, as
this regulates the inside temperature.
To avoid blowing cold air at engine start-up in cold
weather, the system delays turning on the fan
until warm air is available. The length of delay
depends on the engine coolant temperature. Turning
the fan knob overrides this delay and changes
the fan to the selected speed.
4-17
ProCarManuals.com
