1
FAMILIARISATION
Interior
13. B a t t e r y / F u s e b o x .
14. Passenger air bag.
15. Passenger’s lower glove box/RCA
sockets.
16. Air conditioning controls.
17. L i g h t e r / 1 2 V a c c e s s o r i e s s o c k e t .
18. Hazard warning lights switch.
19. Storage compartment or additional
telematics control.
20. Cooled compartment.
21. Ashtray/Can holder.
22. Seat adjustment control.
23. Storage compartment.
24. F u s e b o x .
25. Handbrake - on the right.
1. E l e c t r i c m i r r o r c o n t r o l s .
- E l e c t r i c w i n d o w c o n t r o l s .
- Deactivation of the rear electric controls.
2. Driver’s upper glove box.
3. Central adjustable vents.
4. Audio equipment or GPS
multimedia audio equipment with
fl a p .
5. I n s t r u m e n t p a n e l / L a r g e c o l o u r
display.
6. Sunshine and passenger
compartment temperature sensor.
7. Passenger’s upper glove box.
26. B o n n e t r e l e a s e u n d e r c o v e r -
on the left.
27. Acoustic windscreen.
INTERIOR OVERVIEW
SETTING THE DATE AND
TIME
F o r m o r e i n f o r m a t i o n a b o u t
this adjustment, refer to the
"Setting the date and time" section of
t h e " I n - c a r t e c h n o l o g y " c h a p t e r .
ADDITIONAL HEATER
With the engine at idle
or when the vehicle is
stationary, it is normal
to notice a high-pitched
whistling and a slight emission of
smoke and odour.
B l u e t o o t h .
8. Windscreen demisting vents.
9. Speaker (tweeter).
10. F r o n t w i n d o w d e m i s t i n g v e n t s .
11. Passenger air bag disarming
s w i t c h , i f fi t t e d o n y o u r v e h i c l e .
12. Side adjustable vent.
Page 18 of 237
Accesses
READY TO SET OFF
2
21
ELECTRONIC ENGINE
IMMOBILISER
This locks the engine control system as
s o o n a s t h e i g n i t i o n h a s b e e n s w i t c h e d
off and therefore prevents starting of
t h e v e h i c l e b y a n y o n e w h o d o e s n o t
have the key.
The ignition key has an electronic
chip which has a special code. When
the ignition is switched on, the code
m u s t b e r e c o g n i s e d f o r s t a r t i n g t o b e
p o s s i b l e .
If the system does not function
c o r r e c t l y , t h e c e n t r a l l o c k i n g b u t t o n
indicator light, situated on the courtesy
l i g h t c o n s o l e , fl a s h e s r a p i d l y w h e n t h e
ignition is switched on (2nd notch).
In this case your vehicle will not start.
Contact a PEUGEOT dealer as soon
a s p o s s i b l e . Good practice
If the keys are lost
A P E U G E O T d e a l e r w i l l b e a b l e
to retrieve the key code and the
transponder code to order a replacement
key if you show him your V5 registration
c e r t i fi c a t e a n d p e r s o n a l i d e n t i fi c a t i o n .
Key, remote control
Take care not to allow the key to come
into contact with grease, dust, rain or a
damp environment.
A h e a v y o b j e c t a t t a c h e d t o t h e k e y
(key ring, ...) weighing on the shaft
of the key in the switch may cause a
malfunction.
The high frequency remote control is
a sensitive system; do not operate it
while it is in your pocket as there is
a p o s s i b i l i t y t h a t i t m a y u n l o c k y o u r
v e h i c l e , w i t h o u t y o u b e i n g a w a r e o f i t .
D o n o t r e p e a t e d l y p r e s s t h e b u t t o n s o f
your remote control out of range and
out of sight of your vehicle. You run
the risk of stopping it from working and
t h e r e m o t e c o n t r o l w o u l d h a v e t o b e
reprogrammed.
The remote control does not operate
when the key is in the ignition, even
when the ignition is switched off,
except for reprogramming.
D o n o t m a k e a n y m o d i fi c a t i o n s t o t h e
e l e c t r o n i c e n g i n e i m m o b i l i s e r s y s t e m . Safety
In the event of a serious impact the
doors are unlocked automatically
t o p e r m i t a c c e s s b y t h e e m e r g e n c y
services.
Remove the ignition key when you
leave the vehicle, even for a short time,
i f t h e r e a r e c h i l d r e n o n b o a r d .
Purchasing a second-hand vehicle
Ensure that you are given the anti-theft
s o c k e t f o r a l l o y w h e e l s ( r e m e m b e r t o
note the code engraved on the head of
the socket).
H a v e t h e k e y c o d e s m e m o r i s e d b y
a PEUGEOT dealer, to ensure that
the keys in your possession are the
only ones which can start the vehicle.
Page 20 of 237
Accesses
READY TO SET OFF
23
DOORS
Automatic central locking
The doors can lock automatically when
you are driving (at a speed of more
than 6 mph (10 km/h)).
You can activate or deactivate this
function. To deactivate
With the ignition on, press
and hold the padlock.
Deactivation of the function
i s a c c o m p a n i e d b y a n a u d i b l e
signal.
Opening the doors from outside Opening the doors
from inside
If the vehicle is locked or
deadlocked from the outside, the
r e d w a r n i n g l i g h t fl a s h e s a n d t h e
padlock does not function. In this case,
use the key or the remote control to
unlock from the outside.
The door opening switches do
not function when the vehicle is
deadlocked. Locking/Unlocking from
the inside
Press the padlock, the red
warning light comes on when
the vehicle is locked and switches off
when it is unlocked.
This locks/unlocks the doors and the
tailgate.
To activate
With the ignition on, press
and hold the padlock.
Activation of the function is
a c c o m p a n i e d b y a n a u d i b l e s i g n a l a n d
a message on the display . "Door open" alert
If a door or the tailgate is not closed
properly:
-
when the engine is running , you
a r e w a r n e d b y a g r a p h i c a n d a
message on the display for a few
seconds,
- when the vehicle is moving
( s p e e d a b o v e 6 m p h ( 1 0 k m / h ) ) ,
the service warning light comes on.
I t i s a c c o m p a n i e d b y a n a u d i b l e
signal, a message and a graphic on
the display for a few seconds.
Page 22 of 237
Accesses
READY TO SET OFF
2
25
ELECTRIC CHILD SAFETY
Simultaneous locking or
unlocking of the tailgate and the
doors
T h e t a i l g a t e i s l o c k e d o r u n l o c k e d b y
the remote control or the driver’s door
or passenger door lock.
To open, operate the handle C and lift
the tailgate. Tailgate release
The tailgate locks automatically
w h e n t h e v e h i c l e i s b e i n g d r i v e n
at more than 6 mph (10 km/h) and
unlocks when one of the front doors is
opened.
TAILGATE
"Tailgate open" warning
When the engine is running or the
v e h i c l e i s b e i n g d r i v e n , y o u a r e w a r n e d
i f t h e t a i l g a t e i s n o t c l o s e d c o r r e c t l y b y
a diagram on the display, accompanied
b y a n a u d i b l e s i g n a l . T h i s e n a b l e s t h e t a i l g a t e t o b e
unlocked in the event of a central
locking fault.
- F o l d b a c k a r o w 2 r e a r s e a t ,
- F o l d b a c k a r o w 3 r e a r s e a t o r t h e
b e n c h s e a t t o g a i n a c c e s s t o t h e
l o c k f r o m i n s i d e t h e b o o t ,
- Insert a small screwdriver into hole D in the lock and push it
towards the left to unlock the
tailgate.
B - Electric
This disarms all the electrical controls
in the rear:
- electric windows,
- sliding side doors,
- sunroofs in rows 2 and 3.
W i t h t h e i g n i t i o n o n , p r e s s b u t t o n
B .
A message appears on the display,
a c c o m p a n i e d b y a n a u d i b l e s i g n a l ,
indicating the status of the function:
activated or not activated.
A l w a y s c h e c k t h e s t a t u s b e f o r e s e t t i n g o f f .
This safety system is independent of
the central locking.
In the event of a serious impact, the
doors are unlocked automatically
t o p e r m i t a c c e s s b y t h e e m e r g e n c y
services.
Always remove the ignition key
when leaving the vehicle, even for
a short time.
Page 26 of 237
Instruments and controls
READY TO SET OFF
2
29
WARNING LIGHTS
Each time the engine is started: a series of warning lights comes on applying a self-test check. They switch off almost
i m m e d i a t e l y . W i t h t h e e n g i n e r u n n i n g : t h e w a r n i n g l i g h t b e c o m e s a w a r n i n g i f i t r e m a i n s o n c o n t i n u o u s l y o r fl a s h e s . T h i s
i n i t i a l w a r n i n g m a y b e a c c o m p a n i e d b y a n a u d i b l e s i g n a l a n d a m e s s a g e w h i c h a p p e a r s o n t h e d i s p l a y . " D o n o t i g n o r e
these warnings."

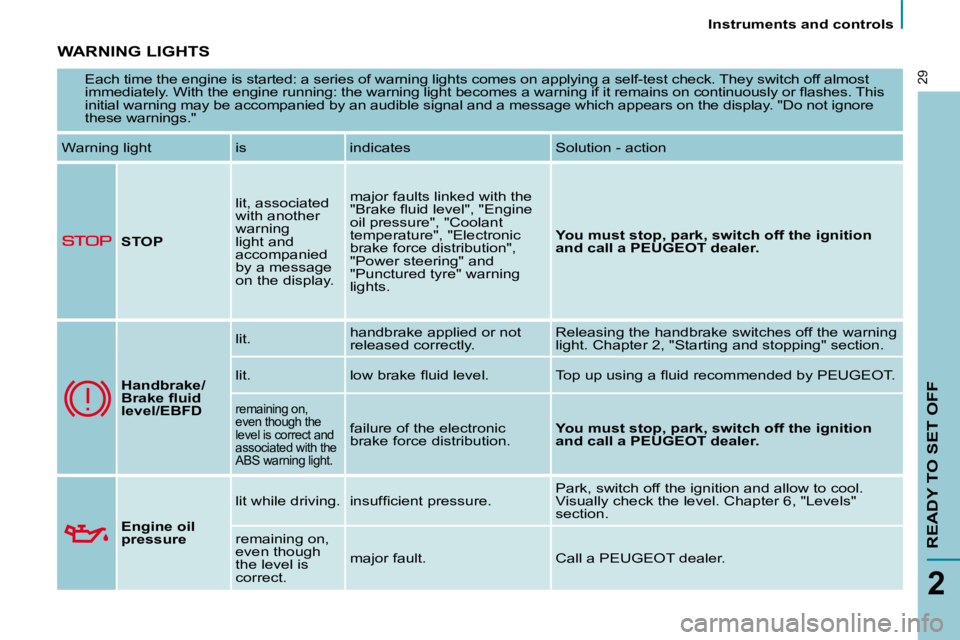

Warning light is indicates Solution - action
STOP lit, associated
with another
warning
light and
accompanied
b y a m e s s a g e
on the display. m a j o r f a u l t s l i n k e d w i t h t h e
" B r a k e fl u i d l e v e l " , " E n g i n e
oil pressure", "Coolant
temperature", "Electronic
b r a k e f o r c e d i s t r i b u t i o n " ,
"Power steering" and
"Punctured tyre" warning
lights.
You must stop, park, switch off the ignition
and call a PEUGEOT dealer.
Handbrake/
B r a k e fl u i d
level/EBFD lit.
h a n d b r a k e a p p l i e d o r n o t
released correctly. R e l e a s i n g t h e h a n d b r a k e s w i t c h e s o f f t h e w a r n i n g
light. Chapter 2, "Starting and stopping" section.
lit. l o w b r a k e fl u i d l e v e l . T o p u p u s i n g a fl u i d r e c o m m e n d e d b y P E U G E O T .
remaining on,
even though the
level is correct and
associated with the
ABS warning light.
failure of the electronic
b r a k e f o r c e d i s t r i b u t i o n .
You must stop, park, switch off the ignition
and call a PEUGEOT dealer.
Engine oil
pressure lit while driving.
i n s u f fi c i e n t p r e s s u r e . Park, switch off the ignition and allow to cool.
Visually check the level. Chapter 6, "Levels"
section.
remaining on,
even though
the level is
correct. m a j o r f a u l t .
Call a PEUGEOT dealer.
Page 32 of 237
Instruments and controls
34
W a i t f o r t h e e n g i n e t o c o o l b e f o r e
topping up the level.
The cooling system is pressurised.
I n t h e e v e n t o f a b r e a k d o w n a n d i n
order to avoid any risk of scalding,
unscrew the cap two turns to allow the
pressure to drop.
When the pressure has dropped,
remove the cap and top up the level.
Contact a PEUGEOT dealer.
COOLANT TEMPERATURE INDICATOR
I n z o n e A , the temperature is correct.
I n z o n e B , the temperature is too high.
The central STOP warning light and
the maximum coolant temperature
warning light 1 come on, accompanied
b y a n a u d i b l e s i g n a l a n d t h e m e s s a g e
"Engine coolant temp. too high" on
the display.
You must stop immediately.
With monochrome screen
With colour screen
INSTRUMENT PANEL DISPLAY
After switching on the ignition, three
functions are shown in succession:
- service indicator,
- engine oil level indicator (see
corresponding section),
- total distance recorder (total and trip distances).
I t a l s o d i s p l a y s t h e a u t o m a t i c g e a r b o x
positions and programmes selected
(see opposite).
The total and trip distances are
displayed for thirty seconds, when
the ignition is switched off, on
opening the driver’s door as well as on
locking and unlocking the vehicle.
Page 33 of 237
Instruments and controls
READY TO SET OFF
2
35
Service indicator
The display, located in the control
b l o c k , i n f o r m s y o u w h e n t h e n e x t
s e r v i c e w i l l b e d u e i n a c c o r d a n c e
with the "Manufacturer’s" servicing
schedule indicated in the servicing
b o o k l e t . T h i s i n f o r m a t i o n i s d e t e r m i n e d
in relation to the distance travelled
since the previous service. A few seconds after the ignition is
switched on, the oil level is displayed,
then the total distance recorder
resumes normal operation showing the
total and trip distances.
The distance remaining before
the next service is less than
500 miles/1 000 km
Each time the ignition is switched on
and for a few seconds, the spanner
fl a s h e s a n d t h e n u m b e r o f m i l e s /
kilometres remaining is displayed: A few seconds after the ignition is
switched on, the oil level is displayed,
then the total distance recorder
resumes normal operation and the
spanner remains lit. This indicates that
a s e r v i c e s h o u l d b e c a r r i e d o u t s h o r t l y .
The service is overdue
Each time the ignition is switched on
and for a few seconds, the spanner
fl a s h e s a n d t h e e x c e s s d i s t a n c e i s
displayed.
With the engine running the
spanner remains lit until the
s e r v i c e h a s b e e n c a r r i e d o u t .
Example: 4 800 miles/km remain
b e f o r e t h e n e x t s e r v i c e i s d u e . W h e n
the ignition is switched on and for a
few seconds, the display shows:
Refer to the list of checks in the
s e r v i c i n g b o o k l e t w h i c h w a s g i v e n
to you on delivery of the vehicle.
Operation
A few moments after the ignition
h a s b e e n s w i t c h e d o n , t h e s p a n n e r
indicating a service operation lights
up; the display for the total distance
r e c o r d e r t e l l s y o u ( i n r o u n d fi g u r e s )
t h e d i s t a n c e r e m a i n i n g b e f o r e t h e n e x t
service.
The points at which a service is due
are calculated from the last indicator
z e r o r e s e t .
The point at which a service is due is
d e t e r m i n e d b y t h e d i s t a n c e t r a v e l l e d . For further information, consult the
internet site at the address:
http://public.servicebox.peugeot.com
Page 34 of 237
Instruments and controls
36
Zero re-set
Your PEUGEOT dealer carries out this
operation after each service.
However, if you carry out the service
yourself, the re-set procedure is as
follows:
- Switch off the ignition,
- Press and hold the trip recorder re-set b u t t o n ,
- Switch on the ignition.
T h e d i s p l a y b e g i n s a c o u n t d o w n .
When the display shows "= 0 ", release
t h e b u t t o n ; t h e s p a n n e r d i s a p p e a r s .
Engine oil level indicator
When the ignition is switched on, the
engine oil level is indicated for a few
seconds, after the service information. Oil level correct
Lack of oil
Flashing of
"OIL" ,
linked with the
service warning light,
a c c o m p a n i e d b y a n
a u d i b l e s i g n a l a n d a m e s s a g e o n t h e
display, indicates a lack of oil which
could damage the engine.
I f t h e l a c k o f o i l i s c o n fi r m e d b y a c h e c k
using the dipstick, it is essential that
the level is topped up.
Oil level gauge fault
Flashing of "OIL --"
indicates a malfunction
of the engine oil level
gauge. Consult a
PEUGEOT dealer. Dipstick
A = maximum, never exceed
this level as a surplus of oil
may damage the engine.
Contact a PEUGEOT dealer
without delay.
B = minimum, top up the level
v i a t h e o i l fi l l e r c a p , u s i n g
the type of oil suited to your
engine.
Trip recorder zero
reset button
With the ignition on, press
t h e b u t t o n u n t i l t h e z e r o s
appear.
Lighting rheostat
With the lights on, press
t h e b u t t o n t o v a r y t h e
intensity of the lighting
of the instruments and
controls. When the lighting reaches
the minimum (or maximum) setting,
r e l e a s e t h e b u t t o n t h e n p r e s s i t a g a i n
t o i n c r e a s e ( o r r e d u c e ) t h e b r i g h t n e s s .
As soon as the lighting is of the
r e q u i r e d b r i g h t n e s s , r e l e a s e t h e b u t t o n .
T h e l e v e l r e a d w i l l o n l y b e c o r r e c t
if the vehicle is on level ground
a n d t h e e n g i n e h a s b e e n o f f f o r
more than 15 minutes.
After this operation, if you wish to
d i s c o n n e c t t h e b a t t e r y , l o c k t h e
vehicle and wait for at least
fi v e m i n u t e s , o t h e r w i s e t h e z e r o r e - s e t
w i l l n o t b e r e g i s t e r e d .
