113
Levels
CHECKS
6
These regular maintenance
operations will keep your vehicle
in good running order. Consult the
instructions at PEUGEOT dealerships
or in the servicing booklet enclosed in
the handbook pack. To maintain the reliability of engines
and emission control systems, the use
of additives in engine oil is prohibited.
Oil change
It is imperative that this is carried out at
t h e i n t e r v a l s s p e c i fi e d a n d t h e v i s c o s i t y
g r a d e o f t h e o i l s e l e c t e d m u s t f u l fi l t h e
requirements in accordance with the
manufacturer’s servicing schedule.
Consult the instructions at PEUGEOT
dealerships.
R e m o v e t h e d i p s t i c k b e f o r e fi l l i n g .
C h e c k t h e l e v e l a f t e r fi l l i n g ( n e v e r
exceed the max mark).
Screw the cap back onto the sump
before closing the bonnet.
LEVELS
I f y o u h a v e t o r e m o v e / r e fi t t h e
engine style cover, handle it with
c a r e t o a v o i d d a m a g i n g t h e fi x i n g
clips.
Dipstick Warning lights
Oil level
Check the level regularly and top up
between changes. The maximum
consumption is 0.5 litre per 600 miles
(1 000 km).
Check the level with the vehicle level,
engine cold, using the dipstick.
Viscosity selection
In all cases, the oil selected must meet
the manufacturer’s requirements. Checking by means of the
warning lights on the instrument
panel is described in chapter 2,
"Instruments and controls" section.
Changing the brake fluid
T h e b r a k e fl u i d m u s t b e c h a n g e d a t
the intervals stated, according to the
manufacturer’s servicing schedule.
U s e fl u i d s r e c o m m e n d e d b y t h e
m a n u f a c t u r e r , w h i c h f u l fi l D O T 4
standards.
The level must be between the MIN
and MAX marks on the reservoir.
I f fl u i d h a s t o b e a d d e d f r e q u e n t l y ,
this indicates a failure which must be
checked by a PEUGEOT dealer as
soon as possible.
There are two marks
on the dipstick:
A = maximum
I f y o u fi l l p a s t t h i s
mark, contact a
PEUGEOT dealer.
B = minimum
Never allow the level
to fall below this
mark.
Page 116 of 237
114
Levels
Cooling system
O n l y u s e t h e fl u i d r e c o m m e n d e d b y t h e
manufacturer.
Otherwise, you risk seriously damaging
your engine.
When the engine is warm, the
temperature of the coolant is controlled
by the engine fan. As this fan can
operate with the ignition key removed
and because the cooling system is
pressurised, wait for at least one hour
after the engine has stopped before
carrying out any work.
Slacken the cap by 1/4 of a turn to
release the pressure to prevent any
risk of scalding. When the pressure
has dropped, remove the cap and top
up the level with coolant.
I f fl u i d h a s t o b e a d d e d f r e q u e n t l y ,
this indicates a failure which must be
checked by a PEUGEOT dealer as
soon as possible. Power steering fluid level
The vehicle must be parked on level
ground with the engine cold. Unscrew
the cap integrated with the gauge and
check the level which must be between
the MIN and MAX marks.
During regeneration of the particle
e m i s s i o n fi l t e r , r e l a y n o i s e m a y b e
heard under the fascia.
If the message is still displayed and
the service warning light remains on,
contact a PEUGEOT dealer.
Diesel additive level (Diesel with
particle emission filter)
When this occurs with the engine
running, this is due to the start of
s a t u r a t i o n o f t h e p a r t i c l e e m i s s i o n fi l t e r
(exceptionally prolonged urban driving
c o n d i t i o n s : l o w s p e e d , l o n g t r a f fi c
jams, ...).
I n o r d e r t o r e g e n e r a t e t h e fi l t e r , y o u
are advised to drive at a speed of
more than 40 mph (60 km/h) as soon
a s p o s s i b l e , w h e n t r a f fi c c o n d i t i o n s
p e r m i t , f o r a t l e a s t fi v e m i n u t e s ( u n t i l
the message disappears and the
service warning light is switched off).
Topping up
The level must be between the MIN
and MAX marks on the expansion
b o t t l e . I f m o r e t h a n 1 l i t r e o f fl u i d i s
required to top up the level, have
the system checked by a PEUGEOT
dealer. Windscreen wash and headlamp
wash level
For best quality cleaning and for your
safety, we would advise that you use
products of the PEUGEOT range.
To avoid ice forming, do not use water.
Topping up
It is imperative that this additive is
topped up by a PEUGEOT dealer
without delay.
Used oil
Avoid prolonged contact of used oil
with the skin.
B r a k e fl u i d i s h a r m f u l t o h e a l t h a n d
very corrosive.
Do not dispose of used oil, brake
fl u i d o r c o o l a n t i n t o d r a i n s o r o n t o
the ground but into the containers
dedicated to this use at PEUGEOT
dealerships.
The minimum level of this
additive is indicated by
lighting of the service warning
light, accompanied by an
audible signal and a message
on the display.
Page 117 of 237
115
Checks
CHECKS
6
CHECKS
To check the main levels
and certain components,
in accordance with the
manufacturer’s servicing schedule,
refer to the pages of the Maintenance
and Warranty Guide which correspond
to your vehicle’s engine.
Only use products recommended
by PEUGEOT or products
of equivalent quality and
s p e c i fi c a t i o n .
In order to optimise the operation
of units as important as the braking
system, PEUGEOT selects and offers
s p e c i fi c p r o d u c t s .
In order to avoid damaging the
electrical units, high pressure washing
to clean the engine compartment is
strictly prohibited.
Oil filter
C h a n g e t h e fi l t e r r e g u l a r l y , i n
accordance with the servicing
schedule. Refer to the servicing booklet to
fi n d o u t t h e r e p l a c e m e n t i n t e r v a l
for these components.
Depending on the environment (dusty
atmosphere...) and the use of the
vehicle (urban driving...), change them
twice as often if necessary.
Refer to the "Under the bonnet" section
of chapter 6. Particle emission filter (Diesel)
It is imperative that particle emission
fi l t e r m a i n t e n a n c e i s c a r r i e d o u t b y a
PEUGEOT dealer.
On acceleration after the vehicle has
been running for a prolonged period
at very low speed or at idle, you may,
in exceptional circumstances, notice
the emission of water vapour at the
exhaust. This water vapour does not
have any adverse effect on vehicle
handling or the environment.
Battery
At the start of winter, have your battery
checked by a PEUGEOT dealer.
Brake pads
Brake pad wear depends on the style
of driving, in particular for vehicles
which are used in town, over short
distances. It may be necessary to
check the thickness of the pads, even
between services.
Unless there is a leak on the circuit, a
d r o p i n t h e b r a k e fl u i d l e v e l i n d i c a t e s
that the brake pads are worn.
Brake disc/drum wear status
For any information relating to
checking the brake disc/drum wear
status, contact a PEUGEOT dealer.
Handbrake
Where the handbrake travel is too
great or there is a reduction in the
performance of the system, the
handbrake should be adjusted, even
between services.
Have the system checked by a
PEUGEOT dealer. Carbon filter and passenger
compartment filter
T h e c a r b o n fi l t e r p e r m i t s c o n t i n u o u s
a n d e f f e c t i v e fi l t e r i n g o f d u s t .
I f t h e p a s s e n g e r c o m p a r t m e n t fi l t e r
becomes clogged, this may reduce
the performance of the air conditioning
system and generate unpleasant
odours.
We recommend the use of a combined
p a s s e n g e r c o m p a r t m e n t fi l t e r . B y
means of its second special active
fi l t e r , i t c o n t r i b u t e s t o t h e p u r i fi c a t i o n
of the air breathed by the occupants
and to the cleanness of the passenger
compartment (reduction of allergic
symptoms, unpleasant odours and
greasy deposits).
Manual gearbox
Have the level checked in accordance with
the manufacturer’s servicing schedule.
Page 118 of 237
116
Battery
ECONOMY MODE FUNCTION
After the engine has stopped, with
the key in the ignition position, certain
functions (windscreen wiper, electric
windows, courtesy lights, audio
equipment, etc.) can only be used for a
cumulative duration of thirty minutes, to
prevent discharging the battery.
Once the thirty minutes are over, the
message "Economy mode active"
appears on the display and the active
functions are put on standby.
To resume the use of these functions
immediately, start the engine and let it
run for a few seconds.
A fl a t b a t t e r y w i l l p r e v e n t t h e e n g i n e
from starting.
To charge the battery using a
battery charger
- disconnect the battery,
- follow the instructions for use
given by the battery charger
manufacturer,
- reconnect starting with the negative (-) terminal,
- check that the terminals and connectors are clean. If they are
covered with sulphate (white or
greenish deposit), disconnect them
and clean them.
BATTERY
This is housed in a compartment
l o c a t e d u n d e r n e a t h t h e fl o o r , i n f r o n t o f
the driver's seat.
Before disconnecting the battery, you
must wait for 2 minutes after switching
off the ignition.
Never disconnect a terminal when the
engine is running.
N e v e r c h a r g e a b a t t e r y w i t h o u t fi r s t
disconnecting the terminals.
Close the sunroof and the windows
before disconnecting the battery. If
they do not operate normally following
reconnection of the battery, they must
be reinitialised.
It is advisable to disconnect the
battery if the vehicle is not to be used
for a period of more than one month.
After every reconnection of the battery,
switch on the ignition and wait 1 minute
before starting to allow the electronic
systems to be initialised. If slight
d i f fi c u l t i e s a r e e x p e r i e n c e d a f t e r t h i s ,
please contact a PEUGEOT dealer.
The door open monitoring electrical
system consumes power, remember
to close the sliding doors when your
vehicle is parked for long periods.
To start the vehicle from
another battery
- connect the red cable to the positive (+) terminals of the two
batteries,
- connect one end of the green or black cable to the negative (-)
terminal of the slave battery,
- connect the other end of the green or black cable to an earth point on
the broken down vehicle as far as
possible from the battery,
- operate the starter, let the engine run,
- wait for the engine to return to idle, then disconnect the cables. For the sunroofs safety auto-
reverse, refer to the "Accesses"
section of chapter 2. For the electric windows safety
auto-reverse, refer to the "Mirrors
and windows" section of chapter 3.

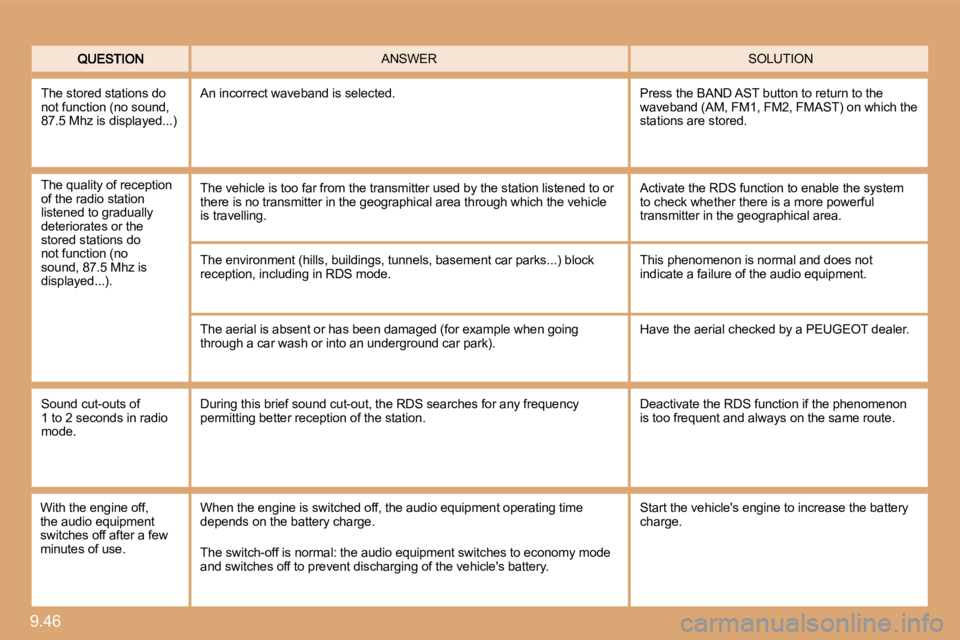

Page 186 of 237
9.46
SOLUTION ANSWER
The environment (hills, buildings, tunnels, basement car parks...) block reception, including in RDS mode.
The aerial is absent or has been damaged (for exam ple when going through a car wash or into an underground car park).
This phenomenon is normal and does not indicate a failure of the audio equipment.
Have the aerial checked by a PEUGEOT dealer.
Sound cut-outs of 1 to 2 seconds in radio mode.
During this brief sound cut-out, the RDS searches for any frequency permitting better reception of the station. Deactivate the RDS function if the phenomenon is too frequent and always on the same route.
With the engine off, the audio equipment switches off after a few minutes of use.
When the engine is switched off, the audio equipme nt operating time depends on the battery charge.
The switch-off is normal: the audio equipment switches to economy mode and switches off to prevent discharging of the vehicle's battery.
The stored stations do not function (no sound, 87.5 Mhz is displayed...)
An incorrect waveband is selected. Press the BAND AST button to return to the waveband (AM, FM1, FM2, FMAST) on which the stations are stored.
Start the vehicle's engine to increase the battery charge.
The quality of reception of the radio station listened to gradually deteriorates or the stored stations do not function (no sound, 87.5 Mhz is displayed...).
The vehicle is too far from the transmitter used by the station listened to or there is no transmitter in the geographical area th rough which the vehicle is travelling.
Activate the RDS function to enable the system to check whether there is a more powerful transmitter in the geographical area.
