FITTINGS
When changing a wheel
The hooks permit easy access
to the spare wheel by retain-
ing the boot carpet by means of the
two cords.
The hooks permit the securing of
shopping bags.
Hooks
In order to connect a 12 V accessory
(max power: 120 Watts), remove
the cap and connect the appropriate
adaptor.
Turn the key to the ignition position.
12 V accessories socket Luggage retaining net
Hooked onto the stowing rings on the
m o v a b l e b o o t fl o o r , t h i s e n a b l e s y o u t o
secure your luggage.
Observe the loads indicated on the side
of the boot, in accordance with the posi-
t i o n o f t h e m o v a b l e fl o o r .
For safety reasons in case of sharp
braking, we recommend that heavy ob-
j e c t s a r e p l a c e d o n t h e fl o o r a s c l o s e a s
possible to the back of the rear seats.
Page 126 of 315
FITTINGS
108
Adjustable boot floor
T h i s t h r e e p o s i t i o n fl o o r a l l o w s y o u t o o p t i -mise the volume of the boot by means
of the guides placed on the sides:
- H i g h p o s i t i o n ( 5 0 k g m a x ) : t h e fl o o r is level with the closed lower tail-
gate.
You can load objects while keeping an area protected and isolated.
- Intermediate position (100 kg max): t h e fl o o r i s l e v e l w i t h t h e o p e n l o w e r
tailgate.
Y o u o b t a i n a fl a t fl o o r t o t h e f r o n t seats when the rear seats are in the
retracted position.
- Low position (150 kg max): maxi- mum boot volume. T o p l a c e a n d s u p p o r t t h e fl o o r a t a n a n g l e :
From the high position, raise the
fl o o r t o w a r d s t h e l o a d s p a c e c o v e r .
Do not hesitate to pass the two re-
t r a c t a b l e s t o p s t h e n p l a c e t h e fl o o r
back on these two stops.
T o c h a n g e t h e h e i g h t o f t h e fl o o r :
P u s h t h e fl o o r f u l l y f o r w a r d s t h e n , w i t h
the help of the support stops A , move
t h e fl o o r t o t h e p o s i t i o n r e q u i r e d . T h e fl o o r i s e q u i p p e d w i t h f o u r s t o w i n g
rings to secure your luggage, observing
the loads indicated (in the boot).
Page 129 of 315
CHILD SAFETY
111
Passenger air bag OFF
CHILD SEATS RECOMMENDED BY PEUGEOT
PEUGEOT offers a complete range of recommended child seats which are secured
using a three point seat belt :
Group 0+: from birth to 13 kg Group 1: from 9 to 18 kg
L1
" R Ö M E R / B R I T A X B a b y - S a f e P l u s " .
Installed in the
rearwards-facing position.
L2
" R Ö M E R D u o P l u s ISOFIX".
Groups 1, 2 and 3: from 9 to 36 kg
L3
" K I D D Y L i f e " .
The use of the restraining cushion is compulsory for the transportation of young children (from 9 to 18 kg).
Groups 2 and 3: from 15 to 36 kg
L4
" R E C A R O S t a r t ’ ’ .
L5
" K L I P P A N O p t i m a " .
From the
age of 6 years
(approximately 22 kg), the booster is used on its own.
For more information on de-
activating the airbag, refer
to the "Safety" section then
"Airbags".
Page 130 of 315
CHILD SAFETY
111
Passenger air bag OFF
CHILD SEATS RECOMMENDED BY PEUGEOT
PEUGEOT offers a complete range of recommended child seats which are secured
using a three point seat belt :
Group 0+: from birth to 13 kg Group 1: from 9 to 18 kg
L1
" R Ö M E R / B R I T A X B a b y - S a f e P l u s " .
Installed in the
rearwards-facing position.
L2
" R Ö M E R D u o P l u s ISOFIX".
Groups 1, 2 and 3: from 9 to 36 kg
L3
" K I D D Y L i f e " .
The use of the restraining cushion is compulsory for the transportation of young children (from 9 to 18 kg).
Groups 2 and 3: from 15 to 36 kg
L4
" R E C A R O S t a r t ’ ’ .
L5
" K L I P P A N O p t i m a " .
From the
age of 6 years
(approximately 22 kg), the booster is used on its own.
For more information on de-
activating the airbag, refer
to the "Safety" section then
"Airbags".
Page 131 of 315
CHILD SAFETY
112

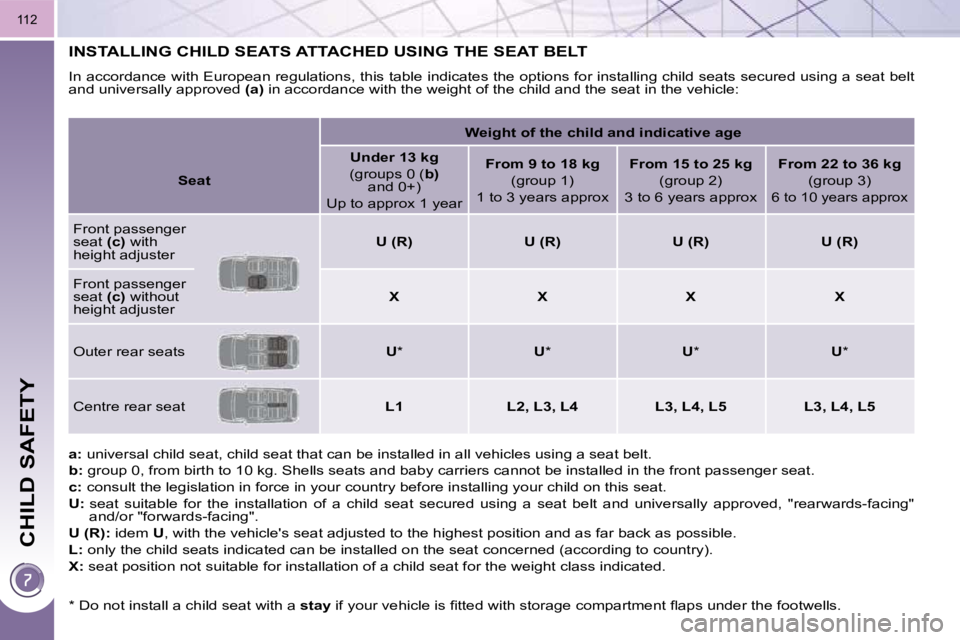

INSTALLING CHILD SEATS ATTACHED USING THE SEAT BELT
In accordance with European regulations, this table indicates the options for installing child seats secured using a seat b elt
and universally approved (a) in accordance with the weight of the child and the seat in the vehicle:
a: universal child seat, child seat that can be installed in all vehicles using a seat belt.
b: group 0, from birth to 10 kg. Shells seats and baby carriers cann ot be installed in the front passenger seat.
c: consult the legislation in force in your country before insta lling your child on this seat.
U: seat suitable for the installation of a child seat secure d using a seat belt and universally approved, "rearwards-facing"
a n d / o r " f o r w a r d s - f a c i n g " .
U (R): idem U , with the vehicle's seat adjusted to the highest positio n and as far back as possible.
L: only the child seats indicated can be installed on the se at concerned (according to country).
X: seat position not suitable for installation of a child seat for the weight class indicated.
Weight of the child and indicative age
Seat
Under 13 kg
(groups 0 ( b )
and 0+)
Up to approx 1 year
From 9 to 18 kg
(group 1)
1 to 3 years approx
From 15 to 25 kg
(group 2)
3 to 6 years approx
From 22 to 36 kg
(group 3)
6 to 10 years approx
Front passenger
seat ( c ) with
height adjuster
U (R) U (R) U (R) U (R)
Front passenger
seat (c) without
height adjuster
X X X X
Outer rear seats
U * U * U * U *
C e n t r e r e a r s e a t
L1 L2, L3, L4 L3, L4, L5 L3, L4, L5
* D o n o t i n s t a l l a c h i l d s e a t w i t h a stay i f y o u r v e h i c l e i s fi t t e d w i t h s t o r a g e c o m p a r t m e n t fl a p s u n d e r t h e f o o t w e l l s .
Page 132 of 315
CHILD SAFETY
113

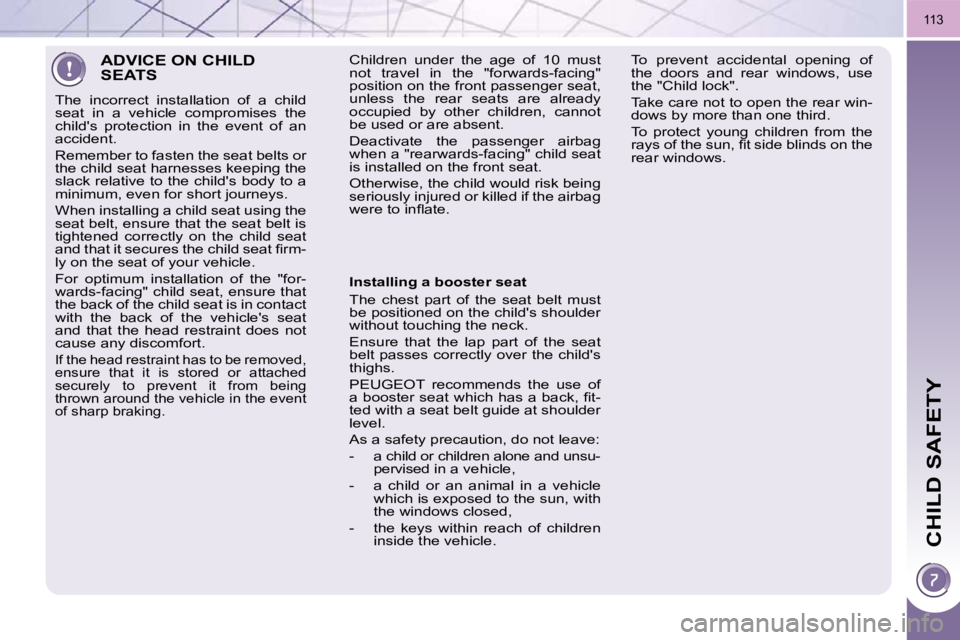

ADVICE ON CHILD SEATS
The incorrect installation of a child
seat in a vehicle compromises the
child's protection in the event of an
accident.
R e m e m b e r t o f a s t e n t h e s e a t b e l t s o r
the child seat harnesses keeping the
slack relative to the child's body to a
minimum, even for short journeys.
When installing a child seat using the
seat belt, ensure that the seat belt is
tightened correctly on the child seat
a n d t h a t i t s e c u r e s t h e c h i l d s e a t fi r m -
ly on the seat of your vehicle.
For optimum installation of the "for-
wards-facing" child seat, ensure that
the back of the child seat is in contact
with the back of the vehicle's seat
and that the head restraint does not
cause any discomfort.
If the head restraint has to be removed,
ensure that it is stored or attached
securely to prevent it from being
thrown around the vehicle in the event
of sharp braking.
Installing a booster seat
The chest part of the seat belt must
be positioned on the child's shoulder
without touching the neck.
Ensure that the lap part of the seat
belt passes correctly over the child's
thighs.
PEUGEOT recommends the use of
a b o o s t e r s e a t w h i c h h a s a b a c k , fi t -
ted with a seat belt guide at shoulder
level.
As a safety precaution, do not leave:
- a child or children alone and unsu-pervised in a vehicle,
- a child or an animal in a vehicle which is exposed to the sun, with
the windows closed,
- the keys within reach of children inside the vehicle. To prevent accidental opening of
the doors and rear windows, use
t h e " C h i l d l o c k " .
Take care not to open the rear win-
dows by more than one third.
To protect young children from the
r a y s o f t h e s u n , fi t s i d e b l i n d s o n t h e
rear windows.
C h i l d r e n u n d e r t h e a g e o f 1 0 m u s t
not travel in the "forwards-facing"
position on the front passenger seat,
unless the rear seats are already
occupied by other children, cannot
be used or are absent.
D e a c t i v a t e t h e p a s s e n g e r a i r b a g
when a "rearwards-facing" child seat
is installed on the front seat.
Otherwise, the child would risk being
seriously injured or killed if the airbag
w e r e t o i n fl a t e .
Page 133 of 315
CHILD SAFETY
114
"ISOFIX" MOUNTINGS
Y o u r v e h i c l e h a s b e e n a p p r o v e d i n
accordance with the new ISOFIX regu-
lation .
T h e s e a t s , r e p r e s e n t e d b e l o w , a r e fi t t e d
with regulation ISOFIX mountings: There are three rings for each seat:
- two rings
A , located between the
vehicle seat back and cushion, indi-
cated by a label,
- a ring B , behind the seat, referred to
as the TOP TETHER f o r fi x i n g t h e
upper strap. This ISOFIX mounting system guaran-
t e e s y o u f a s t , r e l i a b l e a n d s a f e fi t t i n g o f
the child seat in your vehicle.
The
ISOFIX child seats a r e fi t t e d w i t h
two locks which are secured easily on
the two rings A .
Some also have an upper strap which
is attached to ring B .
To attach this strap, raise the vehicle
seat's head restraint then pass the hook
b e t w e e n i t s r o d s . T h e n fi x t h e h o o k o n
ring B and tighten the upper strap.
The incorrect installation of a child seat
in a vehicle compromises the child's
protection in the event of an accident.
For information regarding the ISOFIX
child seats which can be installed in
your vehicle, consult the summary ta-
ble for the location of the ISOFIX child
seats.
Page 134 of 315
CHILD SAFETY
115
This child seat can also be
used on seats which are not
fi t t e d w i t h I S O F I X m o u n t i n g s .
In this case, it must be attached to
the vehicle seat using the three point
seat belt.
F o l l o w t h e i n s t r u c t i o n s f o r fi t t i n g
the child seat given in the seat
manufacturer's installation guide.

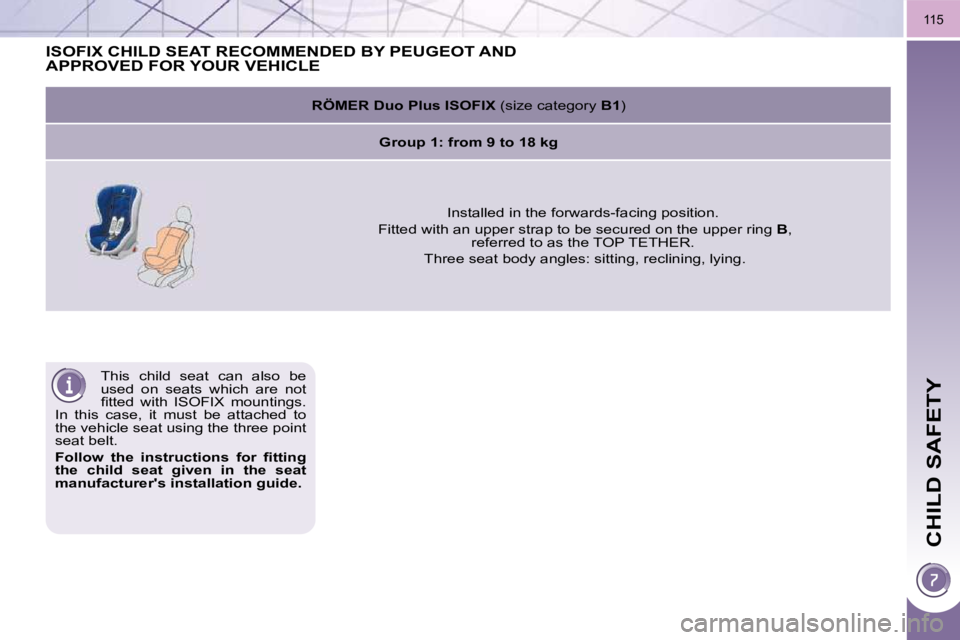

ISOFIX CHILD SEAT RECOMMENDED BY PEUGEOT AND APPROVED FOR YOUR VEHICLE
RÖMER Duo Plus ISOFIX (size category B1 )
Group 1: from 9 to 18 kg
Installed in the forwards-facing position.
Fitted with an upper strap to be secured on the upper ring B ,
r e f e r r e d t o a s t h e T O P T E T H E R .
Three seat body angles: sitting, reclining, lying.
