2010 PEUGEOT 3008 Owners Manual

PRACTICAL INFORMATION
176
Changing sidelamp bulbs
(xenon model)

 Remove the protective plastic cover
by pulling on the tab.

 Disconnect the bulb connector.

 Remove the bulb by pulling and
change it.
To refi t, carry out these operations in re-
verse order. Changing foglamp bulbs
You can also contact a
PEUGEOT dealer to have
these bulbs changed. Consult a PEUGEOT dealer.

 Insert a screwdriver towards the
centre of the repeater between the
repeater and the base of the mirror.

 Tilt the screwdriver to extract the
repeater and remove it.

 Disconnect the repeater connector.
To refi t, carry out these operations in
reverse order.
Contact a PEUGEOT dealer to obtain
replacement repeaters.
Changing integrated direction
indicator side repeaters
Changing daytime running
lamp bulbs
Consult a PEUGEOT dealer. Changing dipped beam and
main beam headlamp bulbs
(xenon model)
D1S xenon bulbs must be changed
by a PEUGEOT dealer as there is a
risk of electrocution.
It is recommended that the D1S bulbs
are changed at the same time when
one of them fails.

PRACTICAL INFORMATION
177
Rear lamps

1. Brake
lamps/
sidelamps
(P21-5W).

2. Reversing
lamps
(P21W).

3. Direction indicators
(PY21W-21W).

4. Sidelamps
(P5-5W).

5. Foglamps
(P21W). Changing brake lamp/sidelamp,
reversing lamp and direction
indicator bulbs

 Press the six tabs and remove the
bulb holder.

 Remove the plastic cover.

 Remove the two lamp unit fi xing
nuts.

 Extract the lamp unit carefully from
the outside.

 Disconnect the electrical connector.

 Turn the bulb a quarter of a turn and
change it.
To refi t, carry out these operations in
reverse order.

PRACTICAL INFORMATION
178
Changing the third brake lamp bulb Changing the number plate lamp
bulbs (W5-5W)

 Insert a thin screwdriver into one of
the outer holes of the lens.

 Push it outwards to unclip.

 Remove the lens.

 Pull the bulb and change it.
Changing sidelamp bulbs (boot)
Changing foglamp bulbs

 Open the boot.

 Remove the plastic fl ap using a
screwdriver.

 Remove the lamp fi xing nut.

 Turn the bulb a quarter of a turn and
change it.
To refi t, carry out these operations in
reverse order.

 Reach under the bumper.

 Turn the bulb a quarter of a turn and
change it.
 Open the boot and remove the up-
per seal.

 Unscrew the two nuts.

 Press the threaded pins while sup-
porting the lamp from the outside.

 Disconnect the connector and
remove the screenwash pipe.

 Press the pairs of clips A then B
then C to detach and gain access to
the bulb holder.

PRACTICAL INFORMATION
179
CHANGING A FUSE
Procedure for replacing a faulty fuse
with a new fuse to rectify a failure of the
corresponding function.
Access to the tools
The extraction pliers and the spare fus-
es are installed on the back of the dash-
board fusebox cover.
To gain access to them:

 remove the cover completely,

 remove the pliers. Changing a fuse
Before changing a fuse, the cause of
the failure must be identifi ed and recti-
fi ed.

 Identify the faulty fuse by checking
the condition of its fi lament.

Correct Incorrect

 Use the special pliers to extract the
fuse from its housing.

 Always replace the faulty fuse with a
fuse of the same rating.

 Check the correspondence between
the number etched on the box, the
rating etched on the fuse and the
tables below. Installing electrical
accessories
Your vehicle's electrical system
is designed to operate with standard
or optional equipment.
Before installing other electrical
equipment or accessories on your
vehicle, contact a PEUGEOT dealer.
PEUGEOT will not accept re-
sponsibility for the cost incurred
in repairing your vehicle or for
rectifying malfunctions result-
ing from the installation of accessories
not supplied and not recommended by
PEUGEOT and not installed in accor-
dance with its instructions, in particular
when the combined consumption of all
of the additional equipment connected
exceeds 10 milliamperes.

PRACTICAL INFORMATION
180
Dashboard fuses
The fusebox is placed in the lower dash-
board (left-hand side). Fuse tables
Fuse N° Rating
(A) Functions
F1 15 Rear wiper.
F2 - Not used.
F3 5 Airbag control unit.
F4 10 Electrochromatic rear view mirror, air conditioning,
switching and protection unit, rear multimedia.
F5 30 Front one-touch electric windows.
F6 30 Rear one-touch electric windows.
F7 5 Front and rear courtesy lamps, map reading lamps,
rear reading lamps, sun visor lighting, glove box
lighting, centre armrest lighting, boot 12 V relay
control.

PRACTICAL INFORMATION
181
Access to the fuses

 refer to the paragraph "Access to
the tools". Fuse


N° Rating
(A)
Functions
F8 20 Audio equipment, audio/telephone, CD changer,
multifunction scren, tyre under-infl ation detection,
alarm siren, alarm control unit, telematic unit,
service module (with Peugeot Connect Media).
F9 30 Front 12 V socket, cigar lighter, rear 12 V socket.
F10 15 Steering mounted controls.
F11 15 Low current ignition switch.
F12 15 Trailer presence, rain/brightness sensor, supply for
fuses F32, F34, F35.
F13 5 Engine fusebox, airbag control unit.
F14 15 Instrument panel, instrument panel screen, supply
for fuse F33.
F15 30 Locking and deadlocking.
F17 40 Heated rear screen, supply for fuse F30.
SH - PARC shunt.

PRACTICAL INFORMATION
182
Fuse N° Rating
(A) Functions

F29 30 Boot 12 V socket.

F30 5 Heated door mirrors.

F31 15 Refrigerator socket.

F32 5 Electronic gar control gearbox gear lever.

F33 10 Head-up display, Bluetooth system, air
conditioning.

F34 5 Seat belt warning lamps display.

F35 10 Parking sensors, Hi-Fi amplifi er authorisation.

F36 10 Trailer fusebox control unit, driver’s door control
pad.

F37 20 Hi-Fi amplifi er.

F38 30 Driver's electric seat.

F39 20 Panoramic sunroof blind.

F40 - Not used.

PRACTICAL INFORMATION
183

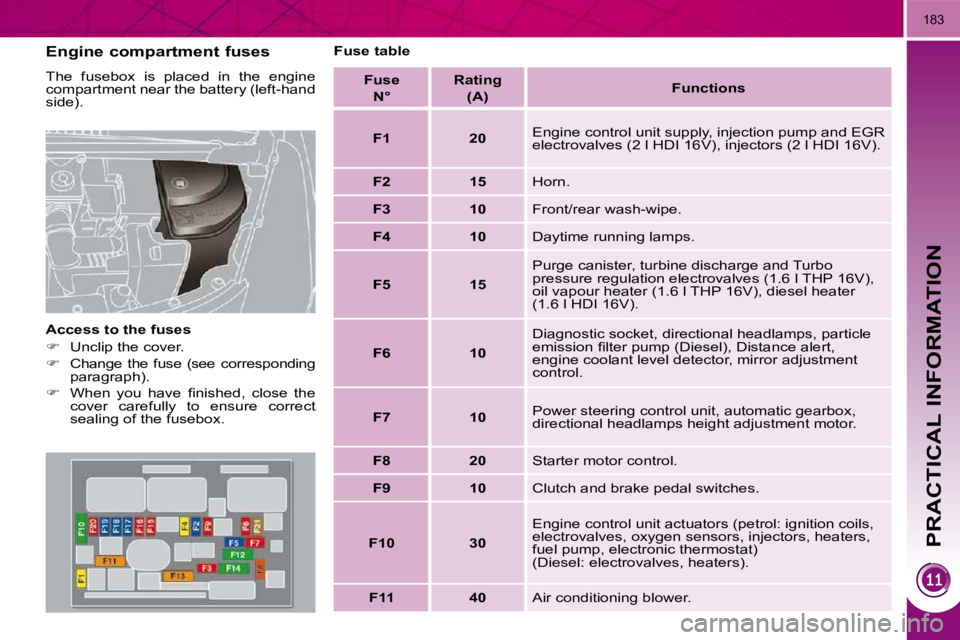

Engine compartment fuses
The fusebox is placed in the engine
compartment near the battery (left-hand
side).
Access to the fuses

 Unclip the cover.

 Change the fuse (see corresponding
paragraph).

 When you have fi nished, close the
cover carefully to ensure correct
sealing of the fusebox. Fuse table
Fuse
N° Rating

(A)
Functions

F1 20 Engine control unit supply, injection pump and EGR
electrovalves (2 l HDI 16V), injectors (2 l HDI 16V).

F2 15 Horn.

F3 10 Front/rear wash-wipe.

F4 10 Daytime running lamps.

F5 15 Purge canister, turbine discharge and Turbo
pressure regulation electrovalves (1.6 l THP 16V),
oil vapour heater (1.6 l THP 16V), diesel heater
(1.6 l HDI 16V).

F6 10 Diagnostic socket, directional headlamps, particle
emission fi lter pump (Diesel), Distance alert,
engine coolant level detector, mirror adjustment
control.

F7 10 Power steering control unit, automatic gearbox,
directional headlamps height adjustment motor.

F8 20 Starter motor control.

F9 10 Clutch and brake pedal switches.

F10 30 Engine control unit actuators (petrol: ignition coils,
electrovalves, oxygen sensors, injectors, heaters,
fuel pump, electronic thermostat)
(Diesel: electrovalves, heaters).

F11 40 Air conditioning blower.
