i
135

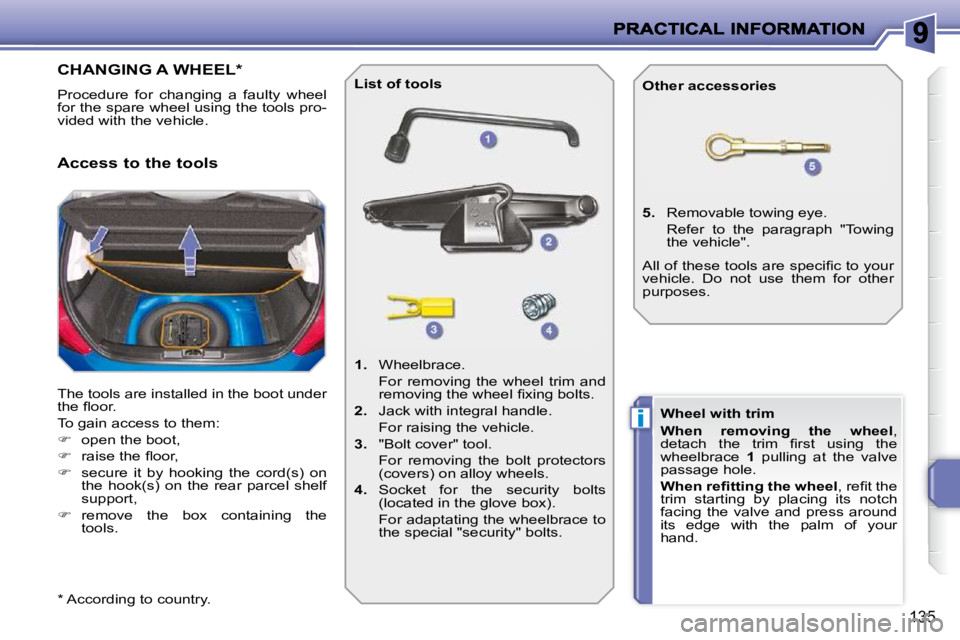

CHANGING A WHEEL *
Procedure for changing a faulty wheel
for the spare wheel using the tools pro-
vided with the vehicle.
The tools are installed in the boot under
t h e fl o o r .
T o g a i n a c c e s s t o t h e m :
open the boot,
r a i s e t h e fl o o r ,
s e c u r e i t b y h o o k i n g t h e c o r d ( s ) o n
t h e h o o k ( s ) o n t h e r e a r p a r c e l s h e l f
support,
r e m o v e t h e b o x c o n t a i n i n g t h e
tools.
Access to the tools
List of tools
1. Wheelbrace.
For removing the wheel trim and r e m o v i n g t h e w h e e l fi x i n g b o l t s .
2. Jack with integral handle.
For raising the vehicle.
3.
"Bolt cover" tool.
For removing the bolt protectors ( c o v e r s ) o n a l l o y w h e e l s .
4.
Socket for the security bolts
( l o c a t e d i n t h e g l o v e b o x ) .
For adaptating the wheelbrace to the special "security" bolts.
5. Removable towing eye.
Refer to the paragraph "Towing
the vehicle".
Other accessories
Wheel with trim
When removing the wheel ,
d e t a c h t h e t r i m fi r s t u s i n g t h e
wheelbrace 1 pulling at the valve
passage hole.
W h e n r e fi t t i n g t h e w h e e l , r e fi t t h e
trim starting by placing its notch
facing the valve and press around
its edge with the palm of your
hand.
A l l o f t h e s e t o o l s a r e s p e c i fi c t o y o u r
vehicle. Do not use them for other
purposes.
* According to country.
Page 134 of 218
i
138

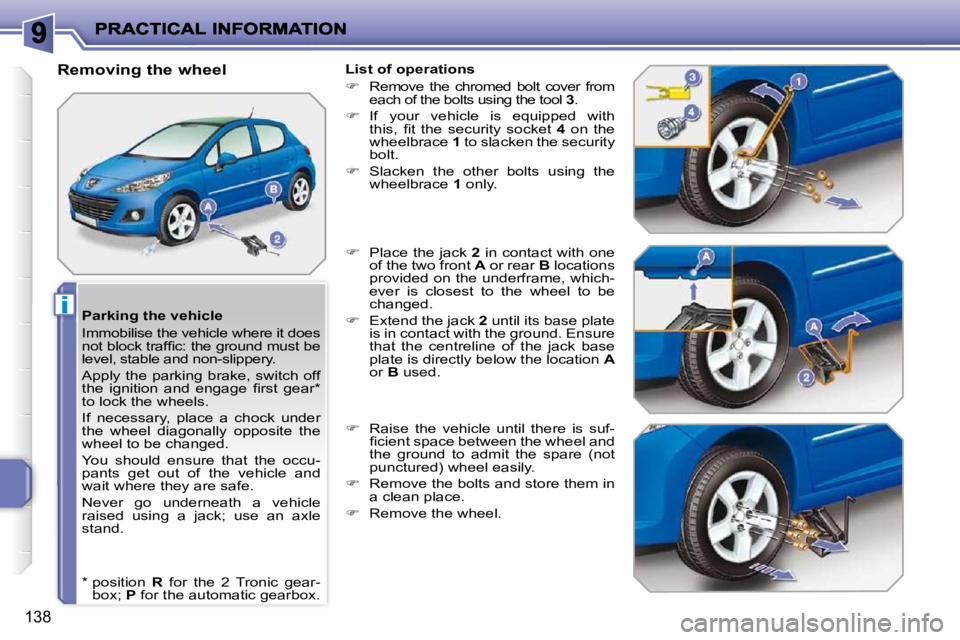

Parking the vehicle
Immobilise the vehicle where it does
n o t b l o c k t r a f fi c : t h e g r o u n d m u s t b e
level, stable and non-slippery.
Apply the parking brake, switch off
t h e i g n i t i o n a n d e n g a g e fi r s t g e a r *
to lock the wheels.
If necessary, place a chock under
the wheel diagonally opposite the
wheel to be changed.
You should ensure that the occu-
pants get out of the vehicle and
wait where they are safe.
Never go underneath a vehicle
r a i s e d u s i n g a j a c k ; u s e a n a x l e
stand.
Removing the wheel
List of operations
Remove the chromed bolt cover from
each of the bolts using the tool 3 .
If your vehicle is equipped with
t h i s , fi t t h e s e c u r i t y s o c k e t 4 on the
wheelbrace 1 to slacken the security
bolt.
Slacken the other bolts using the
wheelbrace 1 only.
Place the jack 2 in contact with one
of the two front A or rear B locations
provided on the underframe, which-
ever is closest to the wheel to be
changed.
E x t e n d t h e j a c k 2 until its base plate
is in contact with the ground. Ensure
that the centreline of the jack base
plate is directly below the location A
or B used.
Raise the vehicle until there is suf-
fi c i e n t s p a c e b e t w e e n t h e w h e e l a n d
the ground to admit the spare (not
p u n c t u r e d ) w h e e l e a s i l y .
Remove the bolts and store them in
a clean place.
Remove the wheel.
* position R for the 2 Tronic gear-
b o x ; P f o r t h e a u t o m a t i c g e a r b o x .
Page 135 of 218
i
139

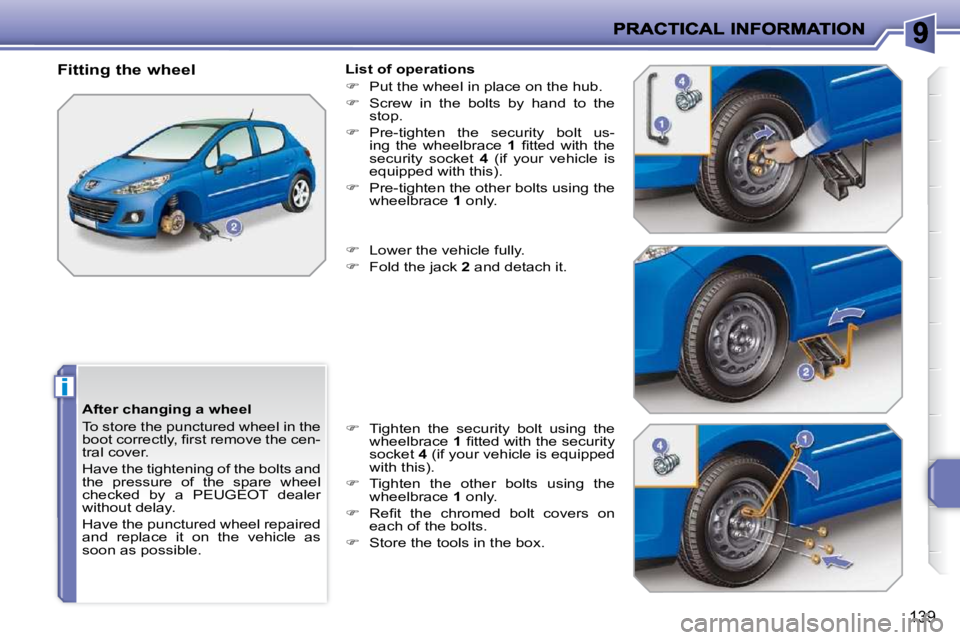

After changing a wheel
To store the punctured wheel in the
b o o t c o r r e c t l y , fi r s t r e m o v e t h e c e n -
tral cover.
Have the tightening of the bolts and
the pressure of the spare wheel
checked by a PEUGEOT dealer
without delay.
Have the punctured wheel repaired
and replace it on the vehicle as
soon as possible.
Fitting the wheel
List of operations
Put the wheel in place on the hub.
Screw in the bolts by hand to the
stop.
Pre-tighten the security bolt us-
ing the wheelbrace 1 fi t t e d w i t h t h e
security socket 4 (if your vehicle is
e q u i p p e d w i t h t h i s ) .
Pre-tighten the other bolts using the
wheelbrace 1 only.
Lower the vehicle fully.
Fold the jack 2 and detach it.
Tighten the security bolt using the
wheelbrace 1 fi t t e d w i t h t h e s e c u r i t y
socket 4 (if your vehicle is equipped
w i t h t h i s ) .
Tighten the other bolts using the
wheelbrace 1 only.
R e fi t t h e c h r o m e d b o l t c o v e r s o n
each of the bolts.
S t o r e t h e t o o l s i n t h e b o x .
Page 154 of 218
!
i
158
T h e fi t t i n g o f e l e c t r i c a l e q u i p m e n t
or accessories which are not re-
commended by PEUGEOT may
result in a failure of your vehicle's
electronic system.
P l e a s e n o t e t h i s s p e c i fi c w a r n i n g .
You are advised to contact a repre-
sentative of the Marque to be shown
the range of recommended equip-
ment and accessories.
ACCESSORIES
You can obtain a wide range of accesso-
ries and original parts from the PEUGEOT
dealer network.
These accessories and parts have been
tested and approved for reliability and
safety.
They are all adapted to your vehicle and
b e n e fi t f r o m P E U G E O T ' s r e c o m m e n d a -
tion and warranty.
The product range offered by PEUGEOT
Accessories is structured around 5 catego-
r i e s : P R O T E C T I O N - T O U R I N G - I N - C A R
TECHNOLOGY - STYLING - UNIVERSAL.
"Protection":
"Touring":
"In-car technology":
"Styling":
"Universal":
You can obtain "Van" conversion kits to
transform a private vehicle into a van.
* To avoid any risk of jamming of the p e d a l s :
- ensure that the mat is positioned and secured correctly,
- n e v e r fi t o n e m a t o n t o p o f a n o t h e r . Depending on the country in which
the vehicle is sold, it is compulso-
ry to have a high visibility jacket,
warning triangle and spare bulbs
available in the vehicle.
anti-theft alarm, window en-
graving, wheel security bolts,
b r e a t h a l y z e r , fi r s t a i d k i t ,
warning triangle, high visibility
jacket, stolen vehicle tracking
system, temporary puncture
repair kit, snow chains, non-
slip covers. mats * , boot tray, luggage net,
fi x e d c o a t h o o k o n h e a d r e -
straint, lighter, aluminium or
PVC door sills.
F o r l e i s u r e p u r s u i t s : r o o f b a r s ,
bicycle carrier on towbar, bi-
cycle carrier on roof bars,
s k i c a r r i e r , r o o f b o x , b o o s t e r
seats and child seats, side blinds and
rear blind, front centre armrest, under
shelf storage.
T r a i l e r t o w b a r w h i c h m u s t b e fi t t e d b y
the PEUGEOT network.
audio systems, satellite
navigation systems, Blue-
tooth hands-free system,
CD changer, speakers, DVD
player, connection kit for MP3
player or portable CD player,
U S B B o x , f r o n t a n d r e a r p a r k -
ing sensors.
seat covers compatible with
lateral airbags, aluminium gear
lever knob, foglamps, door de-
fl e c t o r s , s p o i l e r , s t y l i n g s t r i p s ,
alloy wheels, trims, chromed
mirror shells, body kit. s c r e e n w a s h , i n t e r i o r a n d e x t e -
rior maintenance and cleaning
products.
