43

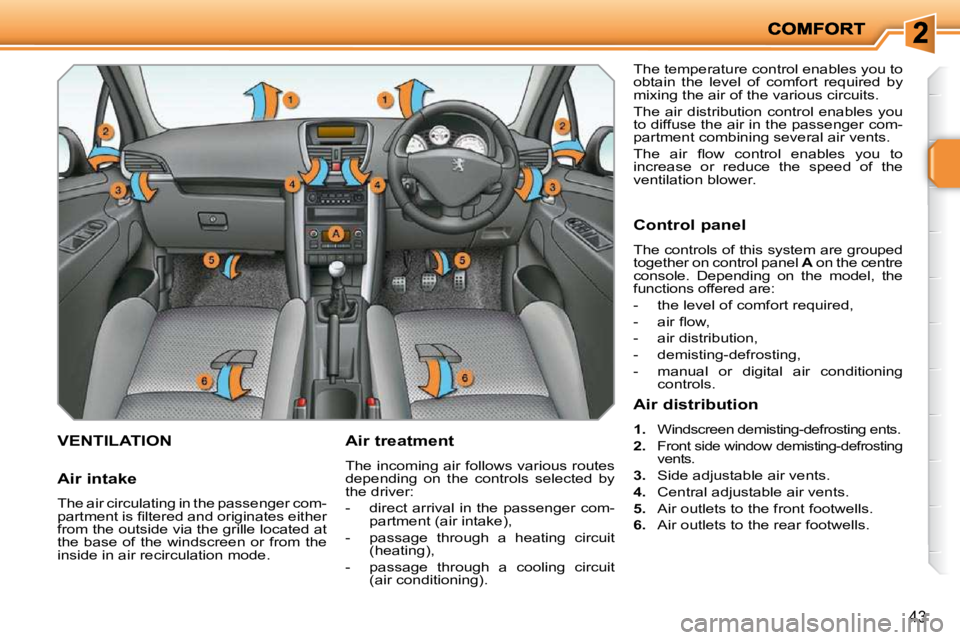

VENTILATION Air treatment
The incoming air follows various routes
depending on the controls selected by
the driver:
- direct arrival in the passenger com-partment (air intake),
- passage through a heating circuit (heating),
- passage through a cooling circuit (air conditioning). The temperature control enables you to
obtain the level of comfort required by
mixing the air of the various circuits.
The air distribution control enables you
to diffuse the air in the passenger com-
partment combining several air vents.
T h e a i r fl o w c o n t r o l e n a b l e s y o u t o
increase or reduce the speed of the
ventilation blower.
Air intake
The air circulating in the passenger com-
p a r t m e n t i s fi l t e r e d a n d o r i g i n a t e s e i t h e r
from the outside via the grille located at
the base of the windscreen or from the
inside in air recirculation mode. Control panel
The controls of this system are grouped
together on control panel
A on the centre
console. Depending on the model, the
functions offered are:
- the level of comfort required,
- a i r fl o w ,
- air distribution,
- demisting-defrosting,
- manual or digital air conditioning controls.
Air distribution
1. Windscreen demisting-defrosting ents.
2. Front side window demisting-defrosting
vents.
3. Side adjustable air vents.
4. Central adjustable air vents.
5. Air outlets to the front footwells.
6. Air outlets to the rear footwells.
Page 122 of 218
127
PETROL ENGINES
T h e c a p s a n d c o v e r s p r o v i d e a c c e s s f o r c h e c k i n g t h e l e v e l s o f t h e v a r i o u s fl u i d s a n d t o r e p l a c e c e r t a i n c o m p o n e n t s .
1. Coolant reservoir.
2. P a s s e n g e r c o m p a r t m e n t fi l t e r .
3. Screenwash and headlamp wash
reservoir.
4. A i r fi l t e r .
5. B r a k e fl u i d r e s e r v o i r .
6. Fusebox.
7. Battery.
8. Engine oil dipstick.
9. E n g i n e o i l fi l l e r c a p .
Page 123 of 218
128
DIESEL ENGINES
T h e c a p s a n d c o v e r s p r o v i d e a c c e s s f o r c h e c k i n g t h e l e v e l s o f t h e v a r i o u s fl u i d s , t o r e p l a c e c e r t a i n c o m p o n e n t s a n d t o p r i m e
the fuel system.
1. Coolant reservoir.
2. P a s s e n g e r c o m p a r t m e n t fi l t e r .
3. Screenwash and headlamp wash
reservoir.
4. Priming pump.
5. B r a k e fl u i d r e s e r v o i r .
6. Fusebox.
7. Battery.
8. Engine oil dipstick.
9. E n g i n e o i l fi l l e r c a p .
10. A i r fi l t e r .
Page 142 of 218
!
i
146
PEUGEOT does not accept any
responsibility for the costs incurred
in repairing your vehicle or for the
malfunctions resulting from the in-
stallation of additional accessories
which are not supplied or recom-
mended by PEUGEOT and which
are not installed in accordance with
its instructions, particularly when
the combined consumption of all of
the additional equipment connect-
e d e x c e e d s 1 0 m i l l i a m p e r e s .
Installation of electrical acces-
sories
Your vehicle’s electrical circuit is
designed to operate with the stand-
ard or optional equipment.
Before installing other electrical
equipment or accessories in your ve-
hicle, contact a PEUGEOT dealer.

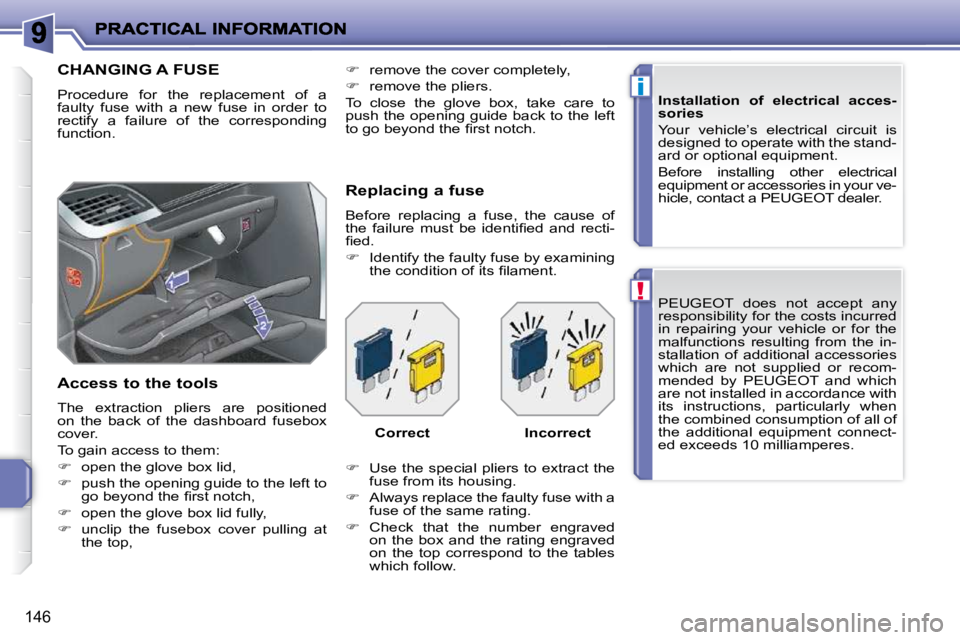

CHANGING A FUSE
Procedure for the replacement of a
faulty fuse with a new fuse in order to
rectify a failure of the corresponding
function.
Access to the tools
T h e e x t r a c t i o n p l i e r s a r e p o s i t i o n e d
o n t h e b a c k o f t h e d a s h b o a r d f u s e b o x
cover.
T o g a i n a c c e s s t o t h e m :
o p e n t h e g l o v e b o x l i d ,
push the opening guide to the left to
g o b e y o n d t h e fi r s t n o t c h ,
o p e n t h e g l o v e b o x l i d f u l l y ,
u n c l i p t h e f u s e b o x c o v e r p u l l i n g a t
the top, Replacing a fuse
Before replacing a fuse, the cause of
t h e f a i l u r e m u s t b e i d e n t i fi e d a n d r e c t i -
fi e d .
I d e n t i f y t h e f a u l t y f u s e b y e x a m i n i n g
t h e c o n d i t i o n o f i t s fi l a m e n t .
U s e t h e s p e c i a l p l i e r s t o e x t r a c t t h e
fuse from its housing.
Always replace the faulty fuse with a
fuse of the same rating.
Check that the number engraved
o n t h e b o x a n d t h e r a t i n g e n g r a v e d
on the top correspond to the tables
which follow.
Correct Incorrect
remove the cover completely,
remove the pliers.
T o c l o s e t h e g l o v e b o x , t a k e c a r e t o
push the opening guide back to the left
t o g o b e y o n d t h e fi r s t n o t c h .
Page 143 of 218
147
Dashboard fuses
T h e f u s e b o x i s l o c a t e d i n t h e l o w e r p a r t
o f t h e d a s h b o a r d ( l e f t - h a n d s i d e ) .
Access to the fuses
refer to the "Access to the tools"
paragraph. Fuse tables
Fuse N° Rating Functions
G39 20 A H i - F i a m p l i fi e r .
G40 - Not used.
Fuse Rating Functions
F1 15 A Rear wiper
F2 - Not used.
F3 5 A Airbag and pre-tensioner control unit.
F4 10 A Clutch pedal switch, diagnostic socket,
electrochromatic rear view mirror, air conditioning,
s t e e r i n g w h e e l a n g l e s e n s o r , p a r t i c l e e m i s s i o n fi l t e r
p u m p ( D i e s e l ) .
F5 30 A Electric windows, rear one-touch electric windows,
p a n o r a m i c s u n r o o f b l i n d ( S W ) .
F6 30 A Front one-touch electric windows, folding door
mirrors supply.
F7 5 A Front and rear courtesy lamps, map reading lamps,
s u n v i s o r l i g h t i n g , g l o v e b o x l i g h t i n g , c l o c k .
Page 144 of 218
148
Fuse N° Rating Functions
F8 20 A Audio equipment, audio/telephone, multifunction
screen, clock, steering mounted controls, tyre
u n d e r - i n fl a t i o n d e t e c t i o n , t r a i l e r f u s e b o x .
F9 30 A F r o n t 1 2 V s o c k e t , r e a r 1 2 V s o c k e t ( S W ) .
F10 15 A Alarm siren, alarm control unit, directional
headlamps.
F11 15 A Diagnostic socket, low current ignition switch,
a u t o m a t i c g e a r b o x c o n t r o l u n i t .
F12 15 A R a i n / s u n s h i n e s e n s o r , a m p l i fi e r , t r a i l e r f u s e b o x ,
driving school module.
F13 5 A E n g i n e f u s e b o x , A B S r e l a y , d u a l - f u n c t i o n b r a k e
s w i t c h , " 2 T r o n i c " g e a r b o x g e a r l e v e r .
F14 15 A Instrument panel, seat belt warning lamps panel,
headlamp adjustment, air conditioning, Bluetooth
system, rear parking sensors control unit, airbags.
F15 30 A Locking and deadlocking.
F17 40 A Rear screen and door mirrors demist/defrost.
SH - PARC shunt.
Page 145 of 218
149
Engine compartment fuses
T h e f u s e b o x i s p l a c e d i n t h e e n g i n e
compartment, near the battery (left-
h a n d s i d e ) .
Access to the fuses
Unclip the cover.
Replace the fuse (refer to the cor-
r e s p o n d i n g p a r a g r a p h ) .
W h e n y o u h a v e fi n i s h e d , c l o s e t h e
cover carefully to ensure the sealing
o f t h e f u s e b o x . Fuse table
Fuse N° Rating Functions
F1 20 A Engine control unit and fan assembly control relay
supply, timing and canister electrovalves (1.6 l
1 6 V T H P ) , a i r fl o w s e n s o r ( D i e s e l ) , i n j e c t i o n p u m p
( D i e s e l ) , w a t e r i n d i e s e l s e n s o r ( D i e s e l ) , E G R
e l e c t r o v a l v e s , a i r h e a t i n g ( D i e s e l ) .
F2 15 A Horn
F3 10 A Front and rear screenwash.
F4 20 A Headlamp wash.
F5 15 A F u e l p u m p ( p e t r o l ) , T u r b o e l e c t r o v a l v e s
( 1 . 6 l 1 6 V T H P ) .
F6 10 A V e h i c l e s p e e d s e n s o r , a u t o m a t i c g e a r b o x .
F7 10 A Electric power steering, directional headlamps,
directional headlamps control relay, switching and
p r o t e c t i o n u n i t ( D i e s e l ) .
F8 25 A Starter motor control.
F9 10 A ABS/ESP control unit, brake pedal switch.
F10 30 A E n g i n e c o n t r o l u n i t a c t u a t o r s ( p e t r o l : i g n i t i o n c o i l s ,
e l e c t r o v a l v e s , o x y g e n s e n s o r s , i n j e c t o r s , h e a t e r s ,
e l e c t r o n i c t h e r m o s t a t ) ( D i e s e l : e l e c t r o v a l v e s ,
h e a t e r s ) .
F11 40 A Air conditioning blower.
F12 30 A Windscreen wipers Low/High speed.
Page 146 of 218
150
Fuse N° Rating Functions
F13 40 A B u i l t - i n s y s t e m s i n t e r f a c e s u p p l y ( i g n i t i o n p o s i t i v e ) .
F14 30 A D i e s e l h e a t e r ( D i e s e l ) .
F15 10 A Left main beam headlamp.
F16 10 A Right main beam headlamp.
F17 15 A Left dipped beam headlamp.
F18 15 A Right dipped beam headlamp.
* T h e m a x i - f u s e s p r o v i d e a d d i t i o n a l p r o - tection for the electrical systems. All
w o r k o n t h e m a x i - f u s e s m u s t b e c a r -
ried out by a PEUGEOT dealer. Maxi-fuse table
Fuse N° Rating Functions
Box 1
MF1 * 70 A Fan assembly.
MF2 * 20 A/30 A ABS/ESP pump.
MF3 * 20 A/30 A ABS/ESP electrovalves.
MF4 * 60 A Built-in systems interface supply.
MF5 * 60 A Built-in systems interface supply.
MF6 * 30 A A d d i t i o n a l f a n a s s e m b l y ( 1 . 6 l 1 6 V T H P ) .
MF7 * 80 A P a s s e n g e r c o m p a r t m e n t f u s e b o x .
Box 2
MF8 * 30 A " 2 T r o n i c " g e a r b o x E C U .
MF9 * 80 A H e a t i n g u n i t ( D i e s e l ) .
MF10 * 80 A Electric power steering.
MF11 * 40 A V a l v e t r o n i c e l e c t r i c m o t o r ( 1 . 6 l 1 6 V T H P ) .
