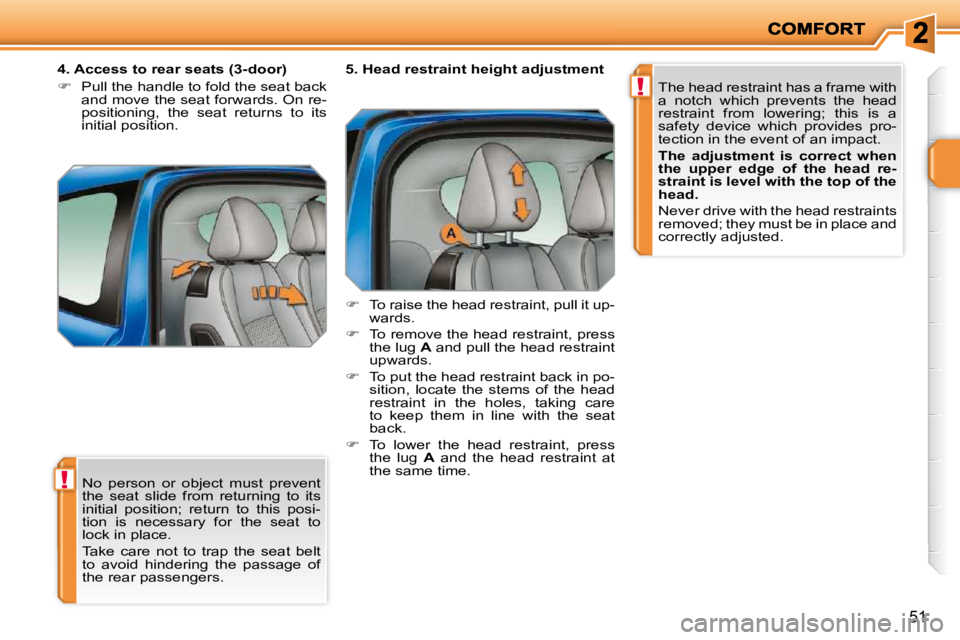

Page 38 of 218
!
!
51
No person or object must prevent
the seat slide from returning to its
initial position; return to this posi-
tion is necessary for the seat to
lock in place.
Take care not to trap the seat belt
to avoid hindering the passage of
the rear passengers.
4. Access to rear seats (3-door)
Pull the handle to fold the seat back
and move the seat forwards. On re-
positioning, the seat returns to its
initial position. 5 . H e a d r e s t r a i n t h e i g h t a d j u s t m e n t
To raise the head restraint, pull it up-
wards.
To remove the head restraint, press
the lug A and pull the head restraint
upwards.
To put the head restraint back in po-
sition, locate the stems of the head
restraint in the holes, taking care
to keep them in line with the seat
back.
To lower the head restraint, press
the lug A and the head restraint at
the same time. The head restraint has a frame with
a notch which prevents the head
restraint from lowering; this is a
safety device which provides pro-
tection in the event of an impact.
T h e a d j u s t m e n t i s c o r r e c t w h e n
t h e u p p e r e d g e o f t h e h e a d r e -
s t r a i n t i s l e v e l w i t h t h e t o p o f t h e
h e a d .
Never drive with the head restraints
removed; they must be in place and
correctly adjusted.

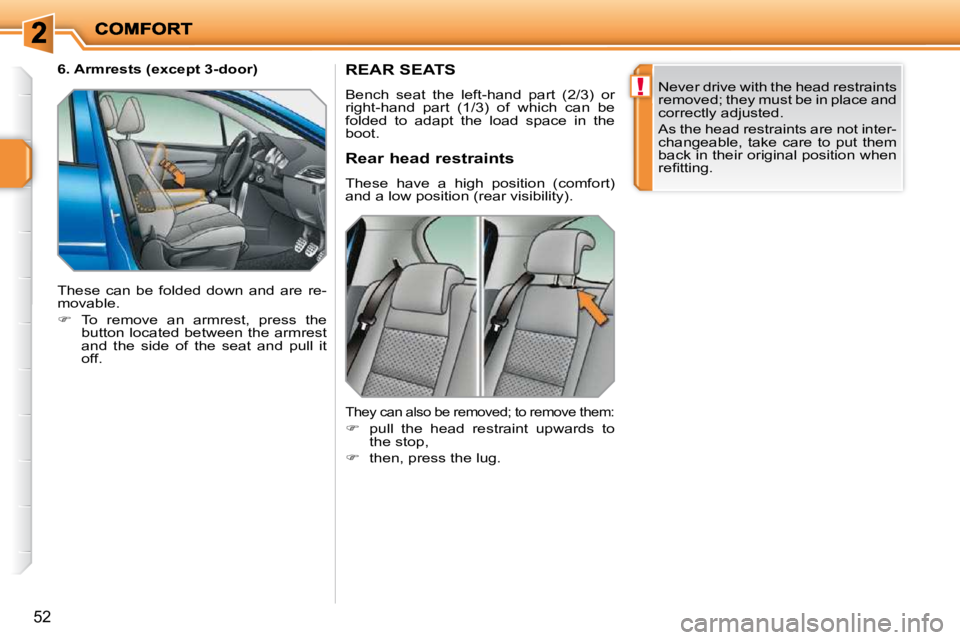

Page 39 of 218
!
52
REAR SEATS
Bench seat the left-hand part (2/3) or
right-hand part (1/3) of which can be
folded to adapt the load space in the
boot. Never drive with the head restraints
removed; they must be in place and
correctly adjusted.
As the head restraints are not inter-
changeable, take care to put them
back in their original position when
r e fi t t i n g .
R e a r h e a d r e s t r a i n t s
These have a high position (comfort)
and a low position (rear visibility).
They can also be removed; to remove them:
pull the head restraint upwards to
the stop,
then, press the lug.
6. Armrests (except 3-door)
These can be folded down and are re-
movable.
To remove an armrest, press the
button located between the armrest
and the side of the seat and pull it
off.
Page 40 of 218
!
52
REAR SEATS
Bench seat the left-hand part (2/3) or
right-hand part (1/3) of which can be
folded to adapt the load space in the
boot. Never drive with the head restraints
removed; they must be in place and
correctly adjusted.
As the head restraints are not inter-
changeable, take care to put them
back in their original position when
r e fi t t i n g .
R e a r h e a d r e s t r a i n t s
These have a high position (comfort)
and a low position (rear visibility).
They can also be removed; to remove them:
pull the head restraint upwards to
the stop,
then, press the lug.
6. Armrests (except 3-door)
These can be folded down and are re-
movable.
To remove an armrest, press the
button located between the armrest
and the side of the seat and pull it
off.
Page 42 of 218
!
52
REAR SEATS
Bench seat the left-hand part (2/3) or
right-hand part (1/3) of which can be
folded to adapt the load space in the
boot. Never drive with the head restraints
removed; they must be in place and
correctly adjusted.
As the head restraints are not inter-
changeable, take care to put them
back in their original position when
r e fi t t i n g .
R e a r h e a d r e s t r a i n t s
These have a high position (comfort)
and a low position (rear visibility).
They can also be removed; to remove them:
pull the head restraint upwards to
the stop,
then, press the lug.
6. Armrests (except 3-door)
These can be folded down and are re-
movable.
To remove an armrest, press the
button located between the armrest
and the side of the seat and pull it
off.

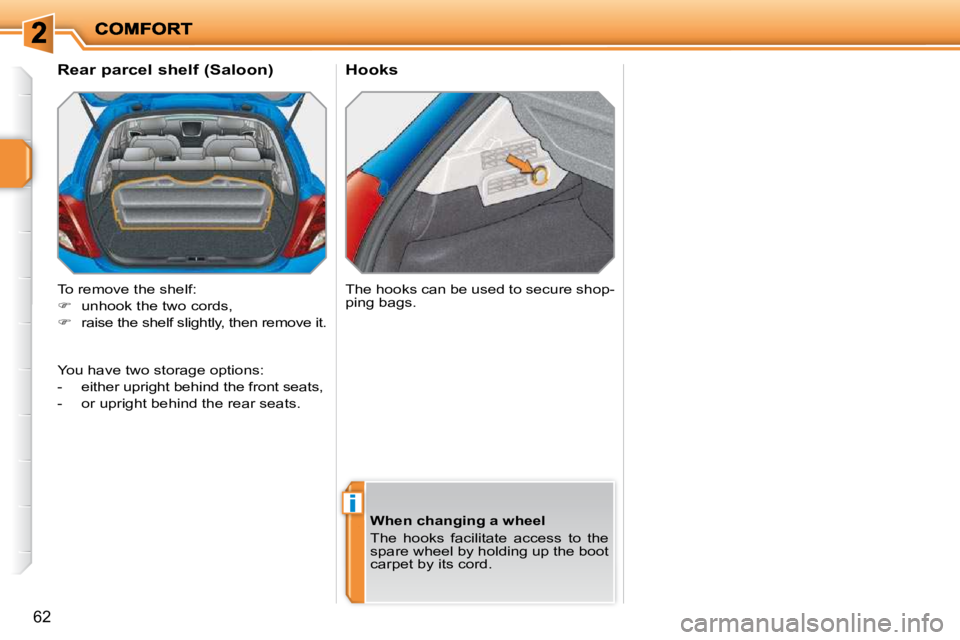

Page 51 of 218
i
62
Hooks
R e a r p a r c e l s h e l f ( S a l o o n )
To remove the shelf:
unhook the two cords,
raise the shelf slightly, then remove it. The hooks can be used to secure shop-
ping bags.
W h e n c h a n g i n g a w h e e l
The hooks facilitate access to the
spare wheel by holding up the boot
carpet by its cord.
You have two storage options:
- either upright behind the front seats,
- or upright behind the rear seats.
Page 53 of 218
i
64
R e a r p a r c e l s h e l f ( S W )
This consists of three sections which
can be folded back on each other.
To store it, fold it on itself and place it
vertically at the back of the boot.
To fold it from the boot:
take hold of the rear parcel shelf by
its strap A ,
fold it concertina-style to the rear
seats.
To unfold it from the boot:
take hold of the rear parel shelf by
its strap A ,
unfold it to the boot pillars.
To gain access from the rear seats:
raise the front section of the rear
parcel shelf using the handle B . 1 2 V a c c e s s o r i e s s o c k e t ( S W )
In order to connect a 12 V accessory
(max power: 120 Watts), remove
the cap and connect the appropriate
adaptor.
Turn the key to the ignition position.
Maximum loads
7.5 kg, rear parcel shelf unfold-
ed with high load retaining net at
row 2.

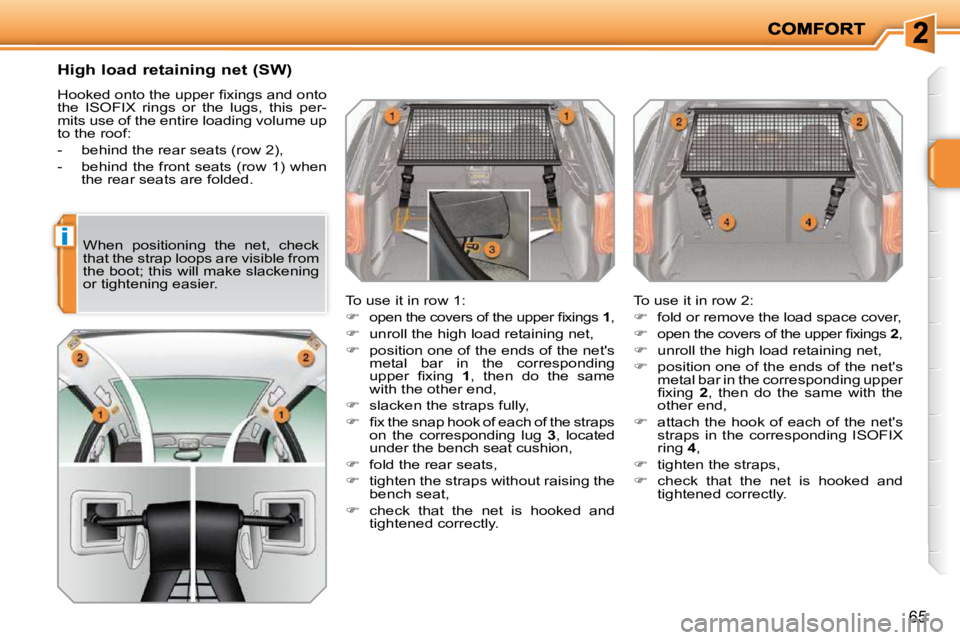

Page 54 of 218
i
65
H i g h l o a d r e t a i n i n g n e t ( S W )
H o o k e d o n t o t h e u p p e r fi x i n g s a n d o n t o
the ISOFIX rings or the lugs, this per-
mits use of the entire loading volume up
to the roof:
- behind the rear seats (row 2),
- behind the front seats (row 1) when the rear seats are folded.
To use it in row 1:
o p e n t h e c o v e r s o f t h e u p p e r fi x i n g s 1 ,
unroll the high load retaining net,
position one of the ends of the net's
metal bar in the corresponding
u p p e r fi x i n g 1 , then do the same
with the other end,
slacken the straps fully,
fi x t h e s n a p h o o k o f e a c h o f t h e s t r a p s
on the corresponding lug 3 , located
under the bench seat cushion,
fold the rear seats,
tighten the straps without raising the
bench seat,
check that the net is hooked and
tightened correctly. To use it in row 2:
fold or remove the load space cover,
o p e n t h e c o v e r s o f t h e u p p e r fi x i n g s 2 ,
unroll the high load retaining net,
position one of the ends of the net's
metal bar in the corresponding upper
fi x i n g 2 , then do the same with the
other end,
attach the hook of each of the net's
straps in the corresponding ISOFIX
ring 4 ,
tighten the straps,
check that the net is hooked and tightened correctly.
When positioning the net, check
that the strap loops are visible from
the boot; this will make slackening
or tightening easier.

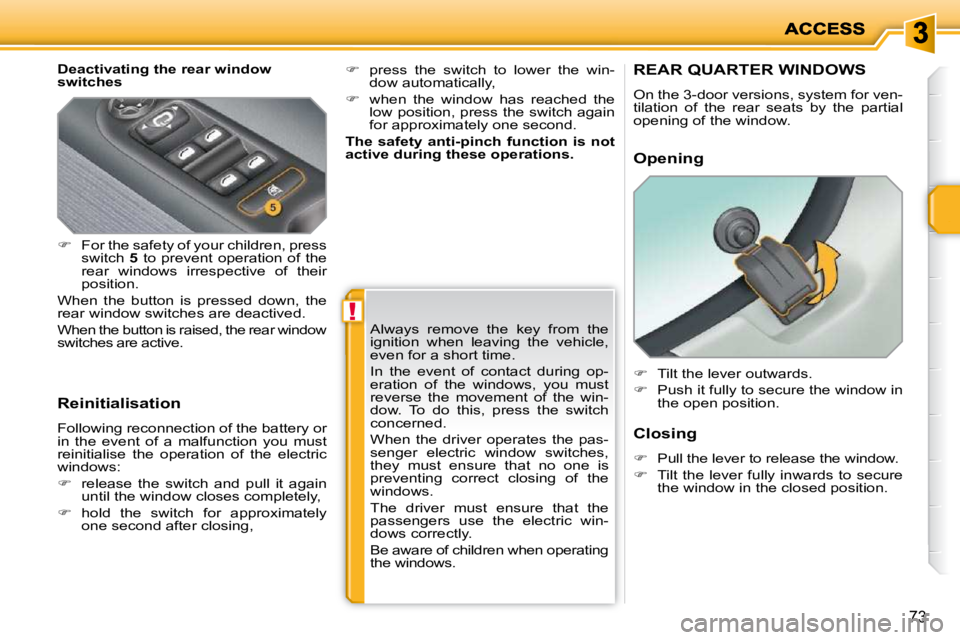

Page 64 of 218
!
73
Deactivating the rear window
switches
Reinitialisation
Following reconnection of the battery or
in the event of a malfunction you must
reinitialise the operation of the electric
windows:
release the switch and pull it again
until the window closes completely,
hold the switch for approximately
one second after closing, Always remove the key from the
ignition when leaving the vehicle,
even for a short time.
In the event of contact during op-
eration of the windows, you must
reverse the movement of the win-
dow. To do this, press the switch
concerned.
When the driver operates the pas-
senger electric window switches,
they must ensure that no one is
preventing correct closing of the
windows.
The driver must ensure that the
passengers use the electric win-
dows correctly.
Be aware of children when operating
the windows. REAR QUARTER WINDOWS
On the 3-door versions, system for ven-
tilation of the rear seats by the partial
opening of the window.
Opening
For the safety of your children, press
switch 5 to prevent operation of the
rear windows irrespective of their
position.
When the button is pressed down, the
rear window switches are deactived.
When the button is raised, the rear window
switches are active.
Closing
Pull the lever to release the window.
Tilt the lever fully inwards to secure
the window in the closed position.
Tilt the lever outwards.
Push it fully to secure the window in
the open position.
press the switch to lower the win-
dow automatically,
when the window has reached the
low position, press the switch again
for approximately one second.
The safety anti-pinch function is not
active during these operations.
