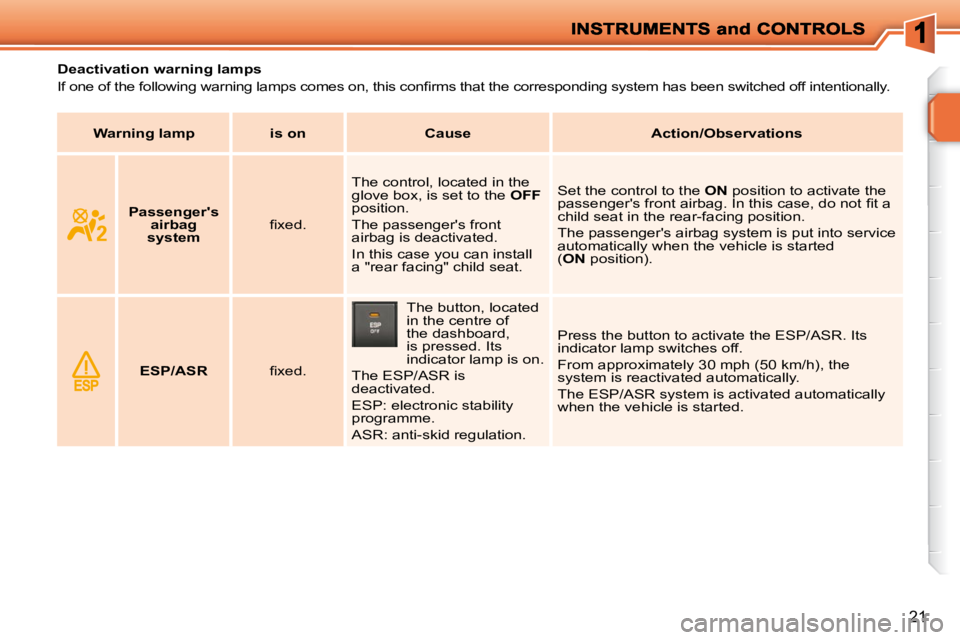

Page 4 of 218
21
Deactivation warning lamps
I f o n e o f t h e f o l l o w i n g w a r n i n g l a m p s c o m e s o n , t h i s c o n fi r m s t h a t t h e c o r r e s p o n d i n g s y s t e m h a s b e e n s w i t c h e d o f f i n t e n t i o n a l l y .
Warning lamp is on Cause Action/Observations
Passenger's
airbag
system fi x e d . The control, located in the
glove box, is set to the
OFF
position.
The passenger's front
airbag is deactivated.
In this case you can install
a "rear facing" child seat. Set the control to the
ON position to activate the
p a s s e n g e r ' s f r o n t a i r b a g . I n t h i s c a s e , d o n o t fi t a
child seat in the rear-facing position.
The passenger's airbag system is put into service
automatically when the vehicle is started
( ON position).
ESP/ASR fi x e d . The button, located
in the centre of
the dashboard,
is pressed. Its
indicator lamp is on.
The ESP/ASR is
deactivated.
ESP: electronic stability
programme.
ASR: anti-skid regulation. Press the button to activate the ESP/ASR. Its
indicator lamp switches off.
From approximately 30 mph (50 km/h), the
system is reactivated automatically.
The ESP/ASR system is activated automatically
when the vehicle is started.

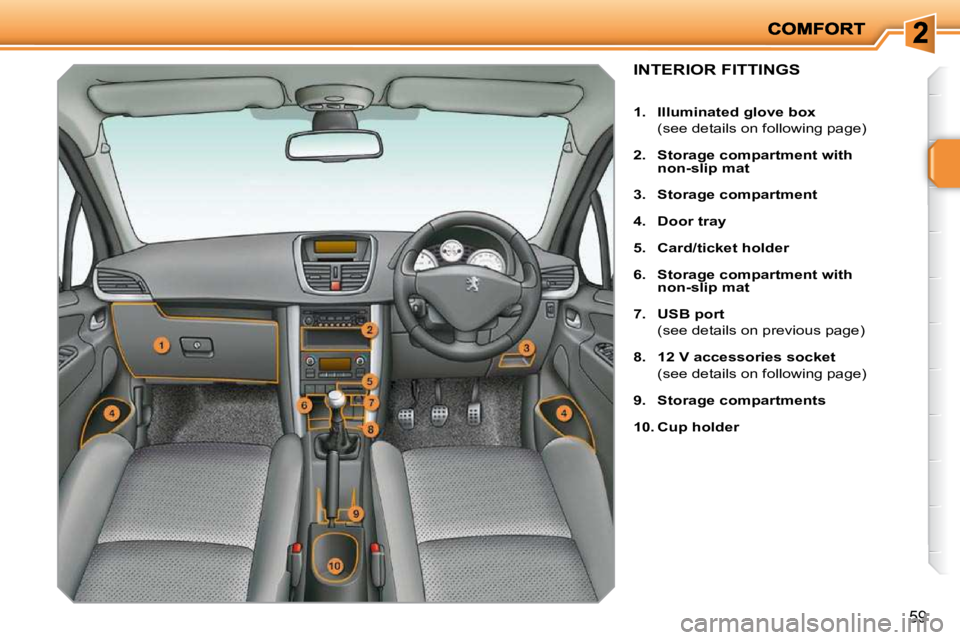

Page 48 of 218
59
INTERIOR FITTINGS
1. Illuminated glove box
(see details on following page)
2. S t o r a g e c o m p a r t m e n t w i t h
non-slip mat
3. Storage compartment
4. Door tray
5. Card
/ticket
h o l d e r
6. S t o r a g e c o m p a r t m e n t w i t h
non-slip mat
7. USB port
(see details on previous page)
8. 12 V accessories socket
(see details on following page)
9. Storage compartments
10. C u p h o l d e r

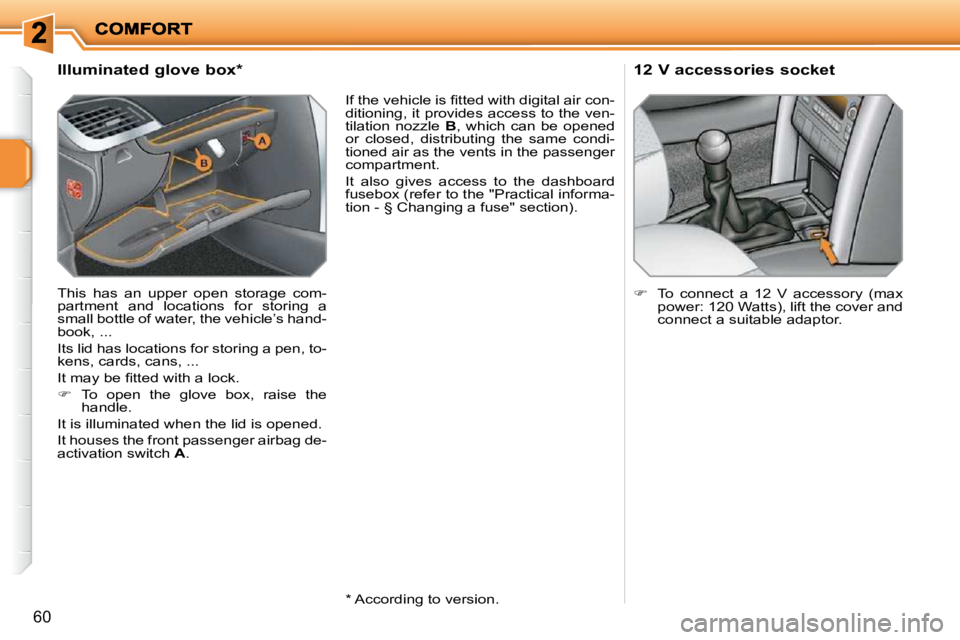

Page 49 of 218
60
Illuminated glove box *
This has an upper open storage com-
partment and locations for storing a
small bottle of water, the vehicle’s hand-
book, ...
Its lid has locations for storing a pen, to-
kens, cards, cans, ...
I t m a y b e fi t t e d w i t h a l o c k .
To open the glove box, raise the
handle.
It is illuminated when the lid is opened.
It houses the front passenger airbag de-
activation switch A .
To connect a 12 V accessory (max
power: 120 Watts), lift the cover and
connect a suitable adaptor.
12 V accessories socket
I f t h e v e h i c l e i s fi t t e d w i t h d i g i t a l a i r c o n -
ditioning, it provides access to the ven-
tilation nozzle B , which can be opened
or closed, distributing the same condi-
tioned air as the vents in the passenger
compartment.
It also gives access to the dashboard
f u s e b o x ( r e f e r t o t h e " P r a c t i c a l i n f o r m a -
t i o n - § C h a n g i n g a f u s e " s e c t i o n ) .
* According to version.

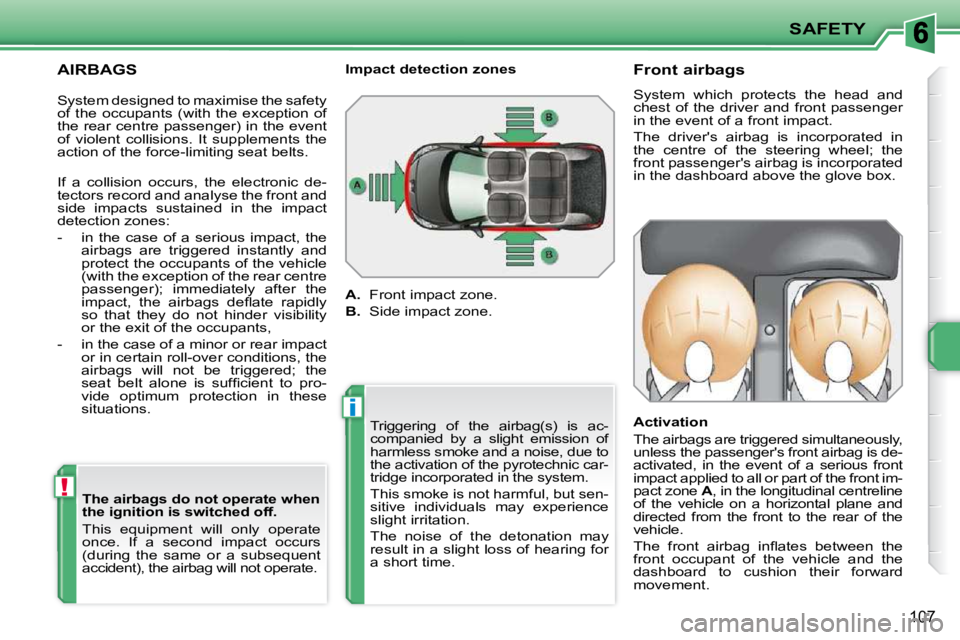

Page 103 of 218
!
i
SAFETY
107
AIRBAGS The airbags do not operate when
the ignition is switched off.
This equipment will only operate
once. If a second impact occurs
(during the same or a subsequent
accident), the airbag will not operate. Front airbags
System which protects the head and
chest of the driver and front passenger
in the event of a front impact.
The driver's airbag is incorporated in
the centre of the steering wheel; the
front passenger's airbag is incorporated
in the dashboard above the glove box.
Activation
The airbags are triggered simultaneously,
unless the passenger's front airbag is de-
activated, in the event of a serious front
impact applied to all or part of the front im-
pact zone
A , in the longitudinal centreline
of the vehicle on a horizontal plane and
directed from the front to the rear of the
vehicle.
T h e f r o n t a i r b a g i n fl a t e s b e t w e e n t h e
front occupant of the vehicle and the
dashboard to cushion their forward
movement.
Impact detection zones
A. Front impact zone.
B. Side impact zone.
Triggering of the airbag(s) is ac-
companied by a slight emission of
harmless smoke and a noise, due to
the activation of the pyrotechnic car-
tridge incorporated in the system.
This smoke is not harmful, but sen-
sitive individuals may experience
slight irritation.
The noise of the detonation may
result in a slight loss of hearing for
a short time.
System designed to maximise the safety
of the occupants (with the exception of
the rear centre passenger) in the event
of violent collisions. It supplements the
action of the force-limiting seat belts.
If a collision occurs, the electronic de-
tectors record and analyse the front and
side impacts sustained in the impact
detection zones:
- in the case of a serious impact, the
airbags are triggered instantly and
protect the occupants of the vehicle
(with the exception of the rear centre
passenger); immediately after the
i m p a c t , t h e a i r b a g s d e fl a t e r a p i d l y
so that they do not hinder visibility
or the exit of the occupants,
- in the case of a minor or rear impact or in certain roll-over conditions, the
airbags will not be triggered; the
s e a t b e l t a l o n e i s s u f fi c i e n t t o p r o -
vide optimum protection in these
situations.
