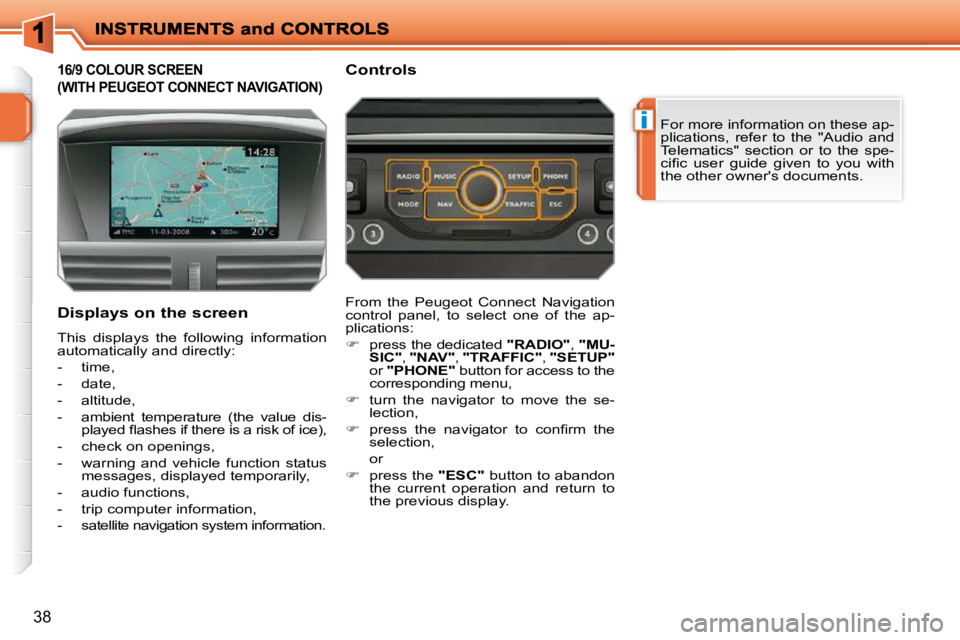

Displays on the screen
This displays the following information
automatically and directly:
- time,
- date,
- altitude,
- ambient temperature (the value dis- p l a y e d fl a s h e s i f t h e r e i s a r i s k o f i c e ) ,
- check on openings,
- warning and vehicle function status messages, displayed temporarily,
- audio functions,
- trip computer information,
- satellite navigation system information. Controls
From the Peugeot Connect Navigation
control panel, to select one of the ap-
plications:
press the dedicated "RADIO" , "MU-
SIC" , "NAV" , "TRAFFIC" , "SETUP"
or "PHONE" button for access to the
corresponding menu,
turn the navigator to move the se-
lection,
p r e s s t h e n a v i g a t o r t o c o n fi r m t h e
selection,
or
press the "ESC" button to abandon
the current operation and return to
the previous display.
Page 24 of 218
!
i
i
42
Distance remaining to be
travelled
(miles or km)
This is the distance remaining
t o b e t r a v e l l e d t o t h e fi n a l d e s t i n a t i o n .
It is calculated either instantly by the
navigation system if guidance is acti-
vated, or entered by the user.
If the distance is not entered, dashes
are displayed in place of the digits.
Average speed
(mph or km/h)
This is the average speed cal-
culated since the last trip com-
puter zero reset (ignition on).
Range
(miles or km)
This indicates the num-
ber of miles (or kilometres)
which can still be travelled with the fuel
remaining in the tank in relation to the
average fuel consumption over the last
few miles (kilometres) travelled. Current fuel consumption
(l/100 km or km/l or mpg)
This is the average quantity of
fuel consumed over the last few
seconds.
Average fuel
consumption
(l/100 km or km/l or mpg)
This is the average quantity
of fuel consumed since the
last trip computer zero reset.
Distance travelled
(miles or km)
This indicates the distance
travelled since the last trip
computer zero reset.

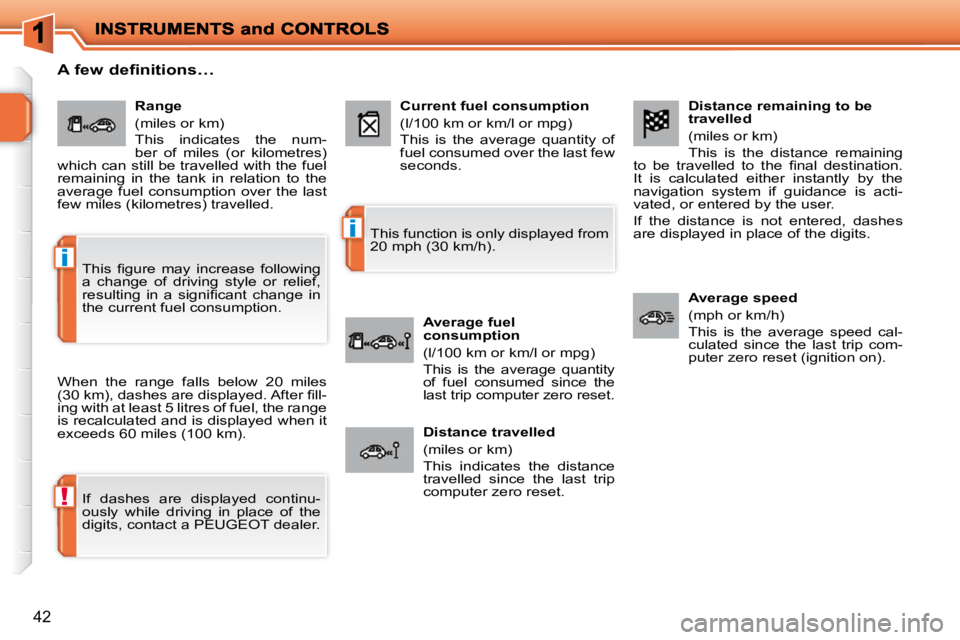

A few definitions…
When the range falls below 20 miles
( 3 0 k m ) , d a s h e s a r e d i s p l a y e d . A f t e r fi l l -
ing with at least 5 litres of fuel, the range
is recalculated and is displayed when it
exceeds 60 miles (100 km).
If dashes are displayed continu-
ously while driving in place of the
digits, contact a PEUGEOT dealer. This function is only displayed from
20 mph (30 km/h).
T h i s fi g u r e m a y i n c r e a s e f o l l o w i n g
a change of driving style or relief,
r e s u l t i n g i n a s i g n i fi c a n t c h a n g e i n
the current fuel consumption.
Page 26 of 218
!
i
i
42
Distance remaining to be
travelled
(miles or km)
This is the distance remaining
t o b e t r a v e l l e d t o t h e fi n a l d e s t i n a t i o n .
It is calculated either instantly by the
navigation system if guidance is acti-
vated, or entered by the user.
If the distance is not entered, dashes
are displayed in place of the digits.
Average speed
(mph or km/h)
This is the average speed cal-
culated since the last trip com-
puter zero reset (ignition on).
Range
(miles or km)
This indicates the num-
ber of miles (or kilometres)
which can still be travelled with the fuel
remaining in the tank in relation to the
average fuel consumption over the last
few miles (kilometres) travelled. Current fuel consumption
(l/100 km or km/l or mpg)
This is the average quantity of
fuel consumed over the last few
seconds.
Average fuel
consumption
(l/100 km or km/l or mpg)
This is the average quantity
of fuel consumed since the
last trip computer zero reset.
Distance travelled
(miles or km)
This indicates the distance
travelled since the last trip
computer zero reset.
A few definitions…
When the range falls below 20 miles
( 3 0 k m ) , d a s h e s a r e d i s p l a y e d . A f t e r fi l l -
ing with at least 5 litres of fuel, the range
is recalculated and is displayed when it
exceeds 60 miles (100 km).
If dashes are displayed continu-
ously while driving in place of the
digits, contact a PEUGEOT dealer. This function is only displayed from
20 mph (30 km/h).
T h i s fi g u r e m a y i n c r e a s e f o l l o w i n g
a change of driving style or relief,
r e s u l t i n g i n a s i g n i fi c a n t c h a n g e i n
the current fuel consumption.
Page 148 of 218
!
i
152
Do not disconnect the terminals
while the engine is running.
Do not charge the batteries without
d i s c o n n e c t i n g t h e t e r m i n a l s fi r s t .
Do not push the vehicle to start the
e n g i n e i f i t i s fi t t e d w i t h a " 2 T r o n i c "
g e a r b o x .
The batteries contain harmful sub-
stances such as sulphuric acid and
lead. They must be disposed of in
accordance with regulations and
must not, in any circumstances, be
discarded with household waste.
Take used remote control batteries
and vehicle batteries to a special
collection point.

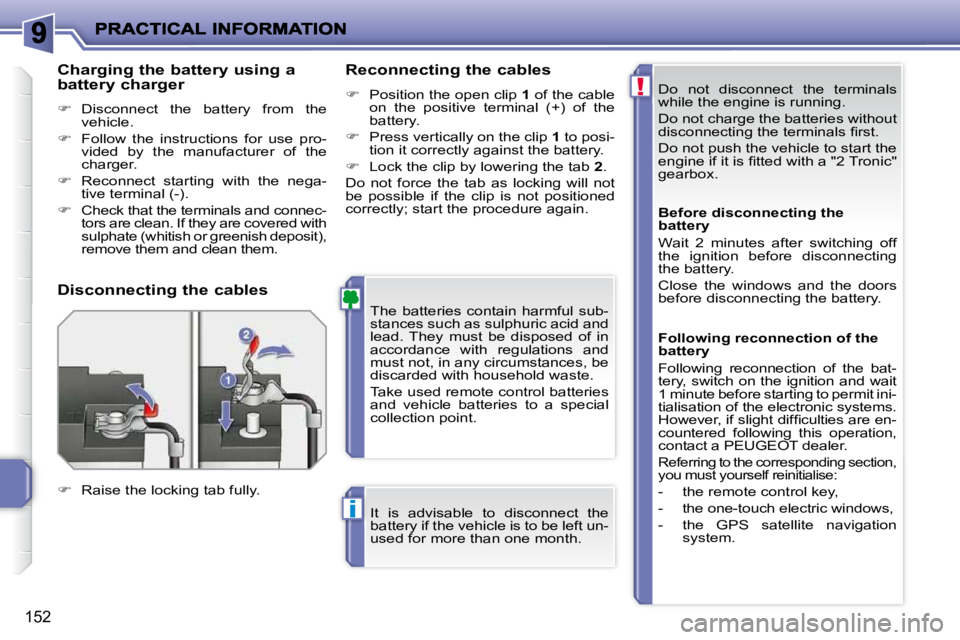

Charging the battery using a
battery charger
Disconnect the battery from the
vehicle.
Follow the instructions for use pro-
vided by the manufacturer of the
charger.
Reconnect starting with the nega-
t i v e t e r m i n a l ( - ) .
Check that the terminals and connec-
tors are clean. If they are covered with
s u l p h a t e ( w h i t i s h o r g r e e n i s h d e p o s i t ) ,
remove them and clean them.
It is advisable to disconnect the
battery if the vehicle is to be left un-
used for more than one month. Before disconnecting the
battery
Wait 2 minutes after switching off
the ignition before disconnecting
the battery.
Close the windows and the doors
before disconnecting the battery.
Following reconnection of the
battery
Following reconnection of the bat-
tery, switch on the ignition and wait
1 minute before starting to permit ini-
tialisation of the electronic systems.
H o w e v e r , i f s l i g h t d i f fi c u l t i e s a r e e n -
countered following this operation,
contact a PEUGEOT dealer.
Referring to the corresponding section,
y o u m u s t y o u r s e l f r e i n i t i a l i s e :
- the remote control key,
- the one-touch electric windows,
- the GPS satellite navigation
system.
Disconnecting the cables
Reconnecting the cables
Position the open clip 1 of the cable
o n t h e p o s i t i v e t e r m i n a l ( + ) o f t h e
battery.
Press vertically on the clip 1 to posi-
tion it correctly against the battery.
Lock the clip by lowering the tab 2 .
Do not force the tab as locking will not
be possible if the clip is not positioned
correctly; start the procedure again.
Raise the locking tab fully.
Page 154 of 218
!
i
158
T h e fi t t i n g o f e l e c t r i c a l e q u i p m e n t
or accessories which are not re-
commended by PEUGEOT may
result in a failure of your vehicle's
electronic system.
P l e a s e n o t e t h i s s p e c i fi c w a r n i n g .
You are advised to contact a repre-
sentative of the Marque to be shown
the range of recommended equip-
ment and accessories.

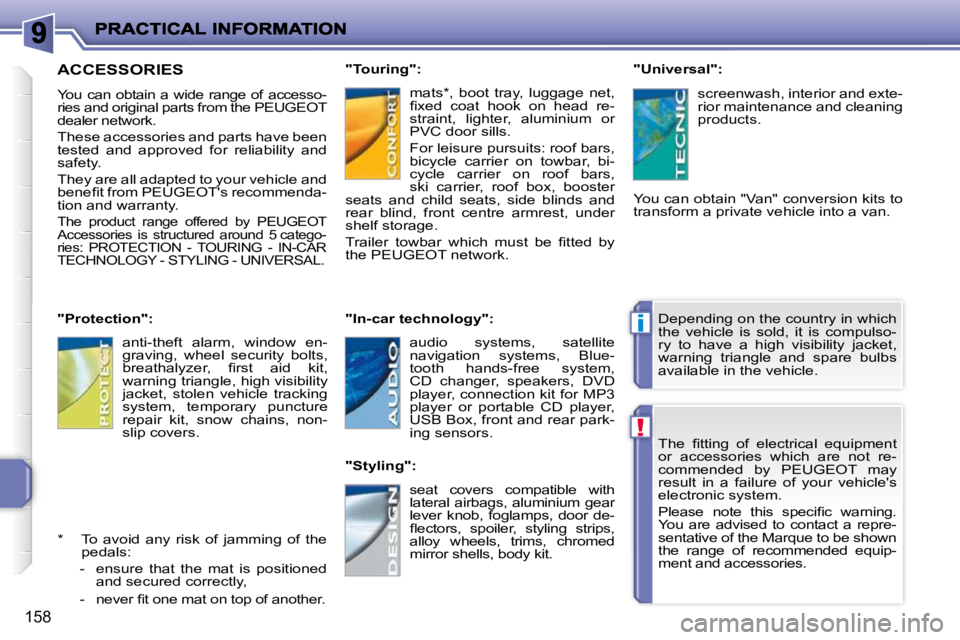

ACCESSORIES
You can obtain a wide range of accesso-
ries and original parts from the PEUGEOT
dealer network.
These accessories and parts have been
tested and approved for reliability and
safety.
They are all adapted to your vehicle and
b e n e fi t f r o m P E U G E O T ' s r e c o m m e n d a -
tion and warranty.
The product range offered by PEUGEOT
Accessories is structured around 5 catego-
r i e s : P R O T E C T I O N - T O U R I N G - I N - C A R
TECHNOLOGY - STYLING - UNIVERSAL.
"Protection":
"Touring":
"In-car technology":
"Styling":
"Universal":
You can obtain "Van" conversion kits to
transform a private vehicle into a van.
* To avoid any risk of jamming of the p e d a l s :
- ensure that the mat is positioned and secured correctly,
- n e v e r fi t o n e m a t o n t o p o f a n o t h e r . Depending on the country in which
the vehicle is sold, it is compulso-
ry to have a high visibility jacket,
warning triangle and spare bulbs
available in the vehicle.
anti-theft alarm, window en-
graving, wheel security bolts,
b r e a t h a l y z e r , fi r s t a i d k i t ,
warning triangle, high visibility
jacket, stolen vehicle tracking
system, temporary puncture
repair kit, snow chains, non-
slip covers. mats * , boot tray, luggage net,
fi x e d c o a t h o o k o n h e a d r e -
straint, lighter, aluminium or
PVC door sills.
F o r l e i s u r e p u r s u i t s : r o o f b a r s ,
bicycle carrier on towbar, bi-
cycle carrier on roof bars,
s k i c a r r i e r , r o o f b o x , b o o s t e r
seats and child seats, side blinds and
rear blind, front centre armrest, under
shelf storage.
T r a i l e r t o w b a r w h i c h m u s t b e fi t t e d b y
the PEUGEOT network.
audio systems, satellite
navigation systems, Blue-
tooth hands-free system,
CD changer, speakers, DVD
player, connection kit for MP3
player or portable CD player,
U S B B o x , f r o n t a n d r e a r p a r k -
ing sensors.
seat covers compatible with
lateral airbags, aluminium gear
lever knob, foglamps, door de-
fl e c t o r s , s p o i l e r , s t y l i n g s t r i p s ,
alloy wheels, trims, chromed
mirror shells, body kit. s c r e e n w a s h , i n t e r i o r a n d e x t e -
rior maintenance and cleaning
products.
Page 169 of 218
173

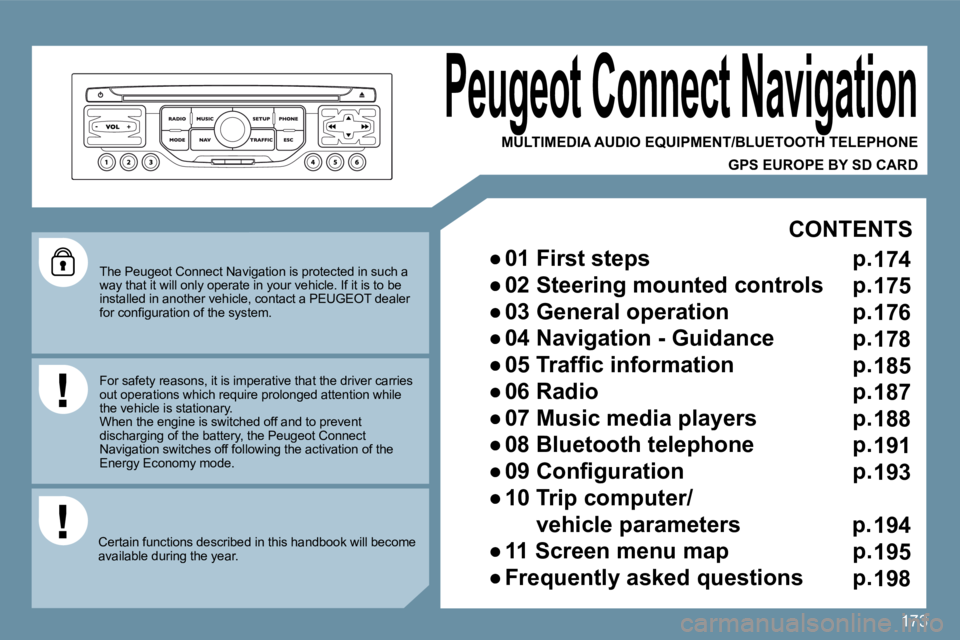

The Peugeot Connect Navigation is protected in such a way that it will only operate in your vehicle. If it is to be installed in another vehicle, contact a PEUGEOT dea ler f o r c o n fi g u r a t i o n o f t h e s y s t e m .
C e r t a i n f u n c t i o n s d e s c r i b e d i n t h i s h a n d b o o k w i l l b e c o m e available during the year.
Peugeot Connect Navigation
CONTENTS
Page 170 of 218
174
1
5
1 0
0 1
2
3 4 6
1 3
1 1
9
1 4 1 5
7 8 1 2 1 6

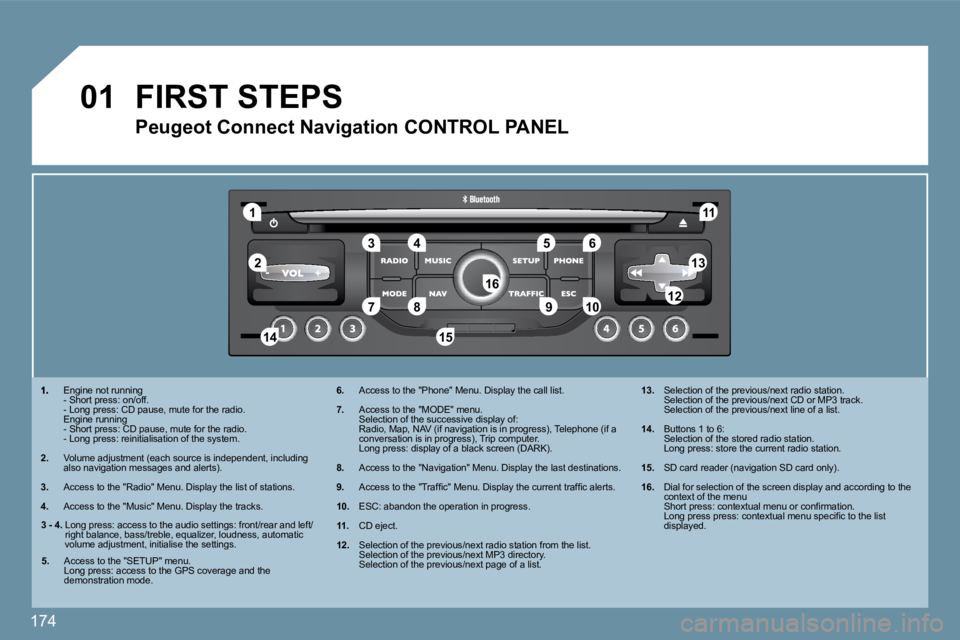

Engine not running - Short press: on/off. - L o n g p r e s s : C D p a u s e , m u t e f o r t h e r a d i o . Engine running - S h o r t p r e s s : C D p a u s e , m u t e f o r t h e r a d i o . - L o n g p r e s s : r e i n i t i a l i s a t i o n o f t h e s y s t e m .
2 . V o l u m e a d j u s t m e n t ( e a c h s o u r c e i s i n d e p e n d e n t , i n c
l u d i n g a l s o n a v i g a t i o n m e s s a g e s a n d a l e r t s ) .
3 . Access to the "Radio" Menu. Display the list of stations.
4 . Access to the "Music" Menu. Display the tracks.
6 . Access to the "Phone" Menu. Display the call list.
7 . A c c e s s t o t h e " M O D E " m e n u . Selection of the successive display of: R a d i o , M a p , N A V ( i f n a v i g a t i o n i s i n p r o g r e s s ) , T e l e p h o n e ( i f a c o n v e r s a t i o n i s i n p r o g r e s s ) , T r i p c o m p u t e r . L o n g p r e s s : d i s p l a y o f a b l a c k s c r e e n ( D A R K ) .
8 . Access to the "Navigation" Menu. Display the last destinations.
9 . A c c e s s t o t h e " T r a f fi c " M e n u . D i s p l a y t h e c u r r e n t t r a f fi c a l e r t s .
1 0 . ESC: abandon the operation in progress.
1 1 . C D e j e c t .
1 2 . S e l e c t i o n o f t h e p r e v i o u s / n e x t r a d i o s t a t i o n f r o m t h e l i s t . Selection of the previous/next MP3 directory. Selection of the previous/next page of a list.
1 3 . Selection of the previous/next radio station. Selection of the previous/next CD or MP3 track. Selection of the previous/next line of a list.
1 4 . Buttons 1 to 6: Selection of the stored radio station. Long press: store the current radio station.
1 5 . S D c a r d r e a d e r ( n a v i g a t i o n S D c a r d o n l y ) .
1 6 . Dial for selection of the screen display and accor ding to the c o n t e x t o f t h e m e n u S h o r t p r e s s : c o n t e x t u a l m e n u o r c o n fi r m a t i o n . L o n g p r e s s p r e s s : c o n t e x t u a l m e n u s p e c i fi c t o t h e l i s t displayed.
P e u g e o t C o n n e c t N a v i g a t i o n C O N T R O L P A N E L
3 - 4 . Long press: access to the audio settings: front/rear and left/ r i g h t b a l a n c e , b a s s / t r e b l e , e q u a l i z e r , l o u d n e s s , a u t o m a t i c v o l u m e a d j u s t m e n t , i n i t i a l i s e t h e s e t t i n g s .
5 . A c c e s s t o t h e " S E T U P " m e n u . Long press: access to the GPS coverage and the d e m o n s t r a t i o n m o d e .
F I R S T S T E P S
Page 174 of 218
178
0 4
1
2
3
5
6
4

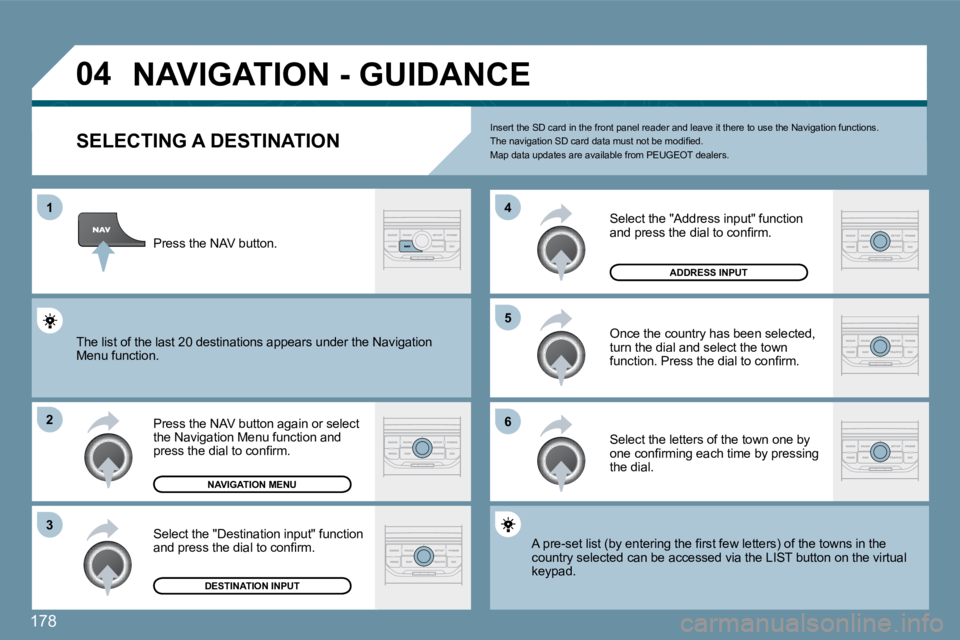

N A V I G A T I O N - G U I D A N C E
S E L E C T I N G A D E S T I N A T I O N
Press the NAV button again or select the Navigation Menu function and p r e s s t h e d i a l t o c o n fi r m .
Select the "Destination input" function a n d p r e s s t h e d i a l t o c o n fi r m .
Press the NAV button.
Select the letters of the town one by o n e c o n fi r m i n g e a c h t i m e b y p r e s s i n g the dial.
Once the country has been selected, turn the dial and select the town f u n c t i o n . P r e s s t h e d i a l t o c o n fi r m .
N A V I G A T I O N M E N U
D E S T I N A T I O N I N P U T
Insert the SD card in the front panel reader and leave it there to use the Navigation functions. T h e n a v i g a t i o n S D c a r d d a t a m u s t n o t b e m o d i fi e d . M a p d a t a u p d a t e s a r e a v a i l a b l e f r o m P E U G E O T d e a l e r s .
A p r e - s e t l i s t ( b y e n t e r i n g t h e fi r s t f e w l e t t e r s ) o f t h e t o w n s i n t h e A p r e - s e t l i s t ( b y e n t e r i n g t h e fi r s t f e w l e t t e r s ) o f t h e t o w n s i n t h e country selected can be accessed via the LIST butto n ontton on the virtual keypad.
Select the "Address input" function a n d p r e s s t h e d i a l t o c o n fi r m .
A D D R E S S I N P U T
T h e l i s t o f t h e l a s t 2 0 d e s t i n a t i o n s a p p e a r s u n d e r t h e N a v i g a t i o n T h e l i s t o f t h e l a s t 2 0 d e s t i n a t i o n s a p p e a r s u n d e r t h e N a v i g a t i o n Menu function.
