33
MONOCHROME SCREEN A (WITH
PEUGEOT CONNECT SOUND)
Controls
Displays on the screen
This displays the following information:
- time,
- date,
- a m b i e n t t e m p e r a t u r e * ( t h i s fl a s h e s i f there is a risk of ice),
-
status of the openings (doors, boot, ...),
- audio sources (radio, CD, ...),
- trip computer (refer to the end of the section).
Warning messages (e.g.: "Emission
control system faulty") or information
messages (e.g.: "Boot open") may ap-
pear temporarily. These can be cleared
by pressing the "ESC" button.
Main menu
Press the "MENU" button for access
to the main menu , then press the
" " or " " buttons to scroll through
the various menus:
- radio-CD,
- v e h i c l e c o n fi g u r a t i o n ,
- options,
- display settings,
- language,
- units.
Press the "OK" button to select the
menu required.
From the audio equipment control panel,
you can:
press the "MENU" button to gain
access to the main menu ,
press the " " or " " buttons to
scroll through the items on the
screen,
press the "MODE" button to change
the permanent application (trip com-
puter, audio source, ...),
press the " " or " " buttons to
change a setting value,
press the "OK" b u t t o n t o c o n fi r m ,
or
press the "ESC" button to abandon
the operation in progress. Radio-CD
With the audio equipment switched on,
once the "Radio-CD" menu has been
selected you can activate or deacti-
vate the functions linked with use of the
radio (RDS, REG) or the CD (introscan,
s h u f fl e , C D r e p e a t ) .
For more information on the "Radio-
CD" application, refer to the Peugeot
Connect Sound part of the "Audio and
Telematics" section.
* With air conditioning only.
Page 18 of 218
35
MONOCHROME SCREEN C (WITH
PEUGEOT CONNECT SOUND)
Main menu
Displays on the screen
This displays the following information:
- time,
- date,
- a m b i e n t t e m p e r a t u r e * ( t h i s fl a s h e s i f there is a risk of ice),
- status of the openings (doors, boot...),
- audio sources (radio, CD...),
- trip computer (refer to the end of the section).
Warning messages (e.g.: "Emission
control system faulty") or information
messages (e.g.: "Automatic headlamp
lighting activated") may appear tempo-
rarily. These can be cleared by pressing
the "
ESC
" button. Controls
From the audio equipment control panel,
you can:
press the "
MENU
" button to gain
access to the main menu ,
press the " " or " " buttons to
scroll through the items on the
screen,
press the "
MODE" button to change
the permanent application (trip com-
puter, audio source...),
press the " " or " " buttons to
change a setting value,
press the "
OK" b u t t o n t o c o n fi r m ,
or
press the "
ESC
" button to abandon
the operation in progress. "Audio functions" menu
With the audio equipment switched on,
once this menu has been selected you
can activate or deactivate the functions
linked with use of the radio (RDS, REG,
RadioText) or the CD (introscan, shuf-
fl e , C D r e p e a t ) .
For more information on the "Audio
functions" application, refer to the
Peugeot Connect Sound part of the
"Audio and Telematics" section.
* With air conditioning only.
Press the "MENU" button for ac-
cess to the main menu :
- audio functions,
- trip computer (refer to the end of the section),
- p e r s o n a l i s a t i o n - c o n fi g u r a t i o n ,
- telephone (Bluetooth hands-free system).
Press the " " " " buttons to se-
l e c t t h e m e n u r e q u i r e d , t h e n c o n fi r m
by pressing the "
OK
" button.
Page 20 of 218
!
37
D e fi n e t h e v e h i c l e p a r a m e t e r s
Once this menu has been selected, you can
activate or deactivate the following equipment:
- wiper linked with reverse gear (refer to the "Visibility" section),
- directional headlamps (refer to the "Visibility" section),
- "guide-me-home" lighting (refer to the "Visibility" section).
- rear parking sensors (see "Driving" section). Choice of language
Once this menu has been selected, you
can change the screen display language
(Deutsch, English, Espanol, Français,
Italiano, Nederlands, Portugues, Portugues-
Brasil, Türkçe * ).
"Telephone" menu
With the audio equipment switched on,
once this menu has been selected you
c a n c o n fi g u r e y o u r B l u e t o o t h h a n d s -
free system (pairing), consult the vari-
ous telephone directories (calls log,
services...) and manage your commu-
nications (pick up, hang up, call waiting,
secret mode...).
For further details concerning the "Tele-
phone" application, refer to the Peugeot
Connect Sound part of the "Audio and
Telematics" section.
Example: setting of the duration of the
"guide-me-home" lighting
"Personalisation-Configuration"
menu
Once this menu has been selected, you
can gain access to the following func-
tions:
- d e fi n e t h e v e h i c l e p a r a m e t e r s ,
- d i s p l a y c o n fi g u r a t i o n ,
- choice of language.
Press the " " or " " buttons, then
the "
OK
" button to select the menu
required.
Press the " " or " " buttons,
then the "
OK
" button to select the
"Guide-me-home headlamps" line.
Press the " " or " " buttons to set
the value required (15, 30 or 60 sec-
onds), then press the "
OK
" button
t o c o n fi r m .
Press the " " or " " buttons, then
the "
OK
" button to select the "
OK
"
b o x a n d c o n fi r m o r p r e s s t h e "
ESC
"
button to cancel.
D i s p l a y c o n fi g u r a t i o n
Once this menu has been selected, you
can gain access to the following set-
tings:
- brightness-video setting,
- date and time setting,
- selection of the units.
F o r s a f e t y r e a s o n s , c o n fi g u r a t i o n
of the multifunction screen by the
driver must only be done when sta-
tionary.
* According to country.
Page 21 of 218
i
38
16/9 COLOUR SCREEN
(WITH PEUGEOT CONNECT NAVIGATION)
For more information on these ap-
plications, refer to the "Audio and
Telematics" section or to the spe-
c i fi c u s e r g u i d e g i v e n t o y o u w i t h
the other owner's documents.
Displays on the screen
This displays the following information
automatically and directly:
- time,
- date,
- altitude,
- ambient temperature (the value dis- p l a y e d fl a s h e s i f t h e r e i s a r i s k o f i c e ) ,
- check on openings,
- warning and vehicle function status messages, displayed temporarily,
- audio functions,
- trip computer information,
- satellite navigation system information. Controls
From the Peugeot Connect Navigation
control panel, to select one of the ap-
plications:
press the dedicated "RADIO" , "MU-
SIC" , "NAV" , "TRAFFIC" , "SETUP"
or "PHONE" button for access to the
corresponding menu,
turn the navigator to move the se-
lection,
p r e s s t h e n a v i g a t o r t o c o n fi r m t h e
selection,
or
press the "ESC" button to abandon
the current operation and return to
the previous display.
Page 22 of 218
!
39
"SETUP" menu
Press the "SETUP" button for ac-
cess to the "SETUP" menu. This al-
lows you to select from the following
functions:
- "System language",
- "Date and time",
- "Display",
- "Vehicle",
- "Units",
- "System".
System language
This menu allows you to select the lan-
guage used by the display: Deutsch,
English, Espanol, Français, Italiano,
Nederlands, Polski, Portugues, Türkçe * .
* According to country.
Date and time
This menu allows you to set the date
and time, the format of the date and the
format of the time (refer to the "Audio
and Telematics" section or to the specif-
ic user guide given to you with the other
owner's documents). Display
This menu allows you to set the bright-
ness of the screen, the screen colour
scheme and the colour of the map (day/
night or auto mode).
Vehicle
This menu allows you to activate or
deactivate certain driving and comfort
equipment:
- wiper linked with reverse gear (refer
to the "Visibility" section),
- guide-me-home lighting and dura- tion (refer to the "Visibility" section),
- directional headlamps (refer to the "Visibility" section).
Units
This menu allows you to select the
units: temperature (°C or °F) and con-
sumption (km/l, l/100 or mpg).
System
This menu allows you to restore the fac-
t o r y c o n fi g u r a t i o n , d i s p l a y t h e s o f t w a r e
version and activate scrolling text. F o r s a f e t y r e a s o n s , c o n fi g u r a t i o n
of the multifunction screen by the
driver must only be done when
stationary.
Page 47 of 218
!
!
58
To avoid any risk of jamming of the
pedals:
- only use mats which are suited t o t h e fi x i n g s a l r e a d y p r e s e n t i n
the vehicle; it is imperative that
these are used,
- n e v e r fi t o n e m a t o n t o p o f a n - other.
MATS
Removable carpet protection. Refitting
T o r e fi t t h e m a t o n t h e d r i v e r ' s s i d e :
position the mat correctly,
r e fi t t h e fi x i n g s b y p r e s s i n g ,
check that the mat is secured cor-
rectly.
Fitting
W h e n fi t t i n g t h e m a t f o r t h e fi r s t t i m e ,
o n t h e d r i v e r ' s s i d e u s e o n l y t h e fi x i n g s
provided in the wallet attached.
The other mats are simply placed on
the carpet.
Removal
To remove the mat on the driver's side:
move the seat as far back as possible,
u n c l i p t h e fi x i n g s ,
remove the mat.
PEUGEOT CONNECT USB
This connection box, consisting of an
auxiliary JACK socket and a USB port,
is located on the centre console.
It permits the connection of portable
equipment, such as a digital audio player
of the iPod ®
or USB memory stick type.
I t r e a d s t h e a u d i o fi l e f o r m a t s ( m p 3 ,
ogg, wma, wav...) which are transmitted
to your audio equipment and played via
the vehicle's speakers.
Y o u c a n m a n a g e t h e s e fi l e s u s i n g t h e
steering wheel controls or the audio
equipment control panel and display
them on the multifunction screen.
When it is in use, the portable equip-
ment charges automatically.
For more information on the use of
this equipment, refer to the Peugeot
C o n n e c t S o u n d p a r t o f t h e " A u d i o
a n d T e l e m a t i c s " s e c t i o n .
Page 95 of 218
i
SAFETY
99

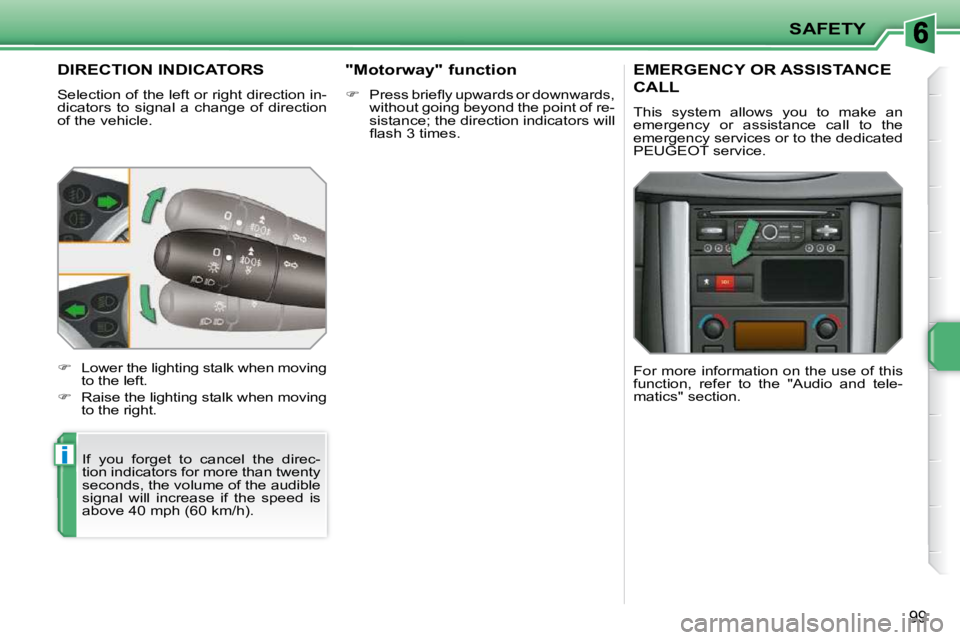

DIRECTION INDICATORS
Selection of the left or right direction in-
dicators to signal a change of direction
of the vehicle. If you forget to cancel the direc-
tion indicators for more than twenty
seconds, the volume of the audible
signal will increase if the speed is
above 40 mph (60 km/h).
Lower the lighting stalk when moving
to the left.
Raise the lighting stalk when moving
to the right. "Motorway" function
P r e s s b r i e fl y u p w a r d s o r d o w n w a r d s ,
without going beyond the point of re-
sistance; the direction indicators will
fl a s h 3 t i m e s .
EMERGENCY OR ASSISTANCE
CALL
This system allows you to make an
emergency or assistance call to the
emergency services or to the dedicated
PEUGEOT service.
For more information on the use of this
function, refer to the "Audio and tele-
matics" section.
Page 138 of 218
i
i
142
Rear lamps (Saloon)
1. Brake
lamps
(P 21 W).
2. Sidelamps
(diodes).
3. Foglamps
(P 21 W).
4. Direction indicators
(PY 21 W amber).
5. Reversing
lamps
(R 10 W). Changing bulbs T h e s e b u l b s ( w i t h t h e e x c e p t i o n o f t h e d i o d e
l a m p s ) a r e c h a n g e d f r o m o u t s i d e t h e b o o t :
r e m o v e t h e l a m p fi x i n g b o l t ,
remove the lamp from the outside,
disconnect the lamp connector,
remove the lamp seal,
press the four tabs and remove the
bulb holder,
turn the bulb one quarter of a turn
and change it.
I f t h e v e h i c l e i s fi t t e d w i t h t h e J B L
audio system, on the right-hand
s i d e , o p e n t h e fl a p fi r s t t o g a i n
a c c e s s t o t h e fi x i n g b o l t .
Amber coloured bulbs, such as the
direction indicators, must be re-
placed with bulbs of identical speci-
fi c a t i o n a n d c o l o u r .
For the replacement of diode lamps,
consult a PEUGEOT dealer. T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
verse order.
