Browse:
Touch the “Browse” key to display the titles on
the CD in list format. Touch the title of a song in
the list to begin playing that song. If an MP3 CD is
playing, touching the “Browse” key will also list
the folders on the disc. Follow the procedure for
selecting a song with the touchscreen to choose
a folder.
SEEK/CATEGORY(Reverse or Fast
Forward) button:
Press and hold the SEEK/CATEGORY
button
orfor 1.5 seconds while the
compact disc is playing to reverse or fast forward
the track being played. The compact disc plays at
an increased speed while reversing or fast for-
warding. When the button is released, the com-
pact disc returns to normal play speed.
SEEK/CATEGORY button:
Press the SEEK/CATEGORY button
while
a CD or MP3/WMA CD is playing to return to the
beginning of the current track. Press the
SEEK/CATEGORY button
several times
to skip backward several tracks.
Press the SEEK/CATEGORY button
while
a CD or MP3/WMA CD is playing to advance
one track. Press the SEEK/CATEGORY
button
several times to skip forward sev-
eral tracks. If the last track on a CD is skipped, the
first track on the disc is played. If the last track in
a folder of an MP3/WMA CD is skipped, the first
track of the next folder is played. AUX button:
The AUX IN jack is located in the storage area
above the audio system
1. The AUX IN audio
input jack accepts any standard analog audio
input such as from a portable cassette tape/CD
player, MP3 player or a laptop computer.
Press the AUX button to play a compatible device
plugged into the AUX IN jack. The AUX button is
also used to switch the audio system to a source
plugged into the USB input jack in the center
console. When a device is plugged into the AUX
IN jack while another device is plugged into the
USB input jack, the AUX button is used to toggle
between the two functions.
LHA1497
4-38Display screen, heater, air conditioner, audio and phone systems

For more information about the USB input jack,
see “USB interface” in this section.
EJECT button:
When the
button is pressed with a com-
pact disc loaded, the compact disc will eject and
the last source will be played.
When the
button is pressed twice with a
compact disc loaded, the compact disc will be
ejected further for easier CD removal. If the disc
is not removed within 10 seconds, the disc will
reload.
Additional features
For more information about the iPod player
available with this system, see “iPod player op-
eration with Navigation System” in this section.
For more information about the USB interface
available with this system, see “USB interface” in
this section.
iPod* PLAYER OPERATION
WITHOUT NAVIGATION SYSTEM (if
so equipped)
Connecting iPod
The iPod outlet connector is located in the
covered storage bin above the radio. To connect
the iPod, first open the lid on the covered stor-
age bin. Next, connect one end of the iPod
cable to the iPod and the other end of the cable
to the iPod-specific port on the vehicle
1.If
compatible, the battery of your iPod is charged
during the connection to the vehicle.
LHA1493LHA1392
Display screen, heater, air conditioner, audio and phone systems4-39

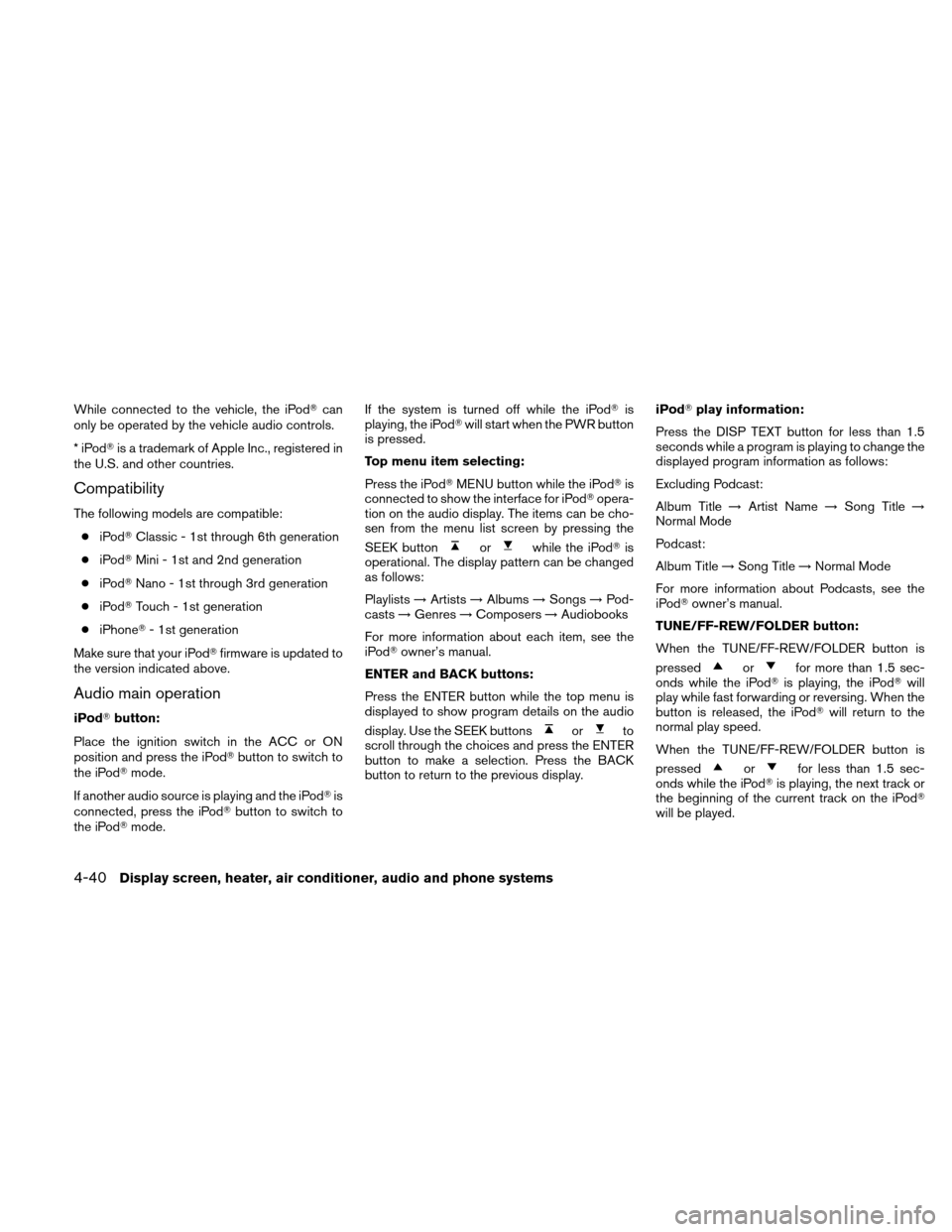

While connected to the vehicle, the iPodcan
only be operated by the vehicle audio controls.
*iPod is a trademark of Apple Inc., registered in
the U.S. and other countries.
Compatibility
The following models are compatible:
● iPod Classic - 1st through 6th generation
● iPod Mini - 1st and 2nd generation
● iPod Nano - 1st through 3rd generation
● iPod Touch - 1st generation
● iPhone - 1st generation
Make sure that your iPod firmware is updated to
the version indicated above.
Audio main operation
iPod button:
Place the ignition switch in the ACC or ON
position and press the iPod button to switch to
the iPod mode.
If another audio source is playing and the iPod is
connected, press the iPod button to switch to
the iPod mode. If the system is turned off while the iPod
is
playing, the iPod will start when the PWR button
is pressed.
Top menu item selecting:
Press the iPod MENU button while the iPod is
connected to show the interface for iPod opera-
tion on the audio display. The items can be cho-
sen from the menu list screen by pressing the
SEEK button
orwhile the iPod is
operational. The display pattern can be changed
as follows:
Playlists →Artists →Albums →Songs →Pod-
casts →Genres →Composers →Audiobooks
For more information about each item, see the
iPod owner’s manual.
ENTER and BACK buttons:
Press the ENTER button while the top menu is
displayed to show program details on the audio
display. Use the SEEK buttons
orto
scroll through the choices and press the ENTER
button to make a selection. Press the BACK
button to return to the previous display. iPod
play information:
Press the DISP TEXT button for less than 1.5
seconds while a program is playing to change the
displayed program information as follows:
Excluding Podcast:
Album Title →Artist Name →Song Title →
Normal Mode
Podcast:
Album Title →Song Title →Normal Mode
For more information about Podcasts, see the
iPod owner’s manual.
TUNE/FF-REW/FOLDER button:
When the TUNE/FF-REW/FOLDER button is
pressed
orfor more than 1.5 sec-
onds while the iPod is playing, the iPodwill
play while fast forwarding or reversing. When the
button is released, the iPod will return to the
normal play speed.
When the TUNE/FF-REW/FOLDER button is
pressed
orfor less than 1.5 sec-
onds while the iPod is playing, the next track or
the beginning of the current track on the iPod
will be played.
4-40Display screen, heater, air conditioner, audio and phone systems

SCAN/RPT button:
Press the SCAN/RPT button while a track is
playing to change the play pattern as follows:
Excluding Podcast and Audiobook:
ALL RPT→TRK RPT →ALL RDM →ALBUM
RDM
Podcast:
ALL RPT ←→TRK RPT
For more information about Podcasts, see the
iPod owner’s manual.
Audiobook:
NORMAL →FAST →SLOW
iPod* PLAYER OPERATION WITH
NAVIGATION SYSTEM (if so
equipped)
Connecting iPod
To connect an iPod to the vehicle so that the
iPod can be controlled with the audio system
controls and display screen, use the USB jack
located in the center console. Open the protec-
tive cover on the USB jack in the center console
and then connect the iPod-specific end of the
cable to the iPod and the USB end of the cable
to the USB jack on the vehicle
1. If your iPod
supports charging via a USB connection, its bat- tery will be charged while connected to the ve-
hicle with the ignition switch in the ACC or ON
position.
While connected to the vehicle, the iPod
can
only be operated by the vehicle audio controls.
To disconnect the iPod from the vehicle, remove
the USB end of the cable from the USB jack on
the vehicle, then remove the cable from the
iPod.
*iPod is a trademark of Apple Inc., registered in
the U.S. and other countries.
Compatibility
The following models are compatible:
● iPod Classic - 5th generation
● iPod Nano - 1st through 2nd generation
Make sure that your iPod firmware is updated to
the version indicated above.LHA1498
Display screen, heater, air conditioner, audio and phone systems4-41

Audio main operation
AUX button:
Place the ignition switch in the ACC or ON
position and press the AUX button repeatedly
until the iPodmode is displayed on the screen.
If another audio source is playing and the iPod is
connected, press the AUX button repeatedly to
switch to the iPod mode.
If the vehicle audio system is turned off while the
iPod is playing, the iPod will start when the
VOL/ON-OFF control knob is pressed. Interface:
The interface for iPod
operation shown on the
vehicle’s audio system display screen is similar to
the iPod interface. Use the touchscreen,
BACK button or the TUNE/SCROLL knob to
navigate the menus on the screen.
When the iPod is playing, touch the “Menu” key
to bring up the iPod interface.
Depending on the iPod model, the following
items may be available on the menu list screen.
For further information about each item, see the
iPod Owner’s Manual.
● Playlists ●
Artists
● Albums
● Genres
● Songs
● Composers
● Audiobooks
● Podcasts
SEEK/CATEGORY button:
Press the SEEK/CATEGORY button
orto skip backward or forward one track.
Press and hold the SEEK/CATEGORY
button
orfor 1.5 seconds while a
track is playing to reverse or fast forward the track
being played. The track plays at an increased
speed while reversing or fast forwarding. When
the button is released, the track returns to normal
play speed.
Random and repeat play mode:
While the iPod is playing, the play pattern can
be altered so that songs are repeated or played
randomly.
LHA1494LHA1495
4-42Display screen, heater, air conditioner, audio and phone systems

Random:
Touch the “Random” key to apply a random play
pattern to the iPod. When the random mode is
active, the
icon is displayed to the left of
the song title or album name to denote which
random pattern is applied. To cancel Random
mode, touch the “Random” key until no
icon is displayed.
Repeat:
Touch the “Repeat” key to apply a repeat play
pattern to the iPod. When the repeat mode is
active, the
icon is displayed to the left of
the song title or album name to denote which
repeat pattern is applied. To cancel Repeat
mode, touch the “Repeat” key until no
icon
is displayed.USB INTERFACE (if so equipped)
Connecting a device to the USB input
jack
The USB input jack is located in the center con-
sole. Open the protective cover
1on the USB
jack, then insert the USB device into the jack.
When a compatible storage device is plugged
into the jack, compatible audio files on the stor-
age device can be played through the vehicle’s
audio system.
Audio file operation
AUX button:
Place the ignition switch in the ON or ACC
position and press the AUX button to switch to
the USB input mode. If another audio source is
playing and a USB memory device is inserted,
press the AUX button repeatedly until the center
display changes to the USB memory mode.
If the system has been turned off while the USB
memory was playing, push the ON-OFF/VOL
control knob to restart the USB memory.
LHA1498
Display screen, heater, air conditioner, audio and phone systems4-43

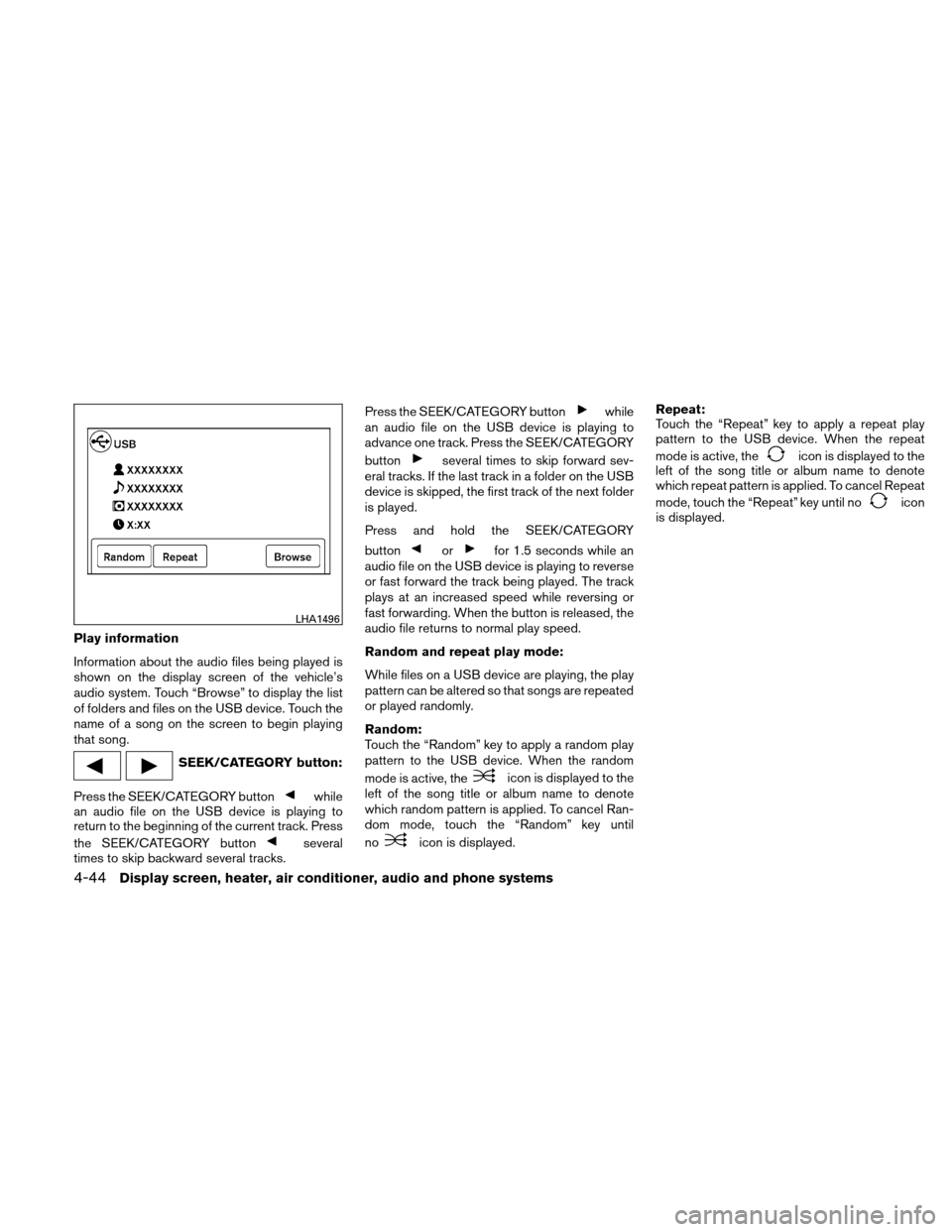

Play information
Information about the audio files being played is
shown on the display screen of the vehicle’s
audio system. Touch “Browse” to display the list
of folders and files on the USB device. Touch the
name of a song on the screen to begin playing
that song.
SEEK/CATEGORY button:
Press the SEEK/CATEGORY button
while
an audio file on the USB device is playing to
return to the beginning of the current track. Press
the SEEK/CATEGORY button
several
times to skip backward several tracks. Press the SEEK/CATEGORY button
while
an audio file on the USB device is playing to
advance one track. Press the SEEK/CATEGORY
button
several times to skip forward sev-
eral tracks. If the last track in a folder on the USB
device is skipped, the first track of the next folder
is played.
Press and hold the SEEK/CATEGORY
button
orfor 1.5 seconds while an
audio file on the USB device is playing to reverse
or fast forward the track being played. The track
plays at an increased speed while reversing or
fast forwarding. When the button is released, the
audio file returns to normal play speed.
Random and repeat play mode:
While files on a USB device are playing, the play
pattern can be altered so that songs are repeated
or played randomly.
Random:
Touch the “Random” key to apply a random play
pattern to the USB device. When the random
mode is active, the
icon is displayed to the
left of the song title or album name to denote
which random pattern is applied. To cancel Ran-
dom mode, touch the “Random” key until
no
icon is displayed. Repeat:
Touch the “Repeat” key to apply a repeat play
pattern to the USB device. When the repeat
mode is active, the
icon is displayed to the
left of the song title or album name to denote
which repeat pattern is applied. To cancel Repeat
mode, touch the “Repeat” key until no
icon
is displayed.
LHA1496
4-44Display screen, heater, air conditioner, audio and phone systems

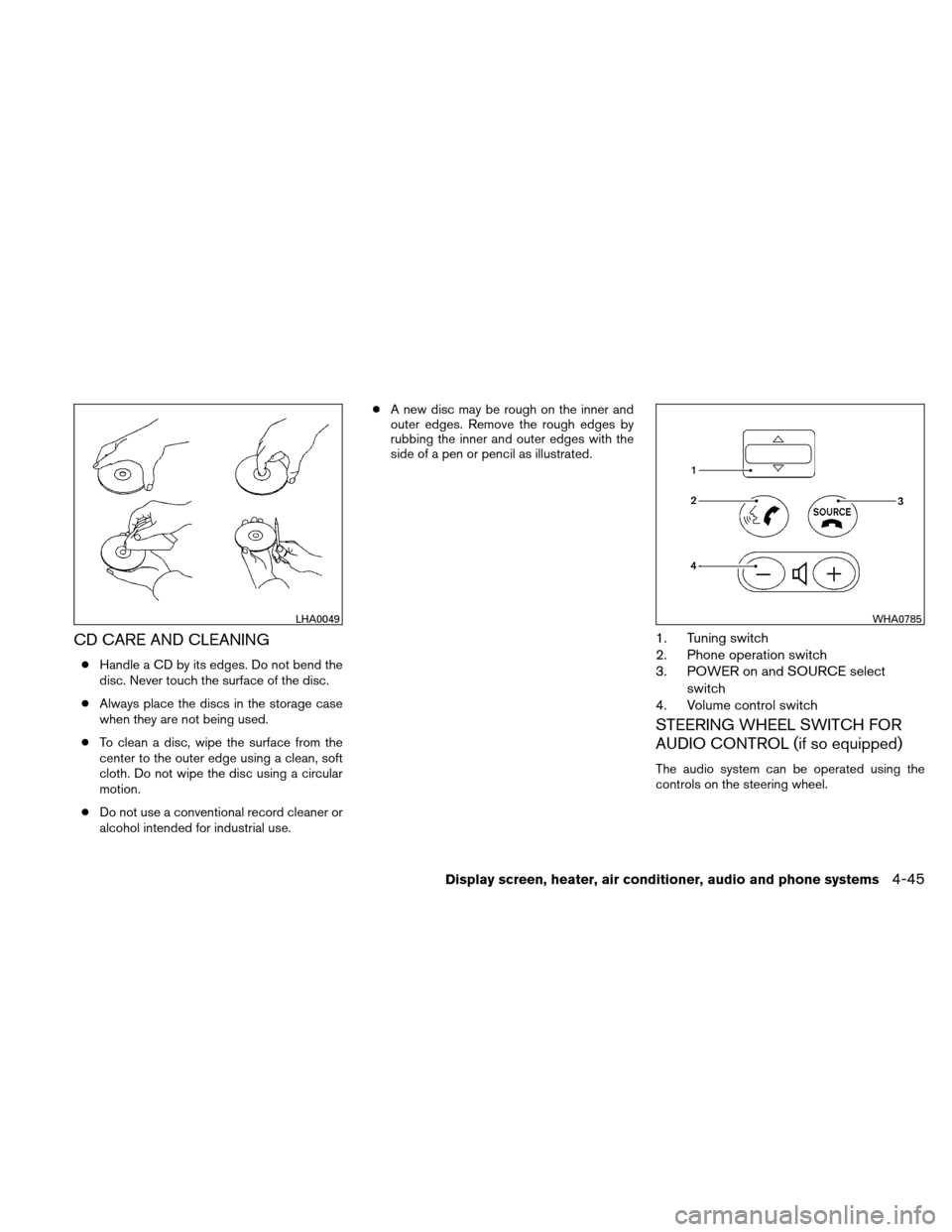

CD CARE AND CLEANING
●Handle a CD by its edges. Do not bend the
disc. Never touch the surface of the disc.
● Always place the discs in the storage case
when they are not being used.
● To clean a disc, wipe the surface from the
center to the outer edge using a clean, soft
cloth. Do not wipe the disc using a circular
motion.
● Do not use a conventional record cleaner or
alcohol intended for industrial use. ●
A new disc may be rough on the inner and
outer edges. Remove the rough edges by
rubbing the inner and outer edges with the
side of a pen or pencil as illustrated.
1. Tuning switch
2. Phone operation switch
3. POWER on and SOURCE select
switch
4. Volume control switch
STEERING WHEEL SWITCH FOR
AUDIO CONTROL (if so equipped)
The audio system can be operated using the
controls on the steering wheel.
LHA0049WHA0785
Display screen, heater, air conditioner, audio and phone systems4-45
