2010 NISSAN TITAN Owners Manual

1. SEEK/TRACK button
2. CAT FOLDER button
3. Display
4. SCAN button
5. RPT RDM button6. H/M button (clock set buttons)
7. PRESET A·B·C button
8. CD button
9. FM AM button
10. SAT (satellite) radio button*11. AUX button
12. DISP button
13. LOAD button
14. CD insert slot
15.

1. SEEK/TRACK button
2. CAT FOLDER button
3. Display
4. SCAN RPT button
5. DISP button6. H/M button (clock set buttons)
7. PRESET A·B·C button
8. CD·DVD button
9. RADIO button*
10. AUX button11. REAR ON·OFF button
12.

1. PRESET A·B·C button
2. Display
3. DISP/CLOCK button
4. SEEK/TRACK button
5. CD button6. RADIO button*
7. AUX button
8. SCAN RPT button
9. CAT FOLDER button
10.

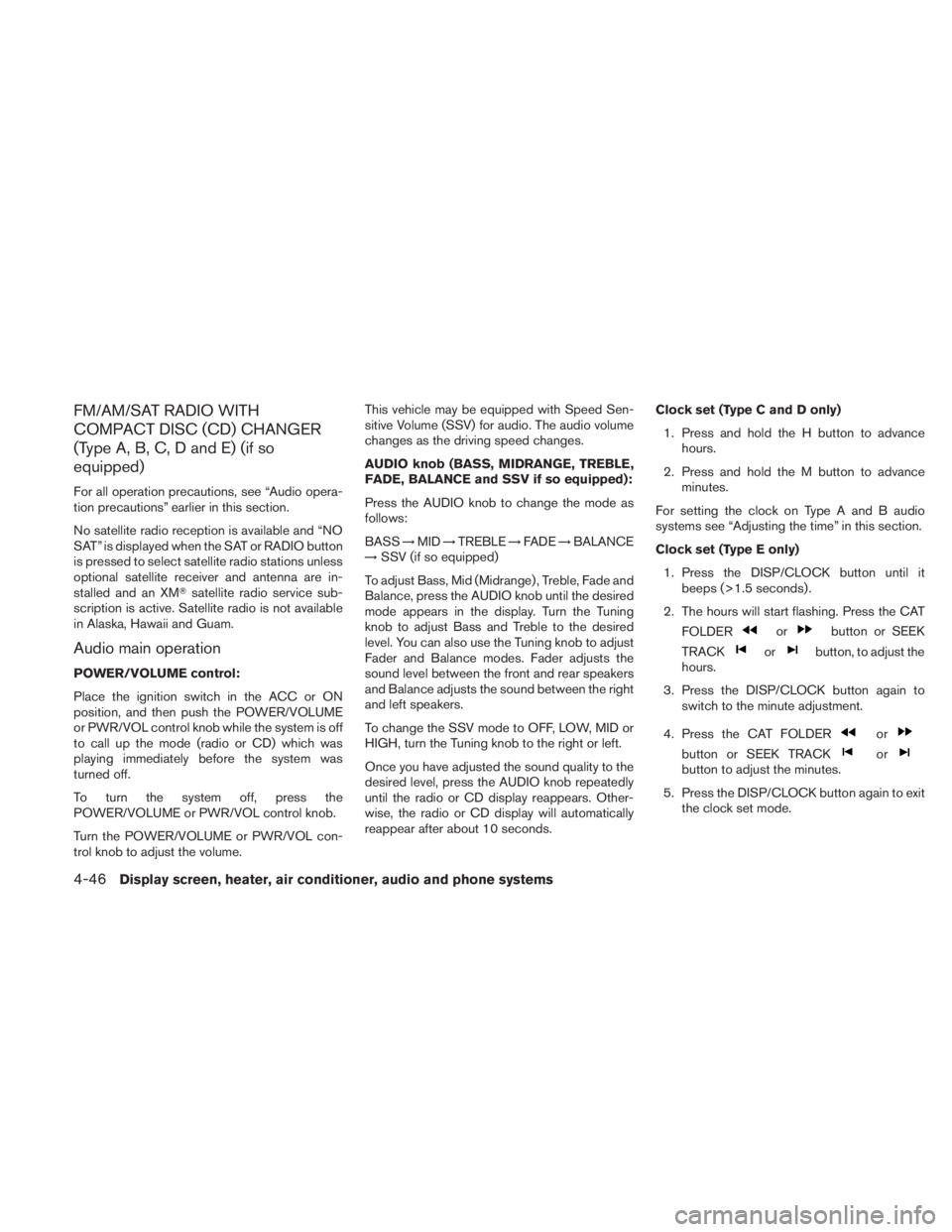

FM/AM/SAT RADIO WITH
COMPACT DISC (CD) CHANGER
(Type A, B, C, D and E) (if so
equipped)
For all operation precautions, see “Audio opera-
tion precautions” earlier in this section.
No satellite radio reception is available and “NO
SAT” is displayed when the SAT or RADIO button
is pressed to select satellite radio stations unless
optional satellite receiver and antenna are in-
stalled and an XMsatellite radio service sub-
scription is active. Satellite radio is not available
in Alaska, Hawaii and Guam.
Audio main operation
POWER/VOLUME control:
Place the ignition switch in the ACC or ON
position, and then push the POWER/VOLUME
or PWR/VOL control knob while the system is off
to call up the mode (radio or CD) which was
playing immediately before the system was
turned off.
To turn the system off, press the
POWER/VOLUME or PWR/VOL control knob.
Turn the POWER/VOLUME or PWR/VOL con-
trol knob to adjust the volume. This vehicle may be equipped with Speed Sen-
sitive Volume (SSV) for audio. The audio volume
changes as the driving speed changes.
AUDIO knob (BASS, MIDRANGE, TREBLE,
FADE, BALANCE and SSV if so equipped):
Press the AUDIO knob to change the mode as
follows:
BASS
→MID →TREBLE →FADE →BALANCE
→ SSV (if so equipped)
To adjust Bass, Mid (Midrange) , Treble, Fade and
Balance, press the AUDIO knob until the desired
mode appears in the display. Turn the Tuning
knob to adjust Bass and Treble to the desired
level. You can also use the Tuning knob to adjust
Fader and Balance modes. Fader adjusts the
sound level between the front and rear speakers
and Balance adjusts the sound between the right
and left speakers.
To change the SSV mode to OFF, LOW, MID or
HIGH, turn the Tuning knob to the right or left.
Once you have adjusted the sound quality to the
desired level, press the AUDIO knob repeatedly
until the radio or CD display reappears. Other-
wise, the radio or CD display will automatically
reappear after about 10 seconds. Clock set (Type C and D only)
1. Press and hold the H button to advance hours.
2. Press and hold the M button to advance minutes.
For setting the clock on Type A and B audio
systems see “Adjusting the time” in this section.
Clock set (Type E only) 1. Press the DISP/CLOCK button until it beeps (>1.5 seconds) .
2. The hours will start flashing. Press the CAT FOLDER

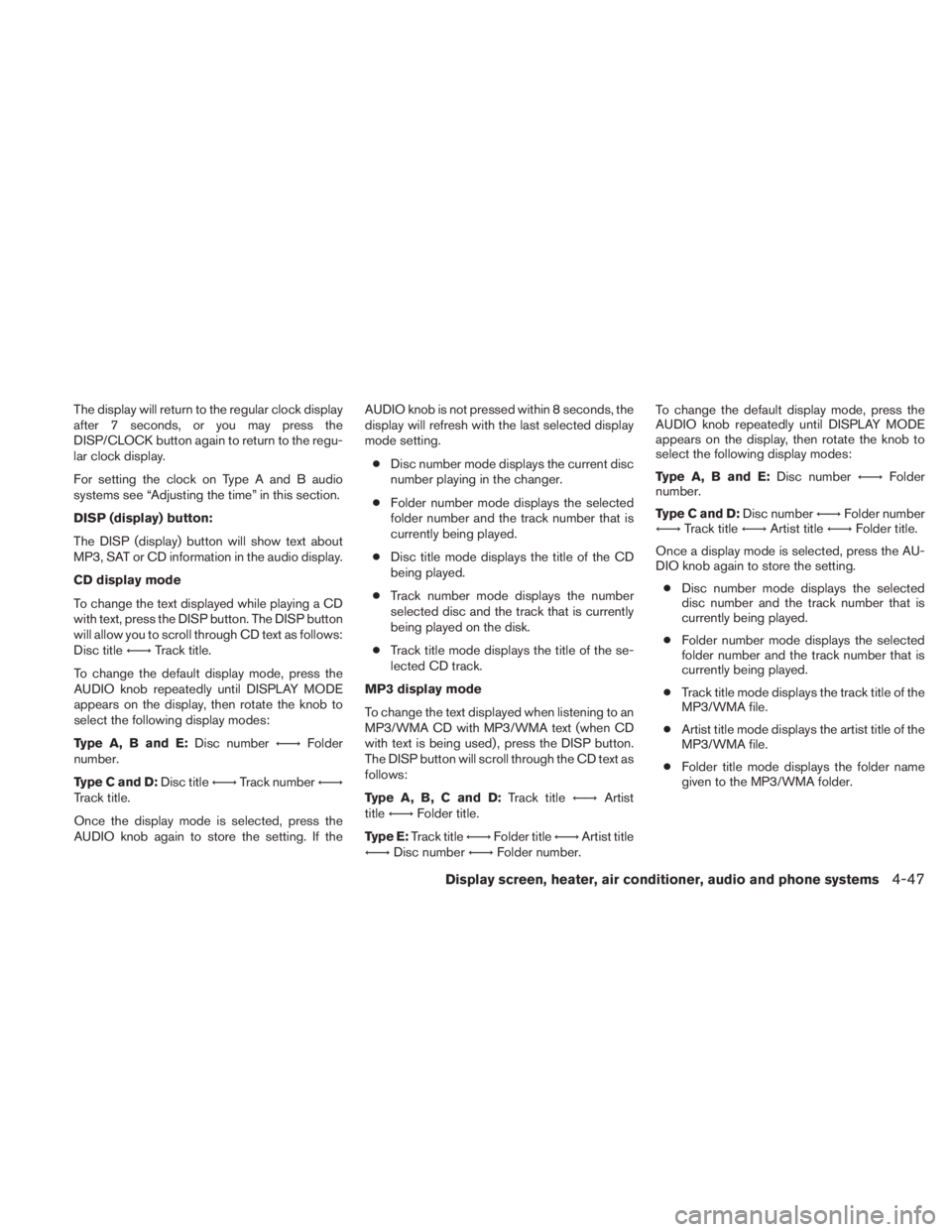

The display will return to the regular clock display
after 7 seconds, or you may press the
DISP/CLOCK button again to return to the regu-
lar clock display.
For setting the clock on Type A and B audio
systems see “Adjusting the time” in this section.
DISP (display) button:
The DISP (display) button will show text about
MP3, SAT or CD information in the audio display.
CD display mode
To change the text displayed while playing a CD
with text, press the DISP button. The DISP button
will allow you to scroll through CD text as follows:
Disc title←→Track title.
To change the default display mode, press the
AUDIO knob repeatedly until DISPLAY MODE
appears on the display, then rotate the knob to
select the following display modes:
Type A, B and E: Disc number←→Folder
number.
Type C and D: Disc title←→Track number ←→
Track title.
Once the display mode is selected, press the
AUDIO knob again to store the setting. If the AUDIO knob is not pressed within 8 seconds, the
display will refresh with the last selected display
mode setting.
● Disc number mode displays the current disc
number playing in the changer.
● Folder number mode displays the selected
folder number and the track number that is
currently being played.
● Disc title mode displays the title of the CD
being played.
● Track number mode displays the number
selected disc and the track that is currently
being played on the disk.
● Track title mode displays the title of the se-
lected CD track.
MP3 display mode
To change the text displayed when listening to an
MP3/WMA CD with MP3/WMA text (when CD
with text is being used) , press the DISP button.
The DISP button will scroll through the CD text as
follows:
Type A, B, C and D: Track title←→Artist
title ←→ Folder title.
Type E: Track title ←→Folder title ←→Artist title
←→ Disc number ←→Folder number. To change the default display mode, press the
AUDIO knob repeatedly until DISPLAY MODE
appears on the display, then rotate the knob to
select the following display modes:
Type A, B and E:
Disc number←→Folder
number.
Type C and D: Disc number←→Folder number
←→ Track title ←→Artist title ←→Folder title.
Once a display mode is selected, press the AU-
DIO knob again to store the setting. ● Disc number mode displays the selected
disc number and the track number that is
currently being played.
● Folder number mode displays the selected
folder number and the track number that is
currently being played.
● Track title mode displays the track title of the
MP3/WMA file.
● Artist title mode displays the artist title of the
MP3/WMA file.
● Folder title mode displays the folder name
given to the MP3/WMA folder.
Display screen, heater, air conditioner, audio and phone systems4-47

Display satellite radio display mode (if so
equipped)
To change the text displayed when listening to
satellite radio (if so equipped) press the DISP
button. The DISP button will scroll through the
broadcast information as follows: Name←→
Title ←→ Current display mode.
To change the default display mode press the
AUDIO button to display mode and press the
TUNE button to select the following display
modes: Channel number ←→Channel name
←→ Name ←→Title. Once the display mode is
selected press the AUDIO button again to store
the setting. If the AUDIO button is not pressed
after 8 seconds the display will refresh with the
last selected display mode setting.
●
Channel number mode displays the channel
number of the selected satellite radio station.
● Channel name mode displays the channel
name of the selected satellite radio station.
● Name mode displays the name of the artist,
host or weather condition of the selected
satellite radio station.
● Title mode displays the song title, show
name, or temperature of the selected satel-
lite radio station.
FM/AM/SAT radio operation
FM/AM/SAT band select (Type B and C
only):
Pressing the FM, AM, FM/AM or SAT radio select
button will change the band to either FM, AM or
SAT (satellite - if so equipped) radio stations.
When the FM, AM, FM/AM or SAT* radio select
button is pushed while the ignition switch is in the
ACC or ON, the radio will come on at the station
last played.
The last station played will also come on when
the POWER/VOLUME control knob is pressed
ON.
*No satellite radio reception is available and “NO
SAT” is displayed when the SAT button is
pressed unless optional satellite receiver and
antenna are installed and an XM satellite radio
service subscription is active. Satellite radio is
not available in Alaska, Hawaii and Guam.
If a compact disc is playing when the FM, AM,
FM/AM or SAT radio select button is pressed, the
compact disc will automatically be turned off and
the last radio station played will come on.
The FM stereo indicator ST will illuminate during
FM stereo reception. When the stereo broadcast
signal is weak, the radio will automatically change
from stereo to monaural reception. FM/AM/SAT band select (Type A, D and E
only):
Pressing the RADIO button will change the band
as follows:
AM
←→ FM or SAT* (satellite, if so equipped)
When the RADIO button is pressed while the
ignition switch is in the ACC or ON position, the
radio will come on at the station last played.
The last station played will also come on when
the POWER/VOLUME control knob is pressed
ON.
*No satellite radio reception is available and “NO
SAT” is displayed when the RADIO button is
pressed to access satellite radio stations unless
optional satellite receiver and antenna are in-
stalled and an XM satellite radio service sub-
scription is active. Satellite radio is not available
in Alaska, Hawaii and Guam.
If a compact disc is playing when the RADIO
button is pressed, the compact disc will auto-
matically be turned off and the last radio station
played will come on.
The FM stereo indicator ST will illuminate during
FM stereo reception. When the stereo broadcast
signal is weak, the radio will automatically change
from stereo to monaural reception.
4-48Display screen, heater, air conditioner, audio and phone systems

TUNE/FOLDER·CATbutton (Type A, B, C and
D only):
Manual tuning
To manually tune the radio, press the
TUNE/FOLDER·CAT button

Radio data system (RDS):
RDS stands for Radio Data System, and is a data
information service transmitted by some radio
stations on the FM band (not AM band) . Cur-
rently, most RDS stations are in large cities, but
many stations are now considering broadcasting
RDS data.
RDS can display:● Station call sign, such as “WHFR 98.3”.
● Station name, such as “The Groove”.
● Music or programming type such as “Clas-
sical”, “Country”, or “Rock”.
● Artist and song information.
If the station broadcasts RDS information, the
RDS icon is displayed.
Compact disc (CD) changer operation
Place the ignition switch in the ACC or ON
position and press the LOAD or
