2010 NISSAN TIIDA check engine

CVT-58
< SERVICE INFORMATION >[RE0F08B]
U1000 CAN COMM CIRCUIT
Diagnosis Procedure
INFOID:0000000005397804
1.CHECK CAN COMMUNICATION CIRCUIT
With CONSULT-III1. Turn ignition switch ON and start engine.
2. Select “SELF-DIAG RESULTS” mode fo r “TRANSMISSION” with CONSULT-III.
Is any malfunction of the
“U1000” indicated?
YES >> Print out CONSULT-III screen, go to LAN section. Refer to LAN-26, "CAN System Specification
Chart" .
NO >> INSPECTION END
Revision: January 20102010 Versa

U1010 CONTROL UNIT (CAN)CVT-59
< SERVICE INFORMATION > [RE0F08B]
D
E
F
G H
I
J
K L
M A
B
CVT
N
O P
U1010 CONTROL UNIT (CAN)
DescriptionINFOID:0000000005397805
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communica tion speed and excellent malfunction detection ability.
Many electronic control units are equipped onto a vehicle, and each control unit shares information and links
with other control units during operation (not independent). In CAN communication, control units are con-
nected with 2 communication lines (CAN-H line, CAN-L line) allowing a high rate of information transmission
with less wiring. Each control unit transmits/receives data but selectively reads required data only.
On Board Diagnosis LogicINFOID:0000000005397806
• This is an OBD-II self-diagnostic item.
• Diagnostic trouble code “U1010” with CONSULT-III is detected when TCM cannot communicate to other control units.
Possible CauseINFOID:0000000005397807
Harness or connectors
(CAN communication line is open or shorted.)
DTC Confirmation ProcedureINFOID:0000000005397808
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch OFF and
wait at least 10 seconds before performing the next test.
After the repair, touch “ERASE” on “SELF-DIAG RESULTS” and then perform the following procedure to con-
firm the malfunction is eliminated.
WITH CONSULT-III
1. Turn ignition switch ON. (Do not start engine.)
2. Select “DATA MONITOR” mode for “TRANSMISSION” with CONSULT-III.
3. Start engine and wait for at least 6 seconds.
4. If DTC is detected, go to CVT-59, "
Diagnosis Procedure".
WITH GST
Follow the procedure “WITH CONSULT-III”.
Diagnosis ProcedureINFOID:0000000005397809
1.CHECK DTC
With CONSULT-III
1. Turn ignition switch ON. (Do not start engine.)
2. Select “SELF-DIAG RESULTS” mode for “TRANSMISSION” with CONSULT-III.
3. Touch “ERASE”.
4. Turn ignition switch OFF and wait for at least 10 seconds.
5. Perform “DTC confirmation procedure”. Refer to CVT-59, "
DTC Confirmation Procedure".
Is any malfunction of the
“U1010” indicated?
YES >> Replace the TCM. Refer to CVT-159, "Removal and Installation".
NO >> INSPECTION END
Revision: January 20102010 Versa

CVT-60
< SERVICE INFORMATION >[RE0F08B]
P0703 BRAKE SWITCH B
P0703 BRAKE SWITCH B
DescriptionINFOID:0000000005397810
ON, OFF status of the stop lamp switch is sent vi
a the CAN communication from the combination meter to
TCM using the signal.
CONSULT-III Reference Value in Data Monitor ModeINFOID:0000000005397811
On Board Diagn osis LogicINFOID:0000000005397812
• This is not an OBD-II self-diagnostic item.
• Diagnostic trouble code “P0703” with CONSULT-III is det ected when the stop lamp switch does not switch to
ON and OFF.
- The stop lamp switch does not switch to ON, OFF.
Possible CauseINFOID:0000000005397813
• Harness or connectors (Stop lamp switch, and combination meter circuit are open or shorted.)
(CAN communication line is open or shorted.)
• Stop lamp switch
DTC Confirmation ProcedureINFOID:0000000005397814
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, alw ays turn ignition switch OFF and
wait at least 10 seconds before performing the next test.
After the repair, touch “ERASE” on “SELF-DIAG RESULTS” and then perform the following procedure to con-
firm the malfunction is eliminated.
WITH CONSULT-III
1. Turn ignition switch ON. (Do not start engine.)
2. Select “DATA MONITOR” mode fo r “TRANSMISSION” with CONSULT-III.
3. Start engine.
4. Start vehicle for at least 3 consecutive seconds.
5. If DTC is detected, go to CVT-60, "
Diagnosis Procedure".
Diagnosis ProcedureINFOID:0000000005397815
1.CHECK CAN COMMUNICATION LINE
Perform the self-diagnosis check. Refer to CVT-48, "
CONSULT-III Function (TRANSMISSION)".
Is any malfunction of the
“U1000” indicated?
YES >> Check CAN communication line. Refer to CVT-56.
NO >> GO TO 2.
2.CHECK STOP LAMP SWITCH CIRCUIT
With CONSULT-III
1. Turn ignition switch ON. (Do not start engine.)
2. Select “ECU INPUT SIGNALS” in “DATA MONI TOR” mode for “TRANSMISSION” with CONSULT-III.
3. Read out ON/OFF switching action of the “BRAKE SW”.
Item name Condition Display value
BRAKE SW Depressed brake pedal
on
Released brake pedal off
Revision: January 20102010 Versa

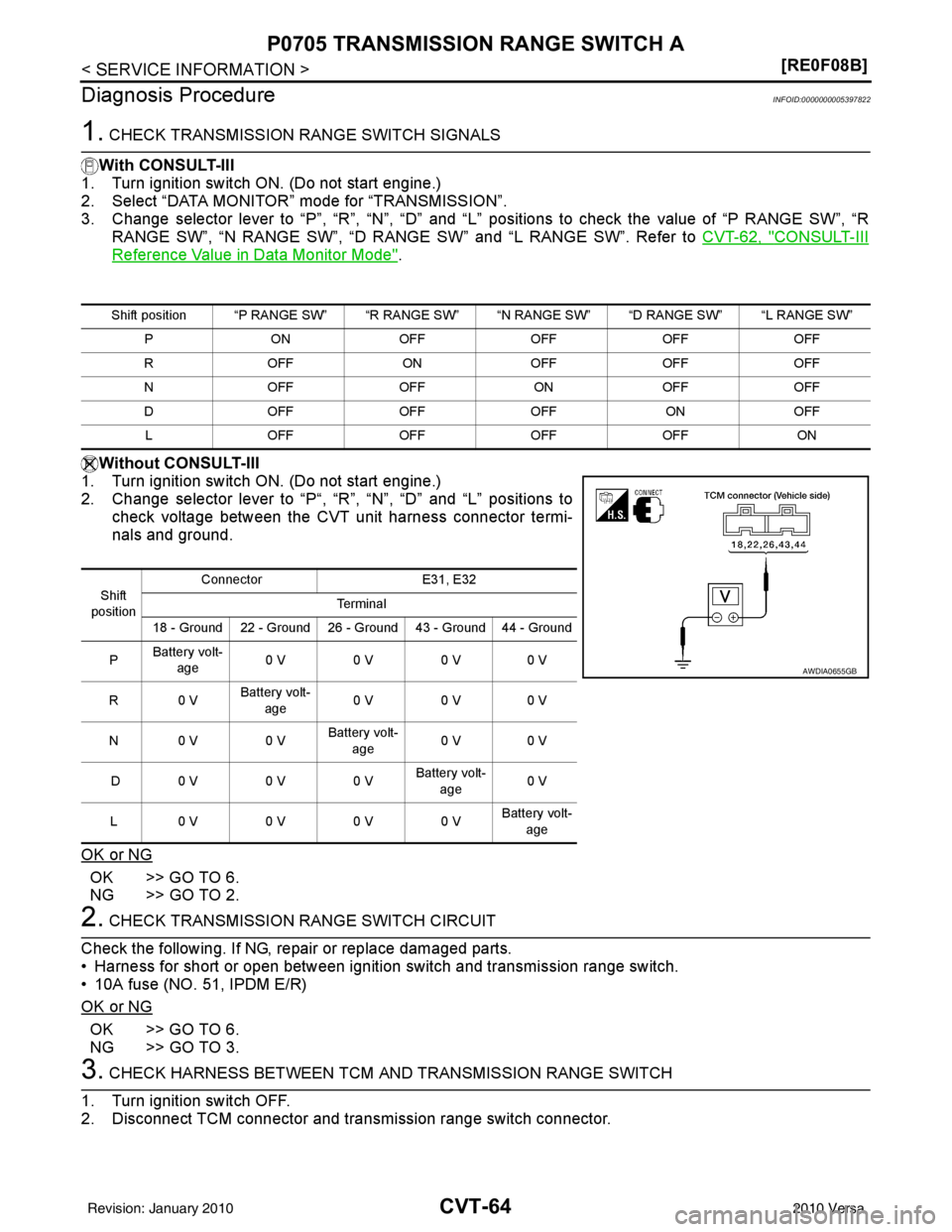

CVT-64
< SERVICE INFORMATION >[RE0F08B]
P0705 TRANSMISSION RANGE SWITCH A
Diagnosis Procedure
INFOID:0000000005397822
1. CHECK TRANSMISSION RANGE SWITCH SIGNALS
With CONSULT-III
1. Turn ignition switch ON. (Do not start engine.)
2. Select “DATA MONITOR” mode for “TRANSMISSION”.
3. Change selector lever to “P”, “R”, “N”, “D” and “L” positions to check the value of “P RANGE SW”, “R
RANGE SW”, “N RANGE SW”, “D RANG E SW” and “L RANGE SW”. Refer to CVT-62, "
CONSULT-III
Reference Value in Data Monitor Mode".
Without CONSULT-III
1. Turn ignition switch ON. (Do not start engine.)
2. Change selector lever to “P“, “R”, “N”, “D” and “L” positions to check voltage between the CVT unit harness connector termi-
nals and ground.
OK or NG
OK >> GO TO 6.
NG >> GO TO 2.
2. CHECK TRANSMISSION RANGE SWITCH CIRCUIT
Check the following. If NG, repair or replace damaged parts.
• Harness for short or open between ignition switch and transmission range switch.
• 10A fuse (NO. 51, IPDM E/R)
OK or NG
OK >> GO TO 6.
NG >> GO TO 3.
3. CHECK HARNESS BETWEEN TCM A ND TRANSMISSION RANGE SWITCH
1. Turn ignition switch OFF.
2. Disconnect TCM connector and transmission range switch connector.
Shift position “P RANGE SW” “R RANGE SW” “N RANGE SW” “D RANGE SW” “L RANGE SW”
P ON OFF OFFOFF OFF
R OFF ONOFF OFF OFF
N OFF OFF ONOFF OFF
D OFF OFFOFF ONOFF
L OFF OFFOFF OFF ON
Shift
position Connector
E31, E32
Te r m i n a l
18 - Ground 22 - Ground 26 - Ground 43 - Ground 44 - Ground
P Battery volt-
age 0
V0 V0 V0 V
R0 V Battery volt-
age 0 V
0 V0 V
N0 V 0 V Battery volt-
age 0 V
0 V
D 0 V 0 V0 VBattery volt-
age 0 V
L0 V0 V0 V0 VBattery volt-
age
AWDIA0655GB
Revision: January 20102010 Versa

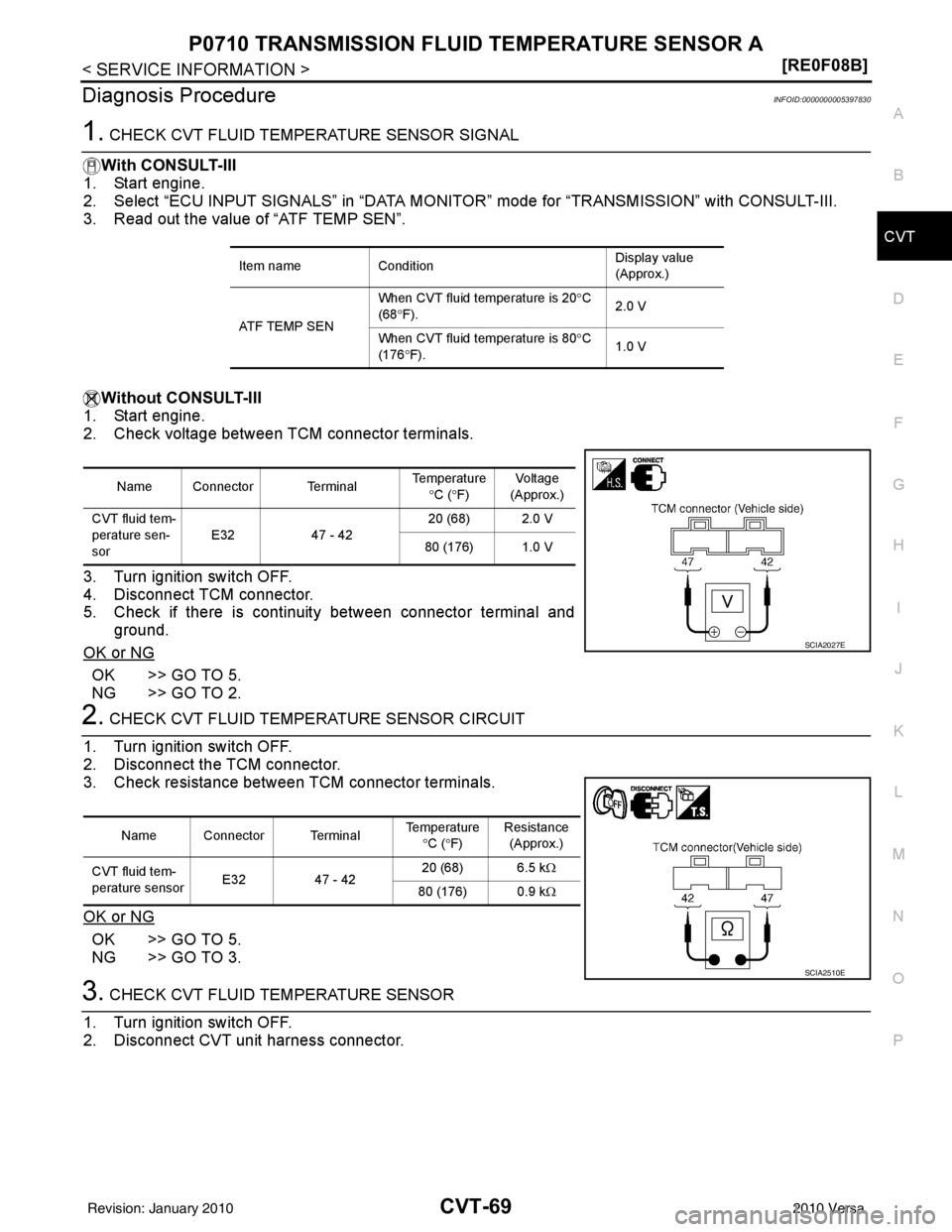

P0710 TRANSMISSION FLUID TEMPERATURE SENSOR ACVT-69
< SERVICE INFORMATION > [RE0F08B]
D
E
F
G H
I
J
K L
M A
B
CVT
N
O P
Diagnosis ProcedureINFOID:0000000005397830
1. CHECK CVT FLUID TEMP ERATURE SENSOR SIGNAL
With CONSULT-III
1. Start engine.
2. Select “ECU INPUT SIGNALS” in “DATA MONITO R” mode for “TRANSMISSION” with CONSULT-III.
3. Read out the value of “ATF TEMP SEN”.
Without CONSULT-III
1. Start engine.
2. Check voltage between TCM connector terminals.
3. Turn ignition switch OFF.
4. Disconnect TCM connector.
5. Check if there is continuity between connector terminal and ground.
OK or NG
OK >> GO TO 5.
NG >> GO TO 2.
2. CHECK CVT FLUID TEMP ERATURE SENSOR CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect the TCM connector.
3. Check resistance between TCM connector terminals.
OK or NG
OK >> GO TO 5.
NG >> GO TO 3.
3. CHECK CVT FLUID TEMPERATURE SENSOR
1. Turn ignition switch OFF.
2. Disconnect CVT unit harness connector.
Item name Condition Display value
(Approx.)
ATF TEMP SEN When CVT fluid temperature is 20
°C
(68 °F). 2.0 V
When CVT fluid temperature is 80 °C
(176 °F). 1.0 V
Name Connector Terminal
Temperature
°C ( °F) Voltage
(Approx.)
CVT fluid tem-
perature sen-
sor E32
47 - 42 20 (68) 2.0 V
80 (176) 1.0 V
SCIA2027E
Name Connector Terminal Temperature
°C ( °F) Resistance
(Approx.)
CVT fluid tem-
perature sensor E32
47 - 42 20 (68) 6.5 k
Ω
80 (176) 0.9 k Ω
SCIA2510E
Revision: January 20102010 Versa

CVT-74
< SERVICE INFORMATION >[RE0F08B]
P0715 INPUT SPEED SENSOR A
Diagnosis Procedure
INFOID:0000000005397838
1.CHECK INPUT SIGNALS
With CONSULT-III
1. Start engine.
2. Select “ECU INPUT SIGNALS” in “DATA MONI TOR” mode for “TRANSMISSION” with CONSULT-III.
3. Start vehicle and read out the value of “PRI SPEED SEN”.
OK or NG
OK >> GO TO 6.
NG >> GO TO 2.
2.CHECK PRIMARY SPEED SENSOR
1. Start engine.
2. Check voltage between TCM connector terminals.
3. Check the pulse with CONSULT-III or oscilloscope, when vehi- cle cruises.
OK or NG
OK >> GO TO 6.
NG - 1 >> Battery voltage is not supplied: GO TO 3.
NG - 2 >> Battery voltage is supplied, but there is a malfunction in the frequency: GO TO 4.
3. CHECK HARNESS BETWEEN TCM AND CVT UNI T HARNESS CONNECTOR (SENSOR POWER AND
SENSOR GROUND)
1. Turn ignition switch OFF.
2. Disconnect TCM connector and primary speed sensor harness connector.
Item nameConditionDisplay value
PRI SPEED SEN During driving (lock-up
ON)Approximately matches
the engine speed.
Item Connector
TerminalData (Approx.)
TCM E32 10, 19 - 42Battery voltage
Name Condition
Primary speed sen-
sor When running at 20 km/h (12 MPH) in “L” position with the
closed throttle position signal OFF, use the CONSULT-III
pulse frequency measuring function.
CAUTION:
Connect the data link connector to the vehicle-side diag-
nosis connector.
Item Connector Terminal NameData (Ap-
prox.)
TCM E32 38 Primary speed sensor 1250 Hz
AWDIA0644GB
Revision: January 20102010 Versa

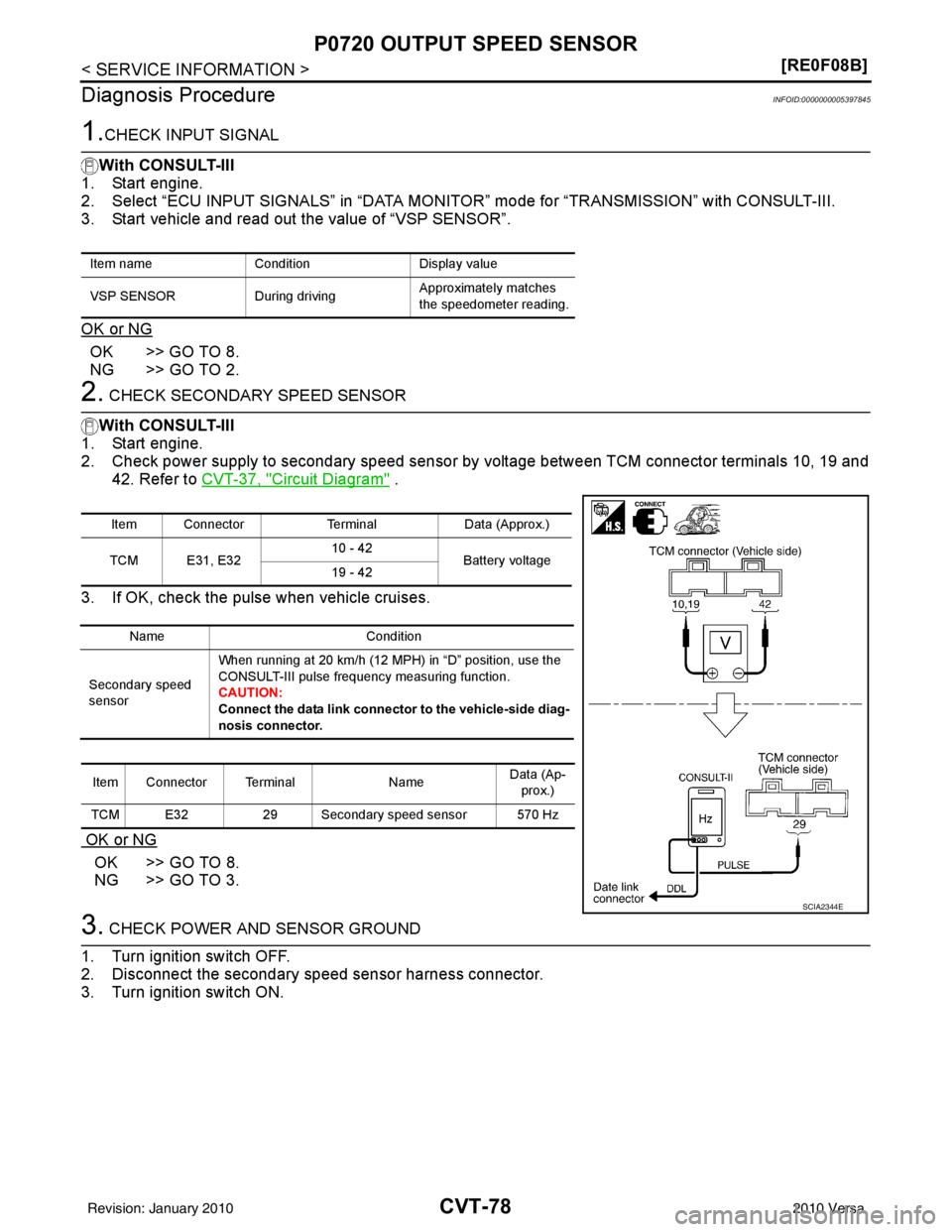

CVT-78
< SERVICE INFORMATION >[RE0F08B]
P0720 OUTPUT SPEED SENSOR
Diagnosis Procedure
INFOID:0000000005397845
1.CHECK INPUT SIGNAL
With CONSULT-III
1. Start engine.
2. Select “ECU INPUT SIGNALS” in “DATA MONI TOR” mode for “TRANSMISSION” with CONSULT-III.
3. Start vehicle and read out the value of “VSP SENSOR”.
OK or NG
OK >> GO TO 8.
NG >> GO TO 2.
2. CHECK SECONDARY SPEED SENSOR
With CONSULT-III
1. Start engine.
2. Check power supply to secondary speed sensor by voltage between TCM connector terminals 10, 19 and 42. Refer to CVT-37, "
Circuit Diagram" .
3. If OK, check the pulse when vehicle cruises.
OK or NG
OK >> GO TO 8.
NG >> GO TO 3.
3. CHECK POWER AND SENSOR GROUND
1. Turn ignition switch OFF.
2. Disconnect the secondary speed sensor harness connector.
3. Turn ignition switch ON.
Item name ConditionDisplay value
VSP SENSOR During drivingApproximately matches
the speedometer reading.
Item Connector
Terminal Data (Approx.)
TCM E31, E32 10 - 42
Battery voltage
19 - 42
Name Condition
Secondary speed
sensor When running at 20 km/h (12 MPH) in “D” position, use the
CONSULT-III pulse frequency measuring function.
CAUTION:
Connect the data link connector to the vehicle-side diag-
nosis connector.
Item Connector Terminal NameData (Ap-
prox.)
TCM E32 29 Secondary speed sensor 570 Hz
SCIA2344E
Revision: January 20102010 Versa

P0725 ENGINE SPEEDCVT-81
< SERVICE INFORMATION > [RE0F08B]
D
E
F
G H
I
J
K L
M A
B
CVT
N
O P
P0725 ENGINE SPEED
DescriptionINFOID:0000000005397846
The engine speed signal is sent from the ECM to the TCM.
CONSULT-III Reference Val ue in Data Monitor ModeINFOID:0000000005397847
Remarks: Specification data are reference values.
On Board Diagnosis LogicINFOID:0000000005397848
• This is not an OBD-II self-diagnostic item.
• Diagnostic trouble code “P0725” with CONSULT-III is detected when TCM does not receive the engine
speed signal (input by CAN communication) from ECM.
Possible CauseINFOID:0000000005397849
Harness or connectors
(The ECM to the TCM circuit is open or shorted.)
DTC Confirmation ProcedureINFOID:0000000005397850
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch OFF and
wait at least 10 seconds before performing the next test.
After the repair, touch “ERASE” on “SELF-DIAG RESULTS” and then perform the following procedure to con-
firm the malfunction is eliminated.
WITH CONSULT-III
1. Turn ignition switch ON and select “DATA MO NITOR” mode for “TRANSMISSION” with CONSULT-III.
2. Start engine and maintain the following conditions for at least 10 consecutive seconds. PRI SPEED SEN: More than 1000 rpm
3. If DTC is detected, go to CVT-81, "
Diagnosis Procedure".
Diagnosis ProcedureINFOID:0000000005397851
1. CHECK DTC WITH ECM
With CONSULT-III
1. Turn ignition switch ON. (Do not start engine.)
2. Select “SELF-DIAG RESULTS” mode for “ENGINE” with CONSULT-III. Refer to EC-612, "
CONSULT-III
Function (ENGINE)".
OK or NG
OK >> GO TO 2.
NG >> Check the DTC detected item. Refer to EC-612, "
CONSULT-III Function (ENGINE)".
2. CHECK DTC WITH TCM
With CONSULT-III
1. Turn ignition switch ON. (Do not start engine.)
2. Select “SELF-DIAG RESULTS” mode for “TRA NSMISSION” with CONSULT-III. Refer to CVT-48, "
CON-
SULT-III Function (TRANSMISSION)".
OK or NG
OK >> GO TO 3.
NG >> Check the DTC detected item. Refer to CVT-48, "
CONSULT-III Function (TRANSMISSION)".
Item nameCondition Display value
ENG SPEED SIG Engine running Closely matches the tachometer reading.
ACC PEDAL OPEN Released accelerator pedal - Fully depressed accel-
erator pedal 0.0/8 - 8.0/8
Revision: January 20102010 Versa
