2010 NISSAN LATIO sensor

FUEL PUMPEC-429
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
4. Check the voltage between ECM harness connector and
ground.
Is the inspection result normal?
YES >> GO TO 4.
NO >> GO TO 2.
2.CHECK FUEL PUMP POWER SUPPLY CIRCUIT-II
1. Turn ignition switch OFF.
2. Disconnect IDPDM E/R harness connector E46.
3. Turn ignition switch ON.
4. Check the voltage between IPDM E/R harness connector and ground.
Is the inspection result normal?
YES >> GO TO 4.
NO >> GO TO 10.
3.DETECT MALFUNCTIONING PART
Check the following.
• Harness or connectors E8, F8.
• Harness for open or short between ECM and IPDM E/R
>> Repair open circuit or short to ground or short to power in harness or connectors.
4.CHECK FUEL PUMP POWER SUPPLY CIRCUIT-III
1. Turn ignition switch OFF.
2. Reconnect all harness connectors disconnected.
3. Disconnect “fuel level sensor unit and fuel pump” harness connector.
4. Turn ignition switch ON.
5. Check the voltage between “fuel level sensor unit and fuel pump” harness connector and ground.
Is the inspection result normal?
YES >> GO TO 8.
NO >> GO TO 5.
5.CHECK FUSE
1. Turn ignition switch OFF.
2. Disconnect 15 A fuse (No. 48) from IPDM E/R.
3. Check 15 A fuse.
Is the inspection result normal?
YES >> GO TO 6.
ECM GroundVoltage
Connector Terminal
F10 23 Ground Battery voltage
PBIA9573J
IPDM E/R
GroundVoltage
Connector Terminal
E46 47 Ground Battery voltage
PBIB3319E
Fuel level sensor unit
and fuel pump Ground Voltage
Connector Terminal
B100 1 Ground Battery voltage should exist 1 second
after ignition switch is turn ON.
PBIB0795E
Revision: January 20102010 Versa

EC-430
< COMPONENT DIAGNOSIS >[HR16DE]
FUEL PUMP
NO >> Replace15 A fuse.
6.CHECK FUEL PUMP POWER SUPPLY CIRCUIT-IV
1. Disconnect IPDM E/R harness connector E45.
2. Check the continuity between IPDM E/R harness connector and “fuel level sensor unit and fuel pump”
harness connector.
3. Also check harness for short to ground and short to power.
Is the inspection result normal?
YES >> GO TO 10.
NO >> GO TO 7.
7.DETECT MALFUNCTIONING PART
Check the following.
• Harness connectors E7, M69
• Harness connectors M12, B101
• Harness for open or short between IPDM E/R and “fuel level sensor unit and fuel pump”
>> Repair open circuit or short to power in harness or connectors.
8.CHECK FUEL PUMP GROUND CIRCUIT
1. Check the continuity between “fuel le vel sensor unit and fuel pump” and ground.
2. Also heck harness for short to power.
Is the inspection result normal?
YES >> GO TO 9.
NO >> Repair open circuit or short to power in harness or connectors.
9.CHECK FUEL PUMP
Refer to EC-430, "
Component Inspection".
Is the inspection result normal?
YES >> GO TO 10.
NO >> Replace “fuel level sensor unit and fuel pump”.
10.CHECK INTERMITTENT INCIDENT
Refer to EC-114, "
Diagnosis Procedure".
Is the inspection result normal?
YES >> Replace IPDM E/R.
NO >> Repair or replace harness or connectors.
Component InspectionINFOID:0000000005398613
1.CHECK FUEL PUMP
1. Turn ignition switch OFF.
2. Disconnect “fuel level sensor uni t and fuel pump” harness connector.
IPDM E/RFuel level sensor unit and
fuel pump Continuity
Connector Terminal Connector Terminal
E45 36 B100 1 Existed
Fuel level sensor unit and fuel pump Ground Continuity
Connector Terminal
B100 3 Ground Existed
Revision: January 20102010 Versa

FUEL PUMPEC-431
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
3. Check resistance between “fuel level sensor unit and fuel pump”
terminals as per the following.
Is the inspection result normal?
YES >> INSPECTION END
NO >> Replace “fuel level sensor unit and fuel pump”.
Terminals Resistance
1 and 3 0.2 - 5.0 Ω [at 25°C (77 °F)]
SEC918C
Revision: January 20102010 Versa

EC-444
< COMPONENT DIAGNOSIS >[HR16DE]
ON BOARD REFUELING VAPOR RECOVERY (ORVR)
B: Cannot refuel/Fuel odor from the fuel
filler opening is strong while refueling.
Which symptom is present?
A>>GO TO 2.
B>>GO TO 8.
2.CHECK EVAP CANISTER
1. Remove EVAP canister with EVAP canister vent control valve and EVAP control system pressure sensor attached.
2. Weigh the EVAP canister with EVAP canister vent control valve and EVAP control system pressure sensor attached.
The weight should be l ess than 1.9 kg (4.2 lb).
Is the inspection result normal?
YES >> GO TO 3.
NO >> GO TO 4.
3.CHECK IF EVAP CANISTER IS SATURATED WITH WATER
Check if water will drain from EVAP canister.
Does water drain from the EVAP canister?
YES >> GO TO 4.
NO >> GO TO 7.
4.REPLACE EVAP CANISTER
Replace EVAP canister with a new one.
>> GO TO 5.
5.CHECK DRAIN FILTER
Refer to EC-448, "
Component Inspection (Drain filter)".
Is the inspection result normal?
OK >> GO TO 6.
NO >> Replace drain filter.
6.DETECT MALFUNCTIONING PART
Check the EVAP hose between EVAP canister and vehicle frame for clogging or poor connection.
>> Repair or replace EVAP hose.
7.CHECK REFUELING EVAP VAPOR CUT VALVE
Refer to EC-446, "
Component Inspection (Refueli ng EVAP vapor cut valve)".
Is the inspection result normal?
YES >> INSPECTION END
NO >> Replace refueling EVAP vapor cut valve with fuel tank.
8.CHECK EVAP CANISTER
1. Remove EVAP canister with EVAP canister vent control valve and EVAP control system pressure sensor attached.
2. Weigh the EVAP canister with EVAP canister vent control valve and EVAP control system pressure sensor
attached.
The weight should be l ess than 1.9 kg (4.2 lb).
Is the inspection result normal?
PBIB1213E
Revision: January 20102010 Versa

EC-450
< COMPONENT DIAGNOSIS >[HR16DE]
REFRIGERANT PRESSURE SENSOR
REFRIGERANT PRESSURE SENSOR
DescriptionINFOID:0000000005398631
The refrigerant pressure sensor is installed at the condenser of the air conditioner system. The sensor uses an
electrostatic volume pressure transducer to convert refrigerant pressure to voltage. The voltage signal is sent
to ECM, and ECM controls cooling fan system.
Component Function CheckINFOID:0000000005398632
1.CHECK REFRIGERANT PRESSURE SENSOR OVERALL FUNCTION
1. Start engine and warm it up to normal operating temperature.
2. Turn A/C switch and blower fan switch ON.
3. Check the voltage between ECM harness connector and ground.
Is the inspection result normal?
YES >> INSPECTION END
NO >> Go to EC-451, "
Diagnosis Procedure".
PBIB2657E
ECM Ground Voltage
Connector Terminal
F11 41
(Refrigerant pressure sensor signal) Ground 1.0 - 4.0V
PBIA9574J
Revision: January 20102010 Versa

REFRIGERANT PRESSURE SENSOREC-451
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O

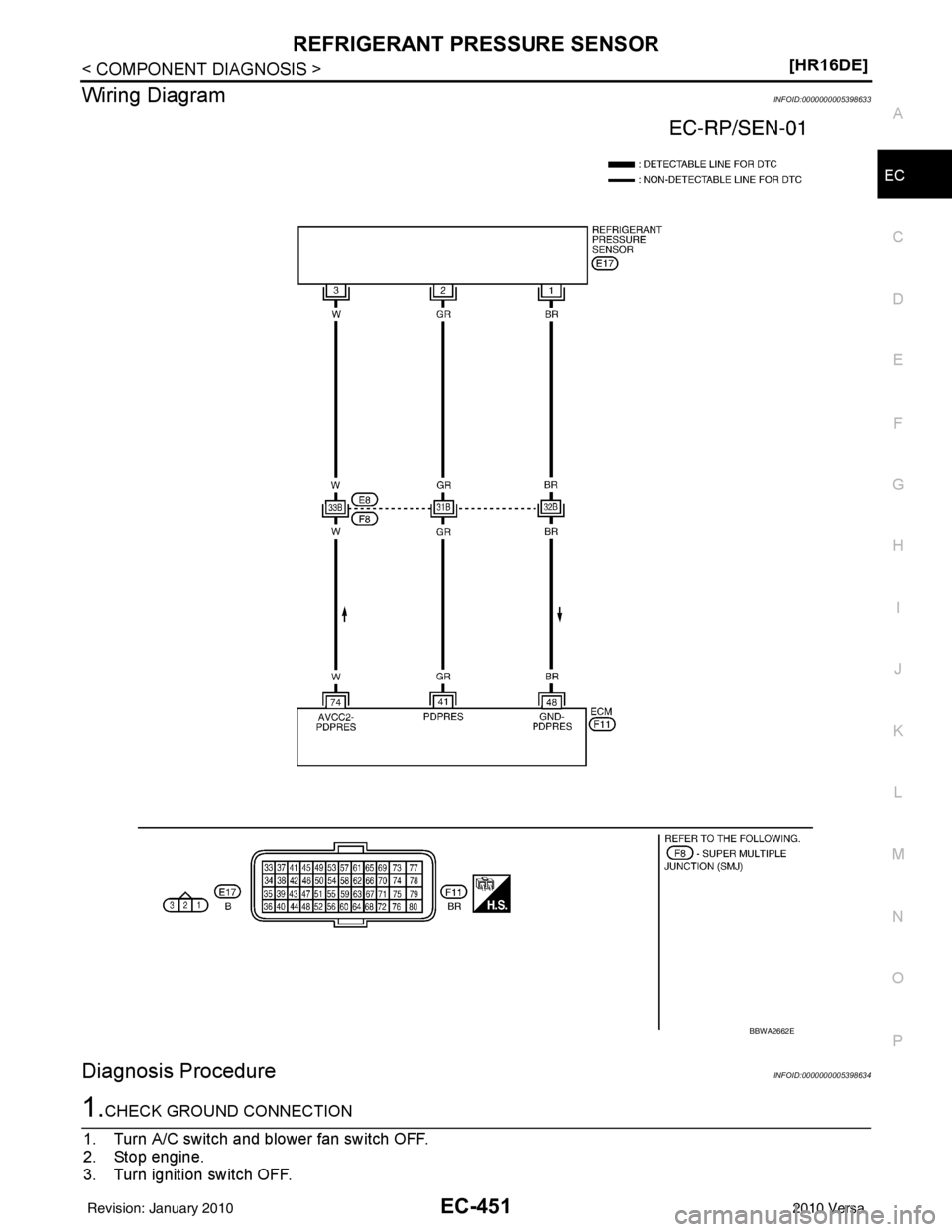

Wiring DiagramINFOID:0000000005398633
Diagnosis ProcedureINFOID:0000000005398634
1.CHECK GROUND CONNECTION
1. Turn A/C switch and blower fan switch OFF.
2. Stop engine.
3. Turn ignition switch OFF.
BBWA2662E
Revision: January 20102010 Versa

EC-452
< COMPONENT DIAGNOSIS >[HR16DE]
REFRIGERANT PRESSURE SENSOR
4. Check ground connections E15, E24. Refer to
EC-119, "Ground Inspection".
Is the inspection result normal?
YES >> GO TO 2.
NO >> Repair or replace ground connection.
2.CHECK REFRIGERANT PRESSURE SENSOR POWER SUPPLY CIRCUIT
1. Disconnect refrigerant pressure sensor harness connector.
2. Turn ignition switch ON.
3. Check the voltage between refrigerant pressure sensor harness connector and ground.
Is the inspection result normal?
YES >> GO TO 4.
NO >> GO TO 3.
3.DETECT MALFUNCTIONING PART
Check the following.
• Harness connectors F8, E8
• Harness for open or short between ECM and refrigerant pressure sensor
>> Repair open circuit or short to ground or short to power in harness or connectors.
4.CHECK REFRIGERANT PRESSURE SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check the continuity between refrigerant pre ssure sensor harness connector and ECM harness connec-
tor.
4. Also check harness for short to ground and short to power.
Is the inspection result normal?
YES >> GO TO 6.
NO >> GO TO 5.
5.DETECT MALFUNCTIONING PART
Check the following.
• Harness connectors F8, E8
• Harness for open or short between ECM and refrigerant pressure sensor
>> Repair open circuit or short to ground or short to power in harness or connectors.
6.CHECK REFRIGERANT PRESSURE SENSOR INPU T SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check the continuity between ECM harness connecto r and refrigerant pressure sensor harness connec-
tor.
2. Also check harness for short to ground and short to power.
Refrigerant pressure sensor Ground Voltage
Connector Terminal
E17 3Ground Approx. 5 V
SEF479Y
Refrigerant pressure sensor ECM
Continuity
Connector Terminal Connector Terminal
E17 1F11 48 Existed
Refrigerant pressure sensor ECM
Continuity
Connector Terminal Connector Terminal
E17 2F11 41 Existed
Revision: January 20102010 Versa

REFRIGERANT PRESSURE SENSOREC-453
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Is the inspection result normal?
YES >> GO TO 8.
NO >> GO TO 7.
7.DETECT MALFUNCTIONING PART
Check the following.
• Harness connectors F8, E8
• Harness for open or short between ECM and refrigerant pressure sensor
>> Repair open circuit or short to ground or short to power in harness or connectors.
8.CHECK INTERMITTENT INCIDENT
Refer to EC-114, "
Diagnosis Procedure".
Is the inspection result normal?
YES >> Replace refrigerant pressure sensor.
NO >> Repair or replace.
Revision: January 20102010 Versa
