2010 NISSAN LATIO sensor

EM-122
< SERVICE INFORMATION >[MR18DE]
PRECAUTIONS
SERVICE INFORMATION
PRECAUTIONS
Precaution for Supplemental Restraint Syst
em (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"
INFOID:0000000005398096
The Supplemental Restraint System such as “A IR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and w hether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.
WARNING:
• To avoid rendering the SRS inopera tive, which could increase the risk of personal injury or death in
the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.
• Improper maintenance, including incorrect removal and installation of the SRS can lead to personal
injury caused by unintent ional activation of the system. For re moval of Spiral Cable and Air Bag
Module, see the SRS section.
• Do not use electrical test equipmen t on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harn esses can be identified by yellow and/or orange harnesses or har-
ness connectors.
PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS
WARNING:
• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-
tion ON or engine running, DO NOT use air or electri c power tools or strike near the sensor(s) with a
hammer. Heavy vibration could activate the sensor( s) and deploy the air bag(s), possibly causing
serious injury.
• When using air or electric power tools or hammers , always switch the Ignition OFF, disconnect the
battery, and wait at least 3 minu tes before performing any service.
Precaution Necessary for Steering W heel Rotation After Battery Disconnect
INFOID:0000000005398097
NOTE:
• This Procedure is applied only to models with Intelligent Key system and NATS (NISSAN ANTI-THEFT SYS-
TEM).
• Remove and install all control units after disconnecting both battery cables with the ignition knob in the
″LOCK ″ position.
• Always use CONSULT-III to perform self-diagnosis as a part of each function inspection after finishing work.
If DTC is detected, perform trouble diagnosis according to self-diagnostic results.
For models equipped with the Intelligent Key system and NATS, an electrically controlled steering lock mech-
anism is adopted on the key cylinder.
For this reason, if the battery is disconnected or if the battery is discharged, the steering wheel will lock and
steering wheel rotation will become impossible.
If steering wheel rotation is required when battery pow er is interrupted, follow the procedure below before
starting the repair operation.
OPERATION PROCEDURE
1. Connect both battery cables. NOTE:
Supply power using jumper cables if battery is discharged.
2. Use the Intelligent Key or mechanical key to turn the ignition switch to the ″ACC ″ position. At this time, the
steering lock will be released.
3. Disconnect both battery cables. The steering lock will remain released and the steering wheel can be rotated.
4. Perform the necessary repair operation.
Revision: January 20102010 Versa

PREPARATIONEM-127
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
ST16610001
(J-23907)
Pilot bushing puller
Removing crankshaft pilot bushing
KV11103000
( — )
Pulley puller Removing crankshaft pulley
KV991J0050
(J-44626)
Air fuel sensor Socket Loosening or tightening air fuel ratio sen-
sor
a: 22 mm (0.87 in)
KV10114400
(J-38365)
Heated oxygen sensor wrench Loosening or tightening rear heated oxy-
gen sensor
a: 22 mm (0.87 in)
KV11105210
(J-44716)
Stopper plate Securing drive plate and flywheel
KV10115600
(J-38958)
Valve oil seal drift Installing valve oil seal
Use side A.
a: 20 (0.79) dia
.
b: 13 (0.51) dia.
c: 10.3 (0.406) dia .
d: 8 (0.31) dia.
e: 10.7 (0.421)
f: 5 (0.20)
KV10115801
(—)
Oil filter wrench Removing and installing oil filter
a: 64.3 mm (2.531 in)
Tool number
(Kent-Moore No.)
Tool name
Description
NT045
NT676
LBIA0444E
NT636
ZZA0009D
S-NT603
S-NT375
Revision: January 20102010 Versa

PREPARATIONEM-129
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
Valve guide reamer
(1): Reaming valve guide inner hole
(2): Reaming hole for oversize valve guide
(J-43897-18)
(J-43897-12)
Oxygen sensor thread cleaner Reconditioning the exhaust system threads
before installing a new oxygen sensor (Use
with anti-seize lubricant shown below.)
a: J-43897-18 (18 mm dia.) for zirconia ox-
ygen sensor
b: J-43897-12 (12 mm dia.) for titania oxy-
gen sensor
Anti-seize lubricant (Permatex 133AR
or equivalent meeting MIL specifica-
tion MIL-A-907) Lubricating oxygen sensor thread cleaning
tool when reconditioning exhaust system
threads
E20 Torx® Socket
(J-45816) Removing and installing drive plate and fly-
wheel bolts
(Kent-Moore No.)
Tool name
Description
PBIC4013E
AEM488
AEM489
LBIA0285E
Revision: January 20102010 Versa

AIR CLEANER AND AIR DUCTEM-135
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
AIR CLEANER AND AIR DUCT
ComponentINFOID:0000000005398116
Removal and InstallationINFOID:0000000005398117
REMOVAL
1. Remove the engine room cover (1).
2. Remove the air duct (front).
3. Remove the air cleaner filter from the air cleaner case. Refer to
EM-136, "
Changing Air Cleaner Filter".
4. Remove the air duct (inlet) from the air cleaner case.
5. Remove the PCV hose.
6. Remove the air duct. • Add marks as necessary for easier installation.
7. Remove air cleaner case with the following procedure.
a. Remove battery. Refer to SC-5
.
b. Disconnect harness connector from mass air flow sensor.
c. Remove the air cleaner case.
8. Remove the mass air flow sensor from the air cleaner case, if necessary. CAUTION:
• Handle it carefully and avoid impacts.
• Do not touch sensor part.
1. Air cleaner filter 2. Holder 3. Air cleaner cover
4. Seal 5. Mass air flow sensor 6. Air duct
7. PCV hose 8. Air duct (Inlet) 9. Air duct (Front)
10. Clip 11. Resonator 12. Grommet
13. Air cleaner case A. To electric throttle control actuator B. To rocker cover
WBIA0770E
WBIA0845E
Revision: January 20102010 Versa

EM-140
< SERVICE INFORMATION >[MR18DE]
EXHAUST MANIFOLD
EXHAUST MANIFOLD
ComponentINFOID:0000000005398121
Removal and InstallationINFOID:0000000005398122
REMOVAL
1. Remove cowl top. Refer to
EI-22, "Removal and Installation".
2. Remove exhaust front tube. Refer to EX-11, "
Component".
3. Remove exhaust manifold cover.
4. Remove the air fuel ratio sensor 1, using Tool (A).
CAUTION:
Handle it carefully and avoid impacts.
5. Remove exhaust manifold side bolt of exhaust manifold stay.
1. Exhaust manifold cover 2. Exhaust manifold3. Gasket
4. Stud bolt 5. Bracket 6. Air fuel ratio sensor 1
7. Exhaust manifold stay Engine front
WBIA0778E
Tool number :KV991J0050 (J-44626)
WBIA0772E
Revision: January 20102010 Versa

EM-142
< SERVICE INFORMATION >[MR18DE]
EXHAUST MANIFOLD
3. Install exhaust manifold stay (2) in the direction as shown.
4. Install the air fuel ratio sensor 1, using Tool (A).
CAUTION:
• Handle it carefully and avoid impacts.
• Before installing a new air fuel ratio sensor, clean the
exhaust tube threads using suitable tool and approved
anti-seize lubricant.
• Do not over-tighten the air fuel ratio sensor. Doing so may
damage the air fuel ratio senso r, resulting in the MIL com-
ing on.
5. Installation of the remaining parts is in the reverse order of removal.
1 : Exhaust manifold
A : Upper mark : Engine front
PBIC3944E
Tool number : KV991J0050 (J-44626)
Oxygen sensor thread cleaner : (J-43897-12)
Oxygen sensor thread cleaner : (J-43897-18)
WBIA0772E
Revision: January 20102010 Versa

EM-166
< SERVICE INFORMATION >[MR18DE]
CAMSHAFT
CAMSHAFT
ComponentINFOID:0000000005398131
Removal and InstallationINFOID:0000000005398132
REMOVAL
WARNING:
• Put a “CAUTION: FLAMMABLE”
sign in the workshop.
• Be sure to work in a well ventilate d area and furnish workshop with a CO
2 fire extinguisher.
• Do not smoke while servicing fuel system. Keep open flames and sparks away from the work area.
1. Release the fuel pressure. Refer to EC-582, "
Fuel Pressure Check".
2. Disconnect negative battery terminal. Refer to SC-7, "
Removal and Installation".
3. Remove front RH wheel. Refer to WT-7, "
Adjustment".
4. Remove front fender protector (RH). Refer to EI-24
.
5. Drain engine coolant. Refer to CO-36
.
NOTE:
Perform this step when engine is cold.
6. Remove the following parts. • Intake manifold. Refer to EM-137
.
• Rocker cover. Refer to EM-149
.

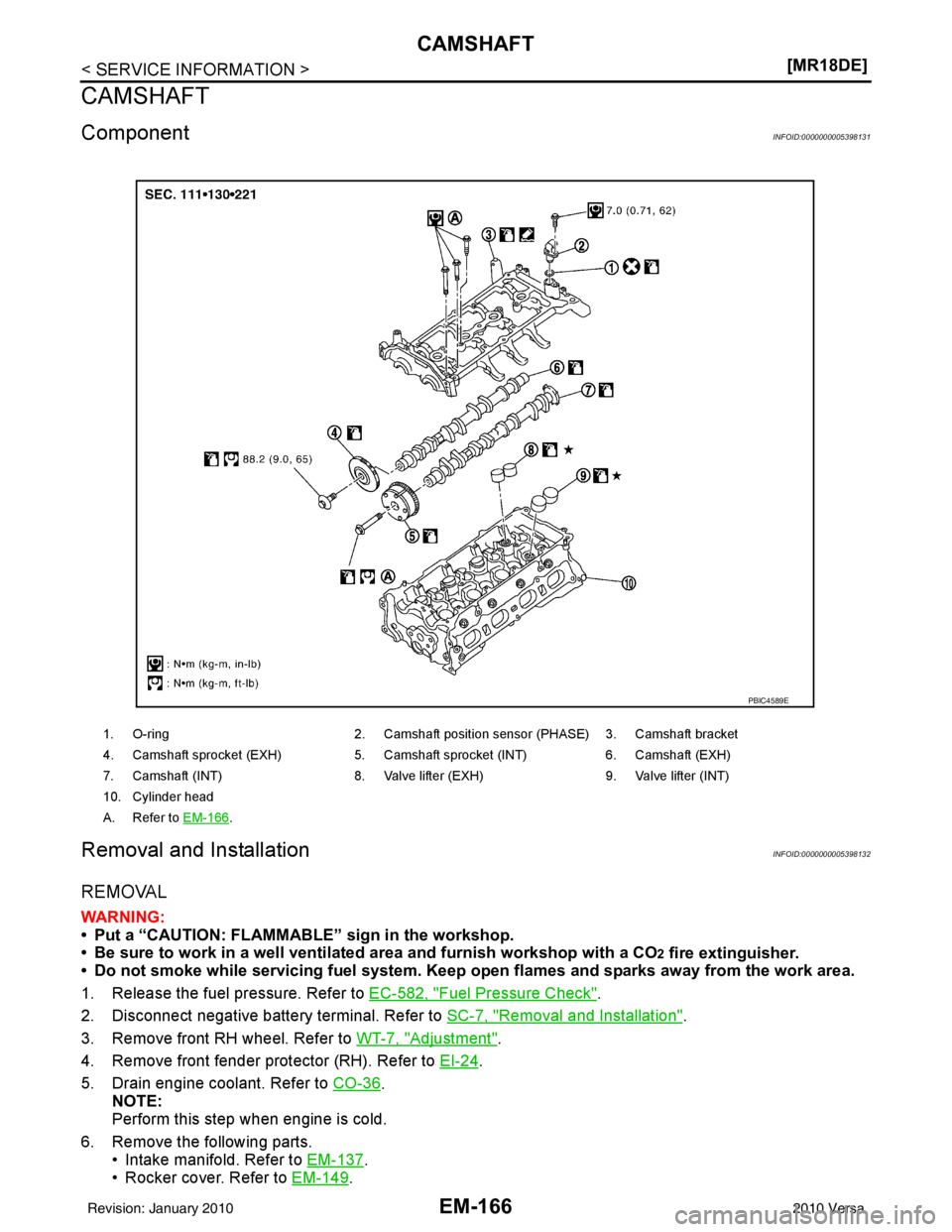

1. O-ring 2. Camshaft position sensor (PHASE) 3. Camshaft bracket
4. Camshaft sprocket (EXH) 5. Camshaft sprocket (INT) 6. Camshaft (EXH)
7. Camshaft (INT) 8. Valve lifter (EXH) 9. Valve lifter (INT)
10. Cylinder head
A. Refer to EM-166
.
PBIC4589E
Revision: January 20102010 Versa

CAMSHAFTEM-167
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
• Fuel tube and fuel injector assembly. Refer to
EM-152.
• Front cover, timing chain and related parts. Refer to EM-156
.
• Generator. Refer to SC-25, "
Removal and Installation".
7. Remove camshaft position sensor (PHASE) from camshaft bracket. CAUTION:
• Handle carefully to avoid dropping and shocks.
• Never disassemble.
• Never allow metal powder to adhere to magnetic part at sensor tip.
• Never place sensor in a location wher e it is exposed to magnetism.

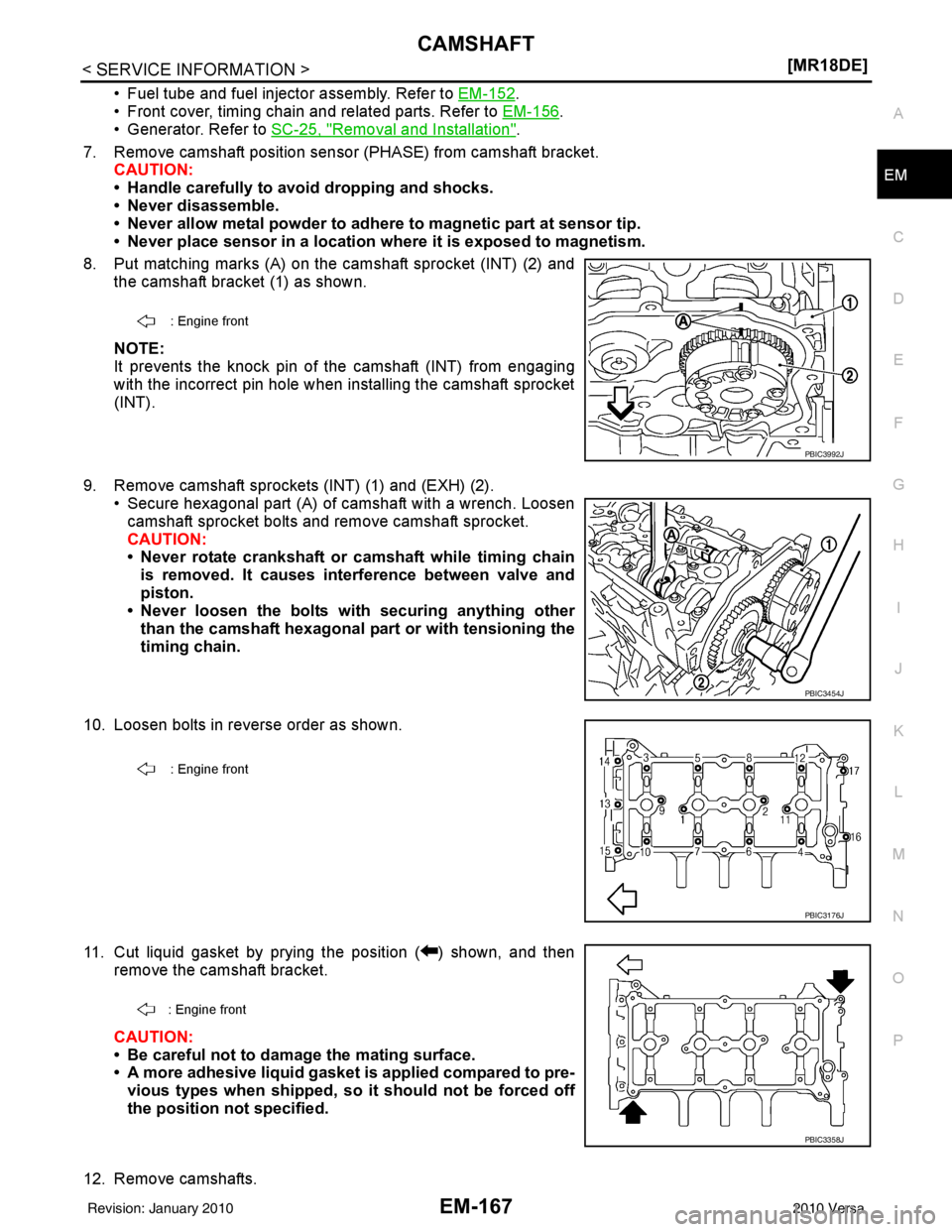

8. Put matching marks (A) on the camshaft sprocket (INT) (2) and the camshaft bracket (1) as shown.
NOTE:
It prevents the knock pin of the camshaft (INT) from engaging
with the incorrect pin hole when installing the camshaft sprocket
(INT).
9. Remove camshaft sprockets (INT) (1) and (EXH) (2). • Secure hexagonal part (A) of camshaft with a wrench. Loosen
camshaft sprocket bolts and remove camshaft sprocket.
CAUTION:
• Never rotate crankshaft or camshaft while timing chainis removed. It causes interference between valve and
piston.
• Never loosen the bolts with securing anything other
than the camshaft hexagonal part or with tensioning the
timing chain.
10. Loosen bolts in reverse order as shown.
11. Cut liquid gasket by prying the position ( ) shown, and then remove the camshaft bracket.
CAUTION:
• Be careful not to damage the mating surface.
• A more adhesive liquid gasket is applied compared to pre-
vious types when shipped, so it should not be forced off
the position not specified.
12. Remove camshafts.
: Engine front
PBIC3992J
PBIC3454J
: Engine front
PBIC3176J
: Engine front
PBIC3358J
