2010 NISSAN ARMADA height adjustment

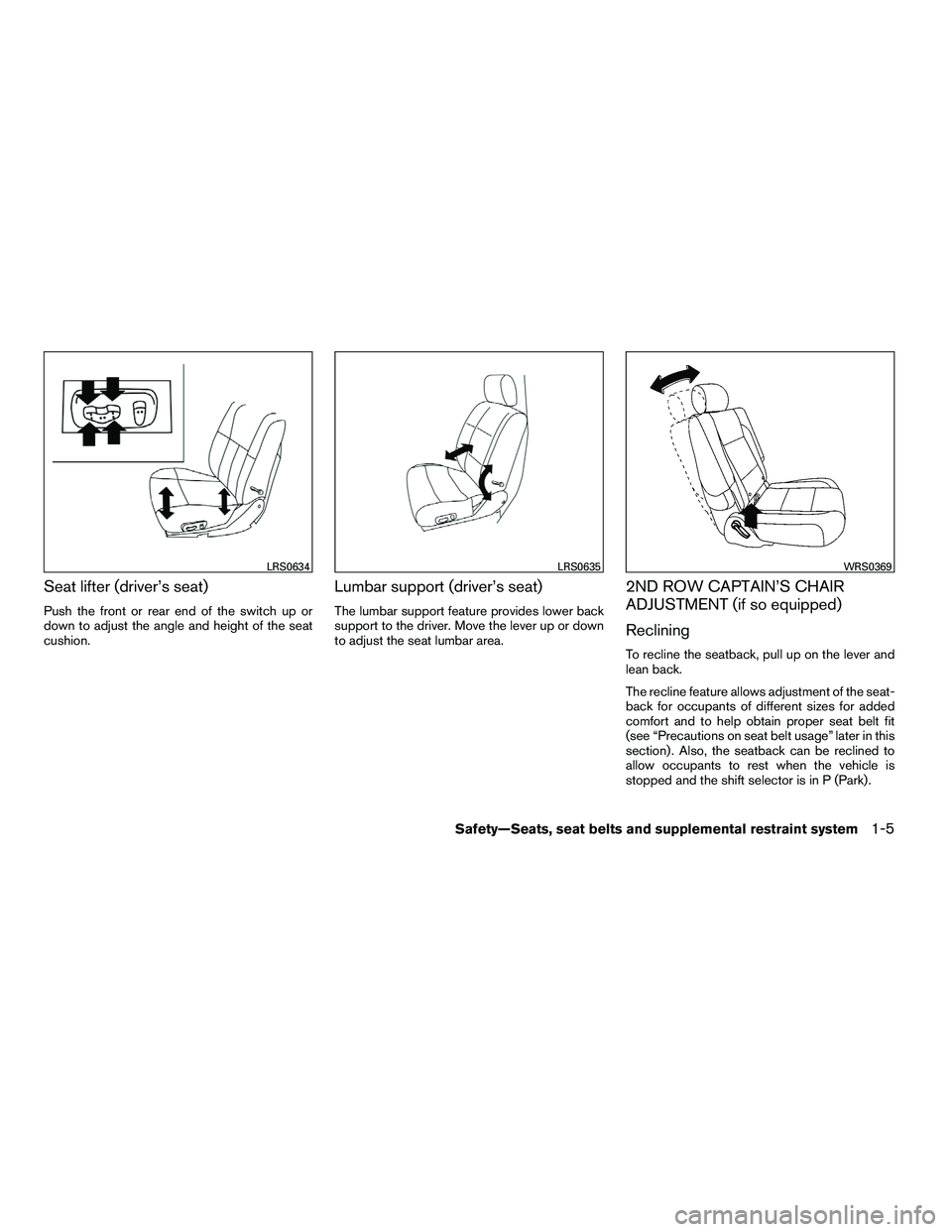

Seat lifter (driver’s seat)
Push the front or rear end of the switch up or
down to adjust the angle and height of the seat
cushion.
Lumbar support (driver’s seat)
The lumbar support feature provides lower back
support to the driver. Move the lever up or down
to adjust the seat lumbar area.
2ND ROW CAPTAIN’S CHAIR
ADJUSTMENT (if so equipped)
Reclining
To recline the seatback, pull up on the lever and
lean back.
The recline feature allows adjustment of the seat-
back for occupants of different sizes for added
comfort and to help obtain proper seat belt fit
(see “Precautions on seat belt usage” later in this
section) . Also, the seatback can be reclined to
allow occupants to rest when the vehicle is
stopped and the shift selector is in P (Park) .

WARNING
●After adjustment, release the adjust-
ment button and try to move the shoul-
der belt anchor up and down to make
sure it is securely fixed in position.
● The shoulder belt anchor height should
be adjusted to the position best for you.
Failure to do so may reduce the effec-
tiveness of the entire restraint system
and increase the chance or severity of
injury in an accident.
SEAT BELT EXTENDERS
If, because of body size or driving position, it is
not possible to properly fit the lap/shoulder belt
and fasten it, an extender is available which is
compatible with the installed seat belts. The ex-
tender adds approximately 8 in (200 mm) of
length and may be used for either the driver or
front passenger seating position. See a NISSAN
dealer for assistance if an extender is required.

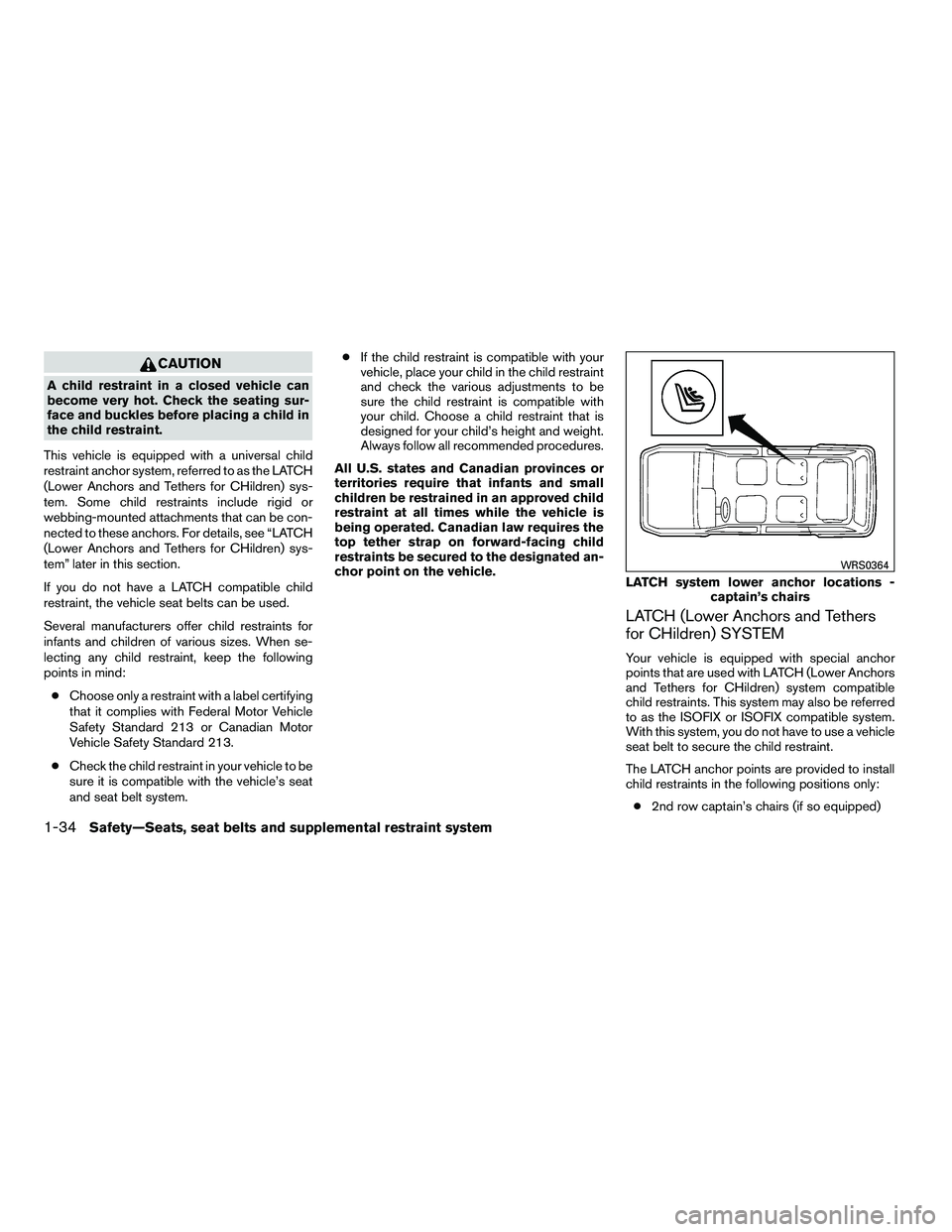

CAUTION
A child restraint in a closed vehicle can
become very hot. Check the seating sur-
face and buckles before placing a child in
the child restraint.
This vehicle is equipped with a universal child
restraint anchor system, referred to as the LATCH
(Lower Anchors and Tethers for CHildren) sys-
tem. Some child restraints include rigid or
webbing-mounted attachments that can be con-
nected to these anchors. For details, see “LATCH
(Lower Anchors and Tethers for CHildren) sys-
tem” later in this section.
If you do not have a LATCH compatible child
restraint, the vehicle seat belts can be used.
Several manufacturers offer child restraints for
infants and children of various sizes. When se-
lecting any child restraint, keep the following
points in mind: ● Choose only a restraint with a label certifying
that it complies with Federal Motor Vehicle
Safety Standard 213 or Canadian Motor
Vehicle Safety Standard 213.
● Check the child restraint in your vehicle to be
sure it is compatible with the vehicle’s seat
and seat belt system. ●
If the child restraint is compatible with your
vehicle, place your child in the child restraint
and check the various adjustments to be
sure the child restraint is compatible with
your child. Choose a child restraint that is
designed for your child’s height and weight.
Always follow all recommended procedures.
All U.S. states and Canadian provinces or
territories require that infants and small
children be restrained in an approved child
restraint at all times while the vehicle is
being operated. Canadian law requires the
top tether strap on forward-facing child
restraints be secured to the designated an-
chor point on the vehicle.
LATCH (Lower Anchors and Tethers
for CHildren) SYSTEM
Your vehicle is equipped with special anchor
points that are used with LATCH (Lower Anchors
and Tethers for CHildren) system compatible
child restraints. This system may also be referred
to as the ISOFIX or ISOFIX compatible system.
With this system, you do not have to use a vehicle
seat belt to secure the child restraint.
The LATCH anchor points are provided to install
child restraints in the following positions only: ● 2nd row captain’s chairs (if so equipped)

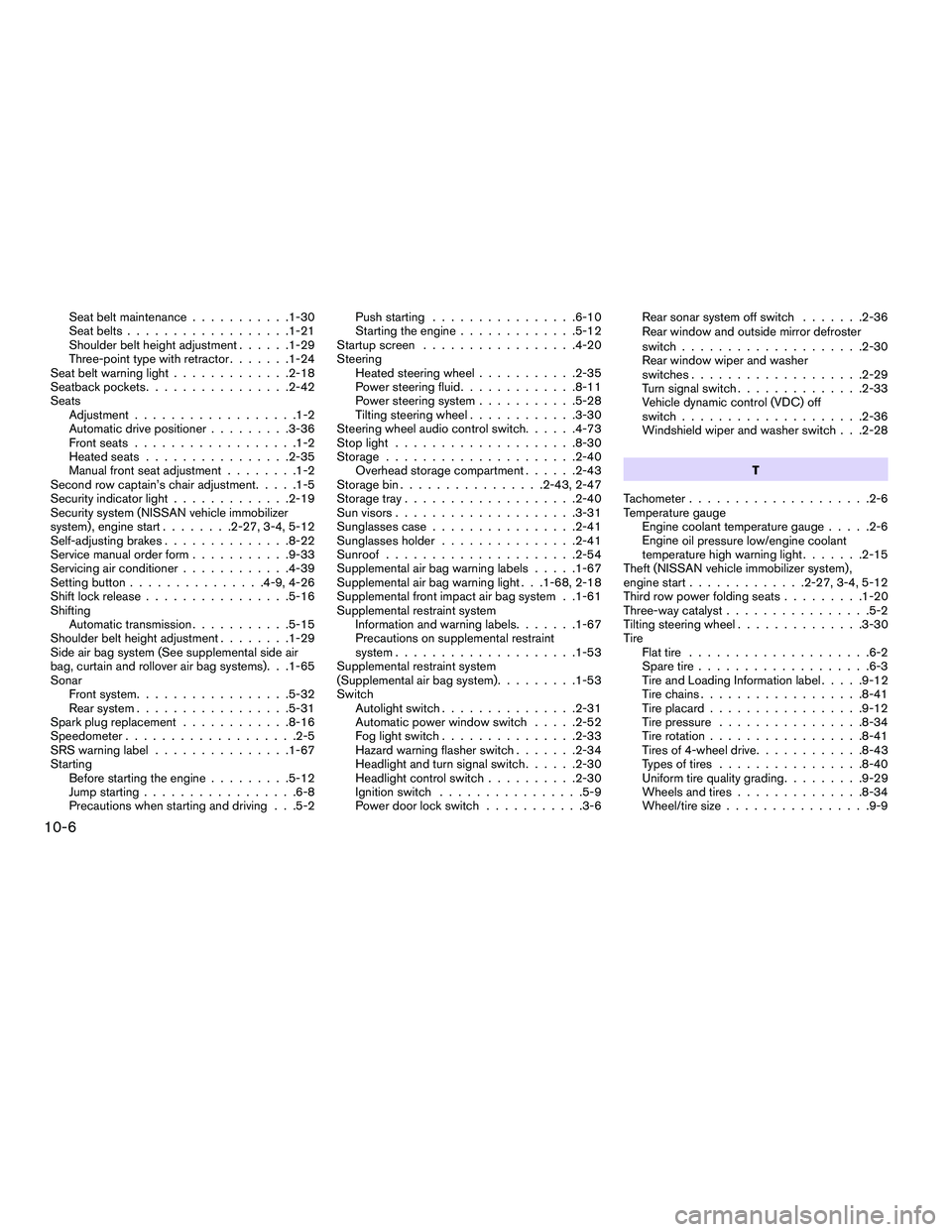

Seat belt maintenance...........1-30
Seat belts ..................1-21
Shoulder belt height adjustment ......1-29
Three-point type with retractor .......1-24
Seat belt warning light .............2-18
Seatback pockets ................2-42
Seats Adjustment ..................1-2
Automatic drive positioner .........3-36
Front seats ..................1-2
Heated seats ................2-35
Manual front seat adjustment ........1-2
Second row captain’s chair adjustment .....1-5
Security indicator light .............2-19
Security system (NISSAN vehicle immobilizer
system) , engine start ........2-27, 3-4, 5-12
Self-adjusting brakes ..............8-22
Service manual order form ...........9-33
Servicing air conditioner ............4-39
Setting button ...............4-9, 4-26
Shift lock release ................5-16
Shifting Automatic transmission ...........5-15
Shoulder belt height adjustment ........1-29
Side air bag system (See supplemental side air
bag, curtain and rollover air bag systems). . .1-65
Sonar Front system .................5-32
Rear system .................5-31
Spark plug replacement ............8-16
Speedometer ...................2-5
SRS warning label ...............1-67
Starting Before starting the engine .........5-12
Jump starting .................6-8
Precautions when starting and driving . . .5-2 Push starting
................6-10
Starting the engine .............5-12
Startup screen .................4-20
Steering Heated steering wheel ...........2-35
Power steering

fluid .............8-11
Power steering system ...........5-28
Tilting steering wheel ............3-30
Steering wheel audio control switch ......4-73
Stop light ....................8-30
Storage .....................2-40
Overhead storage compartment ......2-43
Storage bin ................2-43, 2-47
Storage tray ...................2-40
Sun visors ....................3-31
Sunglasses case ................2-41
Sunglasses holder ...............2-41
Sunroof .....................2-54
Supplemental air bag warning labels .....1-67
Supplemental air bag warning light . . .1-68, 2-18
Supplemental front impact air bag system . .1-61
Supplemental restraint system Information and warning labels .......1-67
Precautions on supplemental restraint
system ....................1-53
Supplemental restraint system
(Supplemental air bag system) .........1-53
Switch Autolight switch ...............2-31
Automatic power window switch .....2-52
Fog light switch ...............2-33
Hazard warning flasher switch .......2-34
Headlight and turn signal switch ......2-30
Headlight control switch ..........2-30
Ignition switch ................5-9
Power door lock switch ...........3-6 Rear sonar system off switch
.......2-36
Rear window and outside mirror defroster
switch ....................2-30
Rear window wiper and washer
switches ...................2-29
Turn signal switch ..............2-33
Vehicle dynamic control (VDC) off
switch ....................2-36
Windshield wiper and washer switch . . .2-28
T
Tachometer ....................2-6
Temperature gauge Engine coolant temperature gauge .....2-6
Engine oilpressure

low/engine coolant
temperature high warning light .......2-15
Theft (NISSAN vehicle immobilizer system) ,
engine start .............2-27, 3-4, 5-12
Third row power folding seats .........1-20
Three-way catalyst ................5-2
Tilting steering wheel ..............3-30
Tire Flat tire ....................6-2
Spare tire ...................6-3
Tire and Loading Information label .....9-12
Tire chains ..................8-41
Tire placard .................9-12
Tire pressure ................8-34
Tire rotation .................8-41
Tires of 4-wheel drive ............8-43
Types of tires ................8-40
Uniform tire quality grading .........9-29
Wheels and tires ..............8-34
Wheel/tire size ................9-9
10-6
