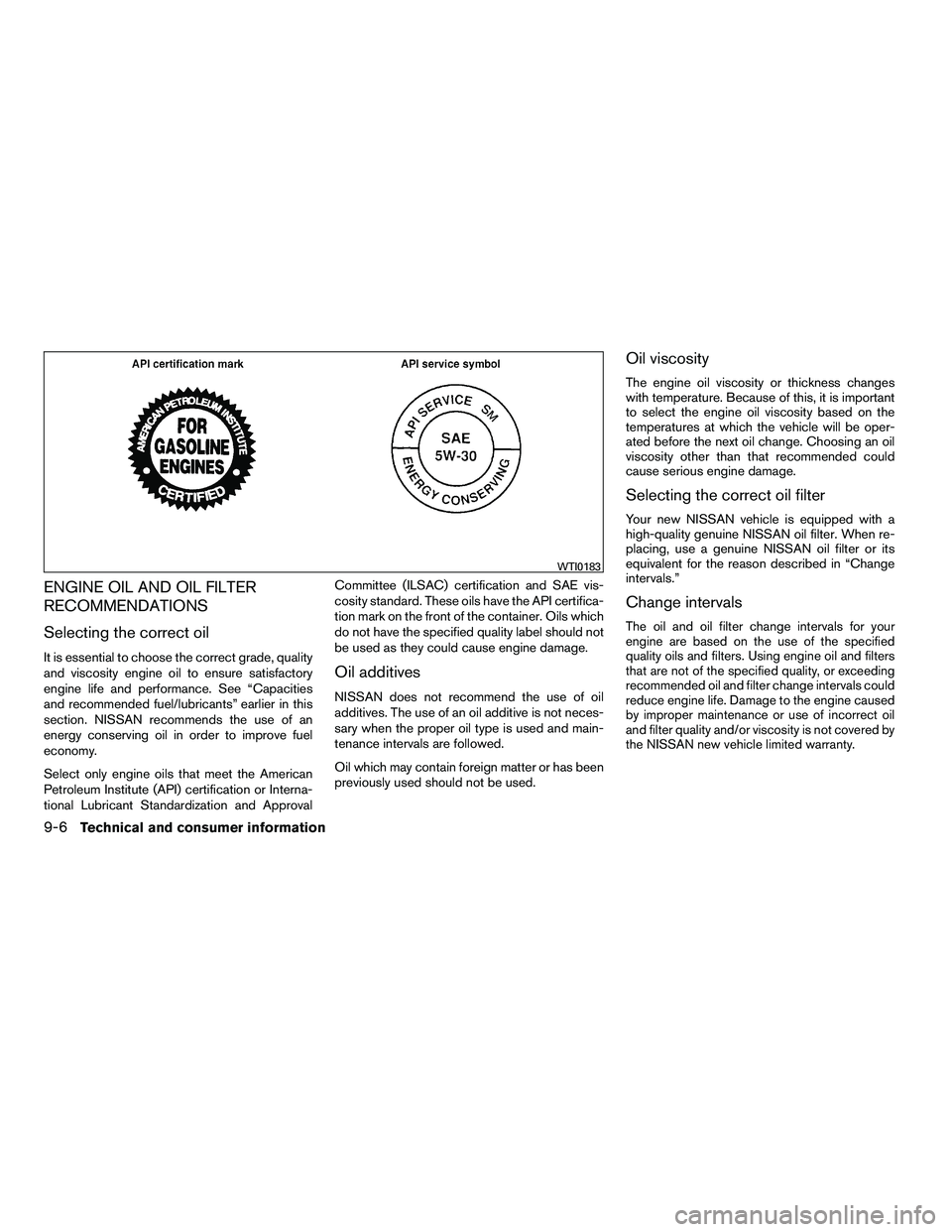

ENGINE OIL AND OIL FILTER
RECOMMENDATIONS
Selecting the correct oil
It is essential to choose the correct grade, quality
and viscosity engine oil to ensure satisfactory
engine life and performance. See “Capacities
and recommended fuel/lubricants” earlier in this
section. NISSAN recommends the use of an
energy conserving oil in order to improve fuel
economy.
Select only engine oils that meet the American
Petroleum Institute (API) certification or Interna-
tional Lubricant Standardization and ApprovalCommittee (ILSAC) certification and SAE vis-
cosity standard. These oils have the API certifica-
tion mark on the front of the container. Oils which
do not have the specified quality label should not
be used as they could cause engine damage.Oil additives
NISSAN does not recommend the use of oil
additives. The use of an oil additive is not neces-
sary when the proper oil type is used and main-
tenance intervals are followed.
Oil which may contain foreign matter or has been
previously used should not be used.
Oil viscosity
The engine oil viscosity or thickness changes
with temperature. Because of this, it is important
to select the engine oil viscosity based on the
temperatures at which the vehicle will be oper-
ated before the next oil change. Choosing an oil
viscosity other than that recommended could
cause serious engine damage.
Selecting the correct oil filter
Your new NISSAN vehicle is equipped with a
high-quality genuine NISSAN oil filter. When re-
placing, use a genuine NISSAN oil filter or its
equivalent for the reason described in “Change
intervals.”
Change intervals
The oil and oil filter change intervals for your
engine are based on the use of the specified
quality oils and filters. Using engine oil and filters
that are not of the specified quality, or exceeding
recommended oil and filter change intervals could
reduce engine life. Damage to the engine caused
by improper maintenance or use of incorrect oil
and filter quality and/or viscosity is not covered by
the NISSAN new vehicle limited warranty.

Car phone or CB radio.............4-92
Cargo light ...................2-57
Cargo (See vehicle loading information) . . .9-13
CD care and cleaning .............4-71
CD changer (See audio system) ........4-50
CD player (See audio system) .........4-58
Child restraint with top tether strap ......1-37
Child restraints .......1-31, 1-31, 1-32, 1-34
Precautions on child restraints . . .1-32, 1-40, 1-45, 1-50
Top tether strap anchor point locations . .1-37
Child safety rear door lock ............3-7
Chimes, audible reminders ...........2-20
Cleaning exterior and interior ..........7-2
Clock ...................4-48, 4-56
(models with navigation system) . .4-11, 4-27
Clock set .................4-11, 4-27
C.M.V.S.S. certification label ..........9-11
Cold weather driving ..............5-33
Compact disc (CD) player ...........4-58
CompactFlash (CF) player ...........4-60
Console box ...............2-40, 2-46
Control panel buttons .............4-17
Brightness/contrast button .....4-16, 4-32
Enter button ..............4-2, 4-17
Setting button .............4-9, 4-26
Startup screen ...............4-20
Without navigation system ..........4-2
Controls Audio controls (steering wheel) ......4-73
Heater and air conditioner controls . . . .4-36
Rear audio controls .............4-75
Rear seat air conditioner ..........4-38
Coolant Capacities and recommended
fuel/lubricants .................9-2 Changing engine coolant
..........8-8
Checking engine coolant level ........8-7
Engine coolant temperature gauge .....2-6
Corrosion protection ...............7-5
Cruise control ..................5-18
Cup holders ...................2-44
Curtain

side-impact and rollover air bag . . .1-65
D
Daytime running light system
(Canada only) ..................2-32
Defroster switch Rear window and outside mirror defroster
switch ....................2-30
Digital video disc DVD .............4-76
Dimensions and weights .............9-9
Dimmer switch for instrument panel ......2-33
Display controls
(see control panel buttons) ........4-2, 4-17
Distance to empty .............4-5, 4-21
Door locks ....................3-5
Drive belt ....................8-16
Drive positioner, Automatic ...........3-36
Driving Cold weather driving ............5-33
Driving with automatic transmission . . . .5-14
Precautions when starting and driving . . .5-2
E
Economy - fuel .................5-20
Emission control information label .......9-11
Emission control system warranty .......9-30Engine
Before starting the engine .........5-12
Capacities and recommended
fuel/lubricants .................9-2
Changing engine coolant ..........8-8
Changing engine oil .............8-9
Changing engine oil filter ..........8-10
Checking engine coolant level ........8-7
Checking engine oil level ..........8-8
Engine compartment check locations . . . .8-6
Engine coolant temperature gauge .....2-6
Engine cooling system ............8-7
Engine oil ...................8-8
Engine oil and oil filter recommendation . .9-6
Engine oil viscosity ..............9-6
Engine serial number ............9-11
Engine specifications .............9-8
Starting the engine ............ .5-12
Engine oil pressure

gauge ............2-8
Engine oil pressure low/engine coolant
temperature high warning light .........2-15
Enter button ................4-2, 4-17
Event data recorders ..............9-32
Exhaust gas (Carbon monoxide) ........5-2
Eyeglass case ..................2-41
F
Flashers
(See hazard warning flasher switch) ......2-34
Flat tire ......................6-2
Floor mat positioning aid .............7-5
Fluid Brake fluid ..................8-12
10-2
REVIEW COPY—2010 Armada (wzw)
Owners Manual (owners)—USA_English (nna)
03/09/09—tbrooks


Capacities and recommended
fuel/lubricants.................9-2
Engine coolant ................8-7
Engine oil ...................8-8
Power steering fluid .............8-11
Window washer fluid ............8-13
F.M.V.S.S. certification label ..........9-11
Fog light switch .................2-33
Front air bag system (See supplemental
restraint system) ................1-61
Front seats ....................1-2
Front sonar system ...............5-32
Fuel Capacities and recommended
fuel/lubricants .................9-2
Fuel economy ................5-20
Fuel gauge ..................2-7
Fuel octane rating ..............9-4
Fuel recommendation ............9-3
Fuel-filler door and cap ...........3-28
Fuses ......................8-22
Fusible links ...................8-24
G
Garage door opener, HomeLink Universal
Transceiver ...................2-58
Gascap.....................3-28
Gauge Automatic transmission fluid temperature
gauge .....................2-9
Engine coolant temperature gauge .....2-6
Engine oil pressure gauge ..........2-8
Fuel gauge ..................2-7
Odometer ...................2-5 Speedometer
.................2-5
Tachometer ..................2-6
Trip odometer .................2-5
Voltmeter ...................2-8
General maintenance ..............8-2
Glass hatch ...................3-28
Glove box ....................2-41
Glove box lock ................

.2-41
H
Hands-free phone system, Bluetooth . . . .4-92,
4-107
Hazard warning flasher switch .........2-34
Headlight and turn signal switch ........2-30
Headlight control switch ............2-30
Headlights ....................8-28
Headphones (See NISSAN mobile
entertainment system) .............4-80
Heated seats ..................2-35
Heated steering wheel .............2-35
Heater Heater and air conditioner controls . . . .4-36
Heater operation ..............4-37
Rear seat air conditioner ..........4-38
HomeLink Universal Transceiver .......2-58
Hood release ..................3-23
Hook Luggage hook ................2-47
Horn .......................2-34
I
Ignition switch ..................5-9 Immobilizer system
.........2-27, 3-4, 5-12
Important vehicle information label .......9-11
In-cabin microfilter ...............8-17
Increasing fuel economy ............5-20
Indicator lights and audible reminders
(See warning/indicator lights and audible
reminders) ....................2-13
Inside automatic anti-glare mirror .......3-32
Inside mirror ...................3-32
Instrument brightness control .........2-33
Instrument panel ..............0-6, 2-2
Instrument panel dimmer switch ........2-33
Intelligent Key system Key operating range ............3-14
Key operation ................3-15
Mechanical key ................3-3
Remote keyless entry operation ......3-17
Troubleshooting guide ...........3-22
Warning signals..............

.3-22
Interior light ...................2-55
ISOFIX child restraints .............1-34
J
Jump starting ...................6-8
K
Key ........................3-2
Keyfob battery replacement ..........8-25
Keyless entry With Intelligent Key system
(See Intelligent Key system) ........3-17
10-3
REVIEW COPY—2010 Armada(wzw)
Owners Manual (owners)—USA_English (nna)
03/09/09—tbrooks


Changing engine oil filter..........8-10
Checking engine oil level ..........8-8
Engine oil ...................8-8
Engine oil and oil filter recommendation . .9-6
Engine oil pressure low/engine coolant
temperature high warning light .......2-15
Engine oil viscosity ..............9-6
Outside mirror control .............3-34
Outside mirrors .................3-34
Overheat If your vehicle overheats ..........6-10
Owner’s manual order form ..........9-33
Owner’s manual/service manual order
information ....................9-33
P
Parking Parking brake operation ..........5-17
Parking/parking on hills ...........5-27
Pedal position adjustment ...........3-30
Personal lights .................2-57
Phone, Bluetooth hands-free system . . . .4-92,
4-107
Power Power door locks ...............3-6
Power outlet .................2-38
Power rear windows ............2-52
Power steering fluid .............8-11
Power steering system ...........5-28
Power vent windows ............2-53
Power windows ...............2-50
Rear power windows ............2-52
Precautions Maintenance precautions ..........8-5 On-pavement and off-road driving
precautions
..................5-3
Precautions on child restraints . . .1-32, 1-40,
1-45, 1-50
Precautions on seat belt usage ......1-21
Precautions on supplemental restraint
system ....................1-53
Precautions when starting and driving . . .5-2
Pre-tensioner seat belt system .........1-66
Programmable features ..........4-9, 4-26
Push starting ..................6-10
R
Radio Car phone or

CB radio...........4-92
Compact Disc (CD) changer .......4-50
FM/AM/SAT radio with compact disc (CD)
changer ...................4-47
FM/AM/SAT radio with compact disc (CD)
player ....................4-55
Rear audio controls .............4-75
Steering wheel audio control switch. . . .4-73
Readiness for inspection maintenance (I/M)
test ........................9-31
Rear audio controls ...............4-75
Rear center seat belt ..............1-27
Rear power windows ..............2-52
Rear seat air conditioner ............4-38
Rear sonar system ...............5-31
Rear sonar system off switch .........2-36
Rear window and outside mirror defroster
switch ......................2-30
Rear window wiper and washer switches . . .2-29
RearView Monitor ................4-33 Recorders
Event data ..................9-32
Refrigerant recommendation ..........9-7
Registering your vehicle in another country . .9-10
Remote controller (See NISSAN mobile
entertainment system) .............4-79
Remote keyless entry system ..........3-7
Reporting safety defects (US only) ......9-31
Resetting the fuel economy ........4-5, 4-21
Roof rack ....................2-49
S
Safety Child safety rear door lock ..........3-7
Child seat belts . . . .1-32, 1-40, 1-45, 1-50
Reporting safety defects (US only) . . . .9-31
Screen (See NISSAN mobile entertainment
system) .....................4-79
Seat adjustment Front manual seat adjustment ........1-2
Front power seat adjustment ........1-4
Second row bench seats ..........1-6
Second row captain’s chair .........1-5
Third row power folding seats .......1-20
Seat belt Child safety .................1-31
Infants and small children .........1-31
Injured Person............... .1-24
Larger

children ...............1-32
Precautions on seat belt usage ......1-21
Pregnant women ..............1-24
Pre-tensioner seat belt system .......1-66
Rear center seat belt ............1-27
Seat belt extenders .............1-30
10-5
REVIEW COPY—2010 Armada(wzw)
Owners Manual (owners)—USA_English (nna)
03/09/09—tbrooks
