2010 NISSAN ARMADA roof rack

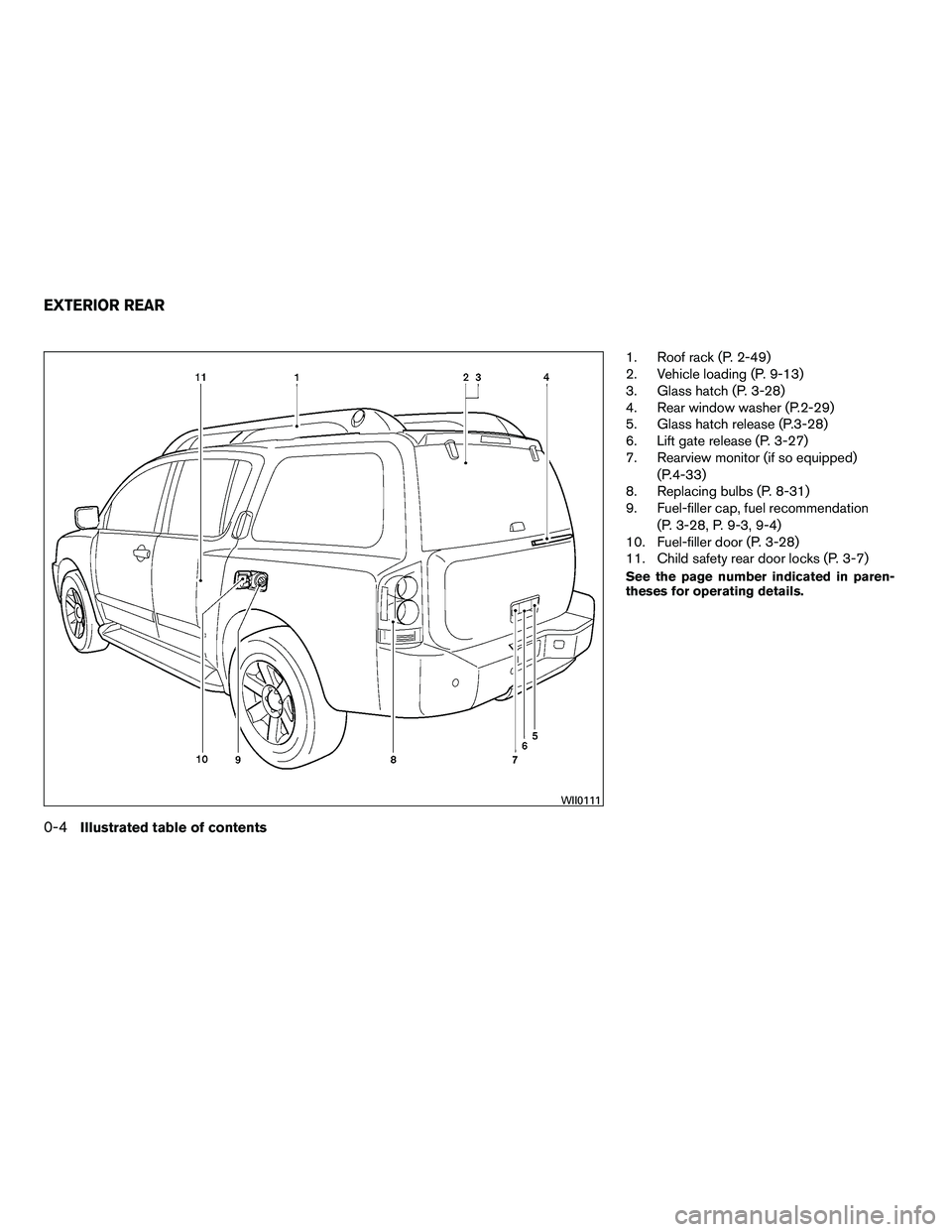

1. Roof rack (P. 2-49)
2. Vehicle loading (P. 9-13)
3. Glass hatch (P. 3-28)
4. Rear window washer (P.2-29)
5. Glass hatch release (P.3-28)
6. Lift gate release (P. 3-27)
7. Rearview monitor (if so equipped)(P.4-33)
8. Replacing bulbs (P. 8-31)
9. Fuel-filler cap, fuel recommendation
(P. 3-28, P. 9-3, 9-4)
10. Fuel-filler door (P. 3-28)
11. Child safety rear door locks (P. 3-7)
See the page number indicated in paren-
theses for operating details.

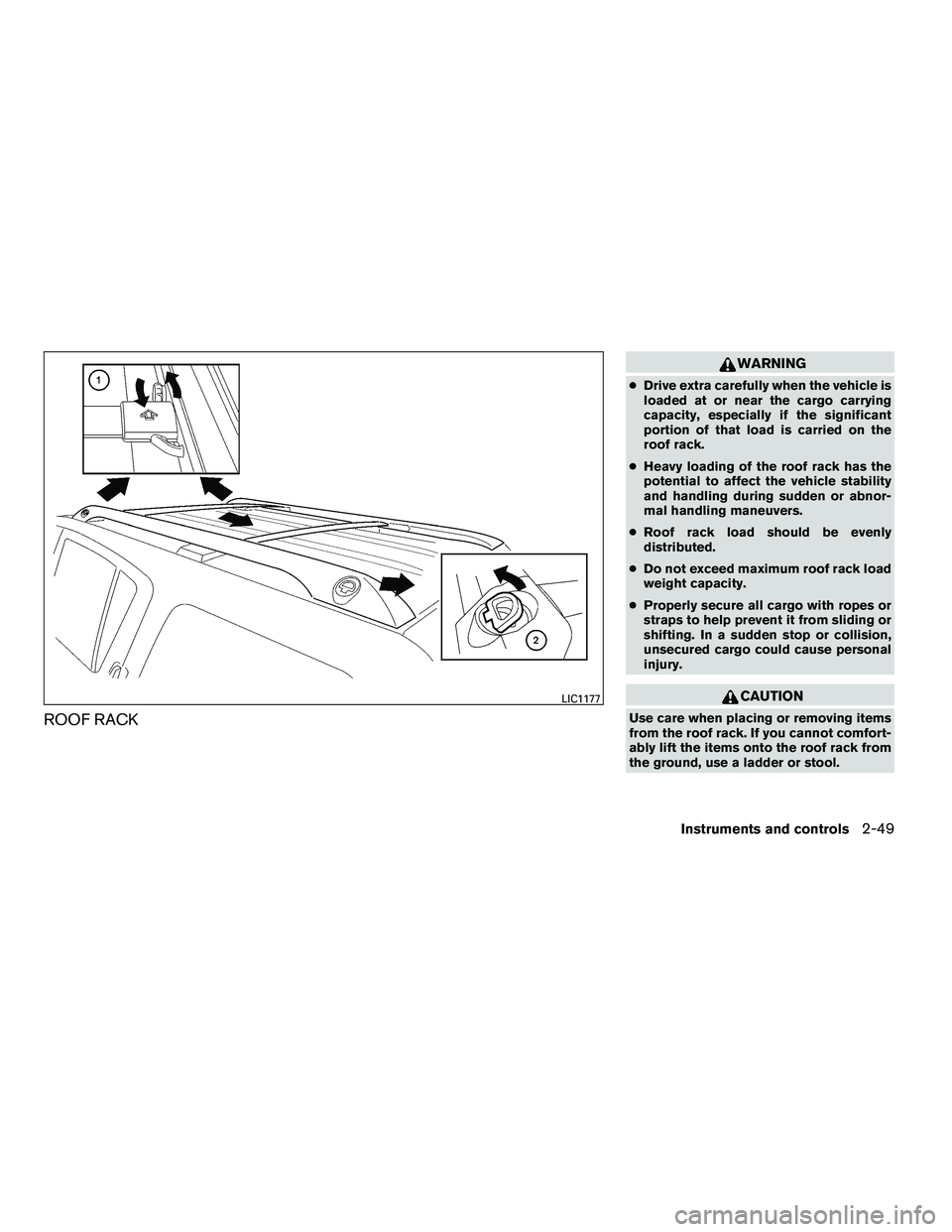

ROOF RACK

Always distribute the luggage evenly on the roof
rack. Do not load more than 200 lbs (91 kg) on
entire roof rack. Be sure load is evenly distributed
across both crossbars. Be careful that your ve-
hicle does not exceed the Gross Vehicle Weight
Rating (GVWR) or its Gross Axle Weight Rating
(GAWR front and rear) . The GVWR and GAWR
are located on the F.M.V.S.S. label (located on
the driver’s door pillar) . For more information
regarding GVWR and GAWR, refer to “Vehicle
loading information” in the “Technical and con-

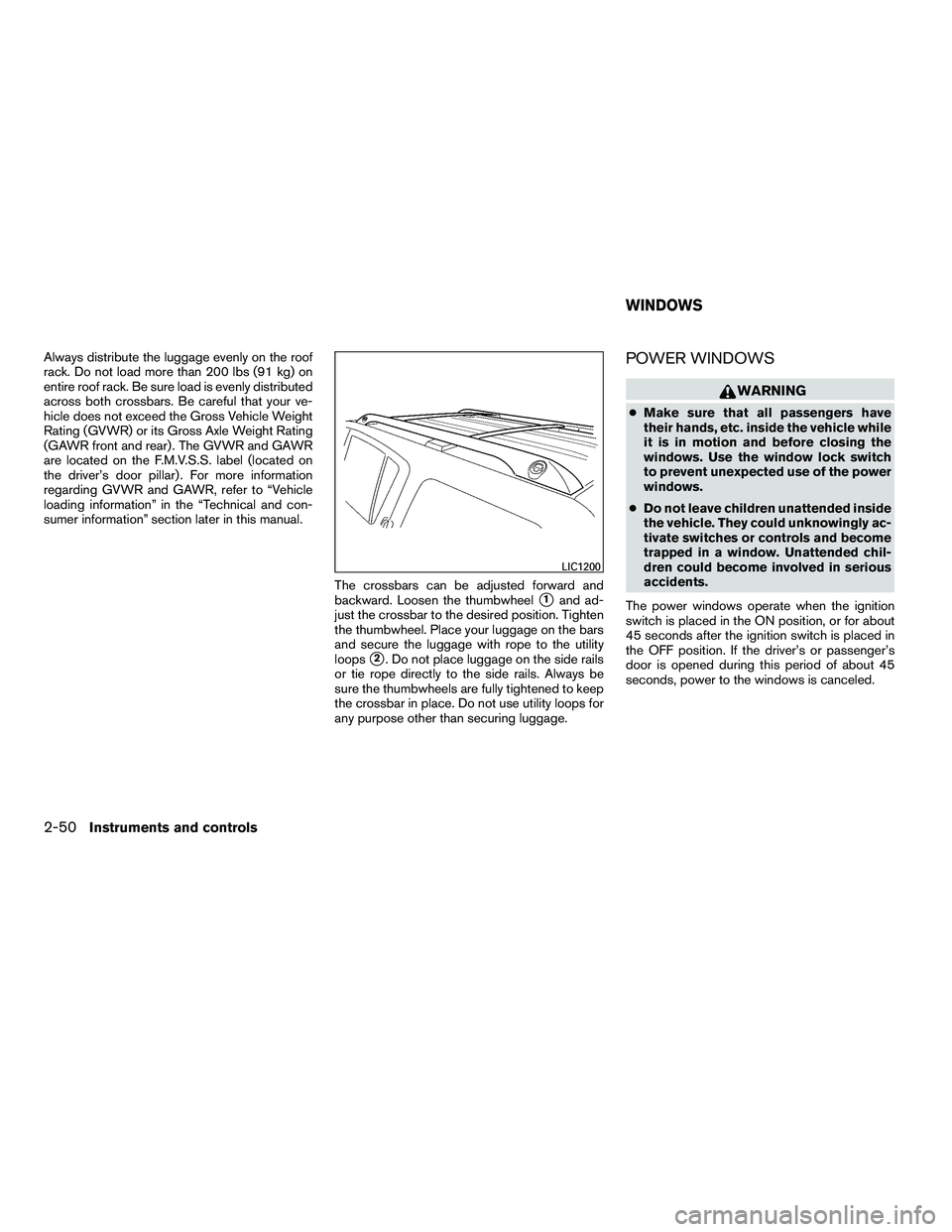

sumer information” section later in this manual.The crossbars can be adjusted forward and
backward. Loosen the thumbwheel
1and ad-
just the crossbar to the desired position. Tighten
the thumbwheel. Place your luggage on the bars
and secure the luggage with rope to the utility
loops
2. Do not place luggage on the side rails
or tie rope directly to the side rails. Always be
sure the thumbwheels are fully tightened to keep
the crossbar in place. Do not use utility loops for
any purpose other than securing luggage.
POWER WINDOWS

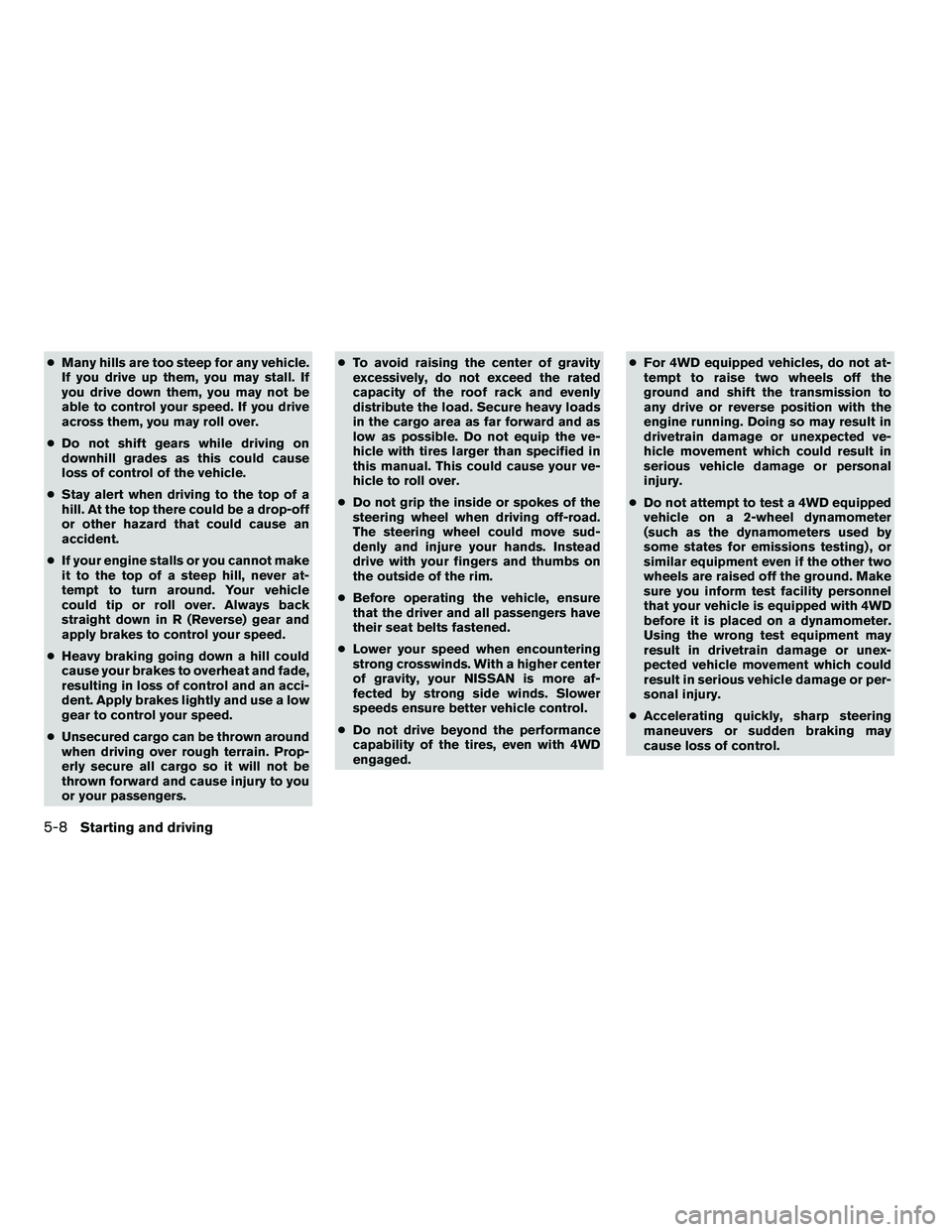

●Many hills are too steep for any vehicle.
If you drive up them, you may stall. If
you drive down them, you may not be
able to control your speed. If you drive
across them, you may roll over.
● Do not shift gears while driving on
downhill grades as this could cause
loss of control of the vehicle.
● Stay alert when driving to the top of a
hill. At the top there could be a drop-off
or other hazard that could cause an
accident.
● If your engine stalls or you cannot make
it to the top of a steep hill, never at-
tempt to turn around. Your vehicle
could tip or roll over. Always back
straight down in R (Reverse) gear and
apply brakes to control your speed.
● Heavy braking going down a hill could
cause your brakes to overheat and fade,
resulting in loss of control and an acci-
dent. Apply brakes lightly and use a low
gear to control your speed.
● Unsecured cargo can be thrown around
when driving over rough terrain. Prop-
erly secure all cargo so it will not be
thrown forward and cause injury to you
or your passengers. ●
To avoid raising the center of gravity
excessively, do not exceed the rated
capacity of the roof rack and evenly
distribute the load. Secure heavy loads
in the cargo area as far forward and as
low as possible. Do not equip the ve-
hicle with tires larger than specified in
this manual. This could cause your ve-
hicle to roll over.
● Do not grip the inside or spokes of the
steering wheel when driving off-road.
The steering wheel could move sud-
denly and injure your hands. Instead
drive with your fingers and thumbs on
the outside of the rim.
● Before operating the vehicle, ensure
that the driver and all passengers have
their seat belts fastened.
● Lower your speed when encountering
strong crosswinds. With a higher center
of gravity, your NISSAN is more af-
fected by strong side winds. Slower
speeds ensure better vehicle control.
● Do not drive beyond the performance
capability of the tires, even with 4WD
engaged. ●
For 4WD equipped vehicles, do not at-
tempt to raise two wheels off the
ground and shift the transmission to
any drive or reverse position with the
engine running. Doing so may result in
drivetrain damage or unexpected ve-
hicle movement which could result in
serious vehicle damage or personal
injury.
● Do not attempt to test a 4WD equipped
vehicle on a 2-wheel dynamometer
(such as the dynamometers used by
some states for emissions testing) , or
similar equipment even if the other two
wheels are raised off the ground. Make
sure you inform test facility personnel
that your vehicle is equipped with 4WD
before it is placed on a dynamometer.
Using the wrong test equipment may
result in drivetrain damage or unex-
pected vehicle movement which could
result in serious vehicle damage or per-
sonal injury.
● Accelerating quickly, sharp steering
maneuvers or sudden braking may
cause loss of control.
5-8Starting and driving
REVIEW COPY—2010 Armada (wzw)
Owners Manual (owners)—USA_English (nna)
02/17/09—debbie


Keyless entry system
(See remote keyless entry system).......3-7
L
Labels Air conditioner specification label .....9-12
C.M.V.S.S. certification label ........9-11
Emission control information label .....9-11
Engine serial number ............9-11
F.M.V.S.S. certification label ........9-11
Tire and Loading Information label .....9-12
Vehicle identification number (VIN)
plate .....................9-10
Warning labels (for SRS) ..........1-67
LATCH (Lower Anchors and Tethers for CHildren)
System ......................1-34
License plate Installing the license plate .........9-12
Lift gate .....................3-23
Lift gate release .................3-27
Light Air bag warning light .........1-68, 2-18
Brake light (See stop light) .........8-30
Bulb check/instrument panel ........2-13
Bulb replacement ..............8-30
Charge warning light ............2-15
Fog light switch ...............2-33
Headlight and turn signal switch ......2-30
Headlight control switch ..........2-30
Headlights ..................8-28
Interior light .................2-55
Light bulbs ..................8-28
Low tire pressure warning light ......2-16
Low washer fluid warning light .......2-24Passenger air bag and status light
.....1-62
Personal lights ...............2-57
Security indicator light ...........2-19
Warning/indicator lights and audible
reminders ..................2-13
Lights Map lights ..................2-57
Lock Child safety rear door lock ..........3-7
Door locks ..................3-5
Glove

box lock ...............2-41
Lift gate release ...............3-27
Power door locks ...............3-6
Low fuel warning light ......2-16, 2-18, 2-24
Low tire pressure warning light ........2-16
Low washer fluid warning light .........2-24
Luggage hook ..................2-47
Luggage rack (see roof rack) .........2-49
Luggage (See vehicle loading information) . .9-13
Luggage storage
(see vehicle loading information) ........2-47
M
Maintenance Changing the maintenance
interval .................4-8, 4-24
Displaying the maintenance notice
reminder ................4-8, 4-24
General maintenance ............8-2
Inside the vehicle ...............8-3
Maintenance precautions ..........8-5
Outside the vehicle ..............8-2
Resetting the maintenance interval . .4-8, 4-24
Seat belt maintenance ...........1-30 Setting
.................4-7, 4-23
Under the hood and vehicle .........8-4
Malfunction indicator light ...........2-19
Manual front seat adjustment ..........1-2
Manual vent windows ..............2-53
Map lights ....................2-57
Map pocket ...................2-42
Meters and gauges ................2-4
Instrument brightness control .......2-33
Mirror Automatic anti-glare inside mirror .....3-32
Inside mirror .................3-32
Outside mirror control ...........3-34
Outside mirrors ...............3-34
Vanity mirror .................3-31
Music Box hard-disk drive audio system . . .4-62
N
NISSAN Intelligent Key™ .........3-2,
3-12
NISSAN mobile

entertainment system
(MES) ......................4-76
NISSAN vehicle immobilizer system . . .2-27, 3-4, 5-12
NISSAN voice recognition system ......4-118
O
Octane rating (See fuel octane rating) .....9-4
Odometer .....................2-5
Oil Capacities and recommended
fuel/lubricants .................9-2
Changing engine oil .............8-9
10-4
REVIEW COPY—2010 Armada(wzw)
Owners Manual (owners)—USA_English (nna)
03/09/09—tbrooks


Changing engine oil filter..........8-10
Checking engine oil level ..........8-8
Engine oil ...................8-8
Engine oil and oil filter recommendation . .9-6
Engine oil pressure low/engine coolant
temperature high warning light .......2-15
Engine oil viscosity ..............9-6
Outside mirror control .............3-34
Outside mirrors .................3-34
Overheat If your vehicle overheats ..........6-10
Owner’s manual order form ..........9-33
Owner’s manual/service manual order
information ....................9-33
P
Parking Parking brake operation ..........5-17
Parking/parking on hills ...........5-27
Pedal position adjustment ...........3-30
Personal lights .................2-57
Phone, Bluetooth hands-free system . . . .4-92,
4-107
Power Power door locks ...............3-6
Power outlet .................2-38
Power rear windows ............2-52
Power steering fluid .............8-11
Power steering system ...........5-28
Power vent windows ............2-53
Power windows ...............2-50
Rear power windows ............2-52
Precautions Maintenance precautions ..........8-5 On-pavement and off-road driving
precautions
..................5-3
Precautions on child restraints . . .1-32, 1-40,
1-45, 1-50
Precautions on seat belt usage ......1-21
Precautions on supplemental restraint
system ....................1-53
Precautions when starting and driving . . .5-2
Pre-tensioner seat belt system .........1-66
Programmable features ..........4-9, 4-26
Push starting ..................6-10
R
Radio Car phone or

CB radio...........4-92
Compact Disc (CD) changer .......4-50
FM/AM/SAT radio with compact disc (CD)
changer ...................4-47
FM/AM/SAT radio with compact disc (CD)
player ....................4-55
Rear audio controls .............4-75
Steering wheel audio control switch. . . .4-73
Readiness for inspection maintenance (I/M)
test ........................9-31
Rear audio controls ...............4-75
Rear center seat belt ..............1-27
Rear power windows ..............2-52
Rear seat air conditioner ............4-38
Rear sonar system ...............5-31
Rear sonar system off switch .........2-36
Rear window and outside mirror defroster
switch ......................2-30
Rear window wiper and washer switches . . .2-29
RearView Monitor ................4-33 Recorders
Event data ..................9-32
Refrigerant recommendation ..........9-7
Registering your vehicle in another country . .9-10
Remote controller (See NISSAN mobile
entertainment system) .............4-79
Remote keyless entry system ..........3-7
Reporting safety defects (US only) ......9-31
Resetting the fuel economy ........4-5, 4-21
Roof rack ....................2-49
S
Safety Child safety rear door lock ..........3-7
Child seat belts . . . .1-32, 1-40, 1-45, 1-50
Reporting safety defects (US only) . . . .9-31
Screen (See NISSAN mobile entertainment
system) .....................4-79
Seat adjustment Front manual seat adjustment ........1-2
Front power seat adjustment ........1-4
Second row bench seats ..........1-6
Second row captain’s chair .........1-5
Third row power folding seats .......1-20
Seat belt Child safety .................1-31
Infants and small children .........1-31
Injured Person............... .1-24
Larger

children ...............1-32
Precautions on seat belt usage ......1-21
Pregnant women ..............1-24
Pre-tensioner seat belt system .......1-66
Rear center seat belt ............1-27
Seat belt extenders .............1-30
10-5
REVIEW COPY—2010 Armada(wzw)
Owners Manual (owners)—USA_English (nna)
03/09/09—tbrooks
