2010 NISSAN ARMADA keyless

Unlocking doors
1. Carry the Intelligent Key.
2. Push the door handle request switch.
3. The hazard warning lights flash once and theoutside buzzer sounds once.
4. Push the door handle request switch again within 30 seconds to unlock all doors.
For power liftgate opening: 1. Carry the intelligent key.
2. Pull the power liftgate handle or press the power liftgate button. 3. Power back door open.
If a door handle is pulled while unlocking the
doors, that door may not be unlocked. Returning
the door handle to its original position will unlock
the door. If the door does not unlock after return-
ing the door handle, push the door handle re-
quest switch to unlock the door.
All doors will be locked automatically unless one
of the following operations is performed within 1
minute after pushing the request switch. ● Opening any door.
● Pushing the ignition switch. The interior light timer illuminates for 30 seconds
when a door is unlocked and the room light
switch is in the DOOR position.
The interior light can be turned off without waiting
for 30 seconds by performing one of the follow-
ing operations.
● Placing the ignition switch in the ON posi-
tion.
● Locking the doors with the remote controller.
● Switching the room light switch to the OFF
position.
HOW TO USE THE REMOTE
KEYLESS ENTRY FUNCTION
The remote keyless entry function can operate all
door locks using the remote keyless function of
the Intelligent Key. The remote keyless function
can operate at a distance of 33 ft (10 m) away
from the vehicle. The operating distance de-
pends upon the conditions around the vehicle.
The remote keyless entry function will not func-
tion under the following conditions:
● When the Intelligent Key is not within the
operational range.
● When the doors or the rear liftgate are open
or not closed securely.

●The system is designed as an aid to the
driver in detecting large stationary ob-
jects to help avoid damaging the ve-
hicle. The system will not detect small
objects below the bumper, and may not
detect objects close to the bumper or
on the ground.
● If your vehicle sustains damage to the
front bumper fascia, leaving it mis-
aligned or bent, the sensing zone may
be altered causing inaccurate measure-
ment of obstacles or false alarms.
The Front Sonar System (FSS) sounds a tone to
warn the driver of obstacles near the front
bumper when the shift selector is in a forward
gear. The system may not detect objects at
speeds above 3 mph (5 km/h) and may not detect
certain angular or moving objects.
The FSS detects obstacles up to 3 ft (1.0 m) from
the front bumper with a decreased coverage area
at the outer corners of the bumper, (refer to the
illustration for approximate zone coverage areas) .
As you move closer to the obstacle, the rate of the
tone increases. When the obstacle is less than
12 in (30.0 cm) away, the tone will sound con-
tinuously. If the FSS detects a stationary or re-
ceding object further than 12 in (30.0 cm) from
the side of the vehicle, the tone will sound for only 3 seconds. Once the system detects an object
approaching, the tone will sound again.
The FSS automatically turns on when the shift
selector is placed in a forward gear and the
ignition switch is ON. The front and rear sonar
system off switch on the instrument panel allows
the driver to turn the FSS on and off. To turn the
FSS off, the ignition switch must be ON, and the
shift selector in D (Drive) . An indicator light on the
switch will illuminate when the system is turned
off. If the indicator light illuminates when the FSS
is not turned off, it may indicate a malfunction in
the FSS.
Keep the FSS sensors (located on the front
bumper fascia) free from snow, ice and large
accumulations of dirt (do not clean the sensors
with sharp objects) . If the sensors are covered, it
will affect the accuracy of the FSS.FREEING A FROZEN DOOR LOCK
To prevent a door lock from freezing, apply de-
icer through the key hole. If the lock becomes
frozen, heat the key before inserting it into the key
hole or use the remote keyless entry keyfob.
ANTI-FREEZE
In the winter when it is anticipated that the tem-
perature will drop below 32°F (0°C) , check the
anti-freeze to assure proper winter protection.
For details, see “Engine cooling system” in the
“Maintenance and do-it-yourself” section of this
manual.
BATTERY
If the battery is not fully charged during extremely
cold weather conditions, the battery fluid may
freeze and damage the battery. To maintain maxi-
mum efficiency, the battery should be checked
regularly. For details, see “Battery” in the “Main-
tenance and do-it-yourself” section of this
manual.
DRAINING OF COOLANT WATER
If the vehicle is to be left outside without anti-
freeze, drain the cooling system, including the
engine block. Refill before operating the vehicle.
COLD WEATHER DRIVING
Starting and driving5-33
REVIEW COPY—2010 Armada
(wzw)
Owners Manual (owners)—USA_English (nna)
02/17/09—debbie


Capacities and recommended
fuel/lubricants.................9-2
Engine coolant ................8-7
Engine oil ...................8-8
Power steering fluid .............8-11
Window washer fluid ............8-13
F.M.V.S.S. certification label ..........9-11
Fog light switch .................2-33
Front air bag system (See supplemental
restraint system) ................1-61
Front seats ....................1-2
Front sonar system ...............5-32
Fuel Capacities and recommended
fuel/lubricants .................9-2
Fuel economy ................5-20
Fuel gauge ..................2-7
Fuel octane rating ..............9-4
Fuel recommendation ............9-3
Fuel-filler door and cap ...........3-28
Fuses ......................8-22
Fusible links ...................8-24
G
Garage door opener, HomeLink Universal
Transceiver ...................2-58
Gascap.....................3-28
Gauge Automatic transmission fluid temperature
gauge .....................2-9
Engine coolant temperature gauge .....2-6
Engine oil pressure gauge ..........2-8
Fuel gauge ..................2-7
Odometer ...................2-5 Speedometer
.................2-5
Tachometer ..................2-6
Trip odometer .................2-5
Voltmeter ...................2-8
General maintenance ..............8-2
Glass hatch ...................3-28
Glove box ....................2-41
Glove box lock ................

.2-41
H
Hands-free phone system, Bluetooth . . . .4-92,
4-107
Hazard warning flasher switch .........2-34
Headlight and turn signal switch ........2-30
Headlight control switch ............2-30
Headlights ....................8-28
Headphones (See NISSAN mobile
entertainment system) .............4-80
Heated seats ..................2-35
Heated steering wheel .............2-35
Heater Heater and air conditioner controls . . . .4-36
Heater operation ..............4-37
Rear seat air conditioner ..........4-38
HomeLink Universal Transceiver .......2-58
Hood release ..................3-23
Hook Luggage hook ................2-47
Horn .......................2-34
I
Ignition switch ..................5-9 Immobilizer system
.........2-27, 3-4, 5-12
Important vehicle information label .......9-11
In-cabin microfilter ...............8-17
Increasing fuel economy ............5-20
Indicator lights and audible reminders
(See warning/indicator lights and audible
reminders) ....................2-13
Inside automatic anti-glare mirror .......3-32
Inside mirror ...................3-32
Instrument brightness control .........2-33
Instrument panel ..............0-6, 2-2
Instrument panel dimmer switch ........2-33
Intelligent Key system Key operating range ............3-14
Key operation ................3-15
Mechanical key ................3-3
Remote keyless entry operation ......3-17
Troubleshooting guide ...........3-22
Warning signals..............

.3-22
Interior light ...................2-55
ISOFIX child restraints .............1-34
J
Jump starting ...................6-8
K
Key ........................3-2
Keyfob battery replacement ..........8-25
Keyless entry With Intelligent Key system
(See Intelligent Key system) ........3-17
10-3
REVIEW COPY—2010 Armada(wzw)
Owners Manual (owners)—USA_English (nna)
03/09/09—tbrooks

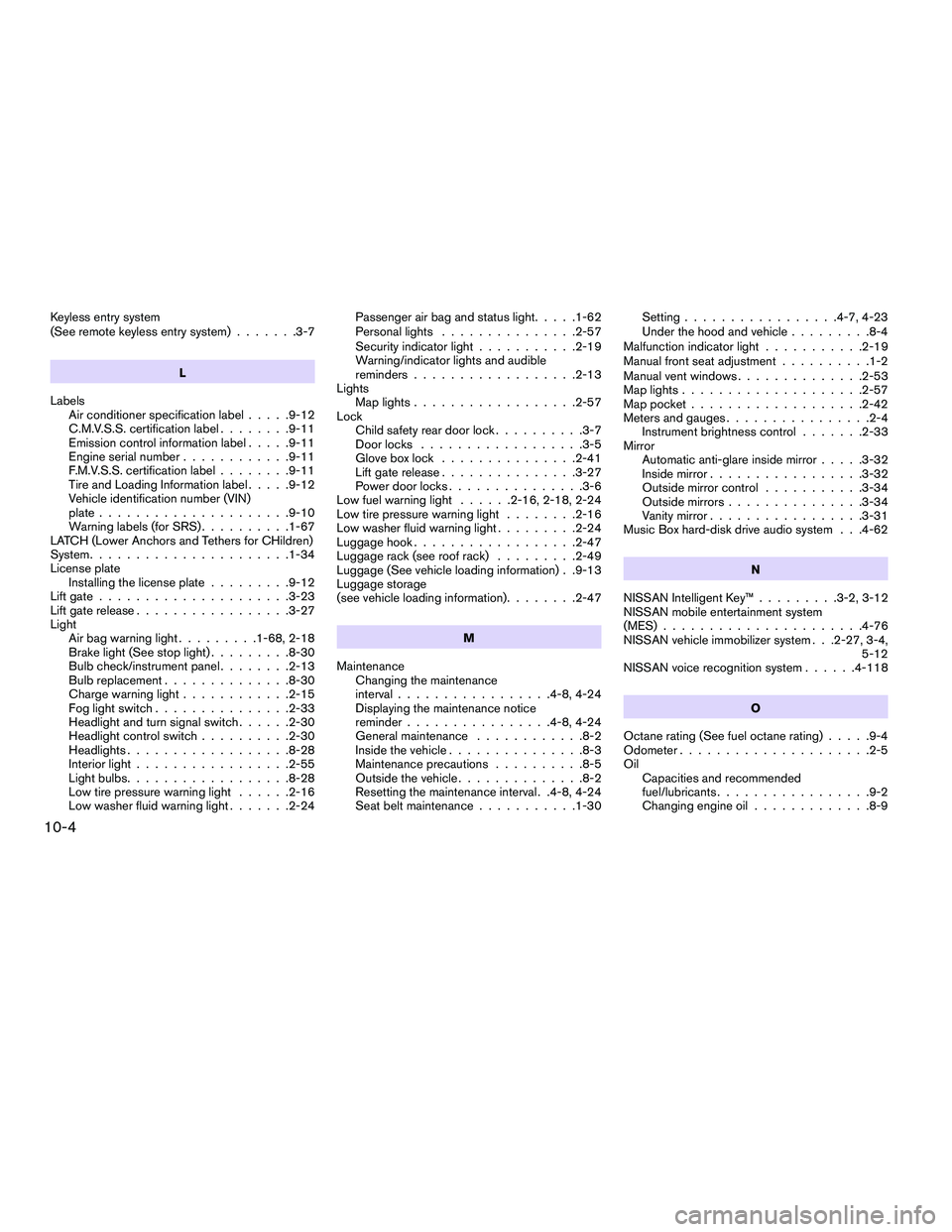

Keyless entry system
(See remote keyless entry system).......3-7
L
Labels Air conditioner specification label .....9-12
C.M.V.S.S. certification label ........9-11
Emission control information label .....9-11
Engine serial number ............9-11
F.M.V.S.S. certification label ........9-11
Tire and Loading Information label .....9-12
Vehicle identification number (VIN)
plate .....................9-10
Warning labels (for SRS) ..........1-67
LATCH (Lower Anchors and Tethers for CHildren)
System ......................1-34
License plate Installing the license plate .........9-12
Lift gate .....................3-23
Lift gate release .................3-27
Light Air bag warning light .........1-68, 2-18
Brake light (See stop light) .........8-30
Bulb check/instrument panel ........2-13
Bulb replacement ..............8-30
Charge warning light ............2-15
Fog light switch ...............2-33
Headlight and turn signal switch ......2-30
Headlight control switch ..........2-30
Headlights ..................8-28
Interior light .................2-55
Light bulbs ..................8-28
Low tire pressure warning light ......2-16
Low washer fluid warning light .......2-24Passenger air bag and status light
.....1-62
Personal lights ...............2-57
Security indicator light ...........2-19
Warning/indicator lights and audible
reminders ..................2-13
Lights Map lights ..................2-57
Lock Child safety rear door lock ..........3-7
Door locks ..................3-5
Glove

box lock ...............2-41
Lift gate release ...............3-27
Power door locks ...............3-6
Low fuel warning light ......2-16, 2-18, 2-24
Low tire pressure warning light ........2-16
Low washer fluid warning light .........2-24
Luggage hook ..................2-47
Luggage rack (see roof rack) .........2-49
Luggage (See vehicle loading information) . .9-13
Luggage storage
(see vehicle loading information) ........2-47
M
Maintenance Changing the maintenance
interval .................4-8, 4-24
Displaying the maintenance notice
reminder ................4-8, 4-24
General maintenance ............8-2
Inside the vehicle ...............8-3
Maintenance precautions ..........8-5
Outside the vehicle ..............8-2
Resetting the maintenance interval . .4-8, 4-24
Seat belt maintenance ...........1-30 Setting
.................4-7, 4-23
Under the hood and vehicle .........8-4
Malfunction indicator light ...........2-19
Manual front seat adjustment ..........1-2
Manual vent windows ..............2-53
Map lights ....................2-57
Map pocket ...................2-42
Meters and gauges ................2-4
Instrument brightness control .......2-33
Mirror Automatic anti-glare inside mirror .....3-32
Inside mirror .................3-32
Outside mirror control ...........3-34
Outside mirrors ...............3-34
Vanity mirror .................3-31
Music Box hard-disk drive audio system . . .4-62
N
NISSAN Intelligent Key™ .........3-2,
3-12
NISSAN mobile

entertainment system
(MES) ......................4-76
NISSAN vehicle immobilizer system . . .2-27, 3-4, 5-12
NISSAN voice recognition system ......4-118
O
Octane rating (See fuel octane rating) .....9-4
Odometer .....................2-5
Oil Capacities and recommended
fuel/lubricants .................9-2
Changing engine oil .............8-9
10-4
REVIEW COPY—2010 Armada(wzw)
Owners Manual (owners)—USA_English (nna)
03/09/09—tbrooks


Changing engine oil filter..........8-10
Checking engine oil level ..........8-8
Engine oil ...................8-8
Engine oil and oil filter recommendation . .9-6
Engine oil pressure low/engine coolant
temperature high warning light .......2-15
Engine oil viscosity ..............9-6
Outside mirror control .............3-34
Outside mirrors .................3-34
Overheat If your vehicle overheats ..........6-10
Owner’s manual order form ..........9-33
Owner’s manual/service manual order
information ....................9-33
P
Parking Parking brake operation ..........5-17
Parking/parking on hills ...........5-27
Pedal position adjustment ...........3-30
Personal lights .................2-57
Phone, Bluetooth hands-free system . . . .4-92,
4-107
Power Power door locks ...............3-6
Power outlet .................2-38
Power rear windows ............2-52
Power steering fluid .............8-11
Power steering system ...........5-28
Power vent windows ............2-53
Power windows ...............2-50
Rear power windows ............2-52
Precautions Maintenance precautions ..........8-5 On-pavement and off-road driving
precautions
..................5-3
Precautions on child restraints . . .1-32, 1-40,
1-45, 1-50
Precautions on seat belt usage ......1-21
Precautions on supplemental restraint
system ....................1-53
Precautions when starting and driving . . .5-2
Pre-tensioner seat belt system .........1-66
Programmable features ..........4-9, 4-26
Push starting ..................6-10
R
Radio Car phone or

CB radio...........4-92
Compact Disc (CD) changer .......4-50
FM/AM/SAT radio with compact disc (CD)
changer ...................4-47
FM/AM/SAT radio with compact disc (CD)
player ....................4-55
Rear audio controls .............4-75
Steering wheel audio control switch. . . .4-73
Readiness for inspection maintenance (I/M)
test ........................9-31
Rear audio controls ...............4-75
Rear center seat belt ..............1-27
Rear power windows ..............2-52
Rear seat air conditioner ............4-38
Rear sonar system ...............5-31
Rear sonar system off switch .........2-36
Rear window and outside mirror defroster
switch ......................2-30
Rear window wiper and washer switches . . .2-29
RearView Monitor ................4-33 Recorders
Event data ..................9-32
Refrigerant recommendation ..........9-7
Registering your vehicle in another country . .9-10
Remote controller (See NISSAN mobile
entertainment system) .............4-79
Remote keyless entry system ..........3-7
Reporting safety defects (US only) ......9-31
Resetting the fuel economy ........4-5, 4-21
Roof rack ....................2-49
S
Safety Child safety rear door lock ..........3-7
Child seat belts . . . .1-32, 1-40, 1-45, 1-50
Reporting safety defects (US only) . . . .9-31
Screen (See NISSAN mobile entertainment
system) .....................4-79
Seat adjustment Front manual seat adjustment ........1-2
Front power seat adjustment ........1-4
Second row bench seats ..........1-6
Second row captain’s chair .........1-5
Third row power folding seats .......1-20
Seat belt Child safety .................1-31
Infants and small children .........1-31
Injured Person............... .1-24
Larger

children ...............1-32
Precautions on seat belt usage ......1-21
Pregnant women ..............1-24
Pre-tensioner seat belt system .......1-66
Rear center seat belt ............1-27
Seat belt extenders .............1-30
10-5
REVIEW COPY—2010 Armada(wzw)
Owners Manual (owners)—USA_English (nna)
03/09/09—tbrooks
