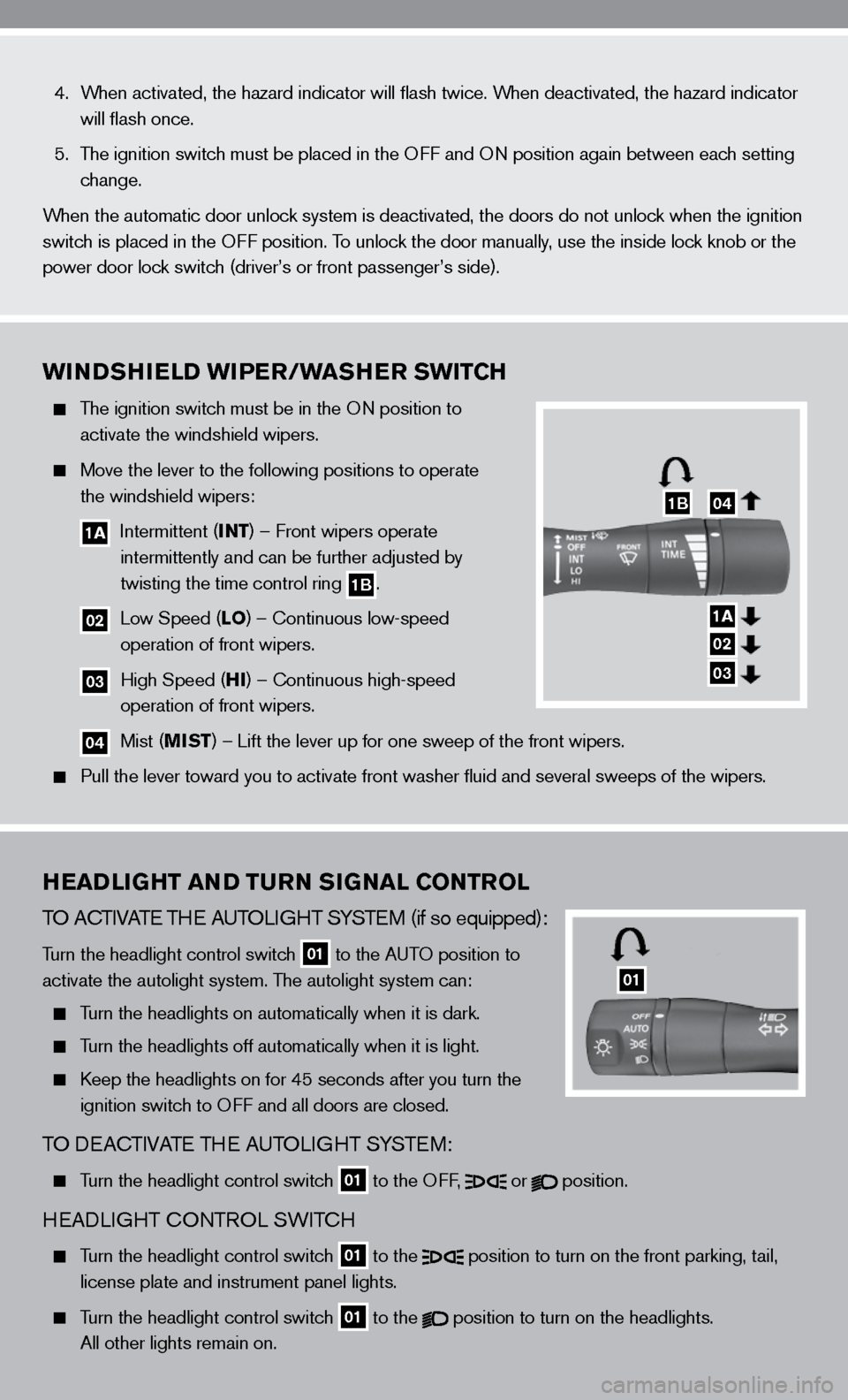

WINDSHIELD WIPER/WASHER SWITCH
The ignition switch must be in the O n position to
activate the windshield wipers.
Move the lever to the following positions to operate
the windshield wipers:
1A intermittent (INT) – front wipers operate
intermittently and can be further adjusted by
twisting the time control ring
1B.
02 Low Speed (LO ) – continuous low-speed
operation of front wipers.
03 High Speed (HI ) – continuous high-speed
operation of front wipers.
04 Mist (MIST ) – Lift the lever up for one sweep of the front wipers.
Pull the lever toward you to activate front washer fluid and several s\
weeps of the wipers.
1B04
1A
02
03
4. When activated, the hazard indicator will flash twice. When deactivated, the hazard indicator
will flash once.
5. The ignition switch must be placed in the O ff and O n position again between each setting
change.
When the automatic door unlock system is deactivated, the doors do not unlock when the ignition
switch is placed in the O ff position. To unlock the door manually, use the inside lock knob or the
power door lock switch (driver’s or front passenger’s side).
HEADLIGHT AND TURN SIGNAL CONTROL
TO A cTiVATe TH e AuTOLi GHT S ySTe M (if so equipped):
Turn the headlight control switch
01 to the A
uTO position to
activate the autolight system. The autolight system can:
Turn the headlights on automatically when it is dark.
Turn the headlights off automatically when it is light.
k eep the headlights on for 45 seconds after you turn the
ignition switch to O ff and all doors are closed.
TO deAcTiVATe TH e AuTOLi GHT S ySTe M:
Turn the headlight control switch
01 to the O
ff,
or
position.
H
eAd LiGHT c OnTROL SW iTc H
Turn the headlight control switch
01 to the
position to turn on the front parking, tail,
license plate and instrument panel lights.
Turn the headlight control switch
01 to the
position to turn on the headlights.
All other lights remain on.
01
