2010 NISSAN ALTIMA HYBRID Navigation Manual

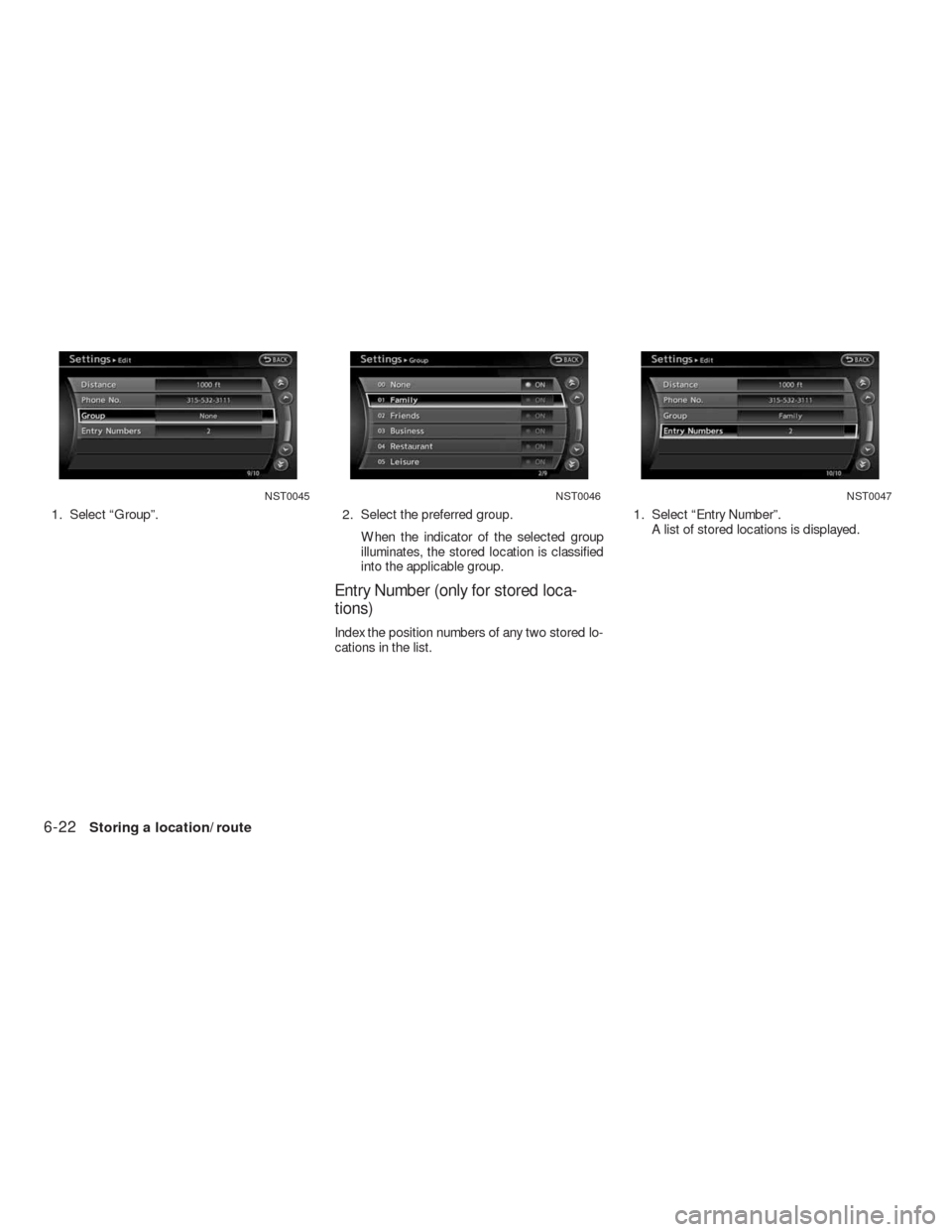

1. Select “Group”. 2. Select the preferred group.
When the indicator of the selected group
illuminates, the stored location is classified
into the applicable group.
Entry Number (only for stored loca-
tions)
Index the position numbers of any two stored lo-
cations in the list.1. Select “Entry Number”.
A list of stored locations is displayed.
NST0045NST0046NST0047
6-22Storing a location/route

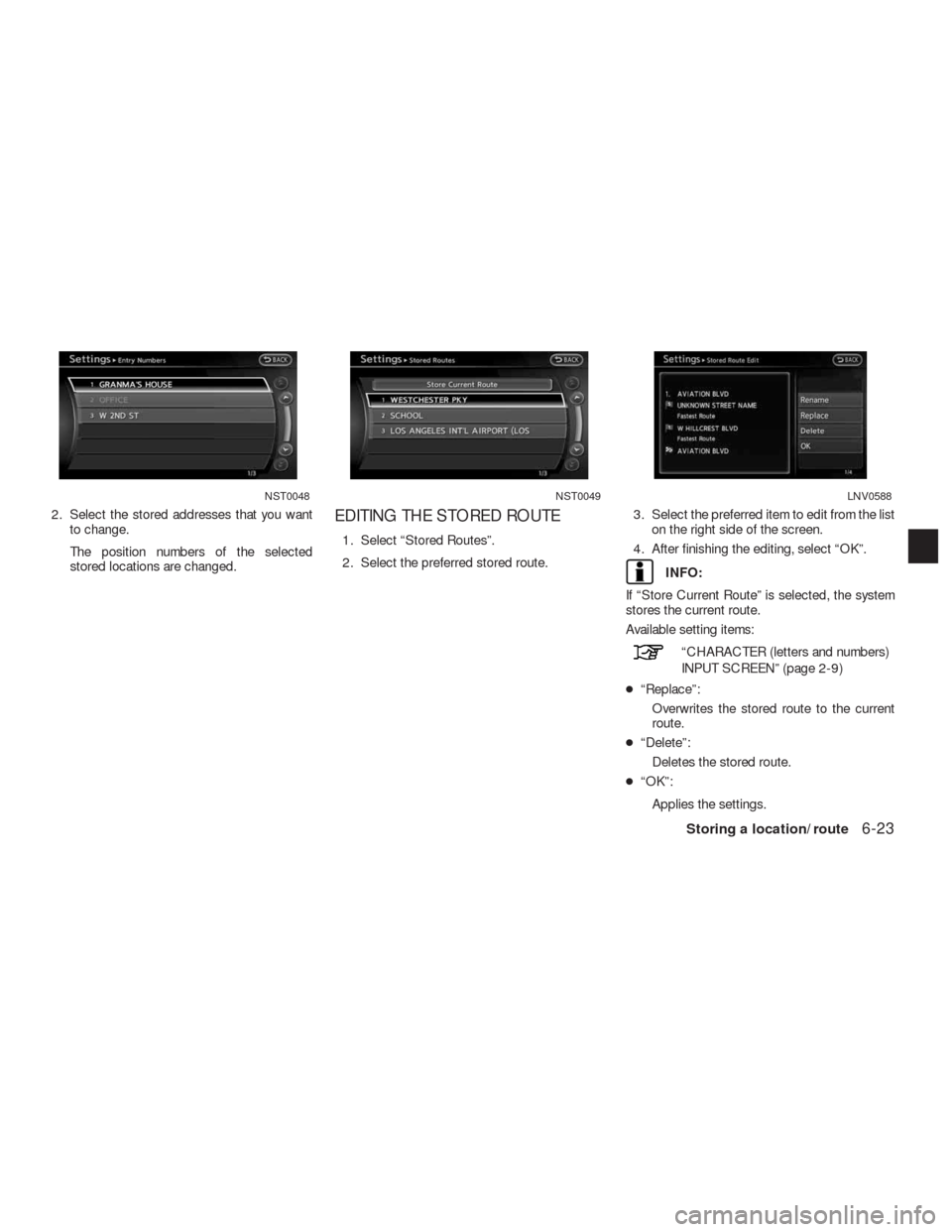

2. Select the stored addresses that you want
to change.
The position numbers of the selected
stored locations are changed.EDITING THE STORED ROUTE
1. Select “Stored Routes”.
2. Select the preferred stored route.3. Select the preferred item to edit from the list
on the right side of the screen.
4. After finishing the editing, select “OK”.
INFO:
If “Store Current Route” is selected, the system
stores the current route.
Available setting items:
“CHARACTER (letters and numbers)
INPUT SCREEN” (page 2-9)
●“Replace”:
Overwrites the stored route to the current
route.
●“Delete”:
Deletes the stored route.
●“OK”:
Applies the settings.
NST0048NST0049LNV0588
Storing a location/route6-23

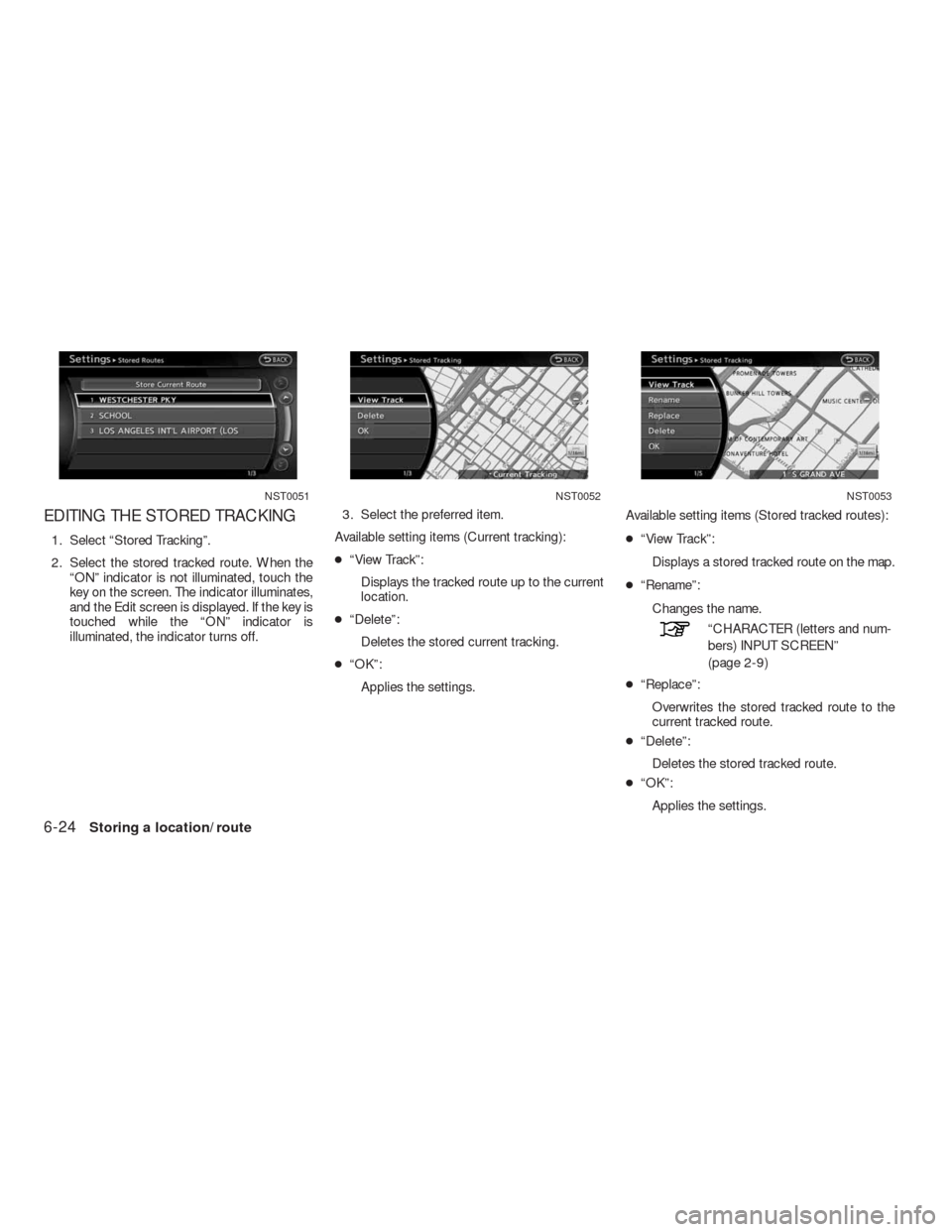

EDITING THE STORED TRACKING
1. Select “Stored Tracking”.
2. Select the stored tracked route. When the
“ON” indicator is not illuminated, touch the
key on the screen. The indicator illuminates,
and the Edit screen is displayed. If the key is
touched while the “ON” indicator is
illuminated, the indicator turns off.3. Select the preferred item.
Available setting items (Current tracking):
●“View Track”:
Displays the tracked route up to the current
location.
●“Delete”:
Deletes the stored current tracking.
●“OK”:
Applies the settings.Available setting items (Stored tracked routes):
●“View Track”:
Displays a stored tracked route on the map.
●“Rename”:
Changes the name.
“CHARACTER (letters and num-
bers) INPUT SCREEN”
(page 2-9)
●“Replace”:
Overwrites the stored tracked route to the
current tracked route.
●“Delete”:
Deletes the stored tracked route.
●“OK”:
Applies the settings.
NST0051NST0052NST0053
6-24Storing a location/route

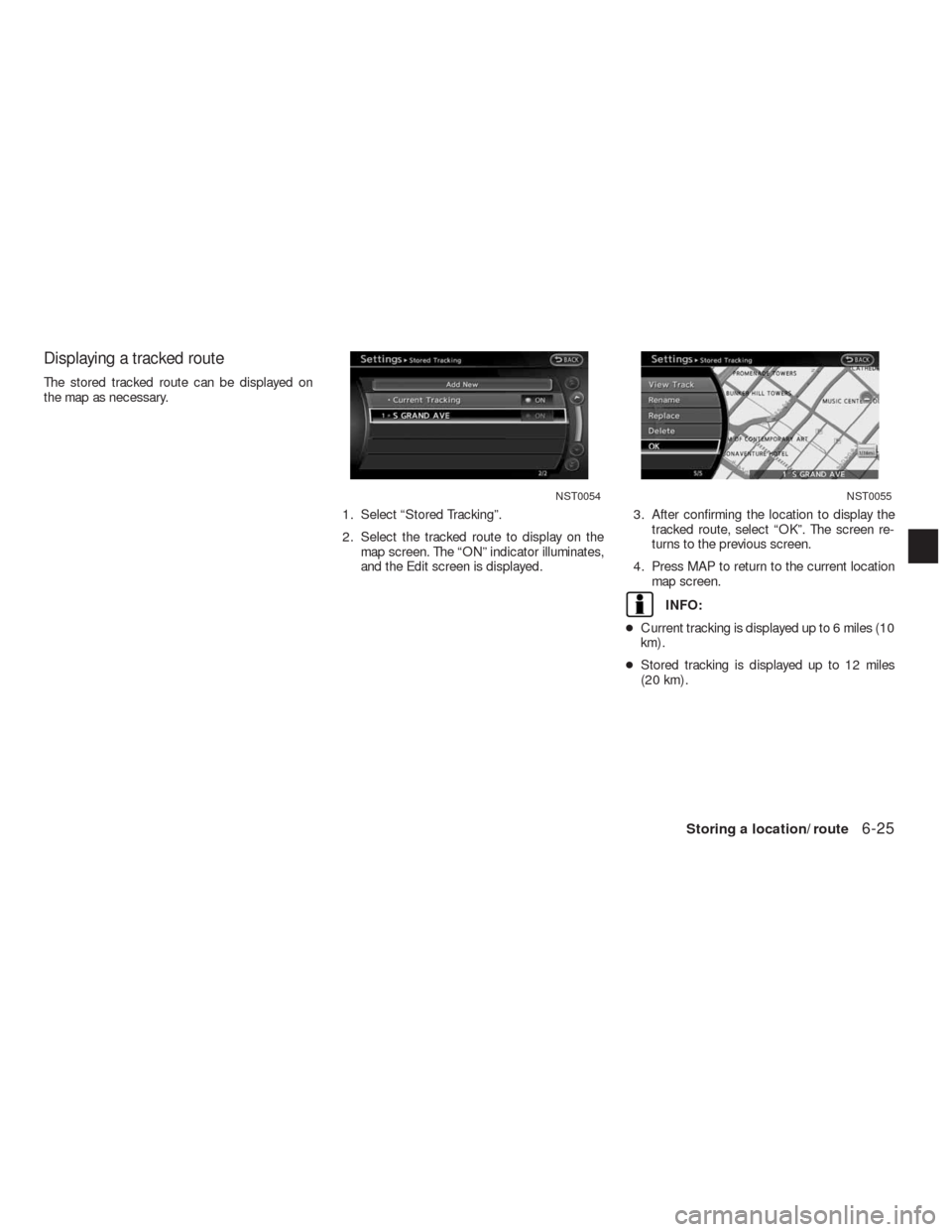

Displaying a tracked route
The stored tracked route can be displayed on
the map as necessary.
1. Select “Stored Tracking”.
2. Select the tracked route to display on the
map screen. The “ON” indicator illuminates,
and the Edit screen is displayed.3. After confirming the location to display the
tracked route, select “OK”. The screen re-
turns to the previous screen.
4. Press MAP to return to the current location
map screen.
INFO:
●Current tracking is displayed up to 6 miles (10
km) .
●Stored tracking is displayed up to 12 miles
(20 km) .
NST0054NST0055
Storing a location/route6-25

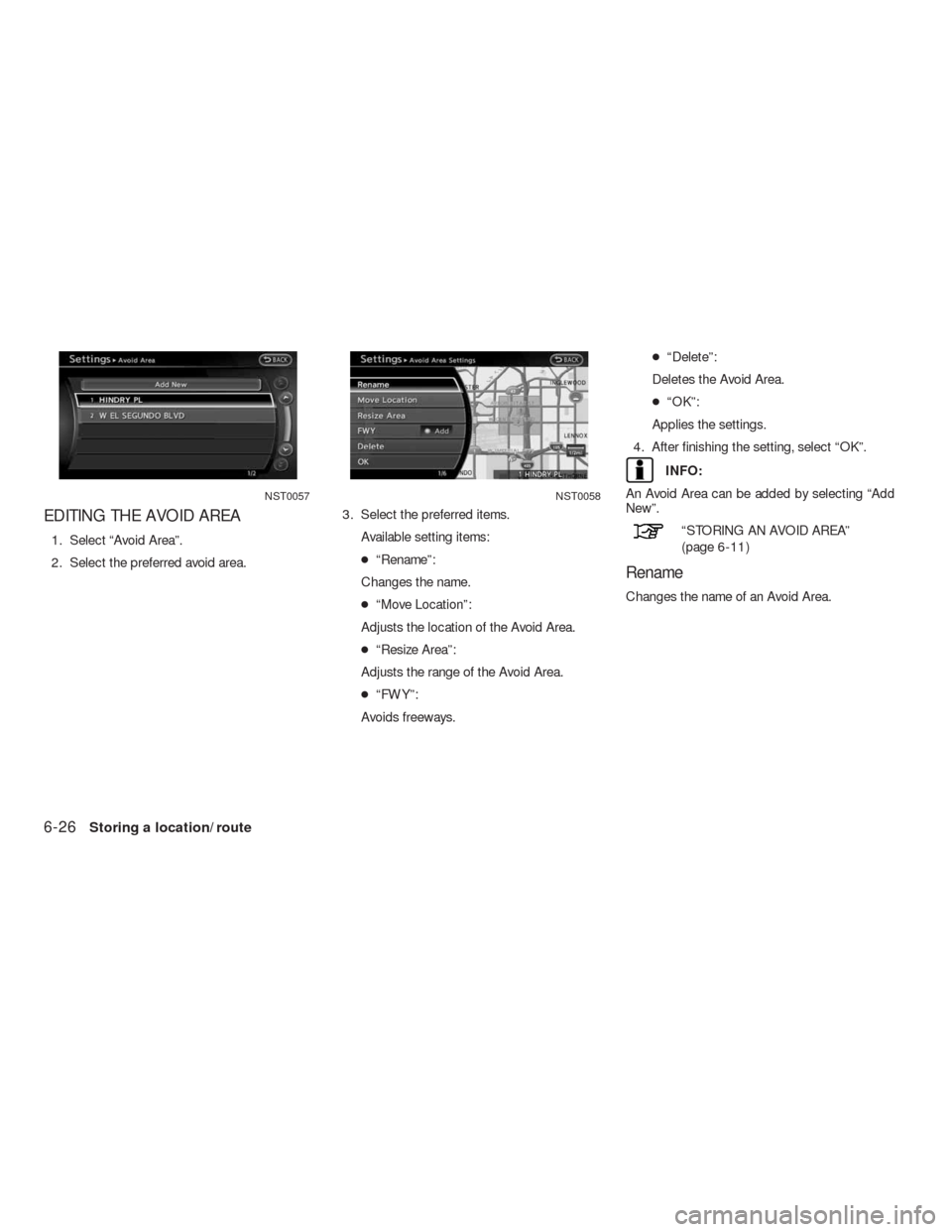

EDITING THE AVOID AREA
1. Select “Avoid Area”.
2. Select the preferred avoid area.3. Select the preferred items.
Available setting items:
●“Rename”:
Changes the name.
●“Move Location”:
Adjusts the location of the Avoid Area.
●“Resize Area”:
Adjusts the range of the Avoid Area.
●“FWY”:
Avoids freeways.●“Delete”:
Deletes the Avoid Area.
●“OK”:
Applies the settings.
4. After finishing the setting, select “OK”.
INFO:
An Avoid Area can be added by selecting “Add
New”.
“STORING AN AVOID AREA”
(page 6-11)
Rename
Changes the name of an Avoid Area.
NST0057NST0058
6-26Storing a location/route

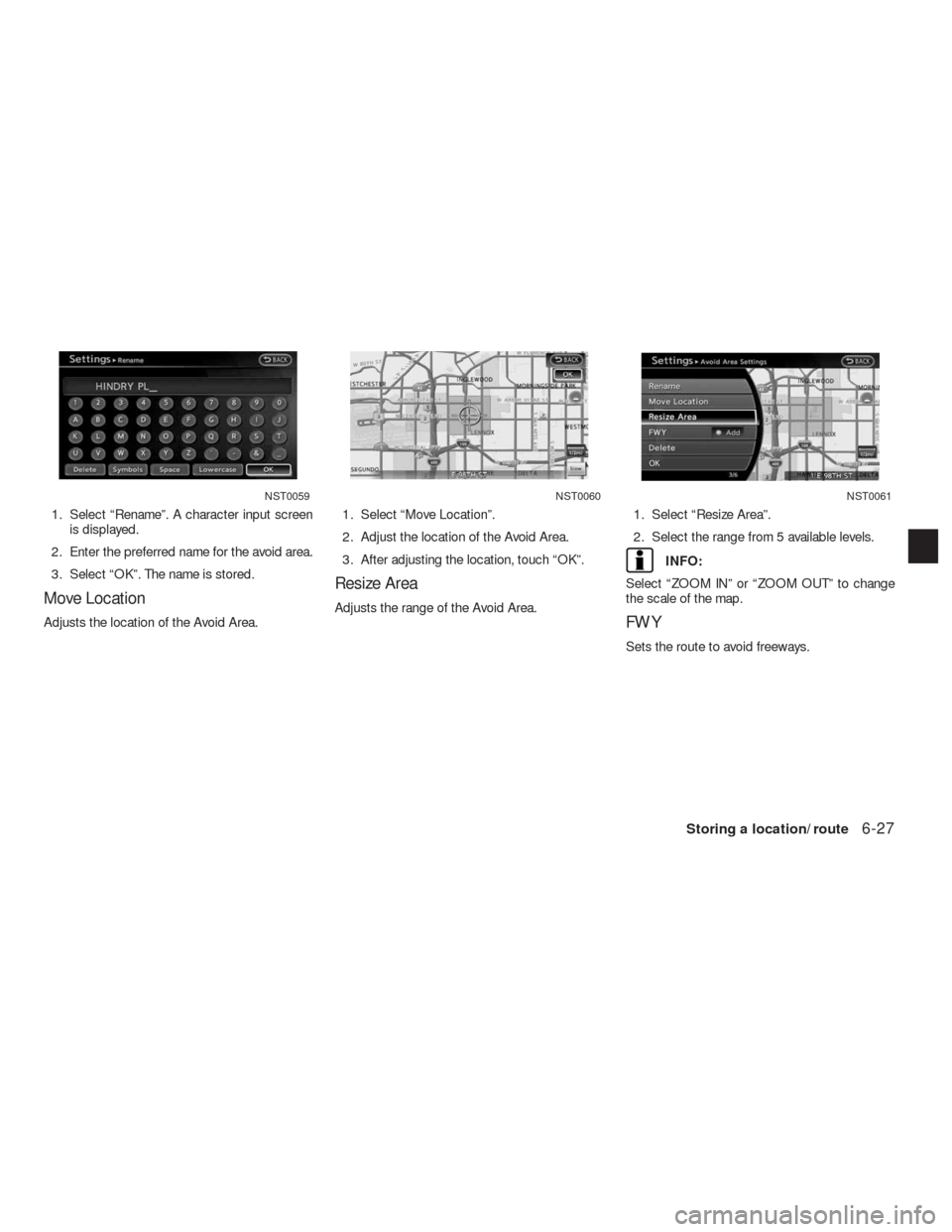

1. Select “Rename”. A character input screen
is displayed.
2. Enter the preferred name for the avoid area.
3. Select “OK”. The name is stored.
Move Location
Adjusts the location of the Avoid Area.1. Select “Move Location”.
2. Adjust the location of the Avoid Area.
3. After adjusting the location, touch “OK”.
Resize Area
Adjusts the range of the Avoid Area.1. Select “Resize Area”.
2. Select the range from 5 available levels.
INFO:
Select “ZOOM IN” or “ZOOM OUT” to change
the scale of the map.
FWY
Sets the route to avoid freeways.
NST0059NST0060NST0061
Storing a location/route6-27

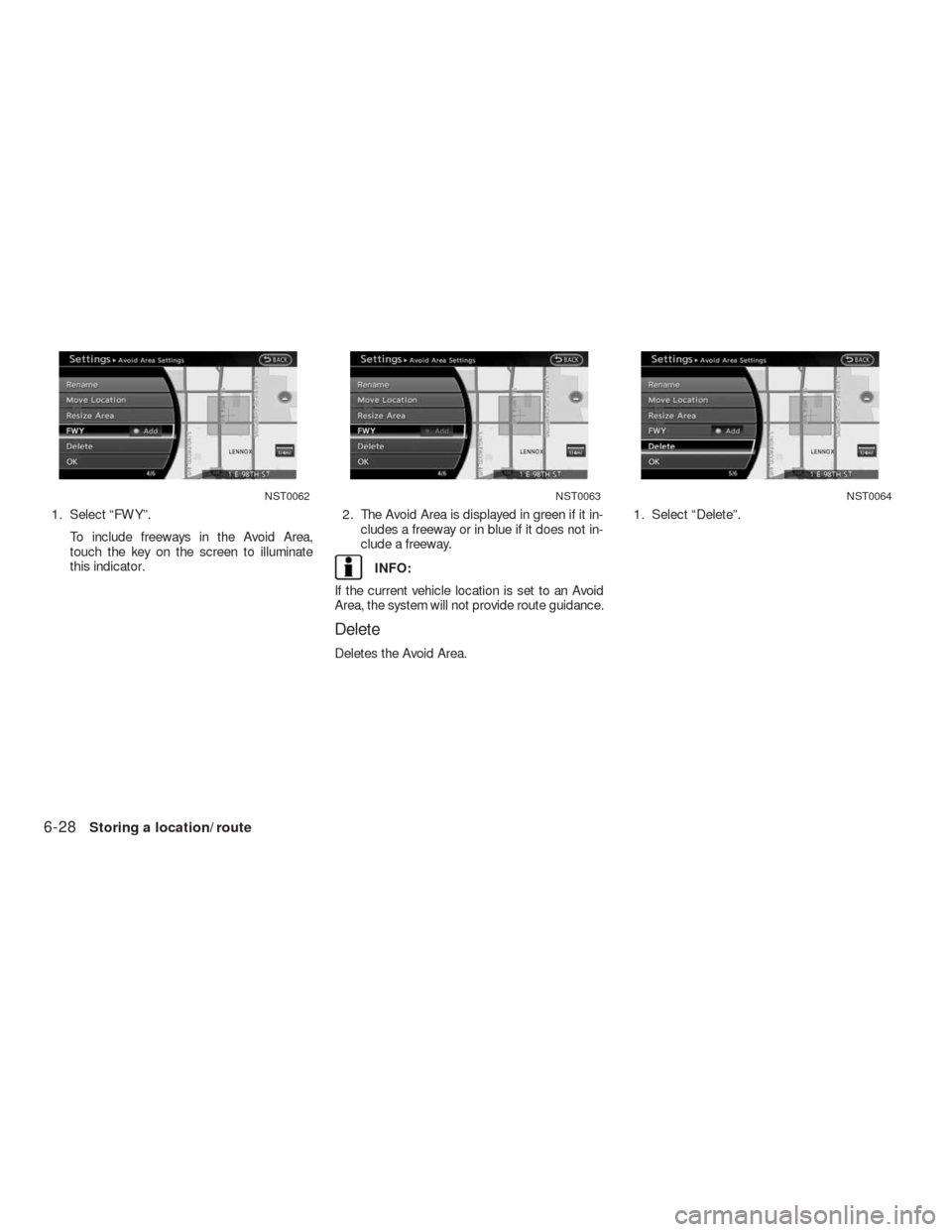

1. Select “FWY”.
To include freeways in the Avoid Area,
touch the key on the screen to illuminate
this indicator.2. The Avoid Area is displayed in green if it in-
cludes a freeway or in blue if it does not in-
clude a freeway.
INFO:
If the current vehicle location is set to an Avoid
Area, the system will not provide route guidance.
Delete
Deletes the Avoid Area.1. Select “Delete”.
NST0062NST0063NST0064
6-28Storing a location/route

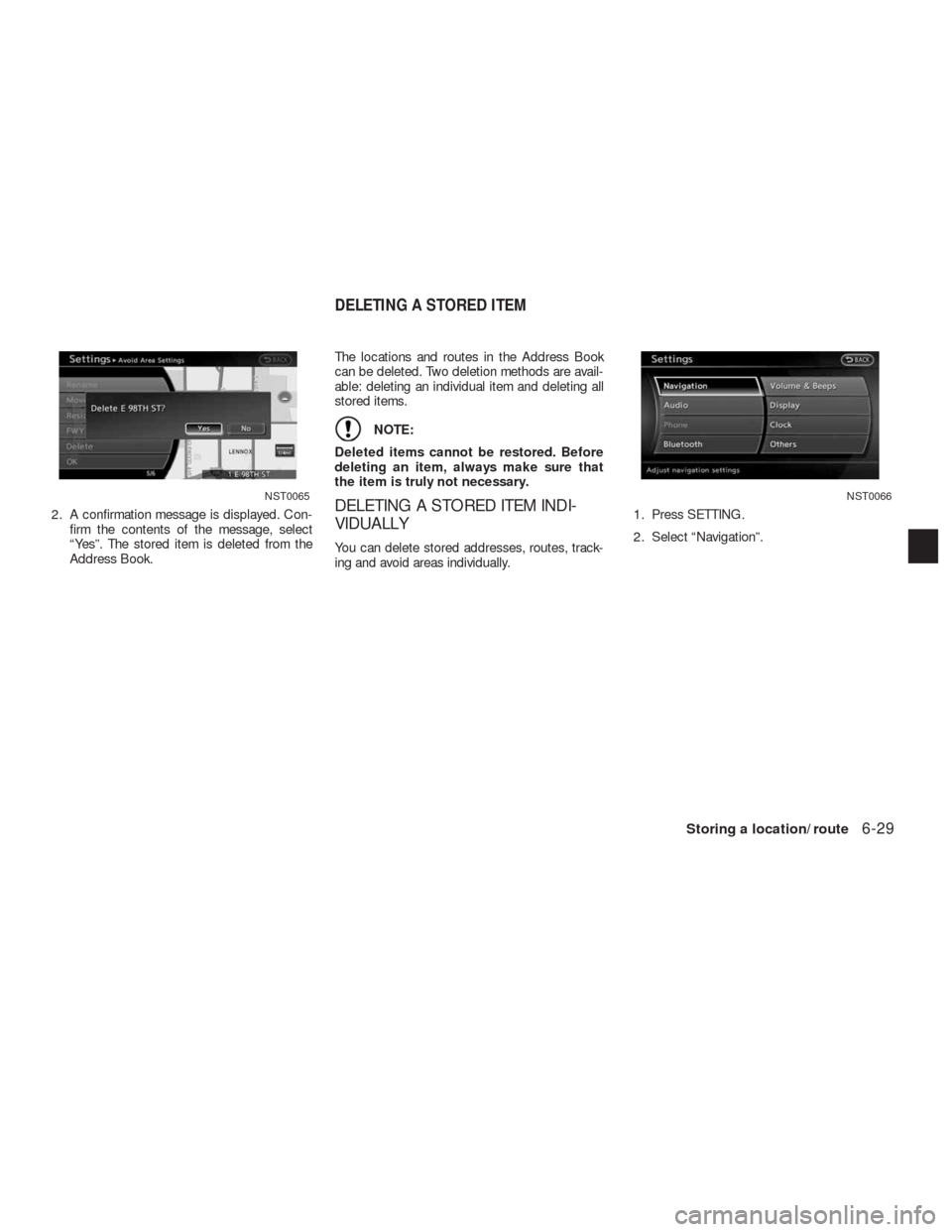

2. A confirmation message is displayed. Con-
firm the contents of the message, select
“Yes”. The stored item is deleted from the
Address Book.The locations and routes in the Address Book
can be deleted. Two deletion methods are avail-
able: deleting an individual item and deleting all
stored items.
NOTE:
Deleted items cannot be restored. Before
deleting an item, always make sure that
the item is truly not necessary.
DELETING A STORED ITEM INDI-
VIDUALLY
You can delete stored addresses, routes, track-
ing and avoid areas individually.1. Press SETTING.
2. Select “Navigation”.
NST0065NST0066
DELETING A STORED ITEM
Storing a location/route6-29
