2010 NISSAN ALTIMA COUPE Owners Manual

FRONT PARK/TURN/SIDEMARKER
LIGHT
Bulb replacement requires the removal of the
headlight assembly. If replacement is required,
see your NISSAN dealer.
EXTERIOR AND INTERIOR LIGHTS
ItemWattage (W)Bulb No.*1
Headlight assembly *2
Low (Halogen) 55H11
Low (Xenon) 35D2R
High 65H9
Park 5WY5W
Park/Turn 8/273457NAK
Sidemarker Sedan 5WY5W
Coupe 5W5W
Front fog light (if so equipped) *
255 H11
Step light —194
Rear combination light Tail/Stop 8/273157K
Turn 273156
Backup (reversing) Sedan 16921LF
Coupe 13912
License plate light *
25 W5W
High-mounted stop light *2
Inside (coupe) —LED
Inside (sedan) 18921
Spoiler (if so equipped) —LED
Front map light 8U89
Rear personal light 8U88
Trunk light 3.4158
Vanity mirror light —HTU–14v
Glove box light *
2——
*1Always check with the Parts Department at a NISSAN dealer for the latest parts information.
*
2See a NISSAN dealer for assistance.
8-28Maintenance and do-it-yourself

Coupe
1. Mirror-mounted turn signal light(if so equipped)
2. Interior light
3. Map light
4. Headlamp assembly
5. Fog light (if so equipped)
6. Step light
7. High-mount stoplight
8. Trunk light
9. License plate light
10. Rear combination light
WDI0626
Maintenance and do-it-yourself8-29

Sedan
1. Rear map light
2. Front map light
3. Step light
4. Headlamp assembly
5. Fog light (if so equipped)
6. High-mount stoplight (if so equipped)
7. Trunk light
8. Spoiler mounted stoplight(if so equipped)
9. Rear combination light
10. License plate light
11. Mirror-mounted turn signal light
(if so equipped)
WDI0680
8-30Maintenance and do-it-yourself

Replacement procedures
All other lights are either type A, B, C or D. When
replacing a bulb, first remove the lens, light
and/or cover.
Indicates bulb removal
Indicates bulb installationUse a cloth
1to protect the housing.
WDI0306
Step light
LDI0341
Maintenance and do-it-yourself8-31

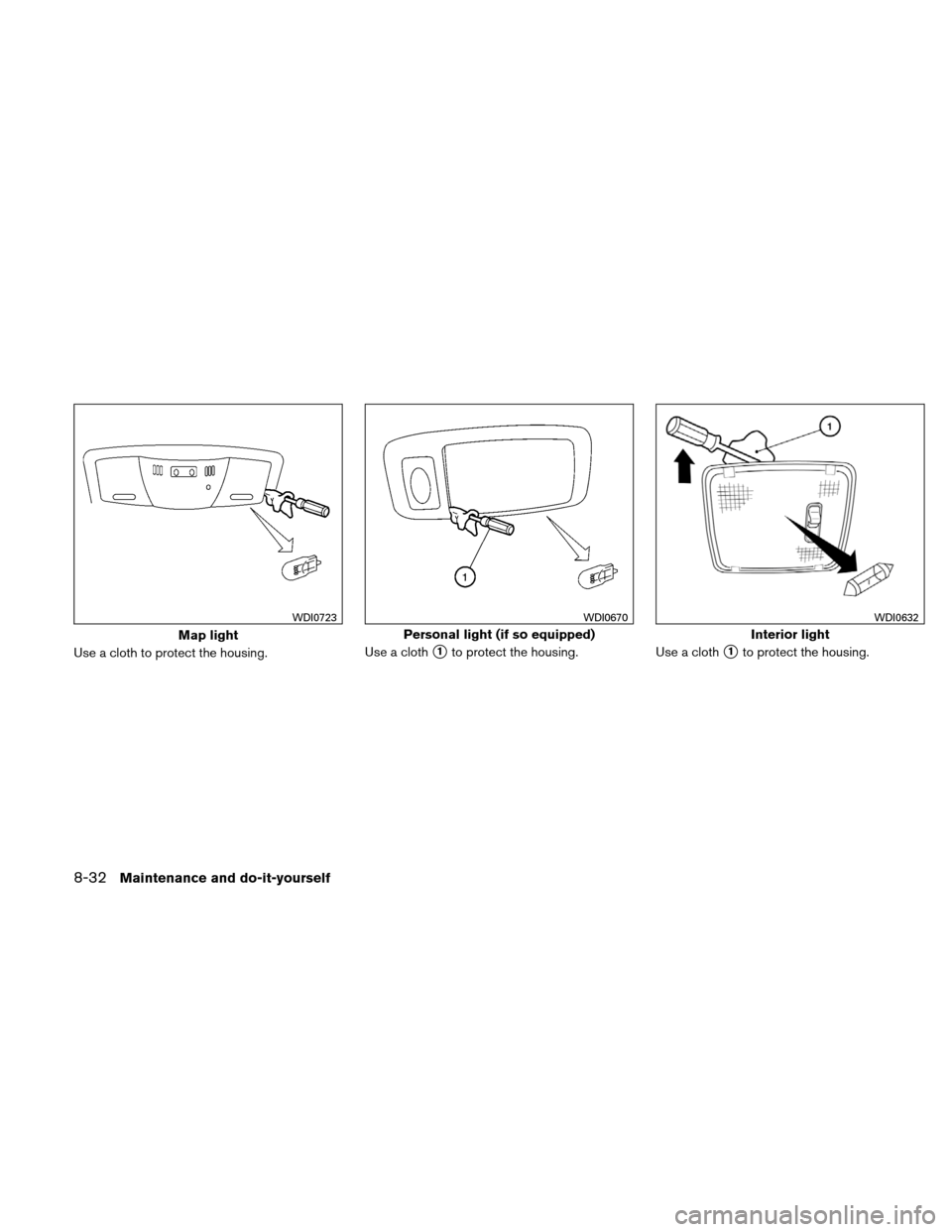

Use a cloth to protect the housing.Use a cloth1to protect the housing.
Use a cloth1to protect the housing.
Map light
WDI0723
Personal light (if so equipped)
WDI0670
Interior light
WDI0632
8-32Maintenance and do-it-yourself

Rear combination light
To access the bulbs in the rear combination light:
1Remove the fasteners. Carefully push back
the carpet.
2Remove the 2 nuts and pull out the rear
combination light.
3Rotate the bulb(s) counterclockwise and
pull out to remove:
ATurn signal light
BSidemarker light
CTail/stop light
DBackup light
WDI0635
Maintenance and do-it-yourself8-33

If you have a flat tire, see “Flat tire” in the
“In case of emergency” section of this
manual.
TIRE PRESSURE
Tire Pressure Monitoring System
(TPMS)
This vehicle is equipped with the Tire
Pressure Monitoring System (TPMS) . It
monitors tire pressure of all tires except
the spare. When the low tire pressure
warning light is lit, one or more of your
tires is significantly under-inflated.
The TPMS will activate only when the
vehicle is driven at speeds above 16 MPH
(25 km/h) . Also, this system may not de-
tect a sudden drop in tire pressure (for
example a flat tire while driving) .
For more details, refer to “Low tire pres-
sure warning light” in the “Instruments and
controls” section, “Tire Pressure Monitor-
ing System (TPMS)” in the “Starting and
driving” section, and “Flat tire” in the “In
case of emergency” section.
Trunk light
WDI0343
High-mounted stoplight (rear window)
WDI0320
WHEELS AND TIRES
8-34Maintenance and do-it-yourself

Tire inflation pressure
Check the tire pressures (including the
spare) often and always prior to long dis-
tance trips. The recommended tire pres-
sure specifications are shown on the
F.M.V.S.S./C.M.V.S.S. certification label
or the Tire and Loading Information label
under the “Cold Tire Pressure” heading.
The Tire and Loading Information label is
affixed to the driver side center pillar. Tire
pressures should be checked regularly
because:● Most tires naturally lose air over time.
● Tires can lose air suddenly when
driven over potholes or other objects
or if the vehicle strikes a curb while
parking.
The tire pressures should be checked
when the tires are cold. The tires are
considered COLD after the vehicle has
been parked for 3 or more hours, or driven
less than 1 mile (1.6 km) at moderate
speeds. Incorrect tire pressure, including un-
der inflation, may adversely affect
tire life and vehicle handling.
WARNING
● Improperly inflated tires can fail
suddenly and cause an accident.
● The Gross Vehicle Weight Rating
(GVWR) is located on the
F.M.V.S.S./C.M.V.S.S. certifica-
tion label. The vehicle weight ca-
pacity is indicated on the Tire and
Loading Information label (if so
equipped) . Do not load your ve-
hicle beyond this capacity. Over-
loading your vehicle may result in
reduced tire life, unsafe operat-
ing conditions due to premature
tire failure, or unfavorable han-
dling characteristics and could
also lead to a serious accident.
Loading beyond the specified ca-
pacity may also result in failure of
other vehicle components. ●
Before taking a long trip, or
whenever you heavily load your
vehicle, use a tire pressure gauge
to ensure that the tire pressures
are at the specified level.
● For additional information re-
garding tires, refer to “Important
Tire Safety Information” (US) or
“Tire Safety Information”
(Canada) in the Warranty Infor-
mation Booklet.
Maintenance and do-it-yourself8-35
