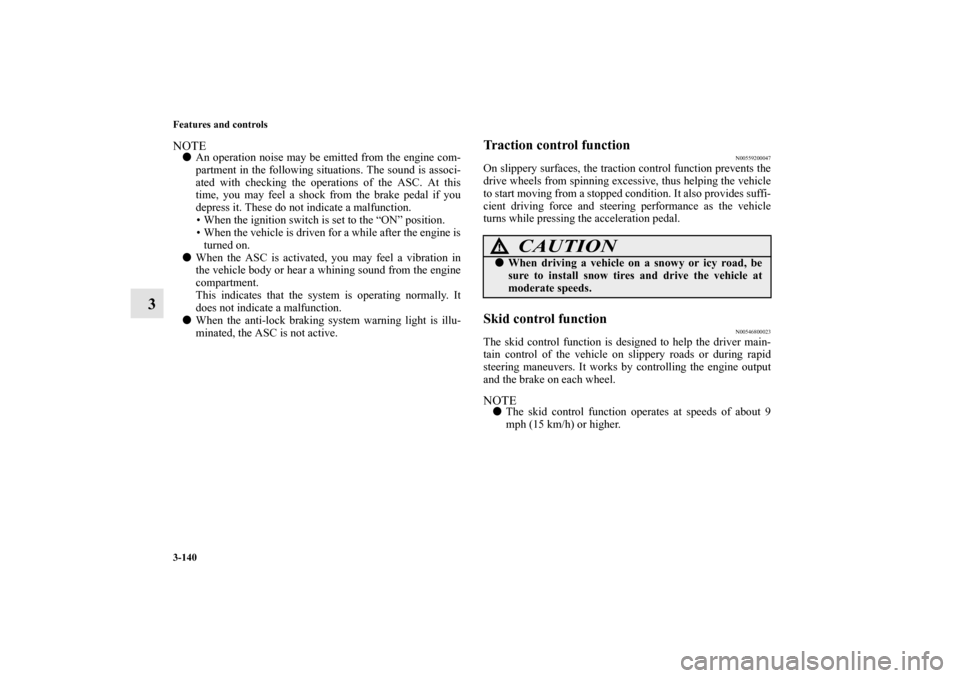

Page 235 of 658
3-140 Features and controls
3
NOTE
An operation noise may be emitted from the engine com-
partment in the following situations. The sound is associ-
ated with checking the operations of the ASC. At this
time, you may feel a shock from the brake pedal if you
depress it. These do not indicate a malfunction.
When the ignition switch is set to the “ON” position.
When the vehicle is driven for a while after the engine is
turned on.
When the ASC is activated, you may feel a vibration in
the vehicle body or hear a whining sound from the engine
compartment.
This indicates that the system is operating normally. It
does not indicate a malfunction.
When the anti-lock braking system warning light is illu-
minated, the ASC is not active.
Traction control function
N00559200047
On slippery surfaces, the traction control function prevents the
drive wheels from spinning excessive, thus helping the vehicle
to start moving from a stopped condition. It also provides suffi-
cient driving force and steering performance as the vehicle
turns while pressing the acceleration pedal.Skid control function
N00546800023
The skid control function is designed to help the driver main-
tain control of the vehicle on slippery roads or during rapid
steering maneuvers. It works by controlling the engine output
and the brake on each wheel.NOTE
The skid control function operates at speeds of about 9
mph (15 km/h) or higher.
CAUTION
!
When driving a vehicle on a snowy or icy road, be
sure to install snow tires and drive the vehicle at
moderate speeds.
BK0103001US.book 140 ページ ２００９年８月２０日 木曜日 午前１０時４５分

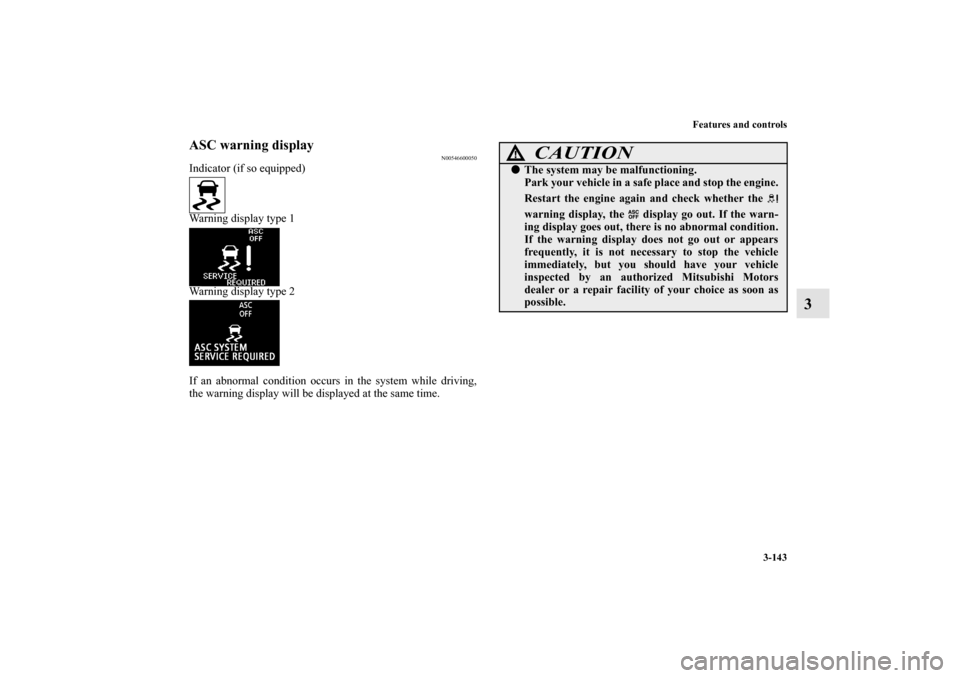

Page 238 of 658
Features and controls
3-143
3
ASC warning display
N00546600050
Indicator (if so equipped)
Warning display type 1
Warning display type 2
If an abnormal condition occurs in the system while driving,
the warning display will be displayed at the same time.
CAUTION
!
The system may be malfunctioning.
Park your vehicle in a safe place and stop the engine.
Restart the engine again and check whether the
warning display, the display go out. If the warn-
ing display goes out, there is no abnormal condition.
If the warning display does not go out or appears
frequently, it is not necessary to stop the vehicle
immediately, but you should have your vehicle
inspected by an authorized Mitsubishi Motors
dealer or a repair facility of your choice as soon as
possible.
BK0103001US.book 143 ページ ２００９年８月２０日 木曜日 午前１０時４５分

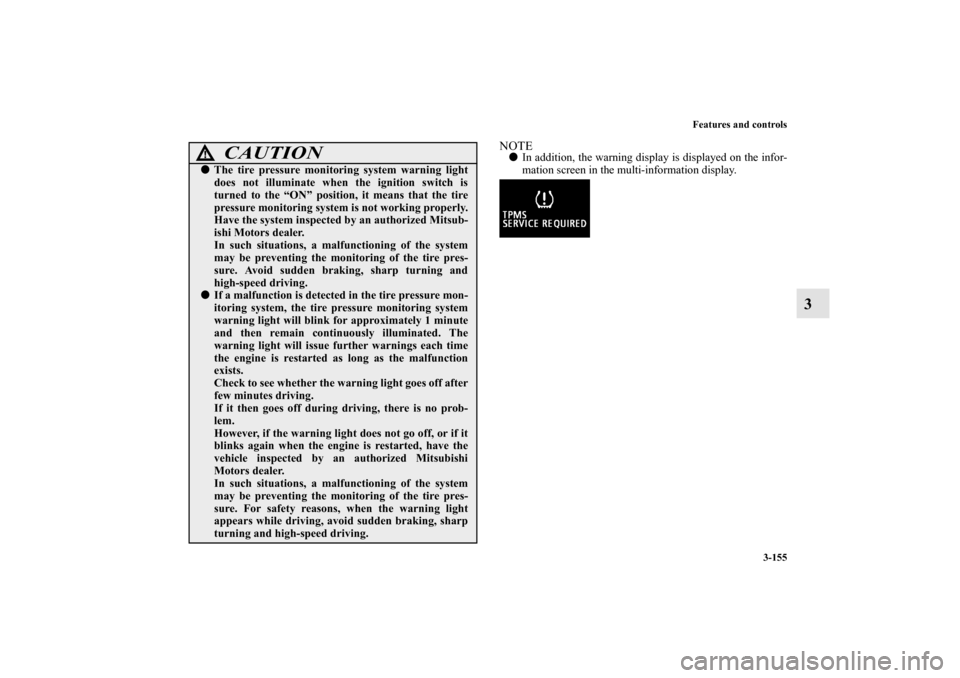

Page 250 of 658
Features and controls
3-155
3
NOTE
In addition, the warning display is displayed on the infor-
mation screen in the multi-information display.
CAUTION
!
The tire pressure monitoring system warning light
does not illuminate when the ignition switch is
turned to the “ON” position, it means that the tire
pressure monitoring system is not working properly.
Have the system inspected by an authorized Mitsub-
ishi Motors dealer.
In such situations, a malfunctioning of the system
may be preventing the monitoring of the tire pres-
sure. Avoid sudden braking, sharp turning and
high-speed driving.
If a malfunction is detected in the tire pressure mon-
itoring system, the tire pressure monitoring system
warning light will blink for approximately 1 minute
and then remain continuously illuminated. The
warning light will issue further warnings each time
the engine is restarted as long as the malfunction
exists.
Check to see whether the warning light goes off after
few minutes driving.
If it then goes off during driving, there is no prob-
lem.
However, if the warning light does not go off, or if it
blinks again when the engine is restarted, have the
vehicle inspected by an authorized Mitsubishi
Motors dealer.
In such situations, a malfunctioning of the system
may be preventing the monitoring of the tire pres-
sure. For safety reasons, when the warning light
appears while driving, avoid sudden braking, sharp
turning and high-speed driving.
BK0103001US.book 155 ページ ２００９年８月２０日 木曜日 午前１０時４５分
Page 297 of 658
3-202 Features and controls
3
Ty p e 2
Type A Type B1- Position indicator → P.3-214
2- High beam indicator → P.3-214
3- Charging system warning light → P.3-216
4- Turn signal indicator/hazard warning light → P.3-214
5- Front fog light indicator → P.3-214
6- Anti-lock braking system warning light → P.3-136
7- Tire pressure monitoring system warning light → P.3-154
8- Brake warning light → P. 3 - 2 1 4
9- Cruise control indicator → P.3-14610- Seat belt reminder/warning light → P. 2 - 2 0
11- Supplemental Restraint System (SRS) warning light
→ P.2-46
12- Engine malfunction indicator (“SERVICE ENGINE SOON”
or “Check engine light”) → P.3-215
13- Active Stability Control (ASC) indicator → P.3-175
14- Information screen display list → P. 3 - 2 0 3
BK0103001US.book 202 ページ ２００９年８月２０日 木曜日 午前１０時４５分
Page 304 of 658
Features and controls
3-209
3
One of the doors or the rear hatch is not
completely closed.
The open door or rear hatch is dis-
played.Close the door or rear hatch.
Refer to “Door ajar warning display
(With ignition switch in the “OFF”
position)” on page 3-172.
The engine is overheated.Park the vehicle in a safe place and
take corrective measures.
Refer to “Engine overheating” on page
6-5.
The continuously variable transmission
(CVT) fluid or Twin Clutch SST fluid
temperature is increased.Park the vehicle in a safe place and
take corrective measures.
Refer to “Continuously variable trans-
mission (CVT)” on page 3-93.
Refer to “Twin Clutch SST” on page 3-
104.
The seat belt is not fastened when the
ignition switch is in the “ON” position.Fasten your seat belt properly.
Refer to “Driver’s seat belt
reminder/warning light and display” on
page 2-20.
There is a fault in the fuel system.Contact an authorized Mitsubishi
Motors dealer or a repair facility of
your choice to have the system
checked.
Screen type 1
Screen type 2
Cause
Do this (Reference)
BK0103001US.book 209 ページ ２００９年８月２０日 木曜日 午前１０時４５分

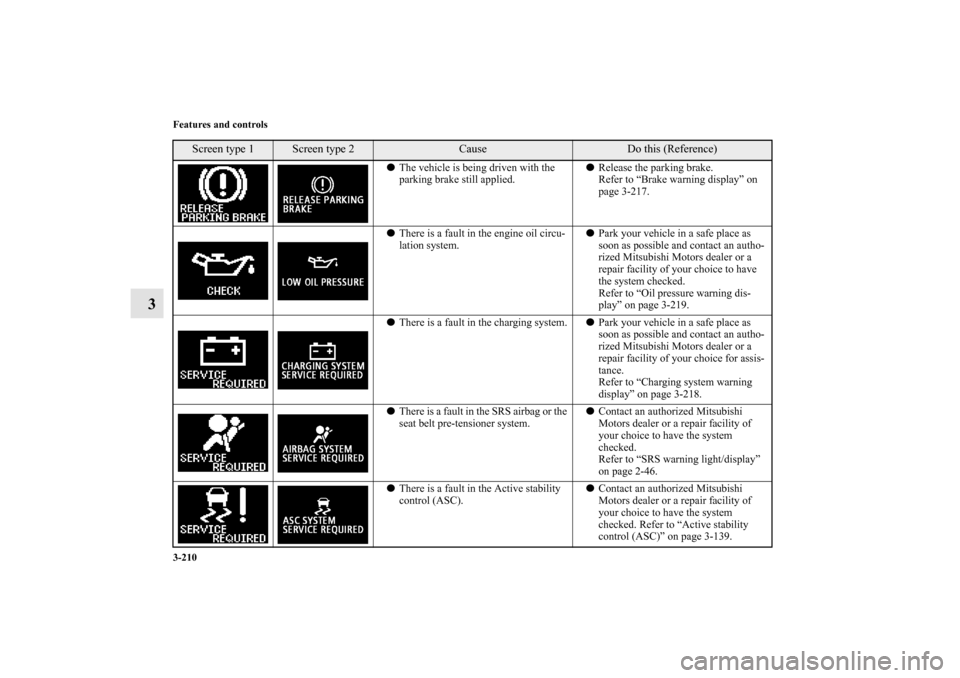

Page 305 of 658
3-210 Features and controls
3
The vehicle is being driven with the
parking brake still applied.Release the parking brake.
Refer to “Brake warning display” on
page 3-217.
There is a fault in the engine oil circu-
lation system.Park your vehicle in a safe place as
soon as possible and contact an autho-
rized Mitsubishi Motors dealer or a
repair facility of your choice to have
the system checked.
Refer to “Oil pressure warning dis-
play” on page 3-219.
There is a fault in the charging system.Park your vehicle in a safe place as
soon as possible and contact an autho-
rized Mitsubishi Motors dealer or a
repair facility of your choice for assis-
tance.
Refer to “Charging system warning
display” on page 3-218.
There is a fault in the SRS airbag or the
seat belt pre-tensioner system.Contact an authorized Mitsubishi
Motors dealer or a repair facility of
your choice to have the system
checked.
Refer to “SRS warning light/display”
on page 2-46.
There is a fault in the Active stability
control (ASC).Contact an authorized Mitsubishi
Motors dealer or a repair facility of
your choice to have the system
checked. Refer to “Active stability
control (ASC)” on page 3-139.
Screen type 1
Screen type 2
Cause
Do this (Reference)
BK0103001US.book 210 ページ ２００９年８月２０日 木曜日 午前１０時４５分

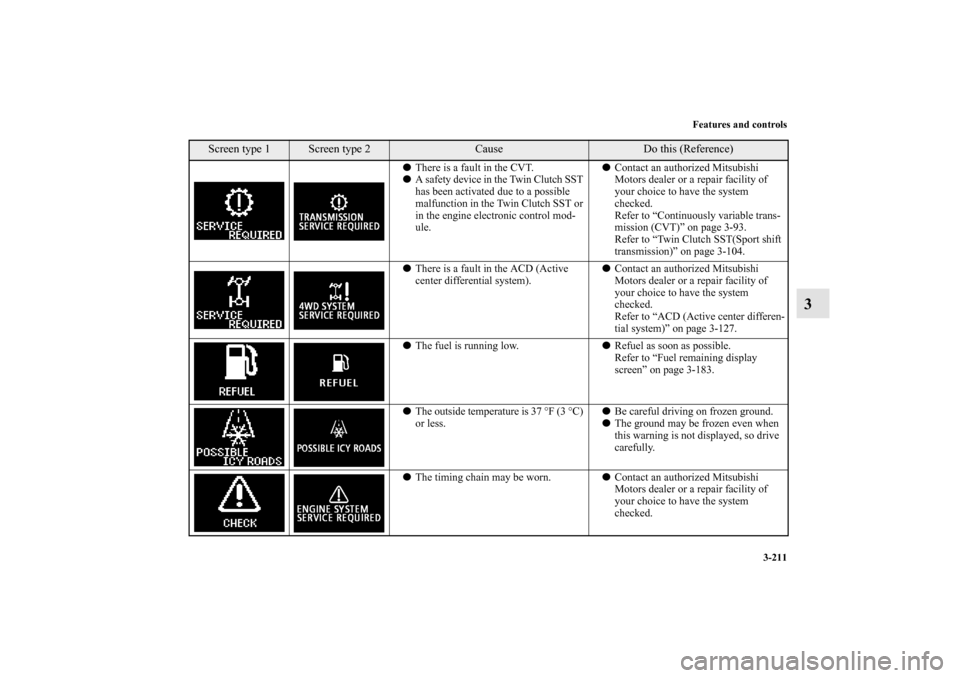

Page 306 of 658
Features and controls
3-211
3
There is a fault in the CVT.
A safety device in the Twin Clutch SST
has been activated due to a possible
malfunction in the Twin Clutch SST or
in the engine electronic control mod-
ule.Contact an authorized Mitsubishi
Motors dealer or a repair facility of
your choice to have the system
checked.
Refer to “Continuously variable trans-
mission (CVT)” on page 3-93.
Refer to “Twin Clutch SST(Sport shift
transmission)” on page 3-104.
There is a fault in the ACD (Active
center differential system).Contact an authorized Mitsubishi
Motors dealer or a repair facility of
your choice to have the system
checked.
Refer to “ACD (Active center differen-
tial system)” on page 3-127.
The fuel is running low.Refuel as soon as possible.
Refer to “Fuel remaining display
screen” on page 3-183.
The outside temperature is 37 °F (3 °C)
or less.Be careful driving on frozen ground.
The ground may be frozen even when
this warning is not displayed, so drive
carefully.
The timing chain may be worn.Contact an authorized Mitsubishi
Motors dealer or a repair facility of
your choice to have the system
checked.
Screen type 1
Screen type 2
Cause
Do this (Reference)
BK0103001US.book 211 ページ ２００９年８月２０日 木曜日 午前１０時４５分
Page 309 of 658
3-214 Features and controls
3Indicators
N00519900156
Turn signal indicators/Hazard warning lights
N00520000229
The arrows will flash in time with the corresponding exterior
turn signals when the turn signal lever is used.
Both arrows will flash when the hazard warning flasher switch
is pressed.NOTE
If the indicator flashes faster than usual or if the indicator
stays on without flashing, check for a malfunctioning turn
signal light bulb or turn signal connection.
High beam indicator
N00520100086
A blue light comes on when the headlights are on high beam.Front fog light indicator
N00520200218
This indicator comes on while the front fog lights are on.Position indicator
N00551300026
This indicator light illuminates while the position lights are on.
Warning lights
N00520300147
Brake warning light
N00520400366
When the ignition switch is turned to the “ON” position, this
indicator normally comes on and goes out a few seconds later.
A warning is also displayed in the multi-information display.
The warning light also illuminates after starting the engine
under the following conditions:
When the parking brake is still applied.
When the brake fluid level is low.
When the brake system circuit is not working properly.
Before driving, be sure that the parking brake is fully released
and brake warning light is off.
CAUTION
!
If the brake warning light and the anti-lock braking
system warning light are illuminated at the same
time, the braking force distribution function will not
operate, so the vehicle may be destabilized during
sudden braking under the following conditions. When the brake warning light does not go out even
when the parking brake is released.
When the brake warning light stays on while driv-
ing.
If the above occurs, avoid sudden braking and
high-speed driving. Park the vehicle in a safe
place, and contact an authorized Mitsubishi
Motors dealer or a repair facility of your choice as
soon as possible.
