2010 MITSUBISHI LANCER key

Basic Method 3-3
Destination
NOTE One of the ve most
recently selected
cities from the
corresponding state
can be selected by
touching [Last 5] of “City”.
eng_a048
5 Input the city name
>>> “How to Enter Text” (page 2-13)
eng_a047
NOTE If there is only one candidate when a character is
input for the city name, go to step 6.
 If there are ve candidates or less when a character
is input for the city name, a list is displayed and a
city can be selected from the list.
 Touch [List] to
select a city from
the list.
eng_a049
NOTE Touch [Keyword] to
display only the city
names that include
the input letters.
The city can then
be selected from
this list.
eng_a050
 Touch [Zip Code]
to input the zip
code and specify
the address. Note
that [Last 5] is not
stored for the zip
code.
eng_a051
If there is only one candidate when a character is
input for the zip code, go to step 6.
If there are ve candidates or less when a character
is input for the zip code, a list is displayed and a zip
code can be selected from the list. Touch [List] on
the “Zip Code
Input” screen after
inputting a character
to display only
the zip codes that
start with the input
eng_a052
character. The zip code can then be selected from
this list.
6 Touch the “Street” button
NOTE
 One of the ve most recently selected streets from
the corresponding state and city can be selected by
touching [Last 5] of “Street”. 7 Input the street name
>>> “How to Enter Text” (page 2-13)
eng_a053
NOTE If there is only one candidate when a character is
input for the street name, go to step 8.
 If there are ve candidates or less when a character
is input for the street name, a list is displayed and a
street can be selected from the list.
 Touch [List] to
select a street from
the list.
eng_a054
 Touch [Keyword] to
display only the street
names that include
the input letters. The
street can then be
selected from this list.
eng_a055









Basic Method 3-4 8 Touch [Set]
eng_a056
>>> Continued at “Destination Setting” (page 3-12)NOTEThe house number or intersection name can then be
speci ed to set a more detailed address. Both cannot
be speci ed.
 Touch [All House Numbers] to set a detailed address
by inputting the house number.
>>> “House Number Input” (page 3-4) Touch [All Intersections] to set a detailed address by
inputting the intersection name.
>>> “Intersection Input” (page 3-5)
House Number InputThe house number can be input to set a detailed
address. 1
Input the “State”, “City” and
“Street” in
“From Address/Intersection”
(page 3-2)
2 Touch the “House #” button
3 Input the house number
>>> “How to Enter Text” (page 2-13)
eng_a057
NOTE Letters can also be
input by touching
[Keyboard].
eng_a058
Touch [Numeric Input] to return to the original
numeric input screen.
4 Touch [Set]
eng_a059
5 Touch [Set]
eng_a060
>>> Continued at “Destination Setting” (page 3-12)









Advanced Search 3-9
Destination
4 Touch the desired POI
eng_a077
>>> Continued at “Destination Setting” (page 3-12)NOTE Touch [Refresh] to search again.
 Touch [Info] to
display a map of
the vicinity and
corresponding
information.
eng_a078
From the Scroll MenuPOIs in the vicinity of a specified location can be
searched for from the scroll menu. 1 Scroll the map and place the
cursor on the location of the desired
facility, and press the [ENT] key
eng_a079
2 Touch [Nearby POI ]
The remaining operations are the same as from step 2
of “Nearby POI
” (page 3-8)
.
eng_a080-2
POI along Route
Searching for POI along the set route. A
maximum of 100 POIs can be searched
for.
1 Display the “Advanced Search”
menu and touch [POI along Route]
The remaining operations are the same as from step 2
of “Nearby POI ” (page 3-8)
.
POI by Dest./Way Point
Searching for POI in the vicinity of the set
destination/way point.
A maximum of 100 POIs can be searched
for within a range of approximately 60
miles (100km) from the destination or way
point. 1 Display the “Advanced Search”
menu and touch [POI by Dest./WP]
2 Touch the destination or way point
eng_a081
The remaining operations are the same as from step 2
of “Nearby POI ” (page 3-8)
.
NOTE Touch [Info] to display
a map of the vicinity
and corresponding
information.
eng_a082









Storing a New Location 5-1
Address Book
Address Book
Storing a New Location
If frequently visited locations are stored in
advance in the address book, the route to the
stored location can be calculated.
A maximum of 99 locations can be stored.
From the Navi Menu
Storing a location from the Navi Menu.
1 Search for the location
>>> “Destination” (page 3-1) 2 Touch [Address Book]
eng_a093
The information screen for the location to be stored is
displayed. 3 Touch [Set to Address Book]
eng_a098
The displayed location is stored in the address book.NOTE Stored information other than “State” can be edited.
When editing an icon or name, perform in the same
way as from
“Editing a Location” (page 5-4)
.
From the Scroll Menu
Storing a location from the scroll menu.
1 Scroll the map and place the
cursor on the stored location, and
press the [ENT] key
eng_a023
2 Touch [Address Book]
eng_a024-2
The information screen for the location to be stored is
displayed.NOTE If there are several
POIs in the scroll,
a list is displayed,
and the POIs to be
registered can be
selected.
eng_a127









Audio Functions 6-3
Audio
Switching to Audio Screen
Audio screens for all media are displayed
from the Navi screen.
NOTE Set the volume so that sound outside the vehicle
can be heard while driving, so as not to interfere with
safe driving.
 If performing operations while driving, make sure not
to hinder safe driving.
 To use [CD] or [DVD], a disk must be inserted into
the device beforehand. 1 Press the [MODE] key
2 Touch one of the items
eng_a310

eng_a313
NOTE If the [PWR] key or [AUDIO] key is pressed when the
audio has been turned OFF, the A/V screen from
before the audio was turned OFF is displayed.
Ending Audio
1 Press the [PWR] key
Playback is stopped and the audio is turned OFF.NOTE Press the [PWR] key again to resume play from
where it stopped.
Adjusting the Volume
The volume can be adjusted within a
range of 46 levels, including mute.
NOTE Set the volume so that sound outside the vehicle
can be heard while driving, so as not to interfere with
safe driving.
 If the playback volume is too loud, distortion may
occur. If this occurs, reduce the volume. 1 Press the [VOL + ] key
eng_a311
The volume is increased.
2 Press the [VOL - ] key
eng_a312
The volume is decreased.
Displaying the Navi Screen
1 Press the [NAVI] key
eng_a313

eng_a302
The current location screen is displayed.









Disk Handling 6-4
Disk Handling
Inserting and Removing Disks
This section explains how to insert music
CDs, MP3/WMA disks (CD-R/RW), and
DVDs (DVD-VIDEO) into the MMCS.
Inserting a disk
1 Press the [OPEN] key
Monitor Panel
eng_mngi474a
Slide open the monitor panel to reveal the disk slot. 2 Insert a disk
eng_mngi475a
Disk
Label side
Make sure the disk label is on top when inserting into
the slot. When the disk is taken automatically, release
your hand.
Removing a disk
1 Press the [DISC
] key
NOHJB
%
*4
$
The disk is ejected automatically to the disk removal
position. Remove the disk. 2 Press the [OPEN] key
Slide the monitor panel closed to return the MMCS to
its original state.
CAUTION
 When inserting or removing disks, operate it while
parked in a safe location, and do not stop in no-
parking zones. Do not insert hands, ngers, or other foreign objects
into the slot. This may cause injury, smoke, or re. Take care not to pinch your fingers, etc., when
opening or closing the monitor panel.
 Make sure the monitor panel is closed while driving. Do not leave the monitor panel open, and do not
place any objects on top of the monitor panel.
 The monitor panel cannot be closed when a disk
is in the disk removal state (i.e., partially ejected)
from the disk slot, but depending on the disk state,
it may not be possible to detect that a disk has
been ejected. If the monitor panel is closed while
an undetected ejected disk is still in the slot, there
is a risk that either the disk or the device will be
damaged. When closing the monitor panel, check
that there is no ejected disk in the disk slot before
closing.
 Do not press the [DISC] key while the monitor
panel is opening or closing. The disk or the MMCS
may be damaged.









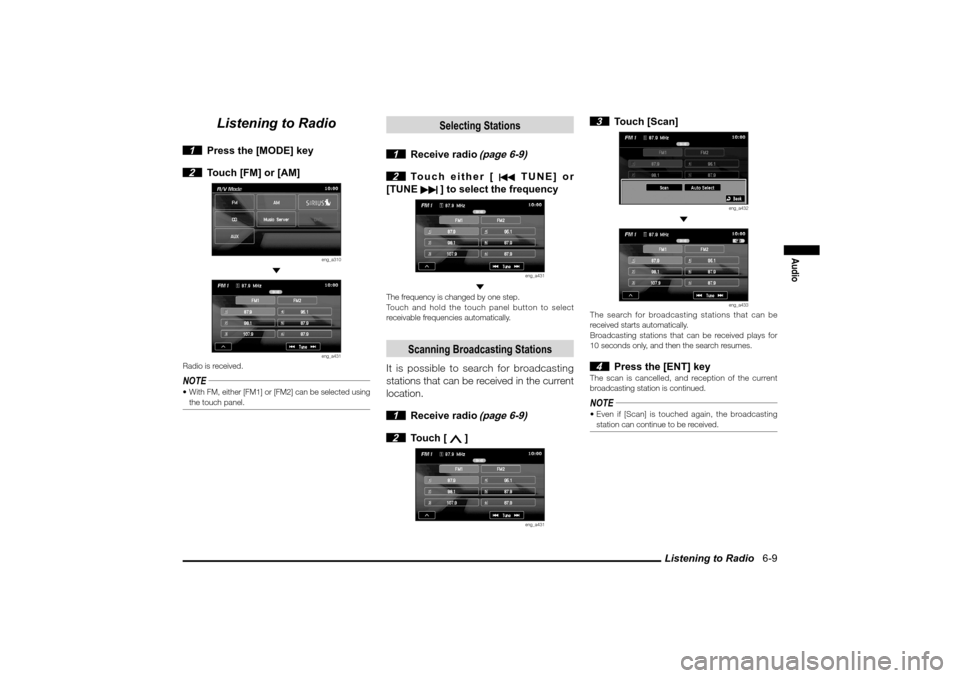

Listening to Radio 6-9
Audio
Listening to Radio
1 Press the [MODE] key
2 Touch [FM] or [AM]
eng_a310

eng_a431
Radio is received.NOTE With FM, either [FM1] or [FM2] can be selected using
the touch panel.
Selecting Stations
1 Receive radio
(page 6-9)
2
Touch either [
TUNE] or
[TUNE
] to select the frequency
eng_a431

The frequency is changed by one step.
Touch and hold the touch panel button to select
receivable frequencies automatically.
Scanning Broadcasting Stations
It is possible to search for broadcasting
stations that can be received in the current
location.
1 Receive radio
(page 6-9)
2 Touch [
]
eng_a431
3 Touch [Scan]
eng_a432

eng_a433
The search for broadcasting stations that can be
received starts automatically.
Broadcasting stations that can be received plays for
10 seconds only, and then the search resumes. 4 Press the [ENT] key
The scan is cancelled, and reception of the current
broadcasting station is continued.NOTE Even if [Scan] is touched again, the broadcasting
station can continue to be received.









Listening to SIRIUS 6-13
Audio
Selecting Stations
1 Press the [MODE] key, and touch
[SIRIUS]
eng_a310
NOTE If SIRIUS has already been selected, the band is
switched. 2 Touch either [
Channel] or
[Channel
] to select the channel to
be received
eng_a440

The channels is changed one channel at a time.
Touch and hold one of these buttons to continuously
change the incoming channel. Release the button to
stop on a channel.
Selecting a Category to Be Received
1 Press the [MODE] key, and touch
[SIRIUS]
2 Touch [Category]
eng_a440
The category list is displayed. 3 Touch the category button
eng_a439
The list of channels within the selected category is
displayed. 4 Touch the channel button
eng_a441

The relevant channel is started to be received.
Scanning
It is possible to search for channels that
can be received in the current location.
Scanning ChannelsScan all channels. 1 Press the [MODE] key, and touch
[SIRIUS]
eng_a310
2 Touch [
]
eng_a440
