3-86 Features and controls
3
Starting the engine
N00542200061
[For vehicles equipped with the F.A.S.T.-key]
For information on operations for vehicles equipped with the
F.A.S.T.-key, refer to “F.A.S.T.-key: Starting the engine” on
page 3-31.
[Except for vehicles equipped with the F.A.S.T.-key]
Your vehicle is equipped with an electronically controlled fuel
injection system, which automatically controls the release of
fuel. There is usually no need to depress the accelerator pedal
when starting the engine.
The starter should not be run for more than 15 seconds at a
time.
To prevent battery drain, wait a few seconds between attempts
to restart the engine. Normal conditionTo start your vehicle:
Make sure all occupants are properly seated with seat belts fas-
tened.
1. Insert the ignition key.
2. Make sure the parking brake is applied.
3. Press and hold the brake pedal down with your right foot.
4. Press and hold the clutch pedal all the way down (manual
transaxle).NOTE

For models equipped with a manual transaxle, the starter
will not operate unless the clutch pedal is fully depressed
(Clutch interlock). This is a safety feature.5. On vehicles with manual transaxle, place the gearshift
lever in the “N” (Neutral) position.
On vehicles with Twin Clutch SST, make sure the gear-
shift lever is in the “P” (PARK) position.
NOTE

On vehicles with Twin Clutch SST, the starter will not
operate unless the gearshift lever is in the “P” (PARK)
position or the gearshift lever is in the “N” (NEUTRAL)
position with the brake pedal depressed.
For safety reasons, start the engine in the “P” (PARK)
position so that the wheels are locked.
6. Turn the ignition switch to the “ON” position and make
certain that all warning lights are functioning properly
before starting the engine.
7. Turn the ignition switch to the “START” position without
pressing the accelerator pedal. Release the key when the
engine starts.
At extremely cold ambient temperaturerIf the engine won’t start, press the accelerator pedal all the way
down while cranking the engine. Release the accelerator pedal
when the engine starts.
CAUTION
!

When starting the engine, make sure that you hold
the brake pedal down. If you start the engine with
your foot on the accelerator pedal, switch to the
brake pedal as soon as the engine has started.
BK0105501US.book 86 ページ ２００９年８月１０日　月曜日　午前１０時３２分

Features and controls
3-87
3
Startability of Twin Clutch SST vehicle with ambient
temperature of -22
°F (-30
°C) or lower
When the ambient temperature is -22 °F (-30 °C) or lower, it
may not be possible to start from a standstill even with the
gearshift lever in the “D” (DRIVE) position.
This phenomenon occurs because the transmission has not
warmed up sufficiently; it does not indicate a problem. If it
occurs, place the gearshift lever in the “P” (PARK) position
and let the engine idle for at least 10 minutes.
The transmission will warm up, and you will be able to start
normally.
Do not leave the vehicle during warm-up operation.Flooded engineIf the engine has flooded during starting, first run the starter for
5 to 6 seconds while holding down the accelerator pedal.
Release the ignition switch to the “LOCK” position and the
accelerator pedal. Wait a moment, then without depressing the
accelerator pedal, turn the ignition switch to the “START”
position for another 5 to 6 seconds. Release the ignition key if
the engine starts. Repeat as necessary if the engine fails to start,
or contact your local Mitsubishi Motors dealer or a repair facil-
ity of your choice for assistance.
Stopping the engine
N00542300075
1. Bring the vehicle to a complete stop.
2. Fully engage the parking brake while depressing the brake
pedal.
3. For vehicles with a manual transaxle, turn the ignition
switch to the “LOCK” position to stop the engine, and
then move the gearshift lever to the 1st (on a uphill) or
“R” (Reverse) (on a downhill) position.
For vehicles with Twin Clutch SST, place the gearshift
lever in the “P” (PARK) position, and then turn the igni-
tion switch to the “LOCK” position to stop the engine.
BK0105501US.book 87 ページ ２００９年８月１０日　月曜日　午前１０時３２分

3-88 Features and controls
3
NOTE

For vehicles with Twin Clutch SST, the engine will stop
and the vehicle power will turn off approximately 1 sec-
ond after the ignition switch is turned to the “LOCK”
position.
The reason for this is that, in the time from when the igni-
tion switch is turned to the “LOCK” position until the
engine stops, the gears inside the Twin Clutch SST disen-
gage so that the engine will start smoothly the next time it
is started.
Two clutches installed in the Twin Clutch SST alternately
engage and disengage to achieve smooth shifting.
In addition, the gear on the side with the free clutch is
engaged, therefore, quick shifting is performed.
If the engine was stopped with the gear engaged like this,
it would provide resistance the next time the engine is
started. Therefore, the gear disengages in the approxi-
mately 1-second period until the engine stops.


For vehicles with Twin Clutch SST, do not operate the
gearshift lever or the accelerator pedal for approximately
1 second until the engine stops.


If the temperature inside the engine compartment is high,
the cooling fans (A) will continue to operate for some
time even if the engine is stopped.
Therefore, the operation sound of the cooling fans may be
heard even after the engine is stopped. This sound is nor-
mal and does not indicate a malfunction.
After operating for a period of time, the cooling fans will
stop automatically.
BK0105501US.book 88 ページ ２００９年８月１０日　月曜日　午前１０時３２分

Features and controls
3-89
3 Turbocharger operation
N00537300048
TurbochargerThe turbocharger increases engine power by pushing large
amounts of air into the engine’s cylinders. The finned parts
inside the turbocharger turn at extremely high speeds and are
subjected to extremely high temperatures. They are lubricated
by engine oil and cooled by engine oil and coolant. If the
engine oil is not replaced at the specified intervals, the bearings
may seize or emit abnormal noise.
CAUTION
!

Do not run the engine at high speeds (for example,
by revving it or by accelerating rapidly) immedi-
ately after starting it.


Do not stop the engine immediately after high-speed
or uphill driving. First allow the engine to idle to
give the turbocharger a chance to cool down.


To avoid engine and/or turbocharger damage, use
only fully synthetic engine oil for this vehicle.
DO NOT use conventional petroleum based motor
oil or “blends” of conventional oil and synthetic oil.
Refer to “Recommended engine oil viscosity” on
page 7-9.
1- Air compressor
2- Compressed air
3- Cylinder
4- Turbo fin
5- Turbine
6- Exhaust gas
BK0105501US.book 89 ページ ２００９年８月１０日　月曜日　午前１０時３２分

3-90 Features and controls
3Clutch pedal operation
(if so equipped)
N00537700042
Observe the following cautions when using the clutch pedal.
Not observing them could result in rapid clutch wear or in
clutch damage.

Press the clutch pedal all the way down while shifting
gears.


Press and hold the clutch pedal all the way down before
starting the engine.


Do not rest your foot on the clutch pedal.


On hills and other gradients, do not hold the vehicle in
position by slipping the clutch without using the brakes.


Make sure the space under the clutch pedal is free of
objects that could obstruct the pedal.
NOTE

Your vehicle has a special feature to reduce the impact
into the power train and to reduce the load of the clutch
disk; the engine revolution doesn’t rise more than around
5,500 rpm while the vehicle is stationary and the clutch
pedal has been depressed.


If either of the following occurs, the clutch should be
inspected by a Mitsubishi Motors dealer or a repair facil-
ity of your choice:
 The pedal stroke until clutch disengagement suddenly
increases.
 The engine revs when the clutch is not disengaged.
CAUTION
!

If the clutch is engaged suddenly while the engine
revolution is high, an extremely large load will be
applied instantaneously to the power train, possibly
leading to the breakage of that component. Please
ensure, therefore, that the clutch pedal is always
applied in a slow yet firm manner.
BK0105501US.book 90 ページ ２００９年８月１０日　月曜日　午前１０時３２分

Features and controls
3-91

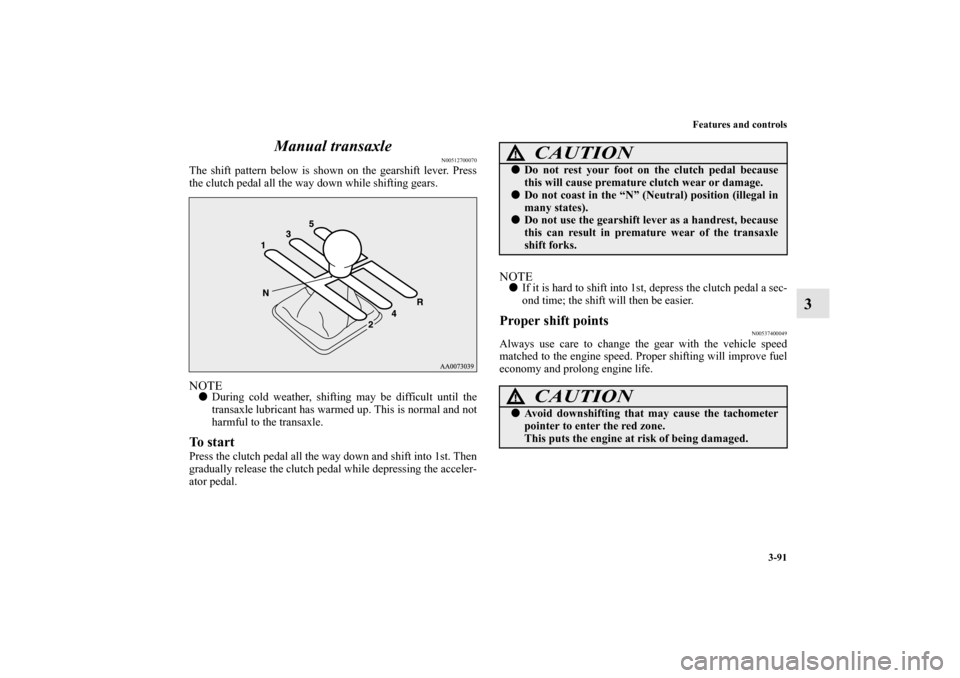

3 Manual transaxle
N00512700070
The shift pattern below is shown on the gearshift lever. Press
the clutch pedal all the way down while shifting gears.NOTE

During cold weather, shifting may be difficult until the
transaxle lubricant has warmed up. This is normal and not
harmful to the transaxle.
To startPress the clutch pedal all the way down and shift into 1st. Then
gradually release the clutch pedal while depressing the acceler-
ator pedal.
NOTE

If it is hard to shift into 1st, depress the clutch pedal a sec-
ond time; the shift will then be easier.
Proper shift points
N00537400049
Always use care to change the gear with the vehicle speed
matched to the engine speed. Proper shifting will improve fuel
economy and prolong engine life.
CAUTION
!

Do not rest your foot on the clutch pedal because
this will cause premature clutch wear or damage.


Do not coast in the “N” (Neutral) position (illegal in
many states).


Do not use the gearshift lever as a handrest, because
this can result in premature wear of the transaxle
shift forks.CAUTION
!

Avoid downshifting that may cause the tachometer
pointer to enter the red zone.
This puts the engine at risk of being damaged.
BK0105501US.book 91 ページ ２００９年８月１０日　月曜日　午前１０時３２分

3-92 Features and controls
3
Upshifting
N00512900144
For the best fuel economy and performance in using your man-
ual transaxle, upshift as listed below.
Downshifting
N00513000096
It is recommended that you downshift to a lower gear when
needed to maintain the desired speed, according to the table.
Avoid downshifting at too high a speed. The engine may suffer
damage.
To maintain a safe speed and prolong brake life, shift down to
2nd or 1st when descending a steep hill.
Downshifting is also important to avoid “lugging” the engine
at too low a speed, such as when turning a corner or when driv-
ing up a steep hill.Recommended downshifting speed
Shift point
Upshift speeds
1st gear to 2nd gear 15 mph (24 km/h)2nd gear to 3rd gear 25 mph (40 km/h)3rd gear to 4th gear 40 mph (64 km/h)4th gear to 5th gear 45 mph (72 km/h)
Downshifting speed
Shift point
Under 20 mph (32 km/h)Shift down from current gear to
2nd gear.20 to 30 mph (32 to 48 km/h)Shift down from current gear to
3rd gear.
BK0105501US.book 92 ページ ２００９年８月１０日　月曜日　午前１０時３２分

Features and controls
3-93
3
Driving precautions
N00513100156


The table below shows the maximum recommended driv-
ing speed for in each gear. Do not drive near or at these
speeds for prolonged periods of time.
Maximum possible driving speed

Do not use the gearshift lever as a handrest. This can
result in premature wear of the transaxle shift forks.
Twin Clutch SST (Sportronic Shift Trans-
mission)
(if so equipped)
N00539700017
The Twin Clutch SST is a transmission that, through integrated
control of the engine and transmission, is able to achieve both
the smooth shifting of an automatic transaxle and the accelera-
tion and fuel economy close to a manual transaxle. In addition,
the control mode can be selected from three types to suit the
driving conditions.
Together with manual shifting, the transmission is capable of
responding to a variety of driving circumstances.
Twin Clutch SST control mode→ P. 3 - 1 0 2
Manual shift → P.3-104
Shift points
Maximum possible driving speed
1st gear 37 mph (60 km/h)2nd gear 55 mph (90 km/h)3rd gear 74 mph (120 km/h)4th gear 99 mph (160 km/h)
BK0105501US.book 93 ページ ２００９年８月１０日　月曜日　午前１０時３２分
