Features and controls
3-25
3
LOCK (PUSH OFF)The position where the steering wheel is locked.LOCK (PUSH ON)When the ID code verification inside the vehicle produces a
match, the ignition switch can be turned.ACCAllows operation of electrical accessories with the engine off.ONThe engine runs and all electrical accessories can be used.STARTEngages the starter. Release the ignition switch when the
engine starts. The ignition switch returns automatically to the
“ON” position.NOTE
Your vehicle is equipped with an electronic immobilizer.
To start the engine, the ID code which the F.A.S.T.-key
sends must match the one registered to the immobilizer
computer. (Refer to “Electronic immobilizer (Anti-theft
starting system)” on page 3-41)
If the ignition switch is not turned to the “LOCK (PUSH
OFF)” position when the engine is not running, the ID
code cannot be verified and the engine will not start even
if the ignition switch is turned to the “START” position. If
this happens, fully return the ignition switch to the
“LOCK (PUSH OFF)” position, and start the engine
again.
To turn from “LOCK (PUSH OFF)” to “ACC”
N00513600047
Turn slowly after pressing the ignition switch.NOTE
To turn the ignition switch from the “LOCK (PUSH
OFF)” position to the “ACC” position, push the ignition
switch again, turn the steering wheel in both directions
and then turn the ignition switch.
The ignition switch cannot be turned unless the F.A.S.T.-
key is inside the vehicle.
Refer to “Operating range for starting the engine” on page
3-20.
A- Steering wheel locked
B- Steering wheel lock released
BK0105501US.book 25 ページ ２００９年８月１０日 月曜日 午前１０時３２分
Page 111 of 594
3-26 Features and controls
3
To turn from “ACC” to “LOCK”
N00513700077
For vehicles with manual transaxle
Slowly turn the ignition switch to the “LOCK” position while
pressing it.
For vehicles with Twin Clutch SST (sportronic shift trans-
mission)
First, set the gearshift lever to the “P” (PARK) position, and
then slowly turn the ignition switch to the “LOCK” position
while pressing it.NOTE
For vehicle with Twin Clutch SST, the ignition switch
cannot be turned to the “LOCK” position unless the gear-
shift lever is in the “P” (PARK) position.
CAUTION
!
If the engine is stopped while driving, the power
brake booster will stop functioning and greater
effort for braking will be required. Also, the power
steering system will not function and it will require
greater effort to manually steer the vehicle.
Do not leave the ignition switch in the “ON” or
“ACC” position for a long time when the engine is
not running. Doing so could lead to a dead battery.
Do not turn the ignition switch to the “START”
position when the engine is running. It will damage
the starter motor.
BK0105501US.book 26 ページ ２００９年８月１０日 月曜日 午前１０時３２分
Page 113 of 594
3-28 Features and controls
3
F.A.S.T.-key take-out monitoring system
N00559800085
When the ignition switch is in a position other than “LOCK
(PUSH OFF)”, and a door is opened and the F.A.S.T.-key is
removed from the passenger compartment so that the ID codes
of the F.A.S.T.-key and the vehicle can no longer be verified,
the warning display is displayed and the buzzer sounds 4 times
as a warning.NOTE
The F.A.S.T.-key take-out monitoring system does not
function if the F.A.S.T.-key is removed through a window
without opening a door. This setting can be changed.
See an authorized Mitsubishi Motors dealer for details.
The warning may display even if the F.A.S.T.-key is in the
operating range for starting the engine. The surrounding
environment or electromagnetic waves may make it
impossible to verify the ID codes of the F.A.S.T.-key and
vehicle.
Key lock-in prevention system
N00559900099
When the ignition switch is in the “LOCK (PUSH OFF)” posi-
tion, the F.A.S.T.-key is left in the passenger compartment, all
the doors are closed, and someone tries to lock the vehicle by
pressing the LOCK switch of the doors, the warning display is
displayed and the buzzer sounds for about 3 seconds as a warn-
ing, and the doors cannot be locked.
If all the doors are manually locked and closed while the igni-
tion switch is in the “LOCK (PUSH OFF)” position and the
F.A.S.T.-key is left in the car, the doors will automatically
unlock and a buzzer will sound for about 3 seconds.
BK0105501US.book 28 ページ ２００９年８月１０日 月曜日 午前１０時３２分
Page 116 of 594
Features and controls
3-31
3
Star ting
N00514600158
Tips for starting
Do not operate the starter motor for longer than 15 sec-
onds as this could run the battery down or damage the
starter motor. If the engine does not start, turn the ignition
switch back to the “LOCK” position, wait a few seconds,
and then try again. Trying repeatedly with the engine or
starter motor still turning will damage the starter mecha-
nism.
If the engine will not start because the battery is weak or
discharged, refer to “Jump-starting the engine” on page 6-
2 for instructions.
A longer warm up period will only consume extra fuel.
The engine is warmed up enough for driving when the bar
graph of the engine coolant temperature display starts to
move. Refer to “Interrupt display screen (With ignition
switch in the “ON” position)” on page 3-165.
On vehicles equipped with the Twin Clutch SST, the fol-
lowing may occur after the engine is started, but they do
not indicate an abnormality.
You may hear operational sounds of the Twin Clutch
SST and you may feel vibration in the vehicle body.
If you shift the gearshift lever into the “N” (NEUTRAL)
position and depress the accelerator pedal, increases in
the engine speed will be limited.
WA R N I N G
!
Never run the engine in a closed or poorly ventilated
area any longer than is needed to move your vehicle
out of the area. Carbon monoxide gas, which is
odorless and extremely poisonous, could build up
and cause serious injury or death.CAUTION
!
Do not push-start the vehicle.
Do not run the engine at high rpms or drive at high
speeds until the engine has had a chance to warm
up.
Release the ignition switch as soon as the engine
starts. Otherwise, the starter motor will be dam-
aged.
BK0105501US.book 31 ページ ２００９年８月１０日 月曜日 午前１０時３２分
Page 117 of 594
3-32 Features and controls
3
Starting the engineYour vehicle is equipped with an electronically controlled fuel
injection system. This is a system that automatically controls
fuel injection. There is usually no need to depress the accelera-
tor pedal when starting the engine.
The starter motor should not be run for more than 15 seconds at
a time.
To prevent battery drain, wait a few seconds between attempts
to restart the engine.
Normal conditions
To start your vehicle:
Make sure all occupants are properly seated with seat belts fas-
tened.
1. Press and hold the brake pedal down with your right foot.
2. Press and hold the clutch pedal all the way down (manual
transaxle).NOTE
For models equipped with a manual transaxle, the starter
will not operate unless the clutch pedal is fully depressed
(Clutch interlock). This is a safety feature.3. On vehicles with manual transaxle, place the gearshift
lever in the “N” (Neutral) position.
On vehicles with Twin Clutch SST, make sure the gear-
shift lever is in the “P” (PARK) position.
NOTE
On vehicles with Twin Clutch SST, the starter will not
operate unless the gearshift lever is in the “P” (PARK)
position or the gearshift lever is in the “N” (NEUTRAL)
position with the brake pedal depressed.
For safety reasons, start the engine in the “P” (PARK)
position so that the wheels are locked.
4. While pushing the ignition switch from “LOCK” (PUSH
OFF) to “LOCK” (PUSH ON), set the ignition switch to
the “ON” position and confirm that all warning lights and
warning displays are operating properly.
5. Without pressing the accelerator pedal, slowly turn the
ignition switch to the “START” position to start the
engine. Release the ignition switch when the engine starts.
NOTE
Minor noises may be heard on engine start-up. These will
disappear as the engine warms up.
At extremely cold ambient temperature
If the engine won’t start, press the accelerator pedal about half-
way down while cranking the engine. Release the accelerator
pedal when the engine starts.
BK0105501US.book 32 ページ ２００９年８月１０日 月曜日 午前１０時３２分
Page 118 of 594
Features and controls
3-33
3
Startability of Twin Clutch SST vehicle with an ambient
temperature of -22 °F (-30 °C) or lower
When the ambient temperature is -22 °F (-30 °C) or lower, it
may not be possible to start from a standstill even with the
gearshift lever in the “D” (DRIVE) position.
This phenomenon occurs because the transmission has not
warmed up sufficiently; it does not indicate a problem. If it
occurs, place the gearshift lever in the “P” (PARK) position
and let the engine idle for at least 10 minutes.
The transmission will warm up, and you will be able to start
normally.
Do not leave the vehicle during warm-up operation.
Flooded engine
If the engine has flooded during starting, first run the starter for
5 to 6 seconds while holding down the accelerator pedal.
Return the ignition switch to the “LOCK (PUSH OFF)” posi-
tion and release the accelerator pedal. Wait a moment, then
without depressing the accelerator pedal, turn the ignition
switch to the “START” position for another 5 to 6 seconds.
Release the ignition switch if the engine starts. Repeat as nec-
essary. Contact your Mitsubishi Motors dealer or a repair facil-
ity of your choice for assistance.
To operate using the emergency key
N00514800020
Emergency key
N00515200092
The emergency key is built into the F.A.S.T.-key.
When the F.A.S.T.-key cannot be used, such as when the bat-
tery of the F.A.S.T.-key or the vehicle has run down, the emer-
gency key can be used to lock and unlock the doors and to start
the engine.
To use the emergency key (1), unlock the lock knob (2) and
remove it from the F.A.S.T.-key (3).
CAUTION
!
When starting the engine, make sure you depress
the brake pedal. If you start the engine with the
accelerator pedal depressed, move your foot to the
brake pedal as soon as the engine has started.
BK0105501US.book 33 ページ ２００９年８月１０日 月曜日 午前１０時３２分
Page 119 of 594
3-34 Features and controls
3
NOTE
Only use the emergency key in an emergency. When the
battery of the F.A.S.T.-key has run down, replace the bat-
tery as soon as possible and use it as a F.A.S.T.-key again.
After using the emergency key, be sure to reinsert it into
the F.A.S.T.-key.
To lock or unlock the driver’s door with the emergency key
Turn the emergency key toward the front of the vehicle to lock
the door. After checking that the door is locked, turn the emer-
gency key back to the center and remove it.
Ignition switch
N00529300137
To prevent vehicle theft, only the emergency key with the pre-
registered F.A.S.T.-key inserted can start the engine. (Elec-
tronic immobilizer function)
LOCK
The engine is off and the steering wheel is locked. The emer-
gency key can be inserted and removed only when the ignition
switch is in this position.
ACC
The electrical accessories can be used with the engine off.
ON
The engine will start only by using the emergency key with the
F.A.S.T.-key inserted. It is possible to use all electrical accesso-
ries with only the emergency key.
1- Insert or remove the emergency key
2- Lock
3- Unlock
BK0105501US.book 34 ページ ２００９年８月１０日 月曜日 午前１０時３２分

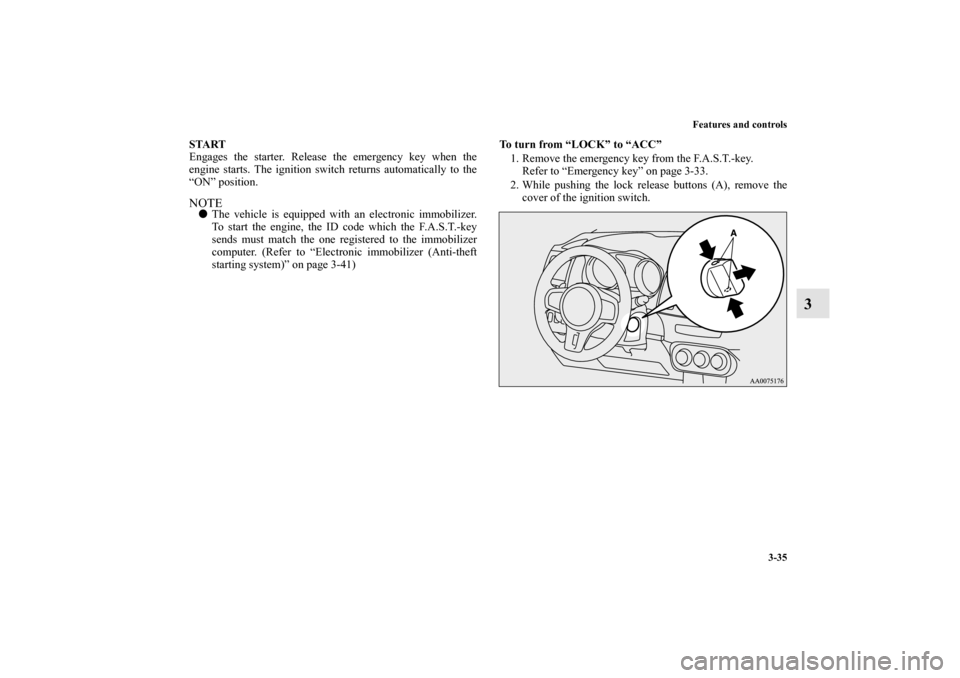

Page 120 of 594
Features and controls
3-35
3
START
Engages the starter. Release the emergency key when the
engine starts. The ignition switch returns automatically to the
“ON” position.NOTE
The vehicle is equipped with an electronic immobilizer.
To start the engine, the ID code which the F.A.S.T.-key
sends must match the one registered to the immobilizer
computer. (Refer to “Electronic immobilizer (Anti-theft
starting system)” on page 3-41)To turn from “LOCK” to “ACC”
1. Remove the emergency key from the F.A.S.T.-key.
Refer to “Emergency key” on page 3-33.
2. While pushing the lock release buttons (A), remove the
cover of the ignition switch.
BK0105501US.book 35 ページ ２００９年８月１０日 月曜日 午前１０時３２分
