2010 MERCEDES-BENZ GLK350 4MATIC oil capacity

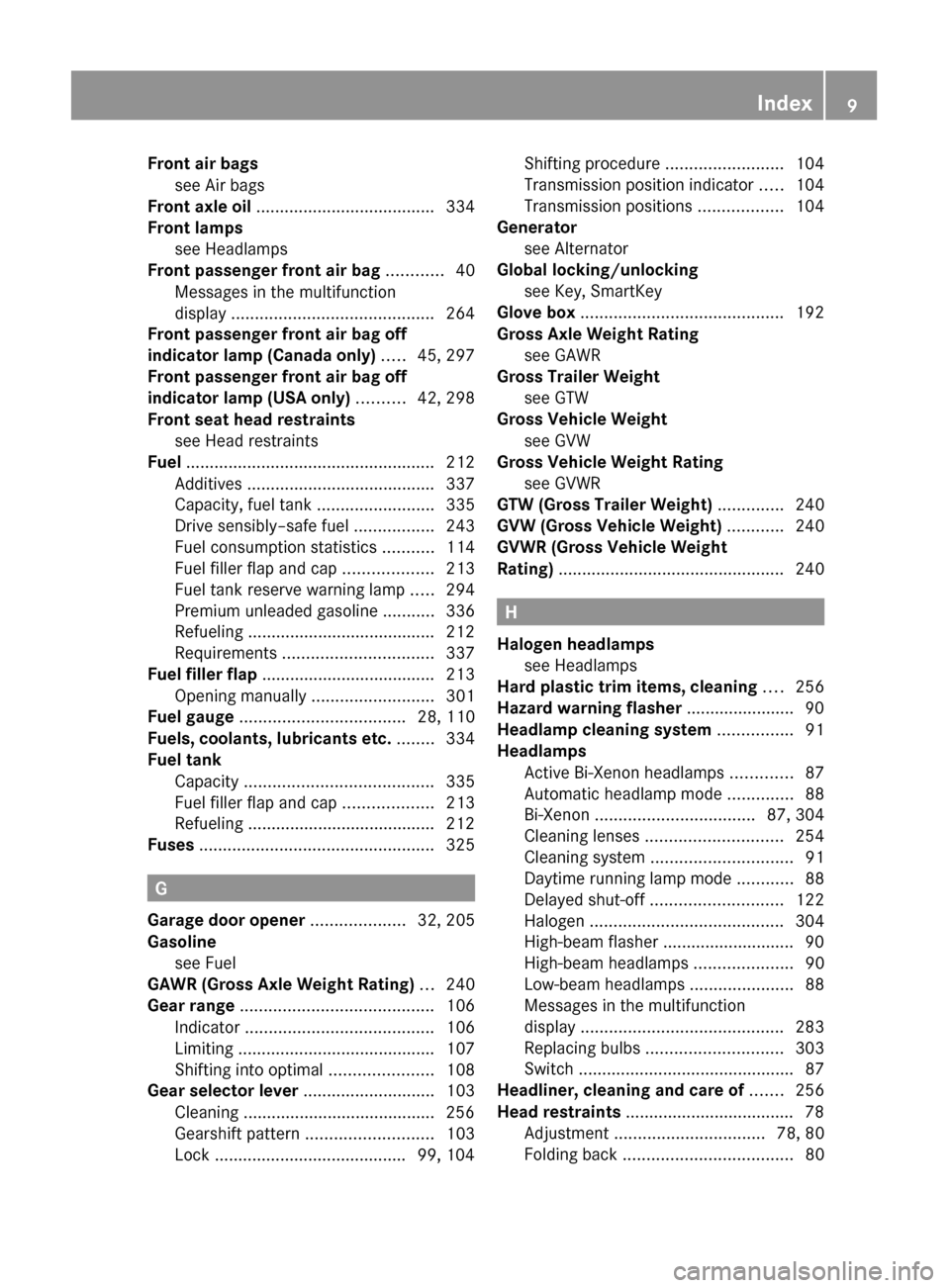

Front air bagssee Air bags
Front axle oil ...................................... 334
Front lamps see Headlamps
Front passenger front air bag ............ 40
Messages in the multifunction
display ........................................... 264
Front passenger front air bag off
indicator lamp (Canada only) ..... 45, 297
Front passenger front air bag off
indicator lamp (USA only) .......... 42, 298
Front seat head restraints see Head restraints
Fuel ..................................................... 212
Additives ........................................ 337
Capacity, fuel tank .........................335
Drive sensibly–safe fuel .................243
Fuel consumption statistics ...........114
Fuel filler flap and cap ...................213
Fuel tank reserve warning lamp .....294
Premium unleaded gasoline ...........336
Refueling ........................................ 212
Requirements ................................ 337
Fuel filler flap ..................................... 213
Opening manually ..........................301
Fuel gauge ................................... 28, 110
Fuels, coolants, lubricants etc. ........ 334
Fuel tank
Capacity ........................................ 335
Fuel filler flap and cap ...................213
Refueling ........................................ 212
Fuses .................................................. 325
G
Garage door opener .................... 32, 205
Gasoline see Fuel
GAWR (Gross Axle Weight Rating) ... 240
Gear range ......................................... 106
Indicator ........................................ 106
Limiting .......................................... 107
Shifting into optimal ......................108
Gear selector lever ............................ 103
Cleaning ......................................... 256
Gearshift pattern ........................... 103
Lock ......................................... 99, 104
Shifting procedure .........................104
Transmission position indicator .....104
Transmission positions ..................104
Generator
see Alternator
Global locking/unlocking
see Key, SmartKey
Glove box ........................................... 192
Gross Axle Weight Rating see GAWR
Gross Trailer Weight
see GTW
Gross Vehicle Weight
see GVW
Gross Vehicle Weight Rating
see GVWR
GTW (Gross Trailer Weight) .............. 240
GVW (Gross Vehicle Weight) ............ 240
GVWR (Gross Vehicle Weight
Rating) ................................................ 240
H
Halogen headlamps see Headlamps
Hard plastic trim items, cleaning .... 256
Hazard warning flasher ....................... 90
Headlamp cleaning system ................ 91
Headlamps
Active Bi-Xenon headlamps .............87
Automatic headlamp mode ..............88
Bi-Xenon .................................. 87, 304
Cleaning lenses ............................. 254
Cleaning system .............................. 91
Daytime running lamp mode ............88
Delayed shut-off ............................ 122
Halogen ......................................... 304
High-beam flasher ............................ 90
High-beam headlamps .....................90
Low-beam headlamps ......................88
Messages in the multifunction
display ........................................... 283
Replacing bulbs ............................. 303
Switch .............................................. 87
Headliner, cleaning and care of ....... 256
Head restraints .................................... 78
Adjustment ................................ 78, 80
Folding back .................................... 80
Index9X204_AKB; 3; 23, en-USd2ureepe,Version: 2.11.8.12009-07-16T19:16:58+02:00 - Seite 9

Proximity keysee Key, SmartKey
PSI (air pressure unit) ....................... 240
R
Radio .................................................. 136
Satellite radio ................................ 140
Selecting stations ..........................115
Radio transmitters ............................ 249
Rain sensor see Intermittent wiping
Rear axle oil ....................................... 334
Rear center console ashtray see Ashtrays
Rear center seat belt
Unblocking ....................................... 50
Rear doors
Child safety locks ............................ 58
Rear door window
Override switch ................................ 58
Rear fog lamp
see Fog lamps
Rear lamps
see Tail lamps
Rear seat head restraints
see Head restraints
Rear view camera .............................. 174
Cleaning the camera lens ..............254
Rear window defroster ..................... 184
Rear window wiper/washer ............... 94
Recommended tire inflation
pressure ..................................... 219, 240
Refrigerant, air conditioning ............ 336
Refueling ............................................ 212
Regular checks .................................. 213
Reminder, Seat belt see Seat belts, Telltale
Remote control
see Key, SmartKey
Remote door lock (Tele Aid) ............. 205
Remote door unlock (Tele Aid) ......... 204
Replacing
Key .................................................. 70
Replacing bulbs ................................. 303
Reporting safety defects .................... 23
Research Octane Number see RON
Reserve fuel
Messages in the multifunction
display ........................................... 282
Warning lamp ................................. 294
Restraint systems
see Occupant safety
Rims ........................................... 241, 331
Roadside Assistance ................... 20, 203
Roller sunblinds ................................. 184
RON (Research Octane Number) ..... 337
Roof rack ............................................ 188
Rubber parts, cleaning ...................... 256
S
Safety
Driving safety systems .....................59
Occupant safety ............................... 36
Reporting defects ............................ 23
Safety belts
see Seat belts
Satellite radio .................................... 140
Seat belt force limiter ......................... 51
Seat belts ............................................. 47
Children in the vehicle .....................53
Cleaning ......................................... 256
Fastening ......................................... 49
Height adjustment ...........................50
Proper use of ................................... 48
Rear center seat .............................. 50
Safety guidelines ............................. 39
Safety notes ..................................... 47
Telltale ........................................... 292
Seat heating ......................................... 81
Seating capacity ................................ 228
Seats ..................................................... 78
Adjusting ......................................... 33
Adjustment ...................................... 78
Easy-entry/exit feature ....................83
Heating ............................................ 81
Memory function .............................. 86
Rear seat bench ............................. 189
Securing cargo
Cargo tie-down rings ...................... 188
Selective setting
see Key, SmartKey
Selector lever
see Gear selector lever
14IndexX204_AKB; 3; 23, en-USd2ureepe,Version: 2.11.8.12009-07-16T19:16:58+02:00 - Seite 14

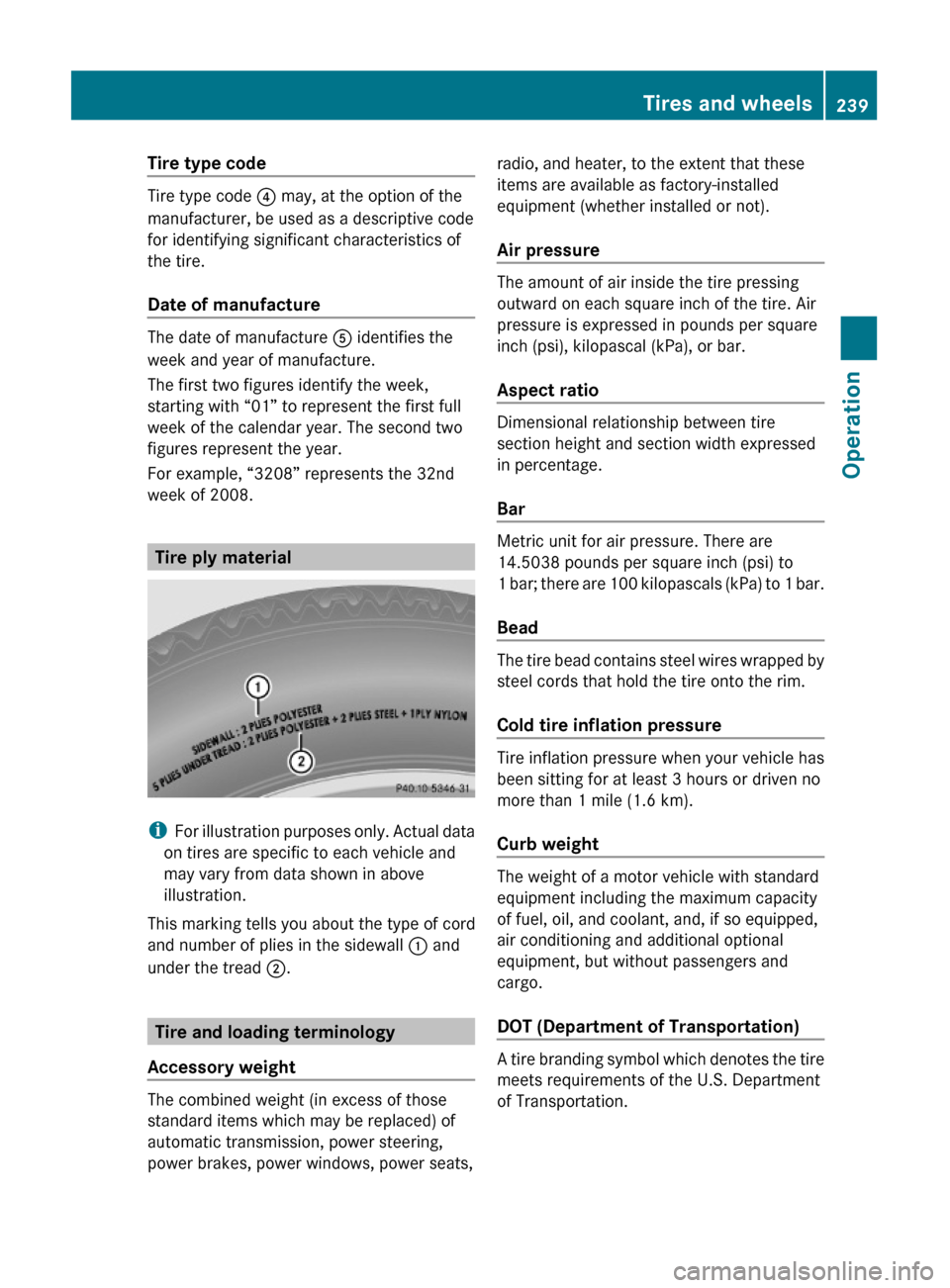

Tire type code
Tire type code ? may, at the option of the
manufacturer, be used as a descriptive code
for identifying significant characteristics of
the tire.
Date of manufacture
The date of manufacture A identifies the
week and year of manufacture.
The first two figures identify the week,
starting with “01” to represent the first full
week of the calendar year. The second two
figures represent the year.
For example, “3208” represents the 32nd
week of 2008.
Tire ply material
iFor illustration purposes only. Actual data
on tires are specific to each vehicle and
may vary from data shown in above
illustration.
This marking tells you about the type of cord
and number of plies in the sidewall : and
under the tread ;.
Tire and loading terminology
Accessory weight
The combined weight (in excess of those
standard items which may be replaced) of
automatic transmission, power steering,
power brakes, power windows, power seats,
radio, and heater, to the extent that these
items are available as factory-installed
equipment (whether installed or not).
Air pressure
The amount of air inside the tire pressing
outward on each square inch of the tire. Air
pressure is expressed in pounds per square
inch (psi), kilopascal (kPa), or bar.
Aspect ratio
Dimensional relationship between tire
section height and section width expressed
in percentage.
Bar
Metric unit for air pressure. There are
14.5038 pounds per square inch (psi) to
1 bar; there are 100 kilopascals (kPa) to 1 bar.
Bead
The tire bead contains steel wires wrapped by
steel cords that hold the tire onto the rim.
Cold tire inflation pressure
Tire inflation pressure when your vehicle has
been sitting for at least 3 hours or driven no
more than 1 mile (1.6 km).
Curb weight
The weight of a motor vehicle with standard
equipment including the maximum capacity
of fuel, oil, and coolant, and, if so equipped,
air conditioning and additional optional
equipment, but without passengers and
cargo.
DOT (Department of Transportation)
A tire branding symbol which denotes the tire
meets requirements of the U.S. Department
of Transportation.
Tires and wheels239OperationX204_AKB; 3; 23, en-USd2ureepe,Version: 2.11.8.12009-07-16T19:16:58+02:00 - Seite 239Z

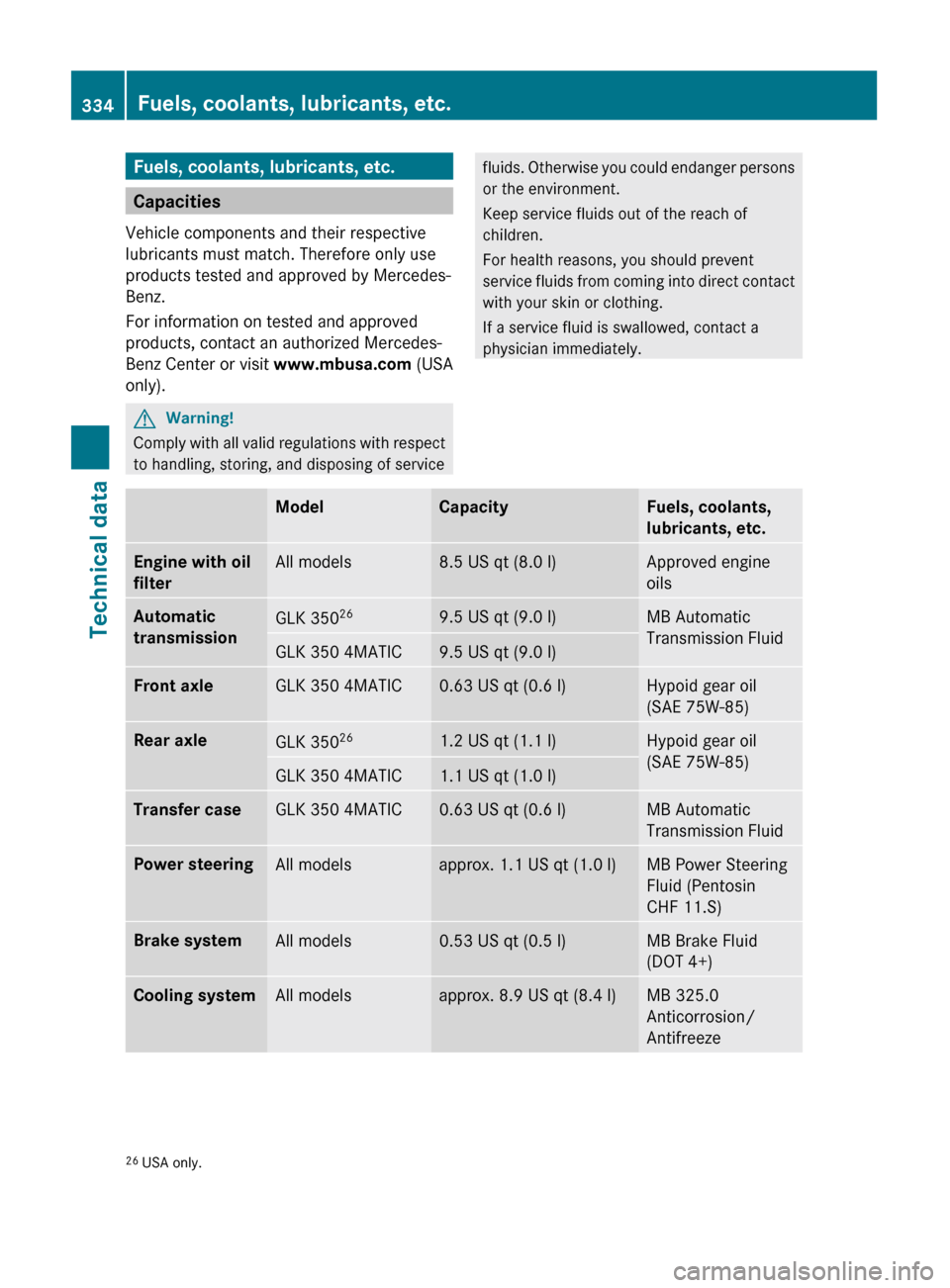

Fuels, coolants, lubricants, etc.
Capacities
Vehicle components and their respective
lubricants must match. Therefore only use
products tested and approved by Mercedes-
Benz.
For information on tested and approved
products, contact an authorized Mercedes-
Benz Center or visit www.mbusa.com (USA
only).
GWarning!
Comply with all valid regulations with respect
to handling, storing, and disposing of service
fluids. Otherwise you could endanger persons
or the environment.
Keep service fluids out of the reach of
children.
For health reasons, you should prevent
service fluids from coming into direct contact
with your skin or clothing.
If a service fluid is swallowed, contact a
physician immediately.ModelCapacityFuels, coolants,
lubricants, etc.Engine with oil
filterAll models8.5 US qt (8.0 l)Approved engine
oilsAutomatic
transmissionGLK 350 269.5 US qt (9.0 l)MB Automatic
Transmission FluidGLK 350 4MATIC9.5 US qt (9.0 l)Front axleGLK 350 4MATIC0.63 US qt (0.6 l)Hypoid gear oil
(SAE 75W-85)Rear axleGLK 350 261.2 US qt (1.1 l)Hypoid gear oil
(SAE 75W-85)GLK 350 4MATIC1.1 US qt (1.0 l)Transfer caseGLK 350 4MATIC0.63 US qt (0.6 l)MB Automatic
Transmission FluidPower steeringAll modelsapprox. 1.1 US qt (1.0 l)MB Power Steering
Fluid (Pentosin
CHF 11.S)Brake systemAll models0.53 US qt (0.5 l)MB Brake Fluid
(DOT 4+)Cooling systemAll modelsapprox. 8.9 US qt (8.4 l)MB 325.0
Anticorrosion/
Antifreeze26 USA only.334Fuels, coolants, lubricants, etc.Technical data
X204_AKB; 3; 23, en-USd2ureepe,Version: 2.11.8.12009-07-16T19:16:58+02:00 - Seite 334

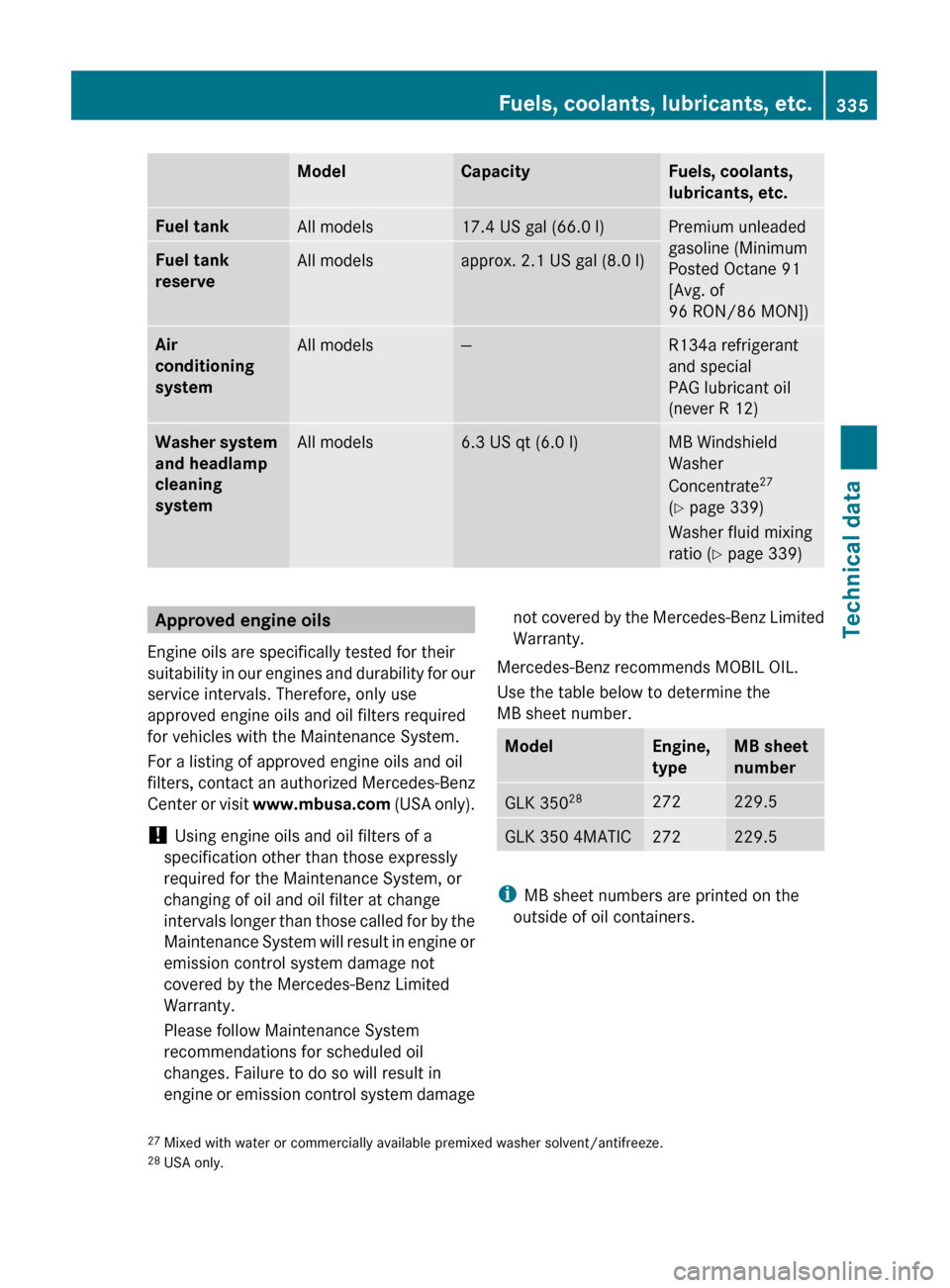

ModelCapacityFuels, coolants,
lubricants, etc.Fuel tankAll models17.4 US gal (66.0 l)Premium unleaded
gasoline (Minimum
Posted Octane 91
[Avg. of
96 RON/86 MON])Fuel tank
reserveAll modelsapprox. 2.1 US gal (8.0 l)Air
conditioning
systemAll models—R134a refrigerant
and special
PAG lubricant oil
(never R 12)Washer system
and headlamp
cleaning
systemAll models6.3 US qt (6.0 l)MB Windshield
Washer
Concentrate 27
( Y page 339)
Washer fluid mixing
ratio ( Y page 339)Approved engine oils
Engine oils are specifically tested for their
suitability in our engines and durability for our
service intervals. Therefore, only use
approved engine oils and oil filters required
for vehicles with the Maintenance System.
For a listing of approved engine oils and oil
filters, contact an authorized Mercedes-Benz
Center or visit www.mbusa.com (USA only).
! Using engine oils and oil filters of a
specification other than those expressly
required for the Maintenance System, or
changing of oil and oil filter at change
intervals longer than those called for by the
Maintenance System will result in engine or
emission control system damage not
covered by the Mercedes-Benz Limited
Warranty.
Please follow Maintenance System
recommendations for scheduled oil
changes. Failure to do so will result in
engine or emission control system damagenot covered by the Mercedes-Benz Limited
Warranty.
Mercedes-Benz recommends MOBIL OIL.
Use the table below to determine the
MB sheet number.ModelEngine,
typeMB sheet
numberGLK 350 28272229.5GLK 350 4MATIC272229.5
i
MB sheet numbers are printed on the
outside of oil containers.
27 Mixed with water or commercially available premixed washer solvent/antifreeze.
28 USA only.Fuels, coolants, lubricants, etc.335Technical dataX204_AKB; 3; 23, en-USd2ureepe,Version: 2.11.8.12009-07-16T19:16:58+02:00 - Seite 335Z
