2010 MERCEDES-BENZ C350S Owner's Manual

Weights C 350 SportRoof loadmax. 220 lb (100 kg)Trunk loadmax. 220 lb (100 kg)

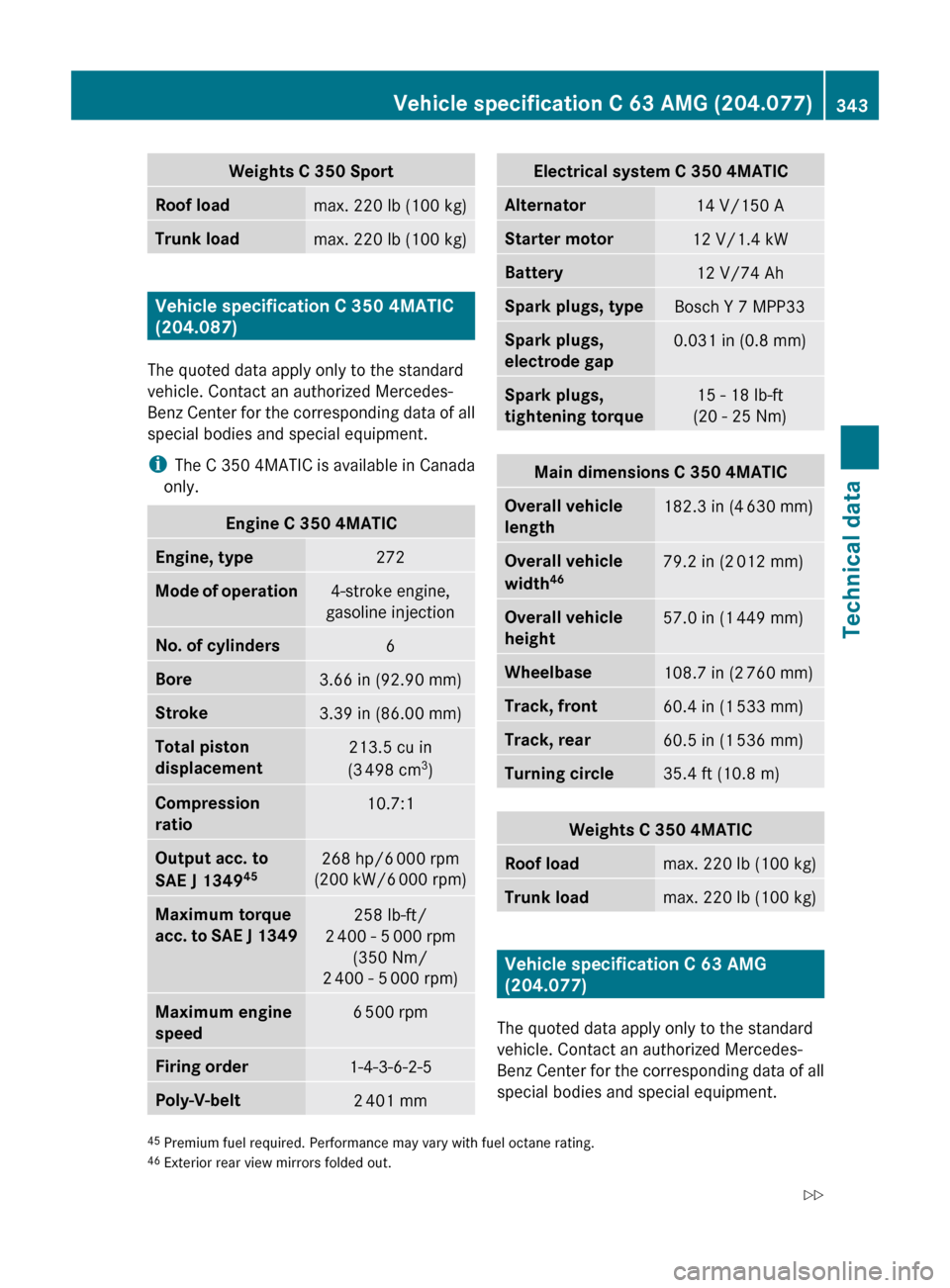

Vehicle specification C 350 4MATIC
(204.087)
The quoted data apply only to the standard
vehicle. Contact an authorized Mercedes-
Benz Center for the corresponding data of all
special bodies and special equipment.
i The C 350 4MATIC is available in Canada
only.
Engine C 350 4MATICEngine, type272Mode of operation4-stroke engine,
gasoline injectionNo. of cylinders6Bore3.66 in (92.90 mm)Stroke3.39 in (86.00 mm)Total piston
displacement213.5 cu in
(3 498 cm 3
)Compression
ratio10.7:1Output acc. to
SAE J 1349 45268 hp/6
000 rpm
(200 kW/6 000 rpm)Maximum torque
acc. to SAE J 1349258 lb-ft/
2 400 - 5 000 rpm
(350 Nm/
2 400 - 5 000 rpm)Maximum engine
speed6 500 rpmFiring order1-4-3-6-2-5Poly-V-belt2 401 mmElectrical system C 350 4MATICAlternator14 V/150 AStarter motor12 V/1.4 kWBattery12 V/74 AhSpark plugs, typeBosch Y 7 MPP33Spark plugs,
electrode gap0.031 in (0.8 mm)Spark plugs,
tightening torque15 - 18 lb-ft
(20 - 25 Nm)Main dimensions C 350 4MATICOverall vehicle
length182.3 in (4 630 mm)Overall vehicle
width 4679.2 in (2
012 mm)Overall vehicle
height57.0 in (1 449 mm)Wheelbase108.7 in (2 760 mm)Track, front60.4 in (1 533 mm)Track, rear60.5 in (1 536 mm)Turning circle35.4 ft (10.8 m)Weights C 350 4MATICRoof loadmax. 220 lb (100 kg)Trunk loadmax. 220 lb (100 kg)
Vehicle specification C 63 AMG
(204.077)
The quoted data apply only to the standard
vehicle. Contact an authorized Mercedes-
Benz Center for the corresponding data of all
special bodies and special equipment.
45 Premium fuel required. Performance may vary with fuel octane rating.
46 Exterior rear view mirrors folded out.Vehicle specification C 63 AMG (204.077)343Technical data204_AKB; 5; 23, en-USd2ureepe,Version: 2.11.8.12009-07-16T17:54:06+02:00 - Seite 343Z

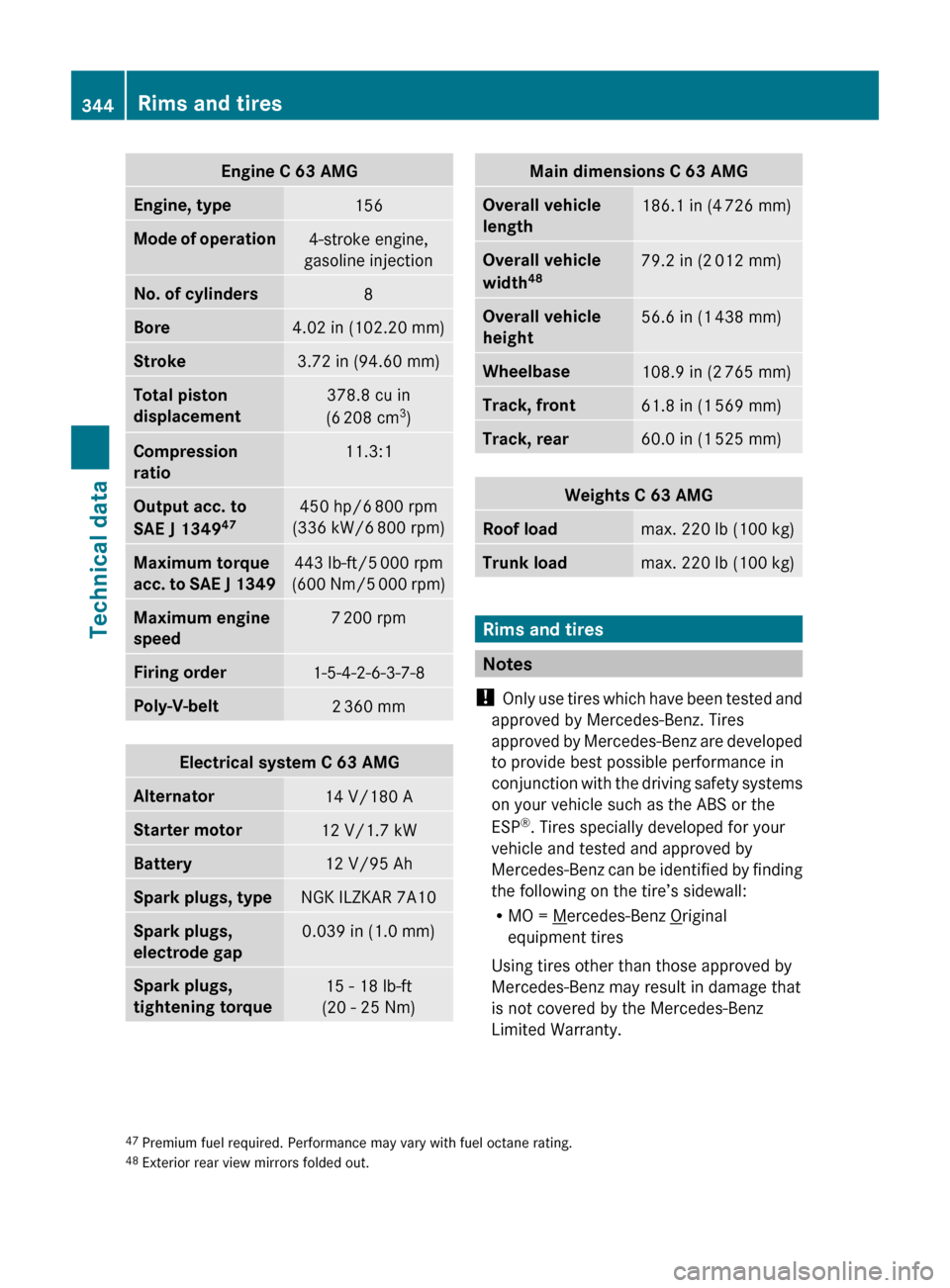

Engine C 63 AMGEngine, type156Mode of operation4-stroke engine,
gasoline injectionNo. of cylinders8Bore4.02 in (102.20 mm)Stroke3.72 in (94.60 mm)Total piston
displacement378.8 cu in
(6 208 cm 3
)Compression
ratio11.3:1Output acc. to
SAE J 1349 47450 hp/6
800 rpm
(336 kW/6 800 rpm)Maximum torque
acc. to SAE J 1349443 lb-ft/5 000 rpm
( 600 Nm/5 000 rpm)Maximum engine
speed7 200 rpmFiring order1-5-4-2-6-3-7-8Poly-V-belt2 360 mmElectrical system C 63 AMGAlternator14 V/180 AStarter motor12 V/1.7 kWBattery12 V/95 AhSpark plugs, typeNGK ILZKAR 7A10Spark plugs,
electrode gap0.039 in (1.0 mm)Spark plugs,
tightening torque15 - 18 lb-ft
(20 - 25 Nm)Main dimensions C 63 AMGOverall vehicle
length186.1 in (4 726 mm)Overall vehicle
width 4879.2 in (2
012 mm)Overall vehicle
height56.6 in (1 438 mm)Wheelbase108.9 in (2 765 mm)Track, front61.8 in (1 569 mm)Track, rear60.0 in (1 525 mm)Weights C 63 AMGRoof loadmax. 220 lb (100 kg)Trunk loadmax. 220 lb (100 kg)
Rims and tires
Notes
! Only use tires which have been tested and
approved by Mercedes-Benz. Tires
approved by Mercedes-Benz are developed
to provide best possible performance in
conjunction with the driving safety systems
on your vehicle such as the ABS or the
ESP ®
. Tires specially developed for your
vehicle and tested and approved by
Mercedes-Benz can be identified by finding
the following on the tire’s sidewall:
R MO =
Mercedes-Benz Original
equipment tires
Using tires other than those approved by
Mercedes-Benz may result in damage that
is not covered by the Mercedes-Benz
Limited Warranty.
47 Premium fuel required. Performance may vary with fuel octane rating.
48 Exterior rear view mirrors folded out.344Rims and tiresTechnical data
204_AKB; 5; 23, en-USd2ureepe,Version: 2.11.8.12009-07-16T17:54:06+02:00 - Seite 344

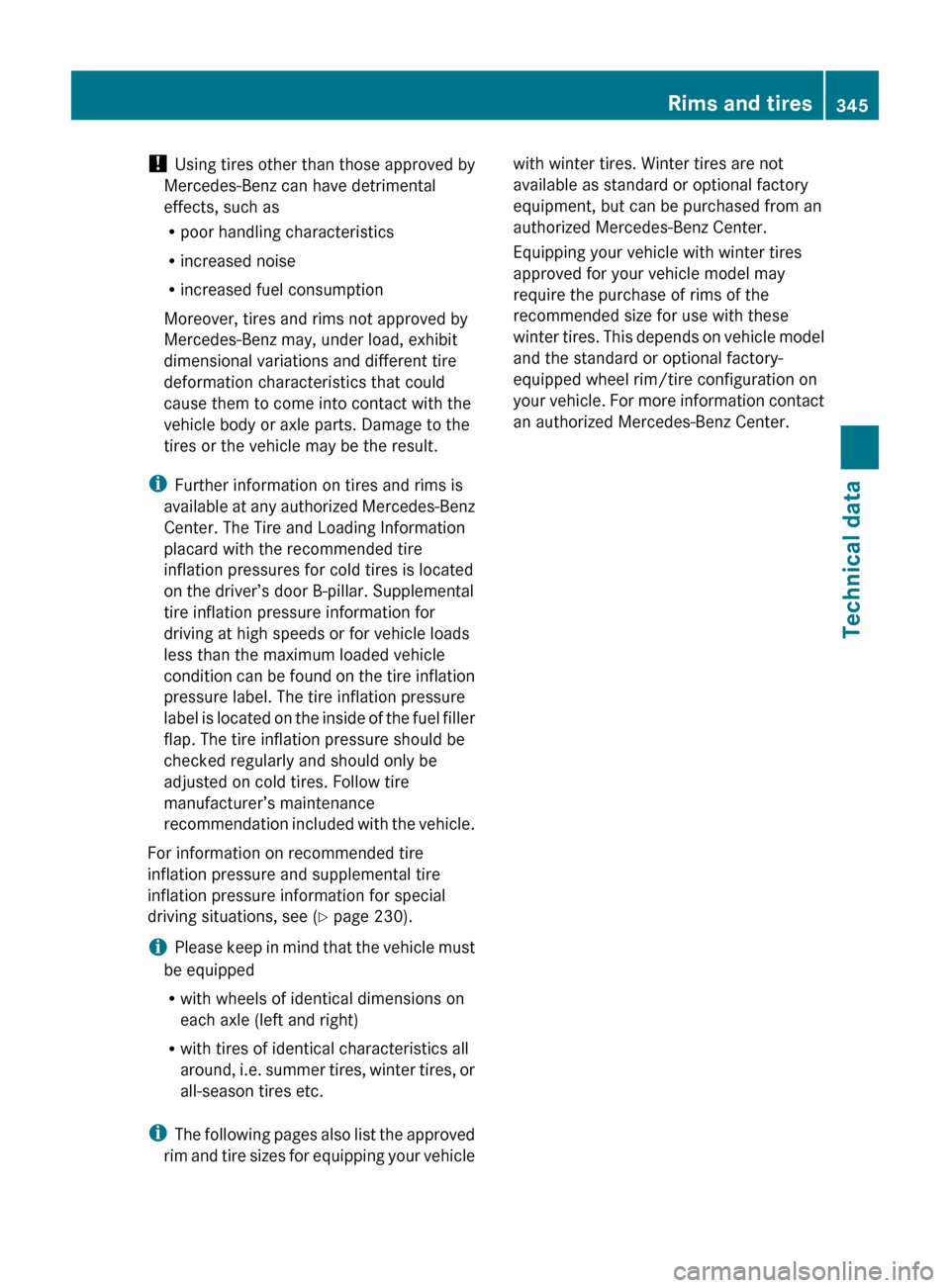

! Using tires other than those approved by
Mercedes-Benz can have detrimental
effects, such as
R poor handling characteristics
R increased noise
R increased fuel consumption
Moreover, tires and rims not approved by
Mercedes-Benz may, under load, exhibit
dimensional variations and different tire
deformation characteristics that could
cause them to come into contact with the
vehicle body or axle parts. Damage to the
tires or the vehicle may be the result.
i Further information on tires and rims is
available at any authorized Mercedes-Benz
Center. The Tire and Loading Information
placard with the recommended tire
inflation pressures for cold tires is located
on the driver’s door B-pillar. Supplemental
tire inflation pressure information for
driving at high speeds or for vehicle loads
less than the maximum loaded vehicle
condition can be found on the tire inflation
pressure label. The tire inflation pressure
label is located on the inside of the fuel filler
flap. The tire inflation pressure should be
checked regularly and should only be
adjusted on cold tires. Follow tire
manufacturer’s maintenance
recommendation included with the vehicle.
For information on recommended tire
inflation pressure and supplemental tire
inflation pressure information for special
driving situations, see ( Y page 230).
i Please keep in mind that the vehicle must
be equipped
R with wheels of identical dimensions on
each axle (left and right)
R with tires of identical characteristics all
around, i.e. summer tires, winter tires, or
all-season tires etc.
i The following pages also list the approved
rim and tire sizes for equipping your vehiclewith winter tires. Winter tires are not
available as standard or optional factory
equipment, but can be purchased from an
authorized Mercedes-Benz Center.
Equipping your vehicle with winter tires
approved for your vehicle model may
require the purchase of rims of the
recommended size for use with these
winter tires. This depends on vehicle model
and the standard or optional factory-
equipped wheel rim/tire configuration on
your vehicle. For more information contact
an authorized Mercedes-Benz Center.Rims and tires345Technical data204_AKB; 5; 23, en-USd2ureepe,Version: 2.11.8.12009-07-16T17:54:06+02:00 - Seite 345Z

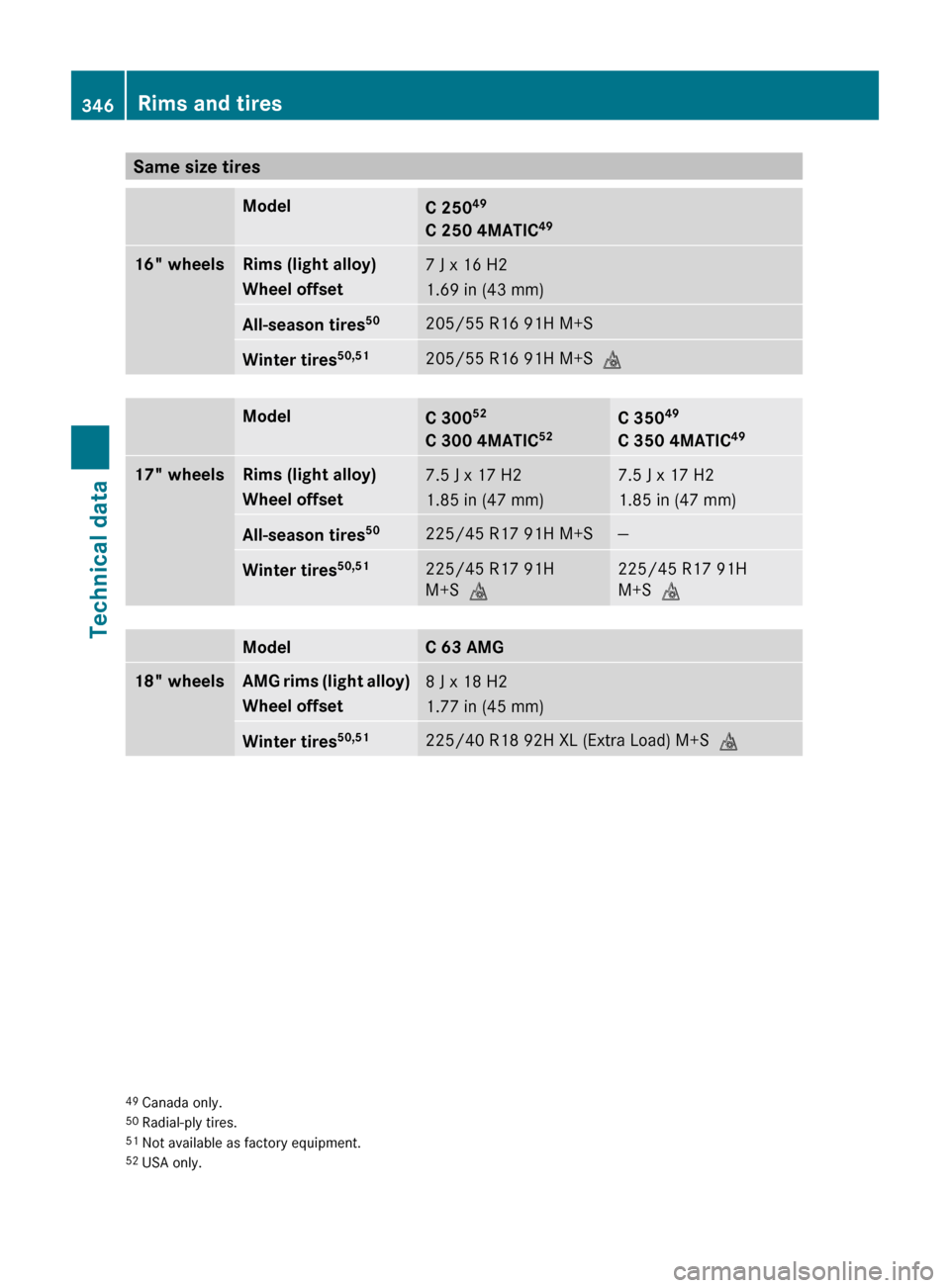

Same size tiresModelC 25049
C 250 4MATIC 4916" wheelsRims (light alloy)
Wheel offset7 J x 16 H2
1.69 in (43 mm)All-season tires 50205/55 R16 91H M+SWinter tires50,51205/55 R16 91H M+S
iModelC 30052
C 300 4MATIC 52C 35049
C 350 4MATIC 4917" wheelsRims (light alloy)
Wheel offset7.5 J x 17 H2
1.85 in (47 mm)7.5 J x 17 H2
1.85 in (47 mm)All-season tires 50225/45 R17 91H M+S—Winter tires50,51225/45 R17 91H
M+S i225/45 R17 91H
M+S iModelC 63 AMG18" wheelsAMG rims (light alloy)
Wheel offset8 J x 18 H2
1.77 in (45 mm)Winter tires 50,51225/40 R18 92H XL (Extra Load) M+S
i49
Canada only.
50 Radial-ply tires.
51 Not available as factory equipment.
52 USA only.346Rims and tiresTechnical data
204_AKB; 5; 23, en-USd2ureepe,Version: 2.11.8.12009-07-16T17:54:06+02:00 - Seite 346

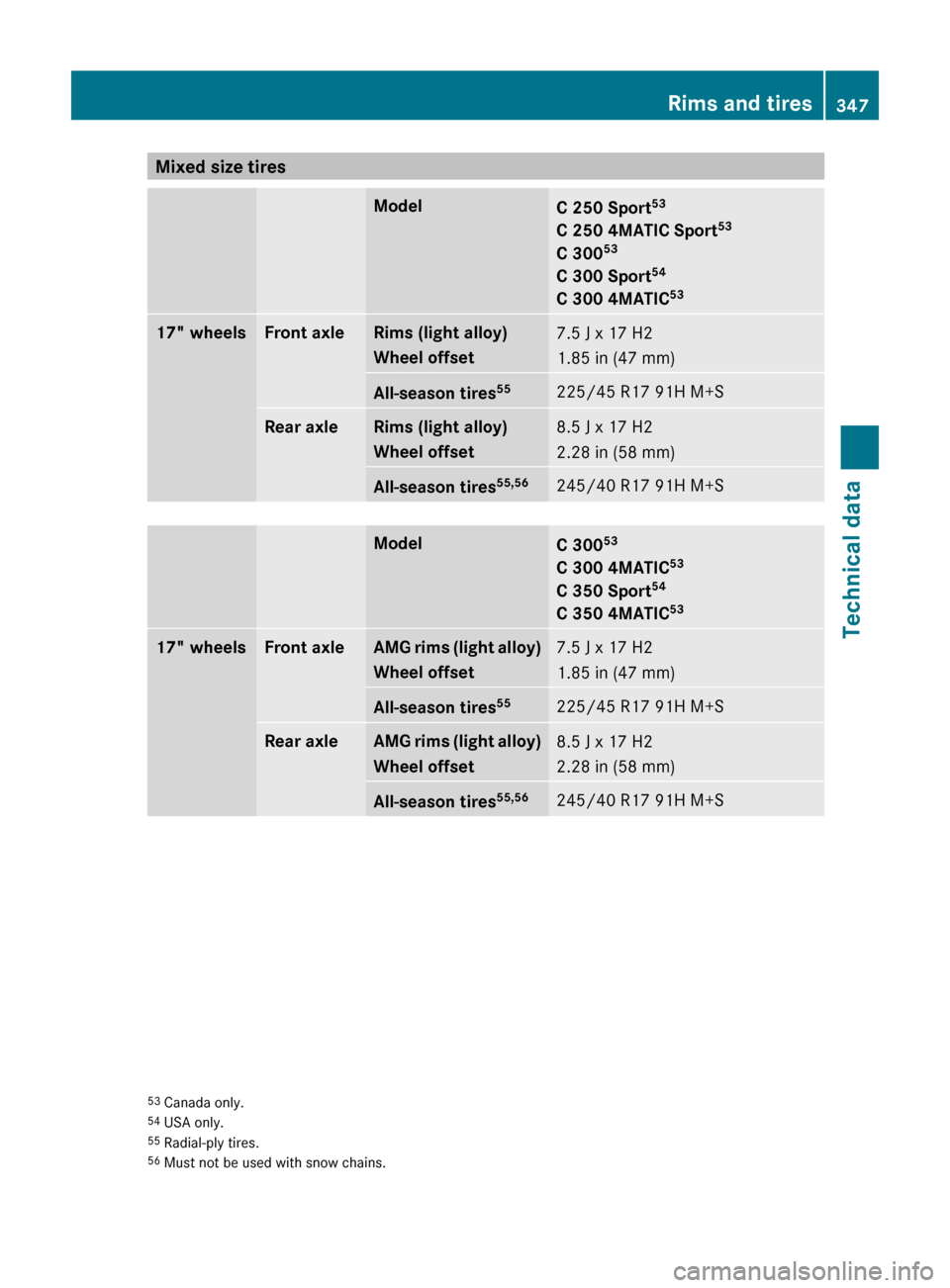

Mixed size tiresModelC 250 Sport53
C 250 4MATIC Sport 53
C 300 53
C 300 Sport 54
C 300 4MATIC 5317" wheelsFront axleRims (light alloy)
Wheel offset7.5 J x 17 H2
1.85 in (47 mm)All-season tires 55225/45 R17 91H M+SRear axleRims (light alloy)
Wheel offset8.5 J x 17 H2
2.28 in (58 mm)All-season tires 55,56245/40 R17 91H M+SModelC 30053
C 300 4MATIC 53
C 350 Sport 54
C 350 4MATIC 5317" wheelsFront axleAMG rims (light alloy)
Wheel offset7.5 J x 17 H2
1.85 in (47 mm)All-season tires 55225/45 R17 91H M+SRear axleAMG rims (light alloy)
Wheel offset8.5 J x 17 H2
2.28 in (58 mm)All-season tires 55,56245/40 R17 91H M+S53
Canada only.
54 USA only.
55 Radial-ply tires.
56 Must not be used with snow chains.Rims and tires347Technical data204_AKB; 5; 23, en-USd2ureepe,Version: 2.11.8.12009-07-16T17:54:06+02:00 - Seite 347Z

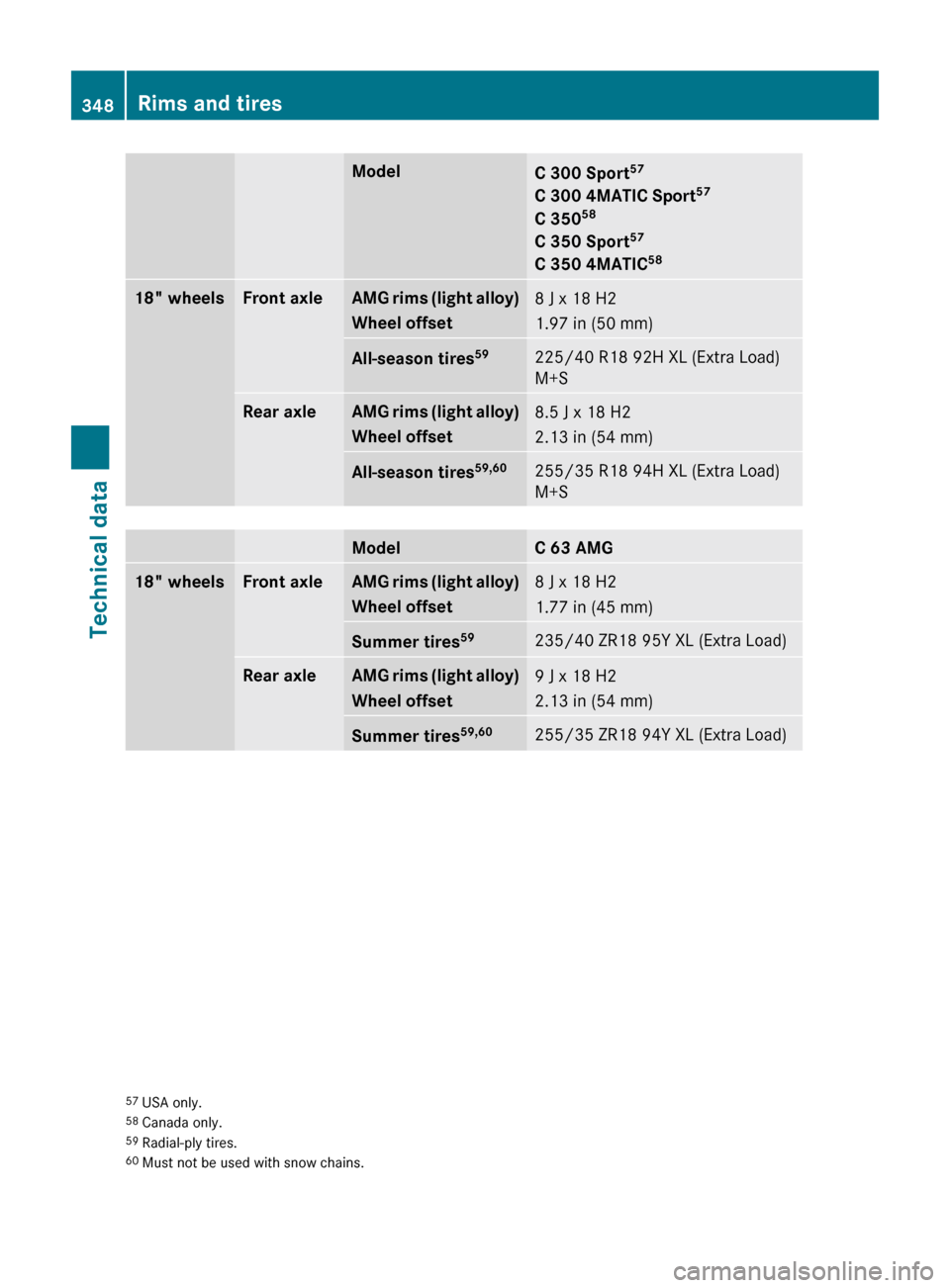

ModelC 300 Sport57
C 300 4MATIC Sport 57
C 350 58
C 350 Sport 57
C 350 4MATIC 5818" wheelsFront axleAMG rims (light alloy)
Wheel offset8 J x 18 H2
1.97 in (50 mm)All-season tires 59225/40 R18 92H XL (Extra Load)
M+SRear axleAMG rims (light alloy)
Wheel offset8.5 J x 18 H2
2.13 in (54 mm)All-season tires 59,60255/35 R18 94H XL (Extra Load)
M+SModelC 63 AMG18" wheelsFront axleAMG rims (light alloy)
Wheel offset8 J x 18 H2
1.77 in (45 mm)Summer tires 59235/40 ZR18 95Y XL (Extra Load)Rear axleAMG rims (light alloy)
Wheel offset9 J x 18 H2
2.13 in (54 mm)Summer tires 59,60255/35 ZR18 94Y XL (Extra Load)57
USA only.
58 Canada only.
59 Radial-ply tires.
60 Must not be used with snow chains.348Rims and tiresTechnical data
204_AKB; 5; 23, en-USd2ureepe,Version: 2.11.8.12009-07-16T17:54:06+02:00 - Seite 348

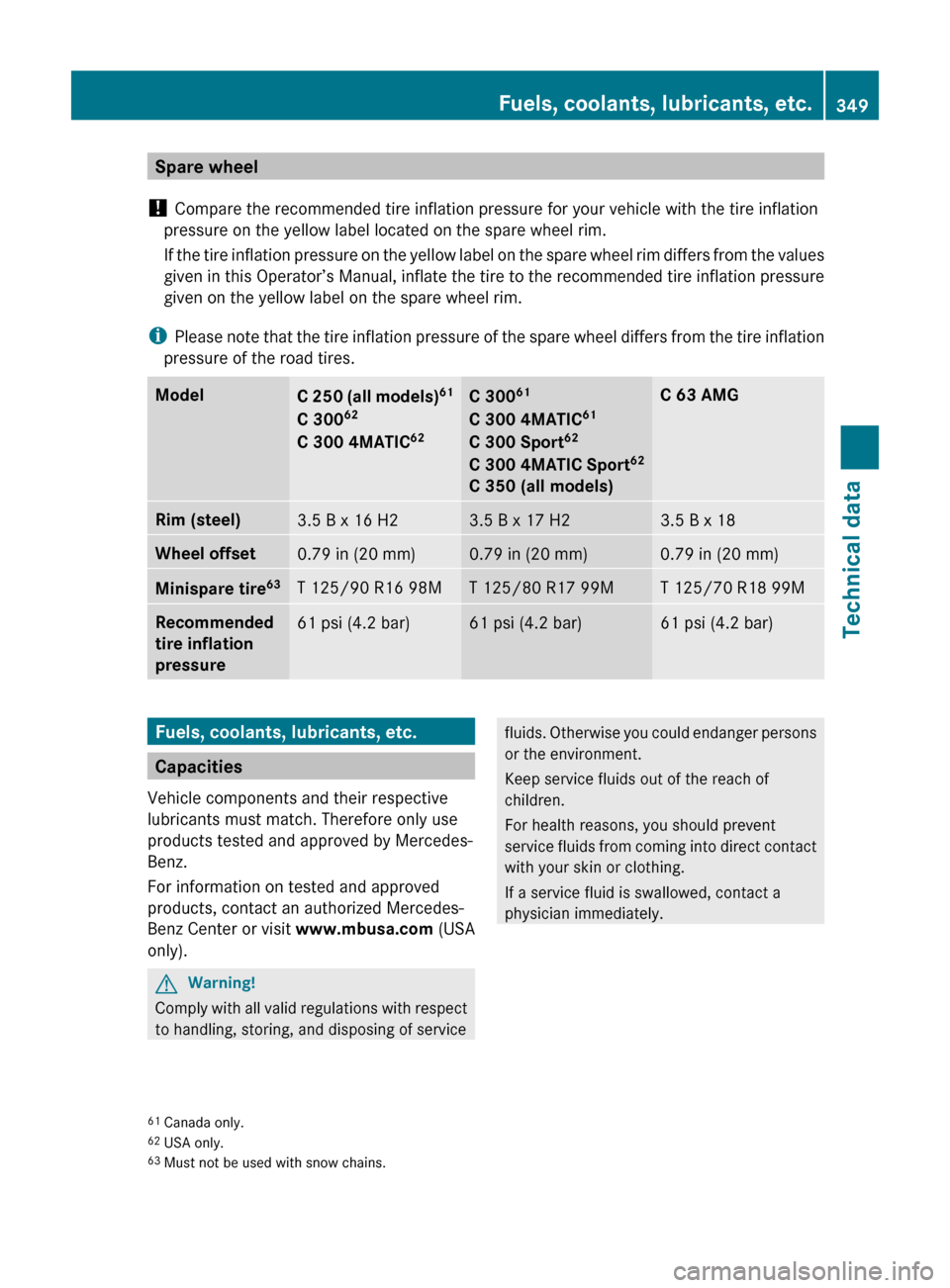

Spare wheel
! Compare the recommended tire inflation pressure for your vehicle with the tire inflation
pressure on the yellow label located on the spare wheel rim.
If the tire inflation pressure on the yellow label on the spare wheel rim differs from the values
given in this Operator’s Manual, inflate the tire to the recommended tire inflation pressure
given on the yellow label on the spare wheel rim.
i Please note that the tire inflation pressure of the spare wheel differs from the tire inflation
pressure of the road tires.ModelC 250 (all models) 61
C 300 62
C 300 4MATIC 62C 30061
C 300 4MATIC 61
C 300 Sport 62
C 300 4MATIC Sport 62
C 350 (all models)C 63 AMGRim (steel)3.5 B x 16 H23.5 B x 17 H23.5 B x 18Wheel offset0.79 in (20 mm)0.79 in (20 mm)0.79 in (20 mm)Minispare tire 63T 125/90 R16 98MT 125/80 R17 99MT 125/70 R18 99MRecommended
tire inflation
pressure61 psi (4.2 bar)61 psi (4.2 bar)61 psi (4.2 bar)Fuels, coolants, lubricants, etc.
Capacities
Vehicle components and their respective
lubricants must match. Therefore only use
products tested and approved by Mercedes-
Benz.
For information on tested and approved
products, contact an authorized Mercedes-
Benz Center or visit www.mbusa.com (USA
only).
GWarning!
Comply with all valid regulations with respect
to handling, storing, and disposing of service
fluids. Otherwise you could endanger persons
or the environment.
Keep service fluids out of the reach of
children.
For health reasons, you should prevent
service fluids from coming into direct contact
with your skin or clothing.
If a service fluid is swallowed, contact a
physician immediately.61 Canada only.
62 USA only.
63 Must not be used with snow chains.Fuels, coolants, lubricants, etc.349Technical data204_AKB; 5; 23, en-USd2ureepe,Version: 2.11.8.12009-07-16T17:54:06+02:00 - Seite 349Z

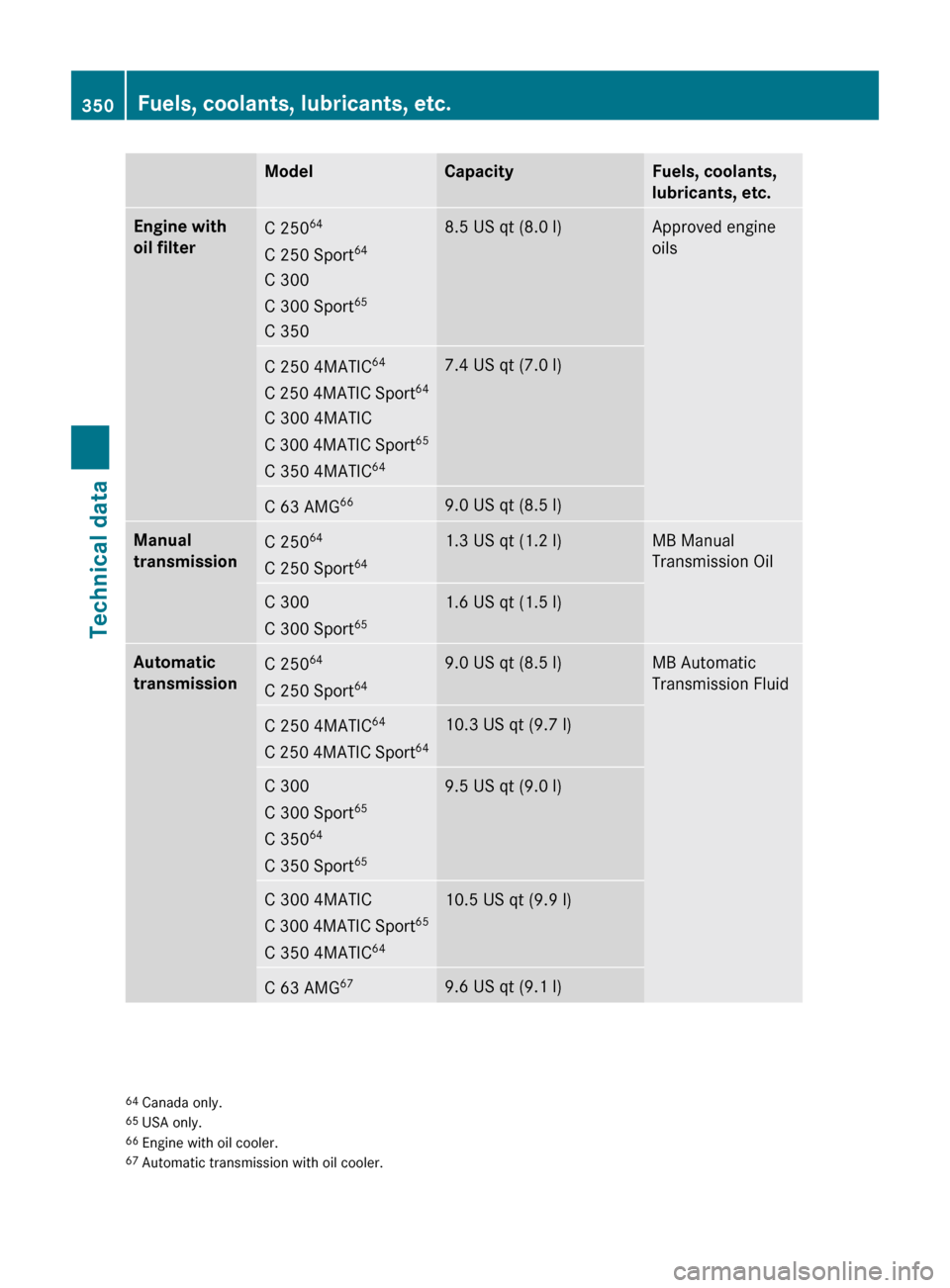

ModelCapacityFuels, coolants,
lubricants, etc.Engine with
oil filterC 250 64
C 250 Sport 64
C 300
C 300 Sport 65
C 3508.5 US qt (8.0 l)Approved engine
oilsC 250 4MATIC 64
C 250 4MATIC Sport 64
C 300 4MATIC
C 300 4MATIC Sport 65
C 350 4MATIC 647.4 US qt (7.0 l)C 63 AMG669.0 US qt (8.5 l)Manual
transmissionC 250 64
C 250 Sport 641.3 US qt (1.2 l)MB Manual
Transmission OilC 300
C 300 Sport 651.6 US qt (1.5 l)Automatic
transmissionC 250 64
C 250 Sport 649.0 US qt (8.5 l)MB Automatic
Transmission FluidC 250 4MATIC 64
C 250 4MATIC Sport 6410.3 US qt (9.7 l)C 300
C 300 Sport 65
C 350 64
C 350 Sport 659.5 US qt (9.0 l)C 300 4MATIC
C 300 4MATIC Sport 65
C 350 4MATIC 6410.5 US qt (9.9 l)C 63 AMG679.6 US qt (9.1 l)64
Canada only.
65 USA only.
66 Engine with oil cooler.
67 Automatic transmission with oil cooler.350Fuels, coolants, lubricants, etc.Technical data
204_AKB; 5; 23, en-USd2ureepe,Version: 2.11.8.12009-07-16T17:54:06+02:00 - Seite 350
