Vehicle Information Labels
qVehicle Identification Number
The vehicle identification number legally
identifies your vehicle. The number is on
a plate attached to the cowl panel located
on the left corner of the dashboard. This
plate can easily be seen through the
windshield.
qMotor Vehicle Safety Standard Label
qChassis Number
Open the cover shown in the figure to
check the chassis number.
qVehicle Emission Control
Information Label
10-2
Identification Numbers
CX-9_8AU2-EA-09G_Edition5 Page578
Thursday, May 6 2010 5:2 PM
Form No.8AU2-EA-09G

Black plate (579,1)
qTire Pressure Label (Except Canada)
qEngine Number
Forward
Identification Numbers
10-3
CX-9_8AU2-EA-09G_Edition5 Page579
Thursday, May 6 2010 5:2 PM
Form No.8AU2-EA-09G

Black plate (580,1)
Specifications
qEngine
Item Specification
Type DOHC-24V 60°V, 6-cylinder
Bore×Stroke 95.5 × 86.7 mm (3.75 × 3.41 in)
Displacement 3,726 ml (3,726 cc, 227.4 cu in)
Compression ratio 10.3
qElectrical System
Item Classification
Battery 12V-55AH/5HR
Spark-plug number CY01 18110
*1
Spark-plug gap 1.29―1.45 mm (0.051―0.057 in)
*1 ex factory
CAUTION
When cleaning the platinum plugs, do not use a wire brush. The fine particulate
coating on the platinum alloy could be damaged.
qLubricant Quality
Lubricant Classification
Engine oil Refer to the recommended SAE viscosity numbers on page 8-19.
Automatic transaxle fluid Mazda Genuine JWS3309
Transfer case oil API Service GL-5 (SAE 75W-140)
Rear differential oil API Service GL-5 (SAE 80W-90)
Power steering fluid Mazda Genuine ATF M-III, M-V, or equivalent (e.g. Dexron® II)
Brake fluid SAE J1703, or FMVSS116 DOT-3
10-4
Specifications
CX-9_8AU2-EA-09G_Edition5 Page580
Thursday, May 6 2010 5:2 PM
Form No.8AU2-EA-09G

Black plate (581,1)

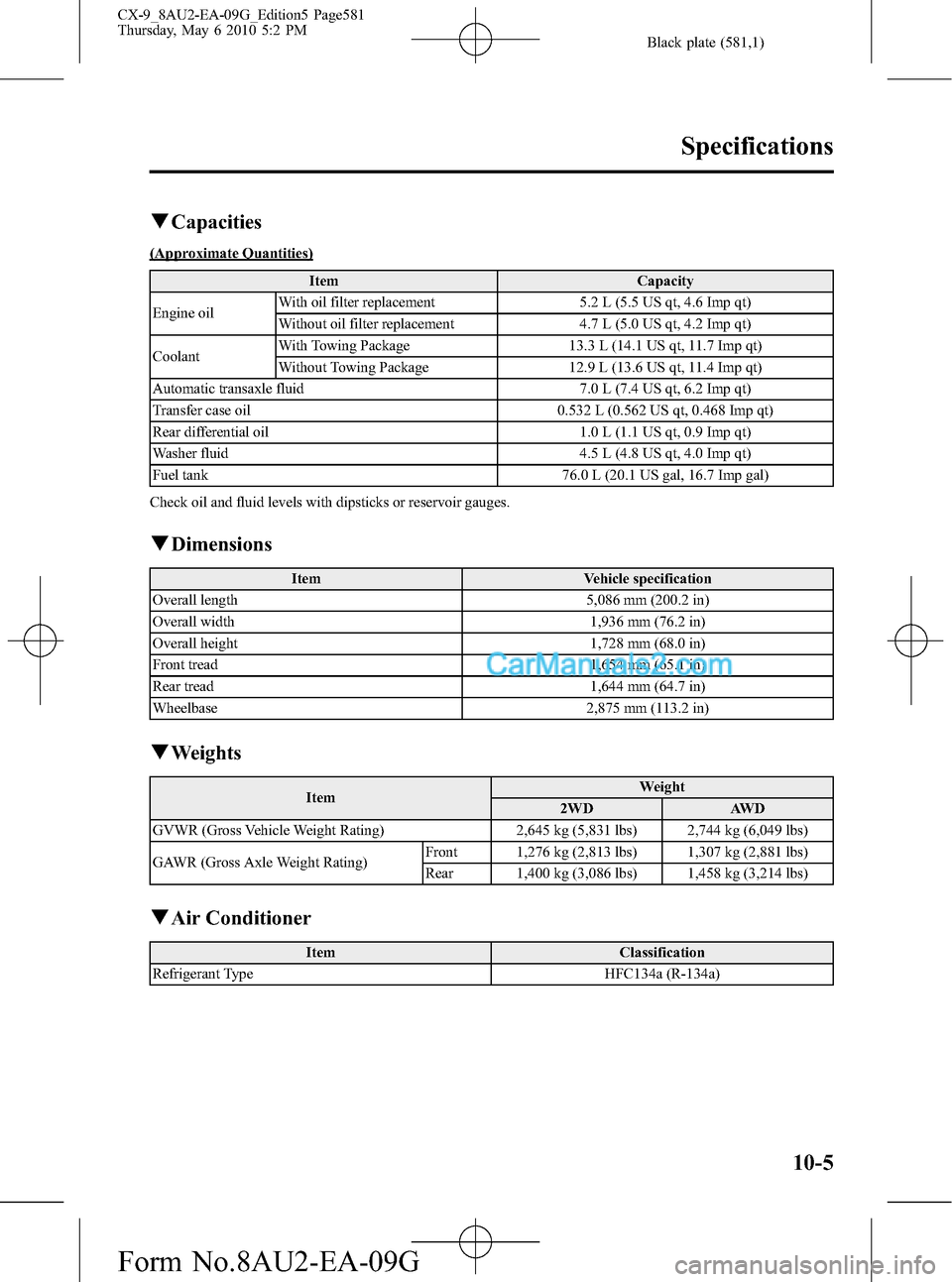

qCapacities
(Approximate Quantities)
Item Capacity
Engine oilWith oil filter replacement 5.2 L (5.5 US qt, 4.6 Imp qt)
Without oil filter replacement 4.7 L (5.0 US qt, 4.2 Imp qt)
CoolantWith Towing Package 13.3 L (14.1 US qt, 11.7 Imp qt)
Without Towing Package 12.9 L (13.6 US qt, 11.4 Imp qt)
Automatic transaxle fluid 7.0 L (7.4 US qt, 6.2 Imp qt)
Transfer case oil 0.532 L (0.562 US qt, 0.468 Imp qt)
Rear differential oil 1.0 L (1.1 US qt, 0.9 Imp qt)
Washer fluid 4.5 L (4.8 US qt, 4.0 Imp qt)
Fuel tank 76.0 L (20.1 US gal, 16.7 Imp gal)
Check oil and fluid levels with dipsticks or reservoir gauges.
qDimensions
Item Vehicle specification
Overall length 5,086 mm (200.2 in)
Overall width 1,936 mm (76.2 in)
Overall height 1,728 mm (68.0 in)
Front tread 1,654 mm (65.1 in)
Rear tread 1,644 mm (64.7 in)
Wheelbase 2,875 mm (113.2 in)
qWeights
ItemWeight
2WD AWD
GVWR (Gross Vehicle Weight Rating) 2,645 kg (5,831 lbs) 2,744 kg (6,049 lbs)
GAWR (Gross Axle Weight Rating)Front 1,276 kg (2,813 lbs) 1,307 kg (2,881 lbs)
Rear 1,400 kg (3,086 lbs) 1,458 kg (3,214 lbs)
qAir Conditioner
Item Classification
Refrigerant Type HFC134a (R-134a)
Specifications
10-5
CX-9_8AU2-EA-09G_Edition5 Page581
Thursday, May 6 2010 5:2 PM
Form No.8AU2-EA-09G

Black plate (582,1)
qLight Bulbs
Exterior light
Light bulbCategory
Wattage ECE R (SAE)
HeadlightsHigh beam 60 HB3 (HB3)
Low beamHalogen 55 H11 (H11)
Xenon fusion 35 D2S (D2S)
Front turn signal lights 21 WY21W (23CP)
Front side-marker lights 5 WY5W (3CP)
Parking lights 5 W5W (4CP)
Fog lights
í51 HB4 (#9006)
Side turn signal lights (Integrated with outside mirrors)íLED*1―(―)
High-mount brake light LED*1―(―)
Rear turn signal lights 21 WY21W (23CP)
Taillights/Brake lights LED
*1―(―)
Reverse lights 21 W21W (#7440)
License plate lights 5 W5W (4CP)
Rear side-marker lights 5 W5W (4CP)
*1 LED is the abbreviation for Light Emitting Diode.
Interior light
Light bulbCategory
Wattage ECE R
Overhead lights/Map lights (Front) 8―
Overhead light (Center) 10―
Overhead light (Rear) 10―
Courtesy lights 5 T10
Vanity mirror lights 2―
Luggage compartment light 10―
qTires
NOTE
The tires have been optimally matched with the chassis of your vehicle.
When replacing tires, Mazda recommends that you replace tires of the same type originally fitted to
your vehicle. For details, contact an Authorized Mazda Dealer.
10-6íSome models.
Specifications
CX-9_8AU2-EA-09G_Edition5 Page582
Thursday, May 6 2010 5:2 PM
Form No.8AU2-EA-09G

Black plate (583,1)
Check the tire pressure label for tire size and inflation pressure.
Refer to Tire Inflation Pressure on page 8-33.
Standard tire
Tire sizeInflation pressure
Front Rear
P245/60R18 104H 250 kPa (36 psi) 250 kPa (36 psi)
P245/50R20 102V 230 kPa (34 psi) 230 kPa (34 psi)
Temporary spare tire
(Except Mexico)
Tire size Inflation pressure
T155/90D18 103M 420 kPa (60 psi)
(Mexico)
Tire size Inflation pressure
195/80R17 99M 250 kPa (36 psi)
qFuses
Refer to the fuse rating on page 8-47.
Specifications
