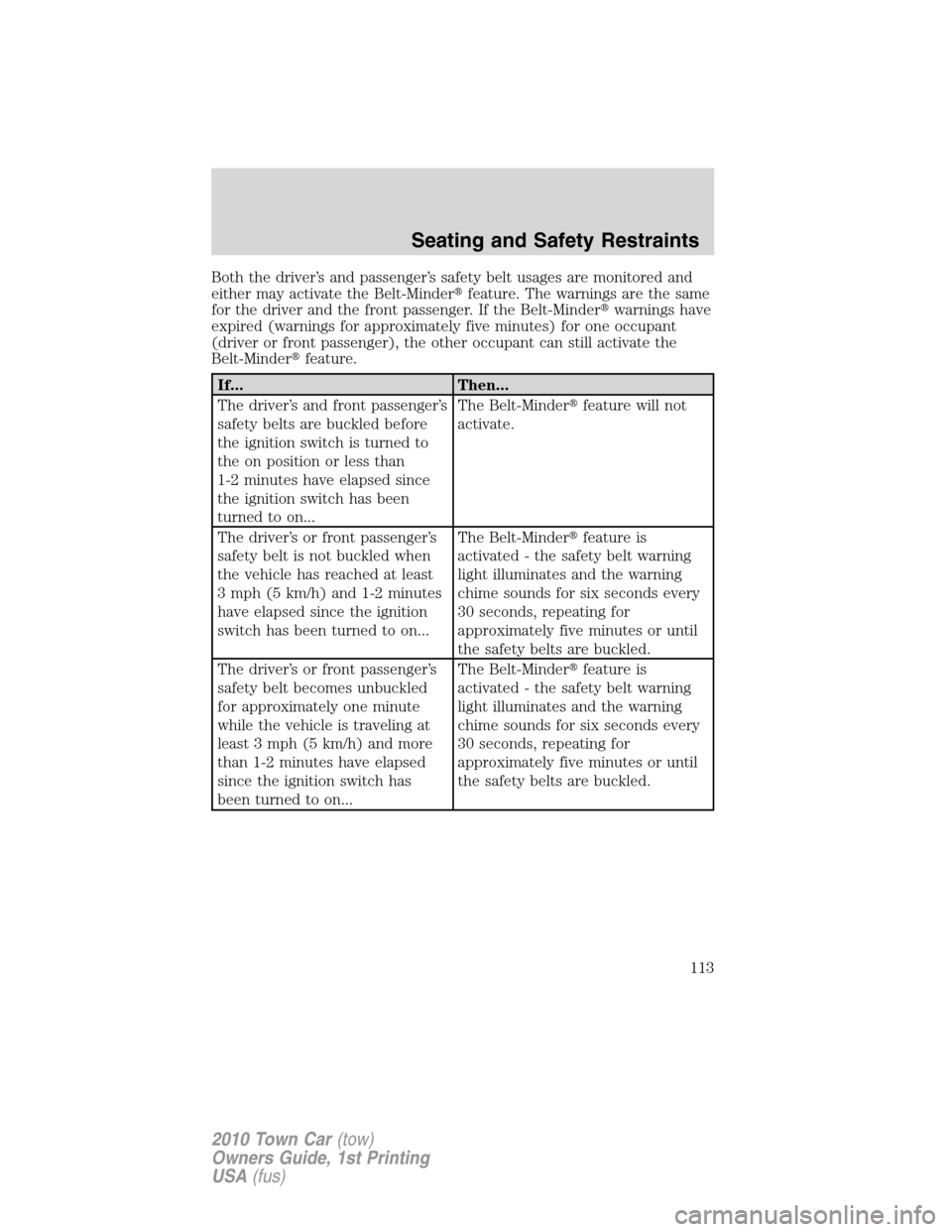

Both the driver’s and passenger’s safety belt usages are monitored and
either may activate the Belt-Minderfeature. The warnings are the same
for the driver and the front passenger. If the Belt-Minderwarnings have
expired (warnings for approximately five minutes) for one occupant
(driver or front passenger), the other occupant can still activate the
Belt-Minderfeature.
If... Then...
The driver’s and front passenger’s
safety belts are buckled before
the ignition switch is turned to
the on position or less than
1-2 minutes have elapsed since
the ignition switch has been
turned to on...The Belt-Minderfeature will not
activate.
The driver’s or front passenger’s
safety belt is not buckled when
the vehicle has reached at least
3 mph (5 km/h) and 1-2 minutes
have elapsed since the ignition
switch has been turned to on...The Belt-Minderfeature is
activated - the safety belt warning
light illuminates and the warning
chime sounds for six seconds every
30 seconds, repeating for
approximately five minutes or until
the safety belts are buckled.
The driver’s or front passenger’s
safety belt becomes unbuckled
for approximately one minute
while the vehicle is traveling at
least 3 mph (5 km/h) and more
than 1-2 minutes have elapsed
since the ignition switch has
been turned to on...The Belt-Minderfeature is
activated - the safety belt warning
light illuminates and the warning
chime sounds for six seconds every
30 seconds, repeating for
approximately five minutes or until
the safety belts are buckled.
Seating and Safety Restraints
113
2010 Town Car(tow)
Owners Guide, 1st Printing
USA(fus)

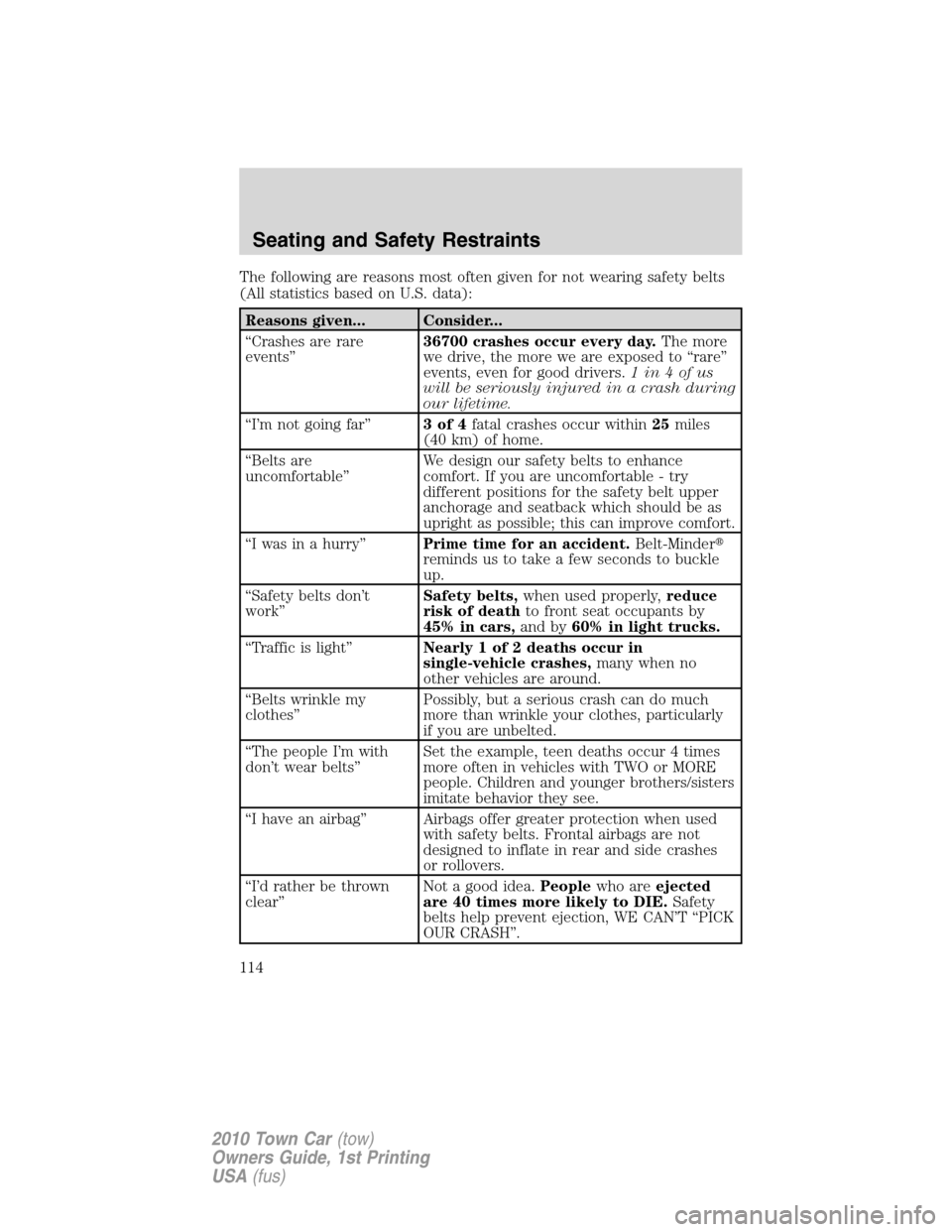

The following are reasons most often given for not wearing safety belts
(All statistics based on U.S. data):
Reasons given... Consider...
“Crashes are rare
events”36700 crashes occur every day.The more
we drive, the more we are exposed to “rare”
events, even for good drivers.1in4ofus
will be seriously injured in a crash during
our lifetime.
“I’m not going far”3of4fatal crashes occur within25miles
(40 km) of home.
“Belts are
uncomfortable”We design our safety belts to enhance
comfort. If you are uncomfortable - try
different positions for the safety belt upper
anchorage and seatback which should be as
upright as possible; this can improve comfort.
“I was in a hurry”Prime time for an accident.Belt-Minder
reminds us to take a few seconds to buckle
up.
“Safety belts don’t
work”Safety belts,when used properly,reduce
risk of deathto front seat occupants by
45% in cars,and by60% in light trucks.
“Traffic is light”Nearly 1 of 2 deaths occur in
single-vehicle crashes,many when no
other vehicles are around.
“Belts wrinkle my
clothes”Possibly, but a serious crash can do much
more than wrinkle your clothes, particularly
if you are unbelted.
“The people I’m with
don’t wear belts”Set the example, teen deaths occur 4 times
more often in vehicles with TWO or MORE
people. Children and younger brothers/sisters
imitate behavior they see.
“I have an airbag” Airbags offer greater protection when used
with safety belts. Frontal airbags are not
designed to inflate in rear and side crashes
or rollovers.
“I’d rather be thrown
clear”Not a good idea.Peoplewho areejected
are 40 times more likely to DIE.Safety
belts help prevent ejection, WE CAN’T “PICK
OUR CRASH”.
Seating and Safety Restraints
114
2010 Town Car(tow)
Owners Guide, 1st Printing
USA(fus)

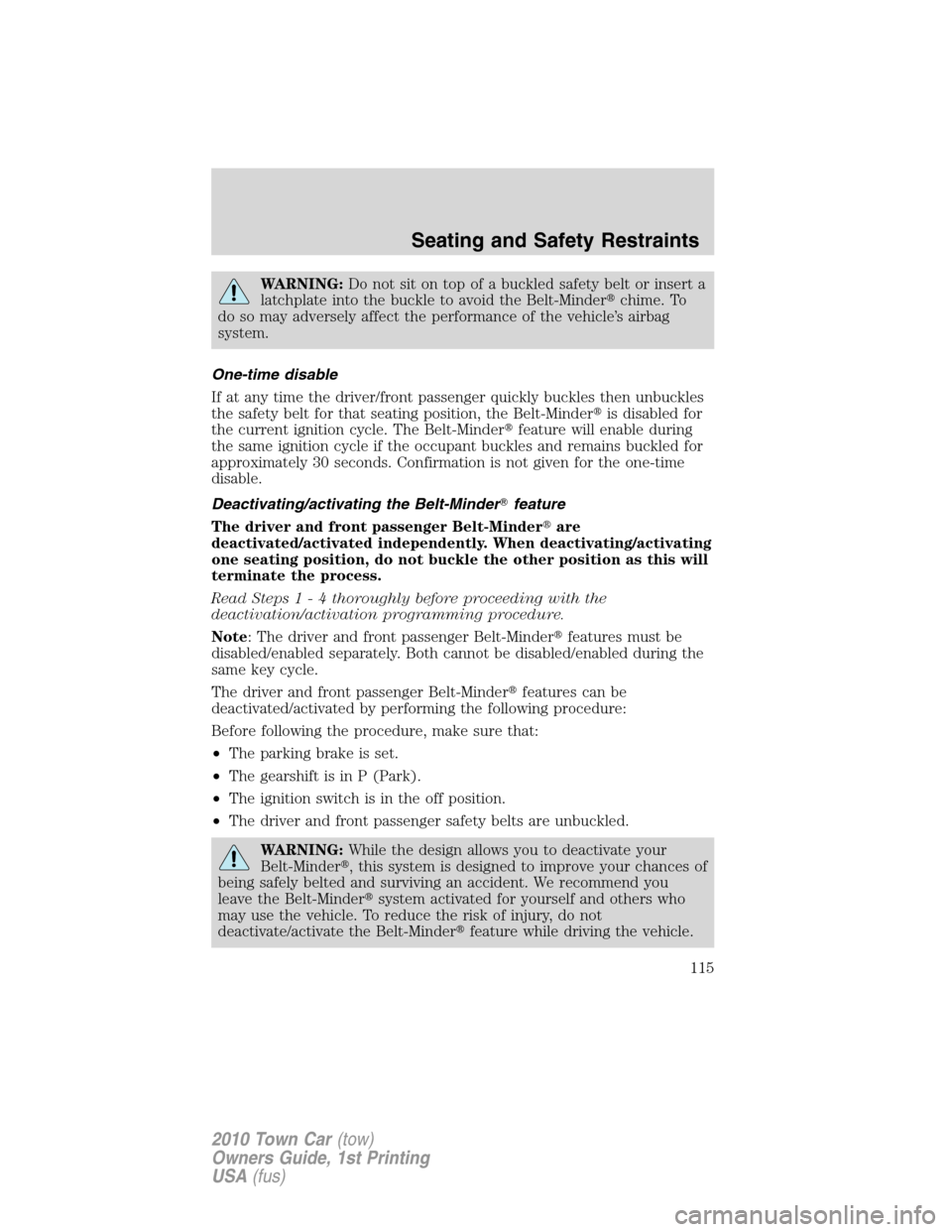

WARNING:Do not sit on top of a buckled safety belt or insert a
latchplate into the buckle to avoid the Belt-Minderchime. To
do so may adversely affect the performance of the vehicle’s airbag
system.
One-time disable
If at any time the driver/front passenger quickly buckles then unbuckles
the safety belt for that seating position, the Belt-Minderis disabled for
the current ignition cycle. The Belt-Minderfeature will enable during
the same ignition cycle if the occupant buckles and remains buckled for
approximately 30 seconds. Confirmation is not given for the one-time
disable.
Deactivating/activating the Belt-Minderfeature
The driver and front passenger Belt-Minderare
deactivated/activated independently. When deactivating/activating
one seating position, do not buckle the other position as this will
terminate the process.
Read Steps1-4thoroughly before proceeding with the
deactivation/activation programming procedure.
Note: The driver and front passenger Belt-Minderfeatures must be
disabled/enabled separately. Both cannot be disabled/enabled during the
same key cycle.
The driver and front passenger Belt-Minderfeatures can be
deactivated/activated by performing the following procedure:
Before following the procedure, make sure that:
•The parking brake is set.
•The gearshift is in P (Park).
•The ignition switch is in the off position.
•The driver and front passenger safety belts are unbuckled.
WARNING:While the design allows you to deactivate your
Belt-Minder, this system is designed to improve your chances of
being safely belted and surviving an accident. We recommend you
leave the Belt-Mindersystem activated for yourself and others who
may use the vehicle. To reduce the risk of injury, do not
deactivate/activate the Belt-Minderfeature while driving the vehicle.
Seating and Safety Restraints
115
2010 Town Car(tow)
Owners Guide, 1st Printing
USA(fus)

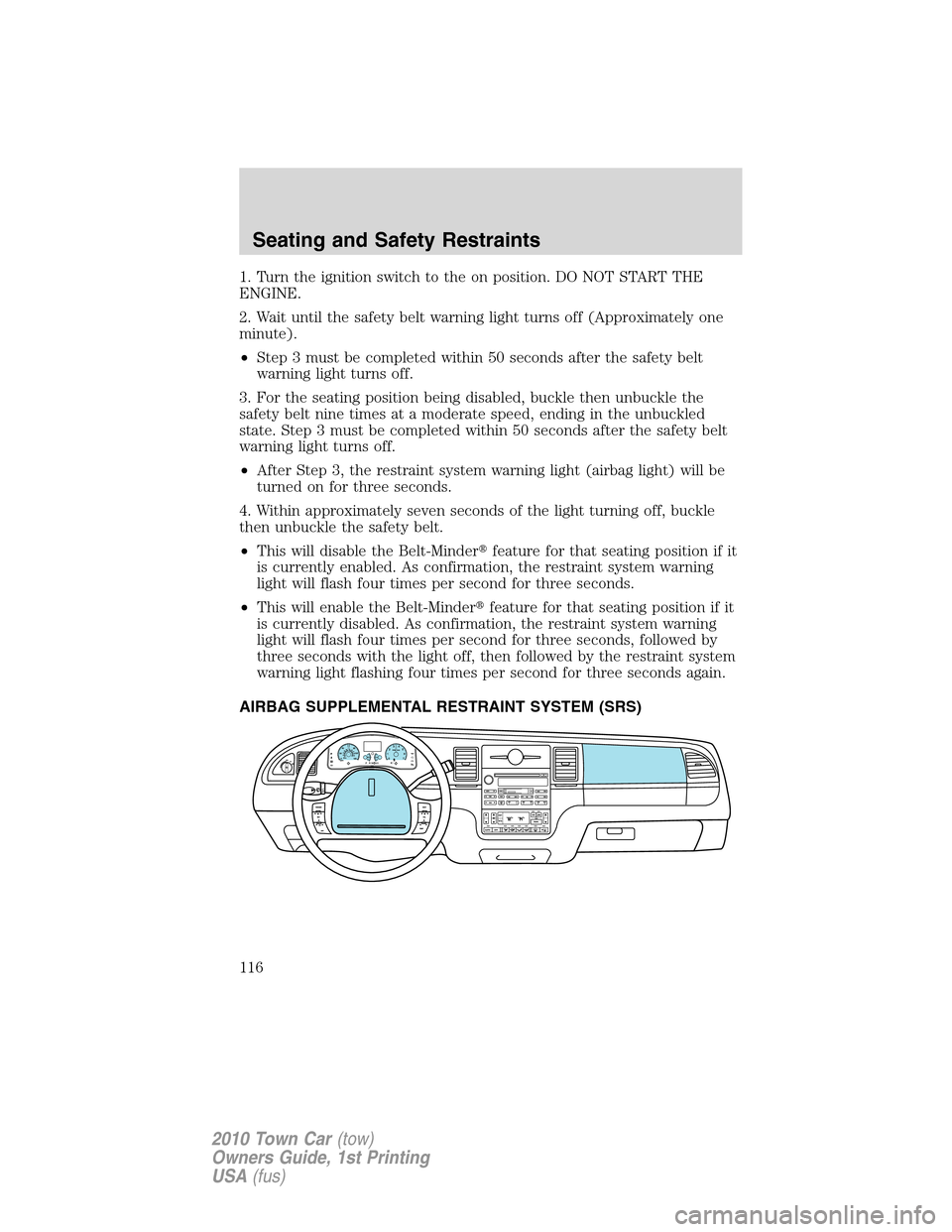

1. Turn the ignition switch to the on position. DO NOT START THE
ENGINE.
2. Wait until the safety belt warning light turns off (Approximately one
minute).
•Step 3 must be completed within 50 seconds after the safety belt
warning light turns off.
3. For the seating position being disabled, buckle then unbuckle the
safety belt nine times at a moderate speed, ending in the unbuckled
state. Step 3 must be completed within 50 seconds after the safety belt
warning light turns off.
•After Step 3, the restraint system warning light (airbag light) will be
turned on for three seconds.
4. Within approximately seven seconds of the light turning off, buckle
then unbuckle the safety belt.
•This will disable the Belt-Minderfeature for that seating position if it
is currently enabled. As confirmation, the restraint system warning
light will flash four times per second for three seconds.
•This will enable the Belt-Minderfeature for that seating position if it
is currently disabled. As confirmation, the restraint system warning
light will flash four times per second for three seconds, followed by
three seconds with the light off, then followed by the restraint system
warning light flashing four times per second for three seconds again.
AIRBAG SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
Seating and Safety Restraints
116
2010 Town Car(tow)
Owners Guide, 1st Printing
USA(fus)

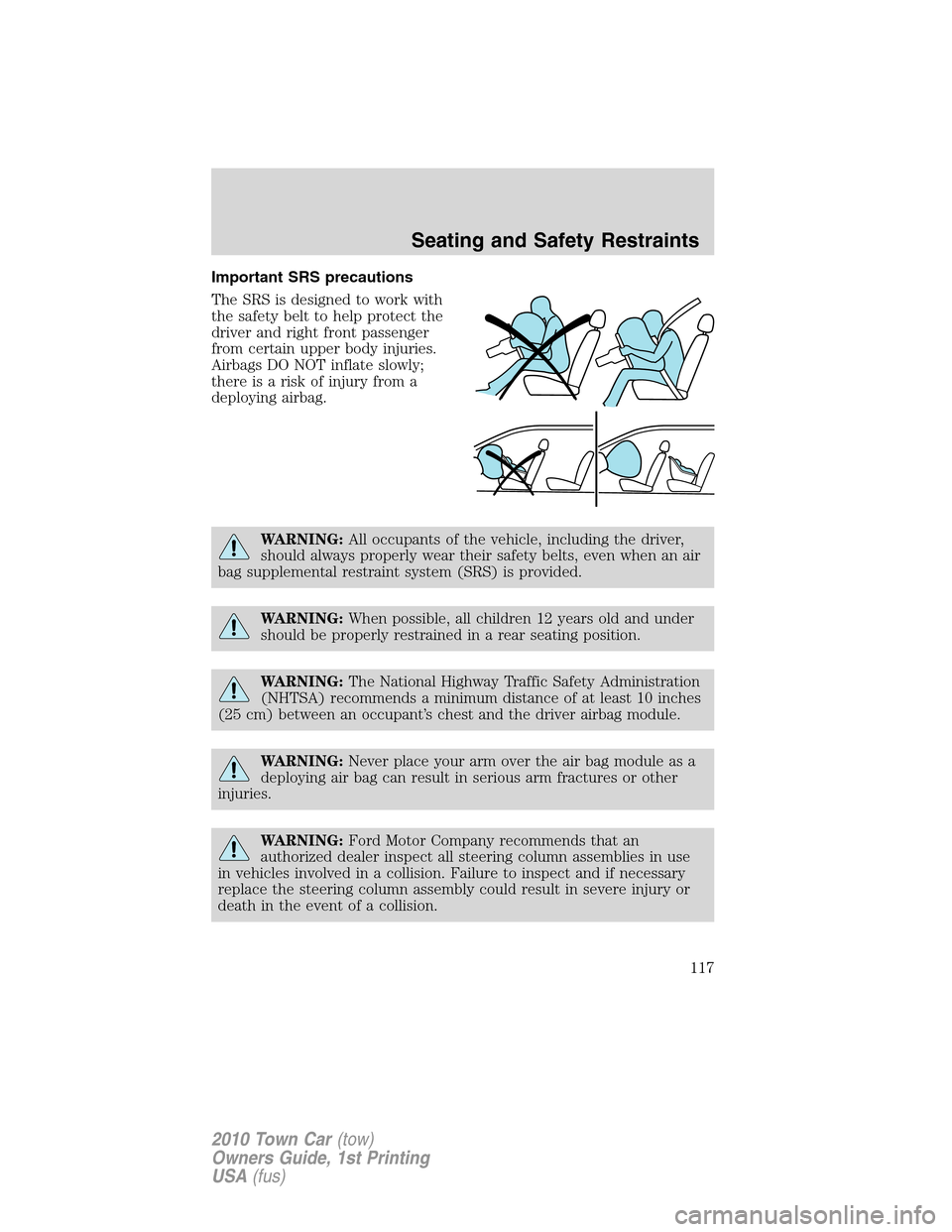

Important SRS precautions
The SRS is designed to work with
the safety belt to help protect the
driver and right front passenger
from certain upper body injuries.
Airbags DO NOT inflate slowly;
there is a risk of injury from a
deploying airbag.
WARNING:All occupants of the vehicle, including the driver,
should always properly wear their safety belts, even when an air
bag supplemental restraint system (SRS) is provided.
WARNING:When possible, all children 12 years old and under
should be properly restrained in a rear seating position.
WARNING:The National Highway Traffic Safety Administration
(NHTSA) recommends a minimum distance of at least 10 inches
(25 cm) between an occupant’s chest and the driver airbag module.
WARNING:Never place your arm over the air bag module as a
deploying air bag can result in serious arm fractures or other
injuries.
WARNING:Ford Motor Company recommends that an
authorized dealer inspect all steering column assemblies in use
in vehicles involved in a collision. Failure to inspect and if necessary
replace the steering column assembly could result in severe injury or
death in the event of a collision.
Seating and Safety Restraints
117
2010 Town Car(tow)
Owners Guide, 1st Printing
USA(fus)

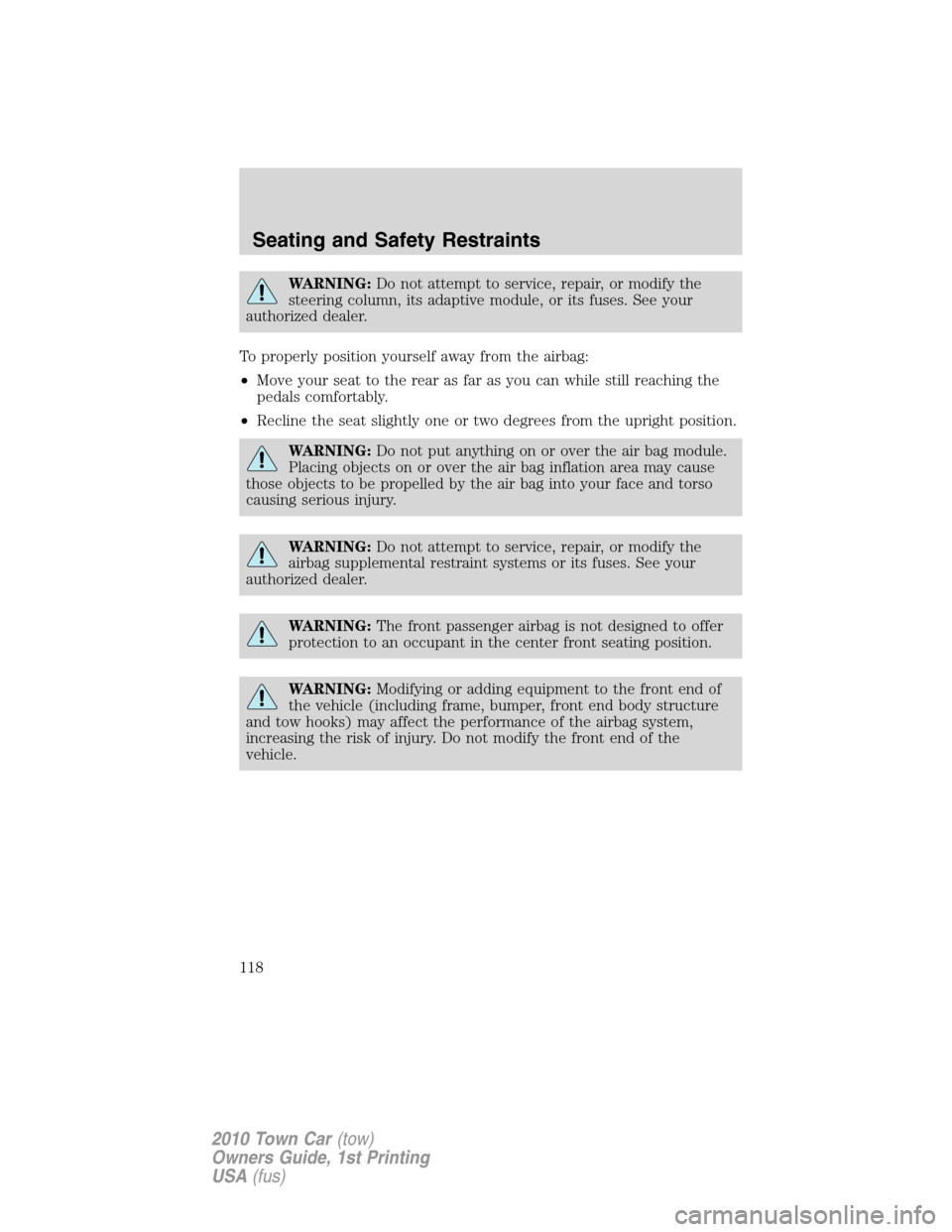

WARNING:Do not attempt to service, repair, or modify the
steering column, its adaptive module, or its fuses. See your
authorized dealer.
To properly position yourself away from the airbag:
•Move your seat to the rear as far as you can while still reaching the
pedals comfortably.
•Recline the seat slightly one or two degrees from the upright position.
WARNING:Do not put anything on or over the air bag module.
Placing objects on or over the air bag inflation area may cause
those objects to be propelled by the air bag into your face and torso
causing serious injury.
WARNING:Do not attempt to service, repair, or modify the
airbag supplemental restraint systems or its fuses. See your
authorized dealer.
WARNING:The front passenger airbag is not designed to offer
protection to an occupant in the center front seating position.
WARNING:Modifying or adding equipment to the front end of
the vehicle (including frame, bumper, front end body structure
and tow hooks) may affect the performance of the airbag system,
increasing the risk of injury. Do not modify the front end of the
vehicle.
Seating and Safety Restraints
118
2010 Town Car(tow)
Owners Guide, 1st Printing
USA(fus)

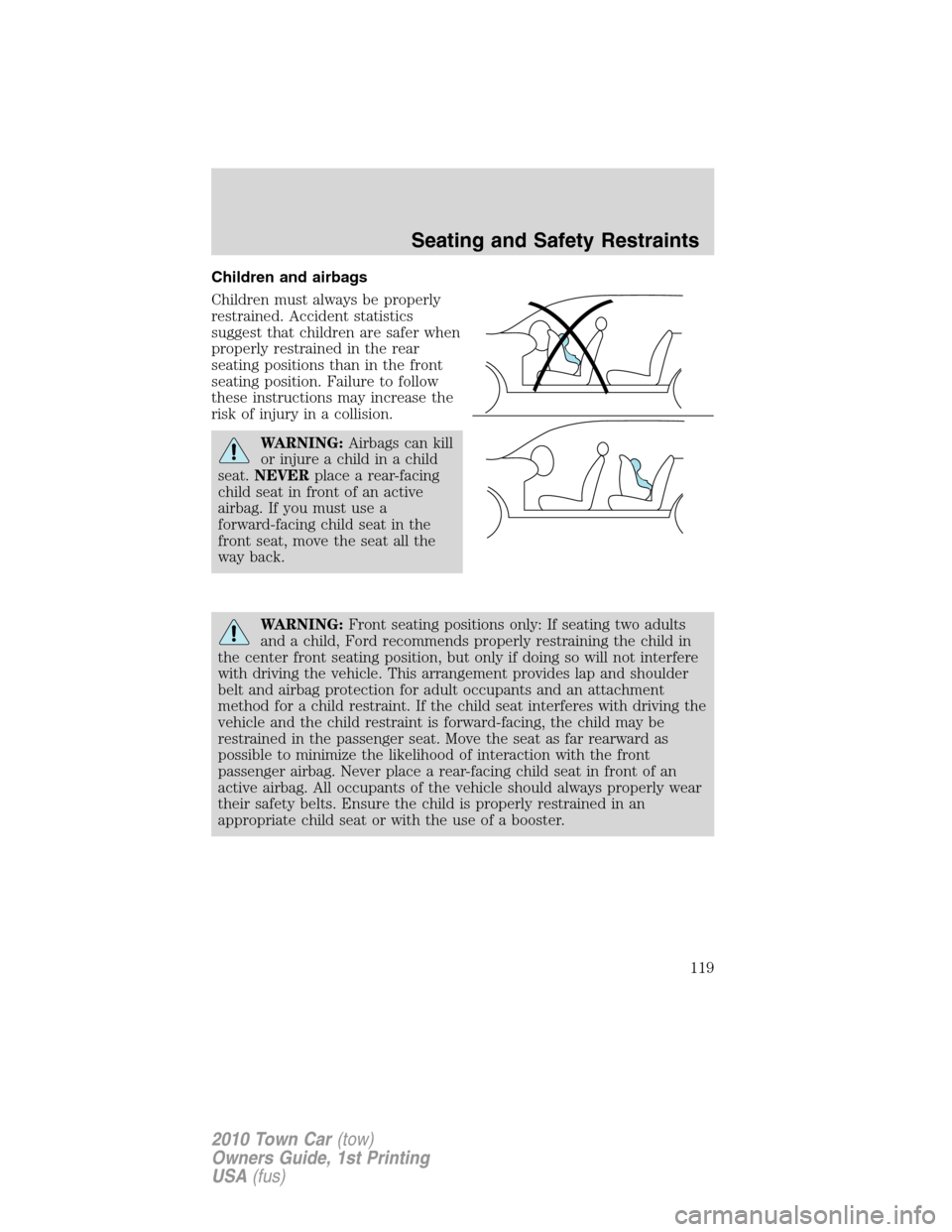

Children and airbags
Children must always be properly
restrained. Accident statistics
suggest that children are safer when
properly restrained in the rear
seating positions than in the front
seating position. Failure to follow
these instructions may increase the
risk of injury in a collision.
WARNING:Airbags can kill
or injure a child in a child
seat.NEVERplace a rear-facing
child seat in front of an active
airbag. If you must use a
forward-facing child seat in the
front seat, move the seat all the
way back.
WARNING:Front seating positions only: If seating two adults
and a child, Ford recommends properly restraining the child in
the center front seating position, but only if doing so will not interfere
with driving the vehicle. This arrangement provides lap and shoulder
belt and airbag protection for adult occupants and an attachment
method for a child restraint. If the child seat interferes with driving the
vehicle and the child restraint is forward-facing, the child may be
restrained in the passenger seat. Move the seat as far rearward as
possible to minimize the likelihood of interaction with the front
passenger airbag. Never place a rear-facing child seat in front of an
active airbag. All occupants of the vehicle should always properly wear
their safety belts. Ensure the child is properly restrained in an
appropriate child seat or with the use of a booster.
Seating and Safety Restraints
119
2010 Town Car(tow)
Owners Guide, 1st Printing
USA(fus)

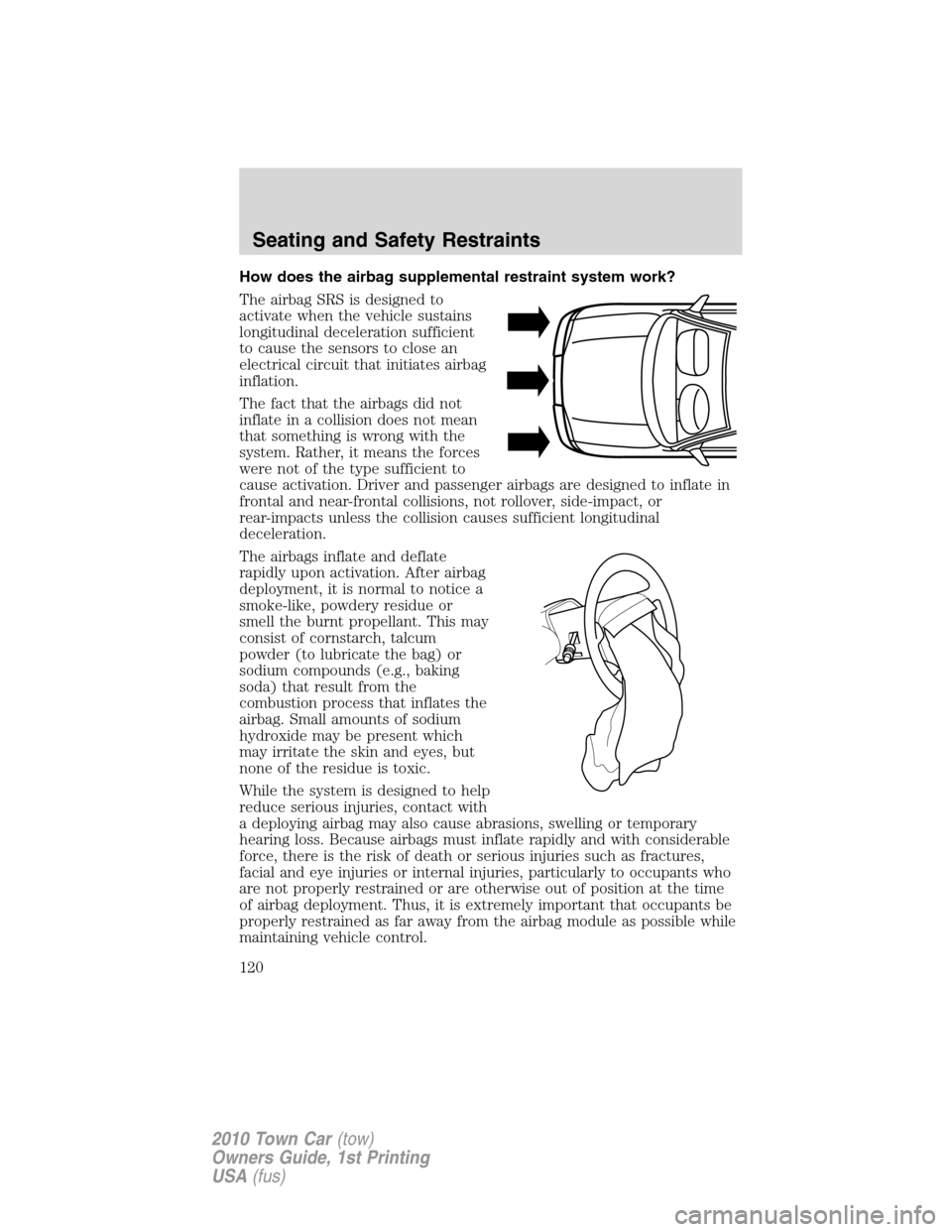

How does the airbag supplemental restraint system work?
The airbag SRS is designed to
activate when the vehicle sustains
longitudinal deceleration sufficient
to cause the sensors to close an
electrical circuit that initiates airbag
inflation.
The fact that the airbags did not
inflate in a collision does not mean
that something is wrong with the
system. Rather, it means the forces
were not of the type sufficient to
cause activation. Driver and passenger airbags are designed to inflate in
frontal and near-frontal collisions, not rollover, side-impact, or
rear-impacts unless the collision causes sufficient longitudinal
deceleration.
The airbags inflate and deflate
rapidly upon activation. After airbag
deployment, it is normal to notice a
smoke-like, powdery residue or
smell the burnt propellant. This may
consist of cornstarch, talcum
powder (to lubricate the bag) or
sodium compounds (e.g., baking
soda) that result from the
combustion process that inflates the
airbag. Small amounts of sodium
hydroxide may be present which
may irritate the skin and eyes, but
none of the residue is toxic.
While the system is designed to help
reduce serious injuries, contact with
a deploying airbag may also cause abrasions, swelling or temporary
hearing loss. Because airbags must inflate rapidly and with considerable
force, there is the risk of death or serious injuries such as fractures,
facial and eye injuries or internal injuries, particularly to occupants who
are not properly restrained or are otherwise out of position at the time
of airbag deployment. Thus, it is extremely important that occupants be
properly restrained as far away from the airbag module as possible while
maintaining vehicle control.
Seating and Safety Restraints
120
2010 Town Car(tow)
Owners Guide, 1st Printing
USA(fus)
