161
1-7. Safety information
1
Before driving
GX460_U.S.A. (OM60E69U)
Child restraint systems with a top tether strapSecure the child restraint using a seat belt or the LATCH anchors,
and do the following. Move the head restraint in place at
the upmost position.
Open the anchor bracket cover,
latch the hook onto the anchor
bracket and tighten the top strap.
Make sure the top strap is securely
latched.
STEP1
STEP2

162
1-7. Safety information
GX460_U.S.A. (OM60E69U)
■Laws and regulations pertaining to anchorages
The LATCH system conforms to FMVSS225 or CMVSS210.2.
Child restraint systems conforming to FMVSS213 or CMVSS213 specifications
can be used. 
This vehicle is designed to conform to the SAE J1819.
CAUTION
■When installing a booster seat
To prevent the belt from going into ALR lock mode, do not fully extend the shoulder
belt. ALR mode causes the belt to tighten only. This could cause injury or discom-
fort to the child. ( P. 8 8 )

163
1-7. Safety information
1
Before driving
GX460_U.S.A. (OM60E69U)
CAUTION
■When installing a child restraint system
Follow the directions given in the child restraint system installation manual and fix
the child restraint system securely in place. 
If the child restraint system is not correctl y fixed in place, the child or other passen-
gers may be seriously injured or even killed in the event of sudden braking or an
accident.
●If the driver’s seat interferes with the child
restraint system and prevents it from being
attached correctly, attach the child restraint
system to the right-hand second seat.
●Adjust the front passen ger seat so that it
does not interfere with the child restraint
system.
●Child restraint system installed on the third
seat should not cont act the second seat-
backs.
●Only put a forward-facing child restraint
system on the front seat when unavoidable.
When installing a forward-facing child
restraint system on the front passenger
seat, move the seat as far back as possible
even if the “AIR BAG OFF” indicator light is
illuminated. Failing to do so may result in
death or serious injury if the airbags deploy
(inflate).

164
1-7. Safety information
GX460_U.S.A. (OM60E69U)
CAUTION
■When installing a child restraint system
●When installing a child restraint system in the second center seat, adjust both
seatbacks at the same angle.
●When using the LATCH anchors for a child restraint system, move the seat as far
back as possible, with the seatback close to the child restraint system.
●When a booster seat is installed, always ensure that the shoulder belt is posi-
tioned across the center of the child’s shoulder. The belt should be kept away from
the child’s neck, but not so that it could fall off the child’s shoulder. Failing to do so
may result in death or serious injury in the event of an accident or sudden braking.
●Ensure that the belt and plate are securely locked and the seat belt is not twisted.
●Push and pull the child restraint system from side to side and forward to be sure it
is secure.
●After securing a child restraint system, never adjust the seat.
●Follow all installation instructions provid ed by the child restraint system manufac-
turer.
■Do not use a seat belt extender
If a seat belt extender is used when inst alling a child restraint system, the seat belt
will not securely hold the child restraint system, which could cause death or serious
injury to the child or other passengers in the event of an accident.

165
1-7. Safety information
1
Before driving
GX460_U.S.A. (OM60E69U)
CAUTION
■To correctly attach a child restraint system to the anchors
●When using the LATCH anchors, be sure that there are no foreign objects
around the anchors and that the seat belt is not caught behind the child restraint.
Make sure the child restraint system is se curely attached, or it may cause death or
serious injury to the child or other passengers in the event of a sudden stop or
accident.
●When using the left side LATCH anchors
for the child restraint system, do not sit in
the center seat. 
Seat belt function may be impaired, such as
being positioned overly high or loose-fit-
ting, which may result in death or serious
injury in the event of sudden braking, sud-
den swerving or an accident.

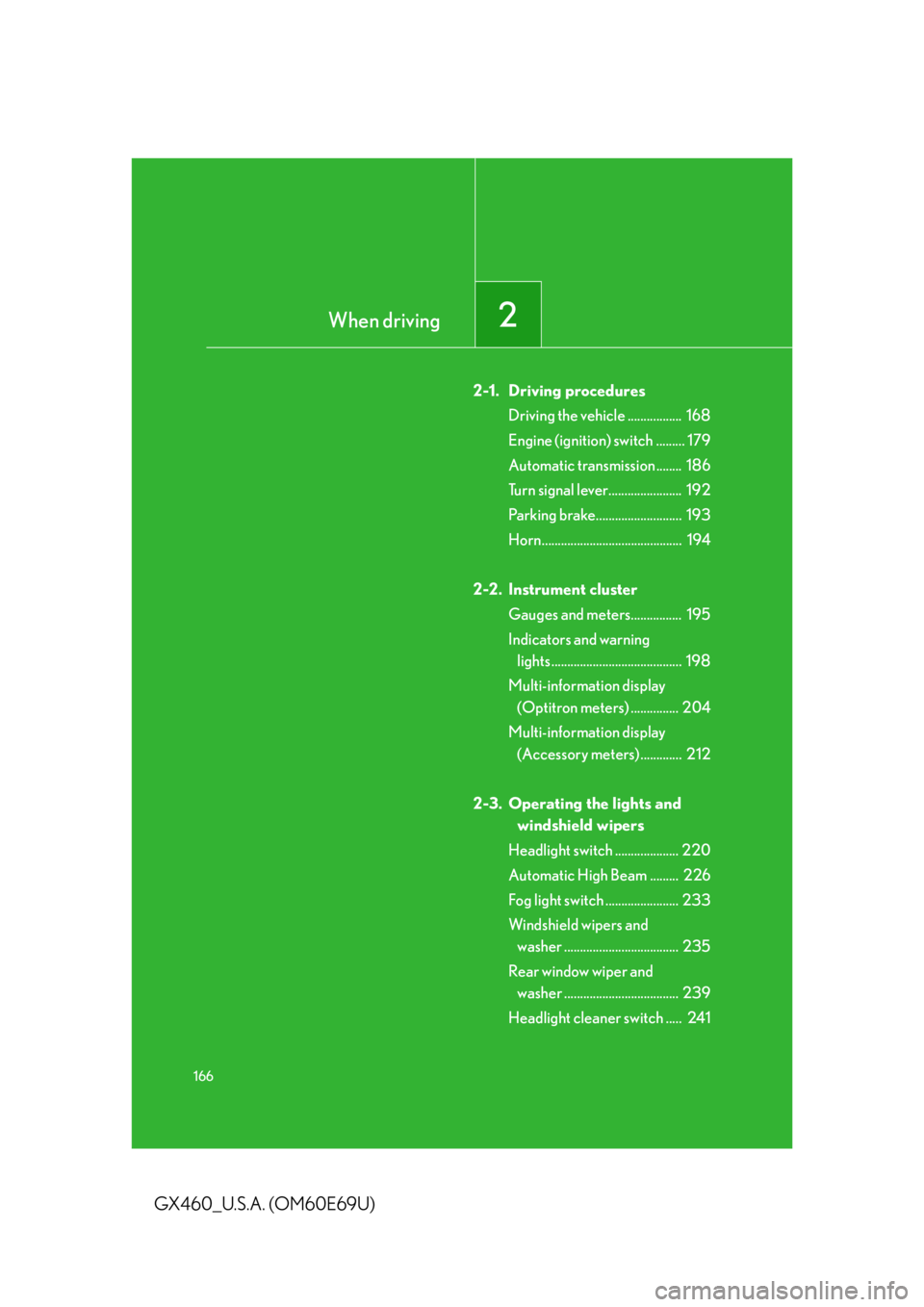

166
GX460_U.S.A. (OM60E69U)
2-1. Driving proceduresDriving the vehicle ................. 168
Engine (ignition) switch ......... 179
Automatic transmission ........ 186
Turn signal lever....................... 192
Parking brake........................... 193
Horn............................................ 194
2-2. Instrument cluster Gauges and meters................ 195
Indicators and warning 
lights ......................................... 198
Multi-information display 
(Optitron meters) ............... 204
Multi-information display 
(Accessory meters) ............. 212
2-3. Operating the lights and 
windshield wipers
Headlight switch .................... 220
Automatic High Beam ......... 226
Fog light switch ....................... 233
Windshield wipers and 
washer .................................... 235
Rear window wiper and 
washer .................................... 239
Headlight cleaner switch ..... 241
When driving2

When driving2
167
GX460_U.S.A. (OM60E69U)
2-4. Using other driving systemsCruise control ......................... 242
Dynamic radar cruise 
control .................................... 246
Intuitive parking assist .......... 259
LDA 
(Lane Departure Alert) ..... 268
Rear view monitor 
system ...................................... 274
Wide view front & side  monitor ................................... 279
Multi-terrain Select .............. 290
Multi-terrain Monitor.......... 298
Rear height control air 
suspension .............................. 310
AVS (Adaptive Variable 
Suspension System)............. 316
Four-wheel drive system ....... 317
Crawl Control ........................ 323
DAC (Downhill Assist 
Control system) ................... 327
Driving assist systems .......... 330
PCS 
(Pre-Collision System)...... 338 2-5. Driving information
Off-road precautions ........... 348
Cargo and luggage ............... 353
Vehicle load limits .................. 359
Winter driving tips .................. 361
Trailer towing .......................... 365
Dinghy towing......................... 380

168
GX460_U.S.A. (OM60E69U)
2-1. Driving procedures
Driving the vehicle
The following procedures should be observed to ensure safe driving:
■Starting the engine
 P. 1 7 9
■ Driving
With the brake pedal depressed, shift the shift lever to D. 
( P. 1 8 6 )
Release the parking brake. ( P. 193)
Gradually release the brake pedal and gently depress the
accelerator pedal to accelerate the vehicle.
■ Stopping
With the shift lever in D, depress the brake pedal.
If necessary, set the parking brake.
If the vehicle is to be stopped for an extended period of time, shift the
shift lever to P or N. ( P. 1 8 6 )
■Parking the vehicle
With the shift lever in D, depress the brake pedal.
Set the parking brake. ( P. 1 9 3 )
Shift the shift lever to P. ( P. 1 8 6 )
If parking on a hill, block the wheels as needed.
Press the “ENGINE START STOP” switch to stop the engine.
Lock the door, making sure that you have the key on your per-
son.
STEP1
STEP2
STEP3
STEP1
STEP2
STEP1
STEP2
STEP3
STEP4
STEP5
