2010 Lancia Musa Owner handbook (in English)

184
WARNING
LIGHTS AND
MESSAGES
TECHNICAL
SPECIFICA-
TIONS
INDEX
DASHBOARD
AND
CONTROLS
SAFETY
STARTING
AND DRIVING
IN
EMERGENZA
MAINTENANCE
AND CARE
To correctly wash the car:
❒remove the aerial from the roof to
prevent damage to it if the car is
washed in an automatic system;
❒wash the body using a low pres-
sure jet of water;
❒wipe a sponge with a slightly soapy
solution over the bodywork, fre-
quently rinsing with the sponge;
❒rinse well with water and dry with
a jet of air or a chamois leather.
Dry the parts less in sight particularly
carefully, such as the door frames and
the headlight frames, where water
may stagnate more easily. It is a good
idea to leave the car in the open for a
while after washing it to give time for
the water to evaporate.
Do not wash the car after it has been
parked in the sun or when the engine
is bonnet is hot: this could take the
shine off the paint.Exterior plastic parts must be cleaned
in the same way as the rest of the car.
Where possible, do not park under
trees; the resinous substance many
species release give the paint a dull
appearance and increase the possibil-
ity of triggering rust processes.
IMPORTANT Bird droppings must be
washed off immediately and thor-
oughly as the acid they contain is par-
ticularly aggressive.Windows
Use specific window cleaner products.
Also use clean cloths to avoid scratch-
ing the glass or damaging the trans-
parency.
IMPORTANT Wipe the rear window
inside gently with a cloth in the di-
rection of the filaments to avoid dam-
aging the heating device.
Front headlights
IMPORTANT Never use aromatic
substances (e.g.: petrol) or ketenes
(e.g.: acetone) for cleaning front
headlight plastic lens.Detergents pollute the envi-
ronment. The vehicle
should be washed in areas
equipped for collecting and
purifying the liquid used in the
washing process.

185
WARNING
LIGHTS AND
MESSAGES
TECHNICAL
SPECIFICA-
TIONS
INDEX
DASHBOARD
AND
CONTROLS
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
MAINTENANCE
AND CARE
Engine compartment
At the end of every winter, wash the
engine compartment thoroughly, tak-
ing care not to aim the jet of water di-
rectly at the electronic control units or
at the windscreen wiper motors. Have
this operation performed at a spe-
cialised workshop.
IMPORTANT Perform this operation
on a cold engine and with the key at
STOP. After the washing operation,
make sure that the various protections
(e.g. rubber caps and guards) have
not removed or damaged.
Never use flammable
products, such as petrol
ether or rectified petrol to clean in-
side the car. The electrostatic
charges which are generated by
rubbing during the cleaning oper-
ation may cause a fire.
WARNINGINTERIORS
Periodically check that water is not
trapped under the mats (due to water
dripping off shoes, umbrellas, etc.)
which could cause oxidisation of the
sheet metal.
CLEANING SEATS AND FABRIC
PA R T S
Remove dust with a soft brush or a
vacuum cleaner. It is advisable to use
a moist brush on velvet upholstery.
Rub the seats with a sponge moist-
ened with a solution of water and
neutral detergent.
INTERIOR PLASTIC PARTS
It is advisable to clean interior parts
with a moist cloth and a solution of
water and mild soap. Use specific
products for cleaning plastic, without
solvents and specifically designed to
prevent damage to the appearance
and colour of the treated parts to re-
move grease and tough stains.
IMPORTANT Never use spirit or pe-
troleum to clean the instrument panel.

186
WARNING
LIGHTS AND
MESSAGES
TECHNICAL
SPECIFICA-
TIONS
INDEX
DASHBOARD
AND
CONTROLS
SAFETY
STARTING
AND DRIVING
IN
EMERGENZA
MAINTENANCE
AND CARE

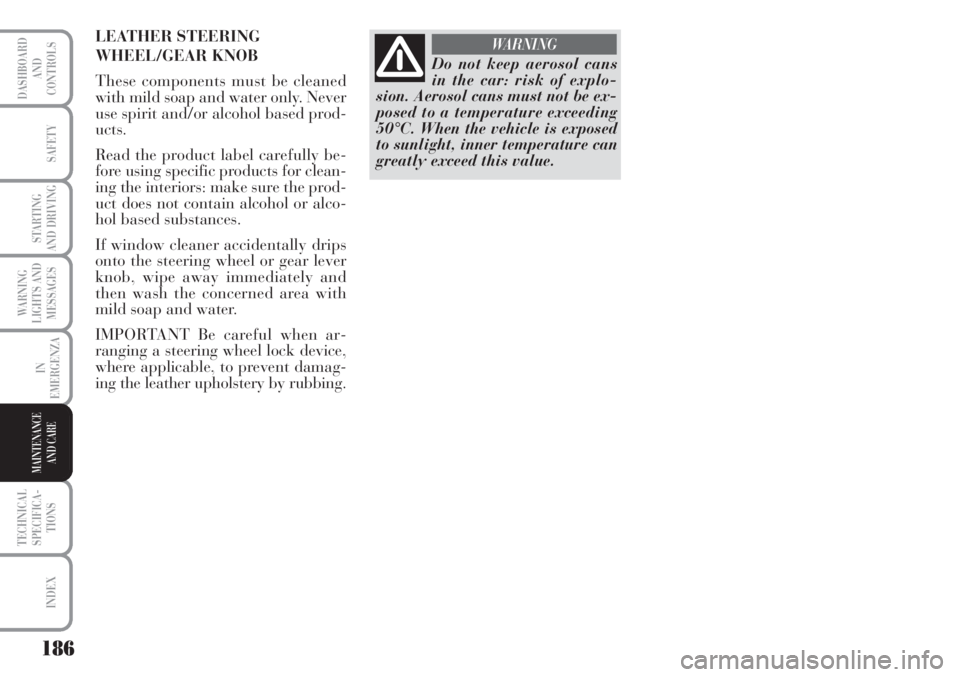

Do not keep aerosol cans
in the car: risk of explo-
sion. Aerosol cans must not be ex-
posed to a temperature exceeding
50°C. When the vehicle is exposed
to sunlight, inner temperature can
greatly exceed this value.
WARNINGLEATHER STEERING
WHEEL/GEAR KNOB
These components must be cleaned
with mild soap and water only. Never
use spirit and/or alcohol based prod-
ucts.
Read the product label carefully be-
fore using specific products for clean-
ing the interiors: make sure the prod-
uct does not contain alcohol or alco-
hol based substances.
If window cleaner accidentally drips
onto the steering wheel or gear lever
knob, wipe away immediately and
then wash the concerned area with
mild soap and water.
IMPORTANT Be careful when ar-
ranging a steering wheel lock device,
where applicable, to prevent damag-
ing the leather upholstery by rubbing.

TECHNICAL SPECIFICATIONS
IDENTIFICATION DATA .................................. 188
ENGINE CODES -
BODYWORK VERSIONS.................................. 190
ENGINE........................................................... 191
FUEL FEED .................................................... 192
TRANSMISSION .............................................. 192
BRAKES........................................................... 193
SUSPENSIONS ................................................. 193
STEERING SYSTEM ........................................ 193
WHEELS .......................................................... 194
DIMENSIONS ................................................... 198
PERFORMANCE.............................................. 199
WEIGHTS........................................................ 200
CAPACITIES .................................................... 201
FLUIDS AND LUBRICANTS ............................ 202
FUEL CONSUMPTION.................................... 204
CO
2EMISSIONS ............................................... 205
187
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND
CONTROLS
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICA-
TIONS

IDENTIFICATION
DATA
Take note of the identification codes.
The identification data are printed on
labelsfig. 1in the following positions:
1- Model plate
2- Chassis marking.
3- Bodywork paint identification
plate.
4 - Engine marking.MODEL PLATE fig. 2
This plate is fitted to the engine com-
partment front crossmember and con-
tains the following data:
B- Type approval number.
C- Vehicle type code.
D- Chassis number.
E- Maximum vehicle weight fully
loaded.
F- Maximum vehicle weight fully
loaded with trailer.G- Maximum vehicle weight on front
axle.
H- Maximum vehicle weight on rear
axle.
I- Engine type.
L- Body version code.
M- Spare part code.
N- Smoke opacity index (for diesel
engines).
fig. 1L0D0450mfig. 2L0D0415m
188
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND
CONTROLS
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICA-
TIONS

CHASSIS MARKING fig. 3
This is printed on the passenger com-
partment floor bed near the front
right seat.
The label can be accessed by lifting
the window in the mat and comprises:
❒vehicle model;
❒the chassis progressive number.
BODYWORK PAINT
IDENTIFICATION PLATE fig. 4
This plate is applied to the bonnet
and shows the following data:
A- Paint manufacturer.
B- Colour name.
C- Lancia colour code.
D- Respray and touch up code.ENGINE MARKING
It is stamped onto the cylinder block
(passenger compartment side) and
shows the type and the serial number.
fig. 3L0D0227m
fig. 4L0D0228m
189
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND
CONTROLS
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICA-
TIONS

Engine type code
350A1000
843A1000
192B2000
188A9000
199A3000
199B1000
350A2000
350A3000Bodywork code
350 AXF1A08 VL (5 seats) (❍)
350 AXA1B 07RL (5 seats) (❒)
350 AXE1A06EL (5 seats) (❍)
350 AXB1A01UL (5 seats) (❍)
350 AXG1A09ASL (5 seats) (❍)
350 AXG1A09ATL (5 seats) (*) (❍)
350AXM1A 13DL (5 seats) (*) (❒)
350 AXH1A 11PL (5 seats) (*) (❍)
350 AXH1A 11RL (5 seats) (*) (❒)
350 AXL1A12 PL (5 seats) (*) (❍)
350 AXL1A12 RL (5 seats) (*) (❒)
190
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND
CONTROLS
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICA-
TIONS
ENGINE CODES - BODYWORK VERSIONS
Versions
1.4
8V(▲)
1.416V
1.416V90 HP (▲)
1.3 Multijet 70 HP
1.3 Multijet 90 HP
1.3 Multijet 95 HP
1.6 Multijet
1.6 Multijet 115 HP (▲)
(▲) Engine version for some versions/markets only
(*) DPF version
(❍) EURO 4
(
❒) EURO 5

1.48V(▲)
350A1000
Eight
4 in line
2
72 x 84
1368
11±0,2
57
77
6000
115
11,7
3000
NGK ZKR7A-10
Unleaded petrol
95 RON
(EN228
specifications)
1.6 Multijet
350A2000
Diesel
4 in line
4
79.5 x 80.5
1598
16,5±1
88
120
3500
300
30.5
1500
–
Diesel fuel for
motor vehicles
(EN590
specifications)
1.416V
843A1000
Eight
4 in line
4
72 x 84
1368
11±0,2
70
95
5800
128
13
4500
NGK ZKR7A-10
Unleaded petrol
95 RON
(EN228
specifications)
1.3 Multijet
70 HP
188A9000
Diesel
4 in line
4
69.6 x 82
1248
18±0.4
51
70
4000
180
18,3
1750
–
Diesel fuel for
motor vehicles
(EN590
specifications)
1.3 Multijet
95 HP
199B1000
Diesel
4 in line
4
69.6 x 82
1248
16,8 + 0.2/- 0.4
70
95
4000
200
20
1500
–
Diesel fuel for
motor vehicles
(EN590
specifications)
1.3 Multijet
90 HP
199A3000
Diesel
4 in line
4
69.6 x 82
1248
17,6±0,4
66
90
4000
200
20
1750
–
Diesel fuel for
motor vehicles
(EN590
specifications))
191
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND
CONTROLS
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICA-
TIONS
ENGINE
INTRODUCTION
Type code:
Cycle:
Cylinder number and position:
Number of valves per cylinder:
Piston bore and stroke mm
Total displacement cm3
Compression ratio
Max. EEC power kW
HP
corresponding rpm: rpm
Max. EEC torque Nm
kgm
corresponding rpm: rpm
Spark plugs:
Fuel:
(▲)Engine version for some versions/markets only
