Page 185 of 496

▫Operation Instructions - (Disc Mode For CD
And MP3/WMA Audio Play, DVD-Video) . . . 221
▫ Notes On Playing MP3/WMA Files ....... 223
▫ List Button (Disc Mode For MP3/WMA Play) 225
▫ Info Button (Disc Mode For MP3/WMA
Play) ............................. 226
Media Center 730N/430 (RER/REN/RBZ) —
AM/FM Stereo Radio And CD/DVD/HDD/
NAV — If Equipped .................... 228
▫ Operating Instructions — Voice Command
System — If Equipped ................. 228
▫ Operating Instructions — Uconnect™ Phone
— If Equipped ...................... 228
▫ Clock Setting Procedure — RBZ Radio ..... 229▫
Clock Setting Procedure — RER/REN
Radio ............................. 230
Media Center 130 (RES) — AM/FM Stereo
Radio With CD Player (MP3 AUX Jack) ....... 232
▫ Operating Instructions — Radio Mode ..... 233
▫ Operation Instructions — CD Mode For CD
And MP3 Audio Play ................. 236
▫ Notes On Playing MP3 Files ............ 238
▫ Operation Instructions - Auxiliary Mode .... 241
Media Center 130 (RES/RSC) — AM/FM
Stereo Radio With CD Player (MP3 AUX Jack)
And Sirius Radio ...................... 241
▫ Operating Instructions — Radio Mode ..... 242
▫ Operation Instructions — CD Mode For CD
And MP3 Audio Play ................. 247
184 UNDERSTANDING YOUR INSTRUMENT PANEL

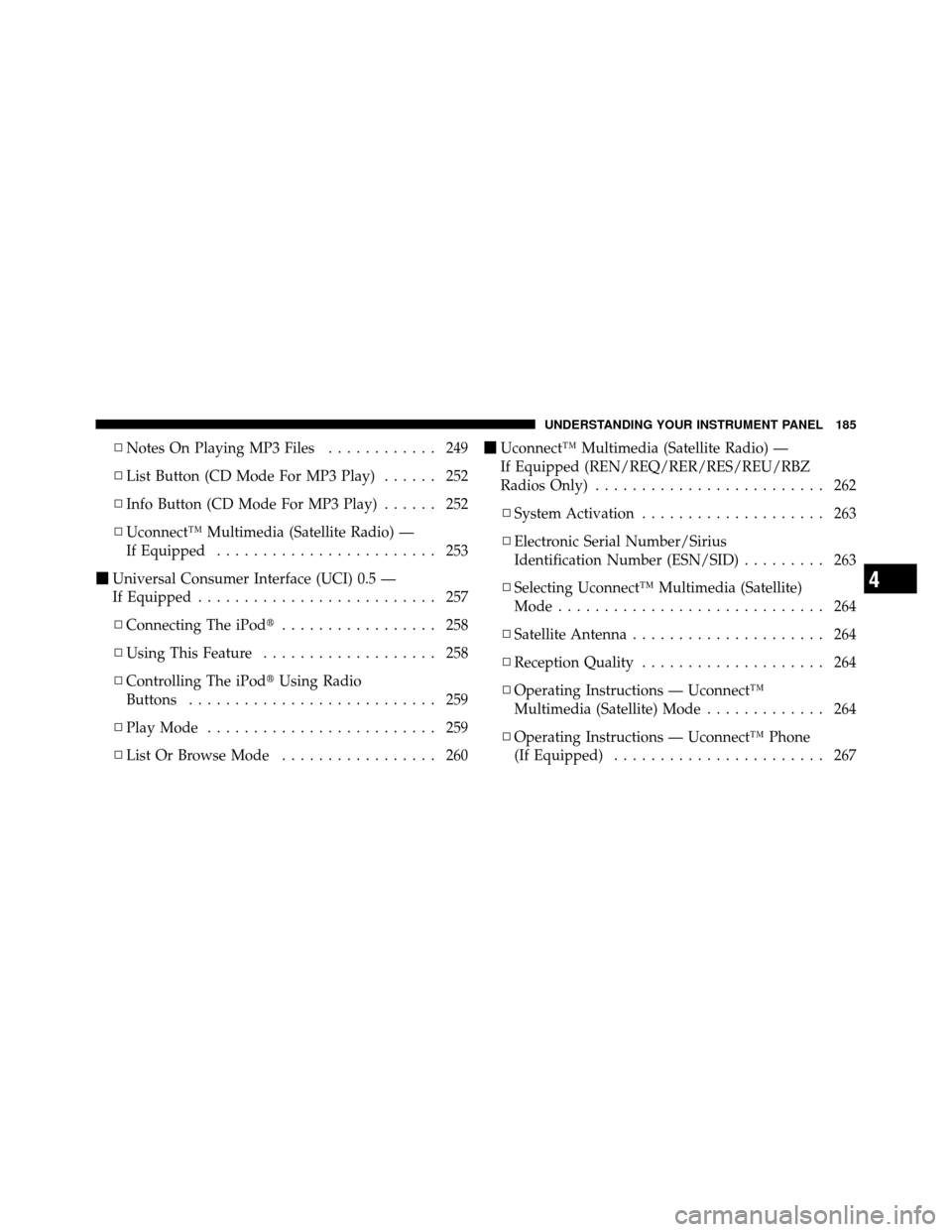

Page 186 of 496

▫Notes On Playing MP3 Files ............ 249
▫ List Button (CD Mode For MP3 Play) ...... 252
▫ Info Button (CD Mode For MP3 Play) ...... 252
▫ Uconnect™ Multimedia (Satellite Radio) —
If Equipped ........................ 253
Universal Consumer Interface (UCI) 0.5 —
If Equipped .......................... 257
▫ Connecting The iPod ................. 258
▫ Using This Feature ................... 258
▫ Controlling The iPod Using Radio
Buttons ........................... 259
▫ Play Mode ......................... 259
▫ List Or Browse Mode ................. 260
Uconnect™ Multimedia (Satellite Radio) —
If Equipped (REN/REQ/RER/RES/REU/RBZ
Radios Only) ......................... 262
▫ System Activation .................... 263
▫ Electronic Serial Number/Sirius
Identification Number (ESN/SID) ......... 263
▫ Selecting Uconnect™ Multimedia (Satellite)
Mode ............................. 264
▫ Satellite Antenna ..................... 264
▫ Reception Quality .................... 264
▫ Operating Instructions — Uconnect™
Multimedia (Satellite) Mode ............. 264
▫ Operating Instructions — Uconnect™ Phone
(If Equipped) ....................... 267
4
UNDERSTANDING YOUR INSTRUMENT PANEL 185
Page 187 of 496
▫Operating Instructions — Video
Entertainment System (VES)™
(If Equipped) ....................... 267
Remote Sound System Controls —
If Equipped .......................... 268
▫ Radio Operation ..................... 268
▫ CD Player ......................... 269
CD/DVD Disc Maintenance .............. 269
Radio Operation And Cellular Phones ....... 270
Climate Controls ...................... 270
▫ Manual Heating And Air Conditioning ..... 270
▫ Automatic Temperature Control (ATC) —
If Equipped ........................ 274
▫ Operating Tips ...................... 280
186 UNDERSTANDING YOUR INSTRUMENT PANEL
Page 188 of 496
INSTRUMENT PANEL FEATURES
1 — Air Outlet5 — Storage Bin9 — Heated Seat Switch – If Equipped
2 — Demisters 6 — Glove Compartment10 — Hazard Warning Flasher
3 — Instrument Cluster 7 — Climate Controls11 — ESC OFF Switch – If Equipped
4 — Radio 8 — Power Outlet12 — Heated Seat Switch – If Equipped
4
UNDERSTANDING YOUR INSTRUMENT PANEL 187
Page 189 of 496
INSTRUMENT CLUSTER
188 UNDERSTANDING YOUR INSTRUMENT PANEL
Page 190 of 496

INSTRUMENT CLUSTER DESCRIPTIONS
1. Fuel Gauge/Fuel Door ReminderWhen the ignition switch is in the ON position,
the pointer will show the level of fuel remain-
ing in the fuel tank. The fuel pump symbol
points to the side of the vehicle where the fuel
door is located.
2. Charging System Light This light shows the status of the electrical charg-
ing system. The light should come on when the
ignition switch is first turned ON and remain on briefly
as a bulb check. If the light stays on or comes on while
driving, turn off some of the vehicle’s non-essential
electrical devices or increase engine speed (if at idle). If
the charging system light remains on, it means that the
vehicle is experiencing a problem with the charging
system. Obtain SERVICE IMMEDIATELY. See an autho-
rized dealer. If jump starting is required, refer to “Jump Starting
Procedures” in “What To Do In Emergencies”.
3. Electronic Throttle Control (ETC) Light
This light informs you of a problem with the
Electronic Throttle Control (ETC) system. If a
problem is detected, the light will come on
while the engine is running. Cycle the ignition
key when the vehicle has completely stopped and the
shift lever is placed in the NEUTRAL position. The light
should turn off. If the light remains lit with the engine
running, your vehicle will usually be drivable; however,
see an authorized dealer for service as soon as possible. If
the light is flashing when the engine is running, imme-
diate service is required and you may experience reduced
performance, an elevated/rough idle or engine stall and
your vehicle may require towing. The light will come on
when the ignition is first turned ON and remain on
4
UNDERSTANDING YOUR INSTRUMENT PANEL 189
Page 191 of 496

briefly as a bulb check. If the light does not come on
during starting, have the system checked by an autho-
rized dealer.
4. Oil Pressure Warning LightThis light indicates low engine oil pressure. The
light should turn on momentarily when the engine
is started. If the light turns on while driving, stop the
vehicle and shut off the engine as soon as possible. A
chime will sound for four minutes when this light turns
on.
Do not operate the vehicle until the cause is corrected.
This light does not indicate how much oil is in the engine.
The engine oil level must be checked under the hood.
5. Low Fuel Light When the fuel level reaches approximately 2.0 gal
(7.8 L) this light will turn on, and remain on until
fuel is added. 6. Speedometer
Indicates vehicle speed.
7. Airbag Warning Light
This light will turn on for four to eight seconds
as a bulb check when the ignition switch is first
turned ON. If the light is either not on during
starting, stays on, or turns on while driving,
then have the system inspected at an authorized dealer as
soon as possible. Refer to “Occupant Restraints” in
“Things To Know Before Starting Your Vehicle” for
further information.
8. Turn Signal Indicators The arrow will flash with the exterior turn signal
when the turn signal lever is operated.
9. High Beam Indicator This indicator shows that the high beam head-
lights are on. Push the multifunction lever forward
190 UNDERSTANDING YOUR INSTRUMENT PANEL
Page 192 of 496

to switch the headlights to high beam, and pull toward
yourself (normal position) to return to low beam.
10. Anti-Lock Brake (ABS) Light — If EquippedThis light monitors the Anti-Lock Brake System
(ABS). The light will turn on when the ignition
switch is turned to the ON position and may
stay on for as long as four seconds.
If the ABS light remains on or turns on while driving, it
indicates that the Anti-Lock portion of the brake system
is not functioning and that service is required. However,
the conventional brake system will continue to operate
normally if the BRAKE warning light is not on.
If the ABS light is on, the brake system should be serviced
as soon as possible to restore the benefits of Anti-Lock
brakes. If the ABS light does not turn on when the
Ignition switch is turned to the ON position, have the
light inspected by an authorized dealer. 11. Seat Belt Reminder Light
When the ignition switch is first turned ON, this
light will turn on for five to eight seconds as a bulb
check. During the bulb check, if the driver’s seat
belt is unbuckled, a chime will sound. After the bulb
check or when driving, if the driver’s seat belt remains
unbuckled, the Seat Belt Reminder Light will illuminate
and the chime will sound. Refer to “Occupant Restraints”
in “Things To Know Before Starting Your Vehicle” for
further information.
12. Tachometer
The white area of the scale shows the permissible engine
revolutions-per-minute (RPM x 1000) for each gear range.
Before reaching the red area, ease up on the accelerator to
prevent engine damage.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 191
