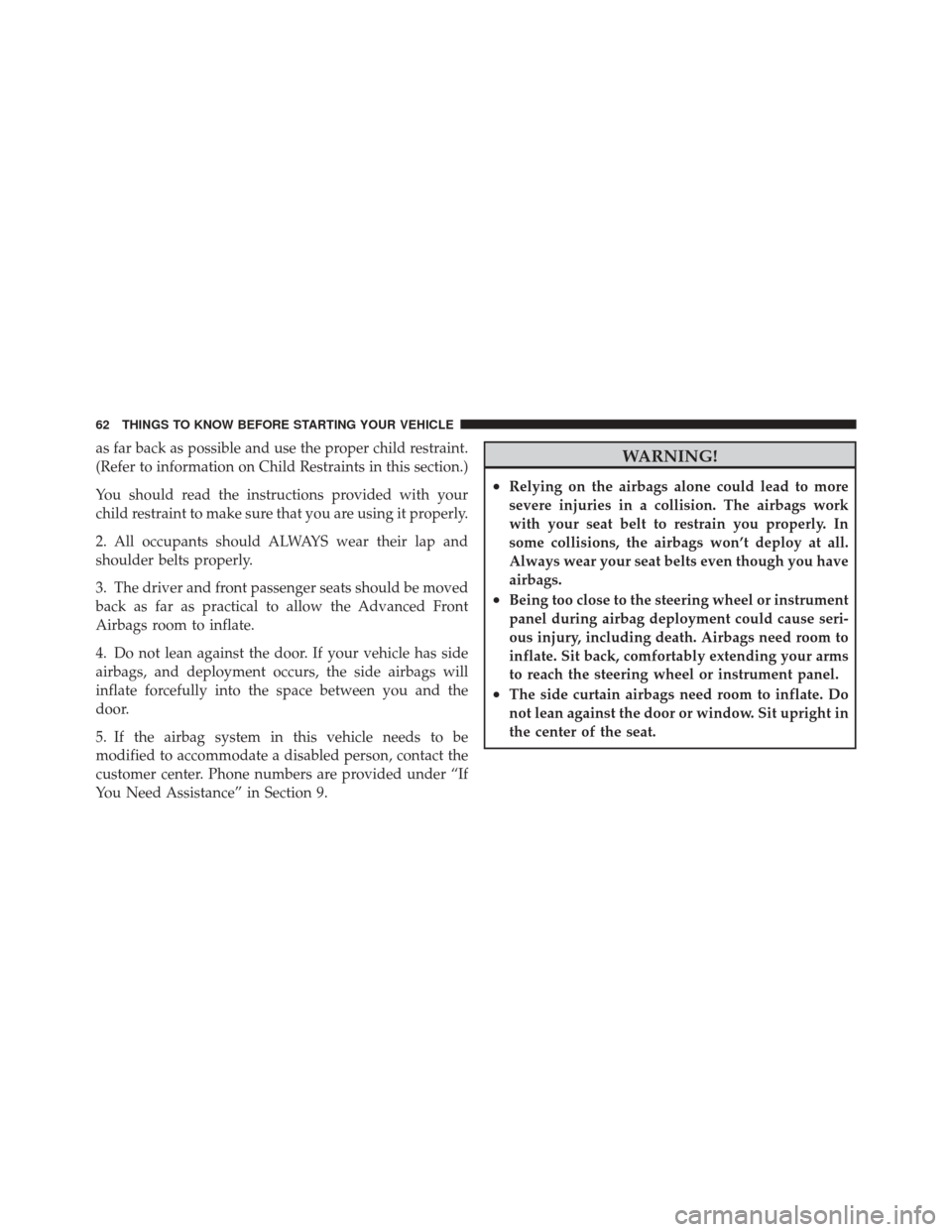

2010 JEEP LIBERTY phone

as far back as possible and use the proper child restraint.
(Refer to information on Child Restraints in this section.)
You should read the instructions provided with your
child restraint to make sure that you are using it properly.
2. All occupants should ALWAYS wear their lap and
shoulder belts properly.
3. The driver and front passenger seats should be moved
back as far as practical to allow the Advanced Front
Airbags room to inflate.
4. Do not lean against the door. If your vehicle has side
airbags, and deployment occurs, the side airbags will
inflate forcefully into the space between you and the
door.
5. If the airbag system in this vehicle needs to be
modified to accommodate a disabled person, contact the
customer center. Phone numbers are provided under “If
You Need Assistance” in Section 9.WARNING!
•Relying on the airbags alone could lead to more
severe injuries in a collision. The airbags work
with your seat belt to restrain you properly. In
some collisions, the airbags won’t deploy at all.
Always wear your seat belts even though you have
airbags.
•Being too close to the steering wheel or instrument
panel during airbag deployment could cause seri-
ous injury, including death. Airbags need room to
inflate. Sit back, comfortably extending your arms
to reach the steering wheel or instrument panel.
•The side curtain airbags need room to inflate. Do
not lean against the door or window. Sit upright in
the center of the seat.
62 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

UNDERSTANDING THE FEATURES OF YOUR VEHICLE
CONTENTS
Mirrors .............................. 94
▫ Inside Day/Night Mirror ................ 94
▫ Automatic Dimming Mirror — If Equipped . . . 94
▫ Outside Mirrors ...................... 95
▫ Power Mirrors ....................... 96
▫ Heated Mirrors — If Equipped ............ 97
▫ Illuminated Vanity Mirrors — If Equipped . . . 97
▫ Sun Visor “Slide-On-Rod” Feature —
If Equipped ......................... 97
uconnect™ phone — If Equipped ........... 98
▫ Operation ......................... 100
▫ Phone Call Features .................. 108
▫ uconnect™ phone Features ..............111
▫ Advanced Phone Connectivity ........... 116
▫ Things You Should Know About Your
uconnect™ phone .................... 118
▫ General Information .................. 126
3

2. Unclip the visor from the center clip.
3. Pull the sun visor toward the inside rearview mirror to
extend it.
uconnect™ phone — IF EQUIPPED
uconnect™ phone is a voice-activated, hands-free, in-
vehicle communications system. uconnect™ phone al-
lows you to dial a phone number with your cellular
phone using simple voice commands (e.g.,Call”
“Mike” ”Work orDial” “248-555-1212). Your cellular
phone’s audio is transmitted through your vehicle’s
audio system; the system will automatically mute your
radio when using the uconnect™ phone.
NOTE: The uconnect™ phone requires a cellular phone
equipped with the Bluetooth Hands-Free Profile,Ve r -
sion 0.96 or higher. See the uconnect™ website for
supported phones. For uconnect™ customer support, visit the following
websites:
•www.chrysler.com/uconnect
•www.dodge.com/uconnect
•www.jeep.com/uconnect
•or call 1–877–855–8400
uconnect™ phone allows you to transfer calls between
the system and your cellular phone as you enter or exit
your vehicle and enables you to mute the system’s
microphone for private conversation.
The uconnect™ phone is driven through your Bluetooth
“Hands-Free Profile” cellular phone. uconnect™ features
Bluetooth technology - the global standard that enables
different electronic devices to connect to each other
without wires or a docking station, so uconnect™ phone
works no matter where you stow your cellular phone (be
98 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

it your purse, pocket, or briefcase), as long as your phone
is turned on and has been paired to the vehicle’s
uconnect™ phone. The uconnect™ phone allows up to
seven cellular phones to be linked to the system. Only
one linked (or paired) cellular phone can be used with the
system at a time. The system is available in English,
Spanish, or French languages.
WARNING!
Any voice commanded system should be used only
in safe driving conditions following local laws and
phone use. All attention should be kept on the
roadway ahead. Failure to do so may result in an
accident causing serious injury or death.Phone Button
Depending on the vehicle options, either the
radio or the mirror will contain the two control
buttons
(phone button) and(voice
recognition button) that will enable you to
access the system.
Voice Recognition Button Actual button location may vary with the ra-
dio. The individual buttons are described in the
“Operation” section.
The uconnect™ phone can be used with any Hands-Free
Profile certified Bluetooth cellular phone. See the
uconnect™ website for supported phones. If your cellu-
lar phone supports a different profile (e.g., Headset
Profile) you may not be able to use any uconnect™ phone
features. Refer to your cellular service provider or the
phone manufacturer for details.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 99

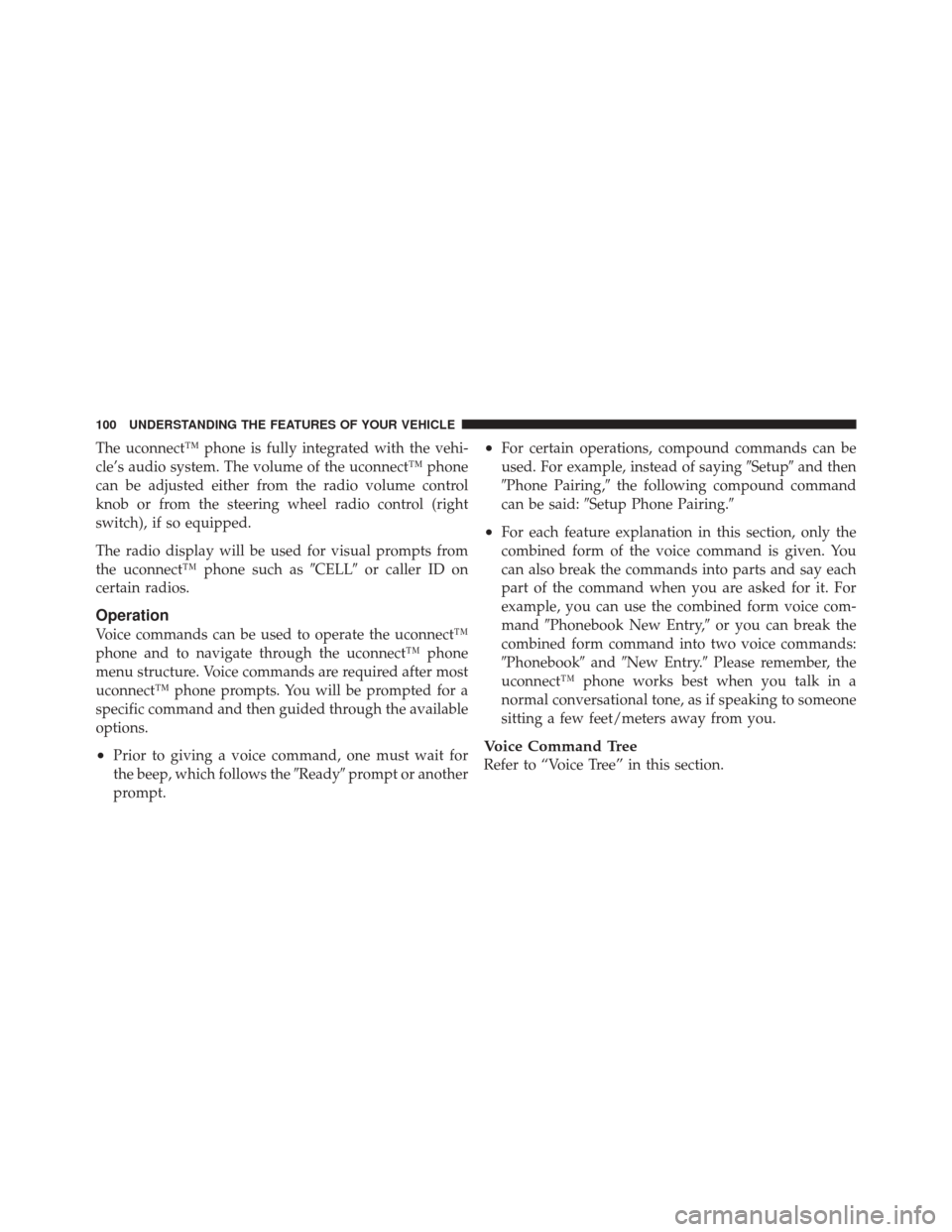

The uconnect™ phone is fully integrated with the vehi-
cle’s audio system. The volume of the uconnect™ phone
can be adjusted either from the radio volume control
knob or from the steering wheel radio control (right
switch), if so equipped.
The radio display will be used for visual prompts from
the uconnect™ phone such asCELLor caller ID on
certain radios.
Operation
Voice commands can be used to operate the uconnect™
phone and to navigate through the uconnect™ phone
menu structure. Voice commands are required after most
uconnect™ phone prompts. You will be prompted for a
specific command and then guided through the available
options.
•Prior to giving a voice command, one must wait for
the beep, which follows the Readyprompt or another
prompt.
•For certain operations, compound commands can be
used. For example, instead of saying Setupand then
Phone Pairing, the following compound command
can be said: Setup Phone Pairing.
•For each feature explanation in this section, only the
combined form of the voice command is given. You
can also break the commands into parts and say each
part of the command when you are asked for it. For
example, you can use the combined form voice com-
mandPhonebook New Entry, or you can break the
combined form command into two voice commands:
Phonebook andNew Entry. Please remember, the
uconnect™ phone works best when you talk in a
normal conversational tone, as if speaking to someone
sitting a few feet/meters away from you.
Voice Command Tree
Refer to “Voice Tree” in this section.
100 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Help Command
If you need assistance at any prompt, or if you want to
know your options at any prompt, sayHelpfollowing
the beep. The uconnect™ phone will play all the options
at any prompt if you ask for help.
To activate the uconnect™ phone from idle, simply press
the
button and follow the audible prompts for
directions. All uconnect™ phone sessions begin with a
press of the
button on the radio control head.
Cancel Command
At any prompt, after the beep, you can say Canceland
you will be returned to the main menu. However, in a
few instances the system will take you back to the
previous menu.
Pair (Link) uconnect™ phone to a Cellular Phone
To begin using your uconnect™ phone, you must pair
your compatible Bluetooth enabled cellular phone. To complete the pairing process, you will need to refer-
ence your cellular phone Owner’s Manual. The
uconnect™ website may also provide detailed instruc-
tions for pairing.
The following are general phone to uconnect™ phone
pairing instructions:
•Press thebutton to begin.
•After the
Readyprompt and the following beep, say
Setup Phone Pairing.
•When prompted, after the beep, say Pair a Phoneand
follow the audible prompts.
•You will be asked to say a four-digit Personal Identi-
fication Number (PIN), which you will later need to
enter into your cellular phone. You can enter any
four-digit PIN. You will not need to remember this PIN
after the initial pairing process.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 101

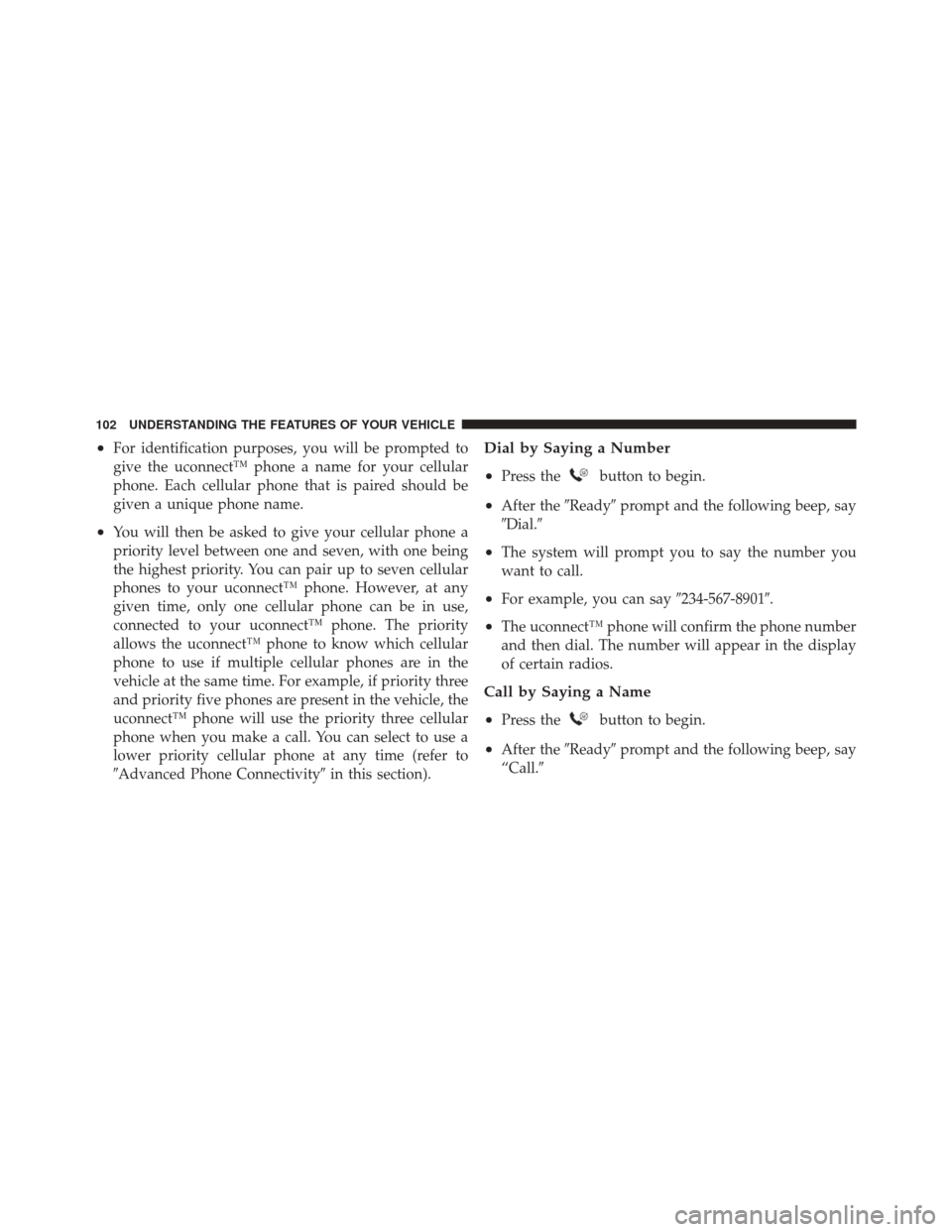

•For identification purposes, you will be prompted to
give the uconnect™ phone a name for your cellular
phone. Each cellular phone that is paired should be
given a unique phone name.
•You will then be asked to give your cellular phone a
priority level between one and seven, with one being
the highest priority. You can pair up to seven cellular
phones to your uconnect™ phone. However, at any
given time, only one cellular phone can be in use,
connected to your uconnect™ phone. The priority
allows the uconnect™ phone to know which cellular
phone to use if multiple cellular phones are in the
vehicle at the same time. For example, if priority three
and priority five phones are present in the vehicle, the
uconnect™ phone will use the priority three cellular
phone when you make a call. You can select to use a
lower priority cellular phone at any time (refer to
Advanced Phone Connectivityin this section).
Dial by Saying a Number
•
Press thebutton to begin.
•After theReadyprompt and the following beep, say
Dial.
•The system will prompt you to say the number you
want to call.
•For example, you can say 234-567-8901.
•The uconnect™ phone will confirm the phone number
and then dial. The number will appear in the display
of certain radios.
Call by Saying a Name
•
Press thebutton to begin.
•After theReadyprompt and the following beep, say
“Call.
102 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

•The system will prompt you to say the name of the
person you want to call.
•After theReadyprompt and the following beep, say
the name of the person you want to call. For example,
you can say John Doe,where John Doe is a previ-
ously stored name entry in the uconnect™ phonebook
or downloaded phonebook. To learn how to store a
name in the phonebook, refer to Add Names to Your
uconnect™ Phonebook, in the phonebook.
•The uconnect™ system will confirm the name and
then dial the corresponding phone number, which
may appear in the display of certain radios.
Add Names to Your uconnect™ Phonebook
NOTE:Adding names to the uconnect™ phonebook is
recommended when the vehicle is not in motion.
•Press thebutton to begin.
•After the Readyprompt and the following beep, say
Phonebook New Entry.
•When prompted, say the name of the new entry. Use of
long names helps the voice recognition and it is
recommended. For example, say Robert Smithor
Robert instead of Bob.
•When prompted, enter the number designation (e.g.,
Home,Work,Mobile, orPager). This will allow
you to store multiple numbers for each phonebook
entry, if desired.
•When prompted, recite the phone number for the
phonebook entry that you are adding.
After you are finished adding an entry into the phone-
book, you will be given the opportunity to add more
phone numbers to the current entry or to return to the
main menu.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 103
