Fluid level checks
169
V6 petrol engines
Note: If it is necessary to check the oil level
when the engine is hot, switch off the engine
and let stand for five minutes to allow the oil to
drain into the sump. Do not start the engine.
1. Withdraw the dipstick and wipe the blade
clean with a lint free cloth.
2. Fully re-insert the dipstick and withdraw
again to check the oil level. Never allow the
oil level to fall below the lower mark or
notch on the dipstick.
As a general guide, if the level on the
dipstick:
•Is nearer to the upper mark or notch
than the lower, add no oil.
• Is nearer to the lower mark or notch
than the upper, add half a litre (one
pint) of oil.
• Is below the lower mark or notch, add
one litre (two pints) of oil and re-check
the level after a further five minutes.ENGINE OIL SPECIFICATION
Low quality or obsolete oils do not
provide the protection required by
modern, high perfor mance engines.
Failure to use an oil that meets the
required specification could cause
excessive engine wear, a build up of
sludge and deposit s and increased
pollution. It could also lead to engine
failure.
Your vehicle’s warranty may be
invalidated if damage is caused by the
use of unapproved engine oil.
Do not use oil additives of any type as
engine damage could occur. Use only
specified lubricants.
Model Specification
V6 Petrol
engines SAE 5W-30 engine oil meeting
Jaguar specification WSS
M2C913-C is preferred. Oil
meeting ACEA A1/B1 or ACEA
A3/B3 specification may be
used.
V8 Petrol
engines SAE 5W-20 meeting Jaguar
specification WSS M2C925-A
only.
Diesel
engines 5W-30 engine oil, meeting
Jaguar specification WSS
M2C934-B only.
Japan V6
Petrol
engines SAE 5W-30 engine oil meeting
specification ILSAC GF-4 with
API SM is prefe
rred. Oil meeting
ILSAC GF-3 API SL specification
may be used.
Japan V8
Petrol
engines SAE 5W-20 engine oil meeting
Jaguar specification WSS
M2C925-A only.

L
(FM8) SEMCON JLR OWNER GUIDE VER 1.00 EURO
LANGUAGE: english-en; MARQUE: jaguar; MODEL: XF
Fluid level checks
170
Jaguar recommends:
TOPPING UP THE OIL
Overfilling with oil could result in severe
engine damage.
1. Unscrew the oil filler cap.
2. Add oil as indicated by the message centre
display.
3. Wait five minutes fo r the oil level to
stabilise then re-check.
It is essential to use the correct specification
oil, and to ensure it is suitable for the climatic
conditions in which the vehicle is to be
operated.
ENGINE OIL CONSUMPTION
A certain amount of oil consumption is normal.
The rate of consumpt ion will depend on the
following:
• The quality and viscosity of the oil.
• Climatic conditions.
• The speed at which the engine is being
operated.
• Road conditions.
Drivers should expect above normal
consumption when the engi ne is new, and after
running-in if high speeds are sustained.
CHECKING THE COOLANT LEVEL
Running the engine without coolant will
cause serious engine damage.
If persistent coolant loss is noticed,
seek qualified assistance immediately.
The coolant level in the expansion tank should
be checked at least weekly (more frequently in
high mileage or severe operating conditions).
Always check the level when the system is
cold.
Ensure the coolant level is maintained between
the level indicator marks, as shown in the
illustrations.
Diesel engines
Petrol engines

R
(FM8) SEMCON JLR OWNER GUIDE VER 1.00 EURO
LANGUAGE: english-en; MARQUE: jaguar; MODEL: XF
Fluid level checks
171
If the message LOW COOLANT LEVEL is
displayed in the message centre, stop the
vehicle as soon as safe ty permits and top-up
the coolant reservoir with the recommended
antifreeze/water mix.
If the message centre displays the message
ENGINE OVERHEATING, pull off the
carriageway and allow the e ngine to idle for five
minutes and then switch off the ignition for ten
minutes. Switch on the engine and, provided
that the warning does not occur, continue your
journey, avoiding hars h acceleration. Seek
qualified assistance as soon as possible.
TOPPING UP THE COOLANT
Never remove the filler cap when the
engine is hot.
Antifreeze is highly inflammable. Do
not allow antifreeze to come into
contact with naked flames or other
sources of ignition (e.g. a hot engine)
- a fire may result.
Unscrew the filler cap slowly,
allowing the pressure to escape
before removing completely.
When travelling in territories where the
water supply contains salt, always
ensure you carry a supply of fresh (rain
or distilled) water. Topping up with salt
water will cause serious engine
damage.
Top-up to the upper le vel indicator mark
located on the side of the expansion tank. Use
only a 50% mix of water and antifreeze to
specification WSS M97B44 (coloured orange)
Extended Life Coolant.
Ensure the cap is tightened fully after top-up is
completed by turning the cap until the ratchet
cap clicks. Note:
In an emergency, if the approved
antifreeze is unavailable, top-up the system
with clean water, but be aware of the resultant
reduction in frost protection. Do not top-up or
refill with conventional an tifreeze formulations.
If in doubt consult a qualified technician.
BRAKE FLUID CHECK
Seek qualified assistance
immediately if brak e pedal travel is
unusually long, unusua lly short or if
there is any signific ant loss of brake
fluid. Driving under such conditions
could result in extended stopping
distances or complete brake failure.
Note: If the warning lamp illuminates or the
message is displayed while the vehicle is being
driven, stop the vehicle as soon as safety
permits by gently appl ying the brakes. Check
and top-up the fluid level if necessary.
Brake fluid is highly toxic - keep
containers sealed and out of the reach
of children. If accidental consumption
is suspected, seek medical attention
immediately.
If the fluid comes into contact with the
skin or eyes, rins e immediately with
plenty of water.
Brake fluid is highly inflammable. Do
not allow brake fluid to come into
contact with naked flames or other
sources of ignition (e.g. a hot engine).
If the quantity of fluid in the brake
reservoir drops below the
recommended level, a red warning
lamp in the inst rument panel will
illuminate and the message Brake
Fluid Low will be displayed in the
message centre.

L
(FM8) SEMCON JLR OWNER GUIDE VER 1.00 EURO
LANGUAGE: english-en; MARQUE: jaguar; MODEL: XF
Fluid level checks
172
Do not drive the vehi cle with the fluid
level below the MIN mark.
With the vehicle on level ground, check the
fluid level at least every week (more frequently
in high mileage or arduous operating
conditions).

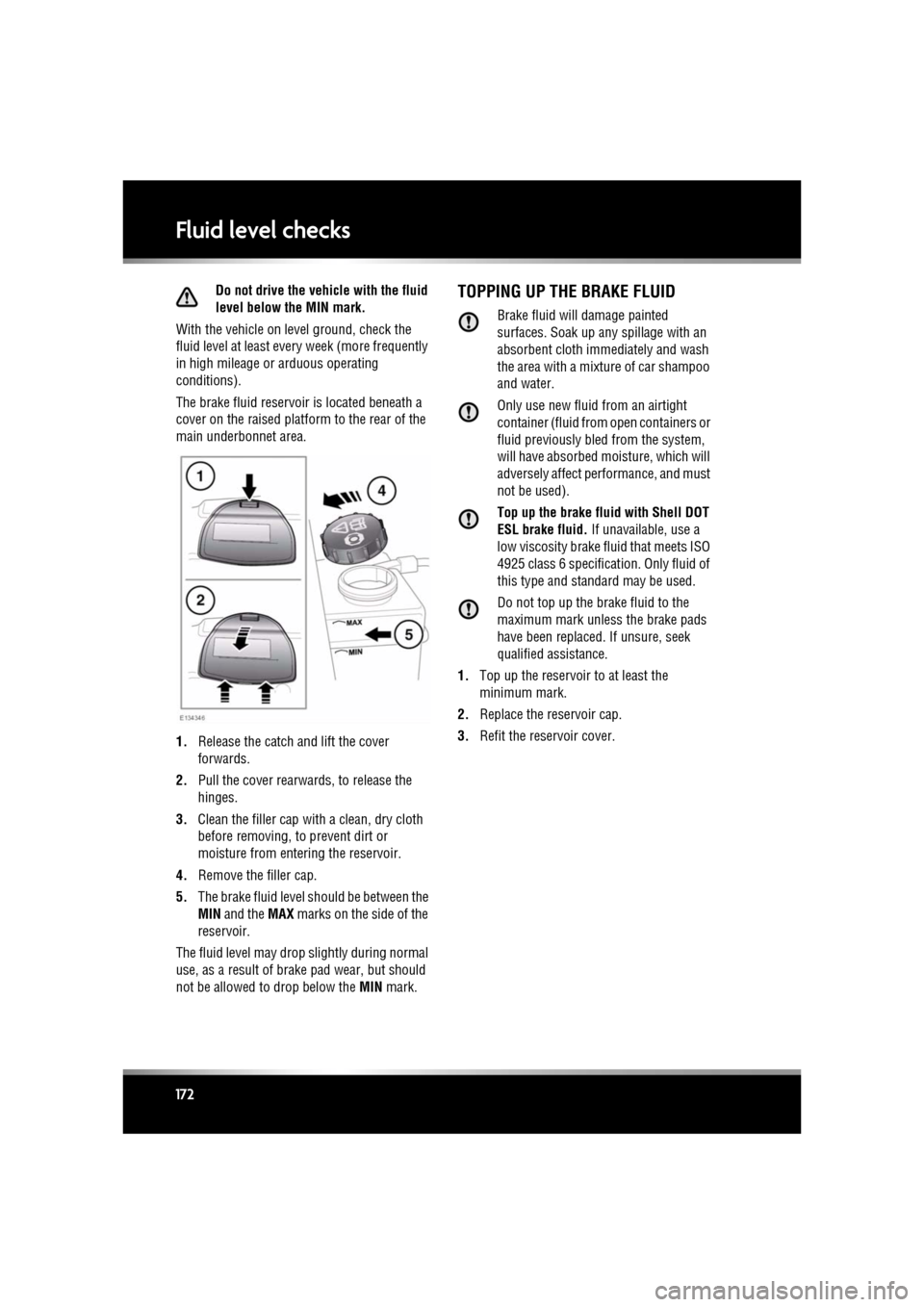

The brake fluid reservoi r is located beneath a
cover on the raised platform to the rear of the
main underbonnet area.
1. Release the catch and lift the cover
forwards.
2. Pull the cover rearwards, to release the
hinges.
3. Clean the filler cap with a clean, dry cloth
before removing, to prevent dirt or
moisture from entering the reservoir.
4. Remove the filler cap.
5. The brake fluid level should be between the
MIN and the MAX marks on the side of the
reservoir.
The fluid level may drop slightly during normal
use, as a result of brake pad wear, but should
not be allowed to drop below the MIN mark.TOPPING UP THE BRAKE FLUID
Brake fluid will damage painted
surfaces. Soak up any spillage with an
absorbent cloth immediately and wash
the area with a mixture of car shampoo
and water.
Only use new fluid from an airtight
container (fluid from open containers or
fluid previously bled from the system,
will have absorbed moisture, which will
adversely affect performance, and must
not be used).
Top up the brake fluid with Shell DOT
ESL brake fluid. If unavailable, use a
low viscosity brake fluid that meets ISO
4925 class 6 specificat ion. Only fluid of
this type and standard may be used.
Do not top up the brake fluid to the
maximum mark unless the brake pads
have been replaced. If unsure, seek
qualified assistance.
1. Top up the reservoir to at least the
minimum mark.
2. Replace the reservoir cap.
3. Refit the reservoir cover.

R
(FM8) SEMCON JLR OWNER GUIDE VER 1.00 EURO
LANGUAGE: english-en; MARQUE: jaguar; MODEL: XF
Fluid level checks
173
POWER STEERING FLUID CHECK
Power steering fluid is highly toxic.
Keep containers sealed and out of
reach of children. If accidental
consumption of fluid is suspected,
seek medical atte ntion immediately.
If the fluid comes into contact with the
skin or eyes, rinse immediately with
plenty of water.
Power steering fluid is highly
inflammable. Do not allow power
steering fluid to come into contact
with naked flames or other sources of
ignition (e.g. a hot engine).
The engine must not be started if the
fluid level has dropped below the MIN
mark.
Seek qualified assistance immediately if
there is a noticeable drop in the fluid
level.
If fluid loss is slow, the reservoir may
be topped-up to the upper level mark to
enable the vehicle to be driven to a
repair facility for examination. However,
it is recommended that you seek
qualified assistance before driving the
vehicle.
Check and top-up the flui d with the vehicle on
level ground, with the e ngine switched off and
the system cold. Ensure that the steering wheel
is not turned after stopping the engine.
The level of fluid can be seen through the
translucent body of the reservoir.
The fluid level should be between the MIN and
the MAX marks.
TOPPING UP THE POWER STEERING
FLUID
It is imperative that the power steering
system does not become contaminated
in any way. Always use new fluid and
clean the area around the filler neck
both before removing the filler cap and
after topping up. Never return drained
fluid to the system.
Power steering fluid will damage
painted surfaces. Soak up any spillage
with an absorbent cloth immediately
and wash the area with a mixture of car
shampoo and water.
1. Clean the filler cap before removing to
prevent dirt from entering the reservoir.
2. Remove filler cap.
3. Using Mobil ATF320 PAS fluid, top-up the
reservoir until the fluid level is between the
MIN and MAX marks.
4. Replace filler cap.

L
(FM8) SEMCON JLR OWNER GUIDE VER 1.00 EURO
LANGUAGE: english-en; MARQUE: jaguar; MODEL: XF
Fluid level checks
174
CHECKING THE WASHER FLUID
Do not allow screen washer fluid to
come into contact with naked flames
or sources of ignition.
If the vehicle is operated in
temperatures below 4°C (40°F), use a
washer fluid with frost protection.
Only use approved washer fluid.
Take care to avoid spillage, particularly
if an undiluted or high concentration is
being used. If spillage occurs, wash the
affected area immediately with water.
The washer reservoir supplies the windscreen
and headlamp washer jets.
Check and top-up the reservoir level at least
every week.
Fill with Jaguar Windscreen Washer Fluid,
diluted with clean water, as specified in the
instructions on the bottle. Using a
non-approved fluid may adversely affect the
wiper blade rubber, result ing in ineffectual and
noisy wiping.
Operate the washers periodically to check that
the nozzles are clear and properly directed.
TOPPING UP THE WASHER FLUID
1. Clean the filler cap before opening to
prevent dirt from entering the reservoir.
2. Open filler cap.
3. Top-up the reservoir until the fluid is visible
in the filler neck.
4. Close filler cap.

R
(FM8) SEMCON JLR OWNER GUIDE VER 1.00 EURO
LANGUAGE: english-en; MARQUE: jaguar; MODEL: XF
Technical specifications
175
Technical specificationsENGINE SPECIFICATIONS
LUBRICANTS AND FLUIDS
Data I4 Diesel V6 Diesel V6 Petrol V8 Petrol
(Normally
Aspirated) V8 Petrol
(Supercharged)
Number of
cylinders 466 8 8
Displacement
(cc) 2179 2993 2967 5000
5000
Compression
ratio 15.8:1 16.1:1 10.5:1 11.5:1 9.5:1
Part Variant Specification
Engine oil V6 Petrol enginesSAE 5W-30 engine oil meeti
ng Jaguar specification WSS
M2C913-C is preferred. Oil meet ing ACEA A3/B3 specification
may be used.
V8 Petrol
engines SAE 5W-20 engine oil meeti
ng Jaguar specification WSS
M2C925-A only.
Diesel
engines SAE 5W-30 engine oil meeti
ng Jaguar specification WSS
M2C934-B only.
Japan V6
Petrol
engines SAE 5W-30 engine oil meeting spec
ification ILSAC GF-5 with API
SM is preferred. O il meeting ILSAC GF-4 API SL specification
may be used.
Japan V8
Petrol
engines SAE 5W-20 engine oil meeti
ng Jaguar specification WSS
M2C925-A only.
Power steering
fluid All vehicles Mobil ATF320 PAS fluid.
Brake fluid All vehicles Shell DOT4 ESL is prefe rred. If unavailable, a low viscosity brake
fluid that meets ISO 4925 class 6 specification may be used.
Screen washer All vehicles Screen wash with frost protection.
Coolant All vehicles 50% mixture of water and antifreeze specification WSS M97B44 (coloured orange) Extended Life Coolant.
If in doubt about the required spec ification of a lubricant or fluid for your vehicle, seek advice from
your Dealer/Authorised Repairer.

L
(FM8) SEMCON JLR OWNER GUIDE VER 1.00 EURO
LANGUAGE: english-en; MARQUE: jaguar; MODEL: XF
Technical specifications
176
WEIGHTS
The maximum permitted roof load,
including the weight of the roof rack/
roof bars, is 75 kg (165 lb). The roof
load must be included when
calculating the Gross Vehicle Weight
(GVW).
Jaguar recommend that only approved
accessories are used. If in any doubt,
consult your Jaguar Dealer/ Approved
Repairer before fitting a roof rack/ roof
bars or carrying a roof load.
Variant Vehicle weight
fromFront axle weight
from Rear axle weight
from Max. luggage
compartment load
1
I4 Diesel 1745 kg
3847 lb 932 kg
2054 lb 813 kg
1793 lb 35 kg
77 lb
V6 Diesel 1810 kg
3990 lb 1011 kg
2229 lb 799 kg
1761 lb 35 kg
77 lb
V6 Petrol 1690 kg
3726 lb 883 kg
1947 lb 807 kg
1779 lb 35 kg
77 lb
V8 Normally
Aspirated Petrol 1780 kg
3924 lb 961 kg
2119 lb 819 kg
1806 lb 35 kg
77 lb
V8 Supercharged
Petrol 1891 kg
4169 lb 1022 kg
2253 lb 869 kg
1916 lb 35 kg
77 lb
1The maximum permitted luggage co mpartment load can be exceeded, provided the requirements
regarding the maximum permissible axle weights and tyre pressures are followed.
