2010 INFINITI QX56 light

SQUEAK AND RATTLE TROUBLE DIAGNOSESDLK-225
< SYMPTOM DIAGNOSIS > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
DLK
N
O P
Insulates where slight movement is present. Ideal for instrument panel applications.
SILICONE GREASE
Used in place of UHMW tape that will be visible or not fit. Will only last a few months.
SILICONE SPRAY
Use when grease cannot be applied.
DUCT TAPE
Use to eliminate movement.
CONFIRM THE REPAIR
Confirm that the cause of a noise is repaired by test driving the vehicle. Operate the vehicle under the same
conditions as when the noise originally occurred. Refer to the notes on the Diagnostic Worksheet.
Inspection ProcedureINFOID:0000000005147044
Refer to Table of Contents for specific component removal and installation information.
INSTRUMENT PANEL
Most incidents are caused by contact and movement between:
1. The cluster lid A and instrument panel
2. Acrylic lens and combination meter housing
3. Instrument panel to front pillar garnish
4. Instrument panel to windshield
5. Instrument panel mounting pins
6. Wiring harnesses behind the combination meter
7. A/C defroster duct and duct joint
These incidents can usually be located by tapping or moving the components to duplicate the noise or by
pressing on the components while driving to stop the noi se. Most of these incidents can be repaired by apply-
ing felt cloth tape or silicon spray (in hard to reach areas). Urethane pads can be used to insulate wiring har-
ness.
CAUTION:
Do not use silicone spray to isolate a squeak or ra ttle. If you saturate the area with silicone, you will
not be able to recheck the repair.
CENTER CONSOLE
Components to pay attention to include:
1. Shifter assembly cover to finisher
2. A/C control unit and cluster lid C
3. Wiring harnesses behind audio and A/C control unit
The instrument panel repair and isolation pr ocedures also apply to the center console.
DOORS
Pay attention to the:
1. Finisher and inner panel making a slapping noise
2. Inside handle escutcheon to door finisher
3. Wiring harnesses tapping
4. Door striker out of alignment causing a popping noise on starts and stops
Tapping or moving the components or pressing on them while driving to duplicate the conditions can isolate
many of these incidents. You can usually insulate the ar eas with felt cloth tape or insulator foam blocks from
the Nissan Squeak and Rattle Kit (J-43980) to repair the noise.
TRUNK
Trunk noises are often caused by a loose jack or loose items put into the trunk by the owner.
In addition look for:
1. Trunk lid dampers out of adjustment
2. Trunk lid striker out of adjustment
3. The trunk lid torsion bars knocking together
4. A loose license plate or bracket
Revision: April 20092010 QX56

DLK-226
< SYMPTOM DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
SQUEAK AND RATTLE TROUBLE DIAGNOSES
Most of these incidents can be repaired by adjusting, se
curing or insulating the item(s) or component(s) caus-
ing the noise.
SUNROOF/HEADLINING
Noises in the sunroof/headlining area c an often be traced to one of the following:
1. Sunroof lid, rail, linkage or seals making a rattle or light knocking noise
2. Sunvisor shaft shaking in the holder
3. Front or rear windshield touching headlining and squeaking
Again, pressing on the components to stop the noise while duplicating the conditions can isolate most of these
incidents. Repairs usually consist of insulating with felt cloth tape.
SEATS
When isolating seat noise it's important to note the pos ition the seat is in and the load placed on the seat when
the noise is present. These conditions should be duplicated when verifying and isolating the cause of the
noise.
Cause of seat noise include:
1. Headrest rods and holder
2. A squeak between the seat pad cushion and frame
3. The rear seatback lock and bracket
These noises can be isolated by moving or pressing on the suspected components while duplicating the con-
ditions under which the noise occurs. Most of thes e incidents can be repaired by repositioning the component
or applying urethane tape to the contact area.
UNDERHOOD
Some interior noise may be caused by components under the hood or on the engine wall. The noise is then
transmitted into the passenger compartment.
Causes of transmitted underhood noise include:
1. Any component mounted to the engine wall
2. Components that pass through the engine wall
3. Engine wall mounts and connectors
4. Loose radiator mounting pins
5. Hood bumpers out of adjustment
6. Hood striker out of adjustment
These noises can be difficult to isolate since they cannot be reached from the interior of the vehicle. The best
method is to secure, move or insulate one component at a time and test drive the \
vehicle. Also, engine RPM
or load can be changed to isolate the noise. Repairs can usually be made by moving, adjusting, securing, or
insulating the component causing the noise.
Revision: April 20092010 QX56

DLK-234
< ON-VEHICLE REPAIR >[WITH INTELLIGENT KEY SYSTEM]
HOOD
CLEARANCE AND SURFACE HEIGHT ADJUSTMENT
1. Remove the front grille. Refer to
EXT-17, "Removal and Installation".
2. Remove the hood lock assembly and adjust the height by rotating the bumper rubber until the hood clear- ance of hood and fender becomes 1 mm (0.04 in) lower than fitting standard dimension.
3. Temporarily tighten the hood lock, and position it by engaging it with the hood striker. Check the lock and striker for looseness, and tighten the lock mounting bolt to the specified torque.
4. Adjust the clearance and surface height of hood and fender according to \
the fitting standard dimension by rotating right and left bumper rubbers.
CAUTION:
Adjust right/left gap between hood and each part to the following specification.
5. Install the front grille. Refer to EXT-17, "
Removal and Installation".
HOOD LOCK ADJUSTMENT
1. Remove the front grille. Refer to EXT-17, "Removal and Installation".
2. Move the hood lock to the left or right so that striker center is vertically aligned with hood lock center (when viewed from vehicle front).
3. Make sure the secondary latch is properly engaged with the sec- ondary striker with hood's own weight by dropping it from
approx. 200 mm (7.87 in) height or by pressing it lightly approx.
3 kg (29 N, 7lb).
CAUTION:
Do not drop the hood from 300 mm (11.81 in) height or
higher.
4. After adjusting hood lock, tighten the lock bolts.
5. Install the front grille. Refer to EXT-17, "
Removal and Installa-
tion".
Removal and Installation of Hood AssemblyINFOID:0000000005147051
1. Support the hood striker with proper material to prevent it from falling.
WARNING:
Body injury may occur if no supporting rod is holding the
hood open when removing the damper stay.
2. Remove the hinge nuts from the hood to remove the hood assembly.
CAUTION:
Operate with two workers, because of its heavy weight.
Installation is in the reverse order of removal. Hood and headlamp (B–B) : 2.0 mm or less
PIIA3806E
LIIA1443E
Revision: April 20092010 QX56

DIAGNOSIS SYSTEM (TRANSFER CONTROL UNIT)DLN-21
< FUNCTION DIAGNOSIS > [ATX14B]
C
EF
G H
I
J
K L
M A
B
DLN
N
O P
WORK SUPPORT
When there is no malfunction with transfer and 4WD sys tem, the following symptoms in AUTO mode may be
claimed by a customer: vibration when accelerating on a low µ road (snow-covered or icy road) or a slight
shock is felt at a few hertz as if it were being pushed lightly from behind.
It is possible to deal with these symptoms by changing the CLUTCH FORCE RELEASE LIMIT VALUE. How-
ever, be careful when changing the value because it may adversely affect driving performance.
Operation Procedure
1. Connect CONSULT-III.
2. Touch WORK SUPPORT.
3. Select from CLUTCH/F RLS LIM ADJ, screen of data monitor mode is displayed.
Clutch Force Release Limit Adjustment
1. Initial CLUTCH FORCE RELEASE LIMIT value 0.3 kgm appears under CONDITION SETTING on CON-
SULT-III display.
2. Touch 1.2 on the display.
3. Display changes to NOW ADJUSTING in a short time.
4. When clutch force release limit value is set to 1.2 kgm, current value 0.3 kgm shown on display will be replaced by 1.2 kgm and ADJUSTME NT COMPLETE will appear at the same time. Clutch force release
limit value setting is now complete.
ATP IND [On/Off] ––×Control status of ATP warning lamp is dis-
played.
SHIFT POS SW1 [On/Off] ×–×Actuator position switch 1 (Low) signal status
is displayed.
SHIFT POS SW2 [On/Off] ×–×Actuator position switch 2 (high) signal status
is displayed.
SHIFT ACT1 [On/Off] –×× Output condition to actuator motor (clockwise)
SHIFT AC MON1 [On/Off] ×–×Check signal for transfer control unit signal
output
SHIFT ACT2 [On/Off] –×× Output condition to actuator motor (counter-
clockwise)
SHIFT AC MON2 [On/Off] ×–×Check signal for transfer control unit signal
output
T/F F SPEED [km/h] or [mph] ×–×Displayed, but do not use.
A/T R SPEED [km/h] or [mph] ×–×Output shaft revolution signal (output speed
sensor) calculated by TCM.
Signal input with CAN communication line.
AT GEAR POSI [1/2/3/4/5] ×–×A/T actual gear position is displayed.
Monitored item (Unit)
Monitor item selection
Remarks
ECU INPUT
SIGNALS MAIN
SIGNALS SELEC-
TION FROM
MENU
1.2 kg-m : Tight corner braking symptom is alleviated. However, vibration may occur when acceler-
ating on a low µ road (icy road, etc.).
0.3 kg-m : Initial set value.
0.2 kg-m : Do not set to th is value because the tight
corner braking symptom will get worse.
Revision: April 20092010 QX56

DLN-102
< SYMPTOM DIAGNOSIS >[ATX14B]
4WD SYSTEM SYMPTOMS
SYMPTOM DIAGNOSIS
4WD SYSTEM SYMPTOMS
Symptom TableINFOID:0000000005148856
If 4WD warning lamp turns ON, perform self-diagnosis. Refer to DLN-18, "CONSULT-III Function (ALL MODE AWD/4WD)".
NOTE:
• Light tight-corner braking symptom may occur depending on driving conditions in AUTO mode. This is not a
malfunction.
• Heavy tight-corner braking symptom occurs when vehicle is driven in the following conditions: 4WD shift
switch is 4H or 4LO, steering wheel is turned fully to either side.
Symptom ConditionReference page
4WD shift indicator lamp and 4LO indicator lamp do not turn ON
(4WD shift indicator lamp and 4LO indicator lamp check) Ignition switch: ON
DLN-103
4WD warning lamp does not turn ON
(4WD warning lamp check) Ignition switch: ON
DLN-105
4WD shift indicator lamp or 4LO indicator lamp does not change Engine runningDLN-107
ATP warning lamp does not turn ON Engine runningDLN-109
4WD shift indicator lamp keeps flashing Engine runningDLN-111
4WD warning lamp flashes rapidly (2 times/second) While drivingDLN-112
4WD warning lamp flashes slowly
(1 time/2 seconds) While driving
DLN-113
Heavy tight-corner braking symptom occurs
(See NOTE.) • While driving
•AUTO mode
• Steering wheel is turned fully
to either side DLN-114
ATP switch does not operate
Engine runningDLN-116
4WD system does not operate While drivingDLN-118
Revision: April 20092010 QX56

DLN-114
< SYMPTOM DIAGNOSIS >[ATX14B]
HEAVY TIGHT-CORNER BRAKING SYMPTOM OCCURS
HEAVY TIGHT-CORNER BR
AKING SYMPTOM OCCURS
DescriptionINFOID:0000000005148871
This symptom occurs when the vehicle is accelerati ng in 4WD and the steering wheel is turned fully either
direction. It may feel like a bump or being pushed fr om behind. A small amount of this bumping feeling is
acceptable under certain road conditions. The transfer case may be adjusted using the CONSULT-III to com-
pensate for this condition.
Diagnosis ProcedureINFOID:0000000005148872
DIAGNOSTIC PROCEDURE
NOTE:
• Light tight-corner braking symptom may occur depending on driving conditions in AUTO mode. This is not a malfunction.
• Heavy tight-corner braking symptom occurs when vehicle is driven in the following conditions: 4WD shift
switch is 4H or 4LO, steering wheel is turned fully to either side.
1.CHECK SYSTEM FOR CAN COMMUNICATION LINE
Perform self-diagnosis. Refer to DLN-18, "
CONSULT-III Function (ALL MODE AWD/4WD)".
Is CAN COMM CIRCUIT [U1000] displayed?
YES >> Perform trouble diagnosis for CAN communication line.
NO >> GO TO 2.
2.CHECK SYSTEM FOR 4WD SHIFT SWITCH
Perform trouble diagnosis for 4WD shift switch system. Refer to DLN-32, "
Diagnosis Procedure".
Are the inspection results normal?
YES >> GO TO 3.
NO >> Repair or replace damaged parts.
3.CHECK ACCELERATOR PEDAL POSITION SIGNAL CIRCUIT
Perform self diagnosis for ECM. Refer to EC-63, "
CONSULT-III Function (ENGINE)".
Is any malfunction deteced by self-diagnosis?
YES >> Check the malfunctioning system.
NO >> GO TO 4.
4.CHECK SYSTEM FOR CLUT CH PRESSURE SOLENOID
Perform trouble diagnosis for clutch pressure solenoid system. Refer to DLN-71, "
Diagnosis Procedure".
Are the inspection results normal?
YES >> GO TO 5.
NO >> Repair or replace damaged parts.
5.SYMPTOM CHECK
Check again.
Are the inspection results normal?
YES >> Inspection End.
NO >> GO TO 6.
6.CHECK TRANSFER CONTROL UNIT
Check transfer control unit input/output signal. Refer to DLN-81, "
Reference Value".
Are the inspection results normal?
YES >> GO TO 7.
NO >> Check transfer control unit pin terminals fo r damage or loose connection with harness connector.
If any items are damaged, repair or replace damaged parts.
7.CHECK TRANSFER INNER PARTS
1. Disassemble transfer assembly. Refer to DLN-142, "
Disassembly and Assembly".
2. Check transfer inner parts.
Revision: April 20092010 QX56

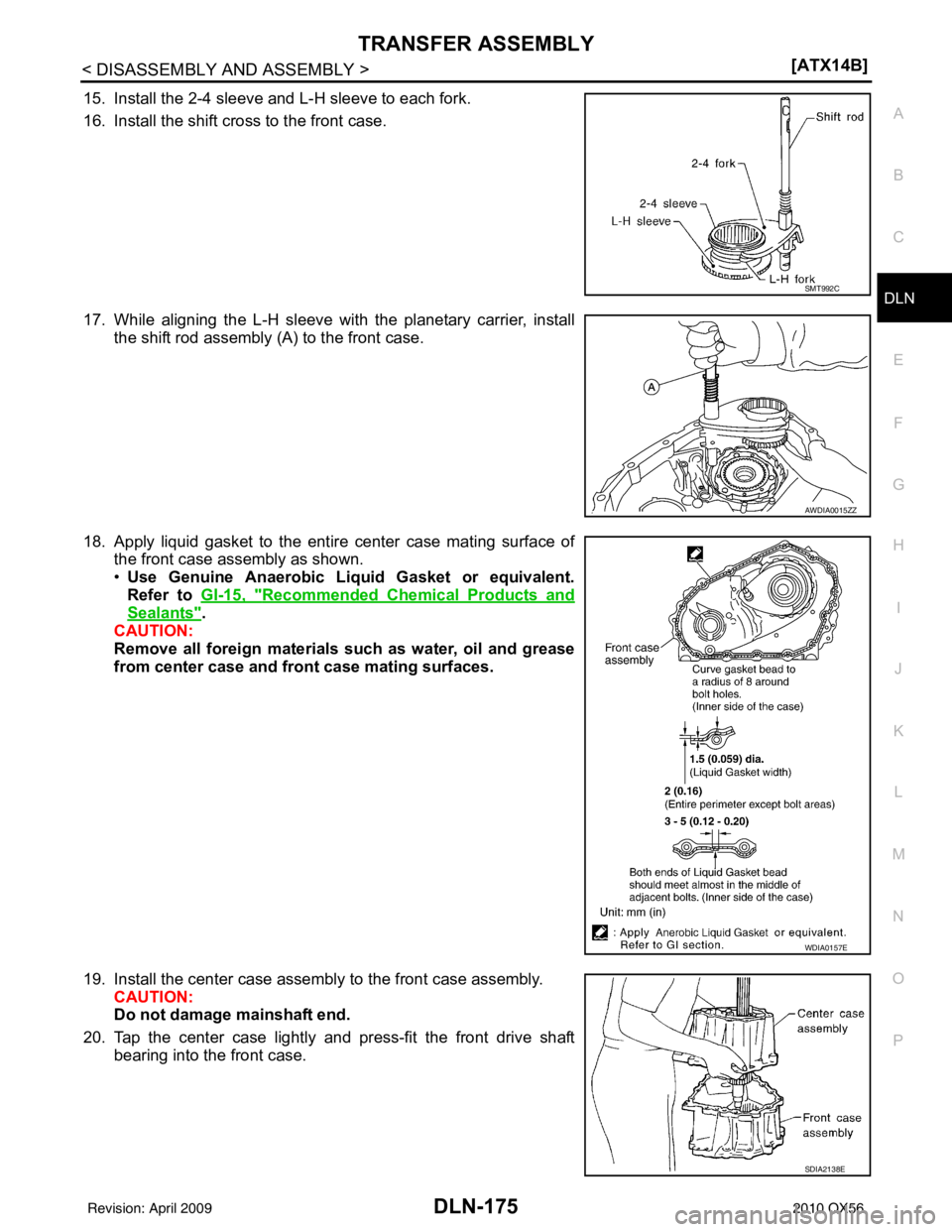

TRANSFER ASSEMBLYDLN-175
< DISASSEMBLY AND ASSEMBLY > [ATX14B]
C
EF
G H
I
J
K L
M A
B
DLN
N
O P
15. Install the 2-4 sleeve and L-H sleeve to each fork.
16. Install the shift cross to the front case.
17. While aligning the L-H sleeve with the planetary carrier, install the shift rod assembly (A) to the front case.
18. Apply liquid gasket to the entire center case mating surface of the front case assembly as shown.
•Use Genuine Anaerobic Liquid Gasket or equivalent.
Refer to GI-15, "
Recommended Chemical Products and
Sealants".
CAUTION:
Remove all foreign materials such as water, oil and grease
from center case and front case mating surfaces.
19. Install the center case assembly to the front case assembly. CAUTION:
Do not damage mainshaft end.
20. Tap the center case lightly and press-fit the front drive shaft bearing into the front case.
SMT992C
AWDIA0015ZZ
WDIA0157E
SDIA2138E
Revision: April 20092010 QX56

DLN-188

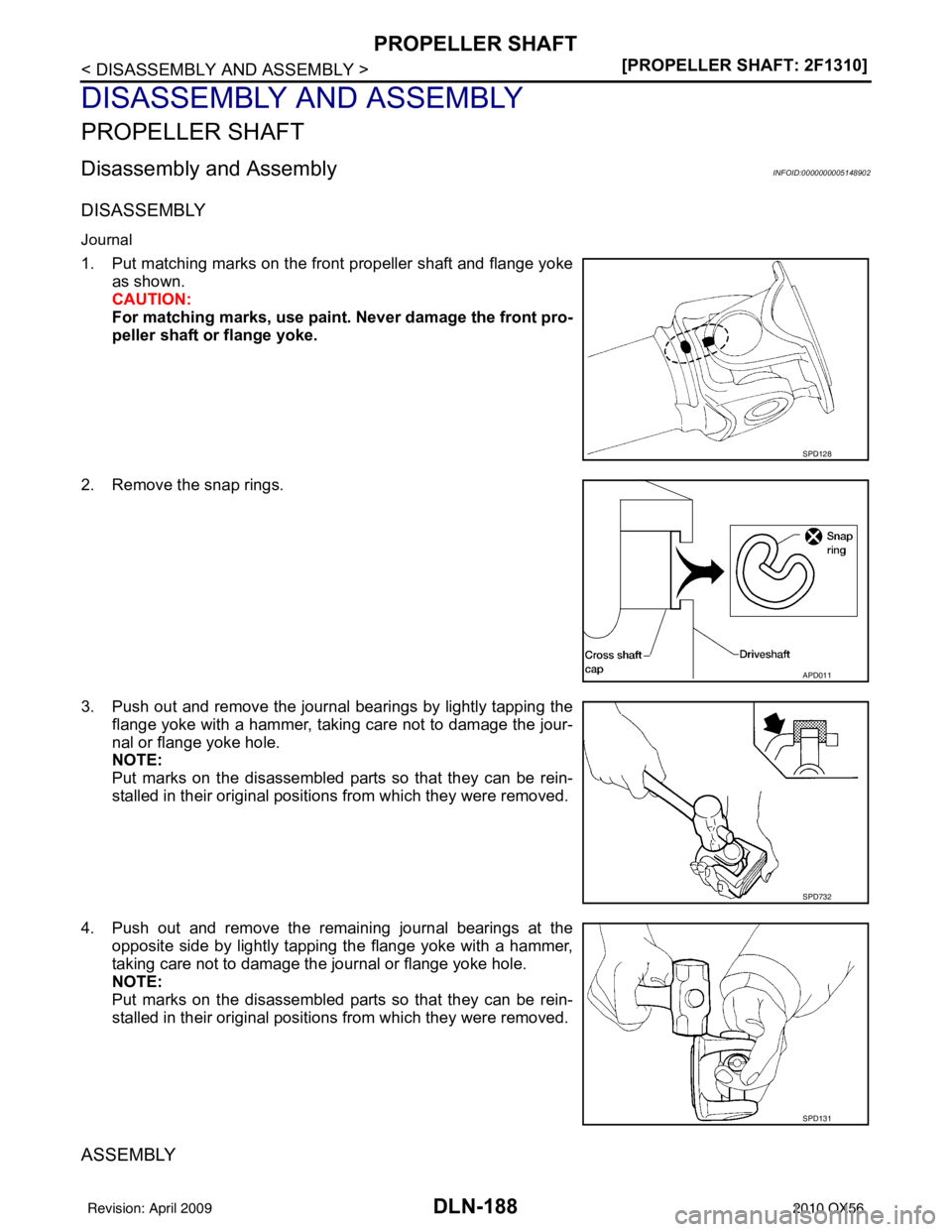

< DISASSEMBLY AND ASSEMBLY >[PROPELLER SHAFT: 2F1310]
PROPELLER SHAFT
DISASSEMBLY AND ASSEMBLY
PROPELLER SHAFT
Disassembly and AssemblyINFOID:0000000005148902
DISASSEMBLY
Journal
1. Put matching marks on the front propeller shaft and flange yoke
as shown.
CAUTION:
For matching marks, use paint. Never damage the front pro-
peller shaft or flange yoke.
2. Remove the snap rings.
3. Push out and remove the journal bearings by lightly tapping the flange yoke with a hammer, taking care not to damage the jour-
nal or flange yoke hole.
NOTE:
Put marks on the disassembled parts so that they can be rein-
stalled in their original positions from which they were removed.
4. Push out and remove the remaining journal bearings at the opposite side by lightly tapping the flange yoke with a hammer,
taking care not to damage the journal or flange yoke hole.
NOTE:
Put marks on the disassembled parts so that they can be rein-
stalled in their original positions from which they were removed.
ASSEMBLY
SPD128
APD011
SPD732
SPD131
Revision: April 20092010 QX56
