2010 INFINITI QX56 lock

THIRD SEATSE-57
< ON-VEHICLE REPAIR >
C
DE
F
G H
I
K L
M A
B
SE
N
O P
THIRD SEAT
Exploded ViewINFOID:0000000005147413

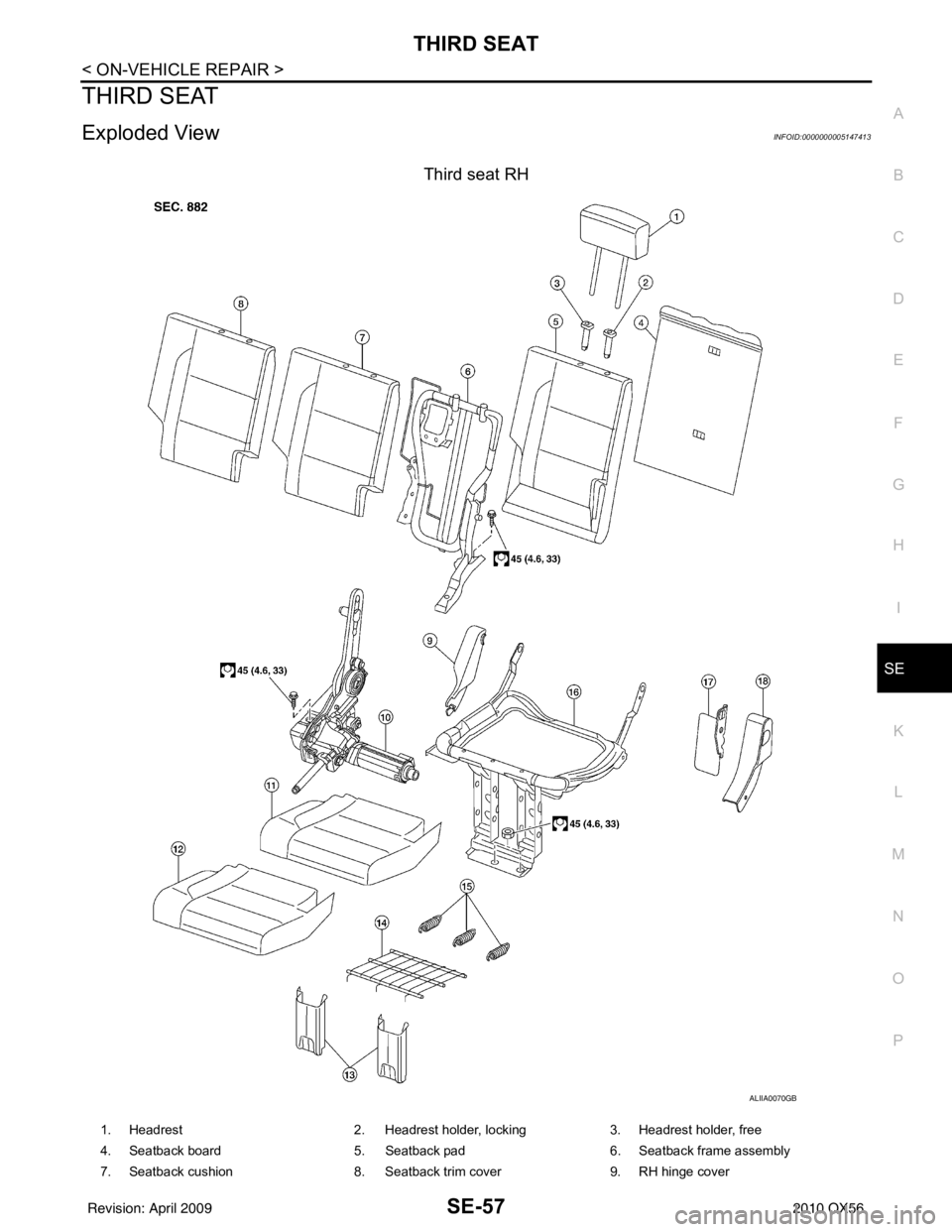

Third seat RH
ALIIA0070GB
1. Headrest 2. Headrest holder, locking 3. Headrest holder, free
4. Seatback board 5. Seatback pad 6. Seatback frame assembly
7. Seatback cushion 8. Seatback trim cover 9. RH hinge cover
Revision: April 20092010 QX56

SE-58
< ON-VEHICLE REPAIR >
THIRD SEAT
Third seat LH
10. Seat motor/hinge assembly 11. Seat cushion12. Seat cushion trim cover
13. Front link covers 14. Flex mat 15. Flex mat springs
16. Seat cushion frame assembly 17. Side link cover 18. LH hinge cover
ALIIA0071GB
1. Headrest 2. Headrest holder, locking 3. Headrest holder, free
4. Seatback board 5. Seatback pad 6. Seatback frame assembly
7. Seatback cushion 8. Seatback trim cover 9. Seat cushion
Revision: April 20092010 QX56

FRONT SEATSE-67
< DISASSEMBLY AND ASSEMBLY >
C
DE
F
G H
I
K L
M A
B
SE
N
O P
1. Headrest 2. Headrest holder with multi-position
lock 3. Seatback assembly
4. Lumbar switch bezel 5. Power seat switch escutcheon 6. Recliner switch knob
7. Slide switch knob 8. Driver power seat frame assembly 9. Inner leg cover
10. Driver seat wiring harness 11. Bolt cover 12. Seat cushion outer finisher
13. Outer pedestal finisher 14. Seat cushion front finisher15. Seat cushion inner finisher
16. Seat cushion frame 17. Seat cushion heating element 18. Seat cushion pad
19. Seat cushion trim cover 20. Armrest assembly 21. Headrest holder
22. Seat slide/ recline switch 23. Power lumbar switch
Revision: April 20092010 QX56

SE-68
< DISASSEMBLY AND ASSEMBLY >
FRONT SEAT

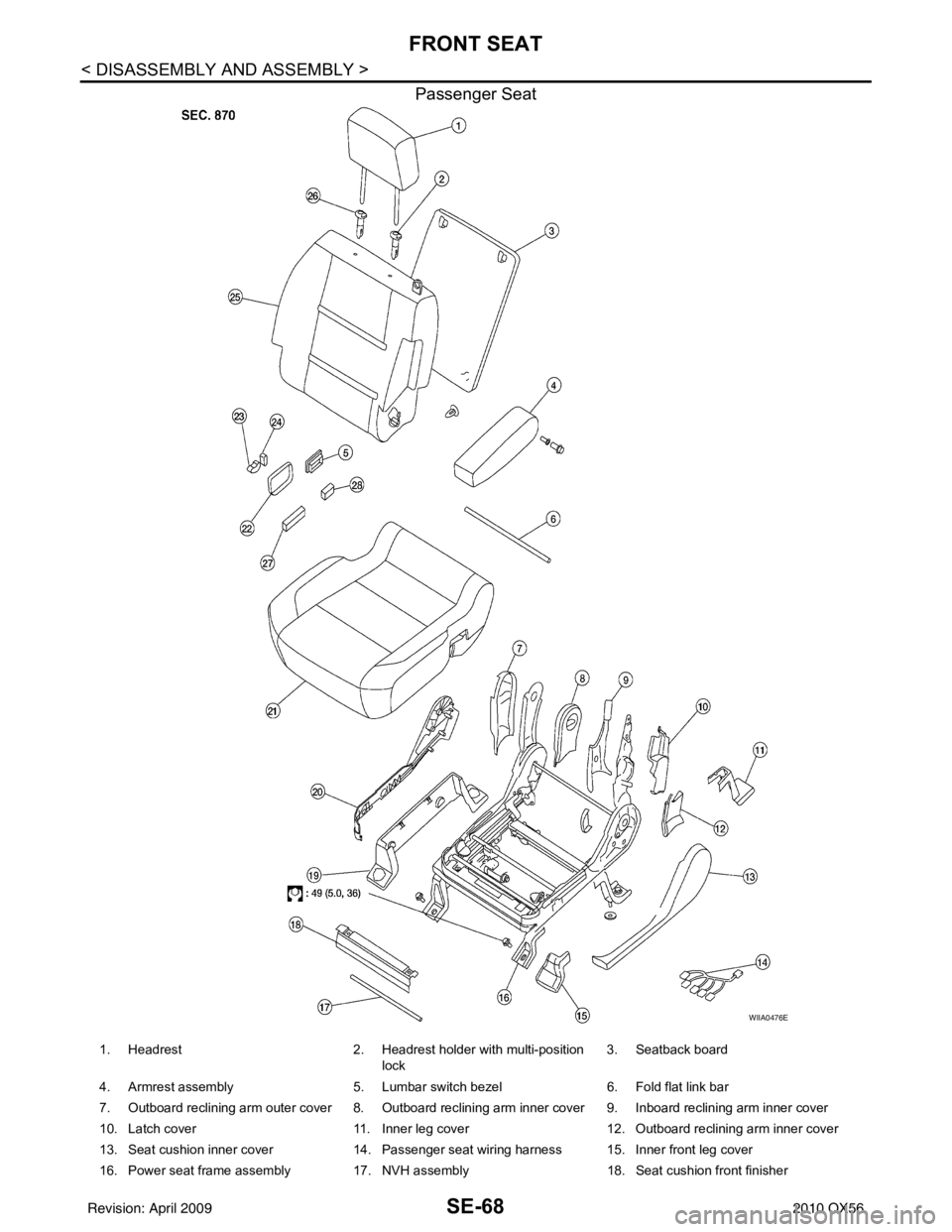

Passenger Seat
WIIA0476E
1. Headrest2. Headrest holder with multi-position
lock 3. Seatback board
4. Armrest assembly 5. Lumbar switch bezel6. Fold flat link bar
7. Outboard reclining arm outer cover 8. Outboard reclining arm inner cover 9. Inboard reclining arm inner cover
10. Latch cover 11. Inner leg cover12. Outboard reclining arm inner cover
13. Seat cushion inner cover 14. Passenger seat wiring harness 15. Inner front leg cover
16. Power seat frame assembly 17. NVH assembly 18. Seat cushion front finisher
Revision: April 20092010 QX56

SE-72
< DISASSEMBLY AND ASSEMBLY >
SECOND SEAT
SECOND SEAT
Disassembly and AssemblyINFOID:0000000005147419

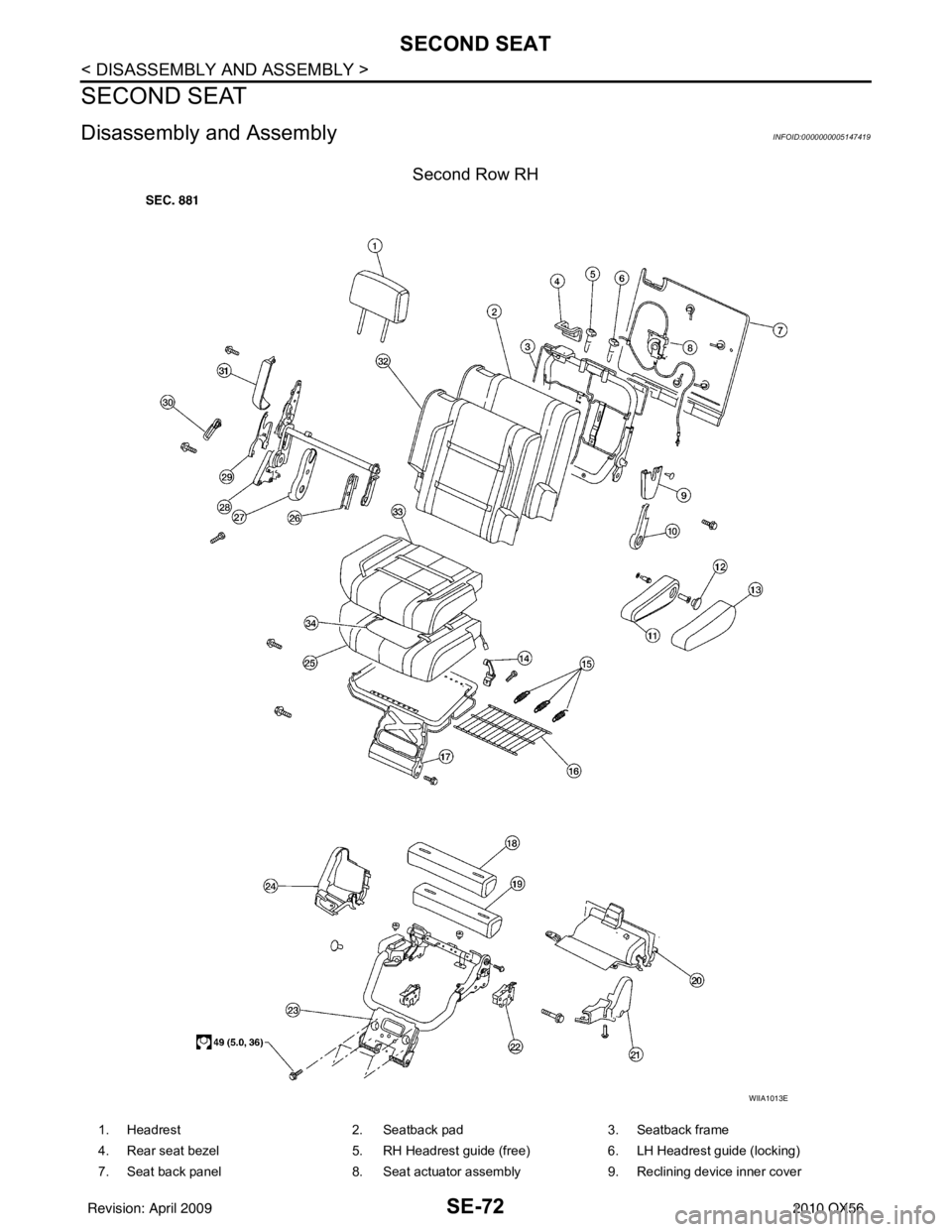

Second Row RH
WIIA1013E
1. Headrest 2. Seatback pad 3. Seatback frame
4. Rear seat bezel 5. RH Headrest guide (free) 6. LH Headrest guide (locking)
7. Seat back panel 8. Seat actuator assembly 9. Reclining device inner cover
Revision: April 20092010 QX56

SE-74
< DISASSEMBLY AND ASSEMBLY >
SECOND SEAT

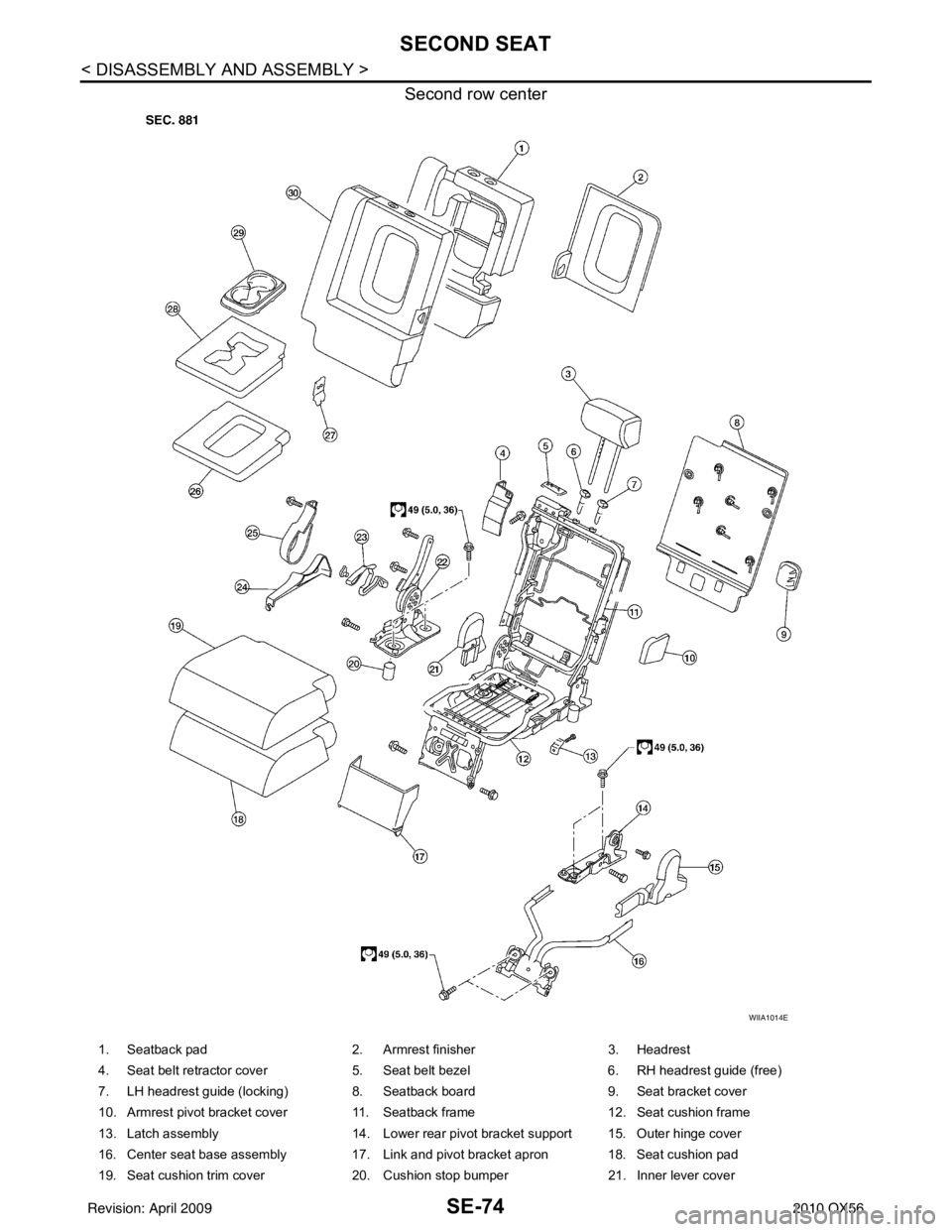

Second row center
WIIA1014E
1. Seatback pad2. Armrest finisher 3. Headrest
4. Seat belt retractor cover 5. Seat belt bezel 6. RH headrest guide (free)
7. LH headrest guide (locking) 8. Seatback board 9. Seat bracket cover
10. Armrest pivot bracket cover 11. Seatback frame 12. Seat cushion frame
13. Latch assembly 14. Lower rear pivot bracket support 15. Outer hinge cover
16. Center seat base assembly 17. Link and pivot bracket apron 18. Seat cushion pad
19. Seat cushion trim cover 20. Cushion stop bumper 21. Inner lever cover
Revision: April 20092010 QX56

SECOND SEATSE-75
< DISASSEMBLY AND ASSEMBLY >
C
DE
F
G H
I
K L
M A
B
SE
N
O P

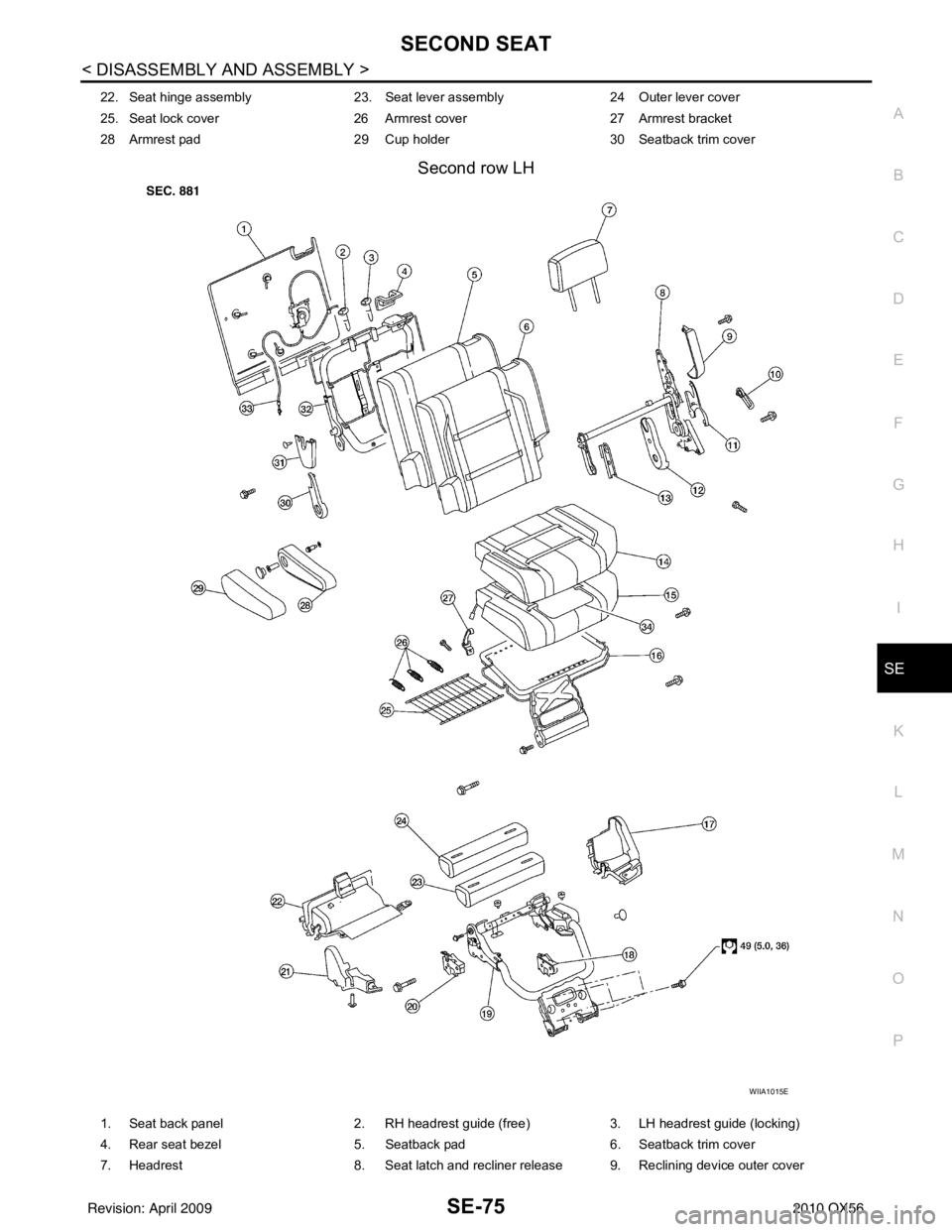

Second row LH
22. Seat hinge assembly 23. Seat lever assembly 24 Outer lever cover
25. Seat lock cover 26 Armrest cover 27 Armrest bracket
28 Armrest pad 29 Cup holder 30 Seatback trim cover
WIIA1015E
1. Seat back panel2. RH headrest guide (free) 3. LH headrest guide (locking)
4. Rear seat bezel 5. Seatback pad 6. Seatback trim cover
7. Headrest 8. Seat latch and recliner release 9. Reclining device outer cover
Revision: April 20092010 QX56

THIRD SEATSE-77
< DISASSEMBLY AND ASSEMBLY >
C
DE
F
G H
I
K L
M A
B
SE
N
O P
THIRD SEAT
Exploded ViewINFOID:0000000005147420

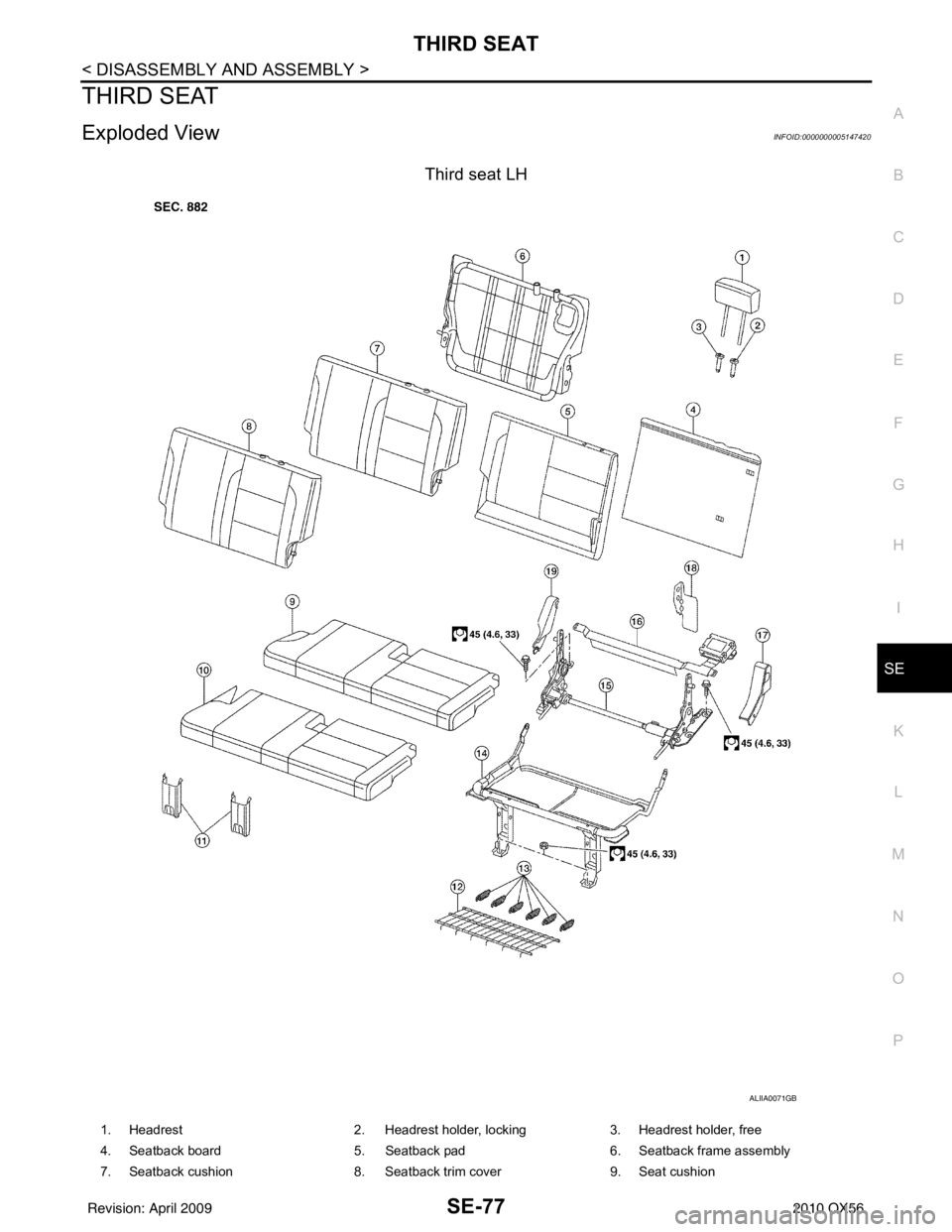

Third seat LH
ALIIA0071GB
1. Headrest 2. Headrest holder, locking 3. Headrest holder, free
4. Seatback board 5. Seatback pad 6. Seatback frame assembly
7. Seatback cushion 8. Seatback trim cover 9. Seat cushion
Revision: April 20092010 QX56
