2010 INFINITI QX56 ecm

P1212 TCS COMMUNICATION LINEEC-301
< COMPONENT DIAGNOSIS > [VK56DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
P1212 TCS COMMUNICATION LINE
DescriptionINFOID:0000000005149346
NOTE:
•
If DTC P1212 is displayed with DTC UXXXX, first perform the tr ouble diagnosis for DTC UXXXX.
• If DTC P1212 is displayed with DT C P0607, first perform the trouble diagnosis for DTC P0607. Refer
to EC-288
.
This CAN communication line is used to control the smooth engine operation during the TCS operation. Pulse
signals are exchanged between ECM and “ABS actuator and electric unit (control unit)”.
Be sure to erase the malf unction information such as DTC not onl y for “ABS actuator and electric unit
(control unit)” but also for ECM after TCS related repair.
On Board Diagnosis LogicINFOID:0000000005149347
Freeze frame data is not stored in the ECM for this self-diagnosis.
The MIL will not light up for this self-diagnosis.
DTC Confirmation ProcedureINFOID:0000000005149348
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10.5 V at idle.
1. Start engine and let it idle for at least 10 seconds.
2. Check 1st trip DTC.
3. If 1st trip DTC is detected, go to EC-301, "
Diagnosis Procedure".
Diagnosis ProcedureINFOID:0000000005149349
Go to BRC-23, "CONSULT-III Function (ABS)".
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1212
1212 TCS communication line ECM can not receive the information from
“ABS actuator and electric unit (control
unit)” continuously. • Harness or connectors
(The CAN communication line is open or short-
ed.)
• ABS actuator and electric unit (control unit)
• Dead (Weak) battery
Revision: April 20092010 QX56

EC-306
< COMPONENT DIAGNOSIS >[VK56DE]
P1225 TP SENSOR
P1225 TP SENSOR
Component DescriptionINFOID:0000000005149354
Electric throttle control actuator consists of throttle control motor,
throttle position sensor, etc. The throttle position sensor responds to
the throttle valve movement.
The throttle position sensor has the two sensors. These sensors are
a kind of potentiometers which transform the throttle valve position
into output voltage, and emit the voltage signal to the ECM. In addi-
tion, these sensors detect the opening and closing speed of the
throttle valve and feed the voltage signals to the ECM. The ECM
judges the current opening angle of the
throttle valve from these sig-
nals and the ECM controls the throttle control motor to make the
throttle valve opening angle properly in response to driving condi-
tion.
On Board Diagn osis LogicINFOID:0000000005149355
The MIL will not light up for this self-diagnosis.
DTC Confirmation ProcedureINFOID:0000000005149356
NOTE:
If DTC Confirmation Procedure has been previously conducted, always perform the following procedure
before conducting the next step.
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Turn ignition switch ON.
3. Turn ignition switch OFF and wait at least 10 seconds.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10 V at idle.
1. Turn ignition switch ON.
2. Turn ignition switch OFF and wait at least 10 seconds.
3. Turn ignition switch ON.
4. Check 1st trip DTC.
5. If 1st trip DTC is detected, go to EC-306, "
Diagnosis Procedure".
Diagnosis ProcedureINFOID:0000000005149357
1.CHECK ELECTRIC THROTTLE CONTROL ACTUATOR VISUALLY
1. Turn ignition switch OFF.
2. Remove the intake air duct.
3. Check if foreign matter is caught between the throttle valve and the housing.
OK or NG
OK >> GO TO 2.
NG >> Remove the foreign matter and clean the electric throttle control actuator inside.
2.REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR
PBIB0145E
DTC No. Trouble diagnosis name DTC detecting conditionPossible cause
P1225
1225 Closed throttle position learning
performance Closed throttle position learning value is
excessively low. • Electric throttle control actuator
(TP sensor 1 and 2)
BBIA0364E
Revision: April 20092010 QX56

EC-308
< COMPONENT DIAGNOSIS >[VK56DE]
P1226 TP SENSOR
P1226 TP SENSOR
Component DescriptionINFOID:0000000005149358
Electric throttle control actuator consists of throttle control motor,
throttle position sensor, etc. The throttle position sensor responds to
the throttle valve movement.
The throttle position sensor has the two sensors. These sensors are
a kind of potentiometers which transform the throttle valve position
into output voltage, and emit the voltage signal to the ECM. In addi-
tion, these sensors detect the opening and closing speed of the
throttle valve and feed the voltage signals to the ECM. The ECM
judges the current opening angle of the
throttle valve from these sig-
nals and the ECM controls the throttle control motor to make the
throttle valve opening angle properly in response to driving condi-
tion.
On Board Diagn osis LogicINFOID:0000000005149359
The MIL will not light up for this self-diagnosis.
DTC Confirmation ProcedureINFOID:0000000005149360
NOTE:
If DTC Confirmation Procedure has been previously conducted, always perform the following procedure
before conducting the next step.
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Turn ignition switch ON.
3. Turn ignition switch OFF and wait at least 10 seconds.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10 V at idle.
1. Turn ignition switch ON.
2. Turn ignition switch OFF and wait at least 10 seconds.
3. Turn ignition switch ON.
4. Repeat steps 2 and 3 for 32 times.
5. Check 1st trip DTC.
6. If 1st trip DTC is detected, go to EC-308, "
Diagnosis Procedure".
Diagnosis ProcedureINFOID:0000000005149361
1.CHECK ELECTRIC THROTTLE CONTROL ACTUATOR VISUALLY
1. Turn ignition switch OFF.
2. Remove the intake air duct.
3. Check if foreign matter is caught between the throttle valve and the housing.
OK or NG
OK >> GO TO 2.
NG >> Remove the foreign matter and clean the electric throttle control actuator inside.
PBIB0145E
DTC No. Trouble diagnosis name DTC detecting conditionPossible cause
P1226
1226 Closed throttle position learning
performance Closed throttle position learning is not performed
successfully, repeatedly. • Electric throttle control actuator
(TP sensor 1 and 2)
BBIA0364E
Revision: April 20092010 QX56

EC-310
< COMPONENT DIAGNOSIS >[VK56DE]
P1421 COLD START CONTROL
P1421 COLD START CONTROL
DescriptionINFOID:0000000005149362
ECM controls ignition timing and engine idle speed when engine is started with pre-warming up condition.
This control promotes the activation of three way catalyst by heating the catalyst and reduces emissions.
On Board Diagn
osis LogicINFOID:0000000005149363
If DTC P1421 is displayed with ot her DTC, first perform the trouble diagnosis for other DTC.
DTC Confirmation ProcedureINFOID:0000000005149364
NOTE:
If DTC Confirmation Procedure has been previously conducted, always perform the following procedure
before conducting the next step.
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Turn ignition switch ON.
3. Turn ignition switch OFF and wait at least 10 seconds.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 11 V at idle.
WITH CONSULT-III
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Turn ignition switch ON.
3. Select “DATA MONITOR” mode with CONSULT-III.
4. Check that the “COOLAN TEMP/S” indication is between 5 °C (41° F) and 36 °C (97° F).
If “COOLAN TEMP/S” indication is within the specified value, go to the following step.
If “COOLANT TEMP/S” indication is out of the s pecified value, cool engine down or warm engine up and
go to step 1.
5. Start engine and let it idle for 5 minutes.
6. Check 1st trip DTC.
7. If 1st trip DTC is detected, go to EC-310, "
Diagnosis Procedure".
WITH GST
Follow the procedure “WITH CONSULT-III” above.
Diagnosis ProcedureINFOID:0000000005149365
1.PERFORM IDLE AIR VOLUME LEARNING
Perform EC-18, "
Idle Air Volume Learning".
Is Idle Air Volume Lear ning carried out successfully?
Ye s o r N o
Ye s > > G O T O 2 .
No >> Follow the instruction of Idle Air Volume Learning.
2.CHECK INTAKE SYSTEM
Check for the cause of intake air volume lacking. Refer to the following.
• Crushed intake air passage
• Intake air passage clogging
OK or NG
OK >> GO TO 3.
NG >> Repair or replace malfunctioning part
DTC No. Trouble diagnosis name DTC detecting conditionPossible cause
P1421
1421 Cold start emission reduction
strategy monitoring ECM does not control ignition timing and engine
idle speed properly when engine is started with
pre-warming up condition. • Lack of intake air volume
• Fuel injection system
•ECM
Revision: April 20092010 QX56

P1421 COLD START CONTROLEC-311
< COMPONENT DIAGNOSIS > [VK56DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
3.CHECK FUEL INJECTION SYSTEM FUNCTION
Perform EC-172, "
DTC Confirmation Procedure" in DTC P0171, P0174 FUEL INJECTION SYSTEM FUNC-
TION.
OK or NG
OK >> GO TO 4.
NG >> Go to EC-173, "
Diagnosis Procedure".
4.PERFORM DTC CONFIRMATION PROCEDURE
With CONSULT-III
1. Turn ignition switch ON.
2. Select “SELF DIAG RESULTS” mode with CONSULT-III.
3. Touch “ERASE”.
4. Perform DTC Confirmation Procedure.
See EC-310, "
DTC Confirmation Procedure".
5. Is the 1st trip DTC P1421 displayed again?
With GST
1. Turn ignition switch ON.
2. Select Service $04 with GST.
3. Perform DTC Confirmation Procedure.
See EC-310, "
DTC Confirmation Procedure".
4. Is the 1st trip DTC P1421 displayed again?
Ye s o r N o
Yes >> GO TO 5.
No >> INSPECTION END
5.REPLACE ECM
1. Replace ECM.
2. Perform initialization of IVIS (NATS) system and registration of all IVIS (NATS) ignition key IDs.
Refer to SEC-9, "
ECM RE-COMMUNICATING FUNCTION : Special Repair Requirement".
3. Perform EC-17, "
VIN Registration".
4. Perform EC-18, "
Accelerator Pedal Released Position Learning".
5. Perform EC-18, "
Throttle Valve Closed Position Learning".
6. Perform EC-18, "
Idle Air Volume Learning".
>> INSPECTION END
Revision: April 20092010 QX56

EC-312
< COMPONENT DIAGNOSIS >[VK56DE]
P1550 BATTERY CURRENT SENSOR
P1550 BATTERY CURRENT SENSOR
Component DescriptionINFOID:0000000005149366
The power generation voltage variable control enables fuel con-
sumption to be decreased by reducing the engine load which is
caused by the power generation of the generator. The battery cur-
rent sensor (1) is installed to the battery cable at the negative termi-
nal. The sensor measures the charging/discharging current of the
battery. Based on the sensor signal, ECM judges whether or not the
power generation voltage variable control is performed. When per-
forming the power generation voltage variable control, ECM calcu-
lates the target power generation voltage based on the sensor
signal. And ECM sends the calculated value as the power genera-
tion command value to IPDM E/R. For the details of the power gen-
eration voltage variable control, refer to
CHG-7, "
System
Description".
: Vehicle front
CAUTION:
Do not connect the electrical compon ent or the ground wire directly to the battery terminal. The con-
nection causes the malfunction of th e power generation voltage variable control, and then the battery
discharge may occur.
On Board Diagn osis LogicINFOID:0000000005149367
The MIL will not light up for this self-diagnosis.
NOTE:
If DTC P1550 is displayed with DTC P0643, first pe rform the trouble diagnosis for DTC P0643. Refer to
EC-289
.
DTC Confirmation ProcedureINFOID:0000000005149368
If DTC Confirmation Procedure has been previously conducted, always perform the following procedure
before conducting the next step.
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Turn ignition switch ON.
3. Turn ignition switch OFF and wait at least 10 seconds.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 8 V at idle.
1. Start engine and wait at least 10 seconds.
2. Check 1st trip DTC.
3. If 1st trip DTC is detected, go to EC-312, "
Diagnosis Procedure".
Diagnosis ProcedureINFOID:0000000005149369
1.CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten ground screws on the body.
BBIA0744E
DTC No. Trouble diagnosis name DTC detecting conditionPossible cause
P1550
1550 Battery current sensor circuit
range/performance The output voltage of the battery current
sensor remains within the specified
range while engine is running. • Harness or connectors
(The sensor circuit is open or shorted.)
• Battery current sensor
Revision: April 20092010 QX56

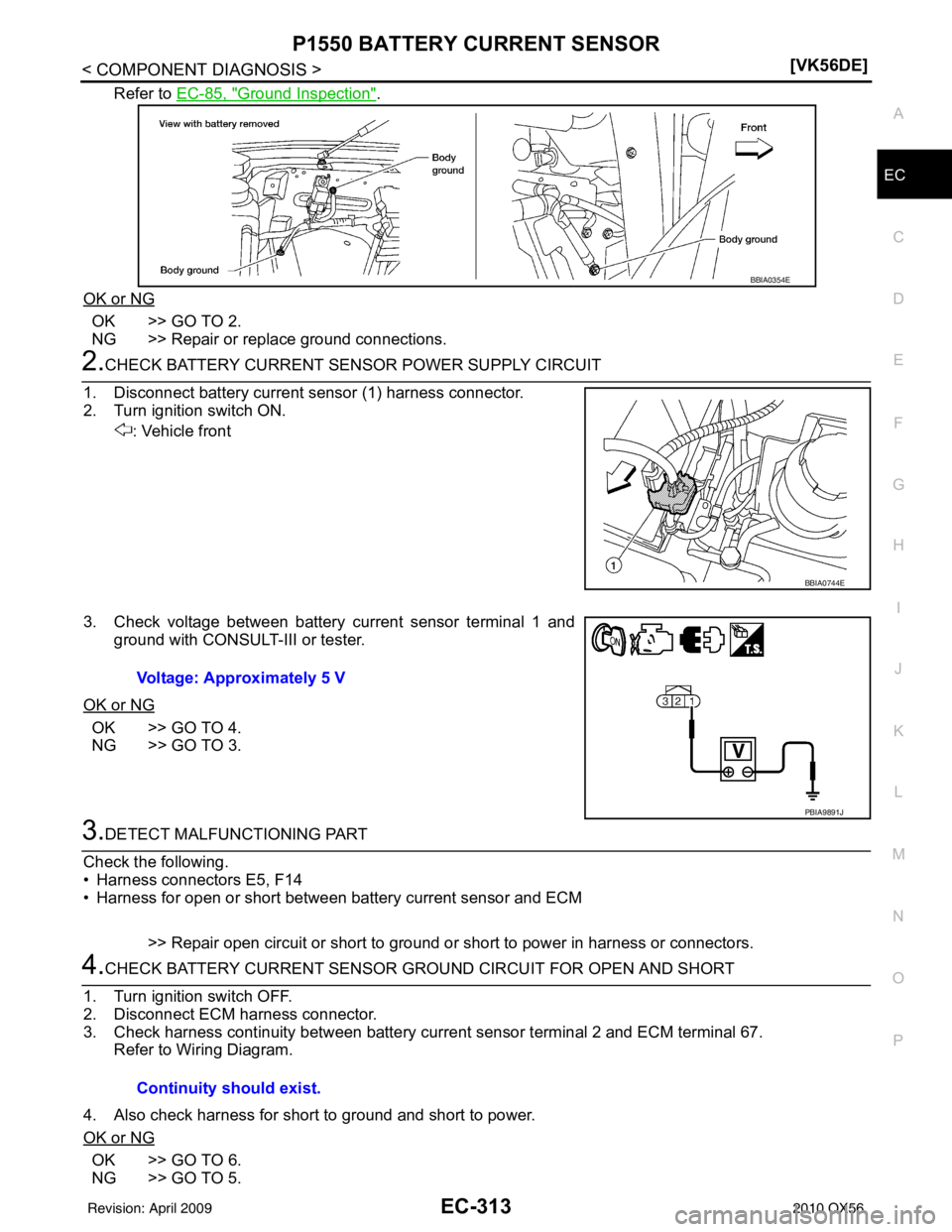

P1550 BATTERY CURRENT SENSOREC-313
< COMPONENT DIAGNOSIS > [VK56DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Refer to
EC-85, "Ground Inspection".
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
2.CHECK BATTERY CURRENT SENSOR POWER SUPPLY CIRCUIT
1. Disconnect battery current sensor (1) harness connector.
2. Turn ignition switch ON. : Vehicle front
3. Check voltage between battery current sensor terminal 1 and ground with CONSULT-III or tester.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3.DETECT MALFUNCTIONING PART
Check the following.
• Harness connectors E5, F14
• Harness for open or short between battery current sensor and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors.
4.CHECK BATTERY CURRENT SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between battery cu rrent sensor terminal 2 and ECM terminal 67.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
BBIA0354E
BBIA0744E
Voltage: Approximately 5 V
PBIA9891J
Continuity should exist.
Revision: April 20092010 QX56

EC-314
< COMPONENT DIAGNOSIS >[VK56DE]

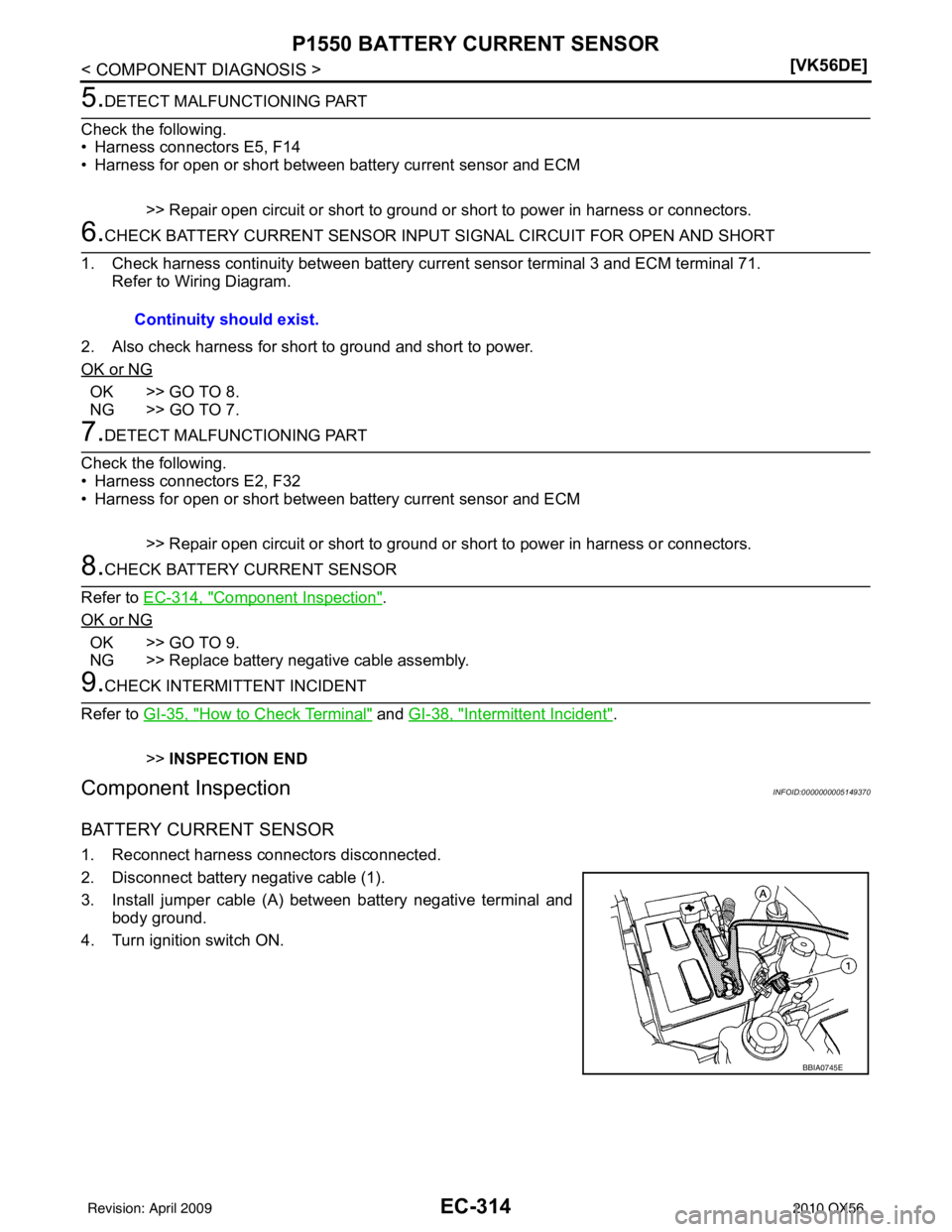

P1550 BATTERY CURRENT SENSOR
5.DETECT MALFUNCTIONING PART
Check the following.
• Harness connectors E5, F14
• Harness for open or short between battery current sensor and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors.
6.CHECK BATTERY CURRENT SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between battery curr ent sensor terminal 3 and ECM terminal 71.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 8.
NG >> GO TO 7.
7.DETECT MALFUNCTIONING PART
Check the following.
• Harness connectors E2, F32
• Harness for open or short between battery current sensor and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors.
8.CHECK BATTERY CURRENT SENSOR
Refer to EC-314, "
Component Inspection".
OK or NG
OK >> GO TO 9.
NG >> Replace battery negative cable assembly.
9.CHECK INTERMITTENT INCIDENT
Refer to GI-35, "
How to Check Terminal" and GI-38, "Intermittent Incident".
>> INSPECTION END
Component InspectionINFOID:0000000005149370
BATTERY CURRENT SENSOR
1. Reconnect harness connectors disconnected.
2. Disconnect battery negative cable (1).
3. Install jumper cable (A) between battery negative terminal and
body ground.
4. Turn ignition switch ON. Continuity should exist.
BBIA0745E
Revision: April 20092010 QX56
