EC-60
< FUNCTION DIAGNOSIS >[VK56DE]
ON BOARD DIAGNOSTIC (OBD) SYSTEM

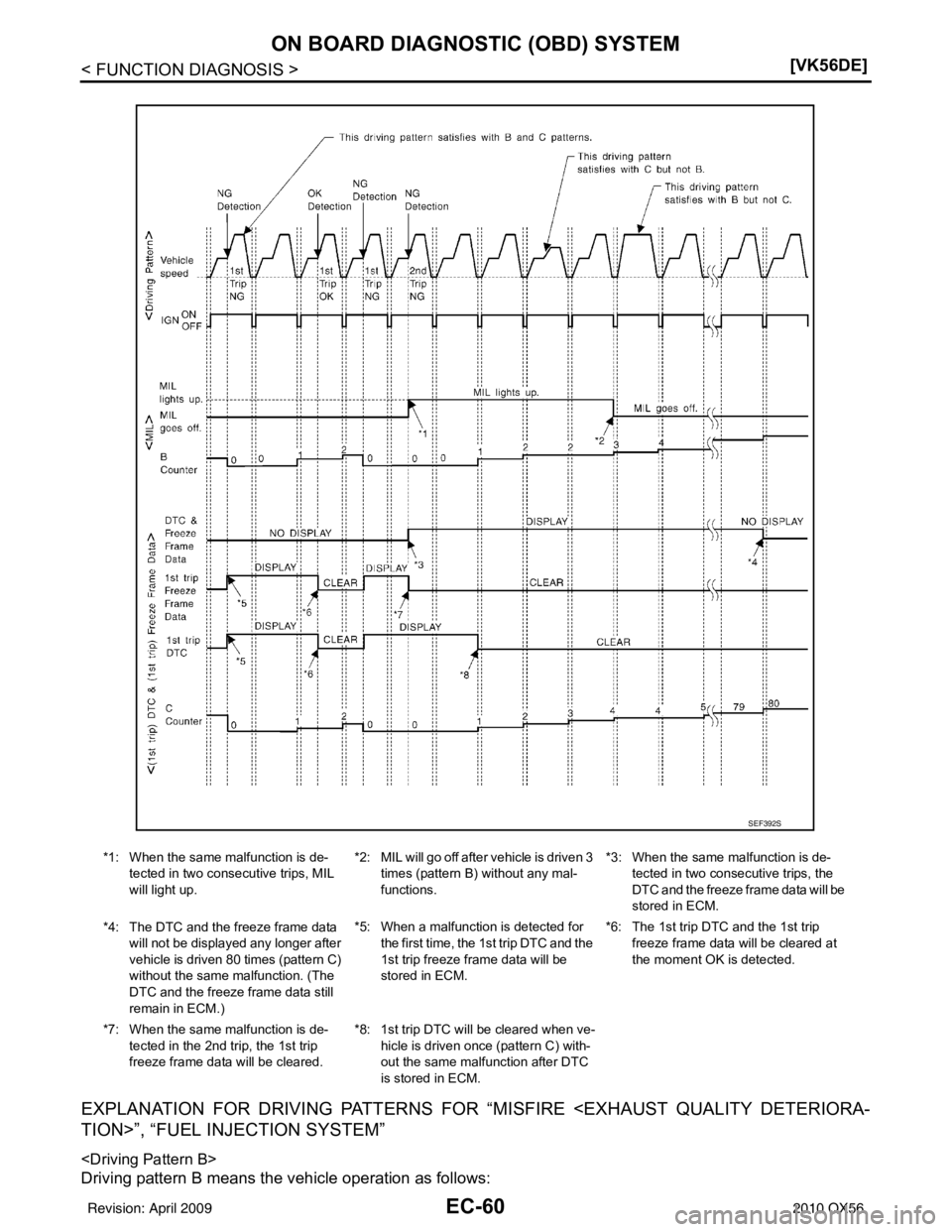

EXPLANATION FOR DRIVING PATTERNS FOR “M
ISFIRE TION>”, “FUEL INJECTION SYSTEM”

Driving pattern B means the vehicle operation as follows:
*1: When the same malfunction is de-
tected in two consecutive trips, MIL
will light up. *2: MIL will go off after vehicle is driven 3
times (pattern B) without any mal-
functions. *3: When the same malfunction is de-
tected in two consecutive trips, the
DTC and the freeze frame data will be
stored in ECM.
*4: The DTC and the freeze frame data will not be displayed any longer after
vehicle is driven 80 times (pattern C)
without the same malfunction. (The
DTC and the freeze frame data still
remain in ECM.) *5: When a malfunction is detected for
the first time, the 1st trip DTC and the
1st trip freeze frame data will be
stored in ECM. *6: The 1st trip DTC and the 1st trip
freeze frame data will be cleared at
the moment OK is detected.
*7: When the same malfunction is de- tected in the 2nd trip, the 1st trip
freeze frame data will be cleared. *8: 1st trip DTC will
be cleared when ve-
hicle is driven once (pattern C) with-
out the same malfunction after DTC
is stored in ECM.
SEF392S
Revision: April 20092010 QX56

ON BOARD DIAGNOSTIC (OBD) SYSTEMEC-61
< FUNCTION DIAGNOSIS > [VK56DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
All components and systems should be monitored at least once by the OBD system.
• The B counter will be cleared when the malfunction is detected once regardless of the driving pattern.
• The B counter will be counted up when driving pattern B is satisfied without any malfunction.
• The MIL will go off when the B counter reaches
3. (*2 in “OBD SYSTEM OPERATION CHART”)

Driving pattern C means the vehicle operation as follows:
The following conditions should be satisfied at the same time:
Engine speed: (Engine speed in the freeze frame data) ±375 rpm
Calculated load value: (Calculated load value in the freeze frame data) x (1 ±0.1) [%]
Engine coolant temperature (T) condition:
• When the freeze frame data shows lower than 70 °C (158° F), T should be lower than 70 °C (158° F).
• When the freeze frame data shows higher than or equal to 70 °C (158° F), T should be higher than or equal to
70° C (158 °F).
Example:
If the stored freeze frame data is as follows:
Engine speed: 850 rpm, Calculated load val ue: 30%, Engine coolant temperature: 80°C (176° F)
To be satisfied with driving pattern C, the v ehicle should run under the following conditions:
Engine speed: 475 - 1,225 rpm, Calculated load value: 27 - 33%, Engine coolant temperature: more than 70°C
(158 °F)
• The C counter will be cleared when the malfunction is detected regardless of vehicle conditions above.
• The C counter will be counted up when vehicle conditions above is satisfied without the same malfunction.
• The DTC will not be displayed after C counter reaches 80.
• The 1st trip DTC will be cleared when C counter is counted once without the same malfunction after DTC is stored in ECM.
RELATIONSHIP BETWEEN MIL, DTC, 1ST TRIP DTC AND DRIVING PATTERNS EXCEPT FOR
“MISFIRE ”, “FUEL INJECTION SYSTEM”
Revision: April 20092010 QX56

EC-62
< FUNCTION DIAGNOSIS >[VK56DE]
ON BOARD DIAGNOSTIC (OBD) SYSTEM

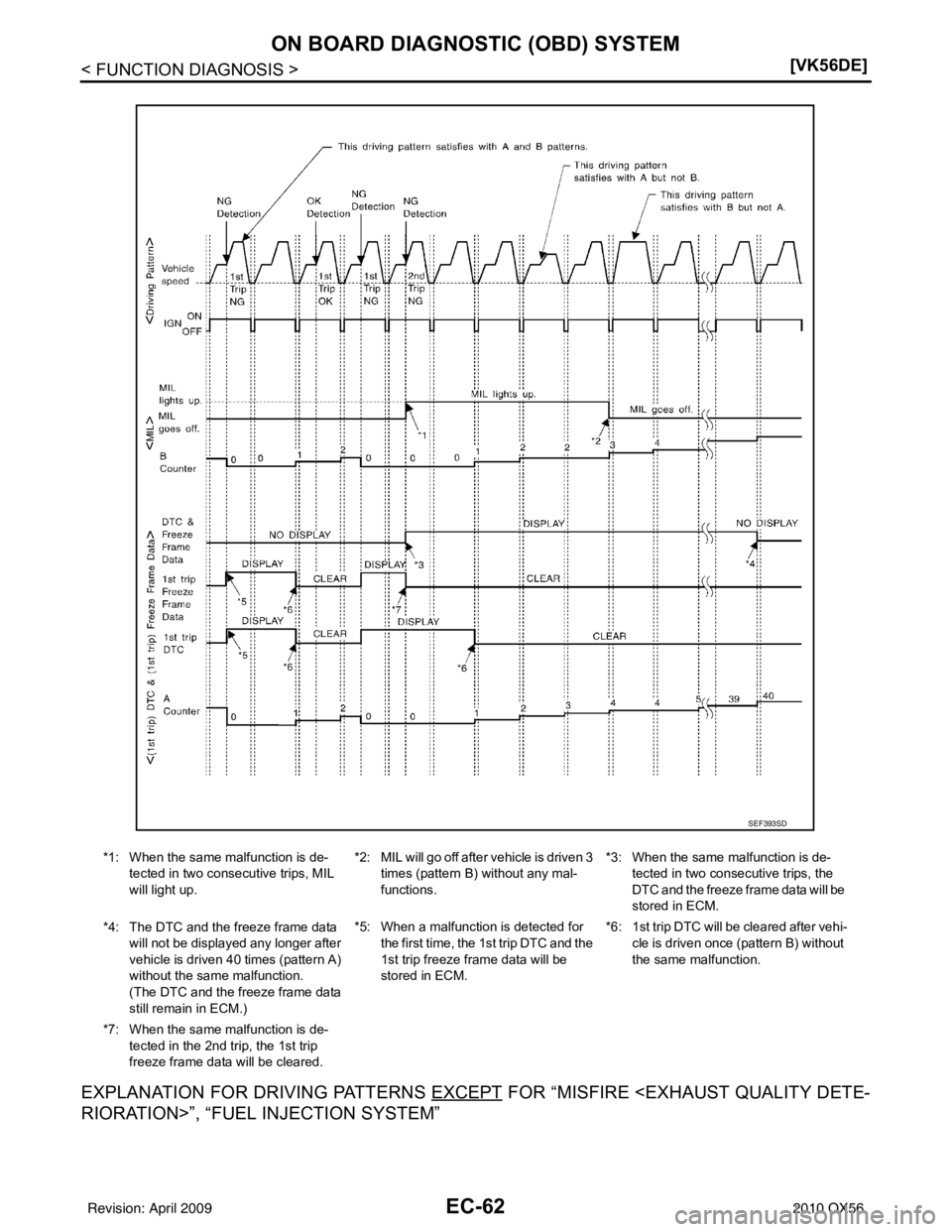

EXPLANATION FOR DRIVING PATTERNS EXCEPT FOR “MISFIRE RIORATION>”, “FUEL INJECTION SYSTEM”
*1: When the same malfunction is de-
tected in two consecutive trips, MIL
will light up. *2: MIL will go off after vehicle is driven 3
times (pattern B) without any mal-
functions. *3: When the same malfunction is de-
tected in two consecutive trips, the
DTC and the freeze frame data will be
stored in ECM.
*4: The DTC and the freeze frame data will not be displayed any longer after
vehicle is driven 40 times (pattern A)
without the same malfunction.
(The DTC and the freeze frame data
still remain in ECM.) *5: When a malfunction is detected for
the first time, the 1st trip DTC and the
1st trip freeze frame data will be
stored in ECM. *6: 1st trip DTC will be cleared after vehi-
cle is driven once (pattern B) without
the same malfunction.
*7: When the same malfunction is de- tected in the 2nd trip, the 1st trip
freeze frame data will be cleared.
SEF393SD
Revision: April 20092010 QX56

ON BOARD DIAGNOSTIC (OBD) SYSTEMEC-63
< FUNCTION DIAGNOSIS > [VK56DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O

• The A counter will be cleared when the malfunction is detected regardless of (1) - (4).
• The A counter will be counted up when (1) - (4) are satisfied without the same malfunction.
• The DTC will not be displayed after the A counter reaches 40.

Driving pattern B means the vehicle operation as follows:
All components and systems should be monitored at least once by the OBD system.
• The B counter will be cleared when the malfunction is detected once regardless of the driving pattern.
• The B counter will be counted up when driving pattern B is satisfied without any malfunctions.
• The MIL will go off when the B counter reac
hes 3 (*2 in OBD SYSTEM OPERATION CHART).
CONSULT-III Function (ENGINE)INFOID:0000000005149079
FUNCTION
*: The following emission-related diagnostic information is cleared when the ECM memory is erased.
• Diagnostic trouble codes
• 1st trip diagnostic trouble codes
• Freeze frame data
• 1st trip freeze frame data
• System readiness test (SRT) codes
•Test values
ENGINE CONTROL COMPONENT PARTS/CONTROL SYSTEMS APPLICATION
AEC574
Diagnostic test mode Function
Work support This mode enables a technician to adjust some devices faster and more accurately by following the in-
dications on the CONSULT-III unit.
Self-diagnostic results Self-diagnostic results such as 1st trip DTC, DTCs and 1st trip freeze frame data or freeze frame data
can be read and erased quickly.*
Data monitor Input/Output data in the ECM can be read.
Active test Diagnostic Test Mode in which CONSULT-III drives some actuators apart from the ECMs and also shifts
some parameters in
a specified range.
Function test This mode is used to inform customers when their vehicle condition requires periodic maintenance.
DTC & SRT confirmation The status of system monitoring tests and the self-diagnosis status/result can be confirmed.
ECU Identification ECM part number can be read.
Revision: April 20092010 QX56

ON BOARD DIAGNOSTIC (OBD) SYSTEMEC-65
< FUNCTION DIAGNOSIS > [VK56DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
X: Applicable
*1: This item includes 1st trip DTCs.
*2: This mode includes 1st trip freeze frame data or freeze frame data. The items appear on CONSULT-III screen in freeze frame
data
mode only if a 1st trip DTC or DTC is detected. For details, refer to “Freeze Frame Data and 1st Trip Freeze Frame Data”.
*3: Always “CMPLT ” is displayed.
WORK SUPPORT MODE
Work Item
ENGINE CONTROL COMPONENT PARTS
OUTPUT
Fuel injector ××
Power transistor (Ignition timing) ××
Throttle contro l motor relay ××
Throttle control motor ×
EVAP canister purge volume con-
trol solenoid valve ××
××
Air conditioner relay ×
Fuel pump relay ×× ×
Cooling fan relay ×××
Air fuel ratio (A/F) sensor 1 heater ×××*3
Heated oxygen sensor 2 heater ×××*3
EVAP canister vent control valve ×× ××
Intake valve timing control solenoid
valve ××
×
Alternator ××
Calculated load value ××
Item
DIAGNOSTIC TEST MODE
WORK SUP-
PORT SELF-DIAGNOSTIC
RESULTS DATA
MONI- TOR ACTIVE
TEST DTC & SRT
CONFIRMATION
DTC*1 FREEZE
FRAME
DATA*2 SRT
STATUS DTC
WORK SUP-
PORT
WORK ITEM CONDITION USAGE
FUEL PRESSURE RELEASE • FUEL PUMP WILL STOP BY TOUCHING “START” DUR- ING IDLING.
CRANK A FEW TIMES AFTER ENGINE STALLS. When releasing fuel pressure from
fuel line
IDLE AIR VOL LEARN • THE IDLE AIR VOLUME THAT KEEPS THE ENGINE
WITHIN THE SPECIFIED RANGE IS MEMORIZED IN
ECM. When learning the idle air volume
SELF-LEARNING CONT • THE COEFFICIENT OF SELF-LEARNING CONTROL
MIXTURE RATIO RETURNS TO THE ORIGINAL COEF-
FICIENT. When clearing the coefficient of
self-learning control value
Revision: April 20092010 QX56

EC-66
< FUNCTION DIAGNOSIS >[VK56DE]
ON BOARD DIAGNOSTIC (OBD) SYSTEM
*: This function is not necessary in the usual service procedure.
SELF-DIAG RESULTS MODE
Self Diagnostic Item
Regarding items of DTC and 1st trip DTC, refer to
EC-459, "DTC Index".
Freeze Frame Data and 1st Trip Freeze Frame Data
EVAP SYSTEM CLOSECLOSE THE EVAP CANISTER VENT CONTROL VALVE IN
ORDER TO MAKE EVAP SYSTEM CLOSE UNDER THE
FOLLOWING CONDITIONS.
• IGN SW ON
• ENGINE NOT RUNNING
• AMBIENT TEMPERATURE IS ABOVE 0° C (32°F).
• NO VACUUM AND NO HIGH PRESSURE IN EVAP SYS- TEM
• FUEL TANK TEMP. IS MORE THAN 0 °C (32 °F).
• WITHIN 10 MINUTES AFTER STARTING “EVAP SYS- TEM CLOSE”
• WHEN TRYING TO EXECUTE “EVAP SYSTEM CLOSE” UNDER THE CONDITION EXCEPT ABOVE, CONSULT-
III WILL DISCONTINUE IT AND DISPLAY APPROPRI-
ATE INSTRUCTION.
NOTE:
WHEN STARTING ENGINE, CONSULT-III MAY DIS-
PLAY “BATTERY VOLTAGE IS LOW. CHARGE BAT-
TERY”, EVEN IN USING CHARGED BATTERY. When detecting EVAP vapor leak
point of EVAP system
VIN REGISTRATION • IN THIS MODE, VIN IS REGISTERED IN ECMWhen registering VIN in ECM
TARGET IDLE RPM ADJ* • IDLE CONDITION When setting target idle speed
TARGET IGN TIM ADJ* • IDLE CONDITION When adjusting target ignition tim-
ing
WORK ITEM
CONDITION USAGE
Freeze frame data
item* Description
DIAG TROUBLE
CODE
[PXXXX] • The engine control co
mponent part/control system has a trouble code, it is displayed as PXXX X. (Refer to
EC-459, "
DTC Index".)
FUEL SYS-B1 • “Fuel injection system status” at the moment a malfunction is detected is displayed.
• One mode in the following is displayed. Mode2: Open loop due to detected system malfunction
Mode3: Open loop due to driving conditions (power enrichment, deceleration enleanment)
Mode4: Closed loop - using oxygen sensor(s) as feedback for fuel control
Mode5: Open loop - has not yet satisfied condition to go to closed loop
FUEL SYS-B2
CAL/LD VALUE [%] • The calculated load value at the moment a malfunction is detected is displayed.
COOLANT TEMP
[
° C] or [ °F] • The engine coolant temperature at the moment a malfunction is detected is displayed.
L-FUEL TRM-B1 [%] • “Long-term fuel trim” at the moment a malfunction is detected is displayed. • The long-term fuel trim indicates much more gradual feedback compensation to the base fuel schedule than short-term fuel trim.
L-FUEL TRM-B2 [%]
S-FUEL TRM-B1 [%] • “Short-term fuel trim” at the
moment a malfunction is detected is displayed.
• The short-term fuel trim indicates dynamic or instantaneous feedback compensation to the base fuel sched-
ule.
S-FUEL TRM-B2 [%]
ENGINE SPEED [rpm] • The engine speed at the moment a malfunction is detected is displayed.
VEHICL SPEED
[km/h] or [mph] • The vehicle speed at the moment a malfunction is detected is displayed.
ABSOL TH-P/S
[%] • The throttle valve opening at the moment a malfunction is detected is displayed.
B/FUEL SCHDL
[msec] • The base fuel schedule at the moment a malfunction is detected is displayed.
Revision: April 20092010 QX56

ON BOARD DIAGNOSTIC (OBD) SYSTEMEC-67
< FUNCTION DIAGNOSIS > [VK56DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
*: The item is the same as that of 1st trip freeze frame data.
DATA MONITOR MODE
Monitored Item
×
: Applicable
INT/A TEMP SE
[° C] or [ °F] • The intake air temperature at the moment a malfunction is detected is displayed.
INT MANI PRES [kPa] • Always a certain value is displayed.
• These items are not efficient JA60 models.
COMBUST CONDI-
TION Freeze frame data
item* Description
Monitored item
[Unit] ECM IN-
PUT SIG-
NALS MAIN
SIGNALS Description
Remarks
ENG SPEED [rpm] ×ו Indicates the engine speed computed
from the signal of the crankshaft position
sensor (POS) and camshaft position
sensor (PHASE). • Accuracy becomes poor if engine
speed drops below the idle rpm.
• If the signal is interrupted while the en-
gine is running, an abnormal value may
be indicated.
MAS A/F SE-B1 [V] ×ו The signal voltage of the mass air flow
sensor is displayed. • When the engine is stopped, a certain
value is indicated.
• When engine is running specification range is indicated in “SPEC”.
B/FUEL SCHDL
[msec] ×ו Base fuel schedule indicates the fuel in-
jection pulse width programmed into
ECM, prior to any learned on board cor-
rection. • When engine is running specification
range is indicated in “SPEC”.
A/F ALPHA-B1 [%] • The mean value of the air-fuel ratio feed-back correction factor per cycle is indi-
cated. • When the engine is stopped, a certain
value is indicated.
• When engine is running specification range is indicated in “SPEC”.
• This data also includes the data for the
air-fuel ratio learning control.
A/F ALPHA-B2 [%]
COOLAN TEMP/S
[
° C] or [ °F] ×× • The engine coolant temperature (deter-
mined by the signal voltage of the engine
coolant temperature sensor) is dis-
played. • When the engine coolant temperature
sensor is open or short-circuited, ECM
enters fail-safe mode. The engine cool-
ant temperature determined by the
ECM is displayed.
A/F SEN1 (B1) [V] ××
• The A/F signal computed from the input
signal of the A/F sensor 1 is displayed.
A/F SEN1 (B2) [V] ××
HO2S2 (B1) [V] ××
• The signal voltage of the heated oxygen
sensor 2 is displayed.
HO2S2 (B2) [V] ××
HO2S2 MNTR (B1)
[RICH/LEAN] ×
• Display of heated oxygen sensor 2 sig-
nal:
RICH: means the amount of oxygen after
three way catalyst is relatively small.
LEAN: means the amount of oxygen af-
ter three way catalyst is relatively large. • When the engine is stopped, a certain
value is indicated.
HO2S2 MNTR (B2)
[RICH/LEAN] ×
VHCL SPEED SE
[km/h] or [mph] ×ו The vehicle speed computed from the
vehicle speed signal sent from combina-
tion meter is displayed.
BATTERY VOLT [V] • The power supply voltage of ECM is dis-
played.
ACCEL SEN 1 [V] • The accelerator pedal position sensor
signal voltage is displayed. • ACCEL SEN 2 signal is converted by
ECM internally. Thus, it differs from
ECM terminal voltage signal.
ACCEL SEN 2 [V]
Revision: April 20092010 QX56

EC-68
< FUNCTION DIAGNOSIS >[VK56DE]
ON BOARD DIAGNOSTIC (OBD) SYSTEM
TP SEN 1-B1 [V]
××
• The throttle position sensor signal volt-
age is displayed. • TP SEN 2-B1 signal is converted by
ECM internally. Thus, it differs from
ECM terminal voltage signal.
TP SEN 2-B1 [V]
××
FUEL T/TMP SE
[ ° C] or [ °F] • The fuel temperature (determined by the
signal voltage of the fuel tank tempera-
ture sensor) is displayed.
INT/A TEMP SE
[ ° C] or [ °F] ×× • The intake air temperature (determined
by the signal voltage of the intake air
temperature sensor) is indicated.
EVAP SYS PRES
[V] • The signal voltage of EVAP control sys-
tem pressure sensor is displayed.
FUEL LEVEL SE [V] ו The signal voltage of the fuel level sen-
sor is displayed.
START SIGNAL
[ON/OFF] • Indicates start signal status [ON/OFF]
computed by the ECM according to the
signals of engine speed and battery volt-
age. • After starting the engine, [OFF] is dis-
played regardless of the starter signal.
CLSD THL POS
[ON/OFF] ×ו Indicates idle position [ON/OFF] comput-
ed by ECM according to the accelerator
pedal position sensor signal.
AIR COND SIG
[ON/OFF] ×ו Indicates [ON/OFF] condition of the air
conditioner switch as determined by the
air conditioner signal.
P/N POSI SW
[ON/OFF] ××
• Indicates [ON/OFF] condition from the
park/neutral position (PNP) signal.
PW/ST SIGNAL
[ON/OFF] ×ו [ON/OFF] condition of the power steering
system (determined by the signal voltage
of the power steering pressure sensor
signal) is indicated.
LOAD SIGNAL [ON/
OFF] ×ו Indicates [ON/OFF] condition from the
electrical load signal.
ON: Rear window defogger switch is ON
and/or lighting switch is in 2nd position.
OFF: Both rear window defogger switch
and lighting switch are OFF.
IGNITION SW
[ON/OFF] ×ו Indicates [ON/OFF] condition from igni-
tion switch signal.
HEATER FAN SW
[ON/OFF] ×
• Indicates [ON/OFF] condition from heat-
er fan switch signal.
BRAKE SW
[ON/OFF] • Indicates [ON/OFF] condition from the
stop lamp switch signal.
INJ PULSE-B1
[msec] • Indicates the actual fuel injection pulse
width compensated by ECM according to
the input signals. • When the engine is stopped, a certain
computed value is indicated.
INJ PULSE-B2
[msec]
IGN TIMING [BT-
DC] • Indicates the ignition timing computed by
ECM according to the input signals. • When the engine is stopped, a certain
value is indicated.
CAL/LD VALUE [%] • “Calculated load value” indicates the val-
ue of th

e current air flow divided by peak
air flow.
MASS AIRFLOW
[g·m/s] • Indicates the mass air flow computed by
ECM according to the signal voltage of
the mass air flow sensor.
Monitored item
[Unit] ECM IN-
PUT SIG-
NALS MAIN
SIGNALS Description
Remarks
Revision: April 20092010 QX56
