1. Hood (P. 3-17)
2. Headlight and turn signal lightsÐ Switch operation (P. 2-29)
Ð Bulb replacement (P. 8-30)
Ð Adaptive Front lighting System (AFS)
(if so equipped) (P. 2-31) 3. Windshield wiper and washer
Ð Switch operation (P. 2-27)
Ð Rain-sensing auto wiper system
(P. 2-28)
Ð Blade replacement (P. 8-22)
Ð Window washer fluid (P. 8-17) 4. Moonroof (P. 2-46)
5. Power windows (P. 2-43)
6. Recovery hook (P. 6-14)
7. License plate installation (P. 9-14)
8. Fog lights (P. 2-33)
9. Tires
Ð Wheel and tires (P. 8-34, P. 9-9)
Ð Flat tire (P. 6-2)
Ð Tire Pressure Monitoring System
(TPMS) (P. 2-15, P. 5-3)
10. Outside mirrors (P. 3-24)
11. Doors Ð Keys (P. 3-2)
Ð Door locks (P. 3-4)
Ð Intelligent Key system (P. 3-6)
Ð Security system (P. 2-24)
SSI0369
EXTERIOR FRONT
Illustrated table of contents0-3
wÐ
Ð
05/19/09Ðtbrooks
X

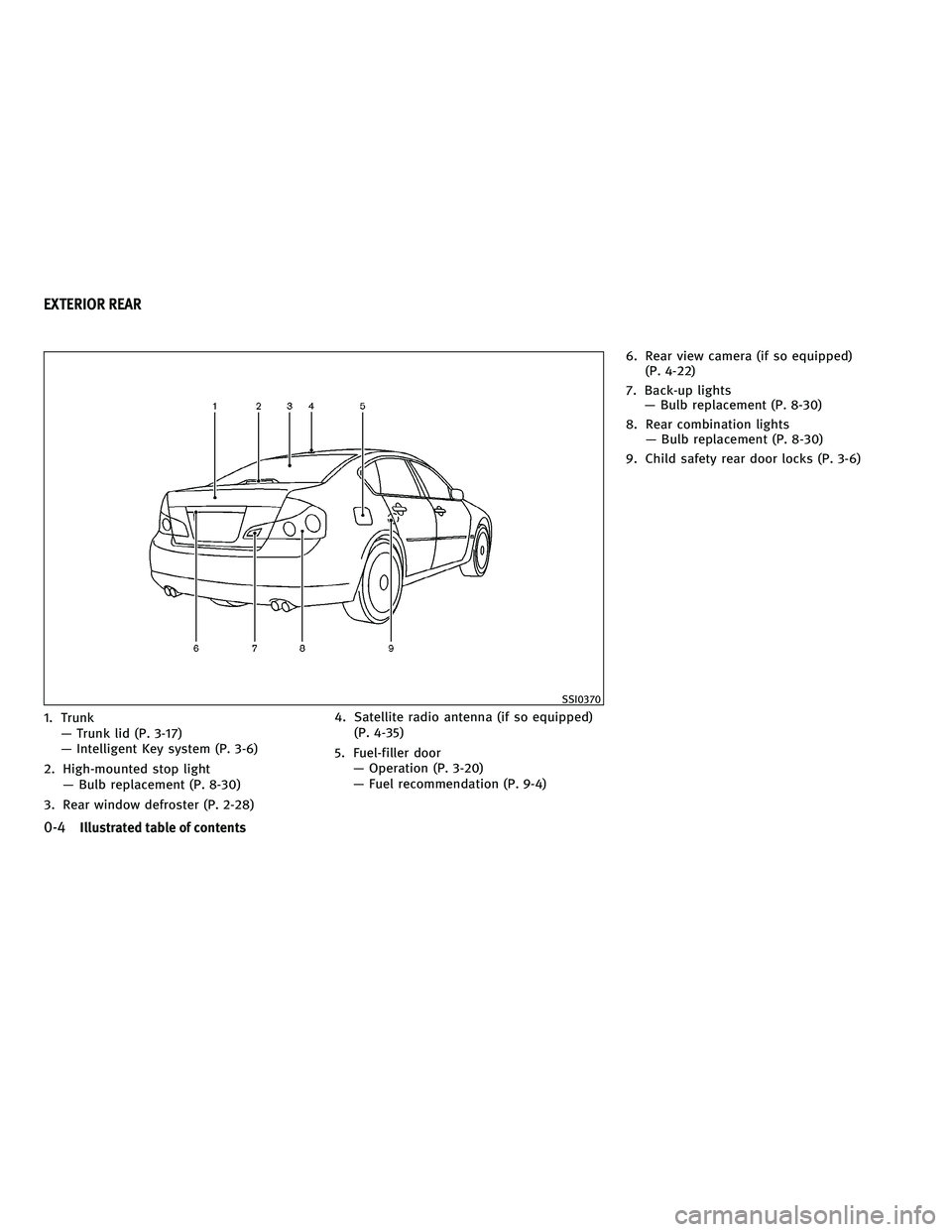

1. TrunkÐ Trunk lid (P. 3-17)
Ð Intelligent Key system (P. 3-6)
2. High-mounted stop light Ð Bulb replacement (P. 8-30)
3. Rear window defroster (P. 2-28) 4. Satellite radio antenna (if so equipped)
(P. 4-35)
5. Fuel-filler door Ð Operation (P. 3-20)
Ð Fuel recommendation (P. 9-4) 6. Rear view camera (if so equipped)
(P. 4-22)
7. Back-up lights Ð Bulb replacement (P. 8-30)
8. Rear combination lights Ð Bulb replacement (P. 8-30)
9. Child safety rear door locks (P. 3-6)
SSI0370
EXTERIOR REAR
0-4Illustrated table of contents
wÐ
Ð
05/19/09Ðtbrooks
X

1. Instrument brightness control switch(P. 2-32)
2. Outside mirror remote control switch (P. 3-24)
3. Adaptive Front lighting System (AFS) switch (P. 2-31) 4. Vehicle Dynamic Control (VDC) OFF switch
(P. 2-37)
5. Headlight, fog light and turn signal switch (P. 2-29)
6. Steering-wheel-mounted controls (left side) Ð ENTER switch (if so equipped)
(P. 4-6, P. 4-58)
Ð For audio system (P. 4-58)
Ð For phone system (P. 4-74, P. 4-84)
Ð For voice recognition system
(if so equipped) (P. 4-98)
7. Windshield wiper and washer switch (P. 2-27)
8. Steering-wheel-mounted controls (right side)
Ð Cruise control switches (P. 5-23)
Ð Intelligent Cruise Control (ICC) switches
(if so equipped) (P. 5-25)
Ð Lane Departure Prevention (LDP) switch
(if so equipped) (P. 5-16)
9. Hood release handle (P. 3-17)
10. Trunk lid release switch (P. 3-18)
11. Lane Departure Warning (LDW) switch (if so equipped) (P. 2-36, P. 5-16)
12. Intelligent Key port (P. 5-9)
13. Tilting/telescopic steering wheel switch (P. 3-22)
14. Steering wheel Ð Horn (P. 2-34)
Ð Driver supplemental air bag (P. 1-40)
15. Automatic Transmission (AT) selector lever (P. 5-11)
SIC3601
COCKPIT
Illustrated table of contents0-7
wÐ
Ð
05/19/09Ðtbrooks
X

WarninglightName Page
All-Wheel Drive (AWD) warning
light (AWD models)* 2-13
Anti-lock Braking System (ABS)
warning light2-13
Automatic Transmission (AT)
check warning light2-13
Brake warning light
2-14
Charge warning light2-14
Door open warning light2-14
Engine oil pressure warning
light2-14
Intelligent Cruise Control (ICC)
system warning light (orange)*2-15
Intelligent Key system warning
light 2-15
Lane departure warning light
(orange)*2-15
Warning
lightName Page
Low fuel warning light 2-15
Low tire pressure warning light 2-15
Low washer fluid warning light 2-17
Preview Function warning light
(orange)*2-17
Rear Active Steer warning light* 2-17
Seat belt warning light
2-17
Supplemental air bag warning
light 2-17
IndicatorlightName Page
Adaptive Front lighting System
(AFS) indicator light 2-18
Automatic Transmission (AT)
position indicator light2-18
Cruise main switch indicator
light (green)2-18
IndicatorlightName Page
Cruise set switch indicator light 2-18
Front passenger air bag status
light 2-18
High beam indicator light
2-18
Intelligent Cruise Control (ICC)
system MAIN switch indicator
light (green)* 2-19
Lane Departure Prevention
(LDP) ON indicator light
(green)*2-19
Malfunction Indicator Light
(MIL)
2-19
Slip indicator light
2-20
Small light indicator lights 2-20
Turn signal/hazard indicator
lights2-20
Vehicle Dynamic Control (VDC)
off indicator light2-20
*: if so equipped
WARNING AND INDICATOR LIGHTS
Illustrated table of contents0-13
wÐ
Ð
05/14/09Ðpattie
X

ARMREST
Front armrest
Pull the leversAup and slide the driver's or
passenger's armrest forward and backward.
Slide the armrest to the original position when
using the front cup holders.
Rear armrest
Pull the armrest down until it is horizontal.
Trunk pass-through
The rear center seatback can be folded to allow
trunk access from inside of the vehicle.
To access the trunk, pull down the rear center
armrest and pull out the trunk pass-through lid
s1.
To lock the lid, use the mechanical key and turn
it to the LOCK position
s2. To unlock, turn the
mechanical key to the UNLOCK position
s3. For
the mechanical key usage, see ªKEYSº in the ª3.
Pre-driving checks and adjustmentsº section.
Make sure that the mechanical key is removed
from the trunk pass-through lid key cylinder
before opening or closing the lid. Otherwise the
lid and the rear armrest may be damaged.
SIC2783SSS0520SSS0479
Safety Ð Seats, seat belts and supplemental restraint system1-11
wÐ
Ð
05/14/09Ðpattie
X

1. Instrument brightness control switch(P. 2-32)
2. Outside mirror remote control switch (P. 3-24)
3. Adaptive Front lighting System (AFS) switch (P. 2-31) 4. Vehicle Dynamic Control (VDC) OFF switch
(P. 2-37)
5. Headlight, fog light and turn signal switch (P. 2-29)
6. Steering-wheel-mounted controls (left side) Ð ENTER switch (if so equipped)
(P. 4-6, P. 4-58)
Ð For audio system (P. 4-58)
Ð For phone system (P. 4-74, P. 4-84)
Ð For voice recognition system
(if so equipped) (P. 4-98)
7. Windshield wiper and washer switch (P. 2-27)
8. Steering-wheel-mounted controls (right side)
Ð Cruise control switches (P. 5-23)
Ð Intelligent Cruise Control (ICC) switches
(if so equipped) (P. 5-25)
Ð Lane Departure Prevention (LDP) switch
(if so equipped) (P. 5-16)
9. Hood release handle (P. 3-17)
10. Trunk lid release switch (P. 3-18)
11. Lane Departure Warning (LDW) switch (if so equipped) (P. 2-36, P. 5-16)
12. Intelligent Key port (P. 5-9)
13. Tilting/telescopic steering wheel switch (P. 3-22)
14. Steering wheel Ð Horn (P. 2-34)
Ð Driver supplemental air bag (P. 1-40)
15. Automatic Transmission (AT) selector lever (P. 5-11)
SIC3601
COCKPIT
2-2Instruments and controls
wÐ
Ð
05/19/09Ðtbrooks
X

reaches ªEº. There will be a small reserve of fuel
in the tank when the fuel gauge needle reaches
ªEº.
The
indicates that the fuel-filler door is
located on the passenger's side of the vehicle.
CAUTION
c If the vehicle runs out of fuel, themalfunction indicator light (MIL) may come
on. Refuel as soon as possible. After a few
driving trips, the
light should turn off.
If the light remains on after a few driving
trips, have the vehicle inspected by an
INFINITI retailer.
c For additional information, see ªMalfunction
Indicator Light (MIL)º later in this section.
METER/RING ILLUMINATION AND
NEEDLE SWEEP
The ring illumination surrounding meters and
gauges illuminates when the driver's door is
closed after getting into the vehicle with the
Intelligent Key carried in.
When the engine is started, the indicator
needles will sweep in the speedometer and
tachometer and the ring illumination will be
brightened gradually.
Meter illumination control knob
The meter illumination control knobs1oper-
ates when the headlight switch is in the AUTO
(not lighting) or OFF position with the ignition
switch in the ON position. To adjust the brightness of the meters, push the
control knob several times until the desired
brightness is achieved.
To turn the ring illumination and needle sweep
on and off, push the control knob and hold it for
1 second.
SIC3610
2-8Instruments and controls
wÐ
Ð
05/14/09Ðpattie
X

All-Wheel Drive (AWD) warning light
(AWD models)*Lane departure warning light (or-
ange)*Cruise set switch indicator light
Anti-lock Braking System (ABS) warn-
ing lightLow fuel warning lightFront passenger air bag status light
Low tire pressure warning lightHigh beam indicator light
Automatic Transmission (AT) check
warning lightLow washer fluid warning lightIntelligent Cruise Control (ICC) system
MAIN switch indicator light (green)*
Brake warning light
Preview Function warning light
(orange)*Lane Departure Prevention (LDP) ON
indicator light (green)*
Rear Active Steer warning light*Malfunction Indicator Light (MIL)
Charge warning lightSeat belt warning lightSlip indicator light
Door open warning lightSupplemental air bag warning lightSmall light indicator lights
Engine oil pressure warning lightAdaptive Front lighting System (AFS)
indicator lightTurn signal/hazard indicator lights
Intelligent Cruise Control (ICC) sys-
tem warning light (orange)*Automatic Transmission (AT) position
indicator lightVehicle Dynamic Control (VDC) off
indicator light
Intelligent Key system warning lightCruise main switch indicator light
(green)*: if so equipped
WARNING/INDICATOR LIGHTS AND
AUDIBLE REMINDERS
2-12Instruments and controls
wÐ
Ð
05/14/09Ðpattie
