2010 INFINITI FX navigation system

1. Outside mirror remote control switch(P. 3-23)
2. Instrument brightness control switch (P. 2-39)
3. Headlight, fog light and turn signal switch (P. 2-35) 4. Steering-wheel-mounted controls
(left side)
— For audio system (P. 4-46)
— For Bluetooth Hands-Free Phone Sys-
tem (with navigation system) (P. 4-104)
— For INFINITI Voice Recognition System
(with navigation system) (P. 4-129) 5. Trip computer switch (P. 2-27)
6. Windshield wiper and washer switch
(P. 2-32)
7. Steering-wheel-mounted controls (right side)
— Cruise control switches (P. 5-26)
— Intelligent Cruise Control (ICC) switches
(if so equipped) (P. 5-28)
— Lane Departure Prevention (LDP) switch
(if so equipped) (P. 5-18)
— Distance Control Assist (DCA) switch
(if so equipped) (P. 5-49)
8. Intelligent Brake Assist (IBA) off switch (if so equipped) (P. 2-44)
9. Vehicle Dynamic Control (VDC) OFF switch (P. 5-77)
10. Intelligent Key port (P. 5-11)
11. Forward Collision Warning (FCW) and Lane Departure Warning (LDW) switch
(if so equipped)
— Forward Collision Warning (FCW)
(P. 2-43, 5-61)
— Lane Departure Warning (LDW)
(P. 2-42, 5-18)
12. TRIP/RESET switch for twin trip odometer (P. 2-6)
13. Electric tilting/telescopic steering wheel lever (if so equipped) (P. 3-19)
SIC4246
COCKPIT
0-6Illustrated table of contents
—
—
08/03/09—tbrooks


1. Side ventilator (P. 4-39)
2. Paddle shifter (if so equipped) (P. 5-15)
3. Meters and gauges (P. 2-5)
4. Center ventilator (P. 4-39)5. Center multi-function control panel
— Navigation system* (if so equipped)
— Vehicle information and setting buttons
(P. 4-7)
— Bluetooth Hands-Free Phone System
(with navigation system) (P. 4-104) — Around View Monitor (if so equipped)
(P. 4-28)
6. Center display (P. 4-2)
7. Clock (P. 2-45)
8. Hazard warning flasher switch (P. 2-40)
9. Front passenger supplemental air bag (P. 1-40)
10. Hood release handle (P. 3-16)
11. Fuse box cover (P. 8-22)
12. Parking brake (P. 5-17)
13. Steering wheel — Horn (P. 2-41)
— Driver supplement air bag (P. 1-40)
14. Push-button ignition switch (P. 5-9)
15. Front passenger air bag status light (P. 1-45)
16. Power outlet (P. 2-45)
17. Rear window defogger switch (P. 2-35)
18. Automatic climate control system (P. 4-40)
19. Audio system (P. 4-46)
20. Glove box lid release handle (P. 2-48)
*: Refer to the separate Navigation System Owner’s Manual.
SSI0635
INSTRUMENT PANEL
0-8Illustrated table of contents
—
—
08/03/09—tbrooks


1. Outside mirror remote control switch
2. Instrument brightness control switch
3. H
eadlight, fog light and turn signal switch
4. Steering-wheel-mounted controls(left side)
— For audio system — For Bluetooth
Hands-Free Phone
System (with navigation system)
— For Bluetooth Hands-Free Phone
System (without navigation system)
— For INFINITI Voice Recognition System
(if so equipped) 5. Trip computer switch
6. Windshield wiper and washer switch
7. Steering-wheel-mounted controls
(right side)
— Cruise control switches
— Intelligent Cruise Control (ICC) switches
(if so equipped)
— Lane Departure Prevention (LDP) switch
(if so equipped)
8. Intelligent Brake Assist (IBA) off switch (if so equipped)
9. Vehicle Dynamic Control (VDC) OFF switch
10. Intelligent Key port
11. Forward Collision Warning (FCW) and Lane Departure Warning (LDW) switch
(if so equipped)
— Forward Collision Warning (FCW)
— Lane Departure Warning (LDW)
12. TRIP/RESET switch for twin trip odometer
13. Electric tilting/telescopic steering wheel lever (if so equipped)
14. Manual tilting/telescopic steering wheel lever (if so equipped)
SIC4246
COCKPIT
2-2Instruments and controls
—
—
08/03/09—tbrooks


1. Side ventilator
2. Paddle shifter (if so equipped)
3. Meters and gauges
4. Center ventilator5. Center multi-function control panel
— Navigation system* (if so equipped)
— Vehicle information and setting buttons
— Bluetooth Hands-Free Phone System
(if so equipped)
— Around View Monitor (if so equipped) 6. Center display
7. Clock
8. Hazard warning flasher switch
9. Front passenger supplemental air bag
10. Hood release handle
11. Fuse box cover
12. Parking brake
13. Steering wheel
— Horn
— Driver supplement air bag
14. Push-button ignition switch
15. Front passenger air bag status light
16. Power outlet
17. Rear window defogger switch
18. CompactFlash card slot (if so equipped)
19. Automatic climate control system
20. Audio system
21. Glove box lid release handle
*: Refer to the separate Navigation System Owner’s Manual.SIC3824
INSTRUMENT PANEL
2-4Instruments and controls
—
—
08/03/09—tbrooks


3. Within 20 seconds of performing Step #2,push and hold the power door lock switch
to the
position (UNLOCK) for more
than 5 seconds.
4. When activated, the hazard indicator will flash twice. When deactivated, the hazard
indicator will flash once.
5. The ignition switch must be placed in the OFF and ON position again between each
setting change.
When the automatic door unlock system is
deactivated, the doors do not unlock when the
ignition switch is placed in the OFF position
(models with Intelligent Key system) or when
the key is removed from the ignition switch
(models without Intelligent Key system). To
unlock the door manually, use the inside lock
knob or the power door lock switch (driver’s or
front passenger’s side).

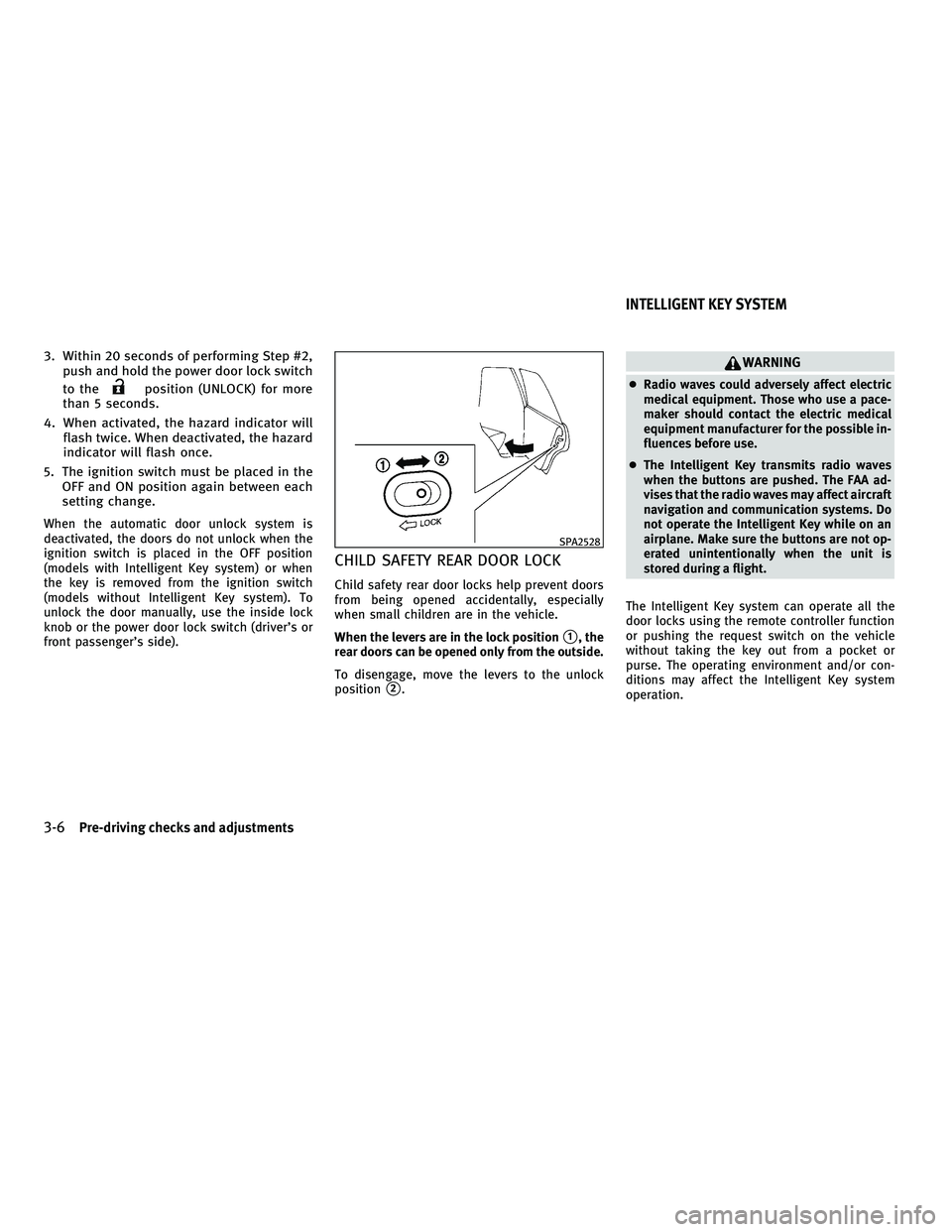

CHILD SAFETY REAR DOOR LOCK
Child safety rear door locks help prevent doors
from being opened accidentally, especially
when small children are in the vehicle.
When the levers are in the lock position
1, the
rear doors can be opened only from the outside.
To disengage, move the levers to the unlock
position
2.
WARNING
● Radio waves could adversely affect electric
medical equipment. Those who use a pace-
maker should contact the electric medical
equipment manufacturer for the possible in-
fluences before use.
● The Intelligent Key transmits radio waves
when the buttons are pushed. The FAA ad-
vises that the radio waves may affect aircraft
navigation and communication systems. Do
not operate the Intelligent Key while on an
airplane. Make sure the buttons are not op-
erated unintentionally when the unit is
stored during a flight.
The Intelligent Key system can operate all the
door locks using the remote controller function
or pushing the request switch on the vehicle
without taking the key out from a pocket or
purse. The operating environment and/or con-
ditions may affect the Intelligent Key system
operation.
SPA2528
INTELLIGENT KEY SYSTEM
3-6Pre-driving checks and adjustments
—
—
10/16/09—tbrooks


WARNING
The Intelligent Key transmits radio waves when
the buttons are pushed. The FAA advises that
radio waves may affect aircraft navigation and
communication systems. Do not operate the
Intelligent Key while on an airplane. Make sure
the buttons are not operated unintentionally
when the unit is stored for a flight.
It is possible to lock/unlock all doors, fuel-filler
door, activate the panic alarm and open the
windows by pushing the buttons on the Intelli-
gent Key from outside the vehicle.
Before locking the doors, make sure the Intelli-
gent Key is not left in the vehicle.
The LOCK/UNLOCK button on the Intelligent Key
can operate at a distance of approximately 33 ft
(10 m) from the vehicle. (The effective distance
depends upon the conditions around the ve-
hicle.)
As many as 4 Intelligent Keys can be used with
one vehicle. For information concerning the
purchase and use of additional Intelligent Keys,
contact an INFINITI retailer. The lock and unlock buttons on the Intelligent
Key will not operate when:
●
the distance between the Intelligent Key and
the vehicle is over 33 ft (10 m).
● the Intelligent Key battery runs down.
After locking with the remote keyless entry
function, pull the door handle to make sure the
doors are securely locked.
The LOCK/UNLOCK operating range varies de-
pending on the environment. To securely oper-
ate the lock and unlock buttons, approach the
vehicle to about 3 ft (1 m) from the door.
HOW TO USE REMOTE KEYLESS ENTRY
SYSTEM
When you lock or unlock the doors or the lift
gate, the hazard indicator will flash and the
horn (or the outside chime) will sound as a
confirmation. For details, see “Setting hazard
indicator and horn mode” later in this section.
Locking doors and fuel-filler door
1. Move the selector lever to the P (Park) position, push the ignition switch to the
OFF position and make sure you carry the
Intelligent Key with you.*1
2. Close all the doors and the lift gate.*2
SPA2252
REMOTE KEYLESS ENTRY SYSTEM
Pre-driving checks and adjustments3-13
—
—
07/30/09—pattie


4 Monitor, climate, audio, phone and voice
recognition systems
Safety note....................................... 4-2
Center multi-function control panel ................. 4-2
How to use INFINITI controller ................... 4-4
How to use touch screen
(models with navigation system) ................. 4-4
Menu options
(models with navigation system) ................. 4-6
How to select menus on the screen .............. 4-7
Vehicle information and settings .................... 4-7
How to use STATUS button ...................... 4-7
How to use brightness control and display
ON/OFF button ................................. 4-7
How to use INFO button ........................ 4-8
How to use SETTING button ....................4-13
How to use disc·aux button ....................4-22
RearView monitor (if so equipped) .................4-22
How to read displayed lines ....................4-23
How to park with predicted course lines .........4-23
Difference between predicted and actual
distances ..................................... 4-25
How to adjust screen .......................... 4-27
Operating tips ................................ 4-27
Around view monitor (if so equipped) ..............4-28
How to switch the display ......................4-30
How to see each view ......................... 4-31Difference between predicted and actual
distances
..................................... 4-35
Camera aiding corner sonar function ............4-37
How to adjust the screen view ..................4-38
Around view monitor settings ..................4-38
Operating tips ................................ 4-39
Ventilators ....................................... 4-39
Automatic climate control ......................... 4-40
Automatic climate control ......................4-42
Operating tips ................................ 4-45
In-cabin microfilter ............................ 4-45
Servicing climate control ....................... 4-46
Audio system .................................... 4-46
Audio operation precautions ...................4-46
FM-AM-SAT radio with Compact Disc (CD)
player ........................................ 4-61
DVD (DIGITAL VERSATILE DISC) player
operation (models with navigation system) ......4-65
Usb memory operation .........................
4-69
Bluetooth

streaming audio
(models with navigation system) ................4-73
iPod player operation ......................... 4-78
Music Box ................................... 4-79
Auxiliary input jacks ........................... 4-87
Cd/dvd/usb memory care and cleaning .........4-88
—
—
03/29/10—tbrooks


Steering-wheel-mounted controls for audio......4-89
Antenna ...................................... 4-90
INFINITI Mobile Entertainment System (MES)
(if so equipped) (for Canada) ......................4-91
Digital Versatile Disc (DVD) system
components .................................. 4-92
Before operating the DVD mobile
entertainment system .......................... 4-96
Playing a DVD ................................. 4-99
Care and maintenance ........................ 4-103
Car phone or CB radio ........................... 4-103
Bluetooth Hands-Free Phone System
(models with navigation system) ..................4-104
Regulatory information ........................ 4-105
Voice commands ............................. 4-105
Control buttons .............................. 4-106
Connecting procedure ........................ 4-106
Phone selection .............................. 4-107
Vehicle phonebook ........................... 4-107
Making a call ................................ 4-110
Receiving a call ............................... 4-111
During a call .................................. 4-111Phone setting
................................. 4-112
Troubleshooting guide ......................... 4-114
Bluetooth Hands-Free Phone System
(models without navigation system) ................4-115
Regulatory information ......................... 4-116
Control buttons ............................... 4-117
Voice recognition system ......................4-117
Pairing procedure ............................ 4-122
Phonebook registration ....................... 4-123
Making a call ................................ 4-123
Receiving a call .............................. 4-124
During a call ................................. 4-124
Phone operation ............................. 4-125
Speaker adaptation mode .....................4-128
INFINITI Voice Recognition system
(models with navigation system) ..................4-129
INFINITI
Voice Recognition standard mode ......4-130
Using the system ............................. 4-132
INFINITI Voice Recognition alternate
command mode .............................. 4-142
Using the system ............................. 4-148
Troubleshooting guide ........................ 4-153
—
—
10/16/09—tbrooks
